Product Type	Uninterruptible Power Supply (UPS) with Automatic Voltage Regulation (AVR)
Model	EG-UPS-002 (EGUPS002)
Apparent Power	850 VA
Active Power	510 W
Input Voltage	220 V AC ± 25 %, 50/60 Hz ± 10 %
Output Voltage	220 V AC ± 10 %, 50/60 Hz ± 1 % (220 V AC ± 5 % in battery mode)
Waveform	Sine wave (mains mode), quasi-sine wave (battery mode)
Battery	Sealed lead-acid, 12 V DC / 8 Ah
Charging Time	Up to 12 hours
Typical Backup Time	10 to 30 minutes (depending on load)
Transfer Time	Less than 10 ms
Outlets	1 x C13 (input), 4 x Schuko (output)
USB Port	Yes (for PC connection, monitoring)
Protection	Protection against surges, overloads and short circuits; battery management (overcharge and deep discharge)
Alarms	Audible and visual alarm (LED)
Dimensions (L × D × H)	280 × 185 × 95 mm
Weight	5.6 kg
Noise	< 45 dB at 1 m
Operating Temperature	0 °C to 40 °C
Operating Humidity	20 % to 90 % RH (non-condensing)
Wall Mountable	Yes (wall bracket)
Certifications	CE, RoHS
Warranty	24 months
Maintenance	Clean with a dry cloth; do not use chemicals.
Safety	Do not open the device; do not expose to water; observe grounding.
Spare parts and repairability	Battery replaceable by an authorized service center. No user-serviceable parts.
General Information	Brand: EnerGenie (Gembird Europe B.V.)

Frequently Asked Questions - EGUPS002 EnerGenie

What does UPS with AVR mean?

AVR stands for Automatic Voltage Regulation. This function allows the UPS to stabilize the output voltage even if the input voltage fluctuates, thus protecting your connected equipment.

What is the difference between EG-UPS-001 and EG-UPS-002?

The EG-UPS-001 model offers 650 VA (390 W) with a 7 Ah battery, while the EG-UPS-002 (your model) offers 850 VA (510 W) with an 8 Ah battery, providing higher runtime and power.

How to connect the UPS to my computer?

Use the USB port located at the back of the device (only on EG-UPS-002). Connect it to your PC with the provided cable to monitor the UPS status via software (downloadable from the manufacturer's website).

What is the battery runtime?

The runtime varies from 10 to 30 minutes depending on the connected load. For example, with a standard desktop computer (about 150 W), you can expect about 20 minutes.

What to do if the audible alarm sounds?

The audible alarm sounds in case of mains failure or low battery. If it sounds continuously, check if the battery is discharged. In battery mode, an intermittent beep indicates reduced runtime.

Can I plug a laser printer into the UPS?

It is not recommended to plug a laser printer into a UPS because their high consumption and power spikes can overload the inverter. Use a direct wall outlet instead.

How to replace the battery?

The internal battery is replaceable, but the operation must be carried out by an authorized service center for safety reasons. Do not attempt to open it yourself.

Is the UPS wall-mountable?

Yes, the device can be mounted on the wall using the provided brackets. Make sure to secure it firmly and observe the ventilation conditions around the device.

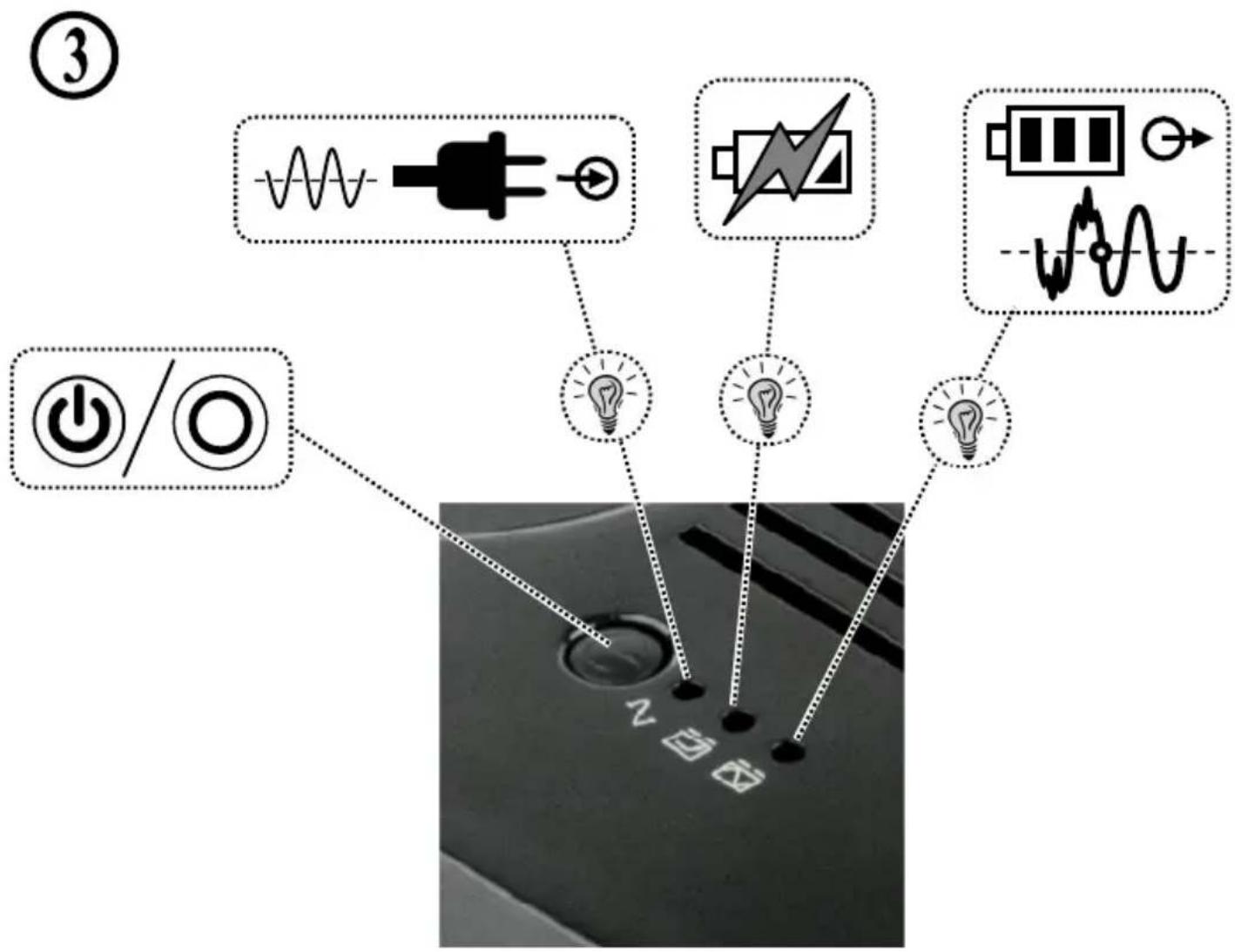

What do the LEDs on the front panel mean?

The LEDs indicate the UPS status: solid green = mains present and battery charged; blinking = battery charging; red = low battery or fault. Refer to the manual for details.

How to dispose of the UPS at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE Directive (2002/96/EC), return it to an approved collection point for electronic waste. The battery must be recycled separately.

USER MANUAL EGUPS002 EnerGenie

Black electronic device with four ventilation grilles and a power plug, no visible text or symbols on the device body.

EG-UPS-001

EG-UPS-002

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a grid of national flags including Germany, the European Union, Switzerland, Austria, Netherlands, Belgium, France, Russia, and Ukraine.

Features

• Uninterruptable 650 VA (850VA for EG-UPS-002) power supply with modified sine wave output
  • Automatic AC voltage regulation (AVR)
• Intelligent surge-, overload- and short-circuit protection
  • USB port for PC connection (only for EG-UPS-002)
  • Audible and visual alarms
  • LED status indication
  • Intelligent battery management with overcharge and over-discharge protection
• Wall mountable

Specifications

• Type: line interactive
  • Waveform: sine wave (AC mains), modified (square) sine wave (battery)
  • Input: 220 V AC ± 25%, 50 / 60 Hz ± 10%
  • Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode)
• Switching time: less than 10 ms
• Backup time: 10...30 mins (depends on the load)
  • Battery: sealed lead-acid 12 V DC / 7Ah (8 Ah for EG-UPS-002)
  • Charge time: up to 12 hours
• Sockets: 1 x C13 (input), 4 x Schuko (output)
• Operating conditions: 0°C\~40°C, at humidity 20\~90%RH non condensing
  • Power: 650 VA (390 W) (850 VA (510 W) – for EG-UPS-002)
• Charging current: up to 1.2 A
• Noise: < 45 dB at 1 m distance
• Dimensions: 280 × 185 × 95 ~mm
  • Product weight: 4.5 kg (5.6 kg for EG-UPS-002)

CE RoHS MADE IN CHINA

energenie

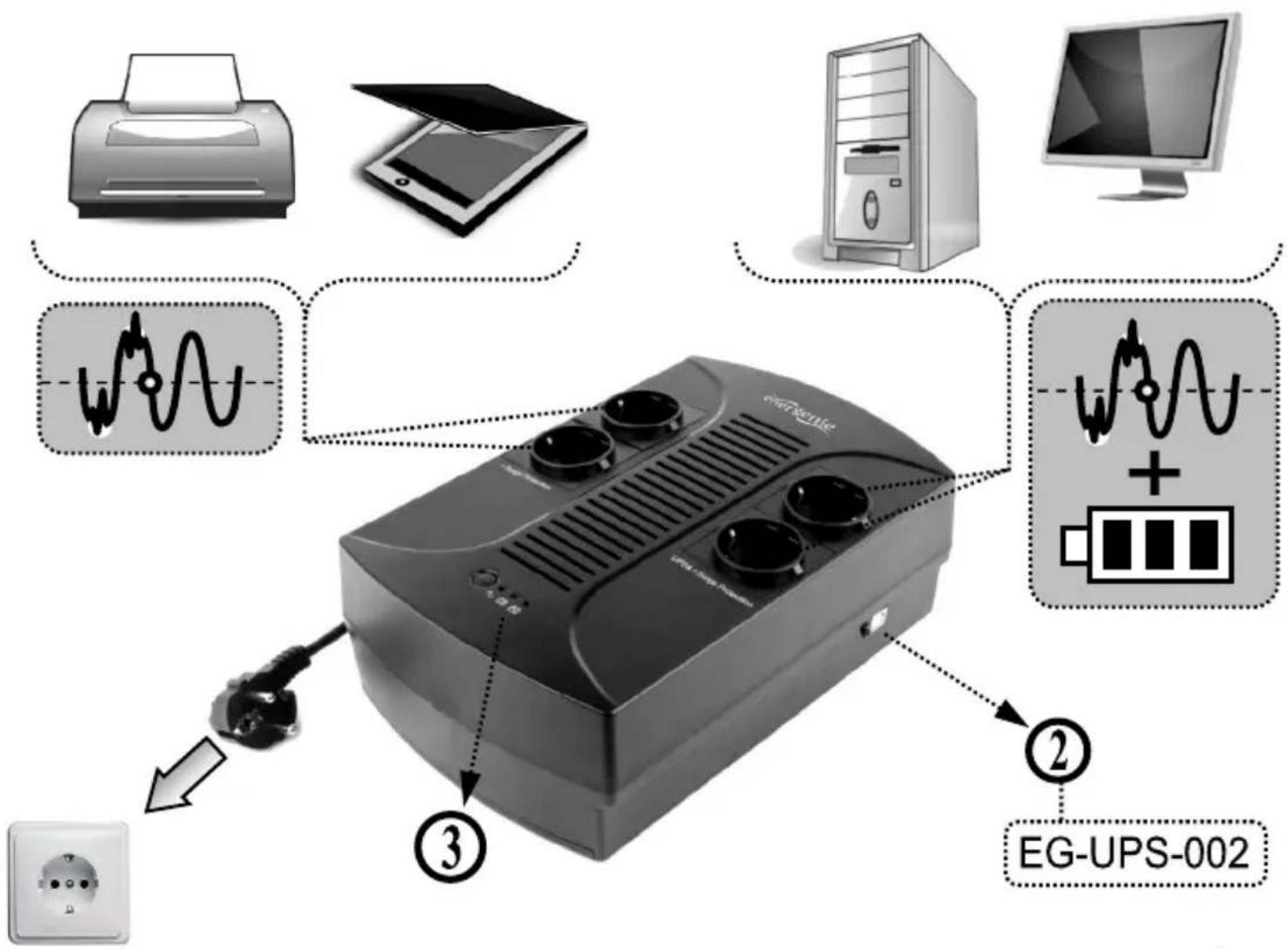

EG-UPS-001 EG-UPS-002 UPS WITH AVR, 650 VA UPS WITH AVR, 850 VA

①

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPS-001 EG-UPS-002 UPS WITH AVR, 650 VA UPS WITH AVR, 850 VA

②…EG-UPS-002

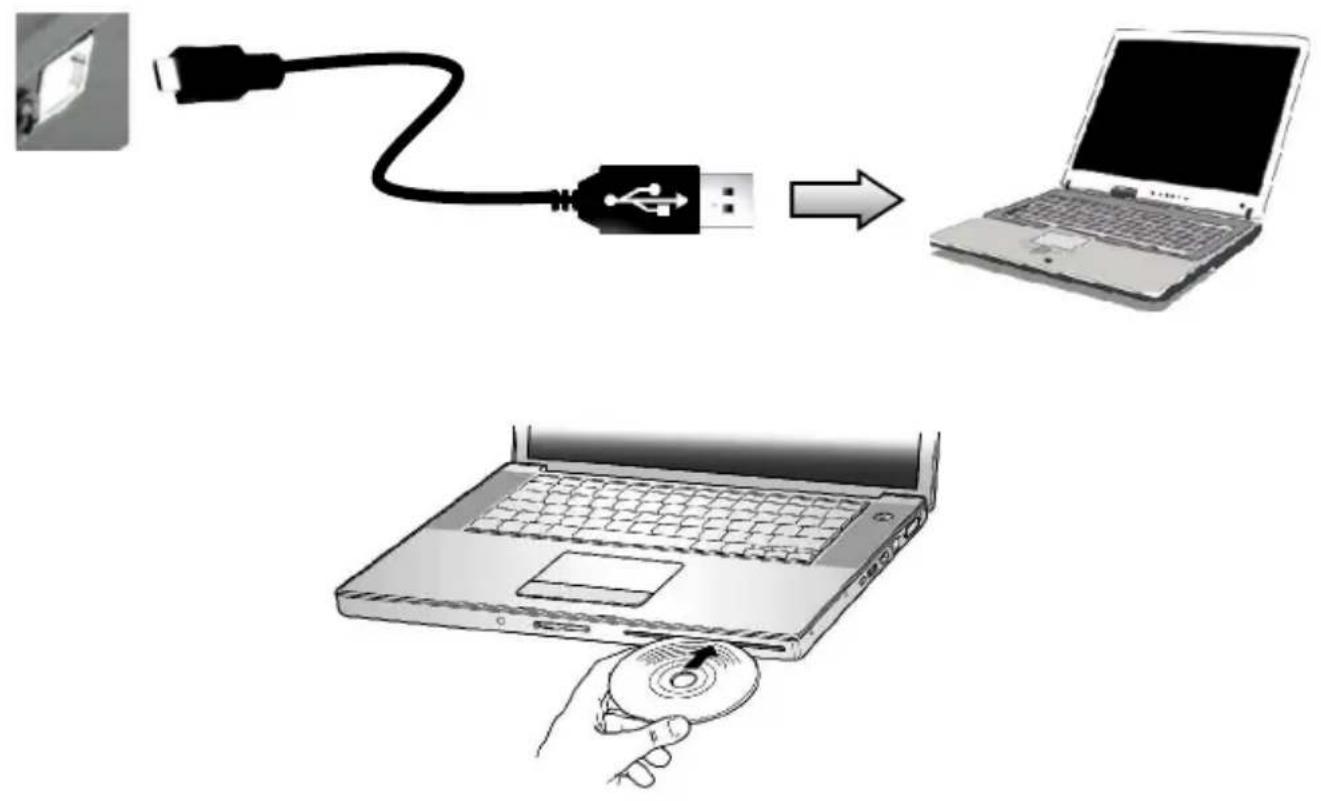

Diagram showing USB connection to laptop and hand holding CD, illustrating wireless device connectivity

All brands and logos are registered trademarks of their respective owners

Diagram illustrating the components of a battery system with power, current, and voltage indicators, including a close-up of a car interior.

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing another hand with water droplets falling (no text or symbols)

Safety warning sign showing sun and a person with fever, crossed by a diagonal line

Simple line drawing of a hand using a tool to cut a screwdriver into a screwdriver (no text or symbols)

Simple line drawing of a hand holding a bag with a diagonal line crossing through it, no text or symbols present.

Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.	Entsorgungshinweise: Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden. Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.
Richtlijnen m.b.t. afvalverwerkingBatterijen en accu’s dienen als klein-chemisch afval afgeleverd te worden bij toegewezen afvalverzamelpunten (zie www.afvalgids.nl). U dient ervoor te zorgen dat de batterijen/accu’s leeg zijn en dus geen stroom meer kunnen leveren. Let op, de batterijen/accu’s dienen onbeschadigd ingeleverd te worden.Gooi dit product niet weg in uw vuilnisbak. Dit kan zowel het milieu als de menselijke gezondheid schade toebrengen. Informatie over het inleveren van dit product kunt u inwinnen bij uw gemeentelijke vuilnisdienst of andere geautoriseerde instelling in uw buurt.	Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain.Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l'administration municipale ouchez un centre autorisé pour le traitement des appareils électriques ou électroniques.
WARRANTY CONDITIONS	GARANTIE BEDINGUNGEN
The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products	Die Garantie beträgt 24 Monate ab Verkaufsdatum an den Endverbraucher. Das Kaufdatum und der Gerätetyp sind durch eine maschinell erstellte Kaufquittung zu belegen. Bitte bewahren Sie Ihren Kaufbeleg daher für die Dauer der Garantie auf, da er Voraussetzung für eine eventuelle Reklamation ist. Innerhalb der Garantiezeit werden alle Mängel, wahlweise durch den Hersteller entweder durch Instandsetzung, Austausch mangelhafter Teile oder im Austausch, behoben. Die Ausführung der Garantieleistung bewirkt weder eine Verlängerung noch einen Neubeginn der Garantiezeit.Eine Garantieleistung entfällt für Schäden oder Mängel die durch unsachgemäße Handhabung oder durch äußere Einwirkung (Sturz, Schlag, Wasser, Staub, Verschmutzung oder Bruch) herbeigeführt wurden. Verschleißteile (z.B. Akkus) sind von der Garantie ausgenommen.
