Product type	Clock radio
Brand	Perel
Model	WC106
Overall dimensions	332 x 100 x 320 mm
Clock dimensions	190 x 170 mm
Weight	1845 g
Clock power supply	2 x 1.5 V C/LR14 batteries (not included)
Calendar power supply	1 x 1.5 V AA/LR6 battery (not included)
Display type	Analog with mechanical calendar
Display functions	Hour, minute, second, year, month, date, day of the week
Time setting	Minute knob clockwise
Calendar setting	Buttons for day, date, month and removable digits for the year
Wall mounting	Possible via an eyelet (C3)
Digit compartment	To display the year (C4)
Recommended batteries	Alkaline
Warranty	24 months (consumer)
Maintenance	Clean with a damp cloth, avoid solvents and harsh detergents
Safety	Indoor use only, protect from rain and moisture
Minimum age for use	8 years (under supervision)
Number of batteries required	3 batteries total (2x C/LR14 + 1x AA/LR6)
Manual available in	French, English, German, Spanish, Dutch, Polish, Portuguese

Frequently Asked Questions - WC106 Perel

How to set the time on the WC106?

To set the time, slowly turn the minute knob (B5) clockwise. At around 11:30, you will hear a signal indicating that the internal calendar mechanism is ready. After 2-3 seconds, continue turning to 12:00 for a second signal. The clock must be turned off (ON/OFF button on OFF) during the adjustment.

How to set the calendar (day, date, month, year)?

First turn off the clock (ON/OFF button to OFF). For the year, remove the digits from the compartment (C4) and insert the desired ones. For the day, turn the B3 knob until the correct day is displayed. For the date, activate the function with B2 and wait for it to rotate to the desired date, then set to OFF. For the month, turn B1 until the desired month. Then turn the clock back on.

What batteries to use for the WC106?

The clock requires 2 x C/LR14 (1.5 V) batteries and the calendar requires 1 x AA/LR6 (1.5 V) battery. Batteries are not included. Use quality alkaline batteries. Observe the polarity indicated in the compartments (C1 and C2).

How to change the batteries of the WC106?

Open the battery compartments located at the back of the device (C1 for the clock, C2 for the calendar). Remove the old batteries while respecting polarity and insert new batteries. Close the covers. If the device remains unused for a long time, remove the batteries to prevent leakage.

What to do if the clock does not work?

First check that the batteries are correctly inserted and in good condition (no leakage). If the problem persists, check the time setting: the minute hand should rotate freely. Consult the manual for settings. If nothing works, contact after-sales service or your retailer.

Can I mount the WC106 on the wall?

Yes, the device is equipped with an eyelet (C3) for wall mounting. Make sure to securely attach the clock to a suitable wall. Follow safety precautions to prevent falls.

How to clean the WC106?

Clean the device occasionally with a soft, damp cloth. Do not use harsh chemicals, solvents, or strong detergents. Avoid water entering the interior of the device.

Is the device suitable for children?

This device can be used by children aged at least 8 years, under adult supervision. Children must not play with the device. Cleaning and maintenance must not be carried out by children without supervision.

What to do in case of malfunction?

Check the batteries and settings. If the problem persists, consult the warranty: 24 months for manufacturing defects. Contact your retailer with the purchase receipt and a description of the defect. Do not attempt to repair the device yourself, as this will void the warranty.

Where to download the manual for the WC106?

You can download the manual for free in PDF format from the website notice-facile.com or from the official Perel website: www.perel.eu. The manual is available in several languages (French, English, German, etc.).

USER MANUAL WC106 Perel

2018 MAA 23 APR

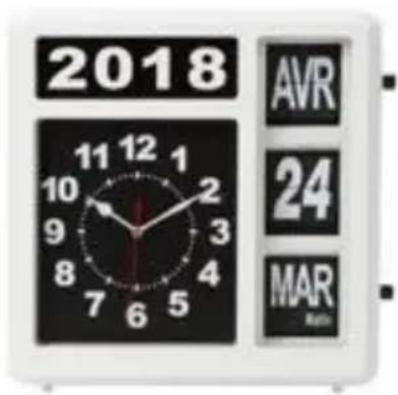

WC106

2018 AVR 24 MAR Rattn

WC107

USER MANUAL 3

HANDLEIDING 6

MODE D'EMPLOI 9

MANUAL DEL USUARIO 12

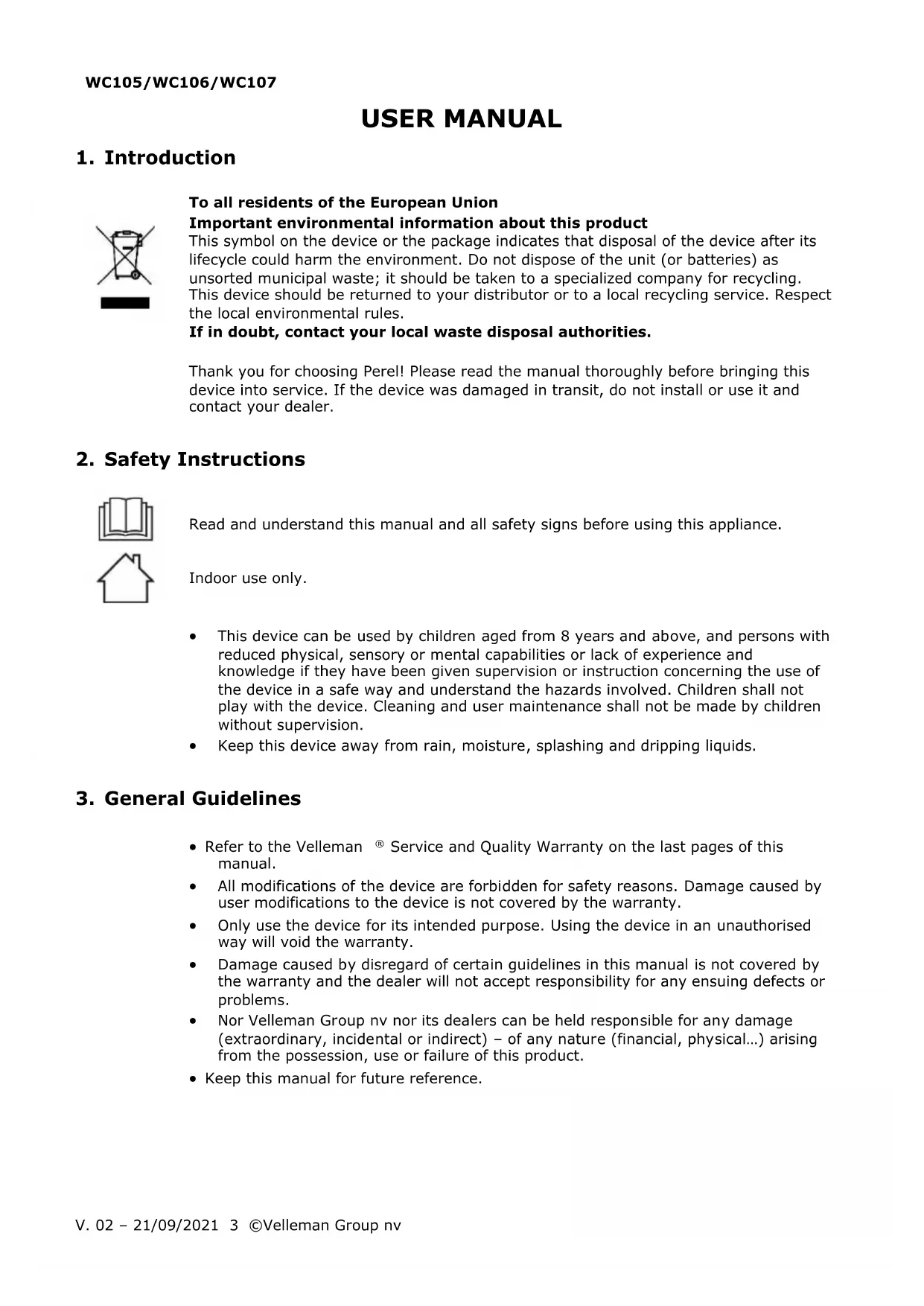

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- Keep this device away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

Functions

A1	hour
A2	minute
A3	second
A4	year

A5	month
A6	date
A7	day

Buttons

B1	month switch
B2	date on-off
B3	day switch

B4	device on-off
B5	time adjustor

Structure

C1	battery compartment time
C2	battery compartment calendar

C3	wall mount hole
C4	numbers compartment

5. Battery

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

Insert the batteries to the correct polarity. The clock will automatically start to run.

Remove the batteries if you are no longer using the device or if the device is left unused for an extended period of time.

Remove used batteries promptly.

6. Operation

1. Switch off the clock.
2. Set the calendar.

2.1. Set the year manually with the numbers located in the numbers compartment. Carefully remove the unwanted numbers in the year display and insert the desired numbers into place.
2.2. Switch off the clock. Adjust the time according to the steps above.
2.3. Respectively adjust the day, date and month.
2.4. Day adjustment: Turn knob B3 until the desired day is displayed.
2.5. Date adjustment: Switch on the date function with switch B2. The date will flip automatically. When the correct date is displayed, flick the switch to the off position. Repeat this if the date has flipped past the desired date.
2.6. Month adjustment: Turn knob B1 until the desired month is displayed.

1. Switch on the clock.

WC105/WC106/WC107

4. Set the time.

4.1. Move the minute hand slowly clockwise. At around 11:30, you will hear the internal mechanism run to indicate that the calendar is ready to run.

2 12 9 3 6 1

4.2. After 2-3 seconds, continue to move the minute hand. At around 12:00, the internal mechanism will again make some noise to indicate the calendar runs.

7. Cleaning and Maintenance

Occasionally clean with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

8. Technical Specifications

power supply

2x 1.5 V C/LR14 (not incl.)

1x 1.5 V AA/LR6 (not incl.)

dimensions

full size 332 x 100 x 320 mm

clock 190 x 170 mm

weight 1845 g

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
