Product type	Clock radio
Brand	Perel
Model	WC103
Power supply	1 AA/LR6 1.5V battery (not included)
Dial dimensions	Ø 35 cm
Clock dimensions	Ø 40 x 4 cm
Weight	approximately 1088 g
Automatic synchronization	DCF signal (Frankfurt atomic clock)
Manual setting	Yes, via dedicated button
Forced reception	Yes, hold button for 3 seconds
Reset	Reset button, moves hands to 12:00
Automatic calibration	Adjustment to 1:00 in case of low battery
Child safety	Use possible from age 8 under supervision
Cleaning and maintenance	Do not entrust to children without supervision
Warranty	24 months (consumer)

Frequently Asked Questions - WC103 Perel

How to set the clock manually?

Press and hold the manual setting button. After about 3 seconds, the hands move. Release a few minutes before the exact time, then press several times until the desired time. The clock starts 10 seconds after the last adjustment.

How to force synchronization?

Press and hold the forced reception button for about 3 seconds. The displayed time is stored, the hands move to 12:00 and the clock attempts to synchronize. This may take up to 15 minutes.

What does the reset button do?

Briefly press the reset button. The hands move to 12:00 and the memory is erased. The clock will then attempt to synchronize with the atomic clock.

Which battery to use?

Use a 1.5V AA/LR6 battery (not included). Ensure correct polarity when inserting.

Why do the hands turn to 12:00?

This is normal when powering on or after a reset. The clock searches for the DCF signal to synchronize. The second hand may make a full turn if it is between 11:55 and 12:00.

How to replace the battery?

Open the battery compartment, remove the old battery and insert a new one observing polarity. Close the compartment. If necessary, remove the locking tab before first use.

Is the clock suitable for children?

Yes, from age 8 under adult supervision. Children must not play with the device or clean it without supervision.

How to clean the clock?

Use a soft dry cloth. Do not use abrasive products. Cleaning must not be done by children without supervision.

What is the DCF signal?

The DCF signal is emitted by an atomic clock near Frankfurt (Germany). The WC103 clock receives this signal for automatic synchronization. Reception is better near a window and at night.

What does automatic calibration at 1:00 mean?

If the clock runs slow due to low battery, it automatically adjusts to 1:00 to indicate that the battery needs replacing. Replace the battery to restore correct time.

USER MANUAL WC103 Perel

Close-up of a classic analog wall clock showing time approximately 10:30 (no text or symbols beyond numerals)

USER MANUAL 3

HANDLEIDING 6

MODE D'EMPLOI 9

MANUAL DEL USUARIO 12

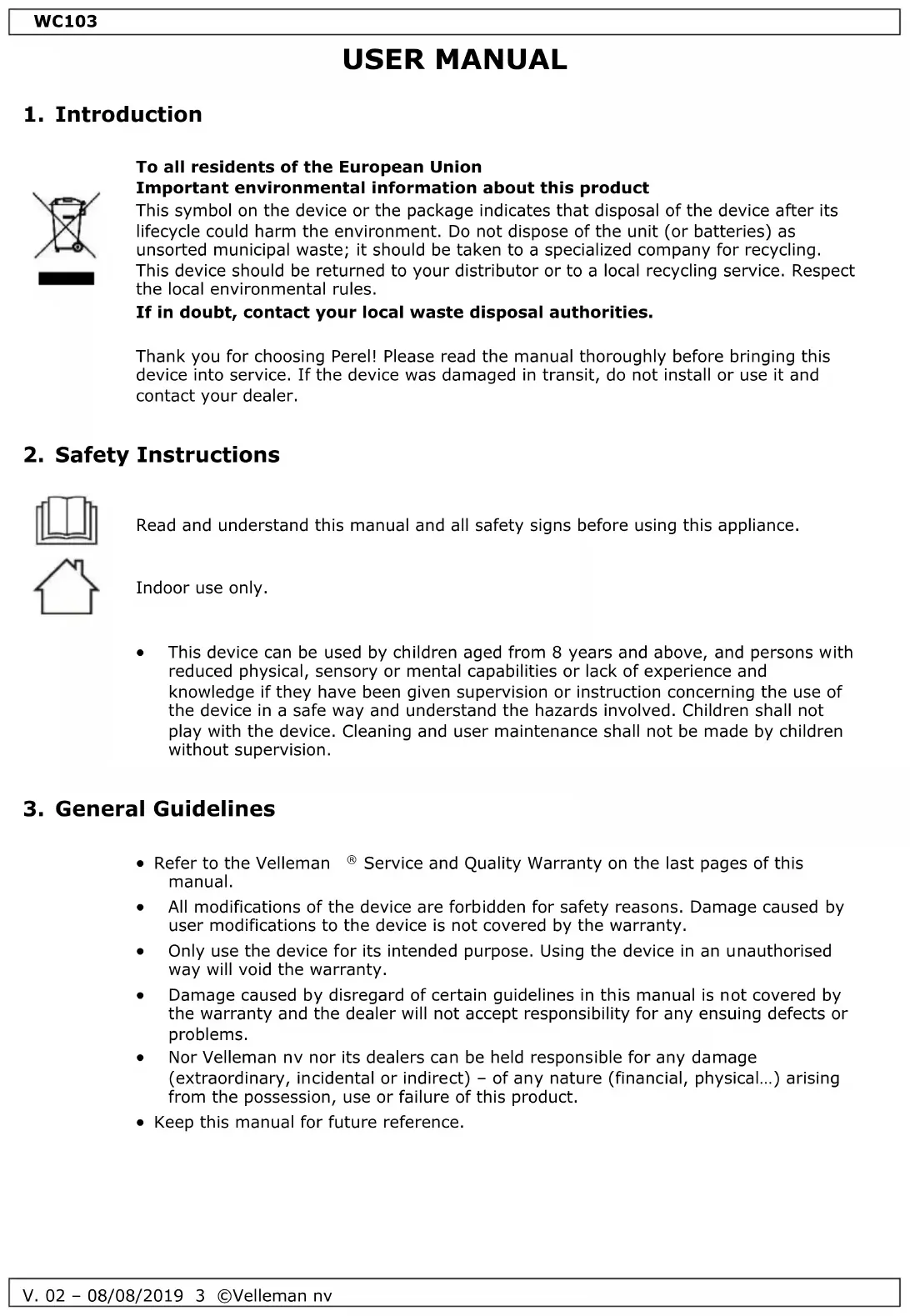

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	manual setting button
2	reset button
3	forced signal reception button

4	battery compartment
5	protection pin

5. Operation

5.1 Battery

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

Insert the battery observing the correct polarity. Close the battery compartment before use.

5.2 Working Principle

The clock contains a receiver, which receives a radio-signal from a radio station located near Frankfurt, Germany. This long-wave radio-signal (DCF77) is based on atomic clocks and contains time and date information. The clock automatically synchronizes with this master clock radio-signal and when necessary adjusts the positions of second, minute or hour hands of the clock.

Due to its nature, the radio-signal can be received indoors. However, it should be noted that the signal is weakened by the presence of concrete and metal. Therefore, the clock must not be installed in concrete basements or inside metal cages. In large concrete office buildings or apartments, the clock should be located near a window for better reception.

Also, avoid installing the clock near strong magnetic fields or other devices that generate a lot of electrical noise (e.g. engines).

5.3 Operation

If necessary, remove the protection pin before first use! Dispose of it in a safe way.

Do not attempt to reinsert the pin afterwards as this will surely damage the clock.

1. Insert a battery in the battery compartment. All hands will move forward towards 12:00. Note: when the original position of the second hand is between 11:55 and 12:00, the second hand will make a full turn before stopping at 12:00. The same happens with the minute hand when the original position is between 11:52 and 12:00.
2. Choose a location for the clock (see Working principle).
3. Wait until the clock receives the synchronization signal from the master clock. This might take up to 15 minutes. Note that the received signal is usually stronger at night.
4. Once synchronized, the hands will start moving towards the correct time.
5. When the clock does not receive the radio-signal, it will start running showing the wrong time. However, it will keep attempting to synchronize.

Manual Setting

It is possible to set the time manually, e.g. for use in places where no radio-signal is received.

Press and hold the manual setting button. After ± 3 seconds the minutes and hour hands start moving. Hold down the manual setting and release a couple of minutes before desired time setting. Press the manual setting button repeatedly until the desired time indication is reached. When no press is detected within 10 seconds, the clock starts running.

Forced Receiving

To force the clock to synchronize, press and hold the forced reception button for ± 3 seconds. The current time is stored in memory and all hands will start moving towards 12:00. The clock attempts to synchronize with the master clock.

When synchronization is successful (this can take up to 15 minutes), the hands will move towards the correct time. If it fails however, the hands will move towards the time that was memorized.

Reset

Briefly press the reset button once.

All hands will move to the 12:00 position and the memory is cleared. The clock will attempt to synchronize to the master clock.

Automatic Calibration

This movement will automatically correct the time at 1:00 when the clock is running slow due to a low battery. Please replace the battery for correct time measurement.

6. Technical Specifications

power supply .... 1 x 1.5 V AA/LR6 (not incl.) dimensions

dial 0 35 cm

clock 40 x 4 cm

weight....± 1088 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [WC103] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
