CAMCOLMS4 - Microscope VELLEMAN - Free user manual and instructions

Brand	Velleman
Model	CAMCOLMS4
Product type	Microscope
Magnification	50x, 100x, 200x, 400x
Power supply	3 LR6/AA batteries (not included)
Weight	312 g
Dimensions	96 x 135 x 225 mm
Lighting	Base LED and reflected LED
Main functions	Observation with multiple magnifications, digital zoom via wheel, smartphone holder for photo/video capture
Housing material	Robust plastic
Maintenance and cleaning	Clean with a damp cloth, do not use solvents
Safety	Do not look directly at the LED; contains small parts, choking hazard
Included accessories	Smartphone holder, slide clips, storage drawer
Warranty	24 months (consumer use), detailed conditions in the manual
Country of origin	Made in China (estimated)

Frequently Asked Questions - CAMCOLMS4 VELLEMAN

What batteries should I use for the microscope?

Use 3 LR6/AA batteries (not included). Observe the polarity indicated in the compartment.

How do I turn on the lighting?

Use the on/off switch to turn on the base LED or the reflected LED according to the desired lighting.

What magnifications are available?

The microscope offers magnifications of 50x, 100x, 200x, and 400x via the rotating nosepiece and zoom wheel.

How do I use the smartphone holder?

Slide the holder onto the body, then place your smartphone so that the camera is above the eyepiece. You can then take photos or record videos.

Can I use the microscope without batteries?

No, the LED lighting requires batteries. The device does not work without power.

How do I clean the microscope?

Clean the device with a damp cloth without using harsh chemicals, solvents, or strong detergents.

What if the image is not sharp?

Turn the focus knob clockwise or counterclockwise until you get a sharp image. Make sure the objective lens does not touch the slide.

Is the arm pivotable?

Yes, the arm is pivotable for easy observation. You can also remove the body from the arm for transport.

Are there risks for the eyes?

The white LED is very powerful. Do not look directly at the LED as it could damage your eyes.

How do I change the objective lens?

Rotate the nosepiece clockwise or counterclockwise to the desired magnification. Always start with the smallest magnification.

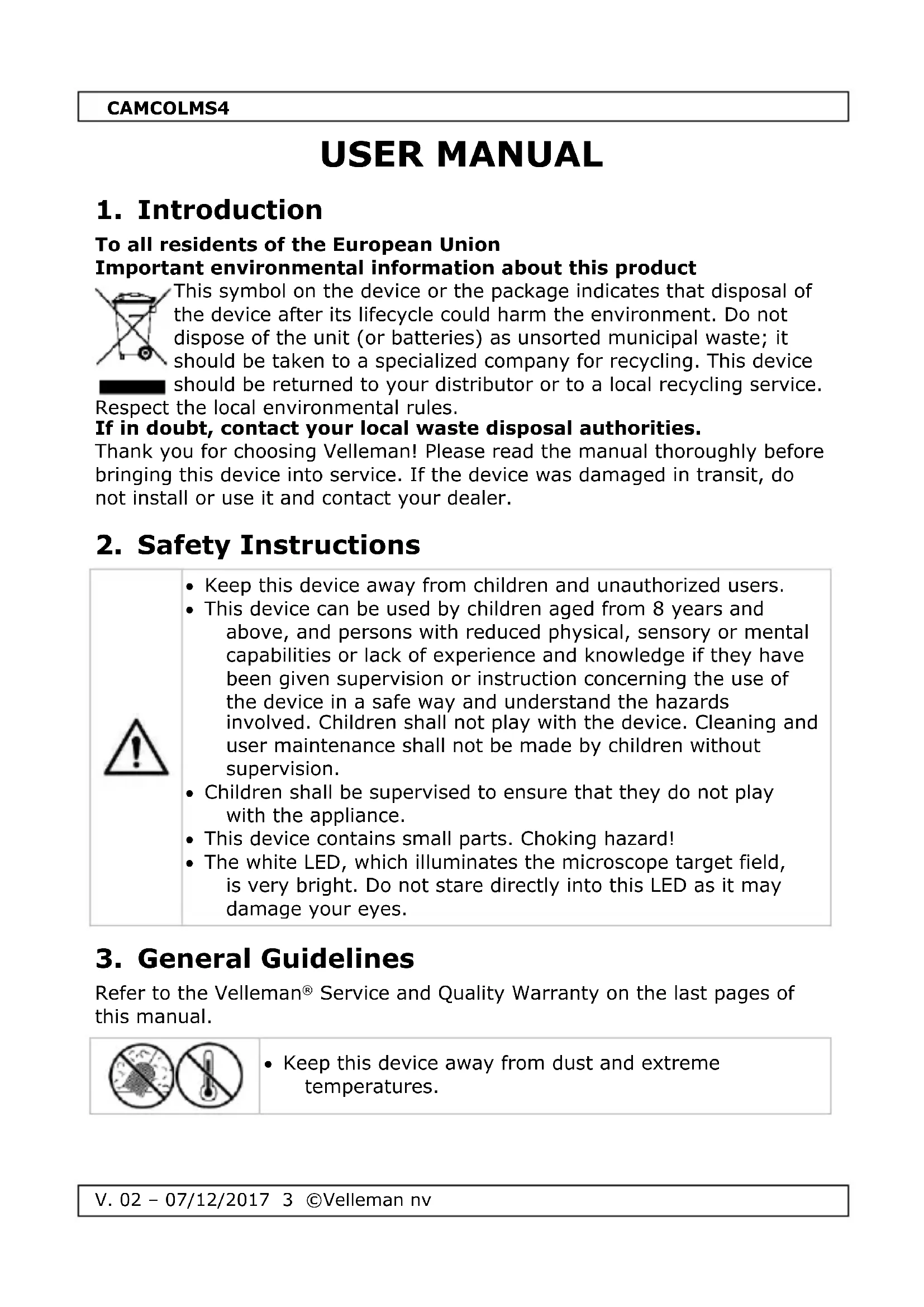

USER MANUAL CAMCOLMS4 VELLEMAN

MOBILE PHONE MICROSCOPE

MICROSCOOP VOOR SMARTPHONE

MICROSCOPE POUR SMARTPHONE

MICROSCOPIO PARA SMARTPHONE

MIKROSKOP FÜR SMARTPHONE

MIKROSKOP DO TELEFONÓW KOMÓRKOWYCH

MICROSCÓPIO PARA TELEMÓVEL

White and black microscope with a pair of test tubes on the base (no text or symbols visible)

USER MANUAL 3

HANDLEIDING 6

MODE D'EMPLOI 10

MANUAL DEL USUARIO 14

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• Keep this device away from children and unauthorized users.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• Children shall be supervised to ensure that they do not play with the appliance.

• This device contains small parts. Choking hazard!
• The white LED, which illuminates the microscope target field, is very bright. Do not stare directly into this LED as it may damage your eyes.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

- Keep this device away from dust and extreme temperatures.

CAMCOLMS4

- Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	body
2	zoom dial
3	turret
4	objectives
5	slide clips
6	base LED
7	specimen stage

8	base
9	arm
10	focusing knob
11	reflective LED
12	storage drawer
13	LED on-off switch

5. Battery

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

1. Open the battery compartment.
2. Install three fresh AA batteries following the polarity markings inside the compartment.
3. Close the battery compartment.
4. Remove the batteries from the device when not in use.

CAMCOLMS4

6. Operation

1. Place a prepared specimen slide on the specimen stage and slide it into the clips, such that the clips hold the slide securely.

2. Switch on the LED – the base LED or reflective LED – to illuminate the specimen.

3. Turn the objective turret – the turret can be rotated both ways – to the desired magnification. Rotate the objective turret such that the objective is directly on top of the specimen. It is recommended to start with the least powerful magnification rate and select a more powerful objective if needed.

4. View through the eyepiece and rotate the focusing knob clockwise or anticlockwise until the image is sharp. Make sure the objective is clear from obstacles and does not hit the specimen while lowering the turret.

5. Zoom in on the image with the zoom dial.

REMARK

The arm can be swivelled for more ease-of-use. The body can be removed from the arm for transportation.

Viewing through the eyepiece requires sufficient light.

7. Using the Microscope with your Smartphone

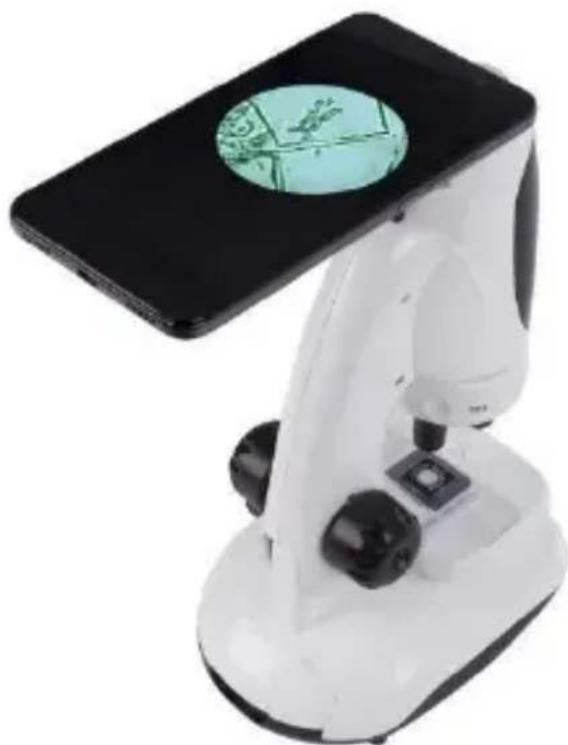

You can easily take pictures of your specimen using your smartphone. To do so, slide the smartphone platform onto the body and place the smartphone onto the platform in such way, that the camera sits just above the eyepiece.

Now you can take pictures, record and even zoom through your smartphone.

White and black microscope with a green circular display on top (no visible text or symbols)

8. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

9. Technical Specifications

magnification rate 50, 100, 200, 400x

battery 3 x LR6/AA battery (not incl.)

weight....312 g

dimensions 96 x 135 x 225 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
