USER MANUAL WLC002 Perel

Military camouflage tactical device with digital display and control buttons (no visible text or symbols)

USER MANUAL 4

HANDLEIDING 14

MODE D'EMPLOI 25

MANUAL DEL USUARIO 36

Labeled diagram of a mechanical device with numbered components for assembly or maintenance reference.

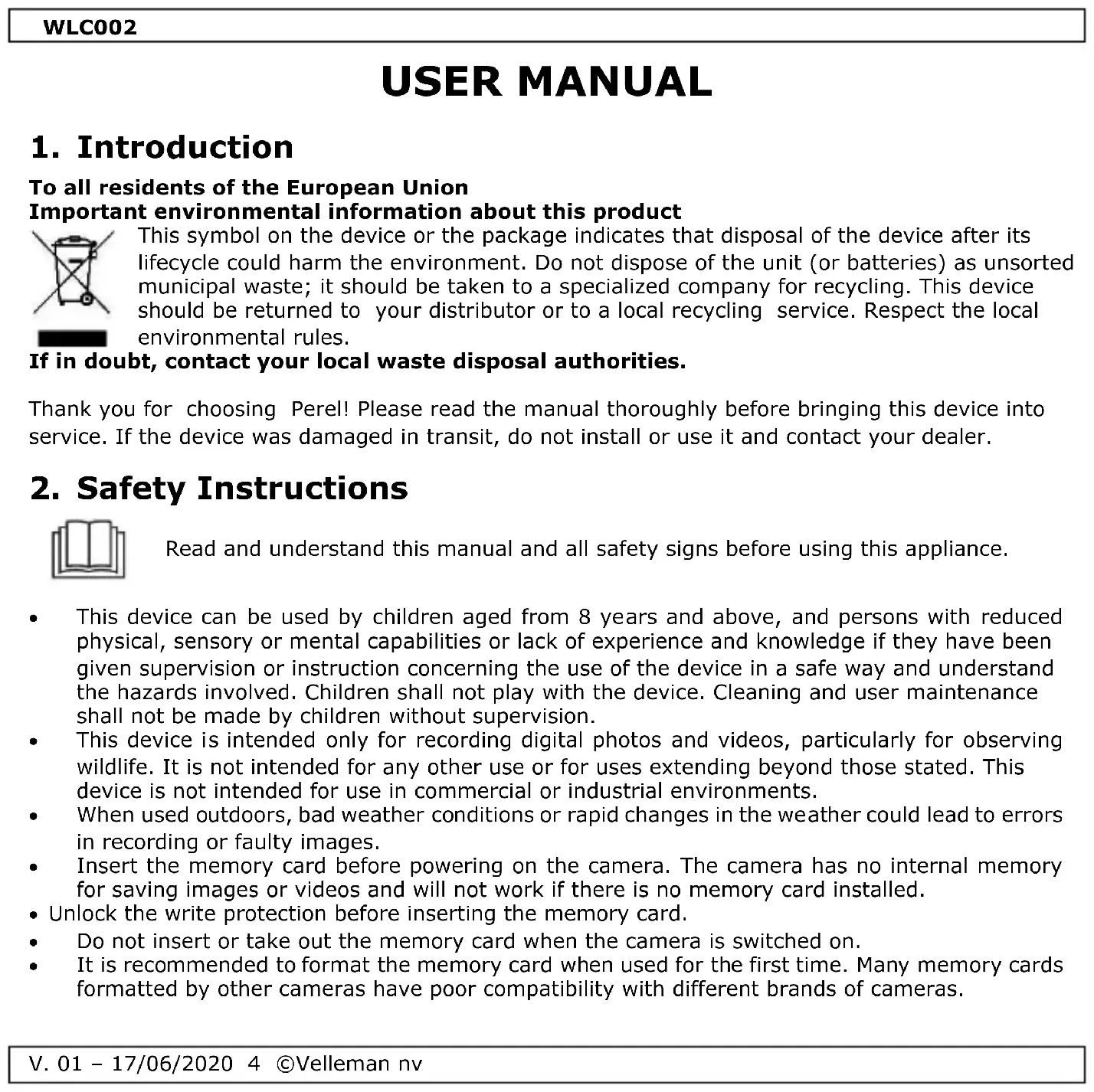

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• This device is intended only for recording digital photos and videos, particularly for observing wildlife. It is not intended for any other use or for uses extending beyond those stated. This device is not intended for use in commercial or industrial environments.
• When used outdoors, bad weather conditions or rapid changes in the weather could lead to errors in recording or faulty images.
• Insert the memory card before powering on the camera. The camera has no internal memory for saving images or videos and will not work if there is no memory card installed.
• Unlock the write protection before inserting the memory card.
• Do not insert or take out the memory card when the camera is switched on.
• It is recommended to format the memory card when used for the first time. Many memory cards formatted by other cameras have poor compatibility with different brands of cameras.

WLC002

• When setting up the camera, allow approximately 10 to 20 seconds for the camera to acquire a signal.
• In setup the camera will shut down automatically after 3 minutes if no operation is done. Please turn on the power again to re-activate the camera.

3. General Guidelines

• Refer to the Velleman ® Service and Quality Warranty on www.velleman.eu.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

Camera

1	display
2	IR LEDs
3	lens
4	up/video
5	down/capture
6	front sensor
7	OK/shot
8	menu
9	right

10	playback
11	battery compartment
12	speaker
13	mode
14	USB jack
15	card slot
16	power input
17	tripod connection

Tripod

1	screw
2	locking nut
3	pivot bolts
4	drill holes

5	hex screw
6	wall plugs
7	screws

V. 01 - 17/06/2020 5 ©Velleman nv

WLC002

5. Installation

5.1 Mounting on Concrete

1. Choose an appropriate installation location:

2. Ensure that there are no electric lines, water or heating pipes installed at the proposed drilling location.
   The supplied wall plugs are only suitable for mounting on concrete and stone. Before starting the installation, please check your installation location carefully for its suitability for the plugs.

3. The recommended installation height is between 1 and 2 m above the ground.
   The assembly material used must be suitable for the respective location. If in doubt, consult a professional.

4. Mark the drill holes using the wall bracket.

5. Use a drill with a 6 mm drill bit to drill the required holes. Insert the wall plugs flush with the wall.
6. Screw the wall bracket to the wall using the supplied screws.
7. Mount the camera on the tripod screw. Turn the camera in the desired direction and lock it with the lock nut.
8. To align the camera into its final position, undo the two pivot bolts a little, align the camera and fix the position by tightening the two pivot bolts.

5.2 Alternate Mounting

Use the included mounting belt to fix the camera around a tree trunk.

5.3 Powering

WARNING – Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

• Open the camera and remove the battery cover. Install the batteries following to the correct polarity.
• If the camera is low on power, please connect the camera to a power adapter (not included, see technical specifications).

V. 01 - 17/06/2020 6 ©Velleman nv

WLC002

5.4 Inserting the Memory Card

Install the memory card before switching on the camera.

Unlock the write protection and insert a formatted memory card into the card slot. Do not force to avoid damaging the card. We recommend using a TF card, class 6 or higher, max. 32 GB.

At first use, wait for the memory card to reach ambient temperature. Therefore, the camera may present some delay.

To avoid damage, protect memory card from water, strong vibrations, dust, hot sources and direct sunlight.

Note that, if the memory card is full, the camera will stop recording automatically and the LEDs will go out.

6. Operation

6.1 System Setup and Test

1. Slide the mode switch to the TEST position.
2. Press menu to open the setup menu.
3. Press up or down to navigate through the menu or options, and press OK to confirm.
4. Press video or capture to switch between these two modes.
5. Press menu to exit the setup menu.

6.2 Basic Working Mode

Slide the switch to the on position. After 15 seconds the camera will enter the standby mode. When a motion is detected, the camera take photos or record video automatically according to the settings.

6.3 Basic Settings

Mode

Slide the mode switch to the on position and select the working mode. In capture mode, the camera will take pictures only. In video mode, the camera will record. In capture + video mode, the camera will take a picture first and then record.

Options: Photo → Video → Photo & Video

V. 01 - 17/06/2020 7 ©Velleman nv

WLC002

Photo Resolution

Set the still image resolution.

Options: 12MP → 8MP → 5MP → 3MP → 2MP → 1MP

Photo Series

Set the number of continuous photo capturing. In photo mode, the camera will take photos continuously.

Options: 1 photo → 2 photos in series → 3 photos in series

Video Resolution

Set the video resolution. The bigger the resolution, the longer the video which can be stored.

Options: 1920x1080P → 1280x720P → 720x480P → 640x480P → 320x240P

TL Video Resolution

Set the time-lapse video resolution.

Options: 2592x1944P → 2048x1536P

Video Length

Set the recording duration of a video clip.

Options: 3 s to 10 min

Audio Recording

Select this option to add audio to a video.

Options: On → Off

Shot Lag

Set the recording delay time after the motion detection. Within the selected time, the camera will not record any image or video.

Options: 5 s to 60 min

IR Distance

Set the distance of IR induction.

Options: Near → Middle → Far

WLC002

Motion Sensor Sensitivity

Set the sensitivity of the sensors.

Recording environment	Recommended setting
indoor	low
outdoor, normal conditions	middle
outdoor, difficult conditions	high
outdoor, low temperatures	low
outdoor, mild temperatures	high

Options: Low → Middle → High

Target Recording Time

When setting a target recording time, the camera will only record in the set time slot.

Options: On → Off

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Time Lapse

Normal: The camera will take pictures automatically as per set time interval. Example: Set the interval time to 1 hour. The camera will take a photo each hour.

TL Video: Set the interval time from 1 second to 24 hours. Example: Set the interval to 1 hour, the camera will take a photo each hour. These photos will be converted into a video.

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

V. 01 - 17/06/2020 9 ©Velleman nv

WLC002

Off: Close the time lapse function.

Language

Options: English → German → Spanish → French → Italian → Dutch → Portuguese

Endless Capture

Set the camera to record video in a loop.

Options: On → Off

Time/Date

Set the time (12 or 24 h) and date (dd/mm/yyyy, yyyy/mm/dd or mm/dd/yyyy) on the camera. Options: Set Time&Date → Time Format → Date Format

Photo Stamp

Display the time and date on the captures. Options: Time&Date → Date → Off

Password Protection

Secure the camera with a password of four digits from 0 to 9. When you cannot remember the password, please reset the camera to reset all parameters to the factory settings. Options: On → Off

Beep

Activate or deactivate the beep when pressing a button. Options: On → Off

Format Memory Card

Formatting the memory card will delete all data permanently. Format the memory card before using a new memory card or a card that has been used in another device previously. Options: Yes → No

Serial No

Set the unique serial number for the camera. Choose a four-digit number, each digit ranging from 0 to 9 or from A to Z. Options: On → Off

Reset Settings

Restore the camera to factory default settings including password, serial number, etc. Options: On → Off

V. 01 - 17/06/2020 10 ©Velleman nv

WLC002

Version

Firmware information of the camera.

6.4 Additional Functions

Taking Photos, Recording Video and Playback

Slide the mode switch to the test position.

○ Taking photos: Press the capture button to switch to the capture mode. Press the shot button to take a picture.
○ Recording video: Press the video button to switch to the video mode. Press the shot button to start recording, press again to stop recording.
○ Playback: Press the playback button to switch to the playback mode. Press up or down to select the picture or video. Press OK to start the playback, press again to pause, press the menu button again to stop the playback. Press the playback button to exit the playback mode.

Deleting Current/All File(s)

Options: Cancel → Delete

Slide Show

Captures can be played in a slideshow. Press OK to stop the slideshow.

Write Protection

Lock or unlock the file as desired.

Options: Write-protect Current File → Write-protect All Files → Unlock Current File → Unlock All Files

Night Mode

With insufficient ambient light, the IR LEDs will turn on automatically to provide necessary light. However, reflective objects such as traffic signs can cause overexposure if they are located within the recording range. Therefore, pictures taken in night mode may be blurry.

Also, make sure to provide the camera with adequate voltage when recording in night mode. Low voltage may cause instable recording results.

6.5 Downloading Files onto a Computer

Memory Card

1. Insert the memory card into the card reader of your computer.
2. Open the File Explorer on your computer and double-click on the removable memory card.
3. Copy the files from the memory card to your computer.

V. 01 - 17/06/2020 11 ©Velleman nv

WLC002

Connecting the Camera to your Computer

1. Connect the camera to your computer using the included USB cable. Switch on the camera and locate the appliance as MSDC.
2. Open the File Explorer on your computer and double-click on the removable appliance. The files are stored in the DCIM folder.
3. Copy the files from the memory card to your computer.

7. Care and Maintenance

Maintenance

• Be aware of pests nesting in the camera. A camera used outdoors is prone to insects slipping inside the interior of the camera. These pests might cause damage. Consider spraying the camera with odourless insecticide before setting up.
• Keep all parts dry. While the camera is made to be waterproof, humidity can still damage the electronics. It is recommended to install the camera under a shelter.

Cleaning

• Keep the lenses clean for the best results. Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Storage

• Store the appliance and its accessories in its original package in a clean and dry area.

8. Technical Specifications

power supply	4 x 1.5 V AA/LR6 (not incl.)
image sensor	external 6 V power supply, min. 1.5 A
video clip	1920 x 1080 / 25 fps (interpolated)
	1280 x 720 / 30 fps
	720 x 480 / 30 fps
	640 x 480 / 30 fps
	320 x 240 / 30 fps

V. 01 - 17/06/2020 12 ©Velleman nv

WLC002

still image size
12 MP	4608 x 2592 (interpolated)
8 MP	3840 x 2160 (interpolated)
5 MP	3072 x 1728 (interpolated)
3 MP	2304 x 1296 (interpolated)
2 MP	1920 x 1080 (interpolated)
1 MP	1280 x 720
IP rating	IP66
file format	JPG/AVI
lens angle	f=3.62mm - F/NO2.2 - FOV=50° - auto IR filter
LCD display	1.9" TFT
memory
external	TF card, class 6 or higher, max. 32 GB
internal	8 MB x 16 SDRAM
IR LEDs	2x 850 nm
IR flash range	20 m
triggering distance	20 m
PIR sensing angle	40°
triggering time	0.4-0.5 s
programmable triggering interval	5 s-60 min
programmable video length	3 s-10 min
shooting distance
daytime	1 m-infinite
nighttime	1.5 m-18 m
adjustable time lapse	3 s-24 h
USB port	mini USB2.0
operating temperature	-20 °C to +60 °C
storage temperature	-30 °C to +70 °C
dimensions	104 x 74.6 x 43 mm
weight	125 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

V. 01 - 17/06/2020 13 ©Velleman nv

HANDLEIDING

1. Inleiding

Opties: 1920x1080P → 1280x720P → 720x480P → 640x480P → 320x240P

TL-videoresolutie

Opties: 2592x1944P → 2048x1536P

Videolengte

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Tijdverloop

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Accéléré

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Opciones: 1 photo → 2 photos in series → 3 photos in series

Resolución de vídeo

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Opciones: English → German → Spanish → French → Italian → Dutch → Portuguese

Captura ilimitada

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Zeitraffer-Aufnahme

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Optionen: English → German → Spanish → French → Italian → Dutch → Portuguese

Daueraufnahme

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Tryb poklatkowy

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Settings Target recording time Start: Stop: Hr: Min Hr: Min 00 00 00 00 MENU Back OK Select

Intervalo de Tempo

Settings Set time lapse Hr: Min : Sec 00 00 30 Notification: Motion sensors deactivated MENU Back OK Select

Imported for PEREL by Velleman nv

Legen Heirweg 33, 9890 Gavere, Belgium

www.velleman.eu

V. 01 - 17/06/2020 80 ©Velleman nv
