Product Type	EMS Abdominal Muscle Stimulation Belt
Brand	Maxxmee
Model	09074 (QSF78)
Usage	Home, non-professional
Power Supply	Li-Ion battery 3.7 V DC, 180 mAh
Charging	via micro-USB, 5 V / ≥ 1 A adapter (not included), charging time approx. 1 h
Battery Life	approx. 150 min, auto shut-off after 20 min
Protection	IP44 (control unit)
Programs	6 modes (warm-up, intensive, deep, comprehensive)
Intensity Levels	9 levels per program
Waist Size	65 to 110 cm (up to 140 cm with extension)
Contents	Belt, control unit, USB cable, extension, pouch, instruction manual
Material	Silicone (patches), textile (belt)
Cleaning	Belt washable as per label, control unit with damp cloth
Maintenance	Do not fold patches, avoid moisture on control unit
Safety	Auto shut-off if skin contact lost (>10 s), auto shut-off after 20 min, do not use on certain areas
Contraindications	Pacemaker, pregnancy, epilepsy, fever, etc. (consult a doctor)
Warranty	Excluding improper use, normal wear and tear not covered
After-sales Service	Contact via manufacturer's website
Repairability	Do not repair yourself, have it repaired by a specialized workshop

Frequently Asked Questions - 09074 Maxxmee

How to charge the control unit?

Connect the provided USB cable to the micro USB port and to a USB power adapter (5 V / 1 A minimum, not included). The red light turns on during charging and turns off when the battery is full (approx. 1 hour). Do not charge via a computer.

The belt does not turn on, what to do?

Check that the battery is charged. If the screen stays off, recharge the control unit for at least 1 hour. Make sure the snap buttons on the belt are properly engaged.

How to clean the belt and patches?

Remove the control unit. Wash the belt according to the label (usually by hand or in cold water machine). Clean the silicone patches with a slightly damp soft cloth. Do not immerse the control unit.

Can I use the device if I have a pacemaker?

No, unless explicitly approved by a doctor. The device may interfere with electronic implants. Consult your doctor before use.

How long does a session last?

The device automatically stops after 20 minutes. Beginners can start with 15 minutes per day, advanced users up to 30 minutes, with a maximum of 2 sessions per day and 4 hours of rest between sessions.

What to do if the device turns off during use?

Check that the silicone patches are in direct contact with the skin (no clothing, hair, jewelry). The device automatically turns off if contact is lost for more than 10 seconds. Reposition the belt correctly.

What are the available programs?

There are 6 modes: M1 (warm-up/recovery), M2 and M3 (intensive high/medium training), M4 and M5 (deep medium/high training), M6 (comprehensive high training). Each mode has 9 intensity levels.

Can I use the device on other body parts?

No, the device is designed only for abdominal muscles. Do not use on head, neck, face, genitals, chest area near the heart, or on injured or irritated areas.

How to change the program or intensity?

Briefly press the M button to change mode. Use the + and - buttons to adjust intensity. After each mode change, intensity returns to 0 and must be adjusted manually.

What to do if the patches no longer stick or are dirty?

Clean the silicone patches with a slightly damp soft cloth. Avoid abrasive products. If the patches are damaged, contact after-sales service for replacement parts.

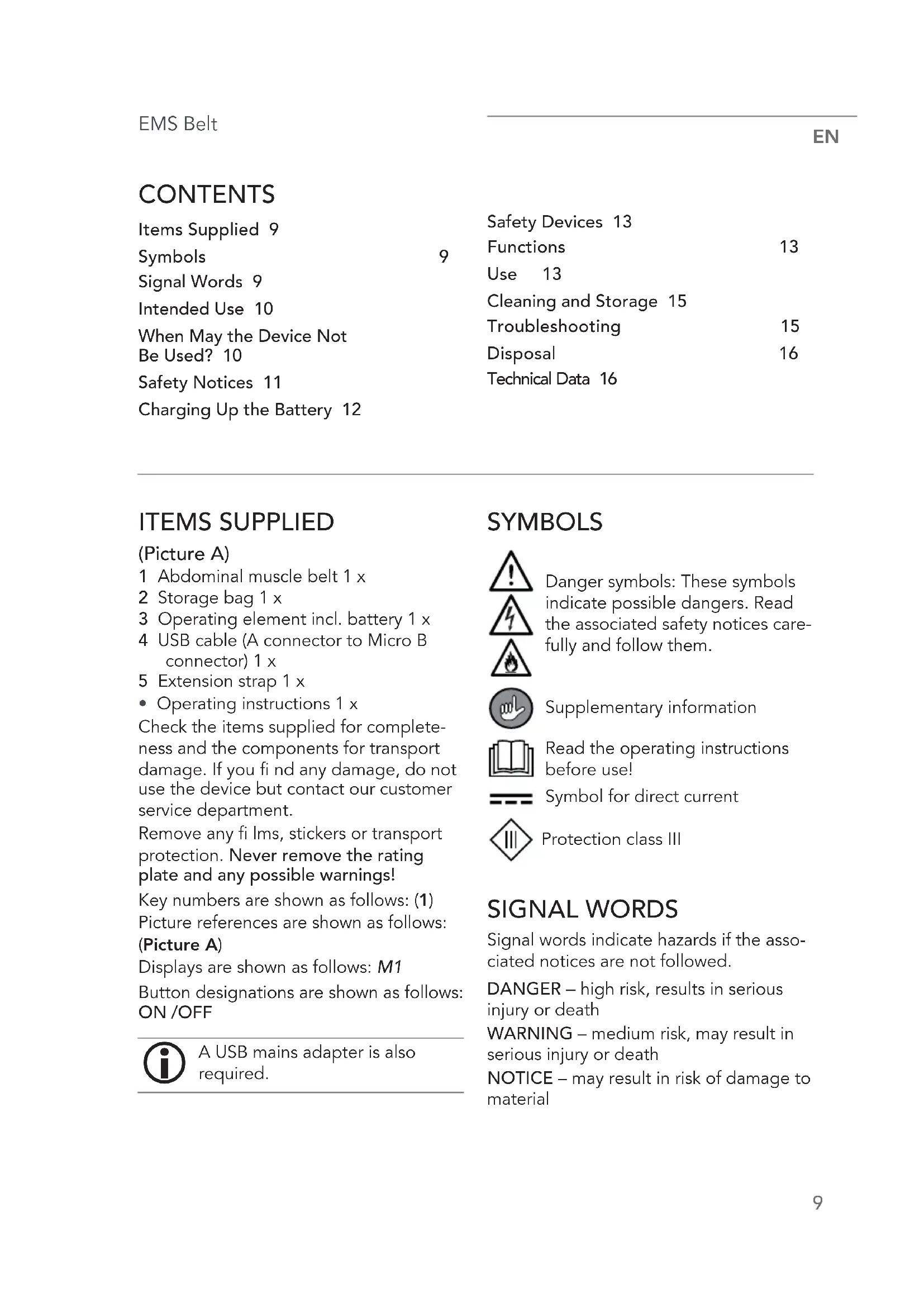

USER MANUAL 09074 Maxxmee

When May the Device Not

Be Used? 10

Safety Notices 11

Charging Up the Battery 12

Safety Devices 13

Functions 13

Use 13

Cleaning and Storage 15

Troubleshooting 15

Disposal 16

Technical Data 16

ITEMS SUPPLIED

(Picture A)

1 Abdominal muscle belt 1 x

2 Storage bag 1 x

3 Operating element incl. battery 1 x

4 USB cable (A connector to Micro B connector) 1 x

5 Extension strap 1 x

- Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any fi lms, stickers or transport protection. Never remove the rating plate and any possible warnings!

Key numbers are shown as follows: (1)

Picture references are shown as follows:

(Picture A)

Displays are shown as follows: M1

Button designations are shown as follows: ON/OFF

A USB mains adapter is also required.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read the operating instructions before use!

Symbol for direct current

Protection class III

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

NOTICE – may result in risk of damage to material

EN

Dear Customer,

We are delighted that you have chosen the MAXXMEE EMS belt.

Simply put on the belt, select one of six training programmes, set one of the nine intensity levels, and off you go! If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

We hope you have a lot of fun with your MAXXMEE EMS belt.

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

INTENDED USE

■ This device is intended to be used for stimulating the skin and the tissue beneath and for electrical muscle stimulation.

■ The device is not designed for medical or therapeutic purposes.

■ The device is intended for personal domestic use only and is not intended for commercial applications.

■ The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

WHEN MAY THE DEVICE NOT BE USED?

■ Infants, people who are sleeping or unconscious and animals must not be treated with the device.

■ Do not use the device if you have a fever.

■ Do not use the device if you have calf pain.

■ The following people may use the device only following consultation with a doctor:

people who are fitted with a pacemaker or similar medical implants;
- people with heart disease or who suffer from epilepsy;
o people who have spinal disorders or back complaints,
- women who are pregnant or have just given birth;
- women during their period,
o people who have undergone an operation for which the treatment is not yet complete,
o people with physical abnormalities,
o people with a malignant tumour,
o people under the influence of medication,

• people who suffer from circulation problems or thrombosis;
  o people with nerve damage or paralysis;
• people who belong to a risk group or who have concerns about their health.

■ Do not use the device on:

○ body parts with no feeling;
- regions which have recently been operated on or are scarred;

- injured, infected, inflamed, (sun-) burnt or very sensitive skin;

- injuries and areas of swelling; - acne, birthmarks, warts, rosacea;

■ Do not use the device on your head, neck, face, genital area or on the rib cage close to your heart.

■ If you are unsure whether the device may be used, consult a responsible doctor.

SAFETY NOTICES

This device is not intended to be used by people (including children) with reduced sensory or mental abilities or a lack of experience and/or knowledge, unless they are supervised by a person who is responsible for their safety or have received instruction from this person on how to use the device safely. There is a danger of injury from incorrect use!

- Do not make any modifications to the device. It may only be taken apart and / or repaired by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

WARNING: Do not use this device near a bathtub, shower or any vessel containing water. Never use while bathing or showering!

Danger – Danger of Electric Shock

If the operating element falls into water while it is connected to the mains power, pull the USB mains adapter out of the plug socket immediately! Only after this should you pull the device out of the water and dispose of it.

■ Never touch the device and the connecting cable (USB cable and USB

mains adapter) with wet hands when the operating element is connected to the mains power.

WARNING – Danger from Rechargeable Batteries

■ Make sure that the operating element cannot become wet. Do not immerse in water! Do not use the operating element if liquid has got inside.

- Do not use the device if it has malfunctioned or fallen into water. Have it checked in a specialist workshop before using it again.

■ The operating element has a built-in battery. It must not be thrown into a fire or exposed to high temperatures of over +40°C. Do not take the battery apart!

If the battery leaks, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the affected areas with abundant clear water straight away and seek medical assistance immediately.

WARNING – Danger of Fire

- Keep the device away from combustible materials and substances.

■ Do not cover the device during operation.

WARNING – Danger of Injury Keep children and animals away from the packaging material. There is a danger of suffocation.

■ Make sure that the USB cable is always kept out of the reach of young children and animals. There is a danger of strangulation.

■ Children must be supervised to ensure that they do not play with the device. There is a danger of injury from incorrect use.

■ Do not use the device if you are attached to high-frequency surgical devices or are in the vicinity of such devices or high-frequency commercial equipment.

- Do not use the device in the immediate vicinity of devices which operate using short waves or microwaves. Maintain a minimum gap of 1 metre.

■ The device must not be used near a mobile phone. Do not use a mobile phone while using the device.

■ Do not use the device while driving a vehicle or while sleeping.

■ Batteries can be deadly if swallowed. Batteries and the operating element should be kept out of the reach of children and animals. If a battery is swallowed, seek medical assistance immediately. There is a danger of burns from battery acid!

■ If you experience an unpleasant feeling while using the device, stop using it immediately!

■ Stop using the device if you experience skin redness or discolouration that lasts for more than 24 hours.

NOTICE – Risk of Damage to Material and Property

■ Remove a dead battery from the operating element immediately.

■ There are magnets on the operating element. These may interfere

with sensitive electronic devices or magnetic data storage media. They should therefore be kept away from the operating element.

■ Store the device only in closed rooms.

■ Do not expose the operating element to any moisture.

■ Use and store the device at room temperature. Do not expose it to extreme temperatures, temperature fluctuations, fi re, heat sources and direct sunlight for a prolonged period.

■ Protect the device and accessories from impacts.

■ Do not place heavy objects on the device or its accessories.

■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

In the event of damage / faults, switch the device off immediately.

■ Do not connect the operating element to a plug socket during a thunderstorm.

CHARGING UP THE BATTERY

Please Note!

■ Do not charge up on a computer because the computer might be damaged by the high charging current.

If the operating element (3) cannot be switched on, the battery is too weak and needs to be charged.

To connect the device to the plug socket, a USB mains adapter (5 V and ≥ 1 A; not supplied with the device) is required.

1. First plug the USB cable into the Micro-USB socket and then connect to a power source with USB interface

(preferably via a USB mains adapter to the plug socket).

The charging process begins and the charge control lamp on the operating element lights up red.

1. As soon as the charge control lamp goes out, the battery is charged. Disconnect the USB cable from the power source and then from the USB socket.

SAFETY DEVICES

The operating element (3) has two built-in safety functions:

• The operating element automatically switches off after 10 seconds if no contact is established between the skin and silicone pad in the belt.
• The operating element automatically switches off after 20 minutes of use.

FUNCTIONS

EMS stands for electrical muscle stimulation. The device is used to stimulate the abdominal muscles.

Beginners should use the device for no more than 15 minutes a day to prevent overstimulation!

Advanced users can use the device for up to 30 minutes a day. We recommend no more than 2 units per day, with a rest phase of at least 4 hours between the units.

Modes

M1 - Warm-up and cool down

M2 - Intensive training, high level

M3 – Intensive training, medium level

M4 - Advanced training, medium level

M5 - Advanced training, high level

M6 - Complete training, high level

Each mode has 9 different intensity levels.

USE

Please Note!

■ Do not use straight after eating.
■ The device should not be used before going to sleep. Massages have a stimulating effect, which may lead to problems getting to sleep.
For reasons of hygiene, the device should only be used by one person and cleaned after each use (see the "Cleaning and Storage" chapter). Keep the device clean.

■ The skin may feel warm during the treatment. This is normal and not a cause for concern.

■ Do not bend the silicone pads.

■ The silicone pads must not come into contact during use with metal parts, e.g. on belts, wrist watches, jewellery or similar items.

■ We explicitly point out that with some people skin irritations or hypersensitivity may occur as a result of the electrical muscle stimulation. In this case, stop using the device immediately and consult a doctor if necessary.

1. Thoroughly clean and then dry the area which is to be trained.
2. Place the belt around you so that the silicone pads in the belt rest directly on the skin over the abdominal muscles. Fix the belt using the hook-and-loop fastener (Picture B).
3. Attach the operating element (3) to the belt using the press studs (Picture C). Both press studs must fit securely for the device to work.

The belt is suitable for a waist circumference of 65 – 110 cm. This circumference can be extended up to 140 cm with the extension strap (5).

Operating the Device

1. Switch on the operating element (3): press the + button on the operating element. M1 and 0 is shown on the display and the operating lamp lights up green. When the device is switched on, the intensity of the stimulation is set to level 0 and mode M1. In total there are 6 different modes, each with 9 intensity levels (see the "Functions" chapter).

2. Press the + button on the operating element repeatedly to increase the intensity to the level where stimulation still feels pleasant. Use the – button on the operating element to reduce the intensity if necessary.

3. To switch mode, briefly press the M button on the operating element. After each change of mode, the intensity is automatically set to level 0 and needs to be manually increased again.

4. To switch off the operating element, press the – button on the operating element several times until the display switches off and the operating lamp goes out.

The device automatically switches off after 20 minutes.

1. Clean the device after each use (see the "Cleaning and Storage" chapter).

What You Should Note When Training With EMS

• The most important thing fi rst: Training with electrical muscle stimulation (EMS) is the perfect accompaniment to your regular sports regime. However, it is not a substitute for traditional training!
• The EMS only boosts your strength and is not a substitute for endurance training. To ensure that you train your whole body in a sensible way, you

should also focus on strengthening your stamina.

- You should build up strength not only using EMS. Targeted traditional strength training combined with EMS will boost the effect.

• Particularly if you want to improve your performance in a particular sport through EMS, you should replicate movements that are typical of this sport during the training. This will help you to train your coordination.

- It is particularly important to drink a lot during EMS training. This is because fi rstly large amounts of water can collect in the muscles during the training. So to ensure you do not experience any circulation problems, you should always remember to drink enough. And secondly EMS training increases the secretion of the enzyme creatine kinase (CK), which is eliminated via the kidneys. Having suffi cient fl uid in the body aids the kidneys.

- Include suffi cient recovery phases between your training sessions. We recommend, particularly for beginners, that you train no more than once or twice a week.

- EMS training is not designed for you to endure pain in order to produce supposed better results. This can damage your health more than it benefits it. You should therefore never train too much and not at an intensity level that is too high.

CLEANING AND STORAGE

Please Note!

■ After each use, store the device in a place where children cannot use it.
■ No liquid must get into the operating element. Never immerse the operating element in water!
- Do not use any caustic or abrasive cleaning agents or pads to clean the device. These may damage the surfaces.

- Remove the operating element (3) from the belt (1) after use.

- Clean the belt in accordance with the washing label.

- Clean the operating element with a slightly damp, soft cloth.

- Store all parts in a dry place which is protected from moisture, dirt and direct sunlight and is out of the reach of children and animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The operating element (3) does not work. / The display does not show anything.

The battery is empty.

▶ Charge up the battery.

The operating element (3) repeatedly switches off.

There is no contact between the skin and silicone pads in the belt (1).

▶ Make sure that the silicone pads fit correctly. There must be skin contact. There must not be any hairs, clothing, jewellery etc. between the skin and silicone pads.

The operating element (3) is not attached to the belt (1) correctly.

▶ Check whether the operating element is correctly attached to the press studs.

The battery is too weak.

▶ Charge up the battery.

The display shows the mode and intensity, but no pulses for muscle stimulation are emitted.

The silicone pads in the belt (1) are not fitted correctly.

▶ Keep changing the position of the silicone pads until the spot with the strongest muscle contraction has been found.

The intensity level is set too low.

▶ Increase the intensity level.

The silicone pads are dirty.

▶ Clean the silicone pads.

The battery is too weak.

▶ Charge up the battery.

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

Batteries should be removed from the remote control prior to disposal of the device and disposed of separately from the device at suitable collection points.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of the operating element with a built-in battery as normal domestic waste, but rather in an environmentally friendly manner via an offi cially approved waste disposal company.

TECHNICAL DATA

Article number: 09074

Model number: QSF78

ID of operating instructions: Z 09074 M DS V1 1120 uh

Operating element

Voltage supply: 3.7 V DC (1 x Li-ion battery, 180 mAh)

Charge time: approx. 1 h

Operating time: approx. 150 min; automatic switch-off after 20 min

Type of protection: IP44

Mains adapter required: 5 V and ≥1 A

Protection class: III

All rights reserved.

SOMMAIRE

Composition 17

Symboles 17

WAARSCHUWING – Gevaar door accu's

WAARSCHUWING – Brandgevaar

WAARSCHUWING – Verwon- dingsgevaar

▶ Reinig de silicone-pads.

De accu is te zwak.

▶ Laad de accu op.

VERWERKING
