08993 - Fitness Equipment Maxxmee - Free user manual and instructions

Product type	Oscillating physical training device
Brand	Maxxmee
Model	08993
Device power supply	24 V, 1 A (via included power adapter)
Power	20 W
Speed levels	5
Remote control	Yes, with 2 x AAA 1.5 V batteries (not included)
Power adapter	Model XH2400-1000WG, input 100-240 V ~ 50/60 Hz, output 24 V DC 1 A
Device protection class	III
Power adapter protection class	II
Power adapter protection rating	IP20
Usage	Domestic, seated position
Maximum continuous usage time	20 minutes
Cleaning	Soft damp cloth with mild detergent, then dry
Important safety instructions	Do not use in water, do not cover, unplug after use
Included accessories	Device, remote control, power adapter, user manual
Spare parts	Contact customer service via www.dspro.de/kundenservice
Warranty	Excludes normal wear and damage from improper use
Disposal	Do not discard with household waste, follow WEEE directive
Number of pieces	4 (device, remote control, power adapter, user manual)

Frequently Asked Questions - 08993 Maxxmee

What are the benefits of this physical training device?

The device gently oscillates back and forth, stimulating blood circulation. It is particularly suitable for people who sit often, helping to prevent cramps, varicose veins, and heavy legs.

How to install the remote control batteries?

Open the battery compartment on the back of the remote by sliding the cover down. Insert two AAA 1.5 V batteries respecting polarity, then close the cover until you hear a click.

What is the maximum recommended usage time?

It is recommended not to use the device for more than 20 minutes without interruption.

Can I use the device while standing or walking?

No, the device is for seated use only. Do not kneel, stand, stomp, or jump on the foot plates.

What if the device does not respond to the remote control?

First, check the remote control batteries: replace them if necessary. Make sure there are no obstacles between the remote and the device's receiver. Point the remote directly at the device.

How to clean the device?

Use a soft damp cloth, possibly with a little mild detergent. Then wipe with a dry cloth to dry the device thoroughly. Do not use caustic or abrasive cleaners.

The device stops automatically, what to do?

This may be due to overload. Reduce the load (e.g., apply less pressure on the plates) and restart the device.

Can I use the device before sleeping?

It is not recommended to use the device before going to bed, as the stimulating effect on circulation may interfere with falling asleep.

What to do if the device falls into water?

Immediately unplug the power adapter from the electrical outlet. Do not attempt to remove the device from water while it is still plugged in. Never touch the device or cord with wet hands.

Where can I get spare parts?

Contact customer service via www.dspro.de/kundenservice for any questions regarding spare parts and accessories.

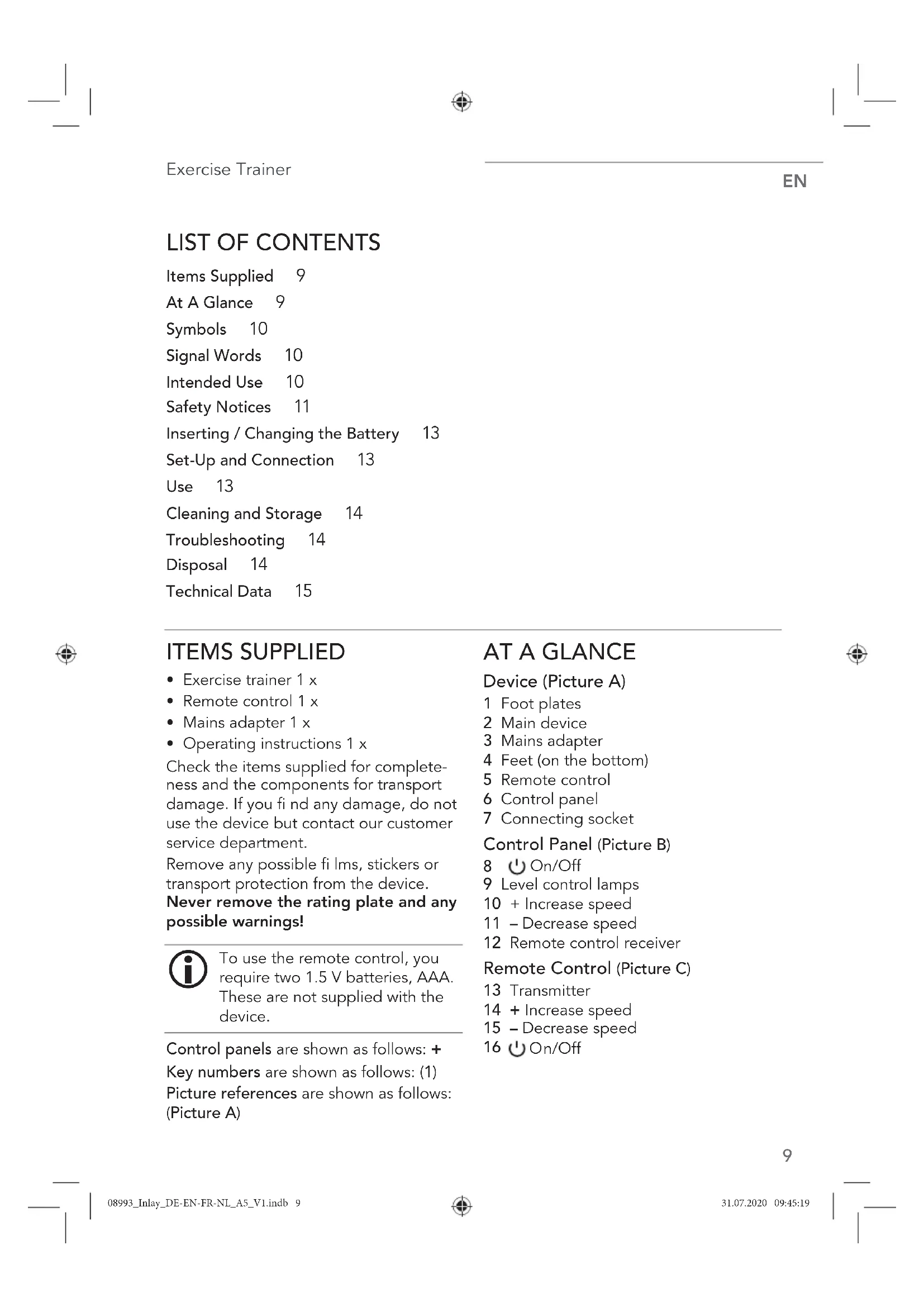

USER MANUAL 08993 Maxxmee

Inserting / Changing the Battery 13

Set-Up and Connection 13

Use 13

Cleaning and Storage 14

Troubleshooting 14

Disposal 14

Technical Data 15

ITEMS SUPPLIED

• Exercise trainer 1 x
- Remote control 1 x
- Mains adapter 1 x
- Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible fi lms, stickers or transport protection from the device.

Never remove the rating plate and any possible warnings!

To use the remote control, you require two 1.5 V batteries, AAA. These are not supplied with the device.

Control panels are shown as follows: +

Key numbers are shown as follows: (1)

Picture references are shown as follows:

(Picture A)

AT A GLANCE

Device (Picture A)

1 Foot plates
2 Main device
3 Mains adapter
4 Feet (on the bottom)
5 Remote control
6 Control panel
7 Connecting socket

Control Panel (Picture B)

8 ⏻ On/Off
9 Level control lamps
10 + Increase speed
11 - Decrease speed
12 Remote control receiver

Remote Control (Picture C)

13 Transmitter
14 + Increase speed
15 - Decrease speed
16 ⏻ On/Off

EN

Dear Customer,

We are delighted that you have chosen the MAXXMEE exercise trainer.

It oscillates gently forwards and backwards, thus stimulating blood flow. Simply place your feet on the foot plates while sitting down and use the control panel or the remote control to select the level you want. The exercise trainer is ideal in particular if you spend a long time sitting because it allows you to exercise your legs without too much effort as well. This can prevent cramps, varicose veins and tired legs.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice

We hope you have a lot of fun with your MAXXMEE exercise trainer.

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read operating instructions before use!

Symbol for direct current

Protection class II

Switching power supply

Only use indoors.

Energy effi ciency class VI

Safe electrical isolation

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

INTENDED USE

■ The device is intended for gently exercising your feet and leg muscles.

■ The device is not designed for medical or therapeutic purposes.

People

- with physical illnesses,

- with medical implants,

- with health problems or

- who are unsure should discuss the use with their responsible doctor BEFORE using the device.

Exercise Trainer

EN

■ The device is only suitable for use when sitting down.
■ The device is for personal use only and is not intended for commercial applications.
■ Use the device only for the specified purpose and as described in the

operating instructions. Any other use is deemed to be improper.

■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETY NOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
■ Cleaning and user maintenance must not be carried out by children without supervision.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.
■ The device must always be disconnected from the mains power when it is not being used and before cleaning it.
■ Use the device only with the mains adapter supplied with it. Do not use the mains adapter with another device.
- Do not make any modifications to the device. If the device or the connecting cable are damaged, they must be replaced or repaired by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

EN

DANGER – Danger of Electric Shock

■ Use and store the device only in closed rooms.
■ Do not use or store the device in rooms with high humidity.
■ Never immerse the device and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.
If the device does fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is connected to the mains power!
■ Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.

WARNING – Danger of Fire

■ Do not operate the device in the vicinity of combustible material.
■ Do not cover the device during operation in order to prevent it from catching fire.
■ Do not insert anything into the ventilation openings of the device and make sure that they do not become clogged.

WARNING – Danger of Injury

- Keep children and animals away from the packaging material. There is a danger of suffocation.

Danger of burns from battery acid!

• Batteries can be deadly if swallowed. Batteries and the remote control should be kept out of the reach of children and animals. If a battery is swallowed, immediate medical attention must be sought.
• If a battery leaks, avoid physical contact with the battery acid. Wear

protective gloves. If you touch battery acid, rinse the affected areas with abundant clear water straight away and seek medical assistance immediately.

■ Make sure that the connecting cable does not present a trip hazard.

NOTICE – Risk of Damage to Material and Property

■ Switch off the device and pull the mains adapter out of the plug socket if an error occurs during operation or before a thunderstorm.
■ When you pull the mains adapter out of the plug socket, always pull on the mains adapter and never the mains cable!
■ Never pull or carry the device by the connecting cable.
■ Do not stand on the device so that it is not damaged.
■ Use only original accessories so that you do not interfere with the way the device works and to avoid possible damage.
■ Protect the device from heat, naked flames, sub-zero temperatures, persistent moisture, wet conditions, direct sunlight and impacts.

NOTICE – Risk of Damage to Material and Property from Batteries

■ Use only the battery type specified in the technical data.
Take the batteries out of the remote control when they are dead or if you will not be using the device for a prolonged period. This will prevent any damage that might occur if a battery leaks.
■ Remove a dead battery from the remote control immediately.
■ Always replace all batteries together. Do not use batteries of different types or brands, or batteries with different capacities.

INSERTING / CHANGING THE BATTERY

Before inserting the batteries, check whether the contacts in the remote control (5) and on the batteries are clean, and clean them if necessary.

1. Open the battery compartment on the back of the remote control: Push the battery compartment cover slightly and slide it downwards.
2. Remove used batteries if necessary and insert a new battery (1.5 V, AAA) into the battery compartment. Pay attention to the correct polarity.
3. Place on the battery compartment cover and slide it upwards. You must feel it engage.

Replace the batteries if the power of the remote control starts to wane.

SET-UP AND CONNECTION

Please Note!

■ Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
■ Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces.

- Place the device on a dry, flat and solid surface. If the device is used on a carpet, make sure that the ventilation openings on the bottom of the device remain clear.

Protect sensitive floor coverings on which the device is placed with a mat if necessary.

- Connect the cable of the mains adapter (3) first to the connecting socket (7) of the device and then connect it to an easily accessible plug socket. The control panel (6) lights up once. The device is ready.

USE

Please Note!

■ Never place your hands and feet between the frame and foot plates while the device is in operation. There is a danger of crushing!
■ Do not stand, kneel, stamp or jump on the foot plates to prevent injuries and damage to the device.
■ Do not use the device for longer than 20 minutes without a break.

Start with the slowest level and gradually increase the level of intensity.

The device can be controlled both with and without the remote control. To make it easier to operate, we recommend using the remote control. It must be directed towards the receiver (12) of the device.

1. Switch on the device using the ⏻ button (8 or 16) on the control panel (6) or the remote control (5).
2. Sit down on a chair, armchair or similar place in front of the device. Place your feet on the foot plates (1).
3. To start the device, press the ⏻ button (8 or 16). The device then starts.
4. If you wish, increase/reduce the level by pressing the button + (10 or 14) or the button - (11 or 15) several times.
5. Use the button to stop the device after the time you want.
6. Pull the mains adapter (3) out of the plug socket and the barrel connector out of the device.

EN

Please Note:

• A tingling sensation / itching during or after use is normal due to the circulation-boosting effect.
• The device should not be used before going to sleep. The exercises have a stimulating effect, which may lead to problems getting to sleep.

CLEANING AND STORAGE

Please Note!

■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.

• Wipe down the device with a damp, soft cloth and a little mild cleaning agent if required. Then dry it thoroughly.
• Store the device in a dry, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device does not work.

The cable of the mains adapter (3) is not connected to the device or the plug socket correctly.

▶ Correct the fit of the two plugs.

The plug socket is defective.
▶ Try another plug socket.

There is no mains voltage.

▶ Check the fuse of the mains connection.

The device switches itself off automatically.

The device has been overloaded.

▶ Reduce the load and restart the device.

The device does not react to the remote control (5).

The batteries of the remote control (5) are too weak.

▶ Replace the batteries of the remote control.

There are obstructions between the device and remote control (5) (no visual contact).

▶ Point the remote control directly at the device.

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The batteries should be removed before disposing of the remote control and disposed of separately from the device at suitable collection points.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an offi cially approved waste disposal company.

TECHNICAL DATA

Article number: 08993

ID of operating instructions: Z 08993 M DS V1 0720 uh

Device

Model number: TS-24198

Power supply: 24 V, 1 A

Power: 20 W

Protection class: III

Speed levels: 5

Remote control

Power supply: 3 V (2 x 1.5 V battery, AAA)

Mains adapter

Type of protection: IP20

∅ effi ciency in operation: ≥ 86 %

Efficiency on low load (10%): ≥ 82%

Power consumption on no-load: ≥ 0.1 W

All rights reserved.
