GR 0203 - Coffee grinder TAURUS - Free user manual and instructions

Brand	Taurus
Model	GR 0203
Category	Coffee grinder
Product type	Electric blade coffee grinder
Main material	Stainless steel
Power supply	220-240 V ~ 50/60 Hz
Power	150 W (estimated)
Hopper capacity	Approximately 80 g of beans
Grind adjustment	Continuous adjustment by knob: fine, medium, coarse
Operation	Pulse operation (ON/OFF button held)
Compatible coffee type	Coffee beans
Safety	Automatic stop when button is released
Cleaning	Clean with a damp cloth; do not immerse
Spare parts	Blade, hopper, filter holders available from after-sales service
Dimensions (approx.)	12 x 12 x 22 cm
Weight (approx.)	0.8 kg
Cable length	Approximately 0.8 m
Use	Household use only
Warranty	2 years (according to legislation)
Included accessories	Hopper, filter holders, blade

Frequently Asked Questions - GR 0203 TAURUS

How to adjust the grind size on the Taurus GR 0203 coffee grinder?

To adjust the grind, turn the regulator (G): clockwise for a finer grind, counterclockwise for a coarser grind. If the regulator is stuck, plug in the appliance and briefly press the ON button to loosen the blades.

How to use the Taurus GR 0203 coffee grinder?

Unwind the cable completely, plug in the appliance, open the lid, fill the hopper with coffee beans, place the filter holder under the ground coffee outlet, then hold down the ON/OFF button. The amount of ground coffee depends on how long you hold it.

How to clean the Taurus GR 0203 coffee grinder?

Unplug the appliance and allow it to cool. Clean the exterior with a damp cloth moistened with a few drops of mild detergent. Never immerse the appliance in water or use abrasive products or solvents.

What to do if the grind is uneven?

Check that the hopper is correctly mounted and the fixing screw is tight. Try adjusting the grind to a different level. If the problem persists, the coffee may be too humid or the blades are dull; contact after-sales service.

Can the appliance grind other foods besides coffee?

No, this appliance is designed only for grinding coffee beans. Using it for other foods could damage the blades or motor and void the warranty.

How to assemble the hopper on the Taurus GR 0203 grinder?

The hopper is delivered disassembled. Unscrew the side screw on the blade holder, place the hopper aligning the holes, then retighten the screw. Make sure it is securely fastened before use.

Why doesn't the ON/OFF button stay pressed?

The operation is designed as pulse: the button must be held down for the appliance to work. Release it to stop. This improves safety and grind control.

What to do if the appliance does not start?

Check that the cable is properly plugged in and the wall socket is working. Ensure the hopper is correctly mounted. If no issue, contact an authorized technical service – do not attempt to repair yourself.

Can I use a plug adapter?

No, never use an adapter. The appliance plug must match the wall socket. Use a grounded socket rated at least 10 A.

How to recycle the coffee grinder at end of life?

Do not dispose of it with household waste. Take it to a selective collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL GR 0203 TAURUS

Technical line drawing of a mechanical press or grinder device with no visible text or symbols

_

| _

一

1

Español

Coffee grinder in stainless steel

GR-0203

Dear Customer:

Welcome to coffee gourmets' club

Many thanks for choosing to purchase a MINI-MOKA brand product.

Its technology, design and practicality, together with the fact that it has passed the strictest quality tests, will bring you total satisfaction for a long time and allow you discover the pleasure of savouring authentic espresso coffee

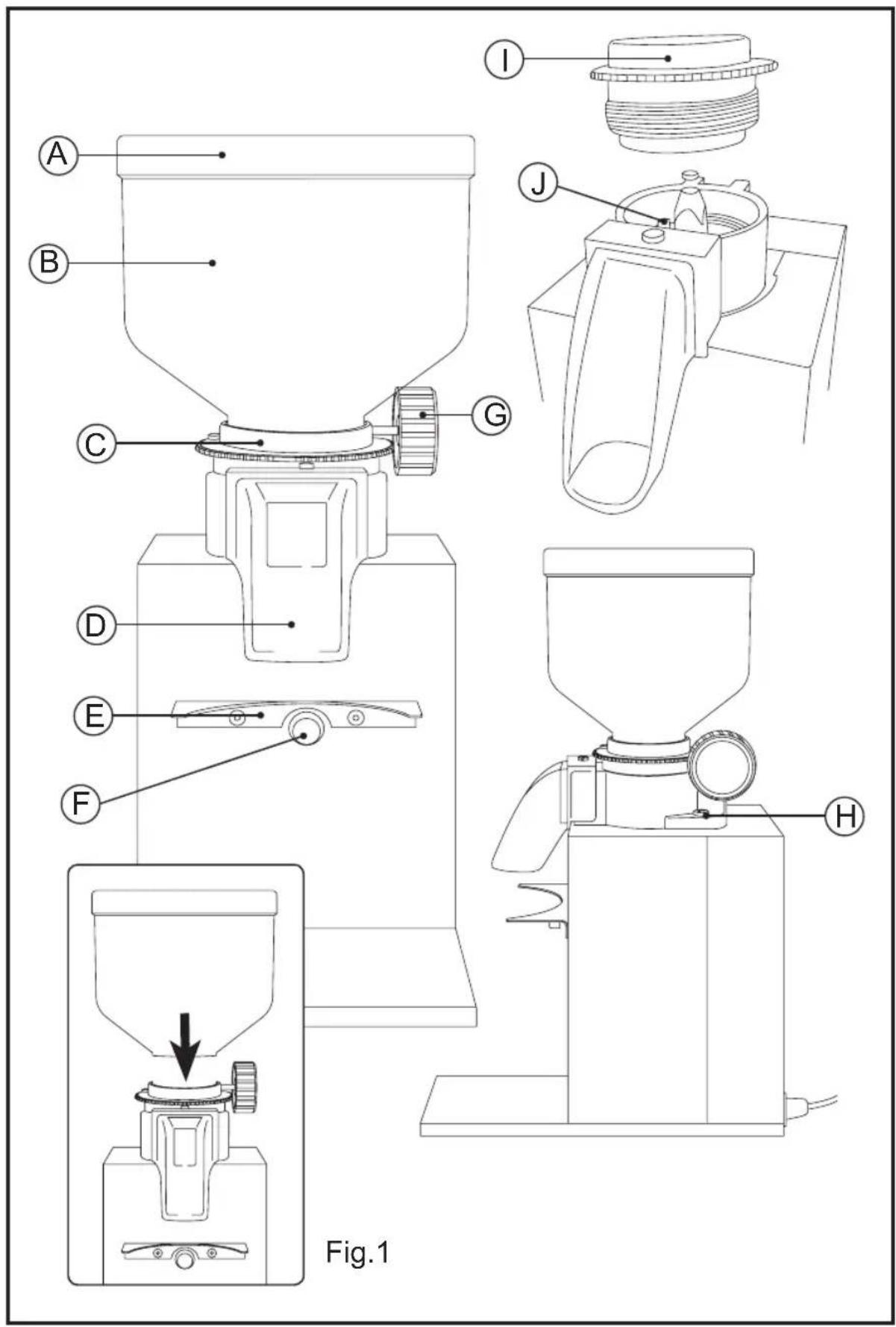

DESCRIPTION

A Hopper lid
B Coffee bean hopper
C Hopper anchor fitting
D Ground coffee outlet
E Filter holder bracket
F ON/OFF button
G Grinding size regulator
H Mill holder
I Mill
J Hopper fixing screw

SAFETY ADVICE AND WAR- NINGS

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

- This appliance is for household use only, not professional, industrial use.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.

• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Do not place the appliance in an oven cavity or similar.
• Keep children and bystanders away when using this appliance.
• The appliance must be used and placed on a flat, stable surface.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The appliance is not suitable for outdoor use.
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Do not force the appliance's work capacity.
• This appliance should be stored out of reach of children and/or the disabled.
• Keep the appliance in good condition. Check

that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• WARNING: Do not use without tank properly positioned. As described in section of assembly the tank

ASSEMBLING OF THE HOPPER: (FIG. 1)

• Due to transport, the hopper comes dismantled
• Unscrew the screw fixed on the mill holder
• Put the hopper on the mill holder and be sure that holes are aligned
• Place again the screw.

GRINDING SIZE REGULATOR:

• The suitable grinding size depends on the characteristics of the bean, humidity and toast. Not all types of coffee have the same characteristics, so is recommendable to do a trial run with each coffee batch and if necessary adjust the grinding size.
• To select the finest ground size, turn the knob regulator clockwise
• To select more coarsely ground size, turn the knob regulator anticlockwise
• If is difficult turn the knob, probably a rest coffee bean locks the mill. Connect the appliance and switch ON few seconds

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Open the lid.
• Fill the tank with coffee beans
• Place the filter holder under ground coffee outlet, supporting it in the bracket (E) and use it to push the ON/OFF button (F)
• The quantity of ground coffee will depend on the time you keep the push-button pressed; to obtain 7gr (the perfect quantity) approximately with 10 seconds is enough

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate

public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EC on Low Voltage, Directive 2014/30/EC on Electromagnetic Compatibility and Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and with Directive 2009/125/EC on the ecodesign requirements for energy-related products.
