Description

1. Door Safety lock System
2. Oven window
3. Turntable roller
4. Door Release Button
5. Control panel
6. Wave guide (don't remove the covering mica plate)
7. Glass Tray
8. Grill Heater
9. Metal rack

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

⚠ Safety advice and warnings

• Important safety instructions read carefully and keep for future reference
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.
• The appliance requires suitable ventilation in order to work properly. Leave a space of 20cm above the appliance, 10cm behind the appliance, and 5cm on either side.
• Only use utensils that are suitable for use in microwave ovens.
• Metallic containers for food and beverages are not allowed during microwave cooking.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• The microwave oven is intended for heating food and beverage. Drying of food or clothing and heating of warming pads, slippers,

sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended..

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- The oven should be cleaned regularly and any food deposits removed.

- Failure to maintain the oven in clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.

- The appliance shall not be cleaned with a steam cleaner

- The microwave oven is intended to be used built-in

- The microwave is intended to be used in a cabinet.

- The minimum dimensions of the cabinet shall be 36,5x56x35cm.

- The appliance must operate with any cabinet door open.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- The temperature of the door and other accessible surfaces may be high when the appliance is in use.

- Do not use the appliance in association with a programmer,

timer or other device that automatically switches it on.

• Do not remove the mica plate covering the wave guide
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- Children less than 8 years of age shall be kept away unless continuously supervised.

- During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

- WARNING: Accessible parts may become hot during use. Young children should be kept away.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Keep children and bystanders away when using this appliance.
• CAUTION: In order to prevent overheating do not cover the appliance.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the heated parts of the appliance, as it may cause serious burns.
• Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result is skin burns
• The accessible surface may be hot during operation

USE AND CARE:

• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance when empty.
• Do not use the appliance if the on/off switch does not work.

• Do not move the appliance while in use.

• Do not turn the appliance over while it is in use or connected to the mains.

• Do not cover the cooking surface or food with aluminium foil and other similar materials.
• Do not cover or wrap the food with aluminium foil and other similar materials.
• Do not force the appliance's work capacity.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.
• Take care when handling recipients containing liquids heated in this appliance as they may boil fiercely.
• Use only utensils appropriate to support high temperatures.
• CAUTION: Do not use the appliance if the glass is cracked or broken.
• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• CAUTION: Maintenance or repair work, which requires only trained technicians, should carry out the removal of the microwave protection cover, as such actions are dangerous.
• CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified personnel.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
• Do not remove the support feet of the appliance.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.

INSTRUCTIONS FOR USE

BEFORE USE:

• Remove the appliance's protective film.
• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• Prepare the appliance according to the function you wish to use.

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

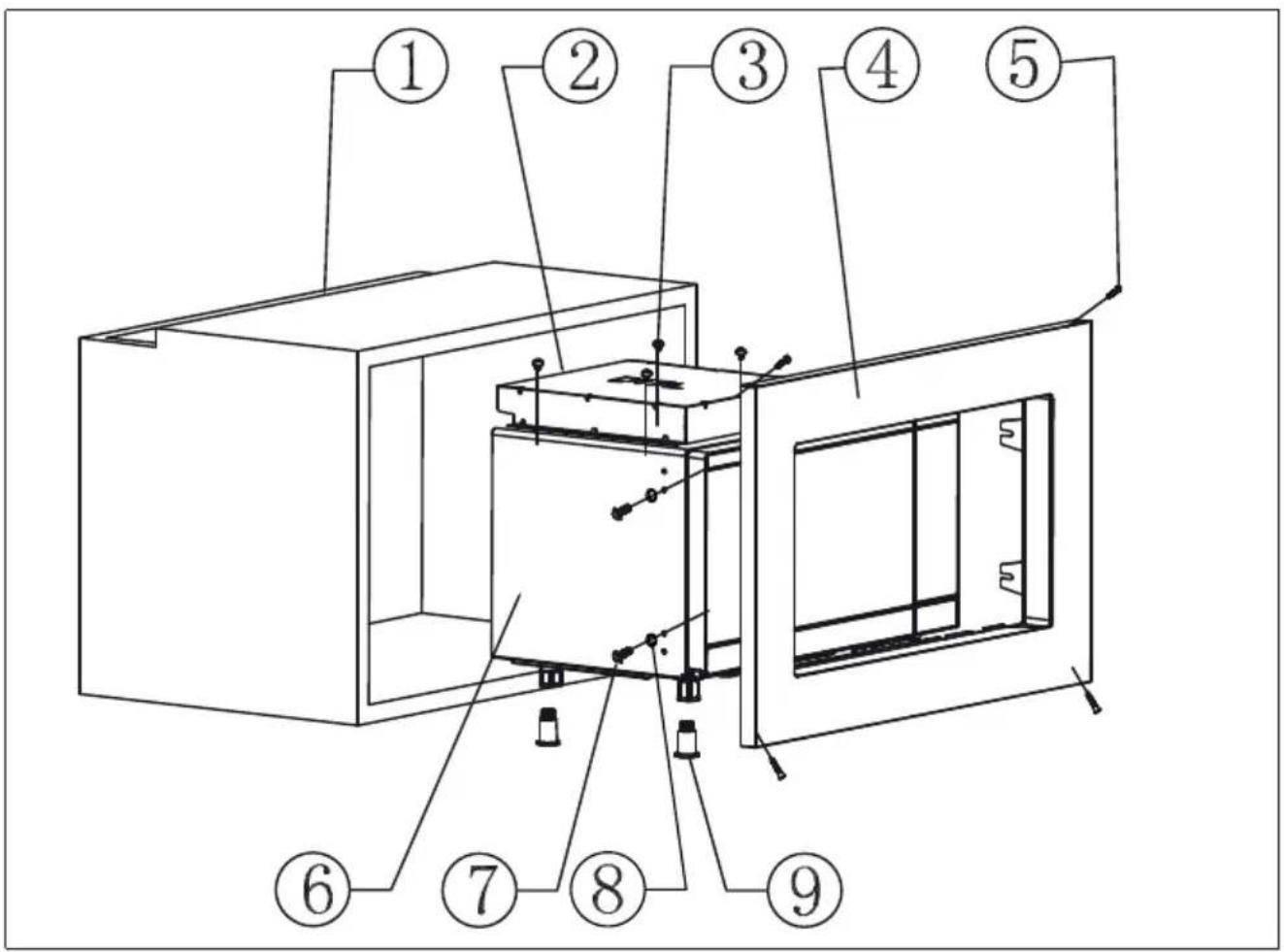

Number	Name Quantity
1 Built-in cavity 1
2	Upper exhaust guide	1
3 Screw 4X8 4
4 Frame 1
5 Screw 3X25		4
6 Microwave oven 1
7 Screw 4X10 4
8 Ring 4
9	Microwave oven foot decorative ring	4

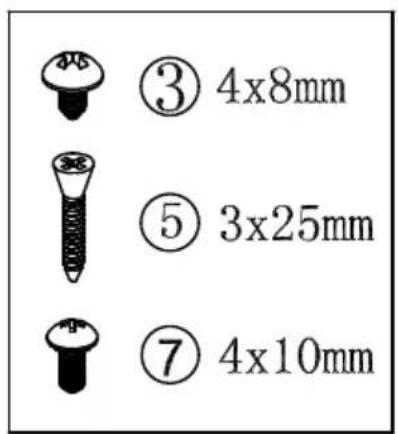

③ 4x8mm ⑤ 3x25mm ⑦ 4x10mm

INSTALLATION

- Follow steps 1 to 8 for installation.

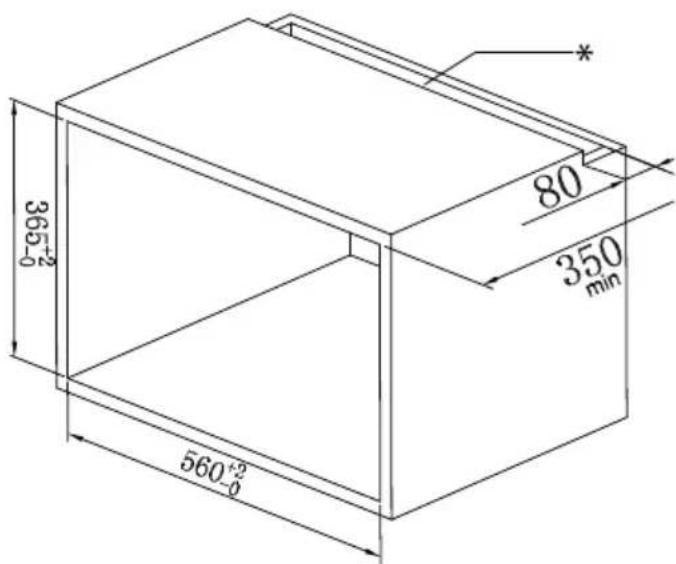

1. The built-in cavity for the microwave oven must have the next measurements:

365⁺²₋₀ 560⁺²₋₀ 80 350 min *

* Space for ventilation

560⁺²₋₀ 365⁺²₋₀

1. Screw the 4 decorative rings onto the bottom feet.

taurus taurus

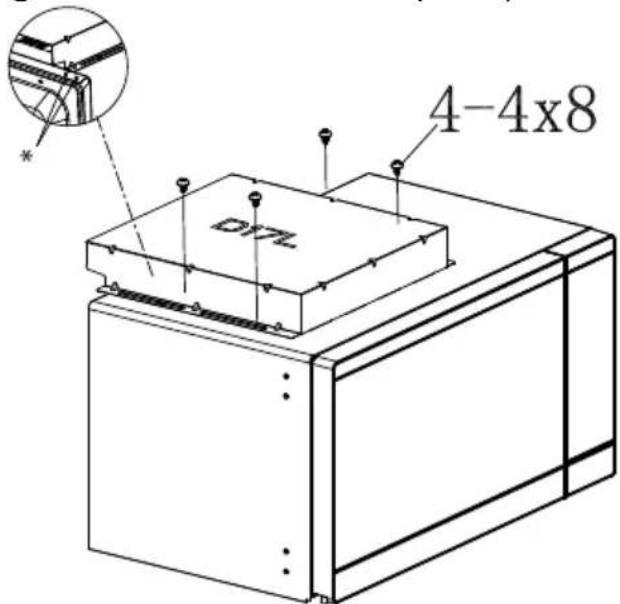

1. Fasten the upper exhaust guide with 4 screws (4X8).

4-4x8

* Align

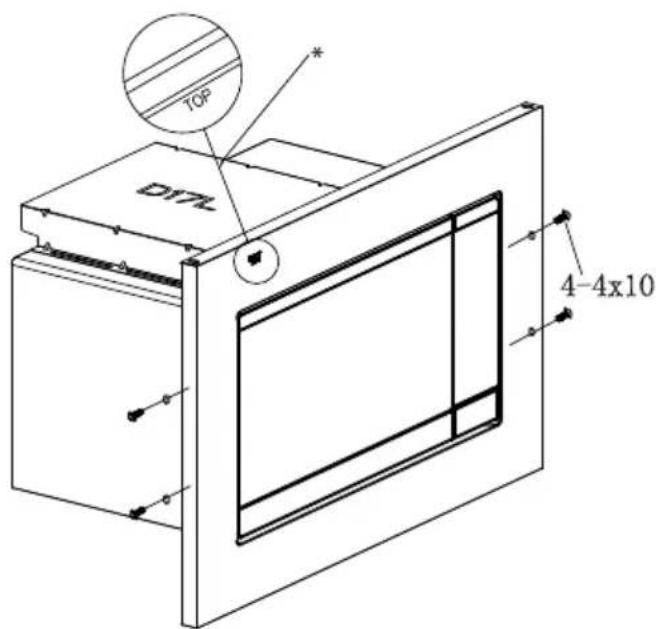

1. Fasten the 4 screws into the frame (4X10).

TOP DTL 4-4x10

* ATTENTION: The word "TOP" marked on the back indicates the top.

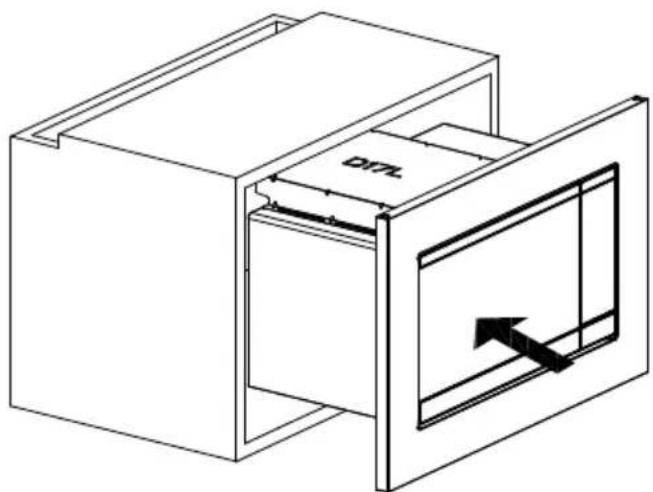

1. Place the microwave oven into the built-in cavity.

Technical line drawing of a mechanical assembly with a DTA box and directional arrow (no text or symbols)

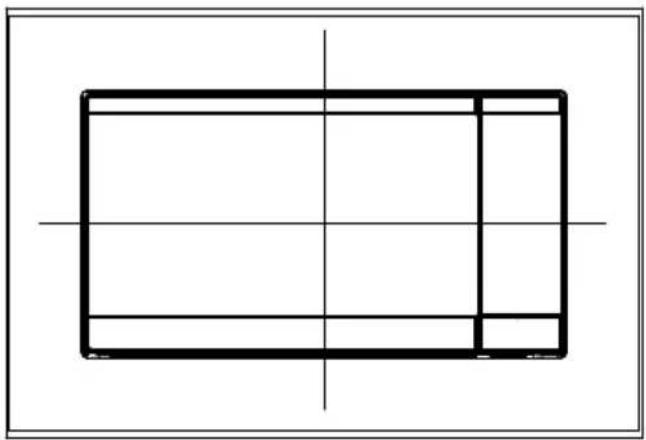

1. Center the microwave oven into the built-in cavity.

Pure geometric diagram of a rectangle with internal divisions and centerlines, no text or symbols present

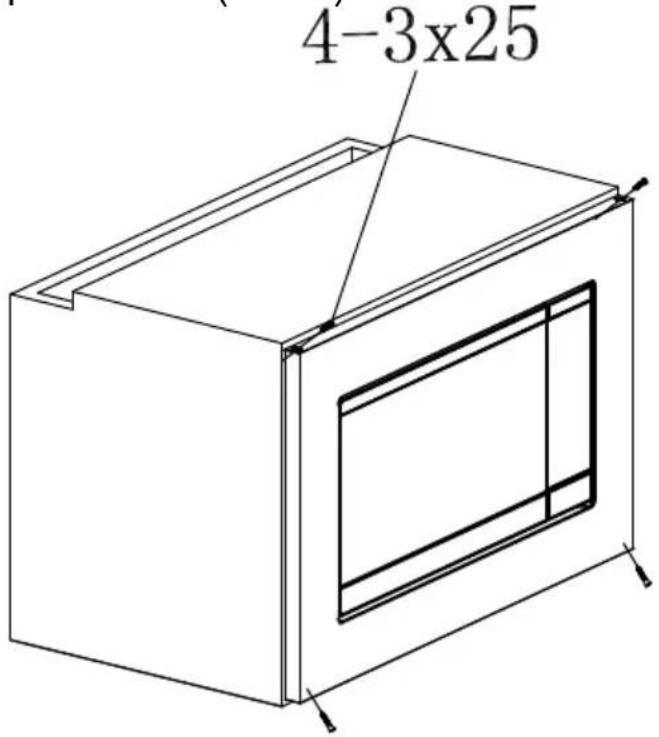

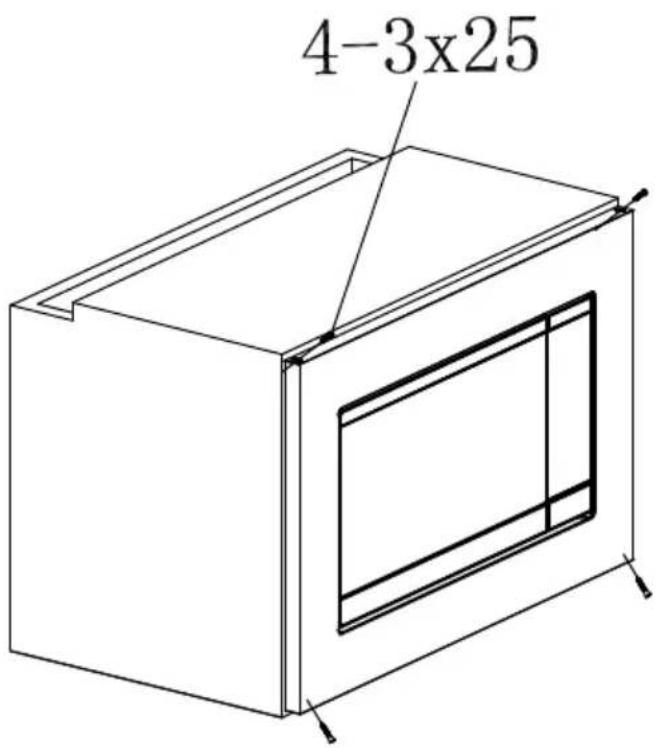

1. Fasten the oven into the built-in cavity with 4 screws (3X25).

4-3x25

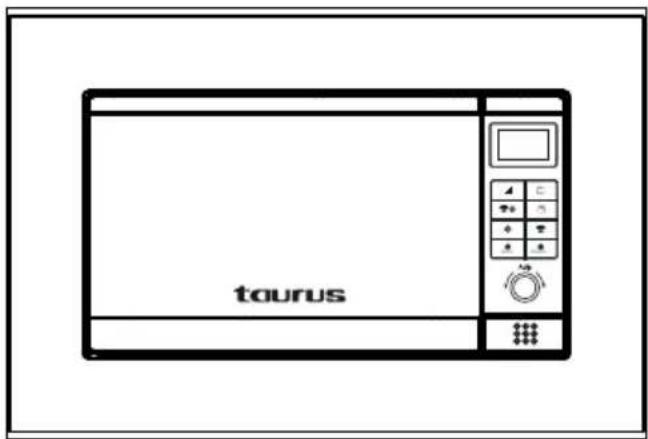

1. Installation completed.

taurus

USE - ELBRUS

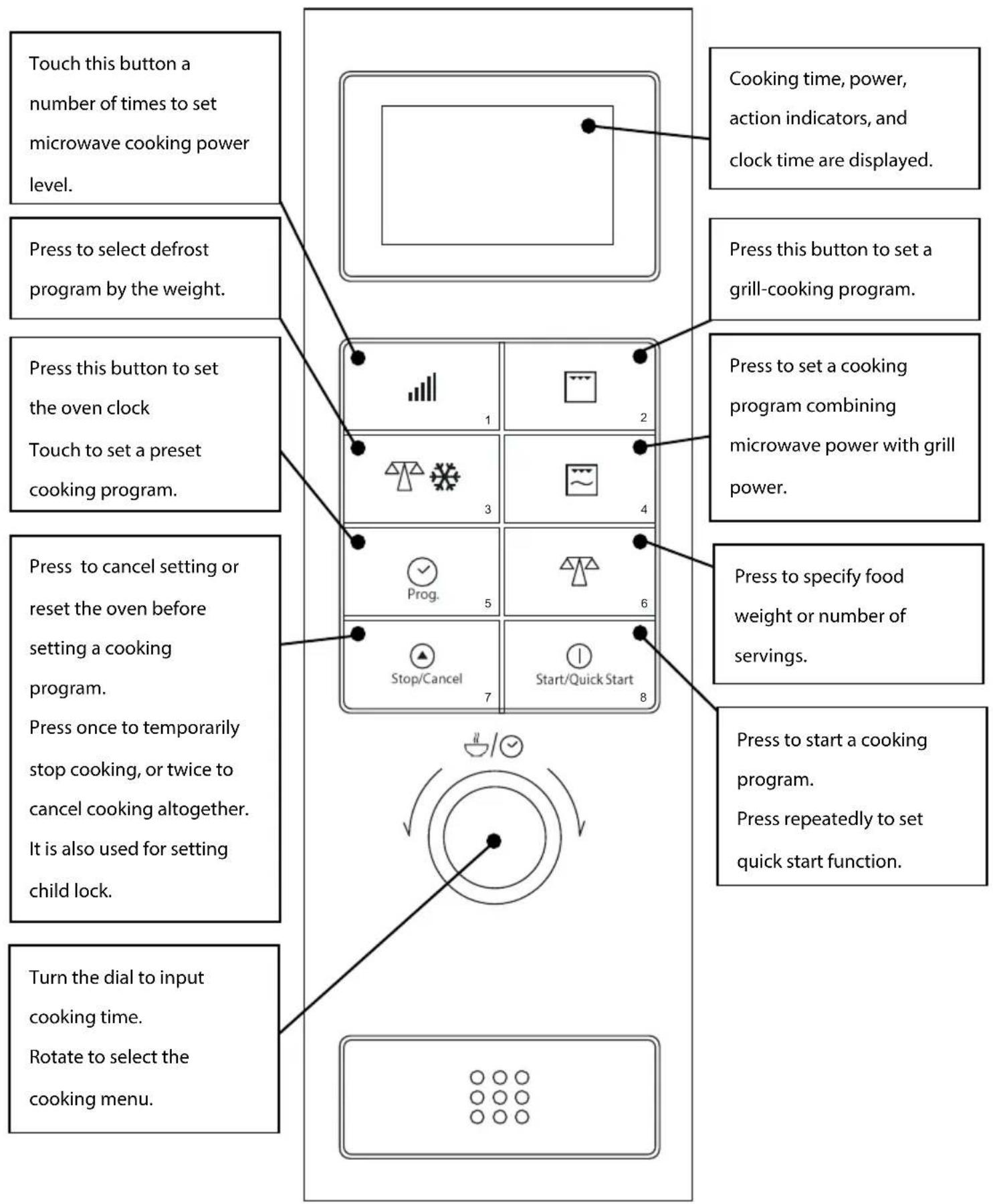

CONTROL PANEL:

    H["Cooking time, power, action indicators, and clock time are displayed."] --> I["Press this button to set a grill-cooking program."]
    I --> J["Press to set a cooking program combining microwave power with grill power."]
    J --> K["Press to specify food weight or number of servings."]
    K --> L["Press to start a cooking program. Press repeatedly to set quick start function."]

HOW TO SET THE OVEN CONTROLS

- When the oven is first plugged in, the display will show 1:00".

- During cooking, if press pad once or open the door, the program will be paused,

then press pad to resume, but if

press pad twice, the program will be canceled.

• After ending cooking, the screen will display End with sound every two minutes until user press any pad or open the door.
  Each time a button is touched, a beep will sound to acknowledge the touch.

SETTING CLOCK TIME

This is a 24-hour clock. To check the time while

the oven is operating, press the P button.

Suppose you want to set the oven clock time to 8:30.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. In standby mode, press once.
2. Turn to set 8 o'clock.
3. Press button.
4. Turn to set 30 min.
5. Press to confirm the setting.

EXPRESS COOKING

The oven will operate at HIGH power (100% power output) for EXPRESS cooking program.

To do this, just press button in quick secession to set cooking time, the oven starts immediately at full power.

For example, to set the oven to cook for 2 minutes using this feature:

1. Press button

1. Press button 4 times, the oven starts working immediately at full power.

MICROWAVE COOKING

For microwave cooking, just press the button a number of times to select a cooking

power level, and then use the dial to set a desired cooking time. Maximum cooking time is 60 minutes. Select power level by pressing the

PRESS BUTTON	COOKING POWER
Once	100%
Twice	80%
3 times	60%
4 times	40%
5 times	20%
6 times	0

For example, suppose you want to cook for 5 minute at 60% of microwave power.

1. Press button three times
2. Turn to 5:00.
3. Press button Start

GRILL

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

Press button. Turn the to 12:00.

Press button

COMBINATION 1

30% time for microwave cooking, 70% for grill cooking. Maximum cooking time is 60 minutes. Use for fish or au gratin.

FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

1. Press \~ button.

2. Turn to 25:00.

3. Press button:

COMBINATION 2

55% time for microwave cooking, 45% for grill cooking. Maximum cooking time is 60 minutes. Use for puddings omelettes, baked potatoes and poultry.

FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.

1. Press button twice.
2. Turn to 12:00.
3. Press button Start

WEIGHT DEFROST

Weight Defrost enables you to defrost food according to the weight you entered. The weight range is 100g to 1800g.

Suppose you want to set the oven to Weight Defrost for 200g food.

1. Open the door and place the food into the oven, close it.

2. Press once.

3. Press the button to enter weight.

4. Press to start

Notes:

During defrosting process, the oven will pause and sound beeps to remind you to turn food

over, after that, press sit to resume defrosting.

NOTE:

The user is required to set weight and then the oven will set the cooking time automatically. For Chicken, Beef and Meat, beeps can be heard and the oven pause during cooking to remind user to turn food over, then press

Start/Quick Start to resume.

PRESET

Preset feature allows you to program the oven to start cooking at a later time.

Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1. Input a cooking program (except quick start).

2. Press once.

3. Rotate to enter

4. Press once.

5. Rotate to enter minute digit 30.

6. Press to confirm

Note: Make sure that the food is placed into the oven in advance before any cooking starts. You

can check the preset time by touching Proq.

button. If you want to cancel the program press

Prog. button and then press St button.

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The child lock indicator will show up on display screen, and the oven can not be operated while the child lock is set.

To set the child lock: Press and hold the button for 3 seconds, a beep sounds and lock indicator lights.

To cancel the child lock: Press and hold the

Stop/Cancel button for 3 seconds until lock indicator on display goes off.

AUTO COOK MENU

For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. You can do

so by turning the ☐/√ dial to select a food/operation category, then press the button to indicate the number of servings or approximate weights of food you are about to cook. The oven starts to work after you touching

the button

For example: to cook 400g of fish.

1. Turn 📋/√ dial anti-clockwise to fish cooking, which is the item 6 on the auto-menu.

2. Press button repeatedly to indicate weight 400g.

3. Press button Start

Code	Food
1	Milk/Coffee (200ml per cup)
2	Rice (g)
3	Spaghetti (g)
4	Potato (each 230g)
5	Auto reheat (g)
6	Fish (g)
7	Chicken (g)
8	Beef/Mutton (g)
9	Skewered Meat (g)

1. The user is required to set weight for the system to determine the time needed to do the job, without entering cooking time by the user who might first at a loss as to how much time is needed for the cooking.
2. For foods coded 7 (chicken), 8 (beef/mutton), 9 (skewered meat), oven will stop during cooking to let you to turn food over and then close the door, press

①

the suto/resume cooking.

However, please remember that the result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place the food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.

PRACTICAL RECOMMENDATIONS:

• Place the thickest part of the food near the outside edge of the recipient.
• Cover the food during cooking in order to avoid splashing and ensure an even cooking temperature.
• Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking
• Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

- Use gloves if you remove any heated food.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.

• Remove the glass plate for cleaning. Clean in hot, soapy water or in a dishwasher. Replace parts correctly.

• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT:

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

- This symbol means that it is important to find the operating instructions.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

FOUR MICRO-ONDE

i Cher client,

Technical diagram of a mechanical or electrical enclosure with numbered components for identification.

Isometric line drawing of a cabinet with an open door and internal panel, showing a directional arrow (no text or symbols)

Pure geometric diagram of a rectangle with internal divisions and centerlines (no text or symbols)

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

Isometric line drawing of a mechanical or architectural component with a central panel and directional arrow (no text or symbols)

Pure geometric diagram of a rectangle with internal divisions and centerlines, no text or symbols present

1. Fixe o forno microondas na cavidade de encastre com os 4 parafusos (3X25).

4-3x25

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

Press button.

Turn the to 12:00.

Press button.

GRELHA

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

Technical line drawing of a mechanical assembly with a door and internal component (no text or symbols)

Pure geometric diagram of a rectangle with internal divisions and centerlines (no text or symbols)
