USER MANUAL Laurent 25 Convection TAURUS

LAURENT 25 CONVECTION

Microondas

Microwave Oven

Micro-ondes

Micro-ondas

Microones

Микровълнова фурна

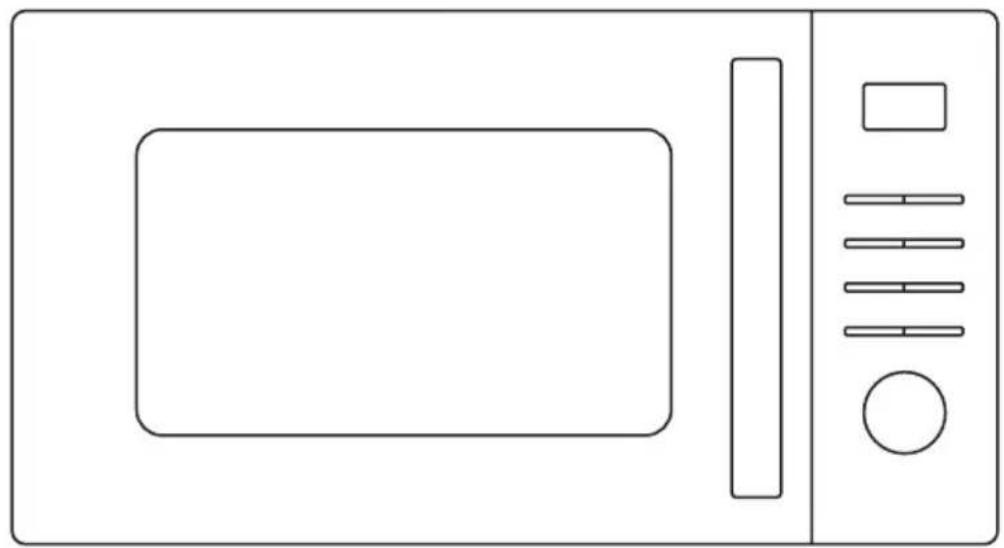

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

A B C D E

1 2 3 4 5 6 7 8 9 10 11

ESPAÑOL

→ DESCRIPCIÓN

A Puerta del microondas
B Pantalla LCD
C Asa del microondas
D Panel de control
E Mando giratorio

PAUSA/STOP: CÓMO FUNCIONA

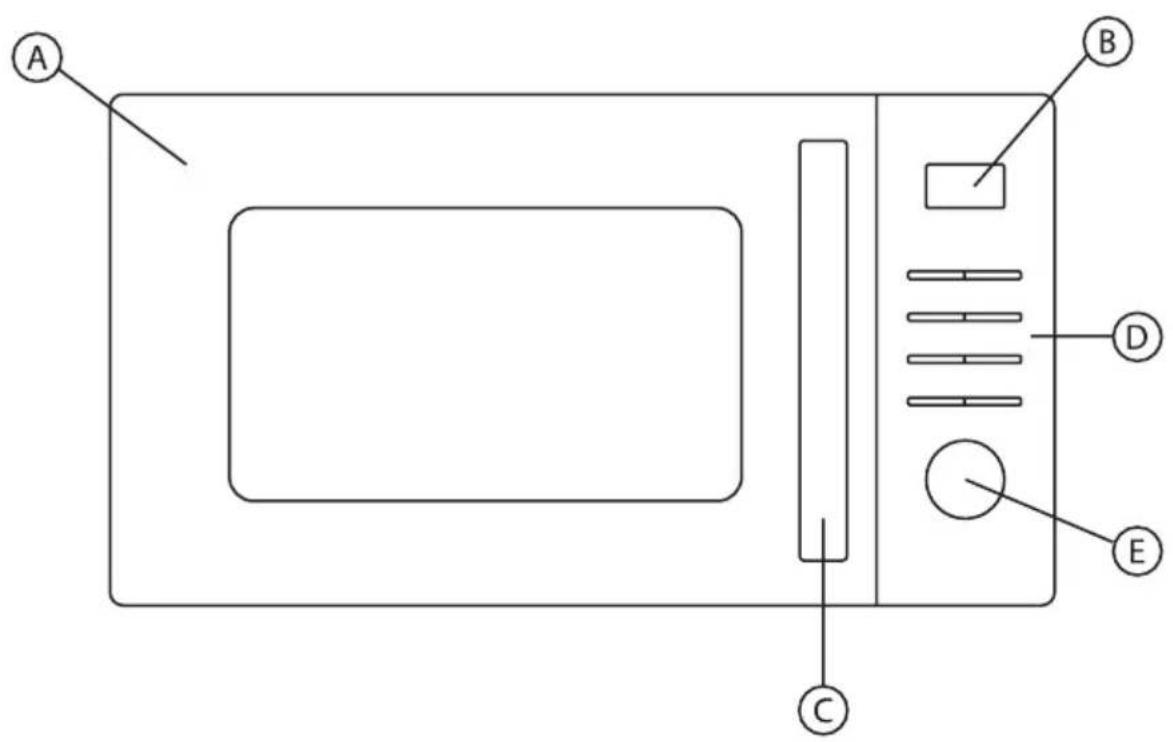

A Microwave oven door
B LCD Screen
C Door handle
D Control panel
E Rotary knob

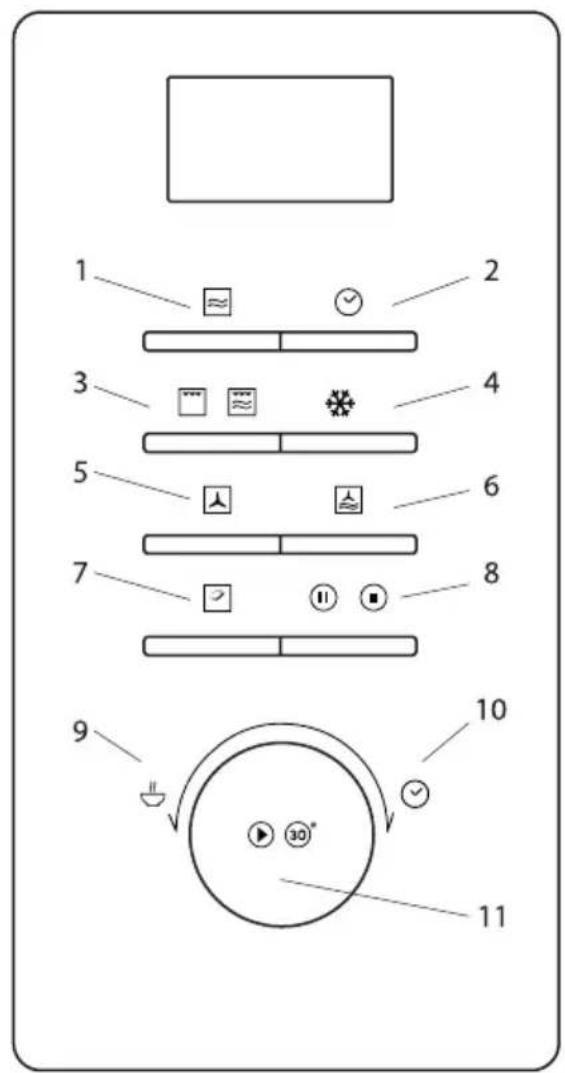

1 Microwave power selector
2 Clock adjustments
3 Grill / Combi Function
4 Defrost function
5 Convection temperature selector
6 Microwave - Convection Combi
7 Scheduled start
8 Pause/Cancel
9 Auto menu indicator
10 Timer indicator
11 Start / quick start

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

→ USE AND CARE:

• Fully extend the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance when empty.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not cover the cooking surface or food with aluminium foil and other similar materials.
• Do not cover or wrap the food with aluminium foil and other similar materials.

• Do not force the appliance's work capacity.

• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.
• Take care when handling recipients containing liquids heated in this appliance as they may boil fiercely.
• CAUTION: Do not use the appliance if the glass is cracked or broken.

→ INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.
• Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified personnel.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.

→ INSTRUCTIONS FOR USE

BEFORE USE:

• Remove the appliance's protective film.
• Make sure that all products' packaging has been removed.
• Prepare the appliance according to the function you wish to use:

START UP THE CLOCK:

On connecting the microwave for the first time the digital screen will display "01:01".

To adjust the hour:

• Press the clock adjustment button once for the 12-hour mode and twice for the 24-hour mode.
• Turn the rotary knob to set the hours digit.
• Press the clock adjustment button once to confirm.
• Turn the rotary knob to set the minute digit
• Press the clock adjustment button once to confirm.

PAUSE / STOP: HOW IT WORKS.

When microwave is running, you can press ONCE to pause the current function, maybe you want to check the status. After that, IF you press the start button again, the function will resume.

IF you press twice, the function will be cancelled and the microwave will go to standby mode.

MICROWAVE:

This microwave has 2 ways on microwave cooking:

Cooking at 100% power

• Use the turning knob to select the cooking time.
• Press the Start button.

Power selection cooking.

• Push the function selector button repeatedly until you select the power level desired.
• Push the start button to confirm.
• Turn the turning knob to choose the cooking time.
• Push the Start button to start the program.

NOTE: The microwave has 10 power level: 100%, 90%, 80%, 70%, 60%, 50%, 40%, 30%, 20%, 10%.

NOTE: The maximum working time is 95 minutes.

RAPID COOKING:

Use this function to heat quickly and full-power meals.

To use this function, press the start button. The microwave will show 30 seconds on the screen. If you push again the start button, it will add 30 seconds to the microwave.

DEFROSTING:

This appliance has two methods to defrost: by weight and by time.

Defrost by time

• Press the defrost button once.
• Turn the turning knob to select the time.
• Push the start button to start the program.

Defrost by weight

With this function, the microwave will automatically set itself to defrost food based on its weight. (between 100g and 1800g)

- Press the defrost button twice.

- Select the weight of the food inside the microwave.

- Press the start button to start the program.

GRILL FUNCTION:

The grill function is highly recommended for thin slices of meat, steaks, also to grill cheese or toast bread. We can use the grill function during 95 minutes.

To use the grill function:

• Press the grill / Combi button once and screen will show "GrL"
• Turn the turning knob to choose the cooking time.
• Push the Start button to start the program.

NOTE: The microwave oven will make a double Beep sound at the middle of the time scheduled. It will remind you on turning the food (if you wish) to be grilled by both sides.

COMBI MICROWAVE AND GRILL FUNCTION:

This Microwave has two combined functions:

Combined function 1 (C-1)

This function is really helpful to cook puddings, soufflés, omelettes, potatoes or poultry. In this function, it will be used 30% microwave power and 70% grill power.

To use this function:

• Press the grill/combi button until the display shows Co-1.
• Turn the turning knob to choose the cooking time.
• Push the Start button to start the program.

ENGLISH

Combined function 2 (C-2)

This function will work perfectly in cooking fish or gratin food while heating it. In this mode, it will be used 55% microwave power and 45% grill power.

To use this function:

• Press the grill/combi button until the display shows Co-2.
• Turn the turning knob to choose the cooking time.
• Push the Start button to start the program.

CONVECTION FUNCTION

This microwave oven has a powered fan that will make the air circulate inside the oven to cook by temperature instead of microwaves.

It can be programmed for ten different temperatures: 110^ , 120^ , 130^ , 140^ , 150^ , 160^ , 170^ , 180^ , 190^ , 200^ )

To cook with convection + Preheating

• In standby mode press convection temperature selector several times choosing the temperature.
• Press start button to confirm.
• Your microwave oven will start preheating the cavity and when the temperature is reached, its buzzer will sound.
• Open the door and put the food at the centre of the turntable.
• Turn the to set the cooking time.
• Press start button to start.

NOTE: the longest preheat time is 30 minutes and preheat time cannot be set. Once the temperature asked is reached the oven will emit beep sounds every 5 seconds for 30 minutes. If after this time there's no operation the oven will switch off and the screen will show "End"

To cook with convection

• In standby mode press the convection power selector to choose the temperature.
• Turn the knob to select cooking time.
• Press start button to start.

NOTE: While cooking, you can check the temperature by pressing convection temp selector once.

MICROWAVE + CONVECTION

This oven has 4 pre-programmed settings that will make it easy to cook with both systems.

• In standby mode press microwave – convection Combi button repeatedly to select temperature.
• Turn the to set the cooking time.
• Press start to start the function

NOTE: You can change between these 4 combination levels: 30%-200°C, 45%-170°C, 60%-140°C, 75%-110°C

MULTI STAGE COOKING

This microwave allows to cook in 4 different cooking steps.

For example, we suppose that you want to defrost some meal for 15 minutes and cook it during 10 more at 40% power level.

• Press the defrost button 2 times.
• Use the turning knob to select 15 minutes.
• After that DO NOT PRESS the start button yet. Instead, press the function selector button to choose the power of the microwave, until it is 40%.
• Press the start button.
• Select 0:10 for cooking in the microwave by using the turning knob.
• Press the start button.

NOTE: Quick start, convection with preheating and auto menu functions are not able to be programmed as steps in multistage cooking.

SCHEDULED FUNCTION

This microwave can be programmed to start working later. This function will allow us to schedule other function for when we need them.

To set a scheduled function

• Set a cooking program normally, but before pushing the start button:
• Press Scheduled start button.
• Turn the turning knob to select the hour.
• Press the scheduled start button again.
• Turn the turning knob to insert the minute.
• Press start to confirm.

NOTE: You can schedule all programs despite express cooking and defrost.

NOTE: in scheduled start mode, you can check the scheduled time by pressing the button once.

NOTE: To cancel any pre-set function, press one time the button of scheduled button and press pause/cancel button.

ENGLISH

CHILD LOCK

The microwave oven Will switch to lock function after one minute without operation and closed door. To unlock, open and close the door.

BUZZER

After any operation, the microwave oven will show End in the screen and will emit a sound Bee-bee-bee-bee every two minutes until the food is removed or any button pressed.

AUTO MENU

This microwave has predefined programs to cook the next different kinds of food. For more reference, please look at the table below.

To set an auto menu function:

• In standby mode, turn the turning knob anticlockwise.
• Select the code of the menu according to the food.
• Press the start button to confirm.
• Turn the turning knob to select the weight or quantity (see table).
• Push the start button to confirm and start.

Code.	Menu:	Selector	Notes
A-01	Milk/Coffee	1 – 3 servings (Cups)	For Menus 07,08 and 09, the microwave will stop half way to turn the food over. Turn the food and press again the start button.The result of the food will not be always the same as it depends of a lot of factors.
A-02	Rice	150g – 600g
A-03	Pasta	100, 200 o 300g
A-04	Potatoes	1-2 servings (230g/serve)
A-05	Auto-reheat	200g – 800g
A-06	Fish	200g – 600g
A-07	Cake	475g
A-08	Pizza	150, 300, 450g
A-09	Chicken	800g – 1400g
A-10	Beef Mutton	200g – 600g
A-11	Skewered meat	100g – 500g

PROTECTION

Overheating protection

When the system enters into super high temperature status, the digital display will show E01 and beep continuously. After troubleshooting, press pause/cancel and the system will come back to normal.

Low temp protection

When the system enters to ultra low temperature status, the display will show E02 and will continue to beep. (When the system sensor is open circuited, the display shows E04). Press pause/cancel button and it will go back to normal.

Sensor malfunction protection

The system enters into protection when the system sensor is short circuited (except microwave). The display will show E03 and

continue to beep. After pressing pause cancel, the product should come back to normal.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Press the Cancel /Stop button twice.
• Clean the appliance.

ENGLISH

→ CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.

• Remove the glass plate for cleaning. Clean in hot, soapy water or in a dishwasher. Replace parts correctly.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

→ SPECIFICATIONS

Power supply	230-240V~ / 50Hz
Power consumption (Microwave)	1400W
Power consumption (Grill)	1950W
Power Consumption (Convection)	1950W
Rated Microwave Power Output	900W
Operation Frequency	2450 MHz
Outside Dimensions	281 x 483 x 437 (mm)
Microwave oven cavity dimension	220 x 340 x 344 (mm)
Oven capacity	25 L
Net weight	Approx. 16, Kg

FRANÇAIS

→ DESCRIPTION

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110
