Many thanks for choosing to purchase a Taurus brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray (1)

Turntable ring assembly (1)

Instruction manual (1)

A F B D C E G B

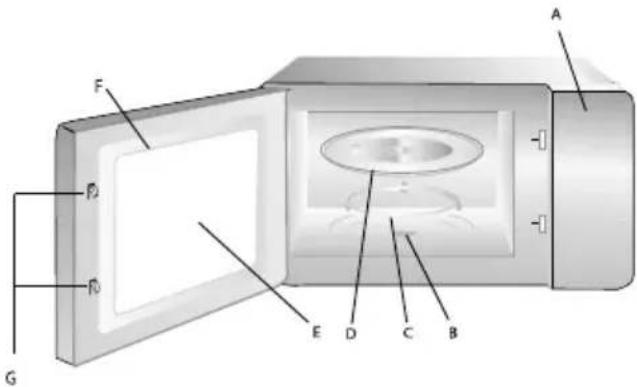

A - Control panel

B - Turntable shaft

C - Turntable ring assembly

D - Glass tray

E - Observation window

F - Door assembly

G - Safety interlock system

Grill rack (can not be used in microwave function and must be placed on the glass tray).

Turntable Installation

A B C D

A - Hub (underside)
B - Glass tray
C - Turntable shaft
D - Turntable ring assembly

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food are always placed on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

• This appliance is only intended for domestic use.
• This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
• Please observe the special installation instructions.
• The appliance can be installed in a 60cm wide wall-

mounted cupboard.

• The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• The mains voltage must correspond to the voltage specified on the rating plate.
• The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
• Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Accessories for installation:

1. Screw A

1. Screw B

1. Mounting plate

1. Trim-kit plastic cover

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

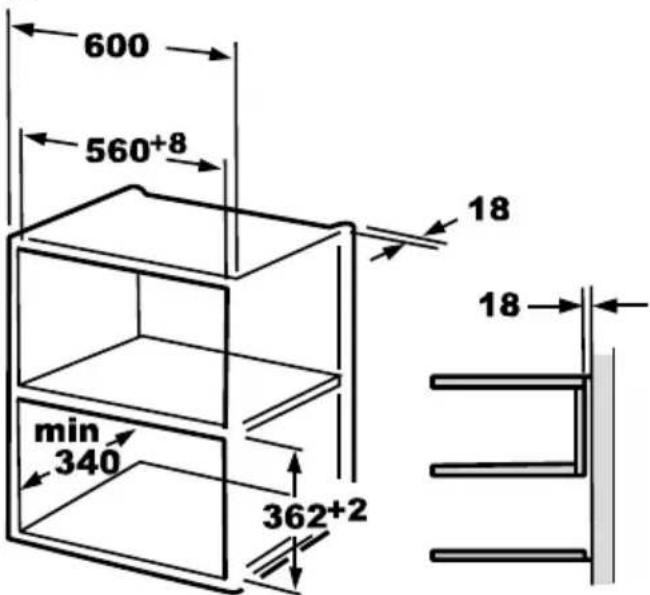

Built-in furniture

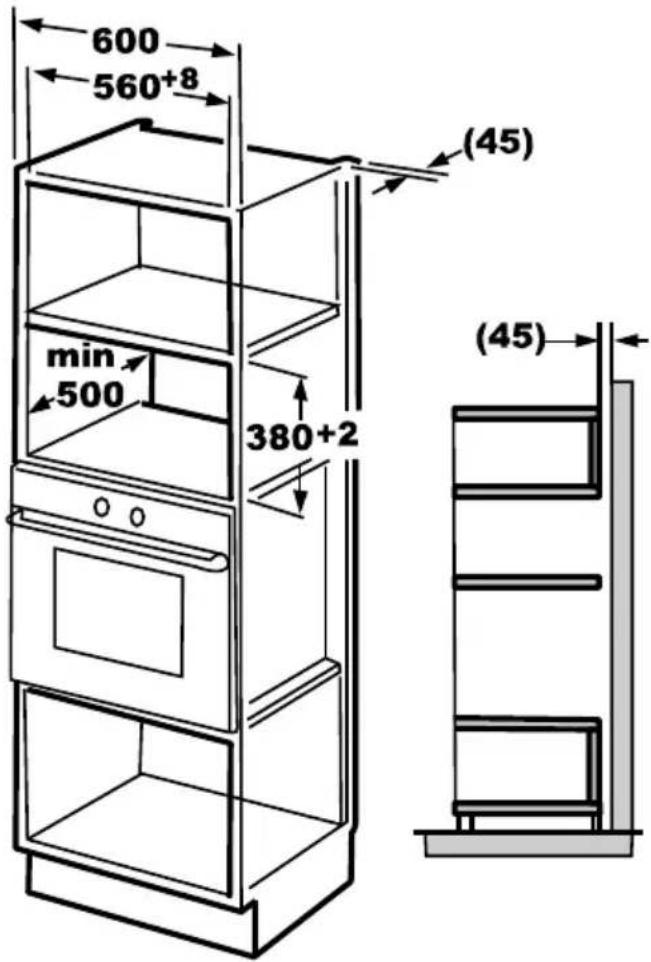

• The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

• Do not cover ventilation slots and air intake points.

•

600 560+8 min 340 18 362+2 18

1.

600 560+8 min 500 380+2 (45) (45)

NOTE: The bracket and bottom cabinet template are needed when installing in both installations.

Prepare the cabinet

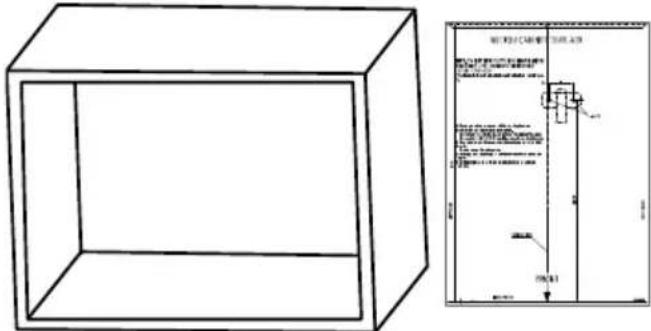

1. Read the instruction on the bottom cabinet template, put the template on the bottom plane of cabinet.

Technical drawing of a 3D rectangular box with an inset showing internal components and dimension annotations.

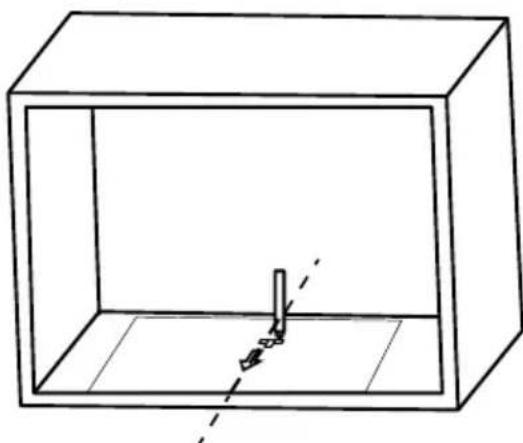

1. Make the marks on the bottom plane of cabinet according to marks "a" of the template. Mark the centre line.

Simple line drawing of a rectangular box with a vertical line inside and a dashed line extending from its side (no text or symbols)

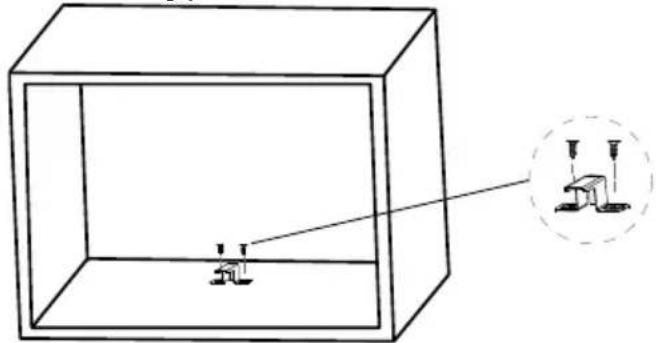

1. Remove the bottom cabinet template and fix the mounting plate with screw A.

Simple line drawing of a 3D cube with two small objects inside, one with a dashed circle highlighting its interior (no text or symbols)

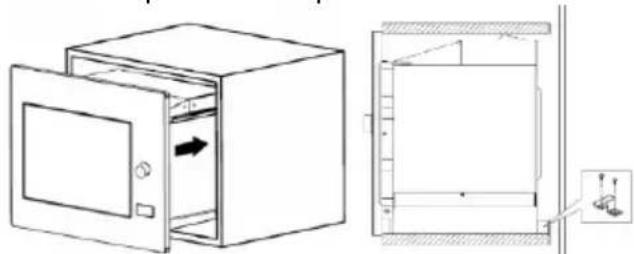

1. Install the oven to the cabinet.

2. Make sure the back of the oven is locked by mounting plate.

3. Do not trap or kink the power cord.

Technical line drawing of a closed oven and its internal structure, showing internal components and mounting details (no text or symbols)

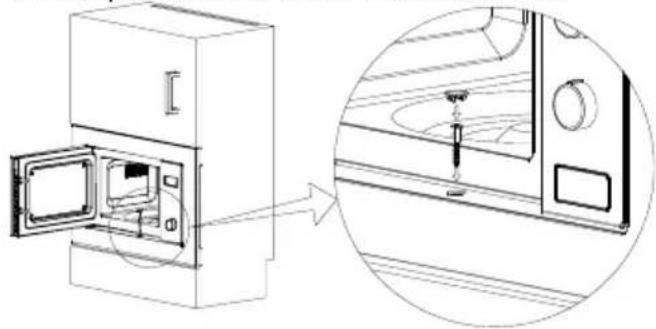

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the trim-kit plastic cover to the installation hole.

Diagram showing a device with an open door and a close-up view of its internal components (no text or symbols)

The installation is completed.

Operation Instructions Control panel and features

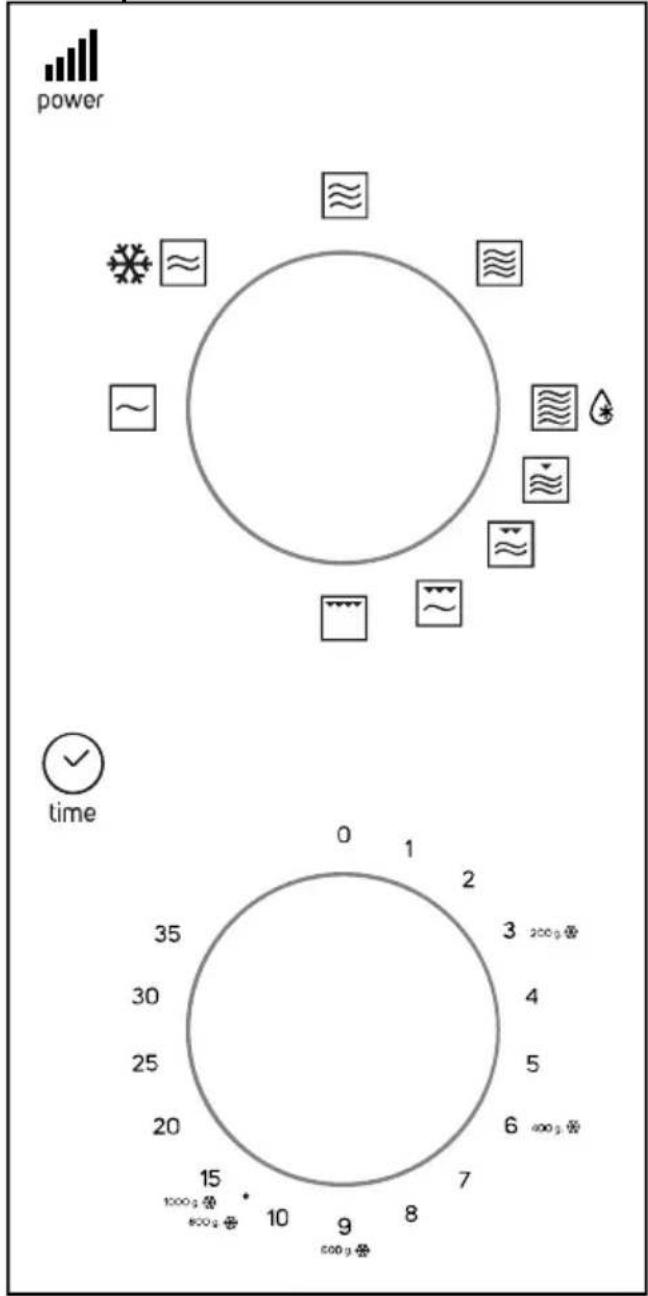

power time 0 1 2 3 200 g 4 5 6 400 g 7 8 9 10 15 1000 g 500 g

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to the desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Microwave power levels

Function/Power	Output microwave	Application
Low	17%	Soften ice cream
Med. Low (Defrost)	33%	Soup stew, soften butter or defrost
Med.	55%	Stew, fish
Med. High	77%	Rice, fish, chicken, ground meat
	100%	Reheat, milk, boil water, vegetables, beverage

Grill/Combi functions

Function / Power	Output	Application
[CKST]Combi.1	Grill: 80%Micro: 20%	Sausage, lamb, kabobs, seafood, steak
Combi.2	Grill: 70%Micro: 30%	Chicken pieces, chicken breasts, pork chops
Combi.3	Grill: 60%Micro: 40%	Whole chicken
[TYDS] Grill	Grill: 100%	Baken bread, slice food

NOTE: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage of the magnetron.

Automatic defrost function

To switch on the automatic, defrost function put the power knob in medium low / defrost position and you can turn the timer knob to the desired weight. You can choose between 200g, 400g, 600g 800g and 1000g.

Automatic cleaning function

In order to keep the appliance clean, this microwave have an auto-clean function that Will help you clean it.

Place a glass of water – 200ml – and put the microwave power at 100% during 5 minutes.

After that time, wait for 2-3 minutes and clean it with a dry cloth.

Français

Micro-ondes

MO20IXM

MO20WHM

Cher Client,
