DH243 - Dehumidifier TAURUS - Free user manual and instructions

Product type	Dehumidifier
Brand	Taurus
Model	DH243
Power supply	Mains with earth, 16A
Operating modes	Smart, High, Low, Fan
Humidity level adjustment	Yes, by +/- buttons (default 55%)
Timer	1 to 24 hours
Oscillation function	45° fixed, 90° fixed, 90° oscillating
UV purification	Yes
Ionizer	Yes
Charcoal filter	Yes, replacement every 3 months
Continuous drainage	Yes, tube diameter 10 mm (not supplied)
Full tank indicator	Indicator light
Automatic defrost	Yes
Thermal safety	Overheat protection
Ambient lighting	Changes color according to humidity (red >70%, orange >60%, green <60%)
Carrying handle	Yes
Wheels	Yes
Filter cleaning	Every 1 to 2 weeks, with vacuum or water

Frequently Asked Questions - DH243 TAURUS

How to set the timer on my Taurus DH243 dehumidifier?

Press the Timer button (e). If the appliance is running, it will turn off after the set delay (1 to 24 hours). If it is off, it will turn on after the delay. Use the Minus (b) and Plus (c) arrows to set the hours.

What to do if the water tank is full?

An indicator light comes on when the tank is full. Turn off the appliance, unplug it, remove the tank (K), empty the water, then replace it correctly before plugging the appliance back in.

How to clean the air filter?

Gently remove the filter (G) by pulling it. Clean it with a vacuum or with clean water. Let it dry completely before reinstalling. Do not use a dishwasher. It is recommended to clean the filter every 1 to 2 weeks.

What do the different colors of the light correspond to?

The light (D) indicates the humidity level: Red for humidity >70%, Orange for humidity >60%, Green for humidity <60%.

How to use the continuous drainage function?

Connect a 10 mm diameter tube (not included) to the drain outlet (J) at the back of the appliance. Make sure the tube is directed downwards to allow water to flow to an external drain.

What to do if the appliance does not turn on?

Check that the appliance is plugged in and that the outlet works. If the full tank indicator is on, empty the tank and replace it correctly. Disable the timer if it is activated. If the problem persists, contact an authorized technical service.

How to change the operating mode?

Use the Mode button (d) to select from the modes: Smart (smart, humidity at 55%), High (high speed), Low (low speed) and Fan (fan).

Can the dehumidifier be used in a child's room?

Yes, but only under supervision of an adult. Children under 8 years old must not use the appliance. Ensure that children do not play with the appliance and do not perform cleaning operations without supervision.

How often should I replace the charcoal filter?

It is recommended to change the charcoal filter every 3 months to ensure optimal performance.

What to do if the appliance is noisy?

Make sure the appliance is placed on a flat and stable surface without vibrations. Clean the air filter if it is dirty. Check that nothing is obstructing the appliance. If the noise persists, consult an authorized technical service.

USER MANUAL DH243 TAURUS

Line drawing of a rectangular device with a circular top and side connectors (no text or symbols)

_

| _

一

1

Español

Deshumidificador

DH243

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- Install the appliance in accordance with national wiring regulations.

- Leave a space of 20 cm between walls or other obstacles and the appliance. Do not cover

or obstruct the sides of the appliance, leaving at least 20 cm space around the appliance.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorized service centre. Do not attempt to disassemble or repair it yourself as it may be dangerous.

- This appliance is intended for household use only, not for professional or industrial use.

• Before connecting the appliance, check that the voltage indicated on the nameplate matches the voltage on the rating plate.
• Connect the appliance to a socket that can supply a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Check the condition of the electrical connection cable. Damaged or entangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not place the appliance in direct sunlight.
• Place the appliance on a horizontal, flat and stable surface.
• Do not use or store the appliance outdoors.
• Do not expose the appliance to rain or moisture.

Water entering the appliance will increase the risk of electric shock.

USE AND CARE:

• Before each use, completely unplug the power cable from the power supply.
• Do not use the appliance if its start / stop device does not work.
• Do not turn the appliance over while it is in use or connected to the mains.
• Unplug the power supply from the mains when not in use and before performing any cleaning operations.
• Keep this appliance out of the reach of children and / or persons with reduced physical, sensory or mental abilities or who are unfamiliar with its use.
• Do not expose the appliance to extreme temperatures. Keep the device in a dry, dust-free place protected from direct sunlight. Never leave the appliance unattended. It will also save energy and prolong the life of the device.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

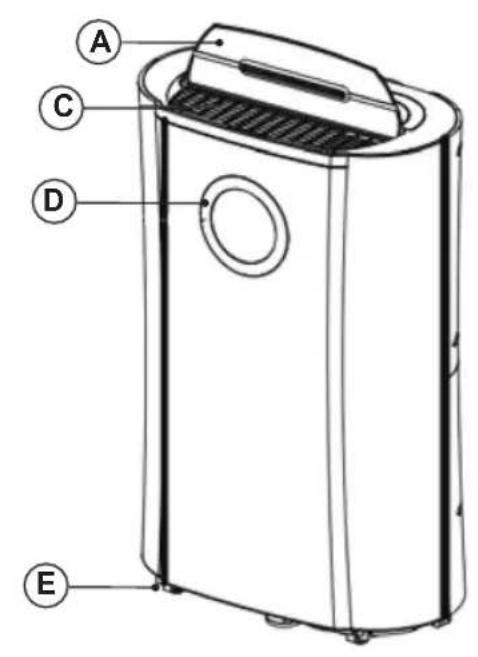

DESCRIPTION

A Louvers

B Handle

C Air outlet

D Lamp

E Wheels

F Control Panel

G Carbon filter

H Air inlet

I Continuous drain port

J Back cover

K Water tank

L Power cord

a Lamp button
b Down button
c Up button
d Mode button
e Timer button
f Oscillation button
g UV button

h Ionizer button

i On/Off button

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Guide the appliance to direct the flow of air in the desired direction.
• Turn the appliance on, by using the on/off switch (i).

• (d) Seleccionar la función deseada.
• SMART: Smart function. This function is by default the first time the appliance is switch on. It maintains the ideal domestic environment humidity of 55%.
• HIGH: "high speed" function. The compressor will work until desired humidity is measured. Modify the humidity level through buttons (b) and (c).
• LOW: "low speed" function. The compressor will work until desired humidity is measured. Modify the humidity level through buttons (b) and (c).
• FAN: fan function

- (a) When the appliance starts, the lamp will turn on automatically. The lamp color will change according to the humidity conditions.

• Red: (Humidity level >70%)
• Orange: (70%> humidity level >60%)
• Green: (humidity level <60%)

- (f) There are 3 different oscillation types: 45 fixed degrees, 90 fixed degrees and 90 oscillant degrees.

- (g) Sterilization function that eliminates germs, bacteria and improves air quality.

Select the humidity level desired.

The humidity level by default is 55%.

Timer function. There are different pro-

grams to set up the timer:

• If the timer setting is performed when the appliance is in working status, it will switch off after the desired time (1-24 hours). Press the arrows to set the hours.
• If the timer setting is performed when the appliance is off, it will switch on after the desired time (1-24 hours). Press the arrows to set the hours.

- The appliance will defrost automatically as programmed once the sensor detects temperature very low. Once defrosting finishes, the appliance will recover to previous running mode.

- If the water tank is full, the indicator light comes on and flash.

• The ionization function can refresh the air while killing viruses, dust mites, mould and airborne allergens.
• Carbon filter: Take out the carbon filter from bag and insert in on the filter. It is suggested to change the carbon filter every 3 months.

• CONTINUOUS DRAINAGE OPERATION
• The appliance has a drainage port that allows you to have continuous drainage.
• Connect a 10mm diameter pipe (not included in the product) with the drainage port located on back part of the unit.
• Ensure the hose is directed downwards, allowing water to flow to an external drain.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch (i).
• Unplug the appliance from the mains.
• Remove the water from the water tank.
• Clean the appliance.

CARRY HANDLE/S:

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (B).

SAFETY THERMAL PROTECTOR:

- The appliance has a safety device, which pro-

tects the appliance from overheating.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• Dry all parts before its assembly and storage.

CLEANING THE AIR FILTER:

• When used regularly, the filter may become clogged with dust and particles. Therefore, the filter should be cleaned every one or two weeks.
• Remove the filter by pulling it out carefully.
• Clean the filter with a vacuum cleaner or with water.
• Let it dry completely and re-install it on your device. Do not wash the filter in the dishwasher.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
• If any anomaly is detected, check the following table:

PROBLEM POSSIBLE CAUSE SOLUTION
The appliance isn't working	The appliance is not plugged in Plug it in
	The tank full indicator comes on	Empty the tray and check that the tank is correctly inserted
	The timer function is activated Desactivate the timer function
The dehumidifying feature is not working or the appliance comes on and switches itself off periodically	The air filter is obstructed Clean the air filter
	The appliance is closet o a source of heat	Keep the appliance away from any sources of heat
	The air inlets and outlets are obstructed	Make sure the air inlets and outlets are clear
The appliance is making a lot of noise	The appliance is leaning or unstable	Position the appliance on a flat, stable surface away from any vibration.
	The air filter is dirty Clean the air filter

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

This appliance contains F-gases

Français

Déshumidificateur

DH243

Cher Client,

Illustration showing three different shapes: a hand holding a rectangular object, a blank rectangle, and a grid-like structure (no text or symbols)

- REMPLACEMENT ET ENTRETIEN DU FILTRE

HANDVAT(EN) VOOR TRANSPORT:

NIEPRAWIDŁOWOŚCI I NAPRAWA

Illustration of three different UI components: a hand holding a card, a blank document, and a grid (no text or symbols)

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Avenue 2 Mars, Résidence Nassrallah, Appt n° 2 1er, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110
