USER MANUAL DH10M TAURUS

Simple line drawing of a rectangular frame with two vertical supports at both ends (no text or symbols)

A C B 1 2 3

E F G

Simple line drawing of a rectangular frame with two vertical supports and a central circular symbol labeled 'I' at the bottom (no text or symbols on the frame itself)

A D H

Line drawing of a mechanical component with a cross symbol indicating no text or symbols on the part (no text or labels present)

Fig.2Fig.1

Fig.3Fig.4

Line drawing of a portable air purifier with ventilation slots and a cable (no text or symbols)

Line drawing of a portable air purifier device with a black cable inserted, labeled Fig.5 (no text or symbols on the device itself)

Español

DH10M

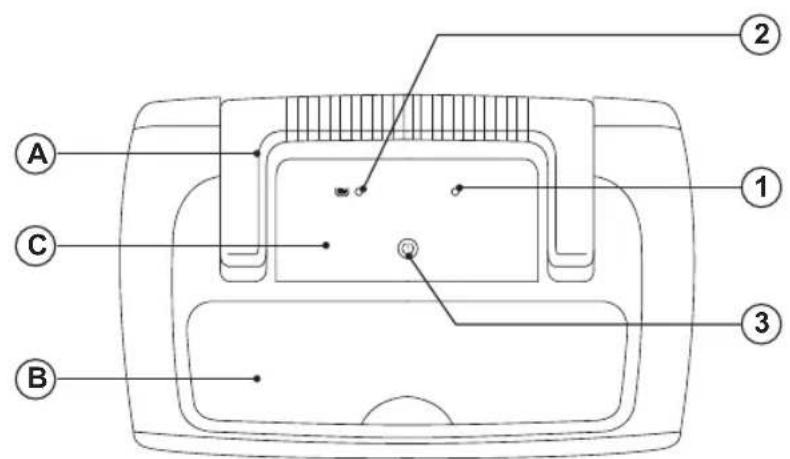

Descripción

A Asa

B Tapa superior

C Panel frontal

D Malla del filtro

E Continuous draining cover

F Water tank

G Float from water tank

H Power cord

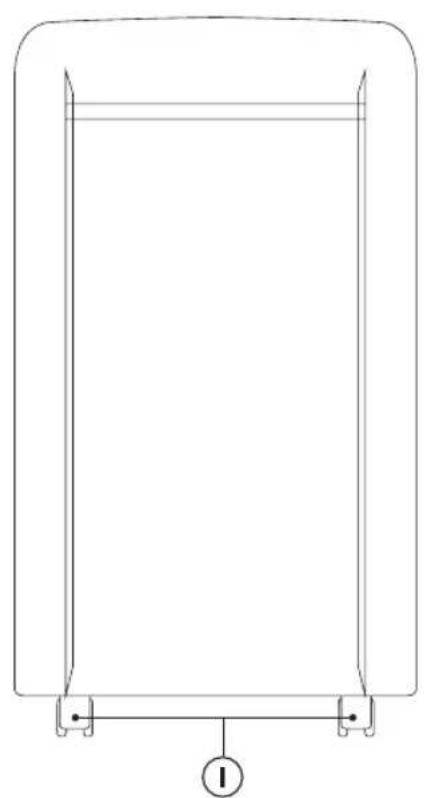

I Wheels

Panel control

1 Power indication light

2 Water full indication light

3 On/Off button

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Safety advice and warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance shall not be made by children unless they are supervised. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal protector, this

appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. - If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Use the appliance in a well ventilated area.
• Keep children and bystanders away when using this appliance.
• Place the appliance on a horizontal, flat, stable surface.
• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
• Do not use or store the appliance outdoors.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

Use and care:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if the on/off button does not work.

- Do not remove the support feet of the appliance.

• Do not move the appliance while in use.
• Use the appliance handle, to catch it or move it.
• Do not use the appliance if it is tipped up and do not turn it over.
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance on areas where the temperature could be lower than 5°C
• Do not expose the appliance to extreme temperatures.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Installation

• Be sure to remove all packaging material from inside the appliance.
• Do not remove the support feet or wheels from the appliance.

- Leave at least 20 cm space around the unit.

- The ambient temperature range for the appliance is 5^-35^ .

Instructions for use

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
  -When the power is on, whenever it is running or not, the on/off power indicator will light on.
  -Press this button to turn on/off the unit.
  -Do not unplug the power cord directly to force the machine stop working directly.

Water full indication

• When water tank is full, indicator lights shows,
• You must empty the water tank and put it back to correct position.

Water drainage:

• The Water full indication will show red when water tank is full, warning will be given when capacity 1.5L has been reached.
• Take out the water tank, empty the water inside.
• Put the water tank back into the dehumidifier

CAUTION:

- Do not remove the float from the water tank; otherwise, the machine will not stop to work when the water tank is full. Then the water will be overflow that maybe makes damage to your floor (fig.1)

• Drain the water collection tank completely when water tank is full and reset your setting
• If the water tank is dirty, clean by cool water or warm water, cannot use cleaner, steel wool, chemical rag duster, gas oil, benzene, thinner or other solvent to clean it, otherwise, it would damage the water tank and lead to leakage.
• When put the water tank back to the unit, please use two hands to push the water tank into the machine to the correct position. Or the water full indication will still show red and the machine can not work. (Fig. 2)

Continuous drainage:

• Open the cover on the back of the dehumidifier. (Fig.3)
• Take out the water tank.
• Remove the plastic at the water level place.(Fig. 4)

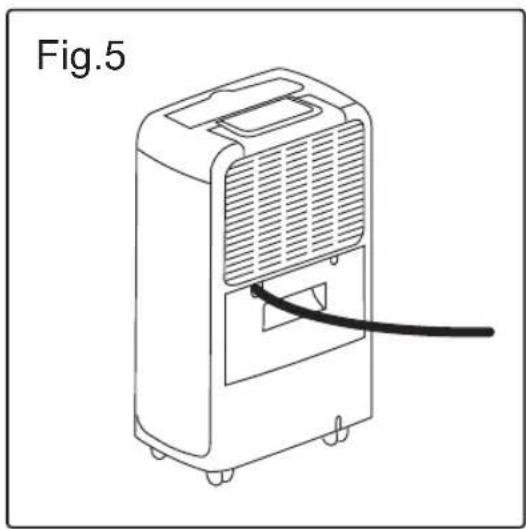

• Insert a PVC pipe with 9.5mm inner diameter 9.5mm, and the recommended length is 300mm; put the other side into a container, such as a bucket. (Fig. 5)

NOTE: PVC pipe is not included. Need to be buy separately.

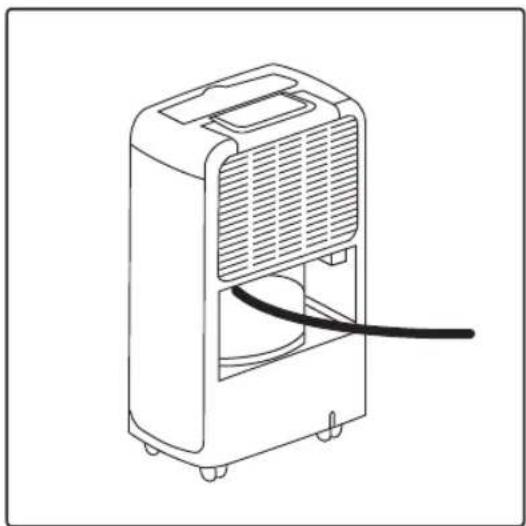

-Put the drain pipe to the specific location.(Fig. 6)

CAUTION:

• Never block the water outlet or the pipe, water will flow into the water tank if it is blocked.
• Never bend the drainage pipe and be always lower than the outlet.
• Must close the cover when no need continuous drainage.

Auto defrost, low temperature working

-After 30 minutes of continuous operating for compressor, and if the temperature sensor detects that the copper tube is lower than 0^ C for one minute the compressor would stop operating for defrosting for ten minutes while the fan keeps operating.

-After defrosting for ten minutes, or when the temperature sensor detects that the copper tube is higher than 10^ C for 30 seconds, the defrosting will be finished and the compressor will restart operating after three minutes for delay protection.

Note: The On/Off light twinkles when the machine is defrosting.)

Once you have finished using the appliance:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Put on the protective cover.
• Remove the water from the water tank.
• Clean the appliance.

Carry handle/s:

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation

Cleaning

-Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
- Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
- Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.

Air Filter

• The unit is equipped with washable air filter. Take out the washable filter. After the cleaning operation, insert the filter back to its place.

• Clean the washable filter every 2 weeks. If the filter is blocked with dust, the efficiency will reduce.

• Wash the air filter by immersing it gently into warm (about 40°) water with a neutral detergent, rinse it and dry it thoroughly in a shaded place.
  -Insert the filter back to the appliance slowly after washing.

Dehumidifier storage

If the dehumidifier will not be used for an extended period of time:

1. Drain the water tank completely and make sure no more water stocked inside.
2. Unplug the unit and fold up the power supply cord.
3. Remove and clean the air filter, allow it to dry completely and reinstall it.
4. Store the dehumidifier in a cool, dry location, away from direct sunlight, extreme temperature and excessive dust

Anomalies and repair

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
• If any anomaly is detected, check the following table:

PROBLEM POSSIBLE CAUSE SOLUTION
The unit doesn't operate No power supply	Apply Connect to a functioning outlet and switch on
	Water Full Indication Flash Drain water tank and reset your setting, or replace the water tank to right place
	Room temperature under 5 degree or above 35 degree	Self-Protection designed to protect the unit. Cannot work under such temperature
The dehumidifying function doesn't work or the unit turn on / off frequently	Is the air filter clogged? Clean the air filter as instructions
	Is the door/window
	opened? Close the door / window
	Is the unit close any heat emanation?	Remove the unit to a cool place
Operation is noisy Is the unit tilted or unsteady? Place on an even, solid surface (less vibration).
		Is the air filter clogged? Clean the air filter as instructions

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage, Directive 2004/108/EC on Electromagnetic Compatibility, Directive 2011/65/EC on the restrictions of the use of certain hazardous substances in electrical and electronic equipment.

Français

DH10M

Description

A Poignée

B Partie superieure

C Panneau frontal

D Malla del filtro

Color gradient bar transitioning from black to white with no text or symbols

taurus group

Avda. Barcelona, s/n

E 25790 Oliana

Spain

Net weight: 10,2 kg

Gross weight: 11,2 kg
