USER MANUAL ClimateTemp NDV BRESSER

Simple shield icon with a checkmark inside, no text or symbols present

SERVICE UND GARANTIE:

www.bresser.de/warranty_terms

ABOUT THIS INSTRUCTION MANUAL

These operating instructions are to be considered a component of the device.

Please read the safety instructions and the operating instructions carefully before use.

Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product. The device is intended only for indoor use.

GENERAL WARNINGS

• Risk of electric shock – This device contains electronic components. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.

• Choking hazard – Children should only use the device under adult supervision. Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.

• Risk of chemical burn – Keep batteries out of the reach of children! Make sure you insert the batteries correctly. Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.

• Risk of fire/explosion – Do not expose the device to high temperatures. Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire, or an explosion.
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

SCOPE OF DELIVERY

Weather station, Outdoor sensor, Operating instructions, 5V/1A USB adapter, 5x AAA batteries.

BEFORE YOU BEGIN

• We recommend using alkaline batteries. If temperatures regularly fall below 0^ (32°F), we recommend using lithium batteries.
• Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power requirements.)
• Insert batteries before first use, matching the polarity in the battery compartment. 3x AAA Batteries are required for the Weather station and 2x AAA Batteries are required for the Outdoor sensor.

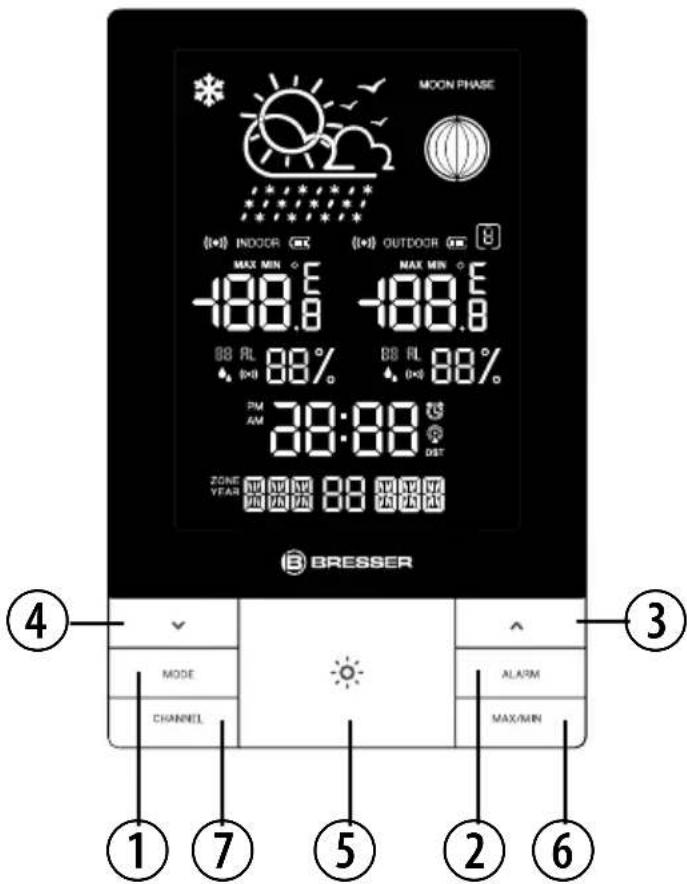

PRODUCT OVERVIEW

1. Press [MODE] to view time and alarm, press and hold to enter time and date setting.
2. Press [ ALARM ] to turn on/off alarm time, press and hold to enter alarm setting.
3. In setting mode, press [▲] to increase one unit, press and hold to increase rapidly. In non-setting mode, press and hold to turn on/off RCC.
4. In setting mode, press [ √ ] to decrease one unit, press and hold to decrease rapidly. In other modes, press to turn on/off the Upper and lower temperature and humidity alarm. Hold to enter the Upper and lower temperature and humidity alarm setting.
5. Press [ ] to activate the backlight for 10 seconds or to activate the snooze function to delay the alarm by 5 minutes. When connected to the adapter, the backlight can be set to 4 levels of brightness.
6. Press [ MAX/MIN ] to view temperature MAX/MIN, press and hold to clear max/min memory.

MOON PHASE INDOOR OUTDOOR MAX MIN -188.6 -188.6 88 RL 88% 88 RL 88% (0) PM AM 38:88 TS DIST ZONE YEAR 88 88 88 BRESSER MODE CHANNEL ALARM MAX/MIN ④ ③ ① ⑦ ⑤ ② ⑥

*Radio-controlled (atomic) clock function may not be available in every territory

1. Press [ CHANNEL ] to view 3 channel outdoor sensor temperature and humidity, press and hold to initialize outdoor sensor channel.

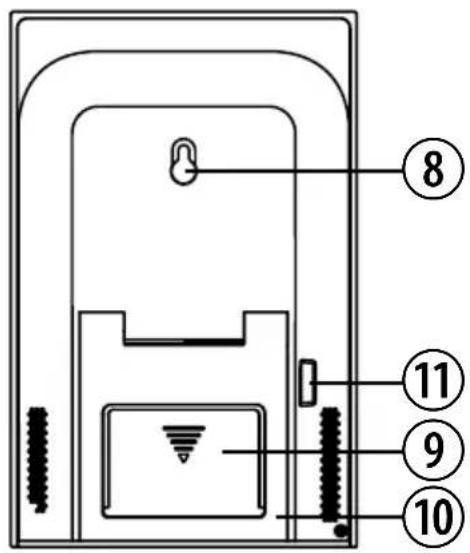

2. Wall Mount
3. Battery compartment
4. Table stand
5. USB Power In

⑧ ⑪ ⑨ ⑩

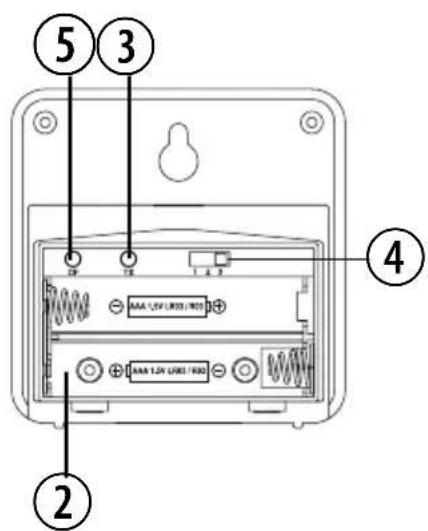

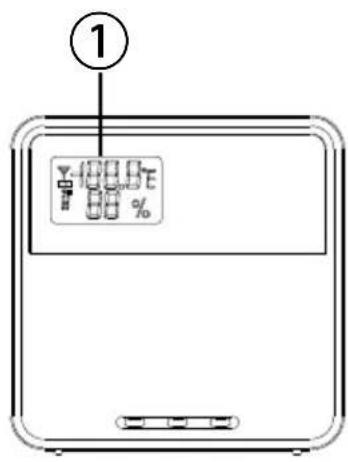

OUTDOOR SENSOR

1. Outdoor temperature & humidity LCD display
2. Battery compartment
3. TX (Transmit temperature and humidity signal during the sensor initiation search)
4. Channel switch
5. C/F switch

① Y:100.0%

⑤ ③ ④ ②

BUTTON MODE		MODE	ALARM MAX/MIN CHANNEL
Standard mode	PRESS	Toggle between time and alarm display	Turn Alarm on/off	——	Turn on/off temperature and humidity alarm	Toggle the display among current, maximum and minimum recording of temperature and humidity	1. Adjust backlight brightness with adapter2. Turn on backlight for 10 seconds with batteries3. SNOOZE 5 minutes when alarm is ringing	Toggle between outdoor sensor channel 1-3
	HOLD	Enter into time setting	Enter into alarm setting	Turn RCC on/off	Enter temperature and humidity alarm setting	Clear the max/min memory records.	——	Initiate outdoor sensor search
Time OR Temperature and humidity setting mode	PRESS	Confirm setting	——	Increase Decrease		——	1. Adjust backlight brightness with adapter2. Turn on backlight for 10 seconds with batteries	——
	HOLD	——	——	Quick Increase	Quick Decrease	——	——
Alarm setting mode	PRESS	——	Confirm setting	Increase Decrease		——	1. Adjust backlight brightness with adapter2. Turn on backlight for 10 seconds with batteries	——
	HOLD	——	——	Quick Increase	Quick Decrease	——	——

LCD DISPLAY

1. Outdoor Temperature & humidity
2. Weather forecast
3. Time
4. Indoor Temperature & humidity
5. Moon phase
6. Date & Week

[ ] RCC signal received

[ DST ] DST ON (Daylight Saving Time)

[ ] Low battery indicator

[((●))] Temperature and humidity alarm

[❄️] Ice alert indicator

[ ℝ ] Alarm

MOON PHASE INDOOR OUTDOOR MAX MIN MAX MIN -188.6 -188.6 88 RL 88% 88 RL 88% (+) (+) (+) (+) 88% PM AM 38:88 DST ZONE YEAR 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 88 ① ② ③ ④ ⑤ ⑥

GETTING STARTED

INSERT BATTERIES

1. Remove the battery door from the back.
2. Insert 3x AAA (LR03)/1.5V batteries. Please ensure the polarities (+/-) of the batteries match upon installation.
3. Reattach the battery door.
   NOTE: Replace batteries when [☐] displays, or when the display is dim.

OUTDOOR SENSOR

The main unit can receive data from up to 3 outdoor sensors. 1 Sensor is included with delivery.

1. Remove the battery door from the back.
2. Insert 2x AAA (LR03)/1.5V batteries. Please ensure the polarities (+/-) of the batteries match upon installation.
3. Select a channel, then press TX.
4. Reattach the battery door.
5. Place the sensor within 30 m (98 ft) of the main unit using the table stand or wall mount.

TO SEARCH FOR A SENSOR:

The main unit will automatically search for a new sensor after the batteries are installed. To manually initiate a outdoor sensor search, press and hold [CHANNEL].

NOTE: The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results.

CLOCK

CLOCK RECEPTION

1. When you insert or replace the batteries, RCC (atomic) reception is initiated. To manually start RCC (atomic) reception press and hold the [▲button.
2. The receiving process duration is 7 minutes.
3. During receiving process, the RCC (atomic) signal symbol shows: [ : 🎨 and the backlight is at a low level.
4. If the RCC (atomic) receiving process is successful, a completed RCC (atomic) symbol [ 🔑 ] will be shown in the display and the date and time will be set automatically. If it fails within 7 minutes, RCC (atomic) setting will quit automatically. If that happens, press and hold the [ 🔑] button to reinitiate RCC (atomic) receiving.

NOTE: The interference from the power adapter will affect RCC (atomic) reception. It is recommended to place the power adapter at least 1m away from the console to get the best RCC (atomic) reception.

SET THE CLOCK MANUALLY

1. Press and hold [MODE] button to enter into time and date setting.
2. The setting parameter will flash.
3. Press[ ] button once, the figure will increase 1 unit. Press and hold the [ ] button, the figures will increase rapidly.
4. Press[√button once, the figure will decrease 1 unit. Press and hold the [√button, the figures will decrease rapidly.
5. Press[MODE] button to confirm setting and enter to next parameter.
6. Sequence of setting:
7. EU/AUS Version - 12/24h format → Hour → Minute → Year → Month → Day → Language → Time zone → Key tone on / off → Temperature unit (°C/°F) → Exit
8. If there is no action in 20 seconds, the setting will be saved and you will exit the setting mode.

ALARM

SETTING/ADJUSTING ALARM TIME

1. Press and hold [ ALARM ] to enter alarm setting mode.
2. The setting parameter will flash.
3. Press [▲] or [▼] button to set the desired data.
4. Press [ ALARM ] button to confirm setting and exit.
5. Alarm will turn on automatically when alarm setting is finished.

TURN ON/OFF ALARM

Press the [ ALARM ] button to turn on/off the alarm.

OPERATION

1. At the set alarm time, alarm signal rings.
2. During the alarm, press the [☀️] button to delay the alarm by 5 minutes.
3. If you do not press any button to stop the alarm, it will automatically turn off after 2 minutes.
4. To stop the alarm, press [ ALARM ] or any other button, except for SNOOZE.
5. The alarm will start again at the next alarm time, unless you switch off the alarm function by pressing the [ALARM] button until the alarm is set to off.

WEATHER FORECAST

This device forecasts the next 12-24 hours of weather within a 30-50 km (19-31 mile) radius with a 75% accuracy.

SYMBOL DESCRIPTION
	Sunny
	Sunny to cloudy
	Cloudy
	Cloudy to rain
	Cloudy to snow

MOON PHASE

The phase of the moon depends on the current date. It is automatically calculated and the following symbols are displayed:

SYMBOL DESCRIPTION
			Full moon
			Waning moon
			New moon
			Waxing moon
			Full moon

LANGUAGE

1. Press and hold [MODE] button to enter time setting, press [MODE] to enter language setting.
2. Sequence of setting weekday language:

- EU/AUS Version -

German (GER) → English (ENG) → Italian (ITA) →

French (FRE) → Netherlands (NET) → Spain

(ESP) → Danish (DAN)

German English Italian French Netherlands Spanish Danish

Symbol	GER	ENG	ITA	FRE	NET	ESP	DAN
Monday	MON	MON	LUN	LUN	MAA	LUN	MAN
Tuesday	DIE	TUE	MAR	MAR	DIN	MAR	TIR
Wednesday	MIT	WED	MER	MER	WOE	MIE	ONS
Thursday	DON	THU	GIO	JEU	DON	JUE	TOR
Friday	FRE	FRI	VEN	VEN	VRI	VIE	FRE
Saturday	SAM	SAT	SAB	SAM	ZAT	SAB	LOR
Sunday	SON	SUN	DOM	DIM	ZON	DOM	SON

TEMPERATURE AND HUMIDITY

The indoor temperature is displayed in the center on the left of the screen. To receive outdoor temperature you can connect up to 3 outdoor sensors to the main unit.

Press the [ CHANNEL ] button to toggle between Channel 1-3.

MAX/MIN MEMORY

To toggle between current, minimum and maximum records for the selected sensor press [MAX/MIN] repeatedly. To clear records, press and hold [MAX/MIN] in max/min interface.

NOTE: When the indoor temperature is lower than -5 °C (23.0 °F), the screen displays LL.L. When the temperature is higher than 50 °C (122.0 °F), the screen displays HH.H.

TEMPERATURE AND HUMIDITY ALARM SETTING

1. Press and Hold [ √enter to set temperature and Humidity alarm.
2. The setting parameter will flash.
3. Press [ ] or [ ] button to set the desired data.
4. Press [MODE] button to confirm setting and enter to next parameter.
5. Sequence of setting: Indoor upper temperature limit → Indoor lower temperature limit → Indoor upper humidity limit → Indoor lower humidity limit → outdoor upper temperature limit → outdoor lower temperature limit → outdoor upper humidity limit → outdoor lower humidity limit

TEMPERATURE AND HUMIDITY ALARM OPERATION

1. Press [▼] to on/off temperature and Humidity alarm.
2. When the measured temperature or humidity is greater than the set upper limit or lower than the set lower limit, the station will give an alarm.

ICE ALERT

If the channel 1 sensor falls between -2^ to 3^ (28°F to 37°F), the ice alert indicator [★] will display, and will disappear once the temperature is out of this range.

BACKLIGHT

1. Press [to activate backlight for 10 seconds.
2. When connected to the adapter, the backlight can be set to 4 levels of brightness.

SPECIFICATIONS

MAIN UNIT:

Dimensions

120 x 29 x 183 mm (L x W x H)

Weight

268 g (Exclude batteries)

Power:

3x AAA (LR03) 1.5V batteries

5V/1A USB Adapter

TEMPERATURE:

Indoor temperature display range:

-14°C to +50°C (14°F to 122°F)

Outdoor temperature display range:

-20°C to +60°C (-4°F to 140°F)

HUMIDITY:

Indoor/outdoor humidity range:

20% - 95% RH

OUTDOOR SENSOR:

Dimensions:

60 x 20 x 60 mm (L x W x H)

Weight:

45 g (Exclude batteries)

Transmission range:

30 m (98 ft)

Temperature range:

-20°C to 60°C (-4°F to 140°F)

Signal frequency:

433 MHz

Maximum transmission power:

under 10mW

Power:

2x AAA (LR03) 1.5V batteries

EC DECLARATION OF CONFORMITY

CE Hereby, Bresser GmbH declares that the equipment type with part number: 7004310 is in compliance with Directive: 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/7004310/CE/7004310_CE.pdf

UKCA DECLARATION OF CONFORMITY

UK CA Bresser UK Ltd. has issued a „Declaration of Conformity“ in accordance with applicable guidelines and corresponding

standards. The full text of the UKCA declaration of conformity is available at the following internet address: www.bresser.de/download/7004310/UKCA/7004310_UKCA.pdf

Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF, Great Britain

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTES ON CLEANING

• Remove the batteries before cleaning.
• Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.
• Protect the device from dust and moisture.

DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage! As per the Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law — at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive. Batteries that contain toxins are marked with a sign and a chemical symbol.

^1 battery contains cadmium
^2 battery contains mercury
^3 battery contains lead

WARRANTY & SERVICE

- EU Version -

The regular guarantee period is 5 years and begins on the day of purchase. You can consult the full guarantee terms and details of our services at www.bresser.de/warranty_terms.

Would you like detailed instructions for this product in a particular language? Then visit our website via the link below (QR code) for available versions.

Alternatively you can also send an email to [e-mail] or leave a message on +49 (0) 28 72 - 80 74-220*. Please always state your name, precise address, a valid phone number and email address, as well as the article number and name.

*Number charged at local rates in Germany (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.
