SJ15G - Juicer Moa - Free user manual and instructions

Product type	Juice extractor
Brand	Moa
Model	SJ15G
Power supply	220-240 V ~ 50/60 Hz
Power	Not specified in the manual
Maximum load capacity	1 kg per session
Maximum continuous use time	20 minutes
Extraction system	Auger (screw) + rotating sieve
Forward/reverse function	ON (forward) and REV (reverse) buttons
Built-in safety	Safety switch preventing operation if lid is not properly secured; automatic stop after 20 minutes
Material of food-contact parts	Not specified (food-grade plastic likely)
Included accessories	Base, feeding chute, auger, juice sieve, pulp extractor, top cover, pusher, juice container, pulp container
Maintenance and cleaning	Disassemble after each use; clean with a damp cloth; do not immerse in water; dry before storage
Warning	Do not press ice, pits, dry or hard products; cut fibrous foods into 5-10 cm pieces; remove hard skins and pits
Suitable food types	Fresh fruits and vegetables, soft or hard (carrots, celery, apples, etc.)
Intended use	Household only

Frequently Asked Questions - SJ15G Moa

The juicer does not start, what should I do?

Check that the power cord is plugged into a wall outlet. Make sure all parts are correctly assembled, especially the juicer lid which must be properly secured (safety switch). If the problem persists, contact customer service.

How to use the reverse function (REV)?

If the machine jams or pulp does not come out, press and hold the REV button to reverse the auger rotation direction. Release the button, then press ON to resume normal extraction.

Can I extract juice from ice or frozen fruits?

No, never put ice in the juicer. Ice is too hard and could damage the extraction bowl or the auger.

Why does my juicer stop after a few minutes?

The device has a safety feature that automatically stops it after 20 minutes of continuous use. Let the motor cool down before using it again. This prevents overheating.

How to clean the juicer?

Turn off and unplug the appliance before cleaning. Disassemble all removable parts. Clean them with a damp cloth and a little dish soap if necessary. Never immerse the base in water. Dry thoroughly before storing.

What to do if the lid of the extraction bowl does not open?

Check if there are too many residues in the bowl. If so, briefly press ON to expel them. If a pit or hard object is stuck, use the REV function to bring it back into the tube. If the problem persists, contact customer service.

Can I put already pressed pulp back into the appliance?

No, never put already used pulp back in. It forms a paste that cannot flow properly and may clog the machine.

What is the shelf life of freshly made juice?

Fresh juice oxidizes quickly. It is recommended to consume it immediately to preserve its nutritional and taste qualities. Do not store it for more than a few minutes.

Can I use the juicer for stone fruits (peaches, plums)?

Yes, but it is imperative to remove the pit beforehand. Pits are hard and may damage the auger or sieve.

What to do in case of juice leakage at the bottom of the extraction bowl?

Check that the silicone seal at the center of the extraction bowl is properly in place. Make sure you have not overloaded the machine (max 1 kg per session). If the leak persists, contact customer service.

USER MANUAL SJ15G Moa

Before use, please read this manual carefully.

Only connect the appliance to an earthed wall socket.

This appliance is for household use only. When using electrical appliances, basic safety precautions should always be followed to avoid fires, electric shocks, burns, or other injuries and damage. Read these operating and safety instructions carefully.

IMPORTANT SAFEGUARDS (1/4)

1. Please read through the information and safety advice contained in these instruction manuals carefully and thoroughly before you use the appliance for the first time.

2. Please note that when passing the device on to a third party, the operating instructions must be included

3. Ensure the safety of use, avoid injury and property damage to you and others;

Please observe the following security precautions. Failure of observing the safety warnings may lead to an accident;

The product does not consider the following situations:

1. The use of unattended children and persons with disabilities;

2. The situation of children's playing with the equipment.

General Safety Instructions:

1. The device should only be used for its intended purpose. This appliance is only for household use, not for commerce;

2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

3. This product is strictly prohibited for non-load operation or overloaded operation;

IMPORTANT SAFEGUARDS (2/4)

EN

1. Never operate the appliance empty or without supervision.
2. Do not move or touch operating parts to avoid injury;
3. Do not hang the power cord on a sharp object and can not connect to a moving object;
4. Do not kink or clamp the mains lead. To avoid any risk of stumbling do not allow the mains lead to hang over the edge of a table or a counter.
5. Do not use this appliance on a tilted or unstable table;
6. Do not push vegetables into the feeding tube with fingers, rice spoon, chopsticks, and others;
7. Do not use inferior socket to avoid causing fire or personal injury;
8. Do not place the appliance near a high temperature to avoid causing fire or personal injury.
9. To avoid electric shocks, do not use this device in the vicinity of water. Do not immerse the mains lead in water or other liquid.
10. If the plug or other parts are damaged, please immediately stop using the product and repair or replace it at the designated place so as not to cause harm;
11. Before disassembling or debugging any part of the product, please ensure that the product is out of power.
12. If the power cord is damaged, it must be replaced by the manufacturer or professionals from its service section in order to avoid a hazard;
13. Place this appliance as close as possible to the power source, so that you can disconnect the plug quickly and easily.

IMPORTANT SAFEGUARDS (3/4)

22Do allow children to operate on make sure they do not use products like toys and ensure that products can be reached by children. The old and disabled or inexperienced persons should use the product under supervision or guidance;

1. Do not use accessories not belong to this product to avoid fire or personal injury;
2. Do not use this product in unattended conditions;
3. Do not use the appliance if the rotating sieve is damaged.
4. Before using the product, please confirm the power is in accordance with the specifications of the product (220-240V\~50/60Hz), so as to avoid the damage or other risks;
5. please ensure that the product parts are clean before using to avoid corrosion of the residue exudes odor;
6. Switch off the appliance before changing accessories or approaching parts that move in use, ensure the appliance is switched off before removing it from the stand.
7. Clean timely after using;
8. Do not attempt to repair the appliance yourself, since you could be exposed to hazardous components or other hazards by opening and removing.
9. If this product can not start working, please refer to the following page "abnormal analysis and processing" guidelines. If still can not start, please send it to the company's professional maintenance section to repair, do not disassemble it by self;
10. This product is not suitable for crushing dry goods, such as dried soybeans, rice, and so on;

IMPORTANT SAFEGUARDS (4/4)

EN

1. Do not put hot ingredients into the bowl, before food preparation, allow food to cool down for a few minutes.

2. Keep this product away from other kitchen appliances more than 30CM;

3. Before using the product, please ensure that the table is clean. Please clean up the table after using it.

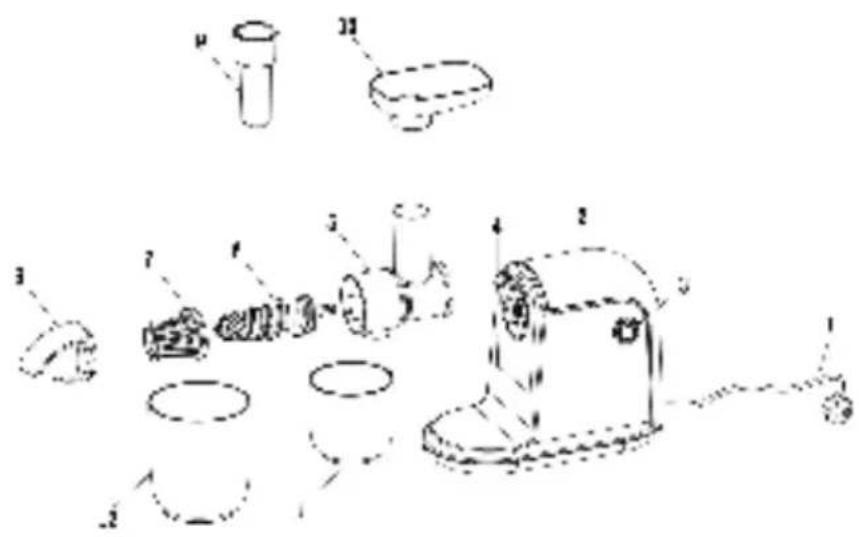

PARTS & LOCATION

1. Power cord 2. Base
2. Button 4. Lock Catch
3. Feeding Chute 6. Auger
4. Juice Strainer 8. Pulp Outlet
5. Pusher 10. Top Cover
6. Juice Cup 12. Pulp Cup

NOTE: Clean the appliance and its parts thoroughly before assembling the appliance for use.

Always adhere to the instructions in this manual for the best juicing results and your safety.

ASSEMBLE

Simple line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

1. Attach the feeding chute to the base: a. Align the arrows on both the feeding chute and the lock catch; b. Rotate the feeding chute counterclockwise until it clicks into the locked position securely.

Line drawing of a manual kitchen tool with a screw and handle (no text or symbols)

1. Align the juicing screw with the feeding chute and push it through until it fits into the lock catch behind it. Tip: Rotate the juicing screw slightly to install.

Line drawing of a laboratory instrument with a handle and base, no text or symbols present

1. Align the juice strainer with the juicing screw and push it towards the lock catch on the base.

Line drawing of a kitchen brush with a tool and a mouse, showing motion direction (no text or symbols)

1. Attach the pulp extractor to the feeding chute: a. Align the pulp extractor with the juicing screw, juice strainer, and feeding chute; Rotate the pulp extractor counterclockwise. b. Rotate the pulp extractor counterclockwise to align the triangle symbol on the feeding chute with the triangle symbol on the pulp extractor.

Line drawing of a hand mixer with a cup, no text or symbols present

1. Place the juice cup below the juice tap.

Line drawing of a blender with two cups and a side arm (no text or symbols)

1. Place the pulp cup under the pulp extractor, as close to the juice cup as possible.

Line drawing of a coffee maker with two cups and a side jack (no text or symbols)

1. Put the top cover on the feeding chute.

2. Wash and prepare your ingredients for juicing.

Tips:

- Cut fibrous vegetables, such as celery, into smaller pieces and feed them into the juicer in small batches.

- Hard ingredients should be cut into small pieces.

- The quantity should not exceed 1 kg and juice should be kept at less than 3 minutes at a time.

- Remove the peel and hard parts of ingredients with thick skins, shells, pits, and seeds.

- If you want to juice carrots cut the carrot into smaller pieces.

EN

EN

1. Press the "ON/OFF" button to start the appliances.

Tip: The juicer has a built-in smart safety function that automatically stops the appliance from juicing after 20 minutes. Always operate with dry hands.

Line drawing of a coffee maker with a side arm and cup (no text or symbols)

1. Add ingredients through the safety lid at the top of the feeding chute, pushing the ingredients downwards gently with the pusher.

Tip: Do not apply excessive pressure when pushing the ingredients down the feeding chute.

Please thoroughly clean the parts in contact with food before using the product for the first time.

Key instructions: (this product has a protective switch, if the juicing cover is not fixed well, the product can't work.)

- When the knob is set on the "ON" position, the slow juicer is ON.

- When the knob is set on the "REV" position, the slow juicer is OFF/rotating reversely.

- "ON" button: please press this button gently and the product begins to work. If you need to stop during its working, press the "REV" button gently.

- "REV" button: when the emission of the pulp is hindered or clogging happens,

gently press downward and hold the "REV" button, and the auger starts to rotate reversely. Loosen the button and stop rotating. Then press the - "ON" button and the product resumes normal work.

CLEANING AND MAINTENANCE

To ensure that you always get the best results possible from the slow juicer, you need to take the time to clean it after each use. To do so, follow the instructions carefully.

• Always ensure the appliance is switched off and unplugged from the power outlet before cleaning it.
• Clean the appliance promptly after each use to avoid any difficulty in removing food waste.
• Using a wet cloth, wipe the exterior of the appliance. Do not submerge the appliance in water or other liquids, nor wash the appliance with water or liquids.
• Store the appliance in a dry and cool place, avoiding direct sunlight.
• Ensure the appliance is clean and dry before storage.
• Disassemble the appliance before cleaning, according to the instructions below:

Line drawing of a hand pump with two cups, no text or symbols present

1. Take the pusher and cover off the feeding chute.

Line drawing of a hand washing machine (no text or symbols)

1. Keep pressing teh button, rotate teh juicing jar clockwise at the same time. Then take off teh juicing jar. If you can

Exploded view diagram of a mechanical component showing progressive assembly from cylindrical to final part (no text or symbols)

1. Remove the juicer strainer, juicing screw, and feeding chute from the base.

EN

BEFORE USING

Precaution: Do not squeeze ice

Reason: Ice is too hard, this will damage the juicing bowl

Precaution: Do not squeeze dried goods and hard food

Reason: Too hard, hard to be cut, easy to get inside parts broken

Precaution: For crude fiber, please cut to 5-10CM

Reason: For fiber, if too long, will be easy to wind, which will cause can not juicing or juicing parts to get damaged

Precaution: Fruit with hardcore, must be used after removing the core

Reason: Will cause damages of juicing parts

Precaution: Forbid to push food materials other than the pusher

Reason: Will cause personal hurt or machine damages

Precaution: Machine's continuous working time should be less than 20 minutes

Reason: Too long working time causes the motor to heat up and the motor can be damaged easily

Precaution: Please do not put the already squeezed fruit pulp into the juicing cup to re-juicing

Reason: If re-juicing the pulp will cause pulp can not flow out smoothly

Precaution: Do not put fruit dunked by wine, honey, sugar, and so on inside

Reason: Will cause juicing cup can not open easily

Precaution: Please do not insert the spoon, chopsticks, etc. Into the feeding tube, juicing outlet, pulp outlet

Reason: May cause mechanical injury;

Precaution: After finish juicing, try to enjoy it as soon as possible.

Reason: Juice is easy to be oxidize, not suitable for long-time storage

Precaution: While juicing, the machine has friction sound, It's a normal phenomenon

Precaution: While juicing, please control the feeding speed, The liquid surface of the cup should not exceed the maximum scale

Reason: As fruit in the juicing cup needs long-time juicing, the juice flows out slowly. Feeding too fast will cause fruit juice to overflow

Precaution: In the process of juicing, the juicing bowl is slightly deformed; It's a normal phenomenon

Reason: For fruit and vegetables that are large, the juicing cup is deformed during work. When the machine stops, it will be normal. That will not affect the use

TROUBLE SHOOTING

Problem: Machine parts do not operate normally

Solution:

- Check that the power cord and power source have been connected well.

- Check that all parts have been assembled correctly.

- The above method can not be effective, please call the customer service center for consultation.

Problem: Can not open juicing bowl cover

Solution:

- Please confirm whether there is too much residue in the juicing bowl. If yes, please press the "ON" button to remove the residue.

- Please confirm whether there are hard objects as core stuck in the juicing bowl. If yes, press the "Reverse" button to return the hard objects to the Feeding Tube.

- The above method can not be effective, please call the customer service center for consultation.

Problem: Stop working while operating

Solution:

- Whether put too much food inside? Press the "Reverse" button to make this machine work in the opposite position. Take food out and cut them into small pieces first, then put inside for operating again.

- The above method can not be effective, please call the customer service center for consultation.

EN

Problem: Leak from the bottom of the juicing bowl

Solution:

• Be sure the silicone sealing ring of the juicing bowl center is installed in place.
• If the silicone sealing ring is put in place, please pay attention to whether put too much food, causing the silicone sealing ring open to leak.
• The above method can not be effective, please call the customer service center for consultation.

Problem: In the process of juicing, the juicing bowl is slightly deformed or shaking

Solution:

- In the process of juicing, it is normal for juicing bowl to shake or deform, which is not machine malfunction. Please don't worry about it.

DISPOSAL

Do not dispose of the device in normal domestic waste.

Dispose of the device over a registered waste disposal firm or through your communal waste disposal facility.

Observe the currently valid regulations. In case of doubt, consult your waste disposal facility.

WARRANTY

DearValuedCustomer,

ThankyouverymuchforpurchasingaMOAproduct.

We wish you to inform you that this product is covered by a warranty which complies with all legal provisions concerning existing warranty and consumer rights in the country where the product was purchased.

Should you find any defect or malfunction of your MOA product, please contact the appropriate Customer Care Center.

Sincerely yours,

The MOA Team

EN

VOOR HET GEBRUIK

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN (1/4)

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN (2/4)

NL

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN (3/4)

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN (4/4)

NL

1. Stroomkabel 2. Onderstel
2. Knop 4. Vergrendeling
3. Ingrediëntentrechter 6. Mesje
4. Sapvergiet 8. Pulpafvoer
5. Duwer 10. Deksel
6. Sapkopje 12. Pulpkopje

Line drawing of a mechanical device with a rotating shaft and housing (no text or symbols)

Line drawing of a manual kitchen tool with a screw and handle (no text or symbols)

Line drawing of a mechanical device with a lever and handle, no text or symbols present

Line drawing of a hand pump and a cup (no text or symbols)

Line drawing of a coffee maker with two cups and a side arm (no text or symbols)

Line drawing of a coffee maker with two cups and a side arm (no text or symbols)

Line drawing of a hand pump device with a cylindrical tube inserted into the top part (no text or symbols)

Line drawing of a hand pump with two cups, no text or symbols present

Line drawing of a hand washing machine (no text or symbols)

Exploded view diagram of a mechanical component showing progressive assembly from cylindrical to final part (no text or symbols)

Simple line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a manual kitchen tool with a screw and handle (no text or symbols)

Line drawing of a laboratory instrument with a handle and base, no text or symbols present

Line drawing of a kitchen brush tool with a magnified view showing the blade and handle (no text or symbols)

Line drawing of a hand pump and a cup (no text or symbols)

Line drawing of a kitchen blender with three cups (no text or symbols)

Line drawing of a coffee maker with cups and a side jack (no text or symbols)

Line drawing of a hand pump device with a cylindrical tube inserted into the top pump (no text or symbols)

Line drawing of a hand pump with two cups, no text or symbols present

Line drawing of a hand pump device with handle and lever (no text or symbols)

Exploded view diagram of a mechanical component showing progressive assembly from cylindrical to final part (no text or symbols)

Line drawing of a mechanical device with a rotating shaft and housing (no text or symbols)

Line drawing of a manual kitchen tool with a screw and handle (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and a base, showing no text or symbols.

Line drawing of a hand pump and a cup (no text or symbols)

Line drawing of a coffee maker with two cups and a side arm (no text or symbols)

Line drawing of a coffee maker with two cups and a side arm (no text or symbols)

Line drawing of a coffee maker with a side arm and cup (no text or symbols)

Line drawing of a hand pump with two cups, no text or symbols present

Line drawing of a hand washing machine (no text or symbols)

Exploded view diagram of a mechanical component showing progressive assembly from cylindrical to final part (no text or symbols)
