Product type	Thermoelectric refrigerator (beverage cooler)
Brand	Moa
Model	WC40
Recommended ambient temperature	20-25 °C (optimal performance)
Internal temperature range	12-18 °C (adjustable in 1 °C increments)
Recommended temperature setting	14 °C
Power consumption	0.211 kWh/24h at 17 °C
Power supply	Grounded wall outlet (voltage/frequency according to label)
Refrigerant	R600a (flammable)
Defrost	Automatic (thermoelectric system)
Ventilation	Free space of at least 200 cm³, wall distance ≥ 20 mm, height from floor ≥ 50 mm
Cleaning	Damp soft cloth, rinse thoroughly before first use
Safety	Do not use power strips, do not block ventilation openings
Warranty	In accordance with legal provisions of the country of purchase

Frequently Asked Questions - WC40 Moa

How to adjust the temperature of the WC40?

After unlocking the control panel (press and hold the lock button for 2 seconds), use the up/down arrows to adjust the temperature in 1 °C increments. The LED display shows the set temperature.

What is the ideal temperature for storing beverages?

The recommended temperature is 14 °C. The optimal operating range is between 12 and 18 °C.

What to do if the appliance is not cooling?

First check the power supply and outlet. Make sure the ambient temperature is within the recommended range (20-25 °C) and that ventilation is adequate (free space of at least 200 cm³). If the problem persists, contact customer service.

How to defrost the WC40?

The thermoelectric cooling system is self-defrosting. If frost appears, turn off the appliance for at least one hour, then restart it. Avoid using mechanical tools to speed up defrosting.

Can I store food in this refrigerator?

No, this appliance is designed only for beverage cooling. It is not suitable for storing perishable food or freezing.

Why is there frost inside?

Frost can appear if the ambient temperature is too low or if the appliance has not defrosted automatically. Set the ambient temperature to about 25 °C and turn off the appliance for one hour to defrost.

How to clean the WC40?

Before first use, remove the adhesive tapes and wipe the interior with a damp soft cloth. Rinse thoroughly and dry. For regular cleaning, use a soft cloth and soapy water. Avoid abrasive cleaners.

The appliance is making noise, what to do?

Unusual noise may be due to dust on the fan. Carefully clean the fan. Also ensure the appliance is level and there is no obstruction.

Can I use a power strip or extension cord?

No, do not use a power strip or portable power supply on the back of the appliance. Plug it directly into a grounded wall outlet.

How to lock the control panel?

The panel locks automatically after a few seconds of inactivity. To unlock it, press the lock button for 2 seconds until you hear a BEEP.

USER MANUAL WC40 Moa

Thermoelectric Cooler WC40

Instruction Manual

Before use, please read this manual carefully.

Only connect the appliance to an earthed wall socket.

This appliance is for household use only. When using electrical appliances, basic safety precautions should always be followed to avoid fires, electric shocks, burns, or other injuries and damage. Read these operating and safety instructions carefully.

IMPORTANT SAFEGUARDS (1/2)

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
5. When positioning the appliance, ensure the supply cord is not trapped or damaged.
6. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
7. Keep ventilation openings, in the appliance enclosure or the built-in structure, clear of obstruction.
8. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

IMPORTANT SAFEGUARDS (2/2)

EN

1. Do not damage the refrigerant circuit.

2. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

3. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

4. Children aged 3 to 8 years are allowed to load and unload refrigerating appliances.

5. This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices, and other working environments;
– farmhouses and by clients in hotels, motels, and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

1. To avoid contamination of drink, please respect the following instructions:

- Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with drink and accessible drainage systems.

– Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply if water has not been drawn for 5 days.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it.

Please ask a professional for servicing when the machine broke down.

Please send it to your local appointed disposal station when you discard it.

EN

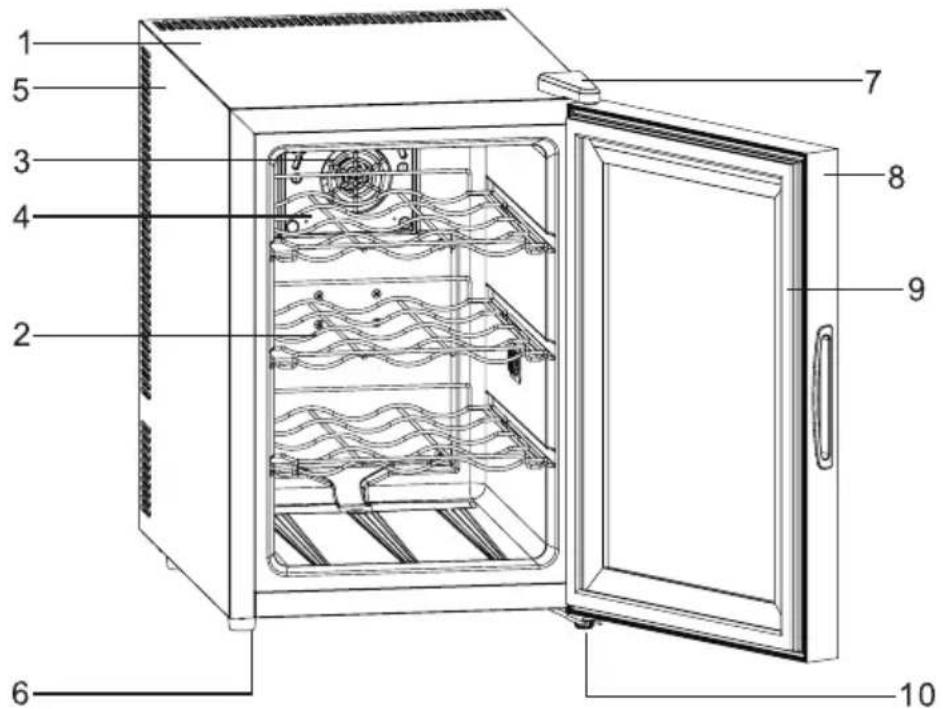

PARTS & LOCATION

1. Cabinet 6. Leveling feet
2. Shelf 7. Door hinge with cover
3. Cold sink fan 8. Glassdoor
4. Cold sink Fan Cover 9. Gasket
5. Ventilation Holes 10. Bottom hinge

CONTROL

It is recommended you install the winecooler in a place where the ambient temperature is between 23^ C- 26^ C/72- 78^ F. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 12-18^ C may not be reached.

Temperature Ranges For Your Cooler:

Temperature Range 12-18°C

CONTROL PANEL

Temperature & light

1. Quik press the button once for the interior light to turn ON or OFF. The light will be turned off automatically if it remains ON for 10 minutes

1. You can select the temperature display setting from Fahrenheit to Celsius degree by pushing this button for two seconds.

Lock

Press and hold the button for 2 seconds to unlock the control panel. You will hear a "BEEP" sound to alert you that the control is now active.

Temperature up & down

After unlocking you can set the temperature as you desire by pressing the arrow pointing up (increase) or the arrow pointing down (decrease) to adjust the temperature in 1 increment.

Note:

When you use the cooler for the first time or restart the cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal. Once the cooler runs for a few hours the display will stabilize.

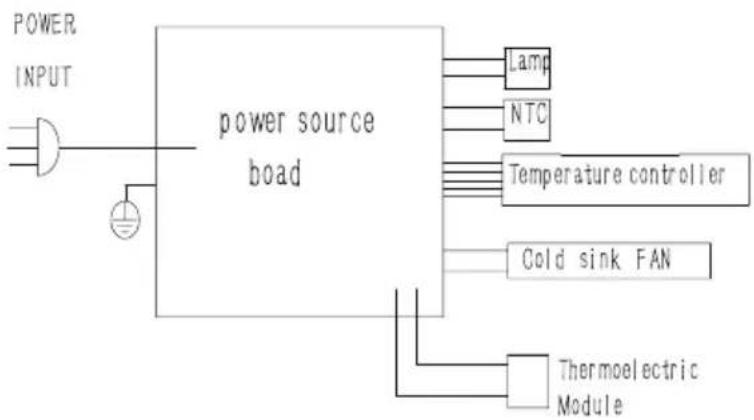

ELECTRIC DIAGRAM

USE & PLACEMENT

NOTE

1. Position your cooler so that the plug is accessible.
2. Keep your cooler out of direct sunlight.
3. Do not place next to the heat-generating appliance.
4. Do not place directly on the ground. Provide a suitable stand.
5. This refrigerating appliance is not suitable for freezing foodstuffs.
6. The storage box is not suitable for storing food, which may cause food deterioration.

Very important

1. The cooler will have better performance at an ambient of 20-
   25 degree; We suggest the cooler be powered off if the ambient temperature is lower than 10 degrees.
2. After plugging the appliance, allow the unit to cool down for 2-3 hours before placing a beverage into the cooler compartment.
3. Ventilation is very important for this kind of thermoelectric cooler; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the cooler.
4. If leakage occurs (which can be easily detected due to the unpleasant smell), please
5. Switch off the cooler immediately
6. Ventilate the room thoroughly
7. Call for the after-sales service department
8. These models use a thermoelectric cooling system with an automatic defrosting system, so there is no need to defrost it manually.
9. This refrigerating appliance is not intended to be used as a built-in appliance.
10. The recommended temperature control for this product is 14 degrees.

Power supply

1. The cooler must be connected to a properly earthed socket in line with relevant valid country regulations before operating;
2. Check the data label (which is on the side of the cooler) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

Product cleaning

First, please use this for the first time, please remove the tape for fixing the fixture in the box, and wipe with a soft cloth. Please rinse the water thoroughly and remove the moisture.

Product function description

1. This refrigerating appliance not suitable for storing food.
2. This refrigerating appliance is not suitable for freezing food.
3. This refrigerating appliance is recommended to be designed at 17^ C.
4. The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

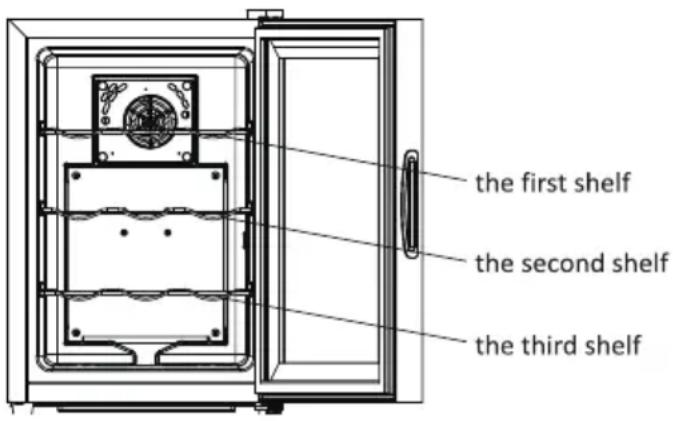

5. The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

1. When the surrounding temperature is 25^ C and the pantry has no load, it will take around 60 minutes to decrease the pantry's temperature from 25^ C to 17^ C.
2. This refrigerating appliance is recommended to be designed at 17^ C. The energy consumption is 0.211kWh/24h. If the set temperature is higher than 17^ C, the energy consumption will be lower. If the set temperature is lower than 17^ C, the energy consumption will be higher.
3. Defrosting procedure: When the semiconductor refrigeration piece works for 24 hours, power off and stop defrosting for 10 minutes.

EN

Ventilation

When putting a TE cooler, ventilation should be considered seriously, please refer to the following:

1. there should be left at least 200 cm3for ventilation
2. the distance between the wall and cooler side should be at least 20mm
3. the bottom should be left at least 50mm for air flowing
4. air passing through must not be preheated
5. the entire cooling system should be considered in the ventilation

TROUBLESHOOTING

Failure: No cooling

Possible reason: No power

Action: Check the electricity supply, or change a new plug

Failure: Poor cooling performance

Possible reason: High ambient temperature

Action: The room temperature is hotter than normal

Failure: Poor cooling performance

Possible reason: Poor instruction

Action: The door is opened too often

Failure: Poor cooling performance

Possible reason: Poor ventilation

Action: Install cooler according to our ventilation instruction

Failure: Noisy

Possible reason: Dust

Action: Clean the dust from the fan

Failure: Frost or ice inside

Possible reason: No defrost

Action: Stop working for at least one hour, then restart it

Failure: Frost or ice inside

Possible reason: Low ambient temperature

Action: Adjust the air-conditioner to be around 25 degree

DISPOSAL

Do not dispose of the device in normal domestic waste.

Dispose of the device over a registered waste disposal firm or through your communal waste disposal facility.

Observe the currently valid regulations. In case of doubt, consult your waste disposal facility.

WARRANTY

Dear Valued Customer,

Thank you very much for purchasing a MOA product.

We wish you to inform you that this product is covered by a warranty which complies with all legal provisions concerning existing warranty and consumer rights in the country where the product was purchased.

Should you find any defect or malfunction of your MOA product, please contact the appropriate Customer Care Center.

Sincerely yours,

The MOA Team

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: MOA
Supplier's address: Nobelstraat 31, 3846 CE Harderwijk, NL
Model identifier: MOAWC40
Type of refrigerating appliance:
Low-noise appliance: Yes			Design type:		freestanding
Wine storage appliance: No			Other refrigerating appliance:		No
General product parameters:
Parameter Value			Parameter		Value
Overall dimensions (millimetre)	Height	530	Total volume (dm3 or l)		37
	Width	359
	Depth	547
EEI 101			Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW) 25			Airborne acoustical noise emission class		A
Annual energy consumption (kWh/a) 77.02			Climate class:		tropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable 16			Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting No
Compartment Parameters:
Compartment type	Compartment parameters and values
	Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)		Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes 37	17	-		A
Wine storage	No -	-	-		-
Cellar	No -	-	-		-
Fresh food	No -	-	-		-
Chill	No -	-	-		-
0-star or ice-making	No -	-	-		-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	No	-	-	-	-
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: NDLS; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: No
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: https://www.moacolors.com
