| Product type | Refrigerator |
| Brand | Moa |
| Model | RF130W |
| Refrigerant | Isobutane (R600a) |
| Capacity | Not specified (under-counter model) |
| Temperature control | Mechanical control, 7 positions (0 = off, 1 = min, 7 = max) |
| Interior lighting | LED |
| Reversible door | Yes, reversible |
| Wine rack | Yes, for 2 bottles |
| Crisper drawer | Yes, with lid |
| Number of glass shelves | 1 (removable) |
| Leveling feet | Yes, adjustable |
| Power supply | Plug into grounded wall outlet, voltage and frequency as per rating label |
| Required clearance | 100 mm at rear, 50 mm on sides |
| Interior cleaning | Warm water and baking soda, no abrasive cleaners |
| Exterior cleaning | Warm soapy water, no abrasive cleaners |
| Defrosting | Manual, do not use sharp tools |
| Climate class | Not specified (domestic use) |
| Weight | Not specified (heavy appliance, two-person handling) |
Frequently Asked Questions - RF130W Moa
User questions about RF130W Moa
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual RF130W - Moa and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RF130W by Moa.
USER MANUAL RF130W Moa
Before use, please read this manual carefully.
Only connect the appliance to an earthed wall socket.
This appliance is for household use only. When using electrical appliances, basic safety precautions should always be followed to avoid fires, electric shocks, burns, or other injuries and damage. Read these operating and safety instructions carefully.
IMPORTANT SAFEGUARDS (1/6)
1 Risk-of-chilentrapment Before you throw away you old appliance:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
- Cut the connection cable (as close to the appliance as you can.)
- If this appliance you are replacing featured a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
-
Make sure your outlet voltage and circuit frequency correspond to the voltage stated on the appliance rating label If this is not the case, contact the after-sales support line and do not use the refrigerator.
-
Do not use any other appliance at the same time on the same electrical circuit as it may overload the circuit and blow the fuse or circuit breaker.
-
To protect against fire and electric shock, do not immerse the cord, plug, power base, or the Retro Under Counter Fridge body itself in water or other liquid. Do not expose the electrical connections to water.
-
The cord should be run in such a way that there will be no risk of anyone pulling it inadvertently or tripping over it.
IMPORTANT SAFEGUARDS (2/6)
6Dokinkbendsquashstrainodamagehpowecord and protect it from sharp edges and heat.
- Grip the plug when disconnecting, do not pull the cord.
- Do not let the cord hang over the edge of a table or benchtop. Do not let it touch hot surfaces.
- Do not pick up or operate the appliance if the power supply cord or plug is damaged, or after it malfunctions or has been dropped or damaged in any way.
- In case of damage, contact the after-sales support line for advice.
- A damaged cord or plug must be replaced by the manufacturer or a qualified person to avoid a hazard.
- Make sure all electrical connections are clean and dry before switching on.
- Do not use this appliance in conjunction with an extension cord.
- Unplug the appliance from the power outlet when not in use and before cleaning, servicing, maintenance, or moving the appliance.
- This appliance is not intended to be operated by means of an external timer or separate remote control system.
- This appliance is intended for domestic use only.
- This product is not intended for commercial use. Do not use it outdoors.
- Only use this refrigerator as described in this manual. Any other use is not recommended and may cause fire, electric shock, or injury.
- Improper installation and the use of accessories not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury and will invalidate your warranty.
IMPORTANT SAFEGUARDS (3/6)
- We assume no responsibility for any eventual damages caused by improper or faulty use.
- This appliance is not intended for use by persons (including children) with a reduced physical, sensor, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.
- Children should be supervised to ensure they do not play with the appliance.
- Close supervision is necessary when any appliance is used by or near children.
- Do not use chemical, steel wool, or abrasive cleaners to clean the outside of the unit, as these will scratch the metal surface.
- Do not operate the unit near liquids (kitchen sink, water basins, taps, etc).
- Ensure that all the parts are correctly assembled before operating.
- Maintain the appliance following the instructions to ensure that it functions properly.
- If there is a product malfunction, or if it has been damaged in any way, call the after-sales support for assistance.
- Immediately unplug the appliance if fire or smoke is emitted.
- Place the product on a straight, rigid, and stable surface, away from sources of direct sunlight or excessive heat.
- Do not place the product near heat sources such as radiators, heat registers, stoves, or other appliances that produce heat.
- Do not place the product near other items that may damage it, such as naked flame sources (lit candles) or objects containing water (a vase or fishbowl).
- Take care that no objects fall and no liquids are spilled into any openings.
IMPORTANT SAFEGUARDS (4/6)
EN
34PrevenoverheatingPlacehproducingufficiently aerated placeEnsure that a circulate freely around the back of the refrigerator. To ensure best performance, leave a distance of about 100mm to all sides of the fridge.
- This appliance features a short power cord to reduce the risk of being entangled, and to reduce the risk of tripping. An extension cord or longer detachable cord is not recommended for use with this product.
- There are no user-serviceable parts inside. Do not attempt to service this product. Please call our after sales support for instructions.
Danger! Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.
Caution! Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner's guide before attempting to service this product. All safety precautions must be followed.
Caution! Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.
Caution! Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant used.
- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged.
WARNING: Do not damage the refrigerant circuit! Never use an appliance with a damaged refrigerant circuit! If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.
IMPORTANT SAFEGUARDS (5/6)
38thazardoufoanyoneetharanauthorizedservicperson to service this appliance.
39. The room for installing the appliance must be at least 1m* per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications.
40. Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
41. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
42. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit are damaged.
43. Avoid open flames and sources of ignition.
44. Thoroughly vent late the room in which the appliance is situated.
45. It is dangerous to alter the specifications or modify this product in any way.
46. Any damage to the cord may cause a short circuit, fire, and/or electric shock.
47. This appliance is heavy. Care should be taken when moving it. To avoid back or other injuries, consider a two-person lift or mechanical aid when installing it. Failure to do so can result in back or other injuries.
48. Avoid prolonged exposure of the appliance to direct sunlight.
49. This appliance is intended to be used in a household only.
50. Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
IMPORTANT SAFEGUARDS (6/6)
EN
51 DONOTUSENEXTENSIONCORDUsearexclusivewall outletDonotconnectyourefrigeratotextensioncordsiran outlet used by any other appliance.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Before first use, it is advisable to wait at least eight hours before connecting the appliance to allow the oil to flow back in the compressor.
- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
- The appliance must not be located close to radiators or cookers.
- Make sure that the mains plug is accessible after the installation of the appliance.
- Do not put hot food in the appliance.
- Store pre-packed food in accordance with the food manufactures instructions.
- WARNING! Do not use mechanical devices or other means to accelerate the defrosting process. Never use a sharp or metal instrument to remove frost or clean the appliance. Use a plastic scraper, if necessary.
- Appliance storage recommendations should be strictly adhered to. Refer to relevant instructions.
- If the refrigerator is unplugged, turned off, or has lost power, you must wait for 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.

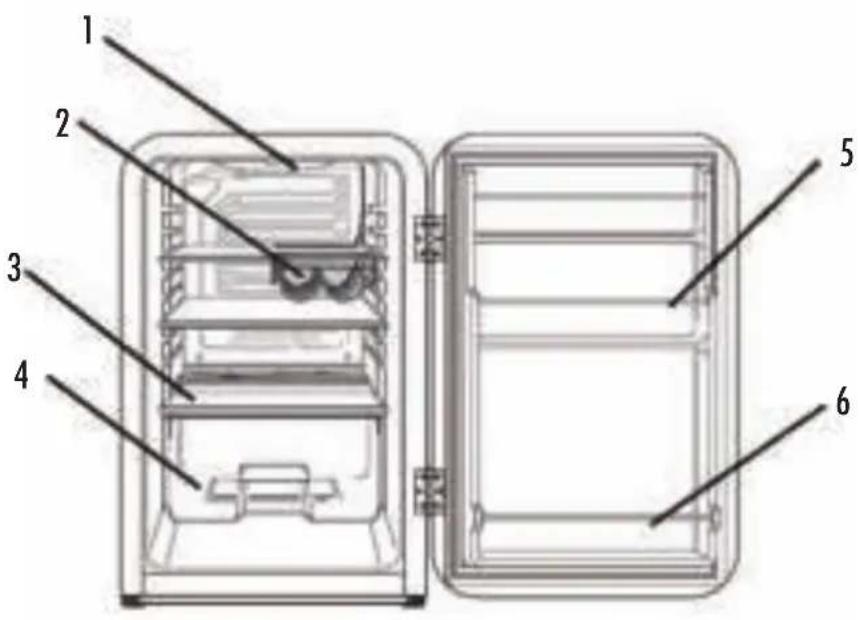

PARTS & PLACEMENT
1.LEDligh2.WineRack
3.Glassshelf.SaladBox
5. Door/Bottle Shelf 6. Door/Bottle Shelf
SETTING UP APPLIANCE
EN
Unpacking:
This product has been packaged to protect against transportation damage. Remove all packaging materials from around and inside the appliance, but do not remove any foam insulation surrounding the pipes at the back. Keep the original packaging carton and materials in a safe place; it will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. If the carton is to be disposed of, please recycle all packaging materials where possible.
- Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
- Parts: Check to ensure you have all the parts pictured on the previous page spread.
- Unwind the power cord to its full length and inspect it for damage. Do not use the appliance if the appliance or its cord has been damaged or is not working properly. In case of damage, contact our after-sales support line for advice on examination, repair, or return of the damaged product.
- Make sure the refrigerator is disconnected from the power supply before cleaning the interior surfaces and all internal accessories with lukewarm water, a soft cloth, and a neutral/mild soap/detergent. This will remove any dust from transit and storage and help remove the typical smell of a brand new product. Then dry thoroughly. Important: do not use harsh or abrasive detergents or powders as these will damage the finish.

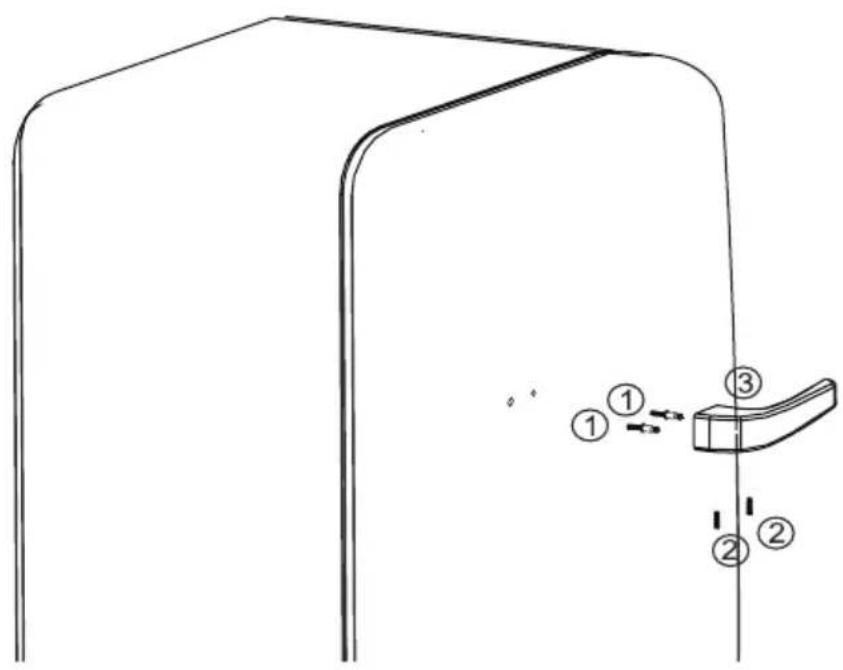

DOOR HANDLE INSTALLATION
The doohandle comes unattached but packaging restrictions its easlity attached by following the instructions below.
- Handle accessories
Qty. 2
Qty. 2
2 Screw
Qty. 1
3 Door handle
- To install the handle, follow the instructions below: Remove teh original screws from door.
- Fix the two screws (1) on the door.
- Put the metal handle (3) into the two fixed screws, match the two holes on the handle.
- Intall screw (2) at the bottom of handle and fasten it tightly.
Installing the refrigerator:
- Before installing your new fridge, read all safety instructions in this manual, then follow the instructions below:
- Place the fridge on a sturdy, level floor for quieter operation. Ensure that the floor is strong enough to support the fridge when it is fully loaded.
- If the refrigerator is to be placed on a carpet, support it with a wooden board underneath. Be aware that placing the refrigerator on the carpet may mean that heat from the compressor may cause the carpet to fade.
- This appliance is designed to be freestanding only and should not be recessed or built-in.
- Do not tilt the fridge more than 45^ from upright when moving it.
- Avoid areas where the appliance would be exposed to direct sunlight, sources of heat (stove, heater, radiator, etc.), extreme cold ambient temperatures, or excessive moisture and high humidity. Installing it in the coolest area of the room will save energy consumption and running costs.
- Handle with care! Do not apply force to any part such as the condenser or door. The metal rails on the bottom underneath of this refrigerator may have sharp edges, so always unpack and handle with care. Do not drag the unit: place it carefully in position to avoid scratching the floor.
Space requirements:
- Place the unit so there is enough space for the door to open.
- Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. Allow at least 100mm clear space at the back and 50mm at the sides of the unit.
Leveling:
- The appliance must be installed level in order to work properly. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.
- To level the unit, adjust one or both leveling feet at the base of the unit.

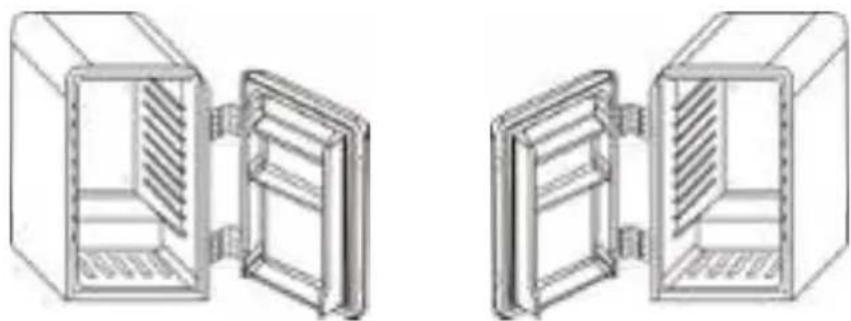

REVERSIBLE DOOR
The door can be opened from left to right and vice versa. Should you wish to change the opening direction, please follow these instructions. Note: All parts removed should be kept safely. You will require these for the reinstallation of the door.
- Place the door flat on a padded surface to prevent scratching Remove the six hinge screws that affix the hinges to the Retro door Remove the blanking plugs from the opposite side and use to plug the holes exposed by the removal of the hinge Screw the hinges onto the opposite side of the door Pick the door up and carefully align with the cabinet holes Screw the remaining six screws into both hinges and the two spacers into the cabinet to secure the door.

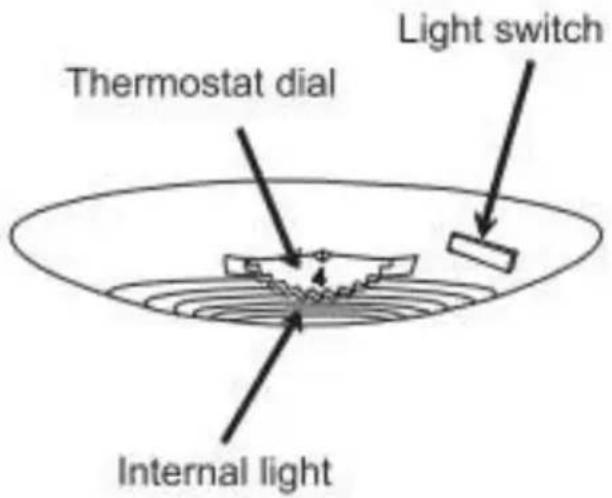

MECHANICAL CONTROLLER
Themechanical thermostat temperature control and the LIGHTon/off switch is located at below places:
Temperature settings:
The settings 0(OFF) - 7(MAX) regulate the interior temperature of the refrigerator.
Setting 0(OFF) = not operating (Please press the knob and turn to get the "0" position)
Setting 1 (MIN) = lowest setting (warmest internal temperature) Setting 7(MAX) = highest setting (coldest internal temperature)
NOTE: The refrigerator temperature will vary depending on the number of cans/bottles stored and on the frequency with which the door is opened. The internal temperature varies in different parts of the refrigerator. The back of the refrigerators is the coldest. Please keep the cans/bottles away from the rear wall to avoid freezing the bottles and to allow the circulation of cold air.
NOTE: Thermostat 0(OFF) position indicates the refrigerator is turned off although power is still being supplied. By turning the thermostat dial to the left, the refrigerator will turn on automatically. When the refrigerator is not to be used for a long period of time, disconnect the plug and leave the door partially open.
EN
FOODSTORAGE
-Therefrigeratorcompartmentissuitablefortheshort-termstorageof fresh food. The temperature inside varies depending on the amount of food stored, the ambient temperature, and the frequency of door opening. Adjust the thermostat accordingly.
- In order to maintain good cooling efficiency and save energy, we recommend you do not open the door for too long or too often. Do not overload the fridge, and keep enough space around items for cold airflow. Do not block ventilation openings.
- The walls of the fridge are equipped with a series of runners so that the shelves can be positioned to suit individual storage requirements.
- In order to keep fruit and vegetables fresh in the salad drawer, make sure they are properly packaged and the cover sits firmly on top of the salad drawer(applicable model).
- Two wine bottles can be stored conveniently in the shelf-hanging wine rack. If you do not require this wine rack, or to remove it for cleaning, pull the shelf that holds the rack completely out of the fridge, then slide the wine rack off the side of the shelf (applicable model).
ENERGY SAVING TIPS
Placethefridgeinthecoolestareaoftheroom,awayfromheat-producing appliances and out of direct sunlight.
- Let heated food and beverages cool to room temperature before placing them into the fridge.
- Do not overload the fridge as it forces the compressor to run longer.
- Wrap foods properly and wipe containers dry before placing them in the fridge. This cuts down on frost build-up inside the fridge.
- Do not line any fridge storage bin with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, reducing cooling efficiency.
- Position food so that air can circulate freely around it.
- Do not leave the fridge door open for longer than required.
- Make sure no food touches the back of the compartment.
- Don't set the thermostat on exceeding cold temperatures.
MAINTENANCE & CLEANING
EN
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
- Do not pour water over the appliance.
- The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water)
- Clean the accessories separately with soap and water. Do not put them in the dishwasher.
- Do not use abrasive products, detergents, or soaps.
- After washing, rinse with clean water and dry carefully.
- When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
- Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
- There are sharp edges on the underside of the product so care should be taken when cleaning.
- Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption.
Warning:
- Never clean the unit with an abrasive, acid, oil, or solvent-based cleaning agent, or with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning as the fumes from these substances can create a fire hazard or explosion.
- Never clean the appliance with a steam cleaner. Moisture could accumulate in the electrical components, the danger of electric shock! Hot vapors can lead to the damage of plastic parts.
- The appliance must be completely dry before it is placed back into service.
- Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, or cleansers that contain acetic acid. Do not allow such substances to come into contact with the appliance parts.
TROUBLESHOOTING
Problem: Thefridgedoesn'twork.
Solution:
-Checkthattheapplianceisswitchedon.
-Checkthattherehasnotbeenapowercut.
-Checkthattheplugisnotfaulty.
-Checkthatthefusehasnotblown.
-Check that the voltage is correct for the appliance.
-Arethereanyfaultswiththesocket?Forthispurpose,trytheplug ofyourappliancebyconnectingittoasocketwhichyouaresureis working.
Problem: The temperature inside the appliance is not cold enough.
Solution:
- Check that there is not too much food in the appliance.
- Check that the thermostat is set to a suitable temperature.
- Check that the appliance is not placed in direct sunlight, or too near to a heating source.
- Check that the ambient temperature is within the operation limits of the appliance.
- Are the doors of the appliance opened frequently? Once the door is opened, the humidity found in the air in the room enters the appliance, especially if the humidity levels in the room are very high. The more frequently the
door is opened in humid conditions the more chance of the build up of moisture.
- The door is not closed completely.
- The door gasket does not seal properly.
- The cooler does not have the correct clearances at the sides/back.
Problem: The temperature within the appliance is too cold.
Solution:
- Increase the working temperature by adjusting the thermostat to a lower setting. The highest setting should only be used as a rapid cool setting and should only be set 2 hours before a large amount of food is placed in the fridge. If this is not done the temperature in the fridge compartment could fall below 0^ C as the compressor will run continuously.
Problem: Moisture forms on the inside or outside walls of the fridge.
Solution:
- Hot and humid weather increases the internal rate of frost build—up.
This is normal.
- Open the door less often and make sure it is always properly closed.
Problem: The outer surfaces of the appliance are wet.
Solution:
- Condensation will from on the outside of the cooler if it operates in moist areas, simply wipe it dry.
Problem: Smell/odour.
Solution:
- Check all the food and drink that is in the fridge is in date and correctly packaged. If it isn't then it should be removed immediately or repackaged. Check for spillages on each shelf, rack and drawer. You may need to remove the drawers to check that no spillages have settled underneath them. Spillages that have not been cleaned and have been left can cause smells and unwanted odours.
Problem: The doors do not close properly.
Solution:
- Ensure there are no obstructions preventing door closure.
- Check the door compartments and shelves are correctly in place.
- Check the door seal is not warped or torn.
- Check the appliance is level.
Problem: Unusual noises.
Solution:
- Check that the appliance is on a flat, level surface and is stable.
- Check the spacing's around the appliance and ensure it is not touching other items.
- Bubbling and gurgling sound: • This noise is emitted as the coolant fluid flows through the pipes within the system. This is normal.
-Water flowing sound: • This is the normal sound of water flowing into the drain trough during the defrosting process.
- If the appliance is operating noisily (compressor noise): This is normal. This noise indicates that the compressor is operating normally. As the compressor is being energized, it might run a bit more noisily for a short period of time.
- Contraction and expansion of the inside walls may cause popping and cracking noises.
EN
Problem: The fridge door will not open.
Solution:
- If the door has just been opened, leave it for a few minutes to allow the air pressure to equalise before trying again.
Problem: The compressor runs continuously.
Solution:
- The temperature is set too cold: select a lower(warmer) setting.
- The door is open, or something is obstructing proper door closure.
- The door gaskets are wom, dirty or damaged.
- Large quantities of food have been added to the fridge.
- The room temperature is hotter than usual.
Problem: The external fridge surface is warm.
Solution:
- The exterior walls can be warmer than room temperature. This is normal while the compressor works to transfer heat from inside the fridge cabinet.
GOING AWAY?
-Shortvacation: Leave the fridge operating during vacations of less than a month.
- Long vacation: If you are not going to use the fridge for longer periods, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open, if necessary. (Restrict children's access to the room with the open fridge to avoid creating a child entrapment risk.)
MOVING THE FRIDGE
-Unplugthefridgeandremoveallfoodfromtheinside.Securelytape down the drawer and shelves and tape the door shut. Turn the leveling feet up to the base to avoid damage.
- CAUTION: Never pick up the refrigerator by the door.
- Protect the outside of the unit with a blanket or similar soft material and make sure the fridge stays secure in the upright position during transportation.
DISPOSAL
Do not dispose of the device in normal domestic waste.
Dispose of the device over a registered waste disposal firm or through your communal waste disposal facility.
Observe the currently valid regulations. In case of doubt, consult your waste disposal facility.
WARRANTY
DearValuedCustomer,
ThankyouverymuchforpurchasingaMOAproduct.
We wish you to inform you that this product is covered by a warranty which complies with all legal provisions concerning existing warranty and consumer rights in the country where the product was purchased.
Should you find any defect or malfunction of your MOA product, please contact the appropriate Customer Care Center.
Sincerely yours,
The MOA Team
EN
VOOR HET GEBRUIK
1 Ledlamp2.Wijnrek
3.Glazenplan4.Saladebak
5. Deur/Fleshouder 6. Deur/Fleshouder
HET APPARAAT INSTALLEREN
NL
Uitpakken:
Aantal: 2 st.
2 Schroef #3 Deurklink
2 st. 1 st.
Three metallic mechanical components: threaded screw, cylindrical pin, and curved blade (no text or symbols visible)1 Schraube
Anz. 2
2 Schraube
Anz. 2
3 Türgriff
Anz. 1

