Product type	Filter coffee machine
Brand	Beko
Model	CFM6401I
Power	1000 W
Supply voltage	220-240 V~, 50-60 Hz
Maximum ground coffee capacity	65 g
Minimum recommended number of cups	4 cups
Auto-off	Yes, after 30 minutes
Anti-drip function	Yes
Carafe	Thermal carafe with handle
Water level indicator	Yes, with marking "8"
Recommended descaling	At least 4 times per year
Cleaning	Do not immerse; filter holder dishwasher safe (top rack)
Safety	Overheat protection device; anti-drip system
Intended use	Household use only, for making coffee
Included accessories	Coffee measuring spoon, filter holder, thermal carafe

Frequently Asked Questions - CFM6401I BEKO

How to descale the machine?

Descale at least 4 times per year. Use a special coffee machine descaler or a mixture of 4 parts water to 1 part white vinegar or citric acid. Fill the tank, run about one cup, let it sit for 15 minutes, then rinse by running 4 tanks of clear water. Do not use other products.

What to do if water does not flow?

Unplug the appliance immediately and wait 10 minutes. Check that the carafe is properly in place and that the filter holder is not blocked. Never open the filter holder during brewing. If the problem persists, contact an authorized service center.

How to clean the filter holder?

The filter holder can be cleaned in the dishwasher, on the top rack. You can also wash it by hand with water and dish soap. Do not use abrasive cleaners.

Why is the coffee lukewarm?

Rinse the thermal carafe with hot water before brewing for better heat retention. Use at least 4 cups of water. The appliance keeps coffee hot for 30 minutes, then turns off automatically. Do not reheat coffee.

Can I use something other than ground coffee?

No, this appliance is designed only for making coffee. Do not use to heat other liquids (soups, canned goods, etc.) to avoid any danger.

Does the appliance turn off automatically?

Yes, the machine turns off automatically after 30 minutes. You can also turn it off manually at any time with the On/Off button. Do not leave unattended.

What is the maximum water capacity?

The water tank is marked with an '8' indicating the maximum level. Do not exceed this mark. Excess water flows out through the back. Use cold drinking water.

How to use the anti-drip function?

The anti-drip function allows you to briefly remove the carafe during brewing to serve coffee. Replace the carafe quickly (max. 30 seconds). Otherwise, coffee may overflow. Never remove the filter holder.

What to do if the machine leaks?

Check that the filter holder is correctly in place, the carafe is properly positioned, and the water level does not exceed the '8' mark. If leaks persist, stop using and contact after-sales service. Do not use a leaking machine.

Can I wash the parts in the dishwasher?

Only the filter holder can be washed in the dishwasher, on the top rack. Never immerse the appliance, cable, or plug in water. Other parts should be cleaned by hand with a damp cloth.

USER MANUAL CFM6401I BEKO

Simple black icon of a mug with a handle, resembling a beer mug or mug (no text or symbols)

CFM6401I

EN - DE - FR - TR - ES - PL - RO - IT - NL - RU - AR

CONTENTS

ENGLISH	6-11
DEUTSCH	12-20
FRANÇAIS	21-28
TÜRKÇE	29-38
ESPAÑOL	39-48
POLSKI	49-57
ROMÂNĂ	58-67
ITALIANO	68-75
NEDERLANDS	76-83
RUSSIAN 84-93

8 1 2 3 4 5 6 7 MAX 8 6 4 2

1

Line drawing of a modern kitchen grater with handle and side panel (no text or symbols)

3 MAX

4 1 2 3

5 1 2

6 1 2

7 1 2

Diagram showing a microwave oven with warning labels and a red X mark indicating a warning or failure point.

Illustration of a coffee machine with cups and a checkmark (no text or symbols)

9 2 1

1 1 2

2 1 2 3

3

4

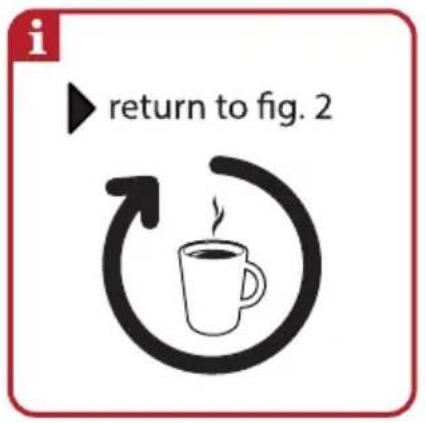

i ► return to fig. 2

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMIZLEME VE BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
RO	UTILIZAREA CURĂȚAREA ȘI ÎNTRETINEREA
IT	FUNZIONAMENTO PULIZIA E MANUTENZIONE
NL	WERKING REINIGING EN ONDERHOUD
RU	ЭКСПЛУАТАЦИЯ ЧИСТКА И УХОД

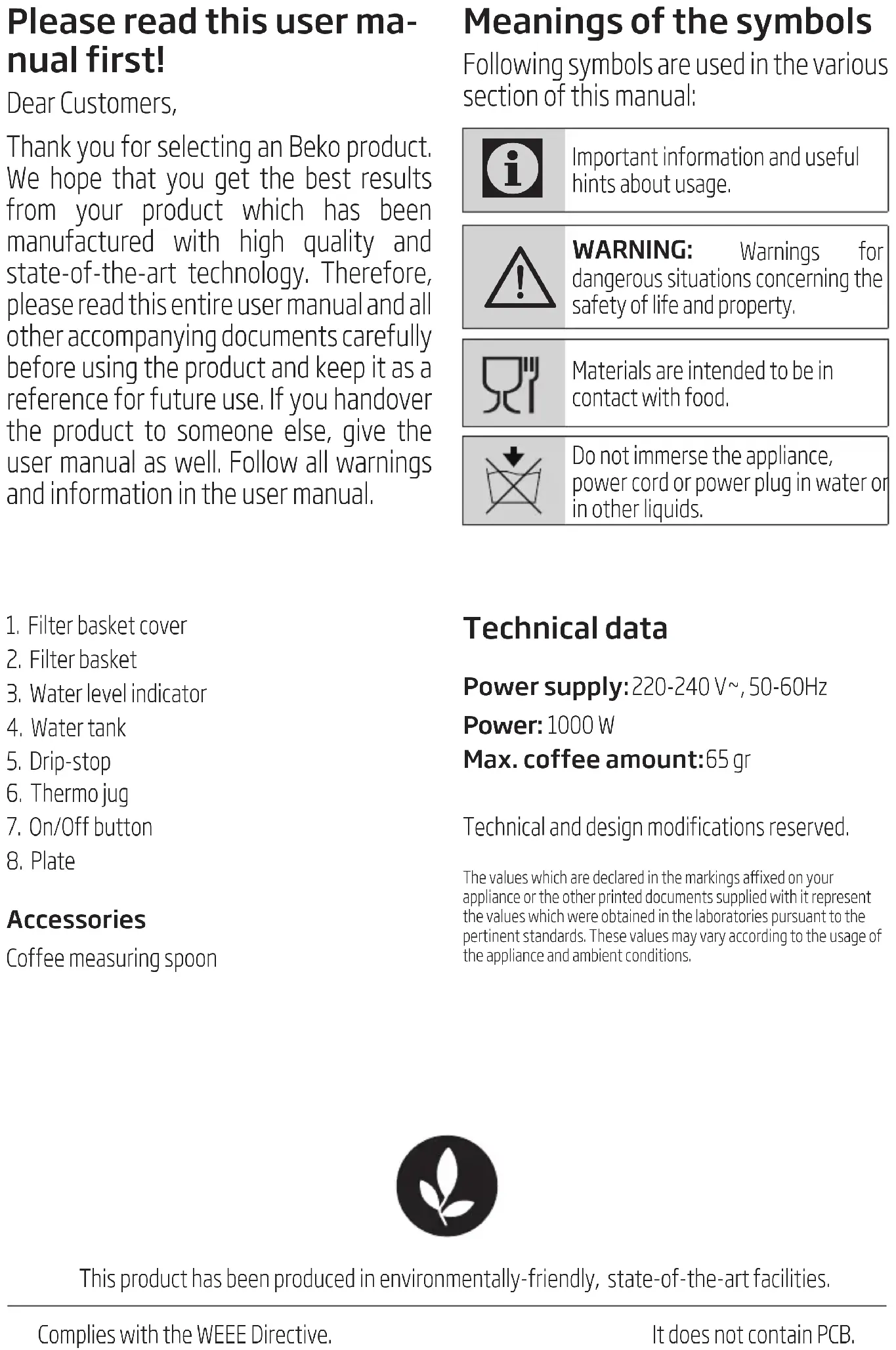

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Do not immerse the appliance, power cord or power plug in water or in other liquids.

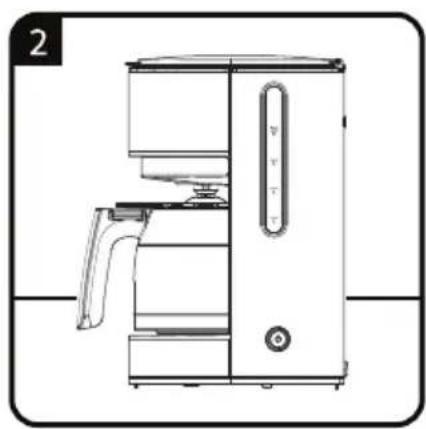

1. Filter basket cover
2. Filter basket
3. Water level indicator
4. Water tank
5. Drip-stop
6. Thermo jug
7. On/Off button
8. Plate

Accessories

Coffee measuring spoon

Technical data

Power supply: 220-240 V\~, 50-60Hz

Power: 1000 W

Max. coffee amount:65 gr

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Always keep the appliance and its cord out of reach of children aged less than 8 years.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.
• This appliance cannot be used for built-in applications and it is not intended to be used inside cabinets. Do not put the coffee machine in a cabinet while it is running.
• This appliance is intended to be used for household purposes in places such as:
• Shops, offices and personnel kitchens in other working environments,
• Farmhouses,
• By customers in hotels, motels and other residential places,
• Places for sleep and breakfast.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA.
• Use the appliance with a grounded outlet only.

1 Important instructions for safety and environment

• Do not use the appliance with an extension cord.
• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.
• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.
• Do not pull the power cable when unplugging the appliance.
• This appliance is intended for private domestic use only and is not suitable for professional-catering purposes.
• Never fill the appliance above the maximum level indicator, boiling water may splash out.
• Do not fill the kettle below the minimum level indicator.
• Do not open the lid while the water is boiling.
• Position the lid of the appliance in a way that the hot steam is not directed to you.
• Hold the appliance by the handle only.
• If water does not drip from the filter basket during operation, unplug the appliance and leave it

to cool for 10 minutes, then open the filter cover and check it.

• Never operate the appliance without any water inside it.
  • Always use the appliance on a stable and flat surface.
• This appliance is designed to boil water only. It cannot be used to boil other liquids. Otherwise, it will cause danger.
• Make sure that the surfaces of the appliance and the heater plate are cold before touching it.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• Unplug the appliance before cleaning. After cleaning, dry the appliance and all parts before connecting it to mains supply.
• Do not immerse the appliance, or power plug in water or any other liquids.
• Never use the appliance in or near to combustible or inflammable places and materials.

1 Important instructions for safety and environment

- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Preparation

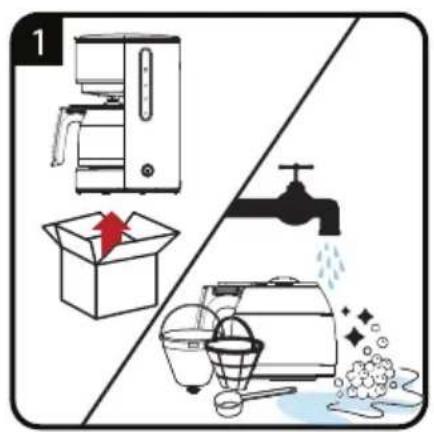

WARNING: First time use: Run the appliance at least 4 times without adding coffee.

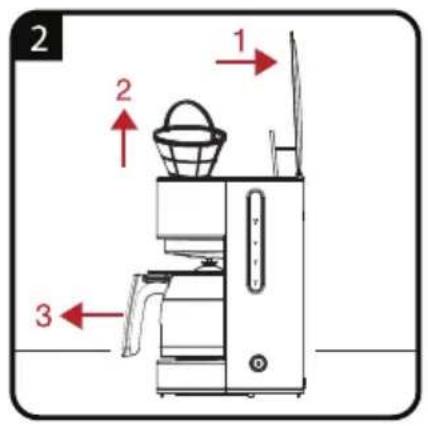

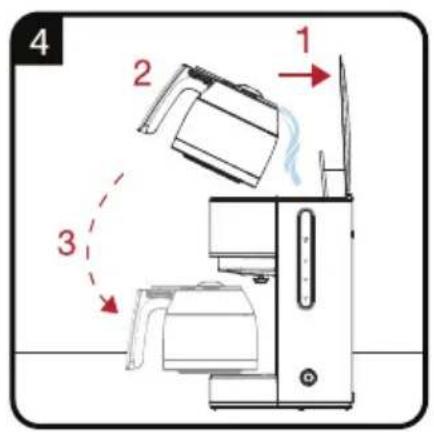

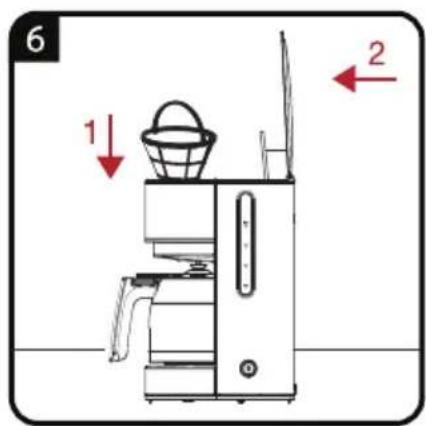

2.2 Brewing Coffee

For the good coffee taste it is suggested to operate the appliance with at least 4 cups coffee serving.

For improved heat retention we recommend that you rinse the pot with hot water before starting the brewing process.

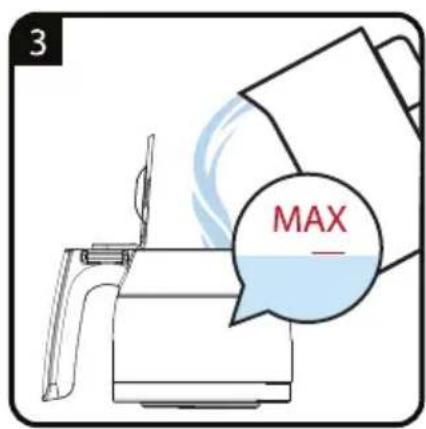

Use only clean, cold, and fresh drinking water.

There is a drip hole on the back of the water reservoir to prevent exceeding the capacity of the coffee maker. If you add too much water, it will drip out from the back of the appliance.

WARNING: If cover is not closed or the filter basket and the thermo jug are not placed accurately, the drip-stop function will not function properly. It could cause hot water or hot coffee to overflow.

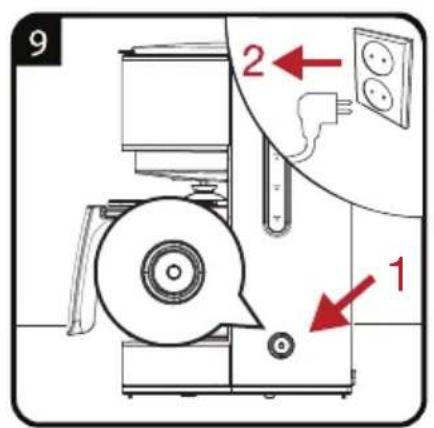

The brewing process can be stopped at any time by pushing the On/Off button (7) again.

The appliance is equipped with a drip-stop (5) located underneath the filter basket (2) and enables you to briefly remove the thermo jug (6) to pour coffee before the water has fi-nished running through the machine.

WARNING: Make sure to place the thermo jug (6) on the plate (8) quickly (max. 30 seconds). Otherwise the brewed coffee from the filter could overflow. If you want to use the thermo jug for more than 30 seconds switch off the appliance.

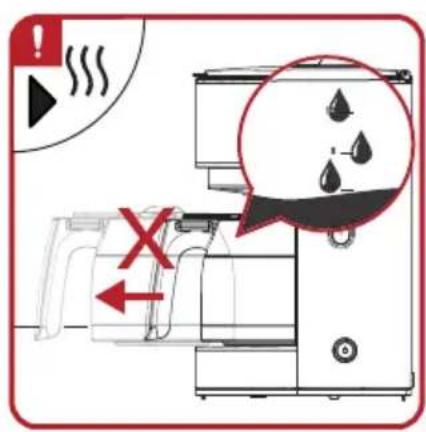

WARNING: Never pull out the filter basket (2) during the brewing process even if no water is draining. Extremely hot water or coffee can spill out from the filter basket and cause injury.

WARNING: If water/coffee is not draining from the filter basket (2)after several seconds with the thermo jug (6) properly in place (8) immediately unplug the appliance and wait 10 minutes before opening and checking the filter basket (2).

WARNING: When the brewing process ends and the water tank is empty, there will still be hot liquid in the filter basket. Wait a few minutes for the rest of the liquid to drip into the thermo jug.

Let the appliance cool down at least 15 minutes between each brewing process.

Hints and Tips

• Use softened or filtered water to prevent lime build-up.
• Store unused coffee in a cool, dry place. After opening a package of coffee reseal it tightly to maintain its freshness.

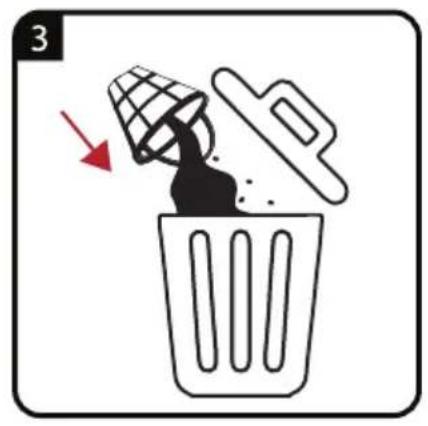

• Do not reuse the coffee sediment in the filter since this will reduce the flavour.
  •Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing.

3.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquid.

Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

3.2 Descaling the appliance

Descaling extends the life of your appliance. Descale your coffee maker at least 4 times per year. The period depends on the water hardness in your area. The harder the water is, the more often the appliance has to be descaled.

1. Purchase a suitable descaler from a speciality store. Please ask naming the device.
2. Prior to commencing the descaling process thoroughly read the manufacturer's package insert of the descaler. Should the manufacturers instructions differ from the ones listed below, then follow the manufacturers instructions.

You can also use white vinegar and lemon acid instead of a commercially available descaler.

1. Fill the water tank to the «8» mark and add descaler. Mixing ratio: 4 parts water to 1 part descaler.
2. Turn the appliance on and allow approximately one large coffee cup to run through the appliance.
3. Turn the appliance off.
4. Let the mixture soak for about 15 minutes.

5. Repeat steps 4 - 6.

6. Now turn the appliance on and let the entire mixture run through.

7. Fill the water tank with cold, fresh drinking water and run all the water through.
8. Repeat step 9 four times.
9. Now you may brew coffee again.

3.3 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged and completely dry.
• Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of children.

3.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
