USER MANUAL DU2055 KENMORE

PACKING LIST Your KENMORE VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton: 1 Upright Vacuum Cleaner 1 3-in-1 Combination Tool 1 Extension Wand 1 Upholstery Tool 1 Flexible Hose 1 Handle 1 Screw Bolt 1 Use & Care Guide Read this Use & Care Guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way. For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information. Your vacuum cleaner’s model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner. Model No.____________________________________________ Serial No. ____________________________________________ Date of Purchase ______________________________________ Keep this book and your sales check (receipt) in a safe place for future reference.

BEFORE USING YOUR NEW VACUUM CLEANER- 3 -

WARNING! Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following:

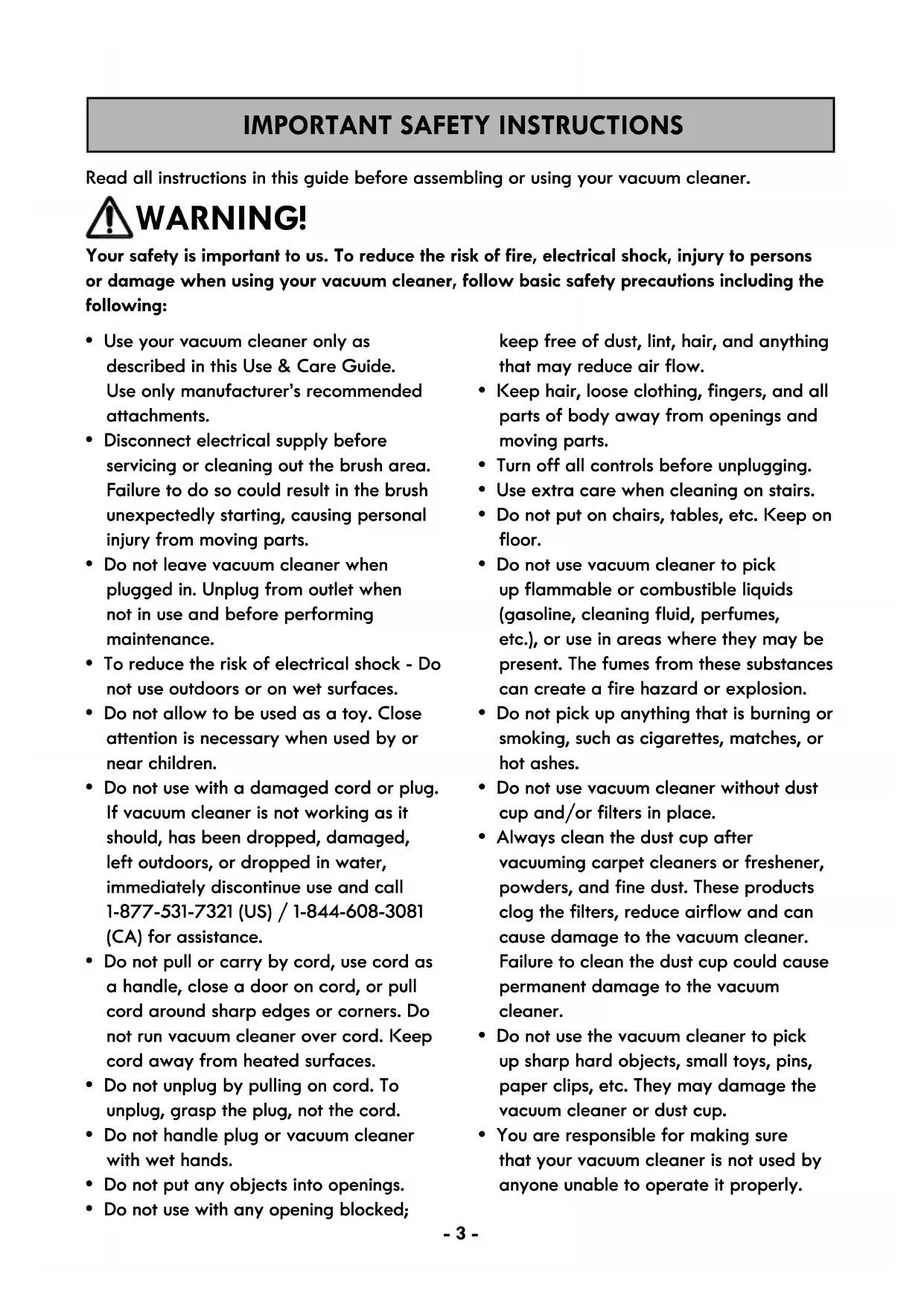

IMPORTANT SAFETY INSTRUCTIONS

• Use your vacuum cleaner only as described in this Use & Care Guide. Use only manufacturer’s recommended attachments.

• Disconnect electrical supply before servicing or cleaning out the brush area. Failure to do so could result in the brush unexpectedly starting, causing personal injury from moving parts.

• Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.

• To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or vacuum cleaner with wet hands.

• Do not put any objects into openings.

• Do not use with any opening blocked; Read all instructions in this guide before assembling or using your vacuum cleaner. keep free of dust, lint, hair, and anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not put on chairs, tables, etc. Keep on floor.

• Do not use vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use vacuum cleaner without dust cup and/or filters in place.

• Always clean the dust cup after vacuuming carpet cleaners or freshener, powders, and fine dust. These products clog the filters, reduce airflow and can cause damage to the vacuum cleaner. Failure to clean the dust cup could cause permanent damage to the vacuum cleaner.

• Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner or dust cup.

• You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.- 4 -

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended for Household Use . Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols. AllergenSeal™ system lets you know that this vacuum traps 99.97% of dust and particles down to 0.3 microns inside your vacuum, keeping them out of the air you breathe.- 5 -

VACUUM CLEANER WARRANTY

LIMITED WARRANTY FOR ONE YEAR from the date of sale this product is warranted against defects in material or workmanship. WITH PROOF OF SALE a defective product will be replaced free of charge. The Kenmore brand is used under license. Direct all claims for warranty service to: 1-877-531-7321 (US) / 1-844-608-3081 (CA). This warranty does not cover filters or belts, which are expendable parts that can wear out from normal use within the warranty period. This warranty is void if this product is ever used for other than private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Cleva North America, Inc., Greenville SC 29607- 6 -

1. Insert the handle into the main body and

secure with one screw bolt provided. NOTE: Tighten the screw bolt with a screwdriver or a coin. Ensure that the screw bolt is secured.

2. Insert the larger end of the extension

wand into the top of the connection hose through the bracket until the wand is fully seated on the post.

3. Insert the end of the flexible hose into

the main body by aligning marks as shown in UNLOCKED (for cleaning). Rotate the hose until marks align as shown in LOCKED (for use). Then run the flexible hose over the lower hose storage and the upper hose storage. Insert the other end onto the top of the extension wand. Before assembling the vacuum cleaner, check the PACKING LIST (page 2). Use this list to verify that you have received all the components of your new Kenmore Bagless Upright Vacuum Cleaner. Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such hazards as personal injury and/or property damage. ASSEMBLY INSTRUCTIONS- 8 -

5. Make sure the upper and lower cord

hooks are in the proper position as shown. Wrap the power cord loosely around the upper and lower cord hooks. NOTE: Make sure to wrap the power cord around the upper cord hook first, and then around the lower cord hook to avoid damaging the power cord. WARNING Electrical Shock and Personal Injury Hazard. Wrapping the cord too tightly with excessive stress on the cord may cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage. ASSEMBLY INSTRUCTIONS Upper Cord Hook Lower Cord Hook

6. Lock power cord plug onto the power

accessory storage post located on the back of the main body.1. Turn the upper cord hook to either side to release the power cord.

CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries. Disconnect electrical supply before servicing or cleaning the vacuum cleaner. Use caution when operating near children or pets. OPERATING INSTRUCTIONS

POWER CORD - RELEASE & USE

Upper Cord Hook Upper Locking Notch WARNING To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

2. Detach the power cord plug from the

3. Be sure the power cord is locked into

the upper locking notch as shown. This will help manage the power cord when operating the vacuum cleaner.UPRIGHT MODE NOTE: Make sure the vacuum cleaner is completely assembled and the dust cup is empty before using. Do not operate vacuum cleaner without filters in place.

1. Release the handle by placing foot on

the nozzle and pull back to change handle position.

2. Turn on the vacuum cleaner by pressing

the On/Off switch to the “I” position for cleaning bare floors and small area rugs. NOTE: The brushroll does not rotate when the vacuum cleaner is in the “I” position.

• When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

• DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur. WARNING Electrical Shock and Personal Injury Hazard Wrapping the cord too tightly puts stress on the cord and can cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage

4. Plug the power cord plug into an outlet

located near the floor.

5. Press the On/Off switch to turn the

6. Once you have completed vacuuming,

press the On/Off switch; unplug the power cord plug from the outlet.

7. To restore power cord after use, turn the

upper cord hook to the upright position. Then wrap cord loosely around cord hooks.4. Once you have completed vacuuming, switch to the “O” position and unplug the power cord from the power outlet. NOTE: Select the right mode when using this vacuum cleaner. Do not press the switch to the “II” position when cleaning the bare floor, otherwise it could potentially damage the floor.

1. Place the vacuum cleaner in the upright

2. Pull up to release the flexible hose for

above floor cleaning.

3. Choose the desired extension wand/

attachments and insert it into the flexible hose.

4. Turn on the vacuum cleaner by pressing

the switch to the “I” position.

5. Once you have completed vacuuming,

switch to the “O” position and unplug the power cord from the power outlet.

3. Press the switch to the “II” position for

cleaning carpets or rugs. NOTE: The brushroll rotates when the vacuum cleaner is in the “II” position.

OPERATION MODES CAUTION Do not allow the vacuum cleaner to remain in one spot for any length of time when the brushroll is turning. Damage to carpet may occur. Light Color Status Green, Continuous The brushroll is spinning and working as it should. Red, Continuous There is a jam in the brushroll area. Turn off and unplug the vacuum, and remove any blockages in the nozzle. No Light The brushroll is off. Brushroll Indicator Light

Extension Wand Upholstery Tool 3-in-1 Combination Tool3-IN-1 COMBINATION TOOL The 3-in-1 combination tool can be attached to the end of the flexible hose and the extension wand. Slide the collar of the tool over the open end of the hose or wand. Use the 3-in-1 combination tool in crevice tool mode for cleaning in tight spaces such as furniture, between cushions, and stairs. See ATTACHMENT USE TABLE (page 13). Set the combination tool in dusting brush mode by pressing the release button and sliding the dusting brush side of the brush tool to the end of the combination tool. Use in dusting brush mode for cleaning loose surfaces such as drapes. See ATTACHMENT USE TABLE (page 13). ATTACHMENT USE TABLE (page 13). To return the combination tool to crevice tool mode, press the release button and slide the brush tool down the combination tool. UPHOLSTERY TOOL The upholstery tool can be attached to the end of the flexible hose and the extension wand. Slide the collar of the tool over the open end of the hose or wand. Use the upholstery tool for cleaning fabric surfaces such as fabric sofa and bedsheets. See ATTACHMENT USE TABLE (page 13). Press the release button to remove the brush tool. Set the combination tool in upholstery brush mode as shown. Use in upholstery brush mode for cleaning fabric surfaces such as fabric sofa. See

Upholstery Brush OPERATION MODES ATTACHMENTS CAUTION When using attachments, be careful not to over extend the flexible hose when reaching. Trying to reach beyond the hose stretch capability could cause the vacuum cleaner to tip over. CAUTION DO NOT pull the vacuum cleaner around the room by the hose. Property damage or personal injury could result. Dusting Brush Release Button CAUTION Use attachments when the vacuum cleaner is upright.*Always clean attachments before using on fabrics. = Applicable ATTACHMENT CREVICE TOOL DUSTING BRUSH UPHOLSTERY BRUSH UPHOLSTERY TOOL Between Furniture* Cushions* Drapes* Stairs Baseboards Carpet Bare CLEANING AREA

THERMAL PROTECTOR This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner suction motor. If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner. To reset thermal protector: Turn the vacuum cleaner off and unplug the power cord from the outlet to allow the vacuum cleaner to cool and the thermal protectors to reset. Check for and remove clogs, and empty dust cup if necessary. Also check and replace any clogged filters. Wait approximately 50 minutes before restarting vacuum cleaner.

HAIR ELIMINATOR™ BRUSHROLL

For best performance, the motorized nozzle is equipped with a hair eliminator brushroll, which prevents build-up of hair, string and other debris on the brushroll. To remove any hair wrapped around the brushroll, simply continue vacuuming, allowing the brushroll to automatically remove the hair wrap and send it to the dust cup. BRUSHROLL RESET The brushroll has built-in protection against motor damage should the brushroll jam. If the brushroll slows down or stops, the brushroll overload protector shuts off the brushroll motor and the brushroll indicator light emits red light. The vacuum cleaner suction motor will continue to run. To correct problem: Turn off and unplug the vacuum cleaner, remove obstruction, then turn on the vacuum cleaner. NOTE: Once the motor has cooled, the brushroll will automatically reset. The brushroll will return to normal operation if the jam has been cleared when the vacuum cleaner is turned on again. If the problem persists, contact the vacuum cleaner help line for assistance.

CAUTION Always return the vacuum cleaner to the upright position before using the hose and attachments. Failure to do so may result in overheating of the brushroll motor and can cause the thermal protectors to trip. Comb Teeth Brushroll Indicator Light CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries.PERFORMANCE/SAFETY FEATURES SUCTION CONTROL The suction control allows you to change the vacuum cleaner suction for different fabric and carpet weight.

• Rotate to “+” to increase suction on bare floors.

• Rotate to “ ” to reduce suction and increase maneuverability on carpets.

Increase Suction Decrease Suction1. Turn off and unplug vacuum cleaner. DO NOT drip water on vacuum cleaner.

2. To clean exterior, or to reduce static

electricity and dust build-up, wipe outer surface with a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning. NOTE: Wash attachments in warm soapy water, rinse and air dry. Do not clean in dishwasher.

1. Replace flexible hose and attachments

in storage position if necessary (see page 7 & 8).

2. Gather the cord and wrap it loosely

around the upper and lower cord hooks. Lock plug retainer onto the power cord.

3. Store the vacuum cleaner in a dry,

indoor area, on the floor with the handle locked in the upright position.

Always follow all safety precautions when performing maintenance to the vacuum cleaner.

CAUTION Do not use attachments if they are wet. Attachments used in dirty areas, such as under a refrigerator, should not be used on other surfaces until they are washed. They could leave marks. WARNING Electrical Shock and Personal Injury Hazard Wrapping the cord too tightly puts stress on the cord and can cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage. WARNING Electrical Shock and Personal Injury Hazard Disconnect electrical supply before servicing or cleaning the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. WARNING The motorized nozzle is equipped with sharp comb teeth inside. DO NOT touch comb teeth when servicing or cleaning the vacuum, which may cause personal injury.NOTE: For best performance, empty dust cup after every use. Never operate vacuum cleaner without dust cup and filters in place.

1. Slide the dust cup release button to

remove the dust cup from the main body.

2. Remove any clogs that might be located

in the suction port.

3. Position dust cup area of vacuum over

a waste receptacle. Press down on the dust release button to open dust cup lid and allow contents to drop into waste receptacle.

4. Shake the dust cup to release any debris

that might hang in the pre-filter.

5. Reinstall and insert the dust cup into the

slots on the bottom of the main body, then press the dust cup into locked slot and click into place.

WARNING Always unplug power cord from electrical outlet before performing any service on vacuum cleaner.

Suction Port Dust Cup Dust Cup Release Button Dust Release ButtonThe pre-filter is located inside the dust cup. Clean the pre-filter as needed to optimize suction power. If suction remains weak after tapping the pre-filter clean, it will be necessary to wash it to clean off accumulated dust or hair. It is also recommended to wash the pre-filter every three months. See wash instructions in the NOTE to step 4.

1. Remove the dust cup as outlined in the

EMPTYING DUST CUP (page 17). NOTE: Make sure dust cup is free of debris before opening.

2. Press the dust cup lid release button, and

3. Grasp pre-filter and rotate

counterclockwise as shown to remove.

4. Clean pre-filter by gently tapping over a

trash container. Tap on several sides to ensure best cleaning. NOTE: If necessary, rinse with cold water only, DO NOT use detergent or soap. Allow parts to dry 24 hours before putting back into vacuum cleaner. DO NOT wash in the dishwasher. DO NOT install damp.

5. Place the pre-filter back into the

dust cup. Grasp pre-filter and rotate clockwise to lock into place.

6. Reinstall the dust cup into the main

PRE-FILTER CLEANING Dust Cup Lid Release ButtonIt is recommended to clean the foam and felt filters with cold water every three months. NOTE: When the cleaning of filters no longer restores vacuum cleaner suction to full power, or the filters are worn or broken, replace the filters. To purchase filters, call 1-877-531-7321 (US) / 1-844-608-3081 (CA). Regularly clean and replace the filters to keep the vacuum's suction power optimal.

1. Remove the dust cup as outlined in the

EMPTYING DUST CUP (page 17).

2. Remove the foam and felt filters.

3. Wash with cold water only, DO NOT

use detergent or soap. Squeeze by hand and allow to air dry. Allow all filters to dry 24 hours before putting back into vacuum cleaner. NOTE: DO NOT operate without foam and felt filters installed. DO NOT wash in the dishwasher. DO NOT install foam and felt filters if damp.

4. Replace foam and felt filters into the

FOAM AND FELT FILTERS CLEANING

Foam Filter Foam Filter Felt Filter Felt FilterIt is recommended to clean the HEPA media exhaust filter with cold water every year. NOTE: When the cleaning of the filter no longer restores vacuum cleaner suction to full power, or the filter is worn or broken, replace the exhaust filter. To purchase the exhaust filter, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

1. Remove the exhaust filter cover by

pressing the release tab at the bottom of the cover.

2. Remove the HEPA media exhaust filter

from vacuum cleaner.

3. Wash with cold water only, DO NOT

use detergent or soap. Allow to air dry. Allow parts to dry 24 hours before putting back into vacuum cleaner. NOTE: DO NOT operate without exhaust filter installed. DO NOT wash in the dishwasher. DO NOT install the filter if damp.

4. Replace the HEPA media exhaust filter

into the vacuum cleaner.

5. Insert the exhaust filter cover tabs into

the upper slots and lock the filter cover into place by pressing the lower part of the cover until a click is heard.

HEPA MEDIA EXHAUST FILTER CLEANING

ⅡCHECKING FLEXIBLE HOSE FOR CLOGS

If there is noticeable abnormal noise when using the vacuum or the suction power suddenly drops, it is necessary to check the flexible hose for clogs. Frequently check air path to make sure it is free of obstructions.

1. Remove attachments from the wand end

2. Remove the flexible hose end from the

main body by rotating the hose until marks align as shown in UNLOCKED (for cleaning).

3. Remove hose end, check and remove

any clogs in the flexible hose.

4. Reinstall the flexible hose to the vacuum

cleaner. See ASSEMBLY INSTRUCTIONS (page 7).

2. Check and remove any clogs in the hose.

3. Press the release tab, and reinsert the

connection hose to the vacuum cleaner until a click is heard.

CHECKING CONNECTION HOSE FOR

1. Press the release tab on hose cuff, and

pull the connection hose away from the main body.

Release TabPROBLEM POSSIBLE CAUSE SOLUTION Vacuum cleaner will not run. Unplugged at wall outlet. Plug in firmly, press the On/Off switch to “I” or “II” position. The On/Off switch is not pressed to start the vacuum cleaner. Press the On/Off switch to “I” or “II” position. Defective wall outlet. Check with a good appliance or lamp. Be sure the power cord plug is fully plugged into a good wall outlet. The vacuum body is overheated. Unplug the power cord and let the vacuum cool down for 50 minutes. The motor is damaged. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. Poor job of dirt pick-up. The hose or attachments are not installed correctly. Check the hose and attachments for correct installation and ensure they are snapped firmly in place. Dust cup is not installed correctly. Check dust cup for correct installation and ensure it is snapped firmly in place. Full or clogged dust cup. Empty the dust cup (page 17). There is a clog in the flexible hose or connection hose of the vacuum cleaner. Check and remove all clogs. Follow instructions on page 21. Suction control is in open position. Adjust the suction control to increase suction. Follow instructions on page 15. The foam filter, felt filter or HEPA media exhaust filter needs to be cleaned or replaced. Clean or replace the foam filter, felt filter or HEPA media exhaust filter. Follow the foam filter and felt filter cleaning or HEPA media exhaust filter cleaning instructions on page 19 or 20. The flexible hose is worn. Replace the hose assembly. To purchase parts, call 1-877-531-7321 (US) / 1-844-608-3081 (CA). The connection hose is worn. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent. TROUBLESHOOTING WARNING Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.The brushroll is worn. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. Dust escapes from the vacuum. Dust cup is installed incorrectly. Position dust cup correctly and snap firmly in place. HEPA media exhaust filter is installed incorrectly. Check exhaust filter for correct installation. Follow instructions on page 20. Foam filter, felt filter or HEPA media exhaust filter is worn or broken. Check and replace the foam filter, felt filter or the HEPA media exhaust filter. To purchase parts, call 1-877-531-7321 (US) / 1-844-608- 3081 (CA). Brushroll does not turn. Handle is in fully upright position. Move handle from the fully upright position. Select the wrong mode. Press the switch to the “II” position to start the brushroll. Brushroll is jammed. Remove obstruction. Follow instructions on page 14. Brushroll is not installed correctly. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. The belt is not routed correctly. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. The belt is worn or broken. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. Fault in PCB section of the motorized nozzle. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. Overheat protector of the motorized nozzle is activated. Wait the motorized nozzle to cool down, and then restart. Airflow restricted with attachments in use; sound changes. Exhaust filter cover is installed incorrectly. Position exhaust filter cover correctly and snap firmly into place. Follow instructions on page 20. Air path is blocked. Check for and remove any clogs and clean the air path. Follow instructions on page 21. Attachments in use restrict air flow. Check attachments for fuzz, lint, pet hair or other debris. Vacuum turns off on its own. The power cord plug is loose from the outlet when using the vacuum. Reinsert the power cord plug fully into the outlet. Avoid pulling or dragging the power cord when using the vacuum. Thermal protector is activated. Turn the vacuum cleaner off and unplug it. Check the air path and dust cup. Allow the vacuum cleaner to cool for a minimum of 50 minutes. Plug in vacuum and turn it on.

TROUBLESHOOTINGThe motor is damaged. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance. Brushroll indicator light emits red. There is a jam in the brushroll area. Turn off and unplug the vacuum. Remove any blockages in the brushroll. See page 14. The brushroll is worn or broken. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
