USER MANUAL KW3050 KENMORE

Vacuum Cleaner Help Line:

1-877-531-7321 (US) / 1-844-608-3081 (CA)

8:00am-5:00pm EST, M-F

www.kenmorefloorcare.com

TABLE OF CONTENTS

Before Using Your New Vacuum Cleaner 2
Packing List 3
Important Safety Instructions 4-5
Vacuum Cleaner Warranty 6
Double Insulation Instructions 7
Extension Cords 8
Parts and Features. 8-9
Assembly Instructions 10-12
Operating Instructions 12-16
Vacuum Maintenance and Care 17-20
Troubleshooting 21
Requesting Assistance or ServiceBack Cover

BEFORE USING YOUR NEW VACUUM CLEANER

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information.

Your vacuum cleaner's model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

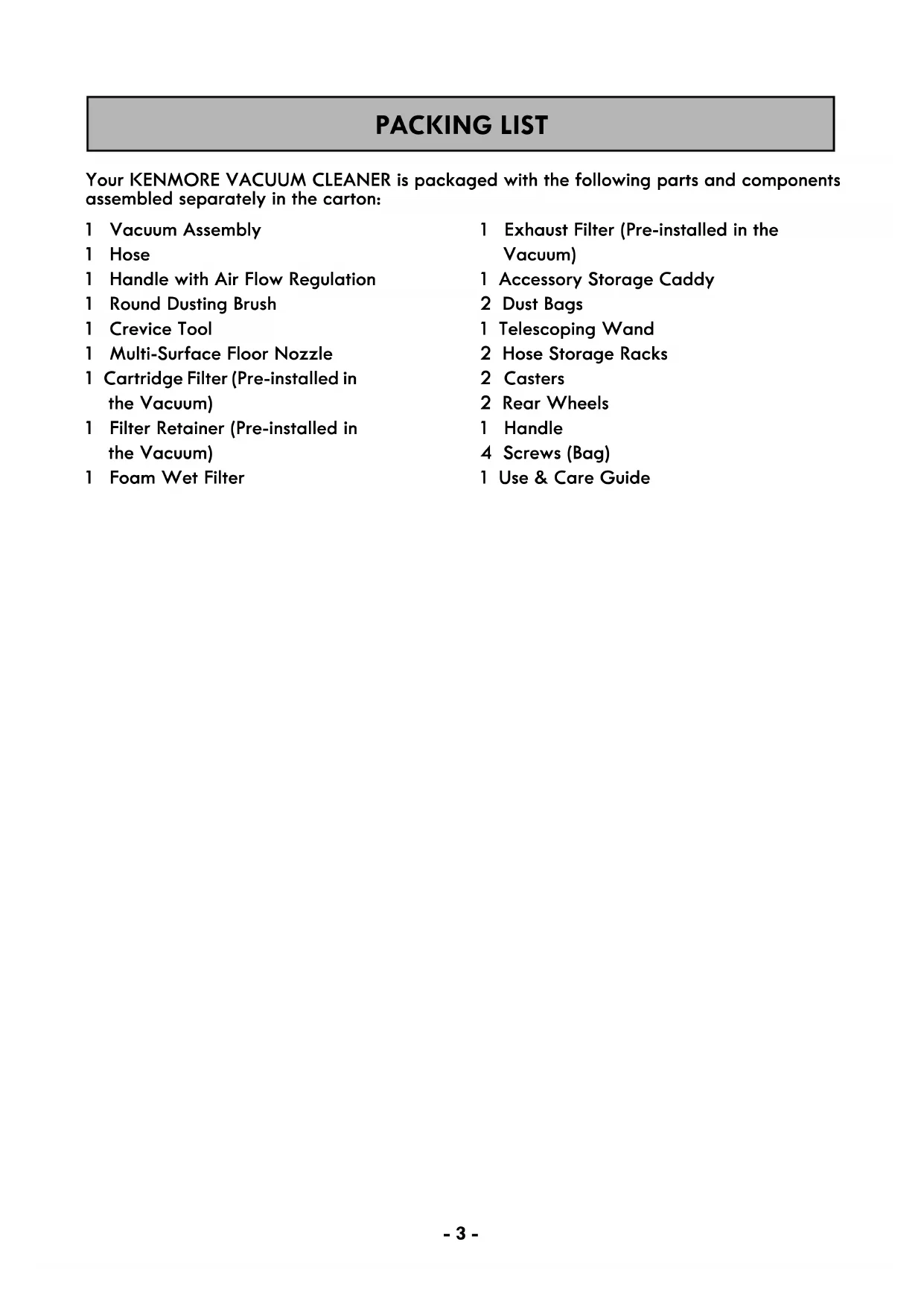

PACKING LIST

Your KENMORE VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton:

1 Vacuum Assembly
1 Hose
1 Handle with Air Flow Regulation
1 Round Dusting Brush
1 Crevice Tool
1 Multi-Surface Floor Nozzle
1 Cartridge Filter (Pre-installed in the Vacuum)
1 Filter Retainer (Pre-installed in the Vacuum)
1 Foam Wet Filter

1 Exhaust Filter (Pre-installed in the Vacuum)
1 Accessory Storage Caddy
2 Dust Bags
1 Telescoping Wand
2 Hose Storage Racks
2 Casters
2 Rear Wheels
1 Handle
4 Screws (Bag)
1 Use & Care Guide

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.

WARNING!

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following:

• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum, or use this vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.

• Keep cord away from heated surfaces.

• Do not run the vacuum over cord.

• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or filters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.
  This vacuum is designed for household use only!

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING

To reduce the risk of electric shock - Unplug before cleaning or servicing.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended for Household Use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

VACUUM CLEANER WARRANTY

LIMITED WARRANTY

FOR ONE YEAR from the date of sale this product is warranted against defects in material or workmanship.

WITH PROOF OF SALE, a defective product will be replaced free of charge.

The Kenmore brand is used under license. Direct all claims for warranty service to:

1-877-531-7321 (US) / 1-844-608-3081 (CA).

This warranty does not cover attachments such as filter, hose, nozzles, or casters which are expendable parts that can wear out from normal use within the warranty period.

This warranty is void if this product is ever used for other than private household purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleva North America, Inc., Greenville SC 29607

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing DoubleInsulated Wet/Dry Vacuums before servicing. Use this vacuum as described in this manual. Observe the following warnings that appear on the motor housing of your vacuum.

Double Insulated - Grounding not required - When servicing use only identical replacement parts.

WARNING

To reduce the risk of electric shock - do not expose to rain. Store indoors.

WARNING

For your own safety, read and understand the operator's manual. Do not run unattended. Do not pick up hot ashes, coals, toxic, flammable or other hazardous materials. Do not use around explosive liquids or vapors.

CAUTION

Do not vacuum drywall dust, fireplace soot, or ash with standard wet/dry filter. This type of dust is very fine which may not be captured by the filter and cause damage to motor. When vacuuming fine dust use a fine dust filter.

WARNING

Servicing of double-insulated wet/dry vacuum with a double-insulated wet/ dry vacuum, two systems of insulation are provided instead of grounding. No grounding means is provided on a doubleinsulated appliance, nor should a means for grounding be added. Servicing a double insulated wet/dry vacuum requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a doubleinsulated wet/dry vacuum must be identical to the parts they replace. Your doubleinsulated wet/dry vac is marked with the words 'double insulated' and the symbol (Square within a square) may also be marked on the appliance.

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

		Length of Extension Cord
120V 25ft (7.62m)		50ft (15.24m)		100ft (30.48m)	150ft (45.72m)
Ampere rating		A.W.G. Wire Size
More than	Not more than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not recommended

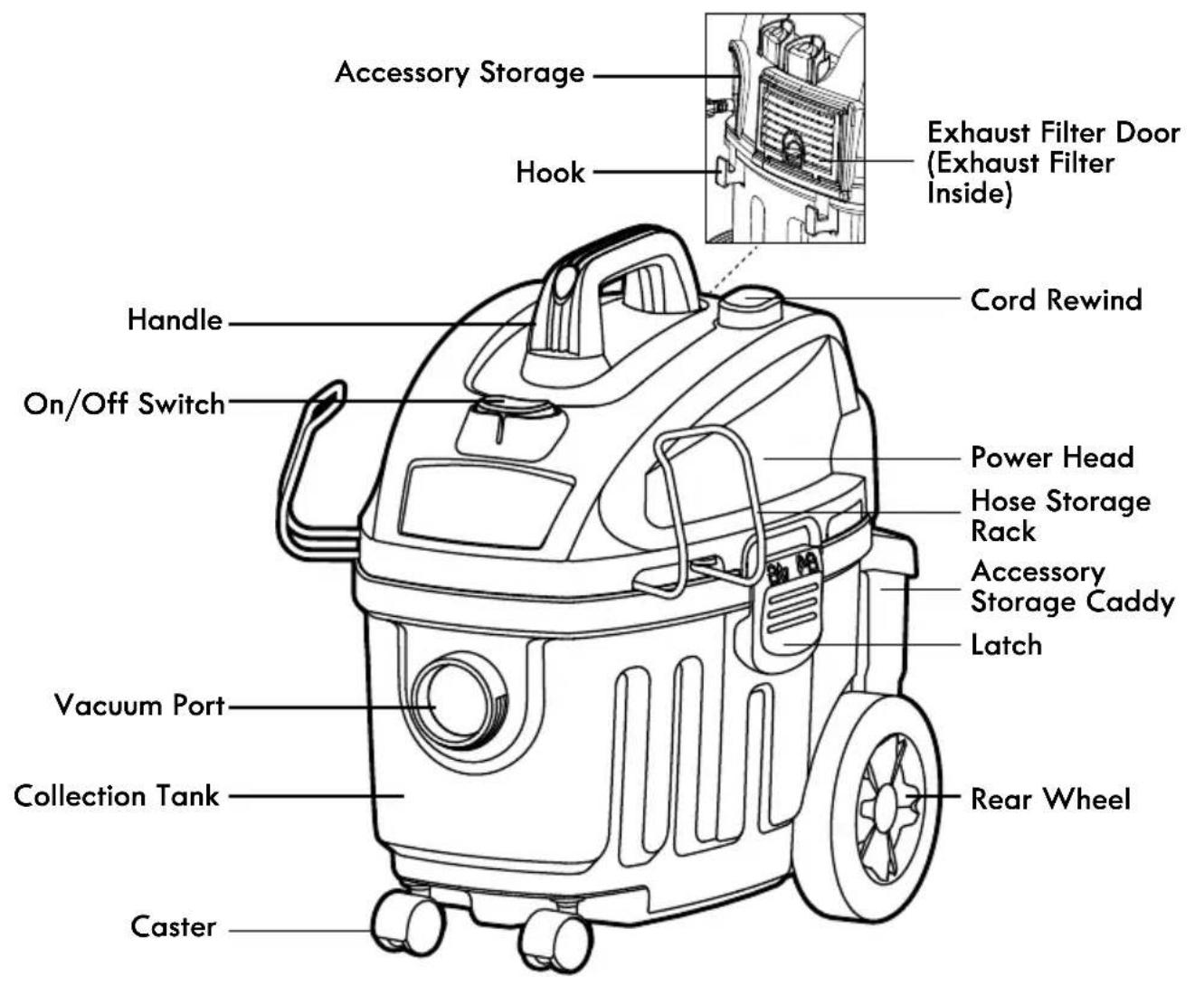

PARTS AND FEATURES

It is important to know your vacuum cleaner's parts and features to assure its proper and safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

Item Part No.(US) Part No.(CA)
Foam Wet Filter	551009131	551009131
Exhaust Filter	551009114	551009114
Cartridge Filter	551009104	551009104
Multi-Surface Floor Nozzle	551662119	551662119
Floor Brush/Squeegee Nozzle	551324122	551324122
Crevice Tool	551051116	551051116
Dust Bag (Optional)	551103105	551103105
Telescoping Wand	551028116	551028116
Handle with Air Flow Regulation	551377113	551377113
Round Dusting Brush	551023139	551023139

To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

PARTS AND FEATURES

NOTE: The hose and accessories for this vacuum are 35mm diameter.

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such hazards as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling the vacuum cleaner, check the PACKING LIST (page 3). Use this list to verify that you have received all the components of your new Kenmore Vacuum Cleaner.

WARNING

Electrical Shock Hazard.

DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury. To reduce the risk of electric shock, do not expose to rain.

NOTE: A Philips head screwdriver is required.

1. Undo the latches.

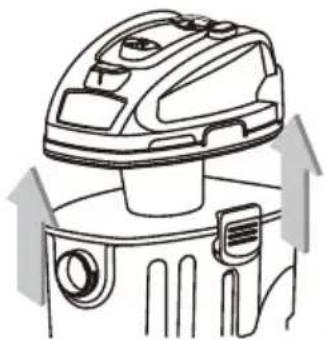

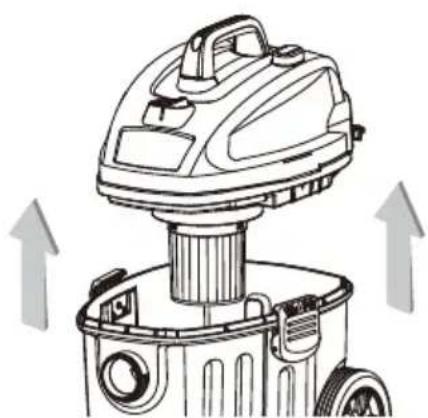

1. Lift the power head off the collection tank.

1. Remove the contents from inside the collection tank; make sure you have all contents as listed on page 9.

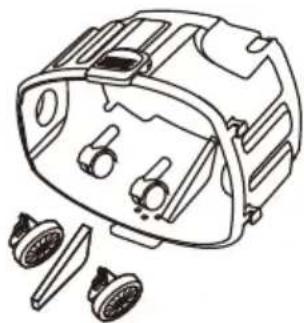

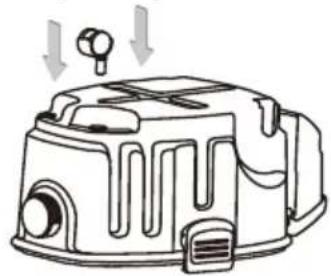

1. Turn the collection tank upside down and insert the two casters into the slots on the front side of the collection tank. Apply downward pressure until the casters snap into place.

1. Slide the rear wheels into the slots making sure to match the wheel number to the corresponding number on the wheel slot and use screws to secure them. Do not over-tighten the screws.

ASSEMBLY INSTRUCTIONS

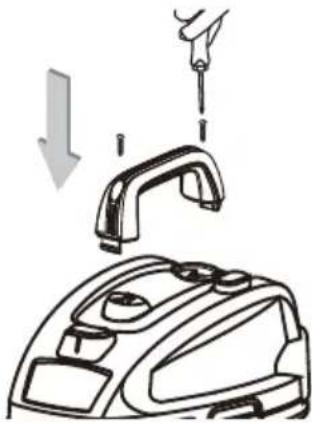

1. Insert the handle into the slots located on the top of the power head and secure it with the screws provided. Do not overtighten the screws.

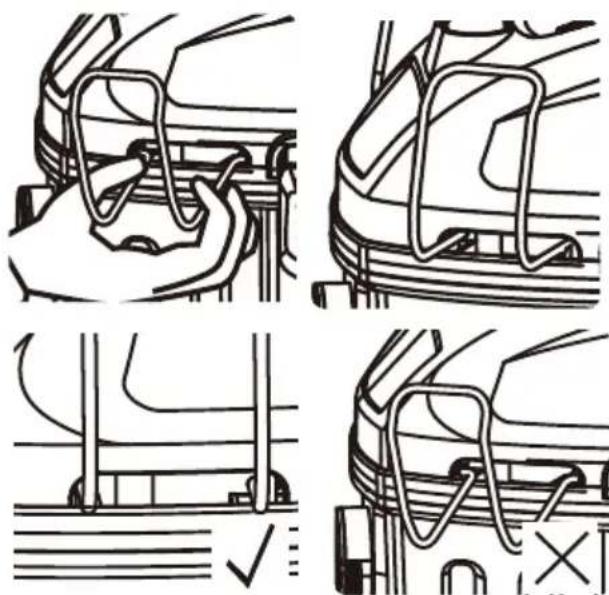

1. Position the hose storage rack as illustrated. Insert one side of the rack into the channel making sure it is secured in place. Squeeze in the other end and insert it into the corresponding channel making sure it is secured.

1. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 18 for installation instructions.

2. For wet vacuum cleaning, remove the cartridge filter, and install the supplied foam wet filter. See page 19 for the foam wet filter installation instructions.

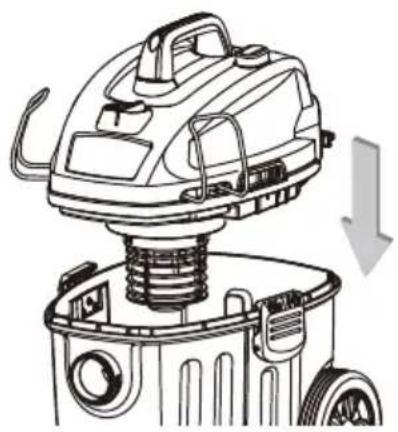

3. Place the power head back on the collection tank aligning the top section with the latches, and snap into place.

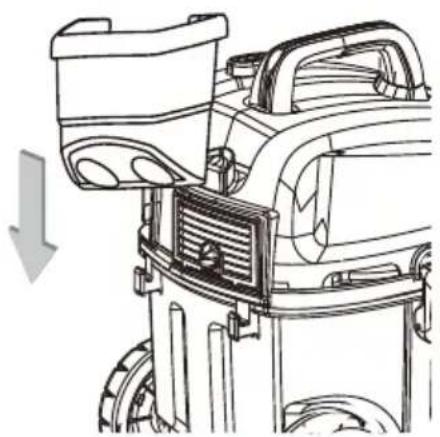

1. Hang the tool caddy onto the hooks on the back of the vacuum.

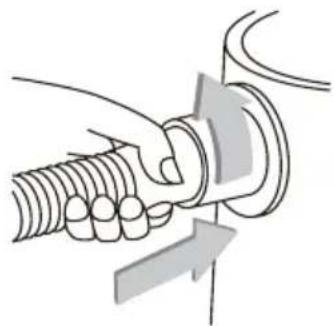

1. Insert the large end of the hose onto the vacuum port on the collection tank and secure by turning clockwise until tight.

ASSEMBLY INSTRUCTIONS

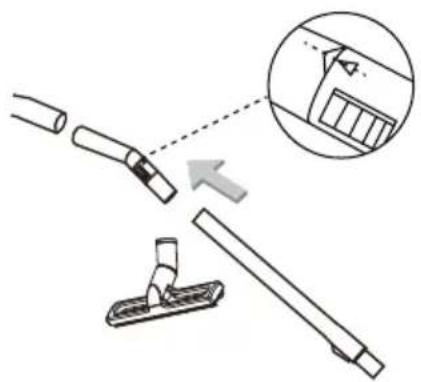

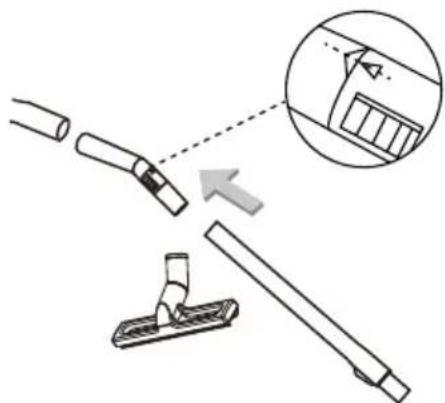

1. Choose the desired accessories and/or the telescoping wand, then insert onto the end of the hose. The air flow regulation on the handle allows you to manually change the amount of vacuum suction. When the two triangles are aligned, suction will be weakest. For best cleaning results, fully close the air flow regulation.

OPERATING INSTRUCTIONS

Be sure to read, understand, and apply information entitled 'important safety instructions'. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.

WARNING

Do not plug the power cord into electrical supply. Make sure the plug is disconnected before changing the filters.

CAUTION

Do not vacuum drywall dust or fireplace soot or ash with standard wet/dry filter. This is a very fine dust which will not be captured by the filter and may cause damage to motor. When vacuuming fine dust use a fine dust filter (sold separately).

NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

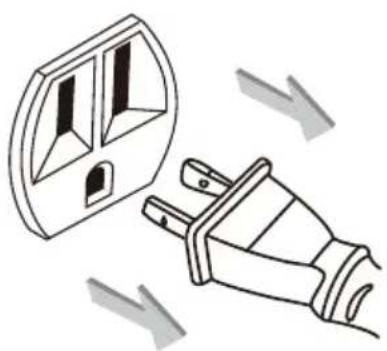

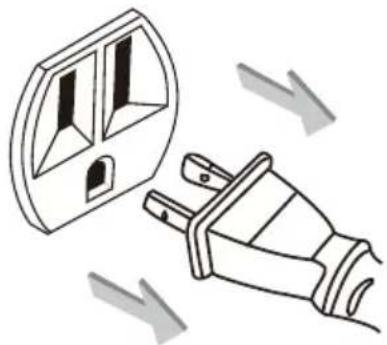

1. Verify that the power cord is disconnected from the outlet.

1. In order to prepare your vacuum for dry vacuuming, make sure the cartridge filter completely covers the filter cage against the power head. Your wet/dry vacuum comes with the cartridge filter pre-installed. For installation instructions, see page 18.

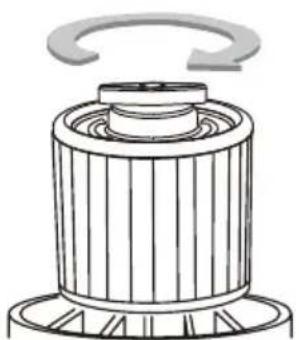

1. Place the filter retainer on the top of the cartridge filter and tighten down by turning the retainer handle clockwise.

1. Optional: For improved dust filtering, fit dust bag flange onto the inlet port, taking care not to damage the bag. Dust bag sold separately.

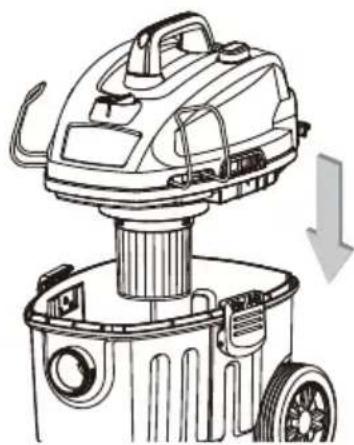

1. Place the power head back on the collection tank and secure it in place using the latches.

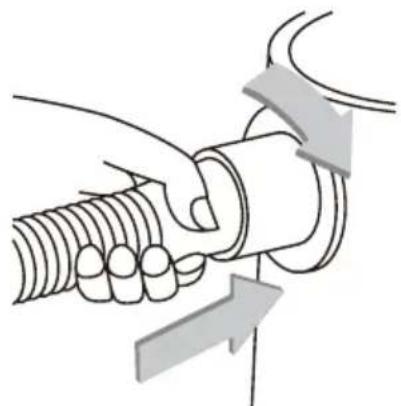

1. Insert the larger end of the hose onto the vacuum port and secure by turning clockwise until tight.

2. Choose the desired accessories and/or the telescoping wand, then insert onto the end of the hose. The air flow regulation allows you to manually change the amount of vacuum suction. When the two triangles are aligned, suction will be weakest.

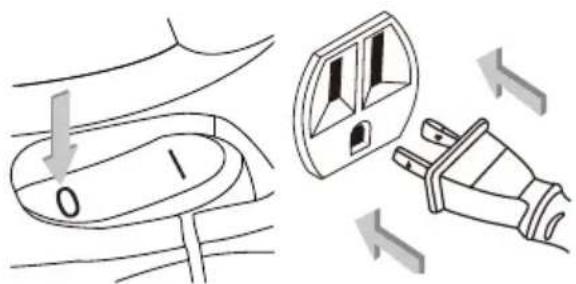

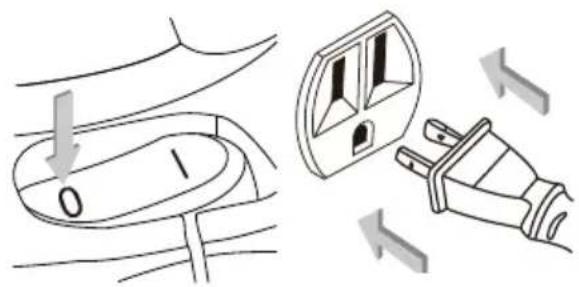

1. Verify that the switch is in the 'O' OFF position before plugging the power cord into the outlet. Plug the power cord into the outlet.

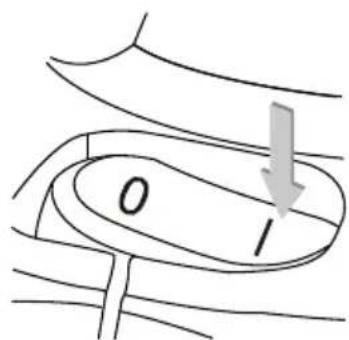

1. Turn the motor on by flipping the switch to the '1' ON position and begin vacuuming.

1. Once you have completed vacuuming, flip the on/off switch to the 'O' OFF position and unplug the power cord from the outlet.

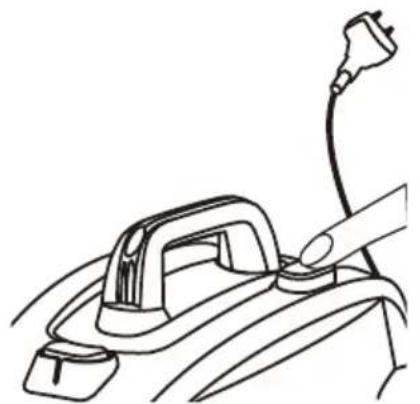

2. To rewind the cord, hold on to the plug and press the cord rewind button. Do not allow plug to whip when rewinding.

$$ O = O F F \quad I = O N $$

CAUTION

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

CAUTION

DO NOT USE DUST BAG FOR LIQUID VACUUMING.

Be sure to read, understand, and apply information entitled 'important safety instructions'. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.

WARNING

Do not plug the power cord into electrical supply. Make sure the plug is disconnected before changing the filters.

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt.

1. Remove the cartridge filter, then carefully install the foam wet filter over the filter cage and place the power head back on the collection tank. For foam wet filter installation instructions, see page 19.

CAUTION

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

1. Choose the desired accessories and/or the telescoping wand, then insert onto the end of the hose. The air flow regulation allows you to manually change the amount of vacuum suction. When the two triangles are aligned, suction will be weakest.

1. Verify that the on/off switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet.

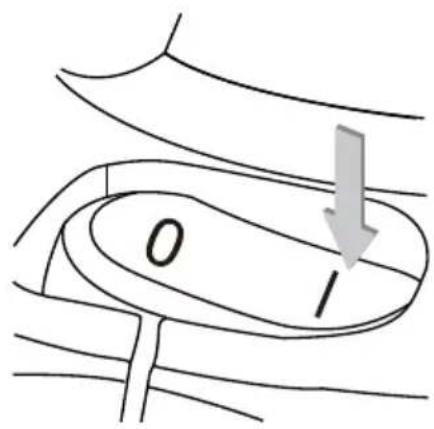

1. Turn the motor on by flipping the switch to the 'I' ON position.

1. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.

2. After use, empty the collection tank, clean and dry the inside and outside of the collection tank.

1. To rewind the cord, hold on to the plug and press the cord rewind button. Do not allow the plug to whip when rewinding.

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from electrical supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the power head to the collection tank. After wet vacuuming, turn the machine off and remove plug from electrical supply. Empty the collection tank, clean, and dry the inside and outside before storage.

IMPORTANT! The foam wet filter must be removed after wet vacuuming and the cartridge filter must be installed before dry vacuuming again.

VACUUM MAINTENANCE AND CARE

EMPTYING THE COLLECTION TANK

WARNING

Always disconnect the plug from the outlet before removing the power head from the collection tank.

1. Verify that the power cord is disconnected from the outlet.

1. Disconnect the hose from the vacuum.

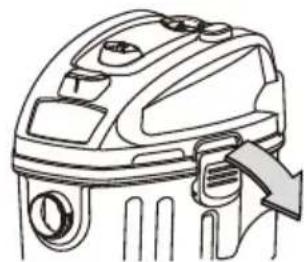

1. Undo the latches and remove the power head from the collection tank. Place power head on a soft, clean surface upside down.

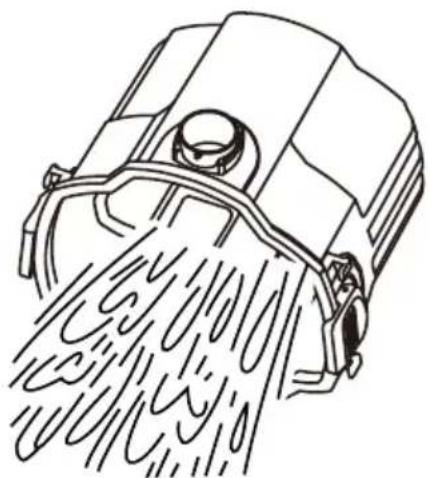

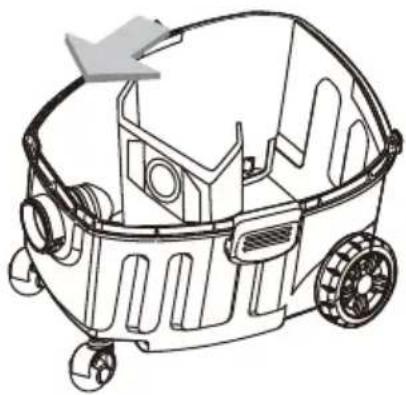

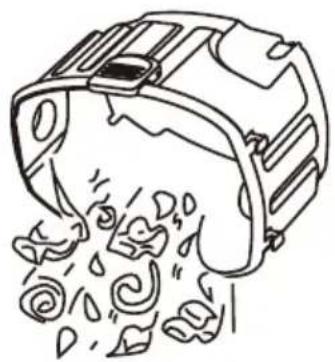

1. Clear all dirt or debris from the collection tank and hose into a proper waste container.

1. Clean or replace the filters.
2. Check the hose, attachments, and power cord to verify that they have not been damaged.
3. Place the power head back on collection tank and secure latches.

IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.

NOTE: The filters included are made of high-quality materials designed to stop small dust particles. The cartridge filter should be used for dry pick-up only. A dry cartridge filter is necessary to pick up dust. If the cartridge filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes or tears; replace it immediately.

STORAGE

Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.

REPAIRS

Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.

INSTALLING & CLEANING CARTRIDGE FILTER

INSTALLING CARTRIDGE FILTER

1. Verify that the power cord is disconnected from the outlet.

1. Remove the power head and place in an upside-down position.

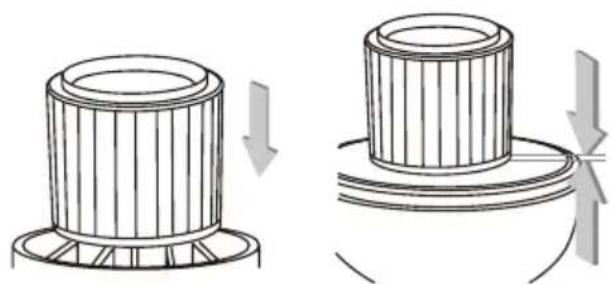

2. Install the cartridge filter over the filter cage making sure the cage is completely covered.

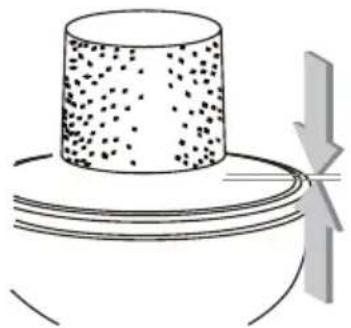

1. Place the filter retainer on the top of the cartridge filter over the raised lip and tighten down by turning the retainer clockwise; do not over-tighten.

1. Place the power head back onto the collection tank.

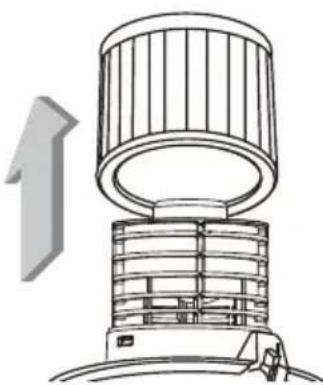

REMOVING & CLEANING CARTRIDGE FILTER

1. Unlock and remove the filter retainer by turning the retainer handle counterclockwise.
2. With the removed power head in an upside-down position, carefully remove the cartridge filter from the filter cage.

INSTALLING & CLEANING CARTRIDGE FILTER

1. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance, a new filter is recommended.

2. Install cleaned or new filters as above in steps 2-4 of Installing Cartridge Filter.

INSTALLING & CLEANING FOAM WET FILTER

INSTALLING FOAM WET FILTER

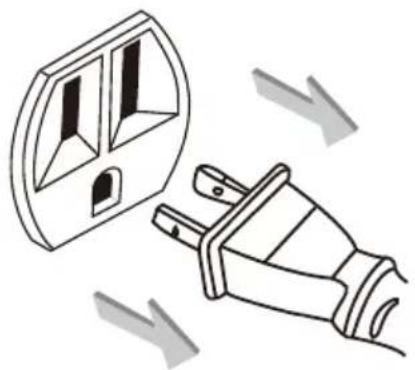

1. Verify that the power cord is disconnected from the outlet.

1. Remove the power head and place in an upside-down position. Follow instructions to remove the cartridge filter on page 18.
2. Carefully slide the foam wet filter down over the filter cage making sure the cage is completely covered.

1. Place the power head onto the collection tank.

CLEANING FOAM WET FILTER

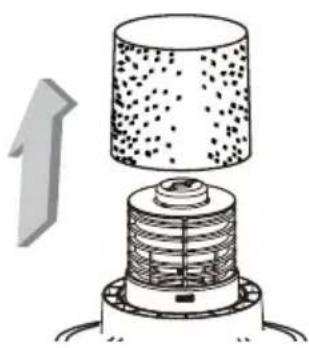

1. With the removed power head in an upside-down position, carefully remove the foam wet filter.

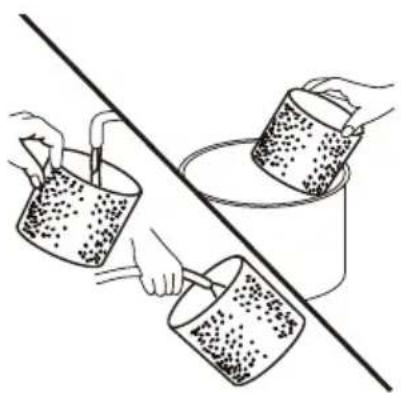

1. Use a mild soap and water solution to wash the foam wet filter and rinse with clean water.

1. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

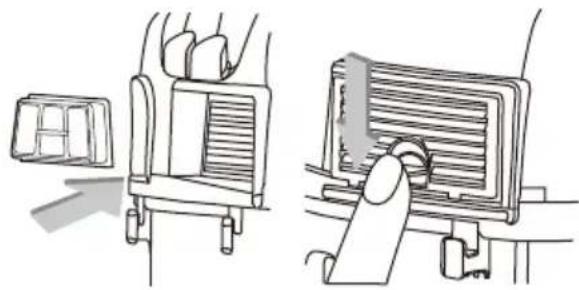

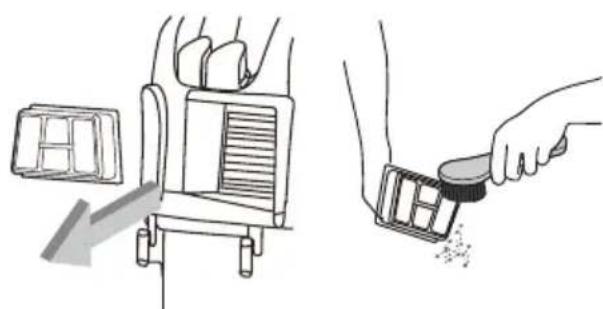

INSTALLING & CLEANING EXHAUST FILTER

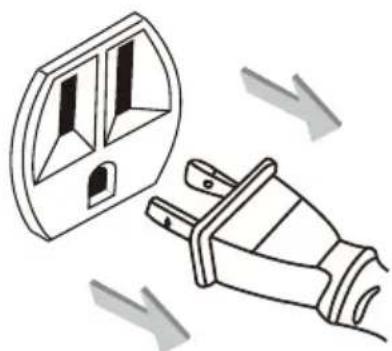

1. Verify that the power cord is disconnected from the outlet.

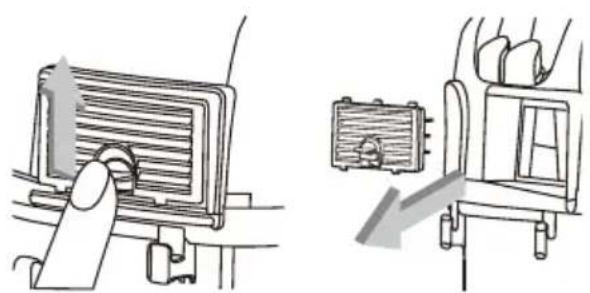

1. Unlock the exhaust filter door by sliding the locking tab upwards to the release. Pull the door out.

1. Remove the exhaust filter from the vacuum and clean by gently tapping or brushing off dirt. For optimal performance it is recommended to replace the old filter with a new filter regularly.

1. Install the cleaned or new filter. Then insert the filter door tabs into the upper slots and lock the filter door into place.

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent.

WARNING

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will not operate.	No power supply.	Check the power supply, cord, breakers, and fuses.
	Faulty power cord.	Unplug and check the power cord. If damaged, have it repaired by a professional.
	Collection tank is full. Empty the collection tank.
	Switch in the wrong position. Press the ON 'I' button on the power head.
The dust comes out from the motor cover.	The cartridge filter is missing or damaged.	Attach or replace the cartridge filter.
	Incorrect use of foam filter when dry vacuuming.	Replace the foam wet filter with the cartridge filter.
	The exhaust filter is missing or damaged.	Attach or replace the exhaust filter.
	Vacuum has been used to collect fine dust, such as dry wall dust, fireplace soot, or ash, without a fine dust filter.	Remove the standard cartridge filter and buy the appropriate fine dust filter.
Reduced efficiency and motor/speed vibration.	There are blockages in the nozzle, or hose, or the collection tank inlet.	Unplug and check nozzle, hose, and collection tank inlets for blockages.
	The cartridge filter is clogged by dry dust.	Take off the filter and clean it or install a new cartridge filter.
	Float valve has closed.	Empty the collection tank of any liquid waste and ensure the float valve located underneath the filter is able to move freely.

TABLE DE CONTENIDOS

Cleva North America, Inc., Greenville SC 29607

INSTRUCCIONES SOBRE EL AISLAMENTO DOBLE

Cleva North America, Inc., Greenville SC 29607

INSTRUCTIONS RELATIVES À LA DOUBLE ISOLATION

Vacuum Cleaner Help Line
