USER MANUAL VC92 Bimar
type VC92 (mod. FD-80FR)
Scan the qr code to see the quick "functioning" guide
SINCE 1974
LIVE • SMART

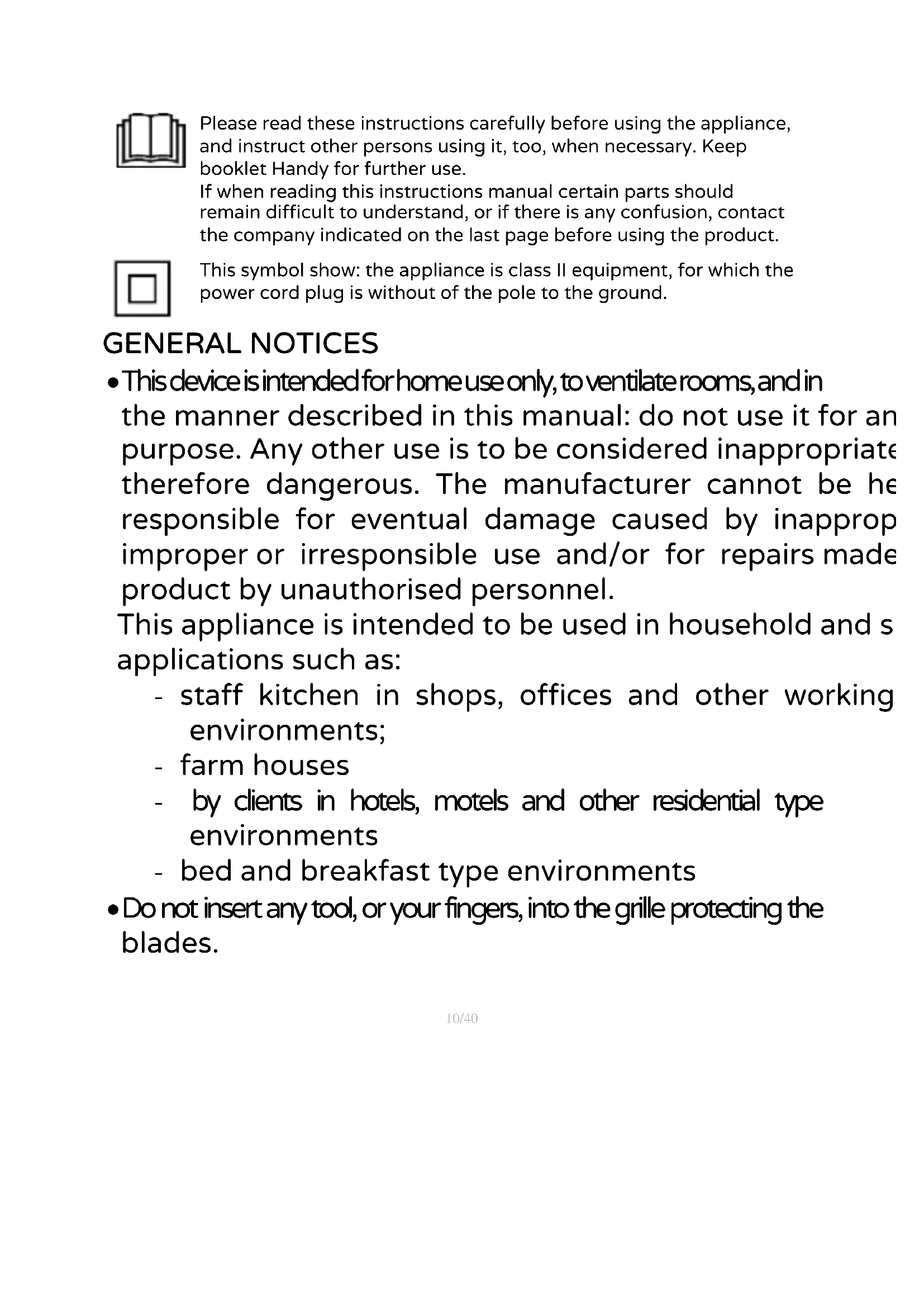

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet Handy for further use.
If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.
This symbol show: the appliance is class II equipment, for which the power cord plug is without of the pole to the ground.
GENERAL NOTICES
- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for an purpose. Any other use is to be considered inappropriate therefore dangerous. The manufacturer cannot be he responsible for eventual damage caused by inappropriate improper or irresponsible use and/or for repairs made product by unauthorised personnel.
This appliance is intended to be used in household and s applications such as:
- staff kitchen in shops, offices and other working environments;
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
- Do not insert any tool, or your fingers, into the grille protecting the blades.
- This appliance can be used by children aged from 8 years above and persons with reduced physical, sensory or capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance a safe way and if they understand the hazards involved. It shall not play with the appliance. Cleaning and user main shall not be made by children without supervision.
- The appliance must be kept out of children's reach.
- This appliance can be used by children aged 8 and older by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have undersh the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years age and are supervised.
- Attention: when using electric appliances, the basic precautions must always be observed to avoid risks of fire shocks and physical injury.
- Always unplug the appliance before you assemble, disas clean the appliance.
- Do not use the appliance if it is not operating correctly damaged; if in doubt, contact professionally qualified pe
- Make sure that the appliance is working correctly: if not appliance off and have it checked by professionally or personnel.
- Do not move the appliance when it is operating.
- Unplug the appliance when not in use.
- Do not leave the device exposed to the weather (sun, ra
- Do not touch the appliance with wet hands or feet.
- Do not pull on the cord to move the appliance.
- Do not pull on the cord to disconnect the plug from the
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid a hazard.
- Do not use the appliance with a timer or a programmer of system that can switch on the appliance automatically, to risk of fire, since a fire risk exists if the appliance is covered, positioned incorrectly.
- If the appliance breaks down or there is a malfunction, s the appliance and have it checked by qualified personne carried out by unauthorised personnel may be dangerou invalidate the guarantee.
INSTALLATION
- After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.
- Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.
- The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
- Before each use, check that the equipment is in good condition, and that the power cable is not damaged: if in doubt consult a qualified professional.
- Place the appliance far from
- Heat sources (e.g. flames, gas stoves etc.)
- container of liquids (e.g.sinks etc) to avoid any spray or the appliance falling into it (minimum distance of 2 meters)
-
fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
-
The surface on which the appliance is placed must be stable, level (otherwise the unit may fall over) and smooth. Do not place the fan on shelves. Do not hang the unit on the wall.
- In the event of a breakdown or poor operation, turn the appliance off and have it checked by professionally qualified personnel; repairs carried out by unauthorised personnel may be dangerous and invalidate the guarantee.
ASSEMBLY
Attention: always unplug the appliance before you assemble to the fan.
The fan's functions can be controlled either with the keypad located on the control panel and with the remote control. The remote control must be pointed at the control panel (max distance 4mt); for the first use take off the tab transparent plastic of the batteri's side (type AAA), not included inside the box. Replacing all batteries at the same time is recommended. Do not mix used batteries with new batteries. Should the remote control not be used for long periods of time, remove the batteries.
The fan has the following setting and control elements:
- Stand-by-ON button “ ⏻ ” (1): To turn the fan on or turn it off in standby mode
- Ventilation: the three speeds are selected by pressing the "SPEED" (3) button: the symbol corresponding to the selected speed will light up: (1=min; 2= med; 3=max).
- Timer: sets the operating time at which the unit shuts down. Press the "TIMER" (5), button repeatedly: each press changes the time in 1 hour intervals (from 1 hour to 8 hours), and the selected duration will be shown on the control panel. To deactivate the timer, press the button until the timer turns off.
- Mode (2): the fan can work both at a constant speed (minimum, medium and max), as well as at two different speeds that are intermittent: "Sleep" and "Natural". To activate "Natural" mode, press the button until appears on the display: speeds are random and cyclic (each cycle takes about 90 seconds).
To activate “Sleep” mode, press button once more until appears on the display: this mode reduces ventilation speed from one speed to the lower speed every half hour. The cycles are:
- Maximum speed (3) set: the fan will run at maximum speed for 30 minutes, then at medium speed for 30 minutes and then will switch to low speed until the unit is turned off manually or by the timer which has been previously set.
- Average speed (2) set: the fan runs at medium speed for 30 minutes, it changes to minimum speed for 30 minutes and then turns off.
- Minimum speed (1) set: the fan runs at minimum speed for 30 minutes, and then turns off.
- Swing (right-left): press the "SWING" (4) button, turn it on (symbol on, 📋) or turn it off (symbol off).
To operate the fan, plug it into a socket: the "☐" symbol will light up and you will hear a "beep" (indicating the standby status); press the "☐" button to activate the fan and select the desired functions.
To deactivate the unit, press the "" button and turn off the appliance, unplug it from the socket.
CLEANING AND MAINTENANCE
Attention: before normal cleaning, remove the plug from the socket.
- Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
- Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket.
Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
- It is essential that the motor's air holes be kept from dust and lint.
- If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
- Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.
- The battery of the remote control must be disposed of in the appropriate containers; dispose of them in compliance with current law.
- Do not dispose of non-biodegradable products in the environment but dispose of them in accordance with current law. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
