| Product type | Fan |
| Brand | Bimar |
| Model | VC99 |
| Electrical class | II (double insulation) |
| Supply voltage | 220-240 V ~ 50 Hz |
| Timer | 0-120 minutes, adjustable, possibility of continuous operation (ON position) |
| Number of speeds | 3 (minimum, medium, maximum) |
| Oscillation | Horizontal (left-right), switchable by push button |
| Intended use | Indoor domestic use, ventilation of indoor spaces only |
| Maximum ambient temperature | 40 °C |
| Minimum distance from liquids | 2 meters |
| Installation | On a stable, horizontal and smooth surface; do not hang on wall |
| Cleaning | With a soft, slightly damp cloth; do not immerse; unplug before cleaning |
| Child safety | Do not leave children under 8 years old unattended; children must not play with the appliance |
| Repairs | Call professionally qualified personnel; any unqualified repair voids the warranty |
| Disposal | In accordance with directive 2011/65/EU, do not dispose of with household waste; take to a selective collection centre |
Frequently Asked Questions - VC99 Bimar
User questions about VC99 Bimar
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual VC99 - Bimar and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VC99 by Bimar.
USER MANUAL VC99 Bimar
Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet for further use.
If when reading these instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.
This symbol show: the appliance is class II equipment, for which the power cord plug is without of the pole to the ground.
GENERAL NOTICES
- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for an purpose. Any other use is to be considered inappropriate therefore dangerous. The manufacturer cannot be he responsible for eventual damage caused by inappropriate improper or irresponsible use and/or for repairs made product by unauthorised personnel.
This appliance is intended to be used in household and s applications such as:
- staff kitchen in shops, offices and other working environments;
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
- Do not touch the appliance with wet hands or feet.
- Do not insert any tool, or your fingers, into the grille protecting the blades.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the application a safe way and if they understand the hazards involved. If they shall not play with the appliance. Cleaning and user maintain shall not be made by children without supervision.
- This appliance can be used by children aged 8 and older by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have undersh the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years age and are supervised.
- The appliance must be kept out of children's reach.
- Attention: when using electric appliances, the basic precautions must always be observed to avoid risks of fire shocks and physical injury.
- Do not use the appliance if it is not operating correctly damaged; if in doubt, contact professionally qualified pe
- Make sure that the appliance is working correctly: if not appliance off and have it checked by professionally personnel.
- Always unplug the appliance before you assemble, disas make adjustments to the appliance.
- Do not move the appliance when it is operating.
- Unplug the appliance when not in use.
- Do not use the device at room temperatures above 40^
- Do not move the appliance when it is in function.
- Do not leave the device exposed to the weather (sun, ra
- Do not pull on the cord to disconnect the plug from the
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid a hazard.
INSTALLATION
- After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.
- Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.
- The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
- To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
- Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
- Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
- Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
- Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
- In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.
ASSEMBLY
Attention: always unplug the appliance before you assemble.
Attention: the fan can only be used if complete with the support base (front and rear shell).
To assemble it, refer to figures.
| Unscrew the ring nut on counterclockwise bottom of the body, if the nut is screwed. | Place first the front shell. | Couple the rear shell to the front (align the four holes) secure the set by turning clockwise the ring nut. | Plug the power cord through the guidance of the rear shell. |
| 1 | 2 | 3 | 4 |


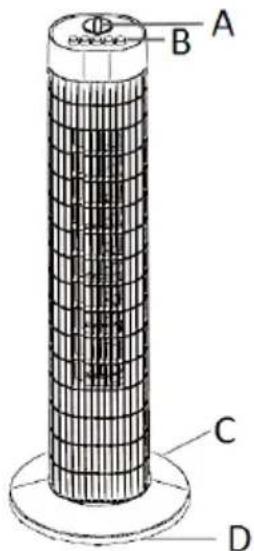

A B C D
B. Switches
C. Rear shell
D. Front shell
USE
Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk, must replace it.
Your appliance is equipped with the following regulation elements, controlled by turn the knobs on the keyboard located on the rear of the control panel.
Plug it in.
Timer: This appliance has a timer for automatic switching off at the end of the time set; to set the time turn the timer knob (A) clockwise to the position corresponding to the desired operating time (0-120 min.); in order to operate the appliance in a continuous manner, and to therefore exclude use of the timer, turn the knob anticlockwise to the “ON” position.
Ventilation:
After setting the timer, select the desired speed using the push-button pos.:
$$ = \text { Speed minimum } = \text { Speed medium } = \text { Speed maximum } $$
Horizontal oscillation (right-left): this is controlled by the oscillation switch Ⓗ. To stop the movement and to keep the fan still, press the oscillation button again.
To switch off the appliance, press the switch “”, and then remove the plug from the socket.
When not in use for long periods, the plug must always be removed from the socket.
CLEANING AND MAINTENANCE
Attention: before normal cleaning, remove the plug from the socket.
- Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
- Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
- It is essential that the motor's air holes be kept from dust and lint.
- If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
- Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
