Brand	BRANDT
Model	TV1200B
Type	Ceramic glass hob
Number of cooking zones	4 (depending on model)
Power supply	220-240 V ~
Frequency	50/60 Hz
Maximum total power	7200 W (estimation)
Control type	Touch (models a, b) or manual (models c, d)
Number of power levels	9 (1 to 9)
Timer	Yes, up to 99 minutes
Dual zone	Yes (on some models)
Child lock	Yes
Automatic safety shutdown	Yes (after 10 seconds of inactivity)
Residual heat indicator	Yes (H display or dot)
Temperature limiter	Yes, per zone
Overflow protection	Yes (electronic models)
Weekly maintenance	Special ceramic glass product (e.g., VITROCLEN)
Cleaning of burnt residues	Special ceramic glass scraper
Installation	Built-in, by certified installer
Electrical connection	All-pole disconnection device (contact opening ≥3 mm)

Frequently Asked Questions - TV1200B BRANDT

How to activate the child lock?

Press and hold the key for 3 seconds. The indicator lights up to confirm locking. To unlock, proceed in the same way.

How to set the timer on a touch model?

Turn on the cooking zone and set the power. Press the ⏲ key to select the zone, then use the + and - keys to set the time (max 60 or 99 min depending on power). Validates automatically after a few seconds.

What to do if the ceramic glass surface is cracked?

Immediately unplug the appliance from the socket to avoid electric shock. Do not use the hob and have the glass replaced by the after-sales service or qualified personnel.

How to clean burnt residues?

Use a special scraper for ceramic glass when the hob is still warm. For deep cleaning, use a specific product (e.g., VITROCLEN) with a soft cloth.

What types of cookware are suitable?

Most ceramic, copper, or stainless steel cookware is suitable. Avoid aluminum as it can stain. The bottom must be flat and dry, and the diameter at least equal to that of the cooking zone.

Why do the cooking zones turn on and off in cycles?

This is not a fault. The cooking zones operate in on/off cycles of varying lengths depending on the selected power to maintain temperature.

How to turn off the appliance?

To completely turn off the appliance, press the ① sensor for 2 seconds. A long beep and the symbol turning off confirm shutdown.

What does the 'H' display on a cooking zone mean?

This is the residual heat indicator. The cooking zone is still hot. Do not touch it to avoid burns.

Is it safe to leave the hob unattended?

No. Never leave fat or oil unattended: they may catch fire. In case of fire, unplug the appliance and cover the flames with a lid or fire blanket. Never use water.

How to install the hob correctly?

The installation must be carried out by a certified installer. Respect the dimensions of the built-in cabinet, use the supplied foam seal for tightness, and connect to the electrical network with an all-pole disconnection device (contact opening ≥3 mm).

USER MANUAL TV1200B BRANDT

EN GUIDE TO INSTALLATION AND USE

NL INSTALLATIE- EN GEBRUIKSHANDLEIDING

CZ NÁVOD K INSTALACI A POUŽITÍ

Simple line drawing of a white eye and a white number '0' on a gray background (no text or symbols beyond the numbers)

1.2

2.1

III

Illustration of a hand holding a black electric stove with four circular cutouts, no text or symbols present

FR FRANÇAIS X

DA DANSK X

EN ENGLISH X

NL NEDERLANDS X

CZ ČESKY X

PT PORTUGUÊS X

DE DEUTSCH X

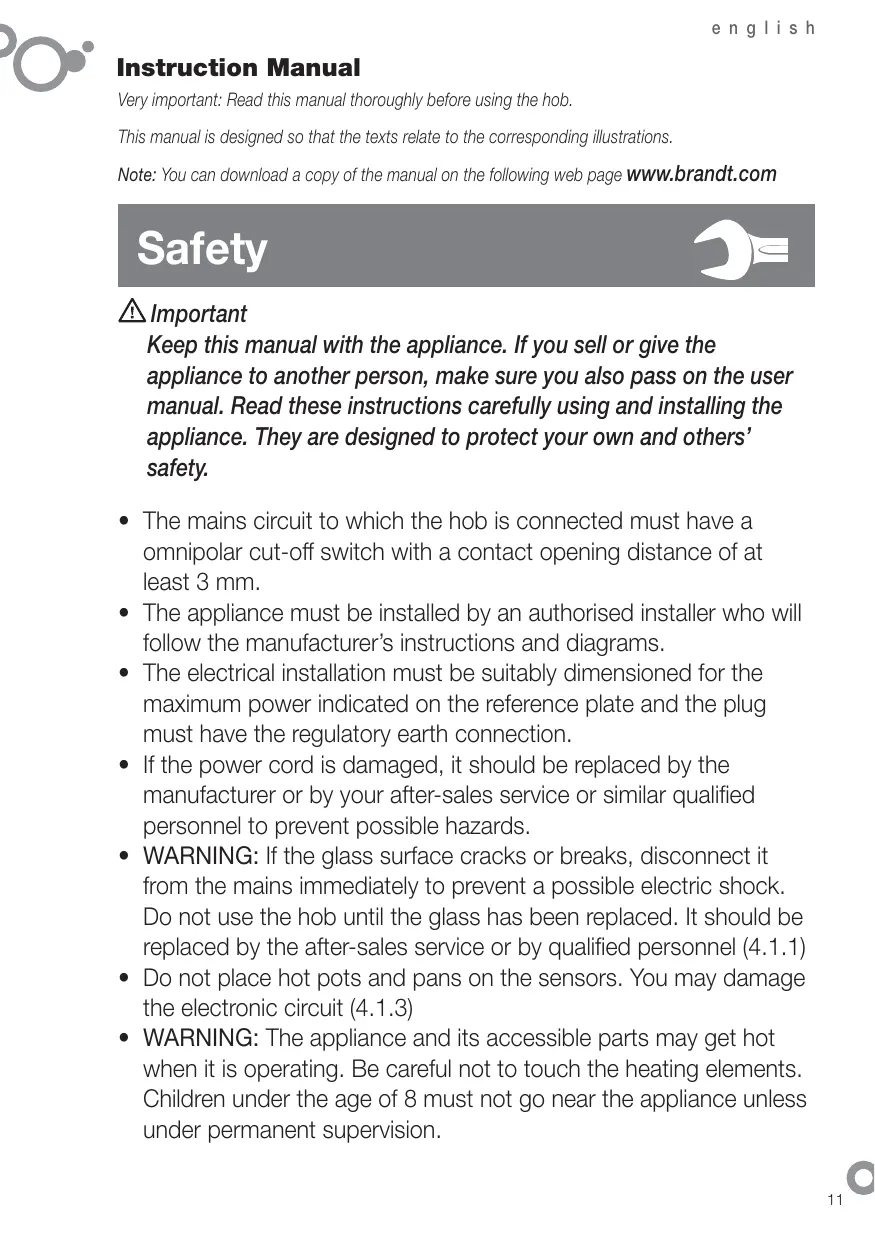

Very important: Read this manual thoroughly before using the hob.

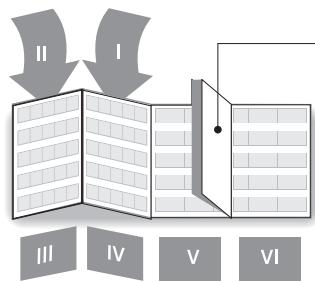

This manual is designed so that the texts relate to the corresponding illustrations.

Note: You can download a copy of the manual on the following web page www.brandt.com

Safety

⚠️ Important

Keep this manual with the appliance. If you sell or give the appliance to another person, make sure you also pass on the user manual. Read these instructions carefully using and installing the appliance. They are designed to protect your own and others' safety.

• The mains circuit to which the hob is connected must have a omnipolar cut-off switch with a contact opening distance of at least 3 mm.
• The appliance must be installed by an authorised installer who will follow the manufacturer's instructions and diagrams.
• The electrical installation must be suitably dimensioned for the maximum power indicated on the reference plate and the plug must have the regulatory earth connection.
• If the power cord is damaged, it should be replaced by the manufacturer or by your after-sales service or similar qualified personnel to prevent possible hazards.

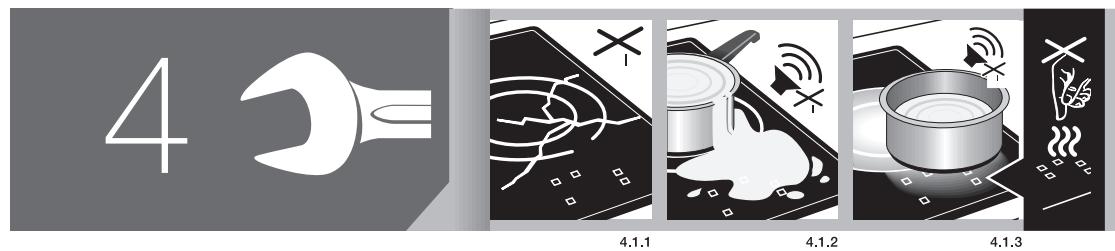

• WARNING: If the glass surface cracks or breaks, disconnect it from the mains immediately to prevent a possible electric shock. Do not use the hob until the glass has been replaced. It should be replaced by the after-sales service or by qualified personnel (4.1.1)
• Do not place hot pots and pans on the sensors. You may damage the electronic circuit (4.1.3)

• WARNING: The appliance and its accessible parts may get hot when it is operating. Be careful not to touch the heating elements. Children under the age of 8 must not go near the appliance unless under permanent supervision.

• If the hob is installed over a drawer, do not keep inflammable objects inside.

• This device is not suitable for use by children below the age of 8 and persons whose physical, sensory or mental capacities are impaired, or who lack sufficient experience or knowledge, unless they have been supervised or instructed in the use of the appliance and understand the dangers involved. Children must not play with the appliance. The appliance must not be cleaned or maintained by unsupervised children.

- WARNING: Do not leave the hob unattended when cooking with fat or oil, as these may catch fire. NEVER try to put out the fire with water. Unplug the appliance and cover the flames with a lid or a fireproof blanket.

- WARNING: Fire hazard: Do not store objects on the cooking surface.

- Never use a steam cleaner to clean the appliance.

- The appliance is not designed to work with an external timer switch or remote control system.

- To switch off the appliance, press (①) for two seconds. You will hear a long beep and the digit will switch off, showing that the appliance is now off.

- Avoid knocking receptacles against the glass.

- The heat elements should not be operated without a receptacle.

- Only use the appliance for cooking food. Do not use the hob as a worktop.

- Do not apply cold water directly onto the hob when it is hot.

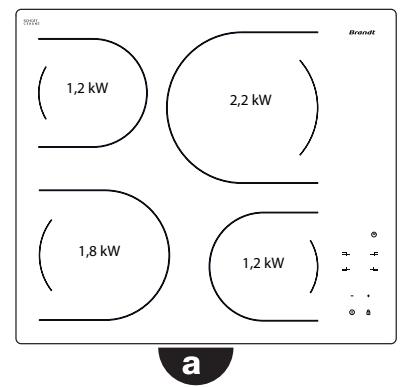

Identification

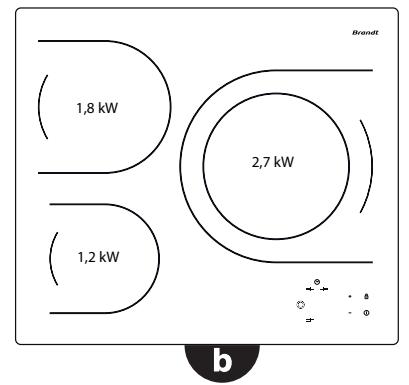

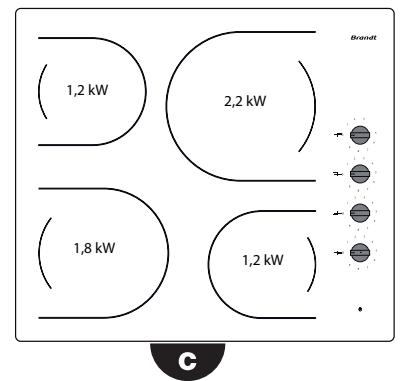

Identify the model of your hob ("a", "b", "c", "d") by comparing the number and layout of the elements on your appliance with that shown in the illustrations.

1

Installation

1.1 Unpacking. Remove all the protective materials.

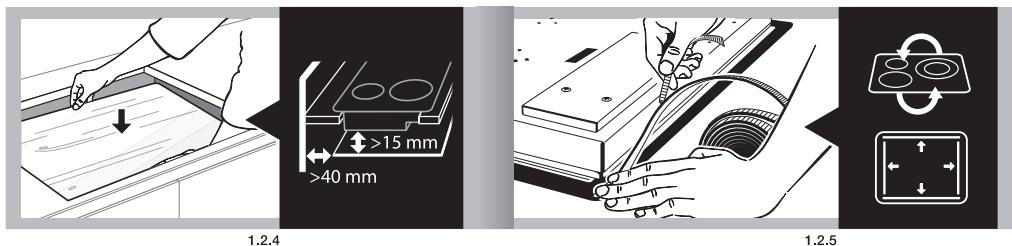

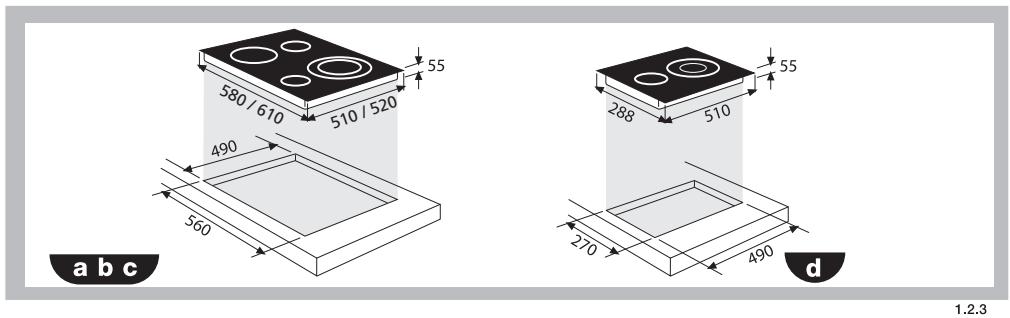

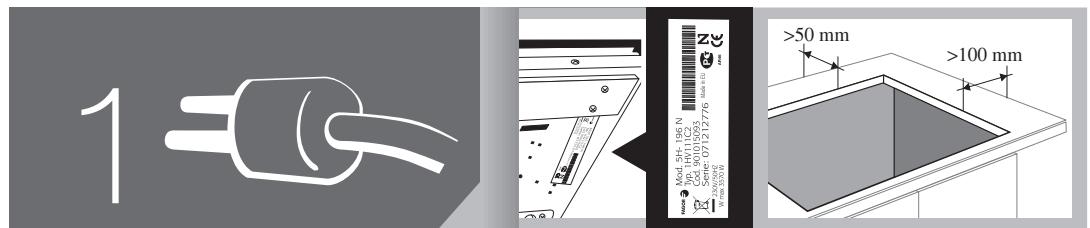

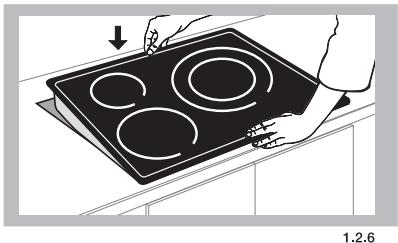

1.2 Insertion into the unit. Always take into account the details on the characteristics plate (1.2.1) and the measurements of the unit into which the hob is going to be inserted (1.2.2, 1.2.3). If you are not going to fit an oven beneath the hob, you must install a protective panel in accordance with the measure indicated (1.2.4). Stick the foam join along the outer edge of the hob to make it watertight (1.2.5). Turn the hob over and insert it into the hole (1.2.6). Do not use non-removable materials such as silicone.

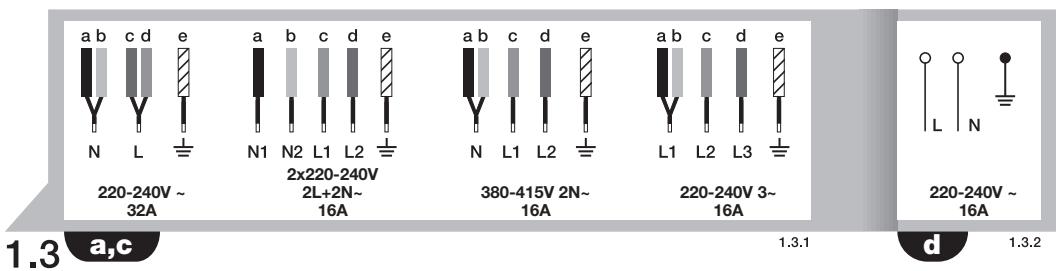

1.3 Connection to the power supply.

Models (a, c). See diagram (1.3.1). Colours: a) dark blue, b) light blue, c) brown, d) red, e) green - yellow

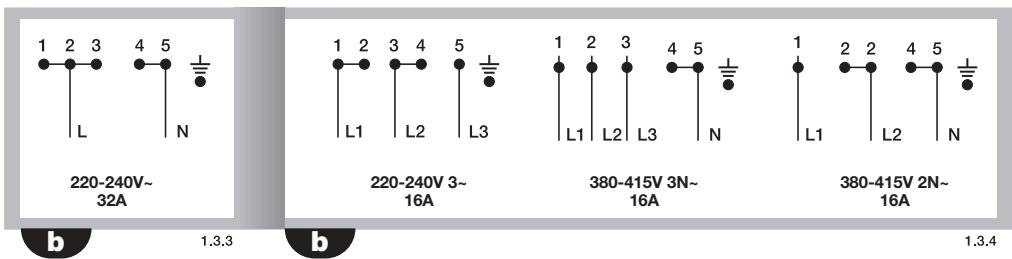

Model (b). To connect to 220 – 240V\~ connect the hob according to diagram 1.3.3. If it is different, replace the cable and make the connection according to diagram (1.3.4).

Clay, copper or stainless steel receptacles can be used with vitroceramic hobs. Aluminium receptacles are not recommended as they can stain the glass of the hob.

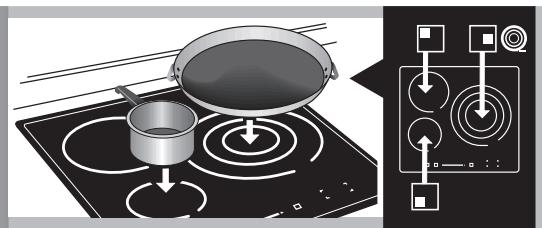

2.1 Selecting the cooking zone. You have various elements on which to place the receptacles. Choose the most suitable one depending on the size of the receptacle. (2.1.1)

2.2 Switching on the hob. Models (a, b). Press ⏻ for 3 seconds to switch on the hob. A 📋 will appear for each of the different cooking zones.

Note: If the child safety lock is on, you will need to switch it off by pressing the 🔒 key for 3 seconds before making your selection.

2.3 Switching on the cooking zones. Switch on the zone where you have placed the container by pressing the corresponding key (2.3.1)

N.B.: If you take longer than 10 seconds to select the element, the hob will automatically turn itself off, as a safety measure.

2.4 Temperature selection. Adjust the temperature by pressing + or — (2.4.1).

SPECIAL ZONES

2.5 Double zone. After choosing the heat setting, press Ⓞ to switch on the double zone. To switch it off press Ⓞ.

TIMER FUNCTIONS

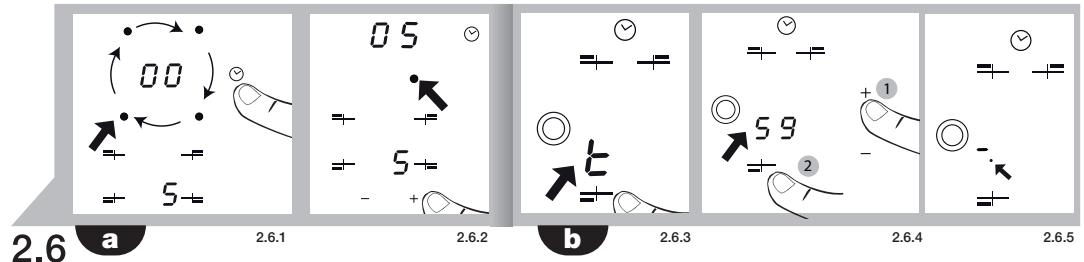

2.6 Time selection.

Model (a) : First switch on a cooking zone, then press 1,2,3......9 then ⏚ and you will see ⏻ and the pilot of the zone you want to time. If there are several zones functioning, when you press ⏮, several times timer pilot rotates (2.6.1). Choose the zone you want to time. Use + et — , to set the time (2.6.2). If you press — you will go straight to the maximum time of 60 or 99 minutes. After a few seconds, this will be confirmed. When the time is up, the hob will beep and ⏻ and the corresponding pilot light will flash. Press any key to make it stop. If you wish to change the time press ⏮ and follow the above steps again. If you have used the timer in several zones, the display will show the time remaining for the zone closest to finishing. To see the time remaining press ⏮ and choose the zone you want to check.

Note: The timer will switch off automatically if you take more than 10 minutes to set the time.

Model (b): Once you have switched on a zone and selected the heat 1,2,3......9, press the =— key of the zone you want to time. You will see a ⓣ (2.6.3). Select the time with +, — and confirm by pressing the timer key =— again (2.6.4). A dot next

to the temperature shows that the zone is in timer mode. The hob will beep and the — symbol will appear to warn you that the time is up. (2.6.5). Press any key to make it stop.

N.B.: The timer will automatically turn itself off if you take longer than 10 seconds to select the time.

Observations on timing: If the power level is 9, the maximum time for the timer will be 60 min. Otherwise, the maximum will be 99 min.

Once the time has passed, the alarm will sound until you press any key.

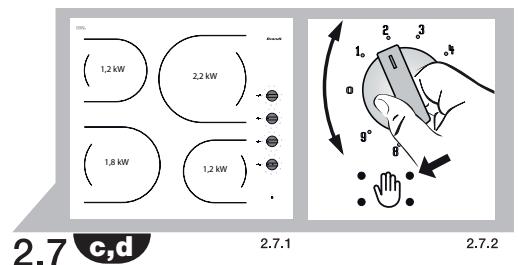

2.7 Ceramic hobs with controls.

Models (c, d). Make sure that the zone you are going to switch on corresponds to the zone you want to use (2.7.1). Turn the control to the position required and the pilot light will come on (2.7.2). This also shows the residual heat when the zone is switched off.

2.8 Turning the element off. Select the power of the element you want to turn off.

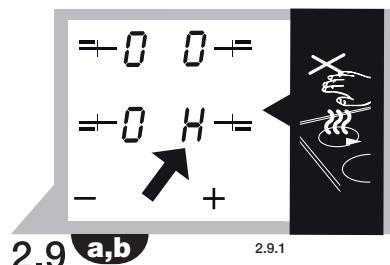

2.9 Residual heat. After using the hob, the elements will stay hot for some time, which will vary according to the power selected and a H (2.7.2, 2.9.1) or a dot will be displayed on the elements that are still hot. Do not touch these elements, as there is a risk of burning yourself.
2.10 Block function (keys). This is a child safety lock. Press the 🔒 key in for 3 seconds. The pilot light will come on and the child lock will be activated (2.10.1). Follow the same steps to turn it off. Pilot light off.

Recommendations:

• The hob is equipped with a temperature limitation device that switches it off if the surface becomes excessively hot.
• In electronic models, in case of overflow onto the control keys, the appliance will stop working and will start beeping. (4.1.2)
• In electronic models, if you hold down any of the sensors for too long, the appliance will stop working and will start beeping.

• Aluminium receptacles are not advisable as they can stain the glass, unless they have a stainless steel protective base.

• The base of the receptacle must be flat and dry.

• Make sure that the diameters of the receptacles are larger than or the same as the element to be used and place them in the centre of the heat source.
• Try not to move the receptacles as this can scratch the glass.

Caution: Intermittent operation of the cooking zones is not a fault. They operate with longer or shorter on and off periods depending on the desired power.

3

Maintenance and cleaning

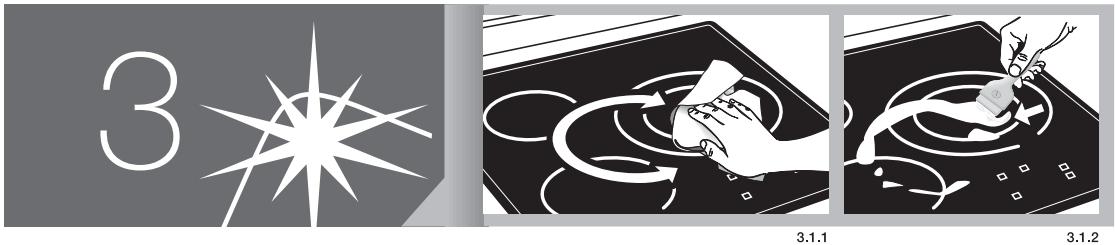

• Clean the surface of your hob regularly once it has cooled down. Do not use abrasive products or sponges. Clean with a damp cloth and soapy water (3.1.1).
• Once a week, clean thoroughly with products specifically designed for vetroceramic hobs. We recommend VITRO-CLEN for cleaning and maintaining your vitroceramic hob.
• Stubborn stains can be removed with the glass scraper (3.1.2).
• If you accidentally burn some sugar, sugary elements or plastic on the hob, remove it as soon as possible with a scraper while it is still hot. If this is not done, you may be left with permanent marks.
• Use the blade of the scraper in perfect condition; replace it if is damaged.

4

Environment

The hob has been designed with protection of the environment in mind.

Be environmentally aware. Use the adequate power for each cooking operation and select the receptacles of a suitable size for the food you are going to prepare. The heat transmission is best when the base of the receptacle and the diameter of the cooking zone are the same size.

When you have finished cooking, if you like you can leave the receptacle where it is to make use

of the residual heat accumulated. This will save energy.

Use a lid whenever you can in order to reduce the heat lost through steam.

Electrical and electronic appliance waste management.

Do not dispose of appliances by mixing them in general domestic waste.

Take your hob to a special collection centre.

The recycling of domestic appliances avoids negative consequences to our health, the environment and enables us to save energy and resources.

For further information, contact your local authority or the establishment from where you purchased your hob.
