Product Type	Compact Stereo Amplifier / Home Theater Receiver with Bluetooth
Brand	Pyle
Model	PDA69BU
Power Supply	115/230 V AC switchable, 50/60 Hz
Maximum Output Power	300 W (@ 4 Ω)
RMS Output Power	35 W x 2 (@ 8 Ω)
Bluetooth Version	5.0
Bluetooth Range	≥ 12 m (40 ft)
FM Radio	Yes, with auto-scan and memory for up to 60 stations
Supported Audio Formats	MP3, WAV
Audio Inputs	RCA (CD, DVD, LINE, AUX), 3.5mm auxiliary jack, 2 x 6.35mm microphone jacks
Speaker Outputs	Screw terminals (2 channels), impedance 4-8 Ω
Dimensions (W x D x H)	24.9 cm x 24.9 cm x 9.9 cm (9.8" x 9.8" x 3.9")
Display	Digital LCD Screen
Karaoke Function	2 microphone inputs with volume, delay, and reverb controls
Tone Controls	Bass (±12 dB at 100 Hz), Treble (±12 dB), Balance
Remote Control	Yes, requires 2 AAA batteries (not included)
Antennas	Dedicated FM antenna, Bluetooth antenna
Input Selector	USB/SD, CD, DVD, AUX, BT/FM
Care and Cleaning	Clean with a dry cloth only
Safety	Do not expose to moisture; unplug during storms; use only suitable equipment

Frequently Asked Questions - PDA69BU Pyle

How to connect my smartphone via Bluetooth?

Press the MODE button until 'BLUE' appears on the screen. On your smartphone, search for Bluetooth devices and select PYLEUSA or BT. Pairing is confirmed by a beep.

Why is the FM radio not picking up any stations?

Make sure you have connected the included FM antenna to the FM antenna connector (item 18). Then, in FM mode, press and hold the PLAY/PAUSE button to start an automatic scan of frequencies from 87.5 to 108 MHz.

How to adjust the microphone volume?

Use the MIC VOL knobs (separate volumes for MIC1 and MIC2) located on the front panel. Turn them to increase or decrease the volume of each microphone.

Can I connect a USB flash drive or an SD card?

Yes, insert a USB flash drive or SD card into the corresponding ports. The device will automatically read MP3/WAV files. Use the input selector (14) to USB/SD, then press MODE to choose USB or SD.

What to do if the remote control does not work?

Remove the battery insulation tab before first use. Check that the batteries (2x AAA) are inserted correctly and are charged. The remote control only controls USB/SD, BT, and FM modes, not the main volume or microphones.

How to browse music by folder?

Press the FOLDER/TRACK button: the screen shows 'F001' flashing. Turn the knob to browse folders, then press it to open the selected folder and start playback.

What audio formats are supported?

The device supports MP3 and WAV files on USB flash drive or SD card. Other formats will be ignored or cause a track skip.

How to switch between different audio inputs?

Turn the input selector (14) on the front panel to choose DVD, CD, AUX, or USB/SD. Note: CD, DVD, and AUX inputs cannot be selected via remote control.

The unit does not power on, what to check?

Check that the power cord is properly connected and the POWER switch is in the ON position. Ensure the supply voltage (115V or 230V) matches your mains; a voltage selector switch is on the rear.

How to clean the amplifier?

Use a soft, dry cloth to dust the unit. Never use liquid or abrasive products. Unplug the unit before cleaning.

USER MANUAL PDA69BU Pyle

PYLE PyleUSA.com DIGITAL KARAOKE AMPLIFIER WITH BT/USB/SD/FM BLUE POWER ON OFF FOLDER/TRACK PDA69BU MASTER.VOL MIN MAX SD USB MODE BT CH+ AUTO CH+ CH- AUTO CH+ PUSH MIC1 MIC2 MIC VOL DELAY REVERB BASS TREBLE BALANCE HEADPHONE DVD CD 0 10 0 10 0 10 -12 +12 -12 +12 L R AUX BT/FM USB/SD DVD CO USB/SD

PDA69BUEU - PDA69BUUK

Please note that reserve the right to make production changes during the life of our product lines that may impact the information in this manual.

Compact Wireless BT Stereo Amplifier

Desktop Audio Power Amp Receiver with FM Rad MP3/USB/SD Readers, Digital LED Display, Microphone In (300 Watt)

WARNING!

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN.

The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS” voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. Users should exhibit extra safety when this symbol appears in this instruction manual and follow all precautions as they are stated.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this manual.

1. Read these instructions thoroughly before using this item.
2. Keep these instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. WARNING: To prevent re or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this product near any liquids.
6. Clean only with a dry cloth.
7. Do not store or operate this product near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug.
   A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a round grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for the replacement of the obsolete outlet.
9. Protect the all wires connected to this unit from being walked on or pinched, particularly plugs and the point where they exit from the unit. When removing the cord from the power outlet, remove it by holding the plug not by pulling the cord.
10. Unplug the unit during lighting storms or when unused for long periods of time.
11. When wiring this unit and all other equipment used in connection to this unit make sure that all of your equipment is turned OFF.
12. Once installation and wiring is complete power on all your equipment with the volume and level controls turned DOWN. Once all the equipment is ON slowly raise the volume or level controls to their proper positions.

13. When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit.

14. Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the hardware or equipment.

15. Consult a licensed, professional engineer regarding physical equipment installation. Ensure that all local, state and national Regulations regarding the safety and operation of equipment are understood and adhered to.

16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Introduction

To get the most from our Units, it is recommended that you review all the information provided in the instruction manual before operating the equipment.

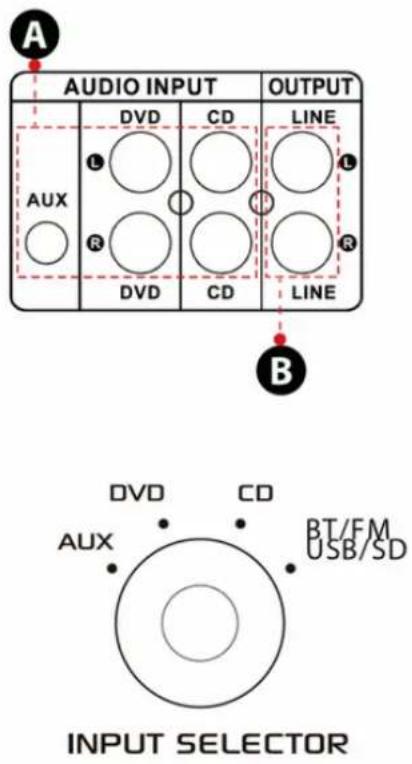

ATTENTION

1. A: Connect the audio input with the CD/DVD/TV audio output.

NOTES:

- The unit does not support video signal, so make sure that the CD/DVD/TV AUDIO OUTPUT terminal are connected. - Noise will be heard when you connect the unit with CD/DVD/TV video output by mistake.

1. B: Signal output that can be connected with other amplifier or powered speakers

Input selector will not work if the signal comes from the Line output.

AUDIO INPUT OUTPUT DVD CD LINE L L AUX R R DVD CD LINE B DVD CD BT/FM USB/SD AUX INPUT SELECTOR

3. STEPS FOR FM RADIO CONTROL

A. Connect the FM antenna before using the FM radio.
B. Press MODE button on the front panel or remote control to select FM mode.
C. Press PLAY/PAUSE button on the front panel or remote control, and will auto scan and sore FM Radio station from 87.5Mhz to 108Mhz.
D. Press NEXT/PREV button to select the FM station.

4. REMOTE CONTROL

Remote control gives you commanding access only to USB/SD, Wireless BT and FM functions.

A. Please take out the battery sheet before using the remote control, otherwise the remote control will not work.

B. ☐ Press these two buttons to select the previous or next track in USB/SD or Wireless BT mode, there is no response in the FM mode.

C. ▶ ▶ Press these two buttons to increase or decrease Wireless BT volume, USB/SD and FM. This buttons doesn't control AUX/CD/DVD input volume.

D. ▶ Press this button to auto scan all frequencies from 87.5MHz to 108MHz, the unit will auto store the channels in FM mode.

E. MODE Press this button to select one from play mode (USB/SD mode, FM mode and Wireless BT mode). Turning ON the unit will set the USB/SD mode automatically. MP3 files will be played automatically after inserting USB ash drive or SD card. You cannot select the AUX, CD and DVD input with this button.

F. Press this button to turn ON or OFF the USB/SD, Wireless BT and FM mode, but not to power ON/OFF the unit. The unit will output the signal in CD, DVD, AUX input mode if you turn OFF the USB/SD, Wireless BT and FM.

G. Aim the remote controller at the receiver of the main unit.

5. FILE FORMAT

Only MP3, WMA and WAV format are supported for USB/SD stored les. The unit may skip the unsupported track files in USB or SD cards.

6. USB PORT

The USB port is only used for playing audio files on your USB ash drive.

DO NOT use USB port for power supply to other devices as it may damage the unit to Cause smoke.

7. CONTROL PANEL BUTTON

A. These buttons are only used to control the USB/SD, Wireless BT and FM functions and doesn't control other functions.

B. MODE BUTTON: Press this button to select one from USB/SD mode, FM mode or Wireless BT play mode. USB/SD mode will be set automatically after turning ON the unit. Automatically plays mp3 les after inserting a USB ash drive or SD card. You cannot select AUX, CD and DVD input on this button.

C. Each press of the PLAY/PAUSE BUTTON causes the operation to change from play to pause or from pause to play in the USB/SD mode or Wireless BT mode.

Press the PLAY/PAUSE BUTTON one time to auto scan all frequencies from 87.5MHz to 108MHz in FM mode. Press the button to auto scan channels when you use FM radio for the first time. After stop searching, the unit will auto store all the radio channels and play from the first radio channel. You don't need to rescan every FM radio start up.

D. PREV and NEXT BUTTON: Use these two buttons to select previous, next track or folder, depending on these different modes as below.

- In USB/SD mode: Use to select previous or next track, or use to select previous or next folder in FOLDER working mode.

• In Wireless BT mode: Use to select previous or next track.

• In FM mode: Use to select previous or next radio channel.

8. INPUT SELECTOR

Select MP3/BT input mode if you want to play USB/SD/Wireless BT/FM Radio. Select CD input mode if you want to play CD jacks input signal. Select AUX input mode if you want to play AUX jacks input signal. Select DVD input mode if you want to play DVD jacks input signal, otherwise the unit output has no signal.

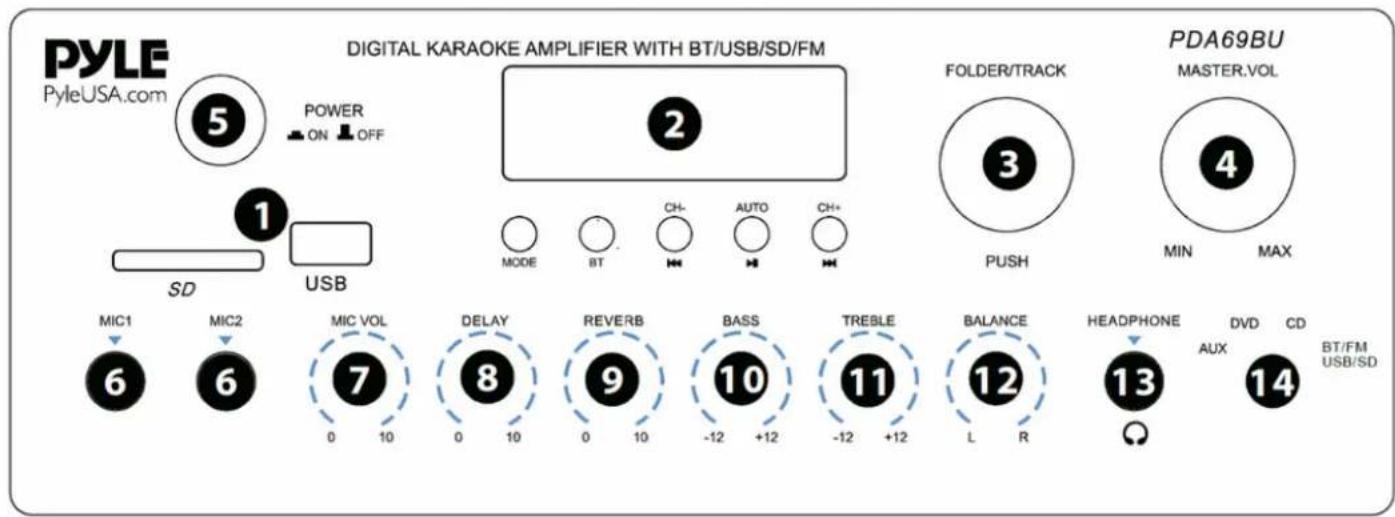

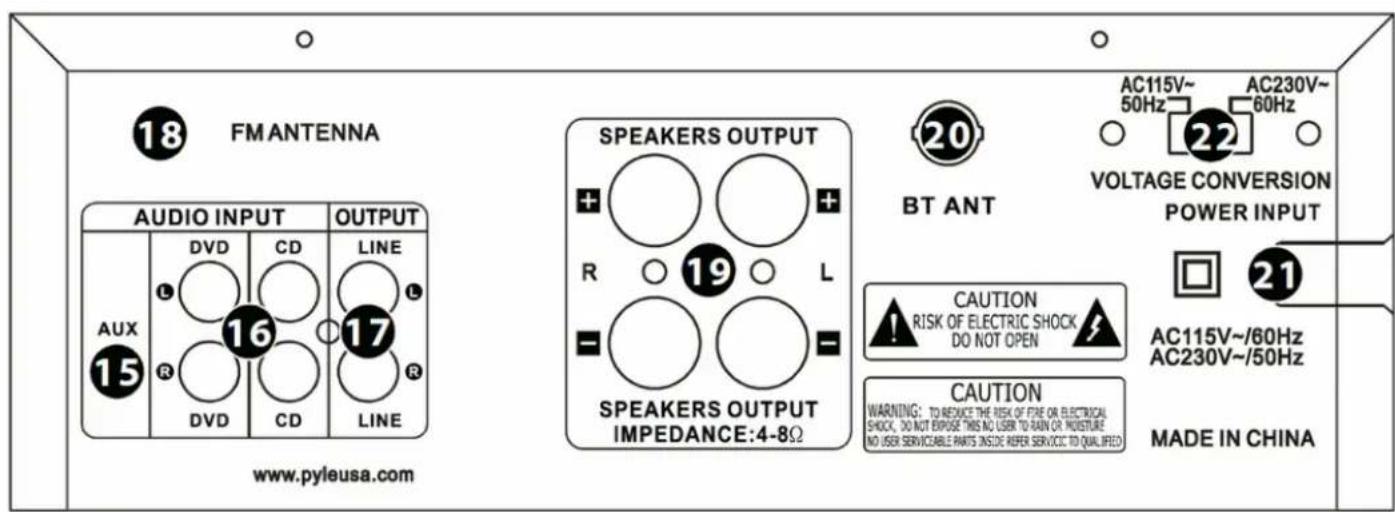

FRONT & BACK PANEL

PYLE PyleUSA.com 5 POWER ON OFF 2 SD USB DIGITAL KARAOKE AMPLIFIER WITH BT/USB/SD/FM FOLDER/TRACK 3 PUSH PDA69BU MASTER.VOL 4 MIN MAX MIC1 MIC2 MIC VOL DELAY REVERB BASS TREBLE BALANCE HEADPHONE DVD CD BT/FM 6 6 7 8 9 10 -12 +12 -12 +12 L R AUX 14 0 10 0 10 0 10 -12 +12 -12 +12 L R

FM ANTENNA AUDIO INPUT OUTPUT AUX 15 DVD CD LINE L L R 16 R 17 DVD CD LINE SPEAKERS OUTPUT R 19 L SPEAKERS OUTPUT IMPEDANCE:4-8Ω BT ANT AC115V~ 50Hz AC230V~ 60Hz VOLTAGE CONVERSION POWER INPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS NO USER TO RAIN OR MOISTURE NO USER SERVICEABLE PARTS INSIDE REFER SERVICE TO QUALIFIED AC115V~/60Hz AC230V~/50Hz MADE IN CHINA www.pyleusa.com

1. USB/SD Card/Wireless BT Control Console

After inserting a USB ash drive/SD Card into the input terminal, be sure to set the input selector (13) to USB/SD, then press the mode button to choose between audio from the USB port, SD Card input, Wireless BT or FM radio. If you want to use the Wireless BT, check the below steps.

STEPS FOR CONNECTING WITH WIRELESS BT DEVICE

A. Press MODE button under the ID3 display screen and enter into bluetooth mode.
B. Search for the bluetooth device and nd the bluetooth name "PYLEUSA or BT"
C. Select the PYLEUSA or BT bluetooth name and wait for the device to pair.
D. The unit will make a sound confirming that the devices have successfully paired.
E. Once paired you can play music from your bluetooth device. You can also use the control buttons on the unit to select the tracks from your bluetooth device.

F. Use the other controls, play/pause, previous track & next track to play audio from Wireless BT.

NOTE: The USB input is ONLY meant to connect to a USB ash drive (thumb drive). Connecting a MP3 player or computer directly to the USB ash drive input will result the unit failing to play audio from those devices.

2. USB/SD Card Control Console Display Screen

1

MODE

2

BT

3

→

4

▶

5

→

F001

0001

00:01

93.6

1. MODE: The display will show "USB" when set to USB mode, "SD" when set to SD can mode, "BLUE" when set to BLUETOOTH mode, "87.5-108" when set to FM mode. BT: Bluetooth direct selection mode key. 2.

Previous track for USB/SD/BT model or Previous Station for FM model.3.

1. ▶▶This is Play and pause button; in FM mode, long press this button to automatic search FM Station and automatic save Station.

2. ▶ Next track for USB/SD/BT model or next radio Station for FM model.

3. Folder search mode: Press the folder/track knob, "F001" will show on LED display screen, and rotate the folder/track knob to select a folder.

4. Track search mode: Rotate the folder/track knob or press the previous and next buttons, the current track number will be showed here.

Elapsed time: The elapsed time of the current track will show here.8. Show FM frequency of the current station.9.

3. Track / Folder Searching Knob

- Turn this knob clockwise to search through all of the tracks inside the USB ash drive/SD Card. Each track will appear by the number of the track. It will show the tracks or folders chronologically (from when the les were loaded onto the USB ash drive/SD Card. Press the knob to begin playing the desired track. First the tracks on the root le will be displayed and then the tracks that are in folders.

- Press this knob to activate the folder searching function. Once pressed the word "F001" will begin show on the display screen. Then, turn this knob clockwise to search the folders inside the USB ash drive/SD Card. Press the knob to begin playing the tracks from that folder.

1. SD Card Reader/USB Port: for using external media on this device, just plug your SD/USB into these ports.

2. LCD Screen: all information regarding external media or this device will be displayed from this screen.

Folder and track selection3.

Power Button: Press this button to power the unit on and o .4.

1. Microphone Volume Control Knob: Turn this knob to adjust the volume of microphone

2. Microphone Echo Volume Control Knob: Turn this knob to adjust the microphone echo volume level.

Bass Control: Turn this knob to adjust the low frequencies of Channel 1 & Channel 2.7. Master Volume Fader: Move the fader up and down to adjust the master volume.8.

1. Treble Control: Turn this knob to adjust the high frequencies of Channel 1 and Channel 2.

Balance: Control the volume balance from left to right.10.

Input Selector: Turn this button to choose the favorable input11.

MICROPHONE INPUTS: KARAOKE or EXTERNAL MIC connect to these jacks.12. IPOD/MP3 JACK-IPOD/MP3 connects to this jack.13.

REMOTE RECEIVER: To receive the remote control signal14.

POWER LED INDICATOR: When you turn on the unit, the LED will be on.15.

AUDIO INPUT: Connect the audio output jacks of DVD/CD, to these jacks.16.

LINE OUTPUT: Connect the RECORD input jacks to these jacks.17.

FM ANTENNA CONNECTOR: Connect for AM and FM antennas.18.

19SPEAKER OUTPUT: Connect your speaker system to these terminals.

1. BLUETOOTH ANTENNA: Please pull the antenna out when using Bluetooth input

2. POWER SUPPLY: Connect to AC 115V/60Hz and 230V/50Hz outlet.

3. POWER VOLTAGE SELECTOR: 115V/230V.

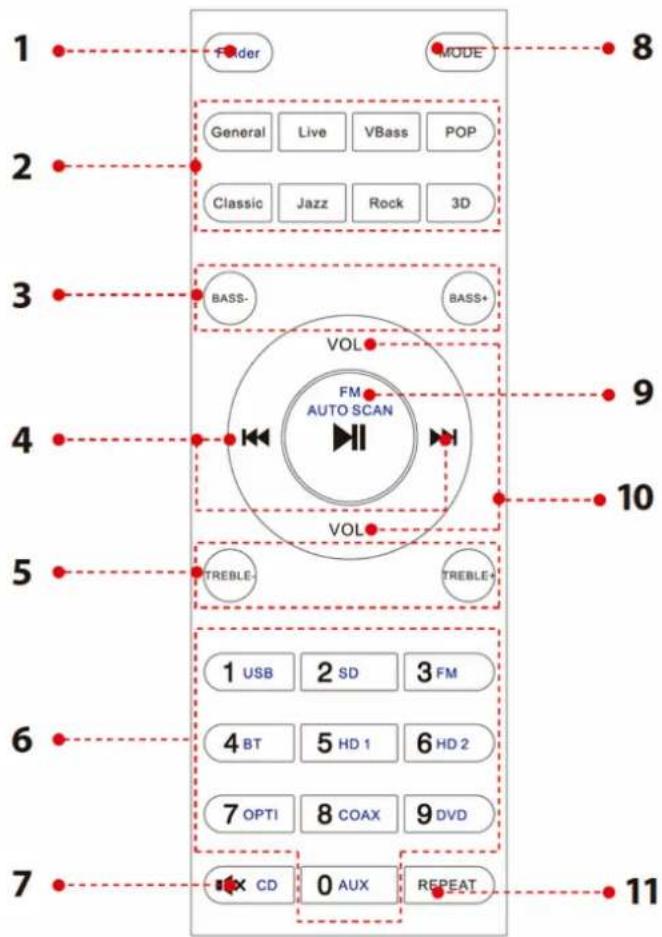

REMOTE CONTROL

1. This button is Multi function, press this button to turn on or o USB/SD/FM/BT to play, don't turn on or o the unit.

Hold this button for 3 seconds to select folder to play.

1. Press these buttons to select 8 types DSP effect directly in USB, SD, FM or BT working mode.

2. Press two buttons to adjust the sound Bass in USB, SD, FM or BT working model. BASS- is reduce bass output, BASS+ is raise bass output.

3. Press two buttons to select the previous or next track in USB or SD or BT working mode, to select previous or next station in FM working model

4. Press two buttons to adjust the sound Treble in USB, SD, FM or BT working mode. TREBLE is reduce TREBLE output. Bass+ is raise TREBLE output.

5. These buttons are Multi function, press the numbers to select the tracks directly. The units takes 1-2 seconds to response in USB or SD mode.

Hold these buttons for 3 seconds to select input Signal source. For example, press and hold the 4 button for 3 seconds to select the Bluetooth working mode.

Press this button to mute sound in USB, SD, FM or BT working mode.7.

1. Press this button to select the playing mode, such as USB/SD/FM/BT

2. Play and Pause function for USB/SD/BT mode. Press this button to auto scan the channel in FM mode, and auto store channel.

3. Press two buttons to up or down the sound volume in USB, SD, FM or BT working mode.

4. Press this button to select repeat mode. One-Repeat current play le, All-Repeat all play files in the USB or SD. Fold-Repeat all files in current play folder.

ATTENTION

1. This remote control only work in USB, SD, FM and Bluetooth working mode.

2. The buttons of HD1, HD2, OPTI, COAX, DVD, CD and AUX don't work in PDA69BU model.

3. Switch to the USB or SD mode only after inserting USB Flash driver or SD Card.

1 Folder MODE General Live VBass POP Classic Jazz Rock 3D 2 3 BASS- BASS+ VOL FM AUTO SCAN 4 VOL 5 TREBLE- TREBLE+ 6 1 USB 2 SD 3 FM 4 BT 5 HD 1 6 HD 2 7 OPTI 8 COAX 9 DVD 7 CD 0 AUX REPEAT 11

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

Compact Wireless BT Stereo Amplifier

Desktop Audio Power Amp Receiver with FM Radio, MP3/USB/SD Readers, Digital LED Display, Microphone Input (300 Watt)

Features:

• Desktop Audio Mini Power Amplifier
• Compact Home Theater Stereo Receiver Style
  • Built-in Bluetooth for Wireless Music Streaming
  • FM Radio with LED Digital Display
  • Multi-Channel Audio Input Selection
  • MP3/WAV Audio File Support
• Connect & Stream Audio from External Devices
  • USB Flash Drive & SD Memory Card Readers
  • USB Doubles as Device Charge Port
• Aux (3.5mm) Input
  • (2) 1/4" Microphone Input Jacks
  • (2) Pairs RCA (L/R) Audio Input Connectors
  • (2) Pairs Banana Plug Speaker Output Connectors
  • (1) Pair RCA (L/R) Audio Output Connectors
• Front Panel Audio Control Center
  • Automatic Scan and Store Radio Station
  • 'Repeat one & All' Audio File Functions
• Unique 'Track / Folder' Music Search Control Knob
• Treble, Bass, Master & Microphone Volume Adjustable

What's in the Box:

• Desktop Stereo Amplifier
• Remote Control
• FM Antenna

Bluetooth Connectivity:

• Receives Wireless Signal for Audio Streaming
- Simple & Hassle-Free Pairing Setup
- Integrated Antenna for Extended Wireless Range
- Works with All of Today's Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: 'PYLEUSA' or "BT"
• Wireless Range: 40'+ Ft. (12 m)

Technical Specs:

• MAX Power Output: 300 Watt (@ 4 Ohm)
• RMS Power Output: 35 Watt x 2 (@ 8 Ohm)
- Tone Control: Bass, f = 100Hz + / - 8dB
• Frequency Response: 20Hz-20kHz
• Frequency Adjustment: +/-10dB
• Signal to Noise Ratio: >80dB
T.H.D.: < 0.1%
• Radio Station Presets: Up to 60 Stations
- Battery Operated Remote, Requires (2) x AAA Battery, Not Included
• Power Supply: 115/230V, Switchable
- Dimensions (L x W x H): 9.8" x 9.8" x 3.9" -inches (24.8 x 24.8 x 9.9 -cm)

WARNING:

This product can expose you to a chemical or group of chemicals, which may include "Nickel Carbonate" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.

PYLE

PyleUSA.com

IC STATEMENT:

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

QR code image containing encoded data, no visible human-readable text

Questions or Comments

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

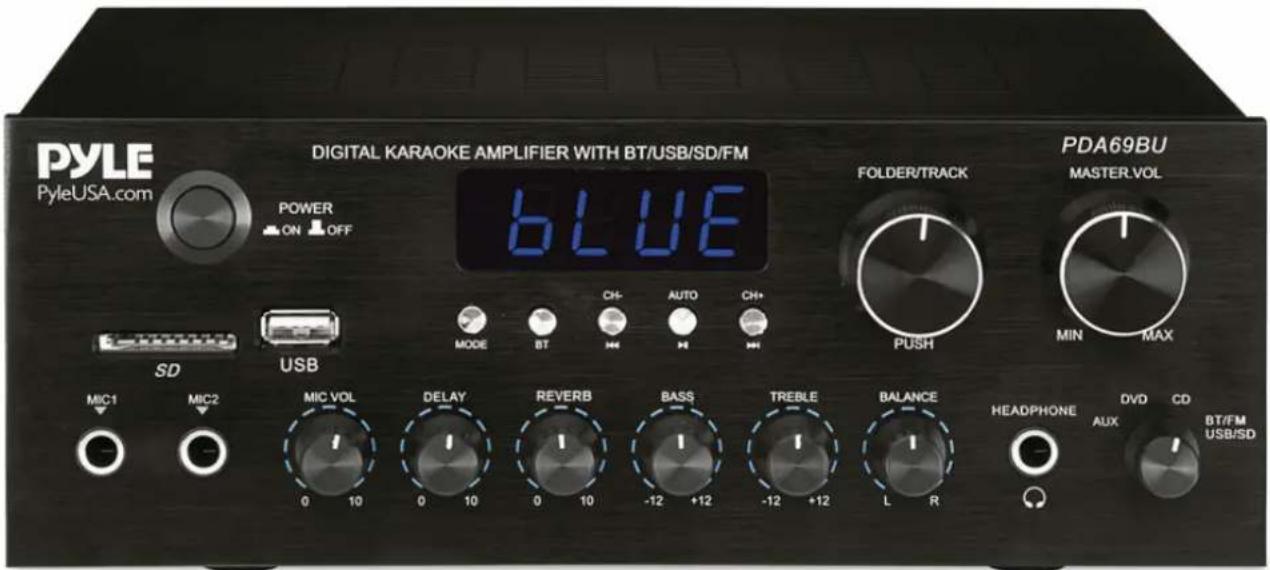

PYLE PyleUSA.com DIGITAL KARAOKE AMPLIFIER WITH BT/USB/SD/FM BLUE POWER ON OFF FOLDER/TRACK PDA69BU MASTER.VOL MIN MAX SD USB MODE BT CH+ AUTO CH+ BASS TREBLE BALANCE L R HEADPHONE DVD CD AUX BT/FM USB/SD

PDA69BUEU - PDA69BUUK

Please note that reserve the right to make production changes during the life of our product lines that may impact the information in this manual.

Compact Wireless BT Stereo Amplifier

Desktop Audio Power Amp Receiver with FM Rad MP3/USB/SD Readers, Digital LED Display, Microphone In (300 Watt)

¡AVISO!

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

QR code image containing encoded data, no visible human-readable text

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

QR code image containing encoded data, no visible human-readable text

Domande o commenti

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

PDA6BU/PDA6BU.5/PDA5BU/PDA5BU.5

Kompakt Kablosuz BT Stereo Ampli er
