Luca - Scooter Lionelo - Free user manual and instructions

Product type	Folding scooter
Brand	Lionelo
Model	Luca
Category	Scooter (scooter)
Safety standard	EN 14619:2019
Maximum load capacity	100 kg (Class A)
Recommended use	Flat, paved surfaces away from traffic
Recommended age	Children and adults (with supervision for children)
Frame material	Not specified in the manual
Brake type	Rear mudguard brake
Handlebar adjustment	Adjustable height with quick-release lever and safety screw
Foldability	Yes, with folding mechanism
Wheel type	Wheels with bearings (replaceable)
Maintenance	Regular cleaning, checking screws, and lubricating bearings
Spare parts available	Wheels, bearings, handles
Warranty	Detailed conditions on the manufacturer's website
Manufacturer	BrandLine Group Sp. z o.o., Poland

Frequently Asked Questions - Luca Lionelo

How to assemble the Lionelo Luca scooter?

Unlock the quick-release lever and loosen the safety screw. Pull the safety handle upwards and unfold the frame. Tighten the safety screw and secure the lever. Then, remove the handlebar grip from the holder and insert it into the guide until the safety device engages. Repeat on the other side.

How to adjust the handlebar height?

Unlock the quick-release lever and loosen the safety screw. Press the safety device, then raise or lower the handlebar to the desired height. Retighten the screw and secure the lever.

How to fold the scooter for storage?

Unlock the quick-release lever and loosen the safety screw. Press the safety device and lower the handlebar fully. Retighten and secure. Remove the handlebar grips and place them in the holder. Unlock again, pull the safety handle, fold the frame, then retighten and secure.

What is the maximum load capacity?

The maximum allowed load is 100 kg, corresponding to class A.

How to brake with the Luca scooter?

Press the rear mudguard with your left or right foot and shift your weight backward to slow down or stop. Note: The mudguard may become hot after extended use.

What safety precautions should be taken?

Always wear a helmet, knee pads, elbow pads, and gloves. Use the scooter on flat, paved surfaces away from traffic. Do not ride on wet or slippery surfaces. Check the brake and handlebar before each use. Children must be under constant supervision.

How to maintain the wheels and bearings?

If the wheels show signs of wear, replace them. Use an Allen key to remove the fixing screw. Remove the pin and wheel. Clean the bearings and apply grease before reassembling. If the bearings are damaged, replace them with new ones.

Is the scooter suitable for jumps?

No, the scooter is not designed for jumps. Using it for jumps can damage the product and cause injuries.

What to do if a component is damaged?

Immediately replace any damaged component. Contact an approved service or the manufacturer ([e-mail]) to obtain spare parts.

How to check the condition of the scooter before use?

Check that all screws are properly tightened, the steering system is correctly adjusted, the wheels rotate freely, and the brake works. Regularly inspect component wear, especially after the first year.

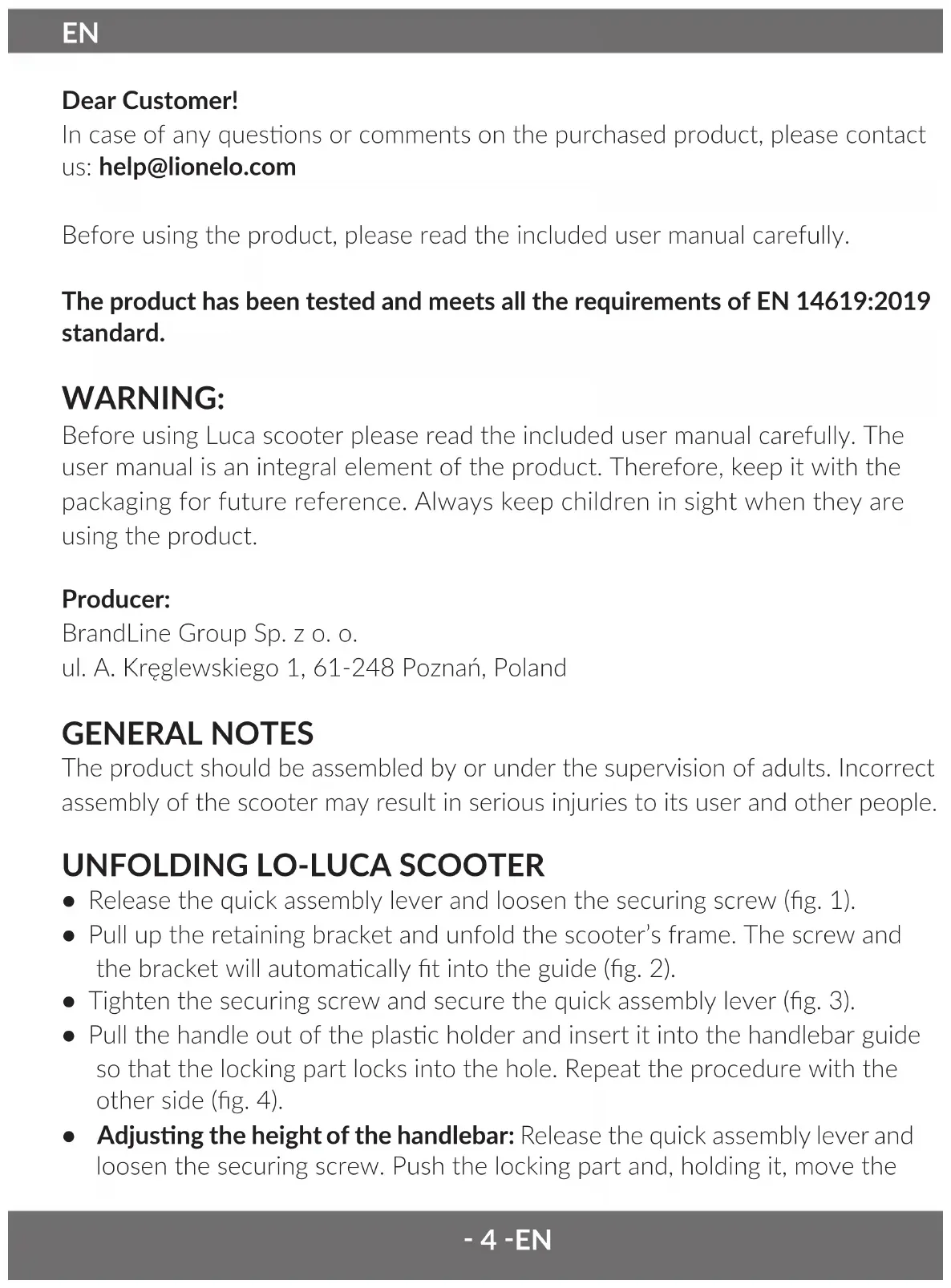

USER MANUAL Luca Lionelo

In case of any questions or comments on the purchased product, please contact us: [e-mail]

Before using the product, please read the included user manual carefully.

The product has been tested and meets all the requirements of EN 14619:2019 standard.

WARNING:

Before using Luca scooter please read the included user manual carefully. The user manual is an integral element of the product. Therefore, keep it with the packaging for future reference. Always keep children in sight when they are using the product.

Producer:

BrandLine Group Sp. z o. o.

ul. A. Krieglewskiego 1, 61-248 Poznań, Poland

GENERAL NOTES

The product should be assembled by or under the supervision of adults. Incorrect assembly of the scooter may result in serious injuries to its user and other people.

UNFOLDING LO-LUCA SCOOTER

• Release the quick assembly lever and loosen the securing screw (fig. 1).
• Pull up the retaining bracket and unfold the scooter's frame. The screw and the bracket will automatically fit into the guide (fig. 2).
• Tighten the securing screw and secure the quick assembly lever (fig. 3).
• Pull the handle out of the plastic holder and insert it into the handlebar guide so that the locking part locks into the hole. Repeat the procedure with the other side (fig. 4).
• Adjusting the height of the handlebar: Release the quick assembly lever and loosen the securing screw. Push the locking part and, holding it, move the

handlebar up or down to the desired position. Then tighten the screw and secure the quick assembly lever (fig. 5).

FOLDING LO-LUCA SCOOTER

• Release the quick assembly lever and loosen the securing screw. Push the locking part and, holding it, move the handlebar down to the lowest position. Then tighten the screw and secure the quick assembly lever (fig. 6).
• Push the locking part and, holding it, pull the handle out of the handlebar guide and put it into a plastic holder (fig. 7).
• Release the quick assembly lever and loosen the securing screw. Pull up the retaining bracket and fold the scooter's frame. The screw and the bracket will automatically fit into the guide (fig. 8).
• Tighten the securing screw and secure the quick assembly lever (fig. 9).

HOW TO USE

Place one foot on the platform, then grab the handlebar and choose your direction. With the help of second foot push yourself from the floor to start moving. To change the direction gently move the handlebar. For the first ride it is recommended to practise in an open space without obstacles.

press the rear mudguard with your left or right foot, shifting your weight to the back of the vehicle. Control it accordingly while stopping to avoid tipping over. Caution - the mudguard may be hot, avoid touching it to prevent burns.

WHEEL REPLACEMENT AND BEARING MAINTENANCE INSTRUCTIONS

If the wheels show clear signs of wear, consider replacing them. Using an Allen key, remove the screw that secures the wheel to the scooter frame. Remove the retaining pin and then the wheel. If the technical condition of the bearings is satisfactory, keep them for future re-assembly. To do so: remove the bearings, clean them and apply the right amount of grease. Mount them again in the new wheel. If the technical condition of the bearings is inadequate, buy a new one and repeat the assembly process.

WARNING:

1. The maximum permissible load is 100kg . (Class A)
2. The manufacturer and dealers assume no liability for any damage caused by improper usage.
3. Wear protective pads: knee pads, elbow pads, helmet and gloves.
4. When using the product, wear full clothing.
5. Ride the scooter only on flat surfaces.
6. Ride with both hands on the handlebar.
7. Do not transport or hold sharp objects when riding.
8. Do not ride on wet and slippery surfaces. Otherwise, it increases the risk of falling.
9. Do not ride on stairs or steps. Using the scooter on such surfaces greatly increases the risk of accident and damage to the device.
10. Always check the brake and the operation of the handlebar before riding.
11. If the scooter is used by a child, they must be constantly observed by adults.
12. The scooter can only be used away from traffic, and only on paved surfaces.
13. The scooter is not designed to perform jumps.
14. Do not modify the product.
15. Before use make sure all the parts are installed correctly and tightly locked in places.
16. If any part is damaged, replace it immediately. In such case, go to an authorized service or contact the manufacturer.
17. Check the product regularly for possible defects to ensure your child's safety during use. When using the product, some of its components may be subject to natural wear. It is recommended that after the first year of use, all components be inspected, in particular the quality of product fixings. If in doubt, contact the manufacturer.
18. Tighten all screws before using the product.
19. Always wear shoes when using the product.
20. Do not ride in the darkness.
21. Mechanism to reduce speed will get hot from continuous use, do not touch after braking.
22. Always check the limitation of use according to regulations of road safety.
23. Self-locking nuts and other self-locking fixings may lose their effectiveness

after approximately 6 months, the scooter should be inspected regularly and before each use.

1. Check that the steering system is correctly adjusted.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

PL

Drogi Kliencie!

BrandLine Group Sp. z o.o.

A. Krieglewskiego 1, 61-248 Poznań, Polonia

BrandLine Group Sp. z o.o.

A. Kriegewskiego 1, 61-248 Poznan, Polen

Detailed warranty conditions are available on the website:

Thank you for purchasing our product
