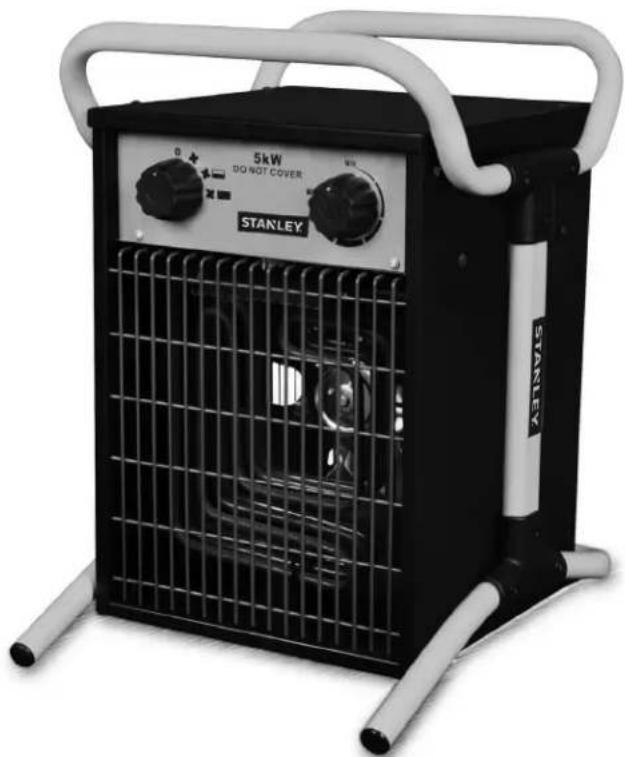

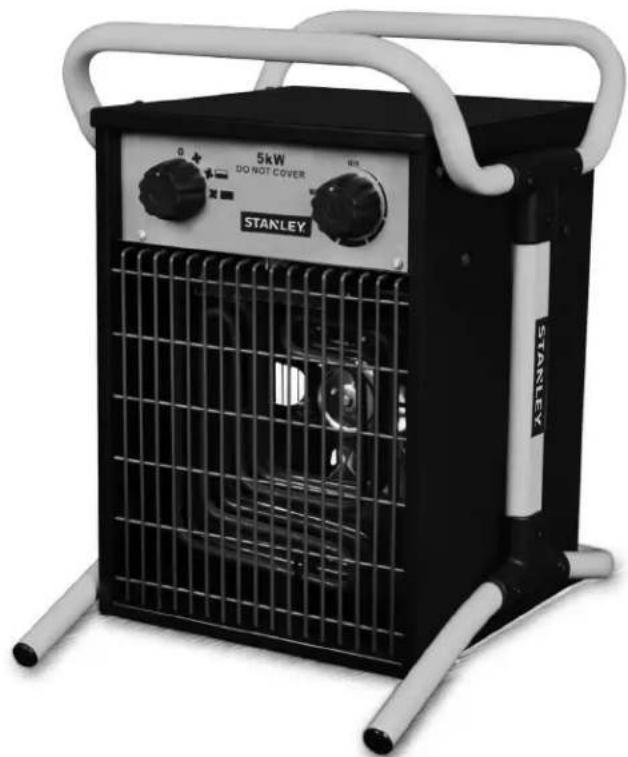

USER MANUAL STN3300 STANLEY

IPX4 IPX4 IPX4 IPX4 IPX4

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

IPX4 IPX4 IPX4 IPX4 IPX4

IPX4 IPX4 IPX4 IPX4 IPX4

IPX4 IPX4 IPX4 IPX4 IPX4

IPX4 IPX4 IPX4 IPX4 IPX4

BEFORE USING THE APPLIANCE. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. - CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. - The heater must not be located immediately below a socket-outlet. - Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. - CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. - Do not use the appliance for other than its intended use. For domestic indoor use only. - Place the appliance on a at, stable, heat-resistant surface. Operating the product in any other position could cause a hazard. - There may be trace of odour during the rst few minutes of initial use. This is normal and will quickly disappear. - Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside. - CAUTION – if using an extension lead please ensure you do not exceed the maximum rated running wattage/load of the extension lead.NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Read the instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read.

WARNING: In order to avoid overheating, do not cover the heater.

RATED POWER INPUT (BTU) 6820 10,250 11,250 17,060 30,710 AIR FLOW (m

IPX4 IPX4 IPX4 IPX4 IPX4

FUNCTIONS / SETTINGS Unit is Off Fan Runs - No Heating Fan Runs - Quarter Power Heating Fan Runs - Half Power Heating Fan Runs - Full Power Heating NOTE: ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E, the fan will run continuously while the heater is operating. NOTE: ST-02-230-E / ST-02-240-E, the fan will shut off when desired temperature is reached. Fan will not run continuously.NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Safety Information IMPORTANT: Read and understand all of the safety information and instructions in this manual before operating your heater. RISK OF EXPLOSION! Do Not operate this heater where there are harmful, explosive or flammable gasses, fumes or hazardous substances. DANGER RISK OF FIRE! Do Not operate this heater near combustible materials. WARNING ELECTRIC SHOCK HAZARD! Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool. WARNING BURN HAZARD! Do Not touch the front of heater while it is operating. This heater is hot while operating. WARNING RISK OF INJURY! DO NOT MOVE HEATER WHILE IT IS OPERATING. WARNING Children should be supervised so they do not play with the appliance. ALWAYS use only the electrical power (voltage and frequency) specied on the model plate of the heater. ALWAYS use an extension cord properly rated for this appliance. ALWAYS ensure that all cords are protected against short circuit and overload. ALWAYS keep power cord away from hot air outlet. ALWAYS disconnect heater from power source when not in use. NEVER place the heater on a small, uneven or unstable surface that may cause the heater to fall. NEVER connect other appliances to the same electrical outlet as the fan heater. NEVER operate heater with heater guards removed. NEVER block hot air outlet while heater is operating. NEVER cover or obstruct heater. NEVER use ducting with heater. NEVER pull or carry heater by the power cord. NEVER use heater with an external switching device: such as a timer. If heater is damaged, do not use it. The heater must be serviced by a qualified person or service agent. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. CAUTIONNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Assembly (See Page 6)

ii. Slide rear handle into upper handle brackets

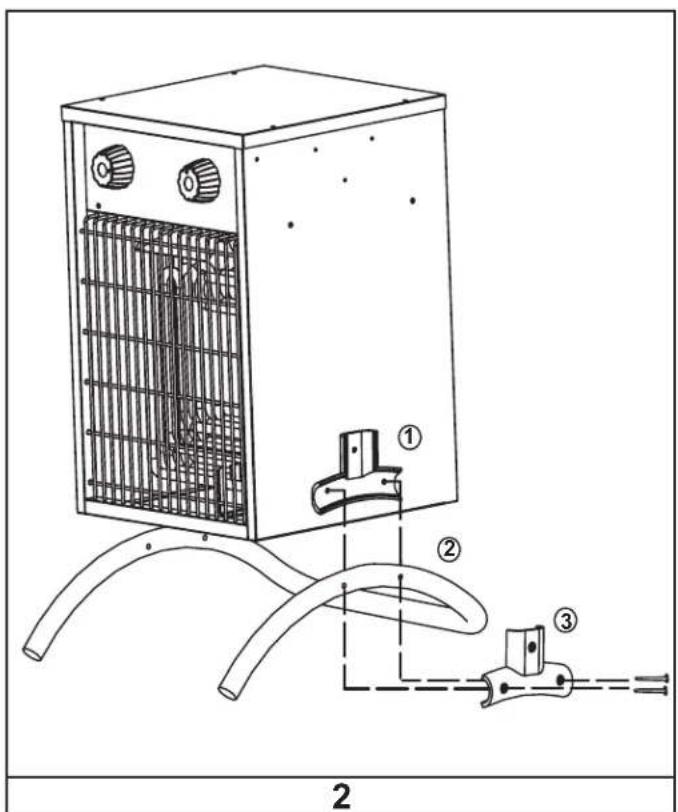

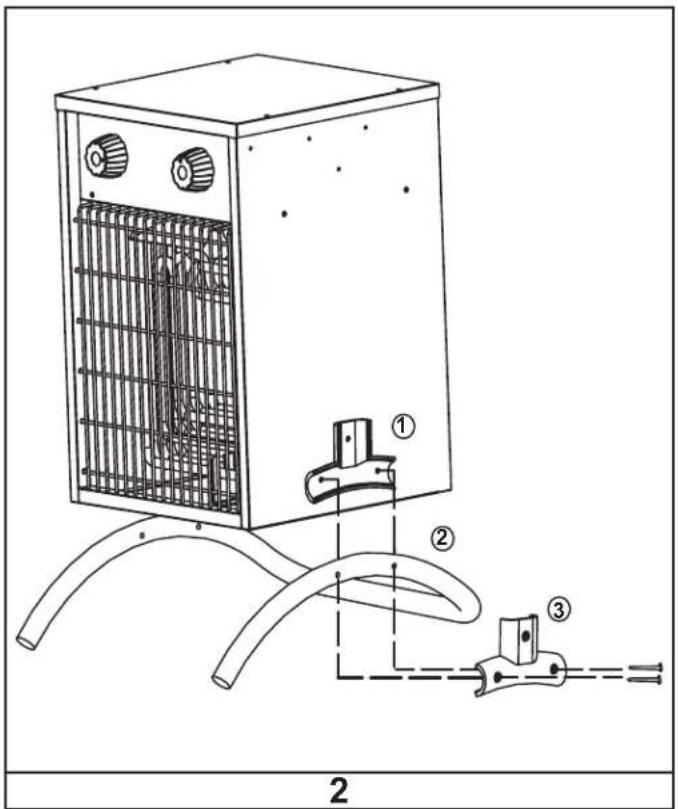

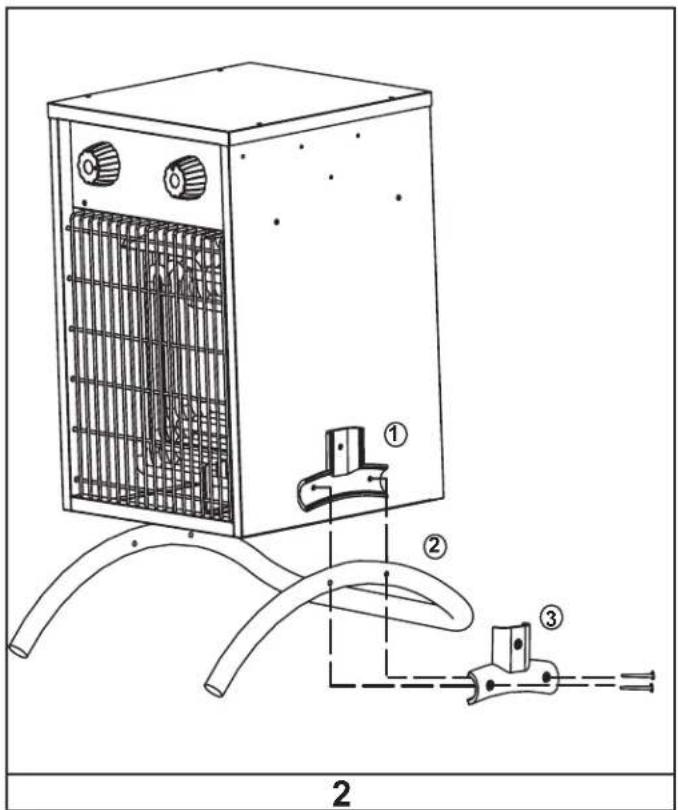

i. Align lower inner bracket with holes in heater.

ii. Attach aligned holes in Heater leg frame with

lower inner bracket.

iii. Align lower outer bracket holes with lower inner

bracket, and attach using 2 bottom screws.

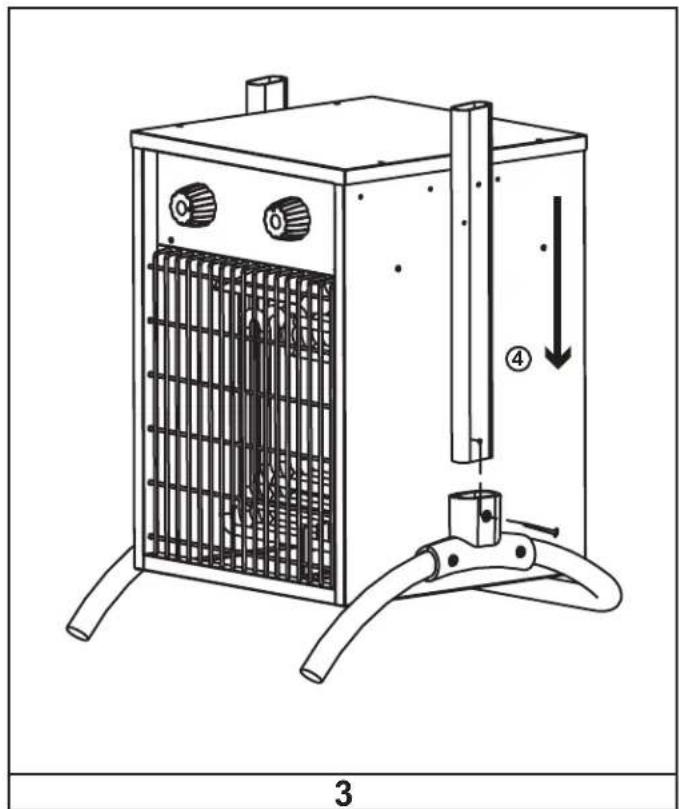

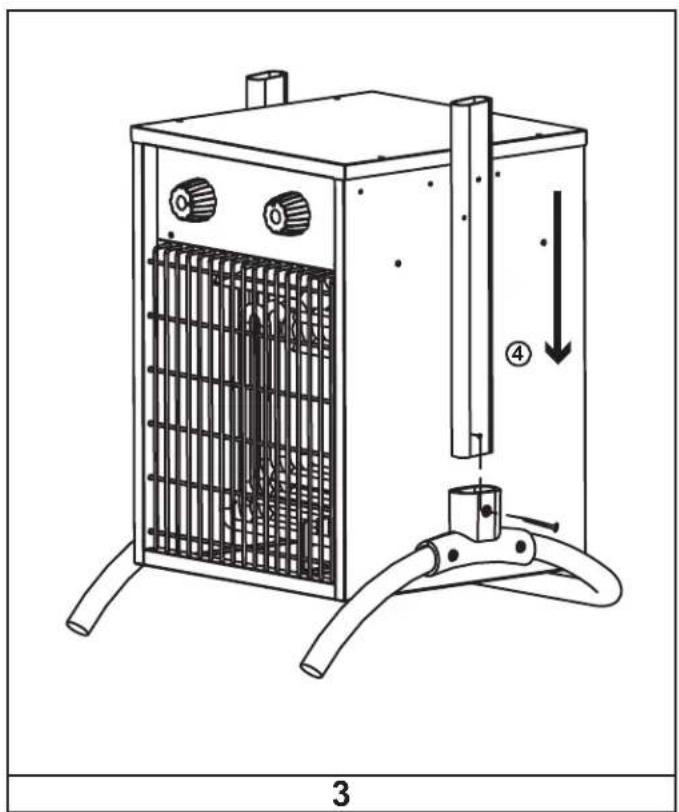

3. INSTALL SIDE SUPPORTS (Fig. 3)

i. Slide side support into lower bracket and align

ii. Attach using top remaining screw.

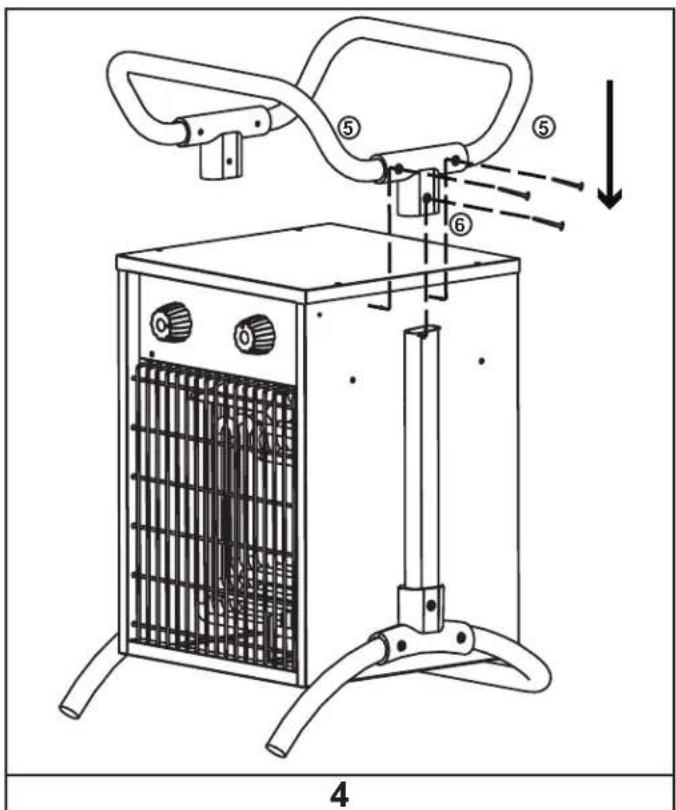

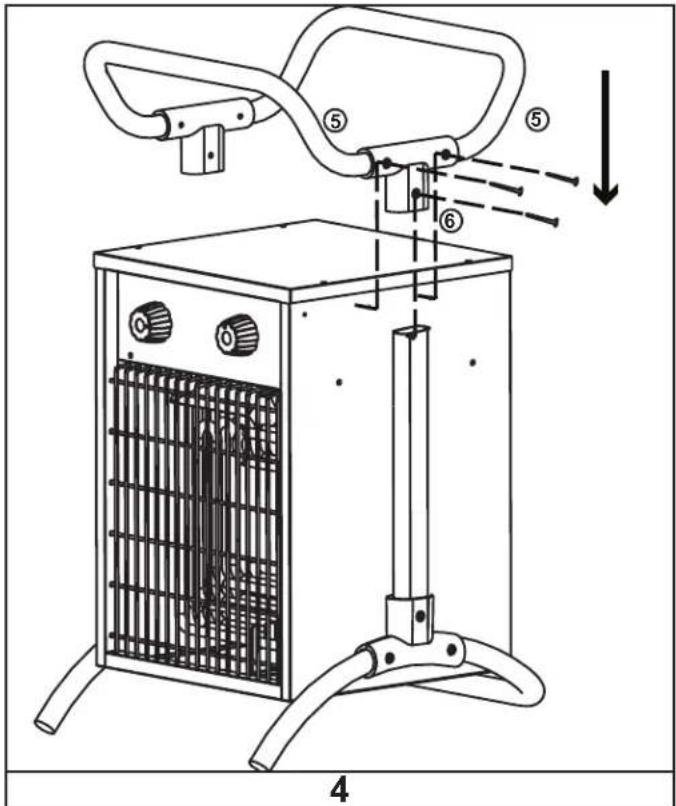

4. INSTALL TOP HANDLE BRACKET (Fig. 4)

i. Slide side support into upper bracket and align

ii. Attach upper brackets to heater using 3 screws

1. Position the fan heater so that it stands upright

on a firm, level surface and at a safe distance from wet environments and flammable objects.

3. Set the thermostat dial to the maximum

selector dial is set to one of the power settings.

5. Once the room reaches the desired

temperature, turn the thermostat dial back until heating element turns off. Automatic Overheat Safety Control – This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off Thermostat Instructions – At first, set the thermostat to “+” and let the heater operate with full power input. When the room temperature reaches the required value, turn the thermostat to the left until it switches off. – The thermostat will then switch on and off automatically to control the room temperature according to the preset value and keep the room temperature constant. – When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of steel and was coated with a layer of protective oil during production. The smoke is caused by the leftover oil as it is heated. Cleaning and Maintenance – Before cleaning the appliance, disconnect it from the outlet and let it cool down. – The enclosure is easy to get dirty. Wipe it often with a soft sponge. For very dirty parts, wipe with a sponge dipped in < 50°C water and mild detergent, then dry the heater enclosure with a clean cloth. Be careful not to let the water enter the inside of the appliance – In order to protect the enclosure, don’t splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater. – When you store the heater, let it cool down first and, keep it dry. Then cover it with a plastic bag, put it in the packing box and store it in a dry, ventilated place.NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE. WARNING Plug Replacement NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 3 pin plug tted with a fuse. Should the fuse require replacement, it must be replaced with a fuse with the proper amp rating. (see Technical Specications page 4) and approved to BS1362. In the event the mains plug has to be removed/ replaced for any reason, please note: IMPORTANT: The wires in the mains lead are colored in accordance with the following code: Blue – Neutral Brown – Live Green/Yellow – Earth As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: The blue wire must be connected to the terminal marked with an N or colored black. The brown wire must be connected to the terminal marked with an L or colored red. The green/ yellow wire must be connected to the earthing terminal which is marked with an E or with the earth symbol. NOTE: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. Never connect live or neutral wires to the earth terminal of the plug. WARNING GREEN / YELLOW EarthBROWN Live FUSE 13 AmpsCORD CLAMP BLUE Neutral Plug Replacement Wiring DiagramNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Troubleshooting Problem Cause Solution Fan stays on when heat shuts off.

1. Fan runs continuously while

the heater is operating.

1. Heater is operating correctly.

Fan speed stays the same when changing settings.

1. Fan speed stays constant.

Setting changes amount of heat output only.

1. Heater is operating correctly.

Heating element does not glow red.

1. Heating element is made of

stainless steel and will not glow red to produce heat.

1. Heater is operating correctly.

Do not feel heat or air ow.

1. No power to heater.

2. Desired room temperature

3. Heater does not heat area

in front of heater, it will disperse heat throughout room to heat entire space.

1. Check power connections

/ connect heater to power supply.

2. Thermostat will shut off once

desired room temperature is reached. Heater is operating correctly.

3. Heater is operating correctly.NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

© 2018 Pinnacle Climate Technologies, Inc.

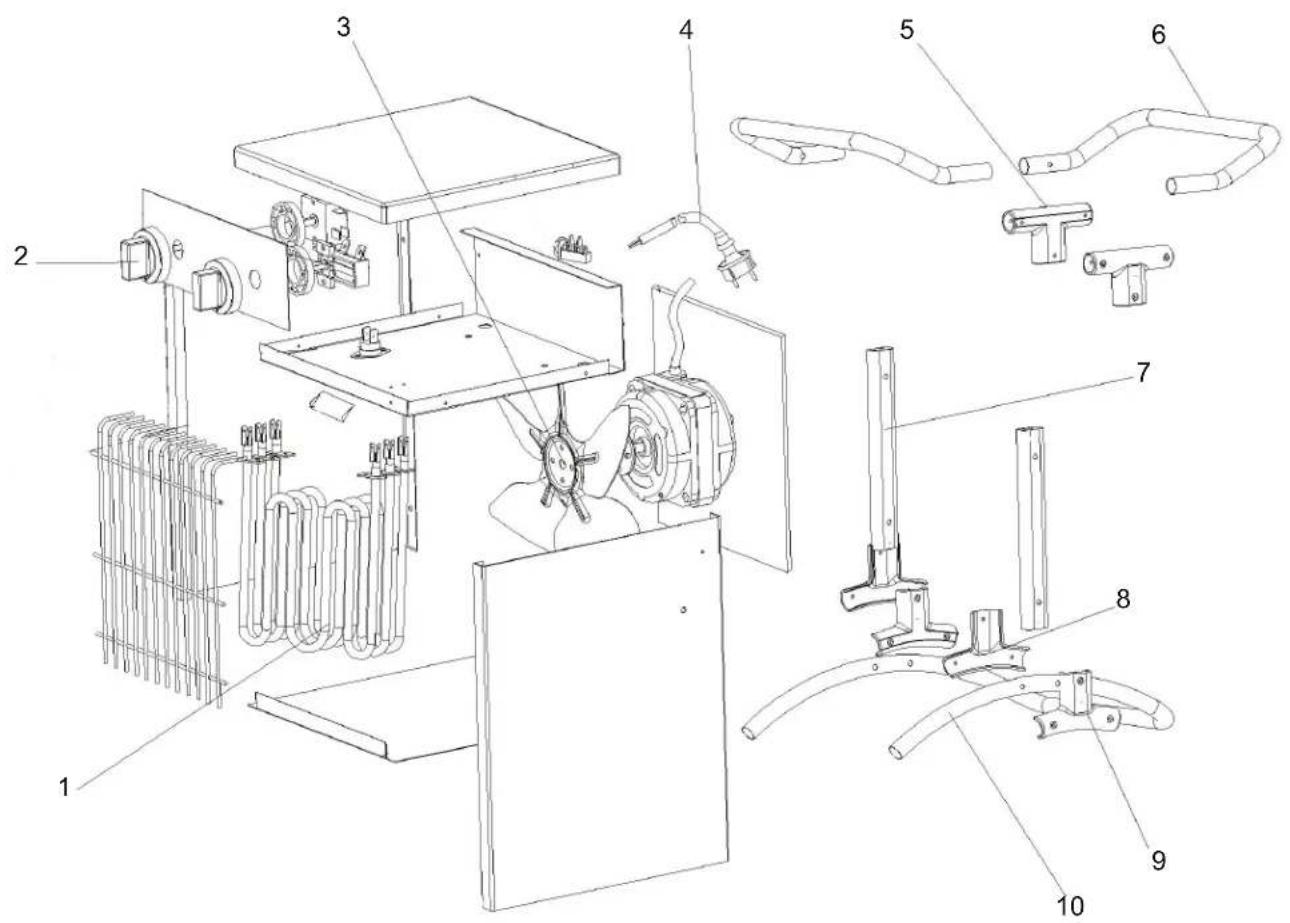

Exploded View Parts List

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Model identifier(s): PT-033-230-E; ST-033-230-E Item Symbol Value Unit

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At nominal heat output

single stage heat output and no room temperature control

two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

Contact details Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium Information requirements for electric local space heatersNEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE © 2018 Pinnacle Climate Technologies, Inc.
