Product type	Baby playpen
Brand	Lionelo
Model	Lene
Age range	0 to 36 months
Use	Indoor
Safety standard	EN 12227:2010
Mattress included	Yes
Locking system	Central and side
Carrying handle	Yes
Foldable	Yes
Assembly	Tool-free
Recommended accessories	None other than those provided
Cleaning	Damp cloth, air dry
Power supply	None (non-electric)
Manufacturer	BrandLine Group Sp. z o. o.
Contact	[e-mail]
Maximum age	36 months
Usage condition	Flat and smooth surface
Repairability	Authorized service only
Spare parts	Contact the manufacturer

Frequently Asked Questions - Lene Lionelo

How to install the Lene baby playpen?

To install the playpen, remove it from the bag and unfasten the straps. Place it on the floor, spread the legs by pulling them in opposite directions. Make sure the central lock is raised as high as possible so that the handrails click into place correctly. Pull each handrail to lock them, then press the central lock to flatten the bottom. Finally, place the mattress with the velcro facing the base.

Up to what age can my child use the playpen?

The Lionelo Lene playpen is designed for children from 0 to 36 months. However, it is not recommended to use it if the child is able to get out of the playpen on their own.

How to clean the Lene playpen?

Clean the playpen with a damp cloth, then let it air dry. Do not use abrasive products or solvents.

Is the mattress washable?

The mattress provided with the playpen can be cleaned with a damp cloth. It is not indicated that it is machine washable. Let it dry completely before reuse.

Can I use another mattress in the playpen?

No, you must only use the mattress sold with the playpen. Adding another mattress poses a strangulation risk. Never use two mattresses in the playpen.

How to fold the Lene playpen?

Remove all accessories. Pull the central handle upward. To unlock the handrails, press the buttons on each side, gently pull upward then push down. While pulling the handle, lift the floor and fold the legs. Pack the folded playpen with the mattress and fasten the straps.

Is the playpen safe for my baby?

Yes, the playpen complies with standard EN 12227:2010. It is equipped with locking mechanisms and must be used on a flat surface. Never leave the child unattended and regularly check that no parts are damaged.

What to do if a part is broken?

Do not use the product if parts are missing or damaged. Contact the manufacturer at [e-mail] for spare parts or advice. Do not attempt to repair yourself.

Can I use the playpen outdoors?

The playpen is designed for indoor use. Outdoors, do not use it in strong wind and make sure the surface is flat and free of dangerous objects.

How to secure the playpen during installation?

Before placing the child, check that all locking mechanisms are locked and that the playpen is fully unfolded. Make sure the central lock is fully pressed so the floor is flat. Do not leave anything in the playpen that could pose a risk.

USER MANUAL Lene Lionelo

Lionelo baby care kit with mesh backrest and infant blanket (no text or symbols visible)

Two grayscale satellite or spacecraft components with visible internal structures, no text or symbols present.

Two grayscale images of a bag with attached straps, shown from different angles (no text or symbols visible)

Five grayscale images showing different types of plastic or plastic meshing or folding, with arrows indicating movement or force direction (no text or symbols present)

Two grayscale photos showing a person's hand near a fabric with a small label and a close-up of the fabric interior (no visible text or symbols)

Two grayscale images showing a person in a box and another holding a pillow, with an arrow indicating the fold of change (no text or symbols present)

Two grayscale photos showing a person standing inside a transparent container, with no visible text or symbols.

Two black-and-white photos showing a person in a suit handling a large, folded garment or fabric item, with no visible text or symbols.

Two fabric puppets in grayscale, one with a long handle and the other with a long handle (no text or symbols visible)

Two grayscale images of a satellite or spacecraft module, one open and one closed, both with visible internal components (no text or symbols)

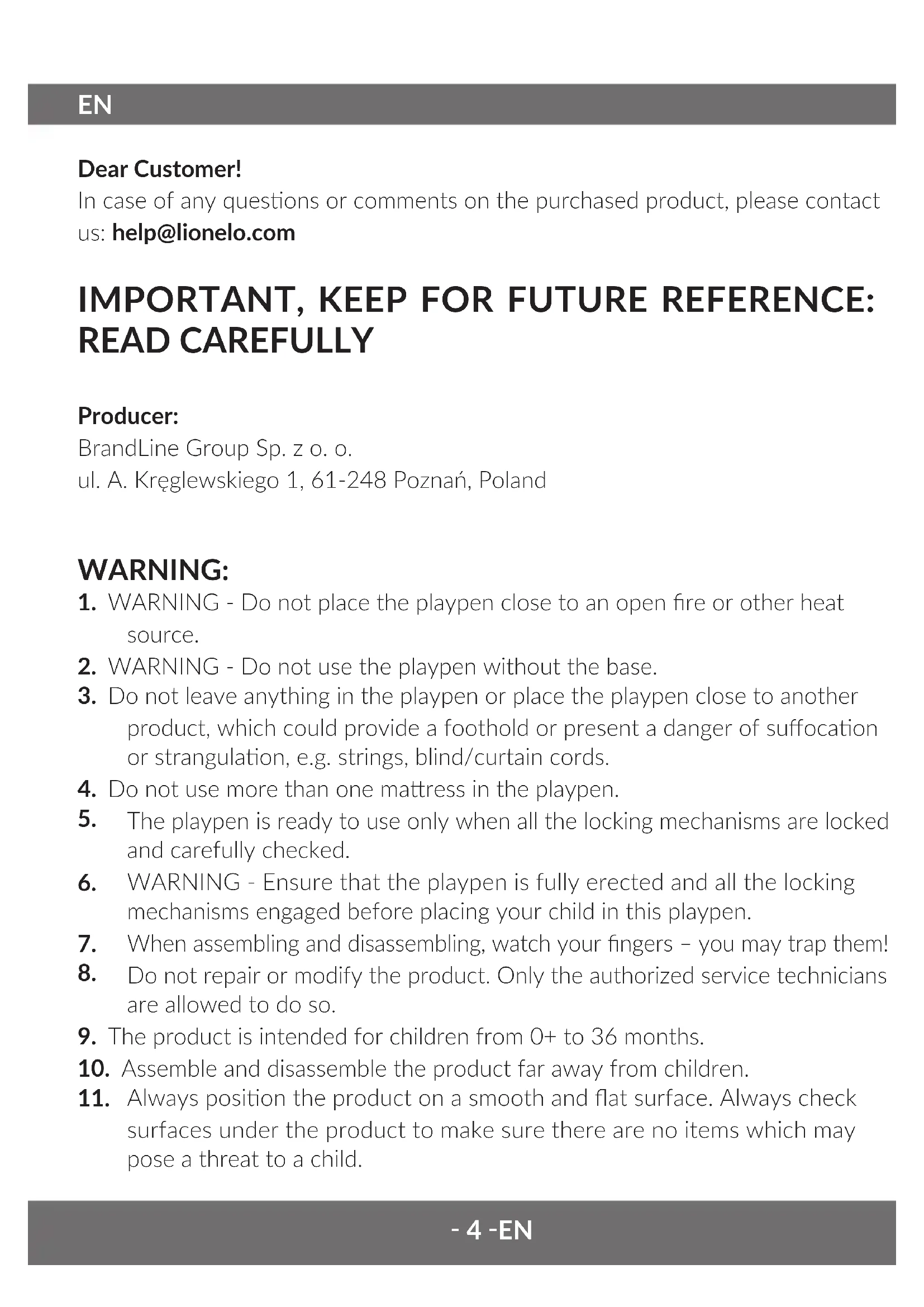

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

IMPORTANT, KEEP FOR FUTURE REFERENCE: READ CAREFULLY

Producer:

BrandLine Group Sp. z o. o.

1. WARNING - Do not place the playpen close to an open fire or other heat source.
2. WARNING - Do not use the playpen without the base.
3. Do not leave anything in the playpen or place the playpen close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords.
4. Do not use more than one mattress in the playpen.
5. The playpen is ready to use only when all the locking mechanisms are locked and carefully checked.
6. WARNING - Ensure that the playpen is fully erected and all the locking mechanisms engaged before placing your child in this playpen.
7. When assembling and disassembling, watch your fingers – you may trap them!
8. Do not repair or modify the product. Only the authorized service technicians are allowed to do so.
9. The product is intended for children from 0+ to 36 months.
10. Assemble and disassemble the product far away from children.

11. Always position the product on a smooth and flat surface. Always check surfaces under the product to make sure there are no items which may pose a threat to a child.

12. Do not cover the playpen with items which may hinder access of air or pose a threat to a child.

13. Do not use the playpen if your child is able to leave it.
14. Never leave your child unatt ended.
15. Before every use or assembly, make sure the playpen is not defective, has no loose connections, missing elements or sharp edges. Never use the product if any elements are missing or broken. In this case, contact the authorized service in order to receive replacement parts or seek advice.
16. Do not use a water matt ress.
17. Do not use a product outdoors if the wind is strong.
18. Do not use a product for other purposes than designed.
19. Accessories which are not approved by manufacturer shall not be used.
20. Do not leave any objects inside the playpen that could pose a threat of entrapment.
21. Check that all the elements are properly tightened before use.
22. Only use replacement parts that are recommended by the manufacturer.
23. The matt ress should be inserted with the Velcro down.

Simple line drawing of a rectangular frame with a horizontal bar at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at the center (no text or symbols)

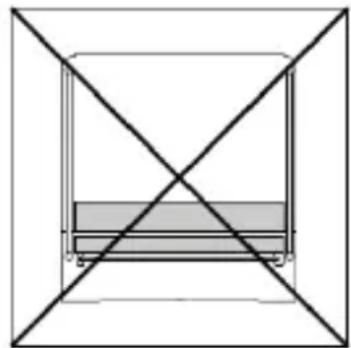

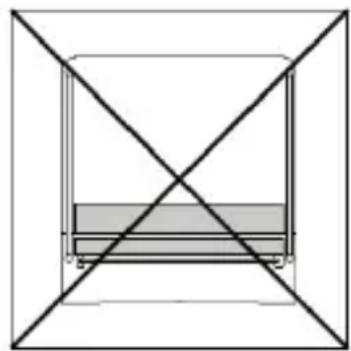

WARNING – Only use the matt ress sold with this playpen, do not add a second mattress on this one, suff ocati on hazards.

Assembly instruction

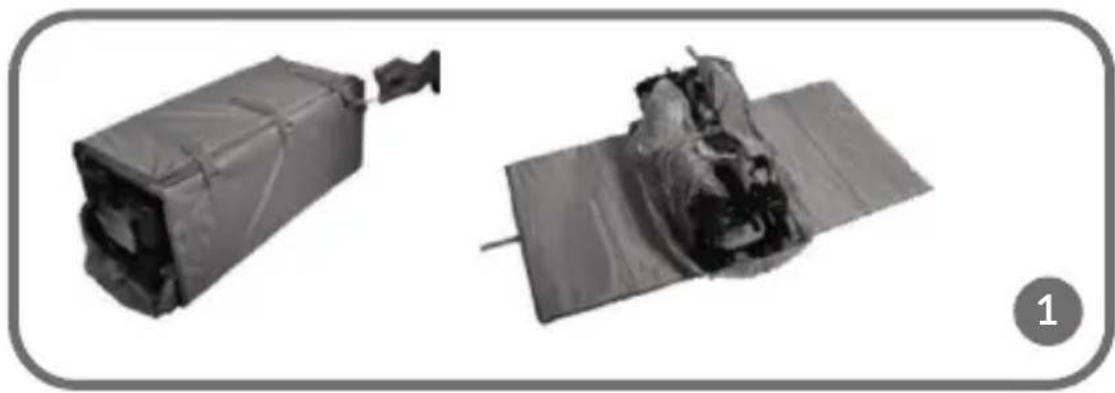

1. Take the travel baby playpen out of the bag and loosen the adhesive straps. Place the playpen on the floor and put the bag aside (see fig. 1).

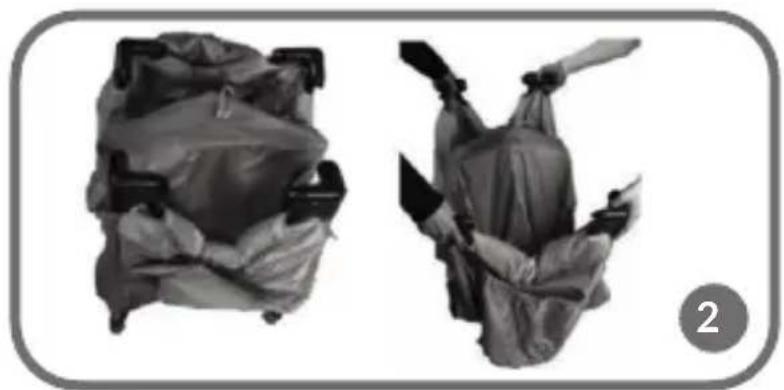

2. Separate the legs pulling them apart. Keep the central lock up. Otherwise handrails will not fit in the right place (see fig. 2).

Note! In order to properly block the sides of the playpen/handrails, you must raise the central blockade of the floor to a maximum level. The baby rails will not lock when the floor is unfolded.

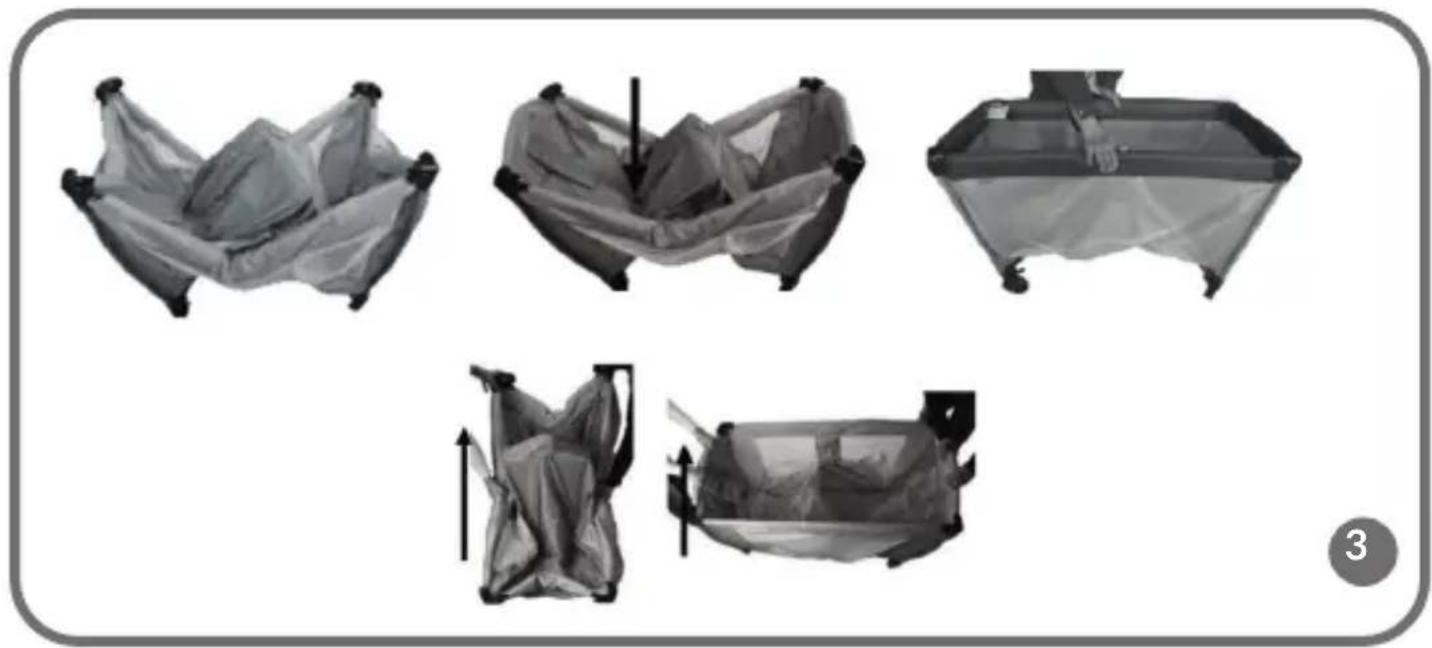

1. Pull the middle part of each top rail covered with material so that they fit into place.(see fig. 3).

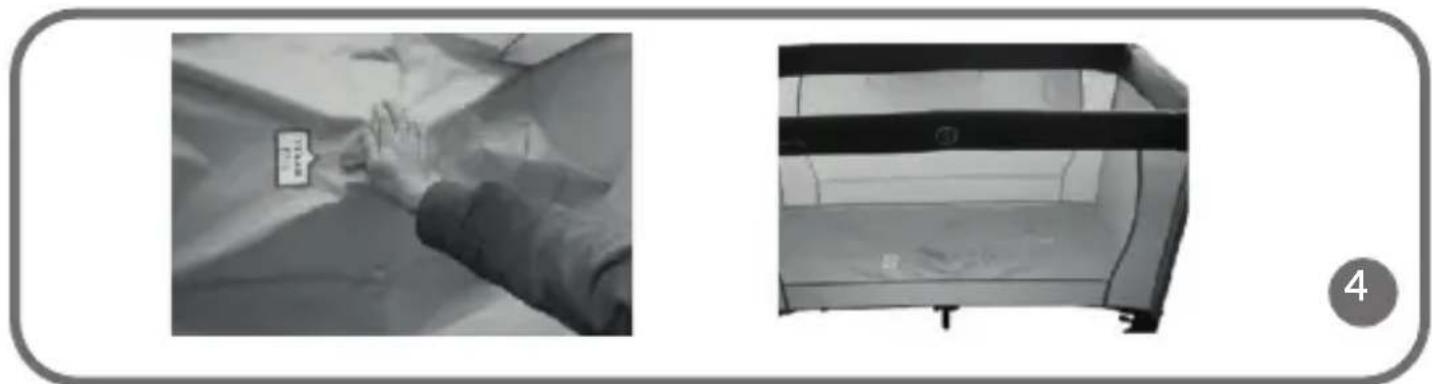

2. Push the middle lock until the surface is completely flat (see fig. 4).

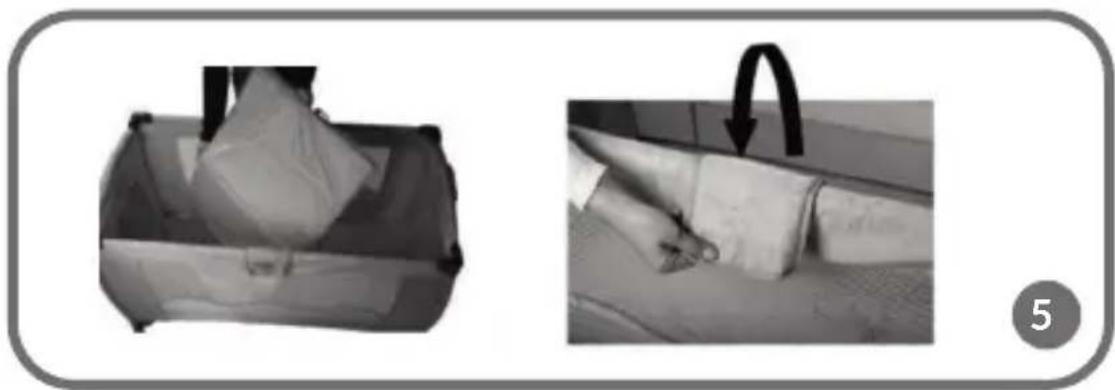

3. Place the mattress in the baby playpen (see fig. 5).

Baby playpen folding instruction

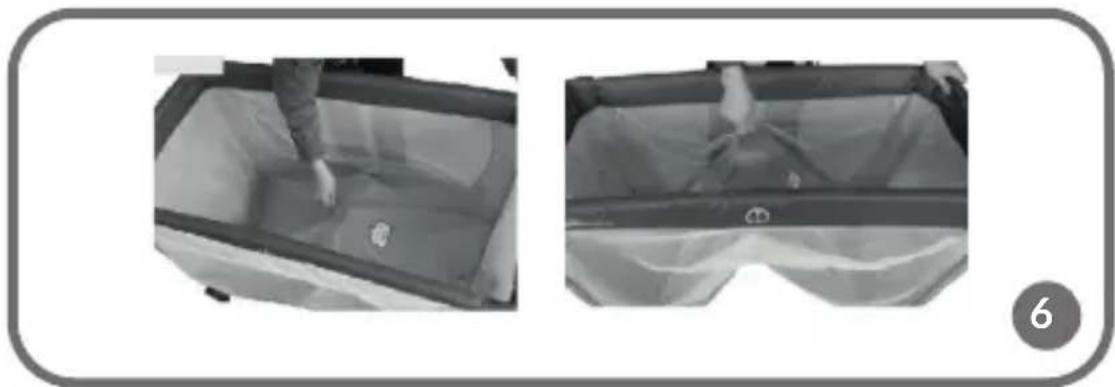

1. Remove all the playpen accessories. Grasp the center handle located in the middle of the floor and pull it up (see fig. 6).

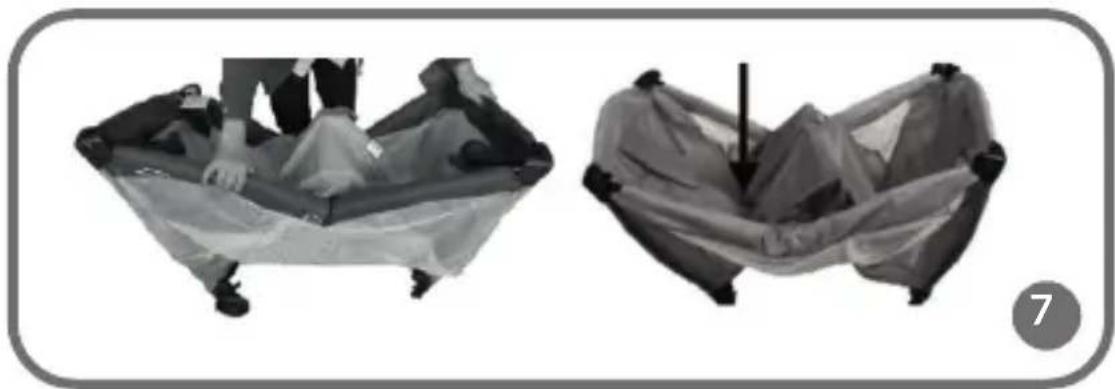

2. To unlock the upper rails, press the indicated buttons on each side of them. Pull it slightly up and then push it down (see fig. 7).

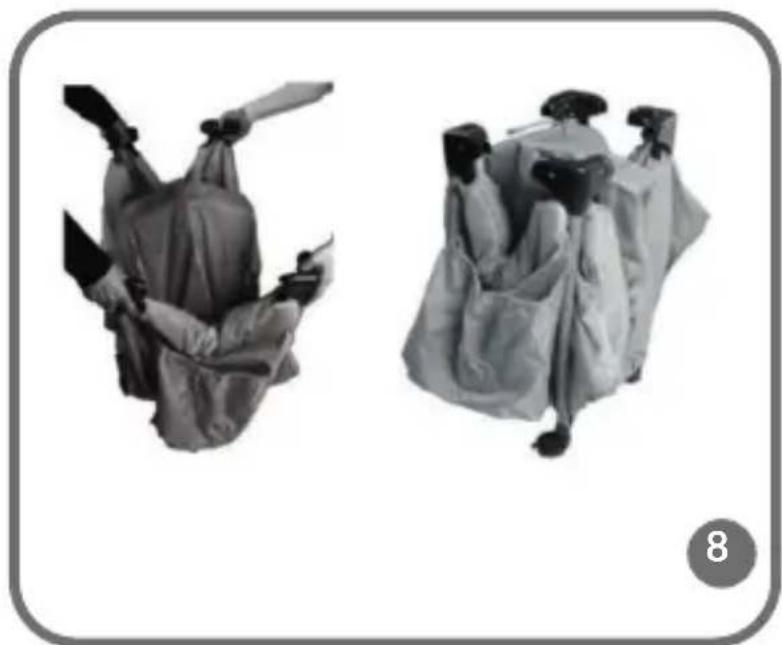

3. While still pulling up the handle, lift the floor of the baby playpen and fold the legs (see fig. 8).

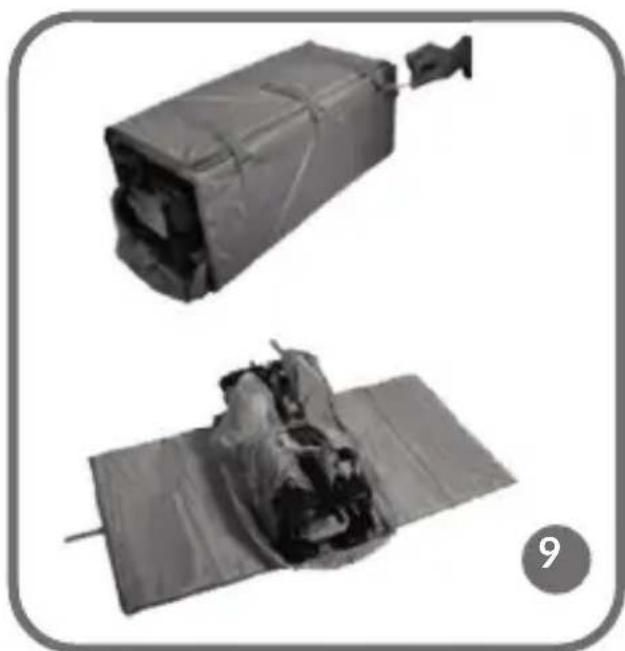

4. Wrap the folded playpen with the mattress and fasten it with Velcro straps. Put the folded baby playpen into the bag (see fig. 9).

Cleaning

Wash the product with a wet cloth and then allow to dry.

The product has been tested and meets all the requirements of the following standards: EN 12227:2010

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

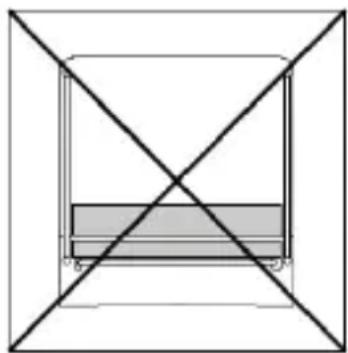

Drogi Kliencie!

Simple line drawing of a rectangular frame with a horizontal bar inside (no text or symbols)

Pure geometric diagram with intersecting lines forming a cross over a rectangle (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and an X-shaped cross-section, both without any text or symbols.

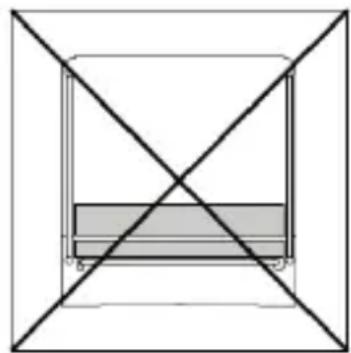

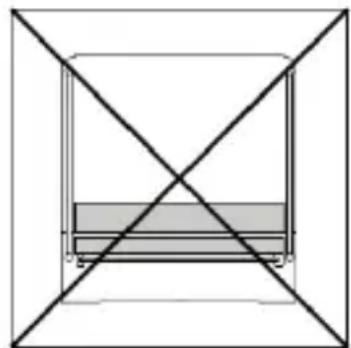

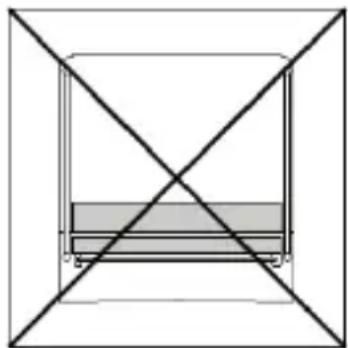

ПРЕДУПРЕЖДЕНИЕ -

Simple line drawing of a rectangular frame with a shaded horizontal bar at the bottom (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded rectangle inside a square frame (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

ADVERTENCIA -

Two technical diagrams showing a rectangular frame with a shaded horizontal bar inside, crossed by diagonal lines (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

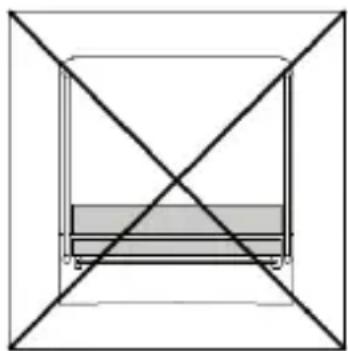

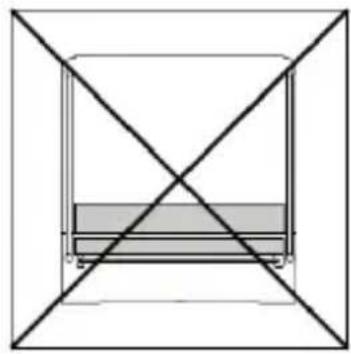

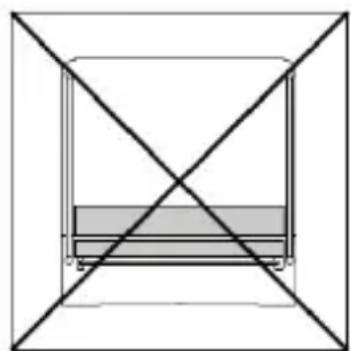

JSPĖJIMAS -

Simple line drawing of a rectangular frame with a horizontal bar inside (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded base, no text or symbols present.

Simple line drawing of a rectangular frame with a horizontal bar at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at the center (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at center (no text or symbols)

Detailed warranty conditions are available on the website:

Thank you for purchasing our product
