Irma - Stroller Lionelo - Free user manual and instructions

Product type	Stroller
Brand	Lionelo
Model	Irma
Recommended age	From 6 to 36 months
Maximum child weight	15 kg
Safety harness	Adjustable 5-point harness
Wheel type	Swivel front wheels with directional lock
Brake	Foot parking brake
Canopy	Foldable canopy with lock
Footrest	Height adjustable
Backrest	Reclining with button adjustment
Handle	Height adjustable
Basket capacity	2 kg
Frame material	Metal
Folding	Compact with locking hook
Maintenance and cleaning	Clean the frame with a damp cloth; fabric hand washable at 30°C
Safety	5-point harness, parking brake, front wheel lock, locking device

Frequently Asked Questions - Irma Lionelo

From what age can I use the Lionelo Irma stroller?

The stroller is designed for children from 6 to 36 months. The seat is not suitable for children under 6 months.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg. Do not exceed this limit.

How to fold the Lionelo Irma stroller?

To fold the stroller, first fold the canopy and set the backrest upright. Lift the rear lock with your foot, push the additional safety device down, then grab the handles and push the stroller forward. Secure the frame with the locking hook.

How to unfold the stroller?

Unhook the locking hook, unfold the stroller by raising the handles and pulling back. Then push the foot safety device down and unfold the canopy.

How to adjust the backrest recline?

Press the backrest adjustment buttons located on the right and left to set the recline angle to the desired position.

How to fasten and unfasten the 5-point safety harness?

To fasten, insert the upper straps into the buckle until you hear a click. Adjust the straps to fit the child. To unfasten, press the center button on the buckle.

Can I use the stroller for jogging?

No, this product is not suitable for jogging or rollerblading. It is designed for standard use.

How to clean the stroller fabric?

The fabric can be hand washed with a mild detergent at a maximum temperature of 30°C. Do not machine wash, bleach, iron, dry clean, or tumble dry. Let it dry completely before reuse.

How to assemble or disassemble the wheels?

To assemble the wheels, insert them into the frame until you hear a click. To disassemble, press the protective device on the wheel and remove it.

How to lock the front wheels to go straight?

To lock the front wheels, push the front wheel lock up. To unlock and allow swiveling, push it down. The lock is located on each wheel.

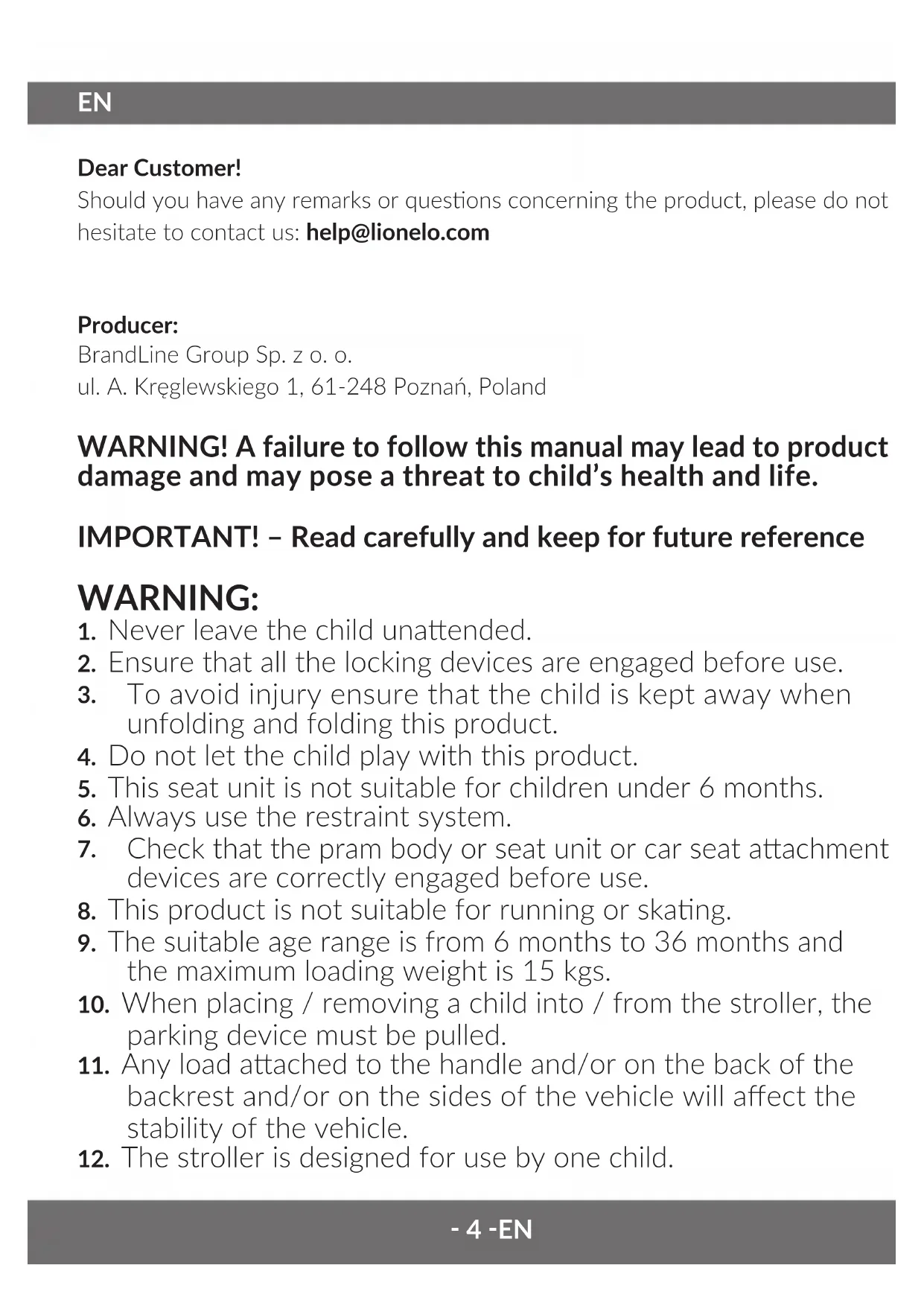

USER MANUAL Irma Lionelo

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

ul. A. Kriegewskiego 1, 61-248 Poznan, Poland

WARNING! A failure to follow this manual may lead to product damage and may pose a threat to child's health and life.

IMPORTANT! - Read carefully and keep for future reference

WARNING:

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. The suitable age range is from 6 months to 36 months and the maximum loading weight is 15~kgs .
10. When placing / removing a child into / from the stroller, the parking device must be pulled.
11. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

12. The stroller is designed for use by one child.

13. Accessories which are not approved by the manufacturer shall not be used

14. Only the spare parts supplied by the manufacturer can be used with this stroller.
15. The maximum load of the shopping basket is 2kg
16. All the components of the stroller should be regularly checked to ensure they operate properly.
17. Do not use the product on stairs

STROLLER OUTLINE

see fig. 1

1. Handle
2. Canopy
3. Lower belt
4. Safety belt
5. Footrest

6. Front wheels lock

7. Canopy lock

8. Handle
9. Backrest adjustment button
10. Parking device
11. Rear wheel
12. Front wheel

HOW TO UNFOLD THE STROLLER (fig. 2)

1. Release the locking latch.
2. Unfold the stroller by lifting handles and pulling them backwards.
3. Push down the rear protection with your foot.
4. Unfold the canopy.

HOW TO FOLD THE STROLLER (fig. 3)

1. Fold the canopy, set the seat backrest in vertical position.
2. Lift the rear lock with a foot.
3. Push down the additional protection.
4. Grab handles, push the stroller forward, secure the frame with the locking latch.

HOW TO ASSEMBLE AND DISASSEMBLE WHEELS

1. To assemble wheels, insert them in the frame until you can hear a click.
2. To disassemble wheels, press the protection fastening and take the wheel out (fig. 4).

STROLLER ELEMENTS

1. Front wheels lock

Slide the front wheel lock upwards to lock the wheels going „straight". Slide the lock downwards to make the wheels revolve. The lock is on both wheels (fig. 5).

1. Parking device

Press to lock the stroller. Lift to unlock it. (fig. 6).

1. Backrest adjustment

Press right and left backrest adjustment button to set the desired backrest angle (fig. 7).

1. Unfolding and folding canopy

To unfold the canopy, pull it to the front and press the canopy lock. To fold it, unlock fastening and fold the canopy (fig. 8).

1. Footrest adjustment

To lower the footrest, press the adjustment button on both sides. To raise it, slide buttons upwards (fig. 9).

1. Handles adjustment

To adjust handles, press the button on them and rotate to desired position (fig. 10).

SAFETY BELTS

• To fasten five-point belts, put the tip of upper belts on left and right, and then insert them into the buckle until you can hear a distinctive click.
• Adapt belts to the size of your child.
• To undo the belts, press the button on the buckle (fig. 11).

MAINTENANCE AND CLEANING

1. Daily maintenance:

2. Check condition of the stroller on a regular basis.

3. Do not place heavy items on the stroller.

4. Do not use accessories which have not been attached to the original set.

5. Fabric cleaning:

6. Use wet cloth to dust and remove soft dirt.

7. The fabric can be washed manually with a soft detergent in water at the temperature of max. 30^ .

8. The fabric must not be washed in the washing machine, chlorinated, ironed, chemically cleaned and dried in a dryer.

9. Before another use, make sure the fabric is dry.

10. Frame cleaning

11. Clean the frame with wet cloth with soft detergent.

12. Do not use strong detergents.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

PL

Drogi Kliencie!

PACKJIaIbIBAHnE KOJIaCKn (pnc 2)

1. Ocbo6oIte fHKcnpyUOu 3aueJky.
2. Pa3lojnte KoJrScy, noHnB pyuKn, a 3aTeM nOThyB ee Ha3aJ.
3. HanaBHTe HoroHa 3aHHee PpeOxpaHtBHOe yCTPOCTBO.
4. OTKINHbTe Ko3bIpe.

CKJIaIbIBAHne KOJIaCKn (pnc 3)

1. Cnojnte Ko3bipeK u yctaHOBNTe cNnHky cnJeHbY B BeptnKaJIbHoe NOLOXKeHne.
   2.ПоднIMITEЗаднФИКcaTOpHOrO.
2. CdbnHbTe doonHntbHoe npedoxpaHtBHOe yctpoCTBO BHN3.
3. Bo3bMntecb 3a pyuK, TOLKHnTe KoJScy Bnpei, 3aΦnKcnpYte paMy ΦnKcnpYUoIeN 3aIeJIkoI.

YCTAHOBKA I CHYTNE KOJEC

1. UTo6bI yCTaHOBnTb KOleca, BCTaBbTe INX B paMy, NOKa He ycIbIshnTe IeJyok 6e3OpacHocTn.
2. 4To6bI cHrTb KoIeCa, HaxMMTe Ha 3aUHTbIi 3aMOK N BbITaUHTe KoIeCa (pnc 4).

3JIEMEHTbI KOJЯCKN

1.Блokировkaпереднх кoleс
Cdbnhte fikcaTOp npeHrO KoIeca Bbepx, yTo6bl 3a6loKIpOBaTb KoIeCa «PpMo». Cdbnhte fikcaTOp Bn3, yTo6bl KoIeCa MoIi BpaataBcB BOKpycBoeO cn. bloKIpOBka paonolaraetcna DByx KoIecax (pnc 5).
2. NapkoBoHbI MexaHn3M
Haxmnte, yTo6bI 3a6loKnpoBaTb KoJcKy. POnHnMnte, yTo6bI pa36loKnpoBaTb (pnc 6).
3. Peryilipobka cinnHkn
HaXMMTe npaByIO n IeByIO KHOPIKNI peYIINPOBKN CnIHKN, YTO6bI yCTaHOBTb HxKbI HaKIOH CnIHKN (pnc 7).
4. PacklaDbIBaHne i cKlaDbIBaHne Ko3bIPbKa
Чтобп пасьг КOSTБИЕК, NOTЯНITE erо Впени и НажмITE на КНОПКУ 6лOKировки КOSTБИРьka. ChTo6bI сLOжNTb, pa3блOKирчte 3acTeЖКУ n сLOжNTe KOSTБИЕK (pnc 8).
5. PeruInpoBka noDCTaBKn IJIa HOr
UTo6bI OncyTtB NODCTaBky IJRA HOr, HaxMMTe KHOIpKy peRyJInpOBKn C o6eNX CTOpOH. UTo6bI NODHrTb, NepemeCTtE KHOIpKN BBepx (pnc 9).
6. YctaHOBka pyuek
UTo6bI yCTaHOBnTB pyuKn, HaxKMITE KHONKn paCNoJaTaIOUsnecHa pyuKax n nobepHnTe nX B ydo6Hoe noLoJKeHne (pnc 10).

PEMHN 6E3OПАСHОCTN

-Чтобы зakpenпь патиочьie peMHn,nomecnte KOHcbl BepxHnx peMnei cIeBa n cnpaba n BCTaBbTe nx B npjKKy do Tex nop, NOKa He yCblIshITe xapaKTePbI uelqok 6lOknpOBKn.
- Štrpeуліріte peMHи no pa3mepy pe6eHka.
- YTo6bI paCCTeHcyTb peMHn, HaxMnte KhoNky Ha npJxke (pnc 11).

TEXHINQUECKOE OBCJUyUNBAHNE IN YNCTKA

1. ExeДневhoeобслжИване:

2. PerúrpHo npOBepaIte coCToHne KoJЯcKn.
   He klande TjkeIbe npedMeTbHa KoJrScy.
   He nCnoIb3yIte akceccyapbl, KOToPbIe He BXoJaT BOpHnHaJIbHbI KOMnJIeKT.

3. OuNTka MaTePnana:

4. IcnoIb3yIte BlaJxHyIO TkaHb dIyJaIeHnI PbIIN IJeKnx PTeH.

5. MaTePnAл можнОMbITbВpyuHуOЯгКIMMOHUsmCpeДСТВOMВBoDECMakcImaJIbHoI TeMpepaTypoI 30^
6. MaTePnAJI HeJIb3a CTHpaTb B MaIshInHe, XIoPnPoBaTb, IlaIaNTb, XIMnueCKN YIcCTIb N CyIaNTb B CTHpaJIbHOJ MaIshInHe.

7. Перац IOВТОРнБИМ ИСПОЛБЗОВАнем КOLЯСКИ MaTeрпал ДОЛЖЕН 6ытб СУХИМ.

8. OuNTka paMbI

OuInCTIte paMy BlaXHOJ TkaHbIO N MraKIM MOUcIM CpeiCTBOM.
He nCnoIb3yIe cnIbHbIe MOIOUne cpeIcTBA.

I3o6paJxHn, npEcdTabeHHbIe B HcTpyKcN, MOryT OTnUaTbcr OTeBNTeJIbHbIX.
