USER MANUAL POWDPG8060 PowerPlus

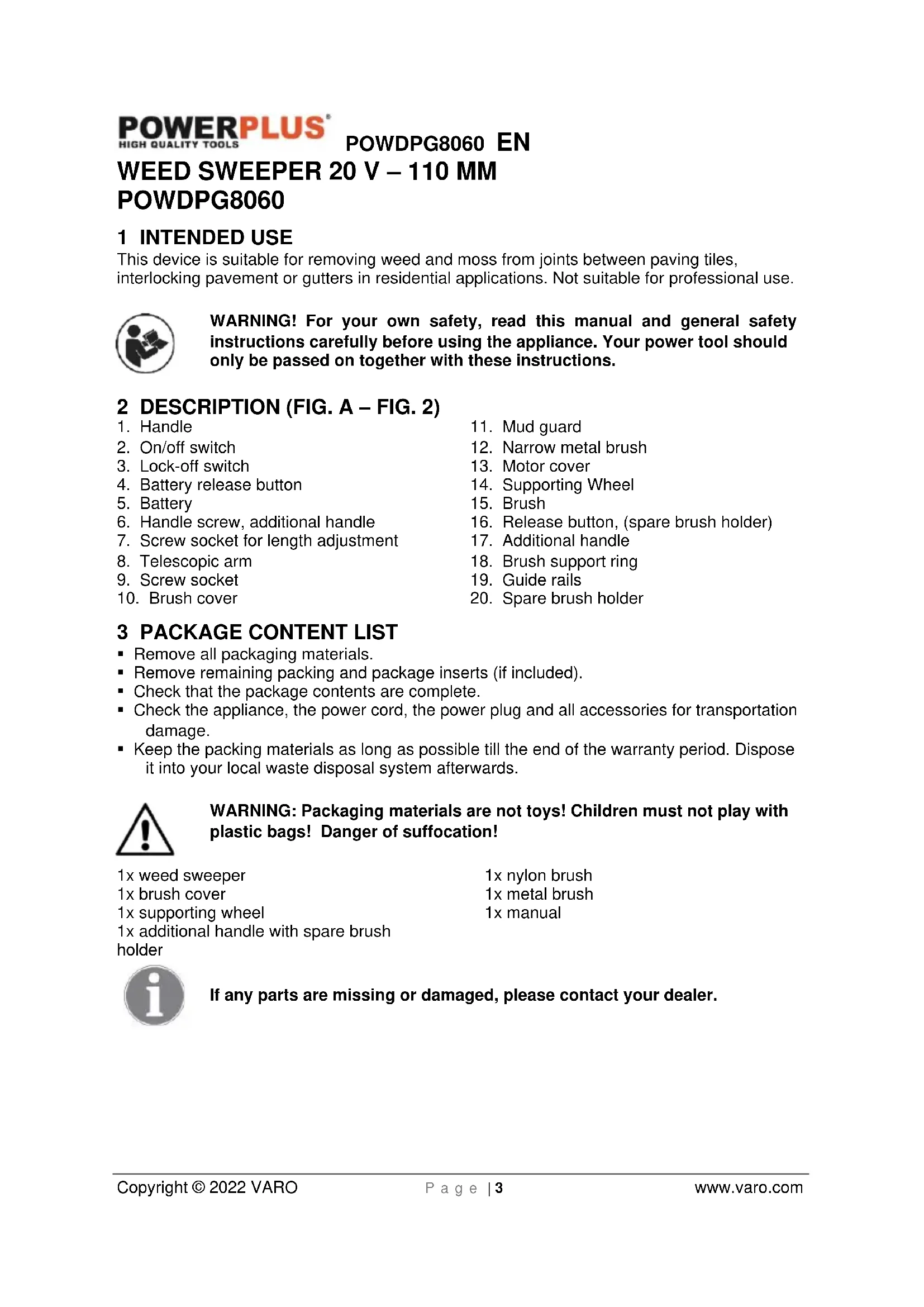

POWDPG8060 1 INTENDED USE This device is suitable for removing weed and moss from joints between paving tiles, interlocking pavement or gutters in residential applications. Not suitable for professional use. WARNING! For your own safety, read this manual and general safety instructions carefully before using the appliance. Your power tool should only be passed on together with these instructions. 2 DESCRIPTION (FIG. A – FIG. 2)

4. Battery release button

6. Handle screw, additional handle

7. Screw socket for length adjustment

14. Supporting Wheel

17. Additional handle

• Remove all packaging materials.

• Remove remaining packing and package inserts (if included).

• Check that the package contents are complete.

• Check the appliance, the power cord, the power plug and all accessories for transportation damage.

• Keep the packing materials as long as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with

plastic bags! Danger of suffocation! 1x weed sweeper 1x brush cover 1x supporting wheel 1x additional handle with spare brush holder 1x nylon brush 1x metal brush 1x manual If any parts are missing or damaged, please contact your dealer.POWDPG8060 EN Copyright © 2022 VARO P a g e | 4 www.varo.com 4 SYMBOLS In this manual and/or on the machine the following symbols are used:

Denotes risk of personal injury or damage to the tool.

Wearing of protective shoes advised.

Read instructions carefully.

Wear safety glasses and ear protection.

In accordance with essential requirements of the European directive(s).

Never operate the machine in the rain or in damp or wet condition. Moisture is a shock hazard.

Class II - The machine is double insulated; Earthing wire is therefore not necessary. (charger only)

Do not expose charger and battery pack to water.

Do not incinerate battery pack or charger.

Ambient temperature 40 °C max. (only for battery).

Use battery and charger only in closed rooms.

Electrical products must not be disposed with the domestic waste.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.

• Avoid body contact with earthed surfaces such as metal fences, metal posts. There is an increased risk of a lethal electric shock if your body is earthed .POWDPG8060 EN Copyright © 2022 VARO P a g e | 5 www.varo.com

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

• Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.

• Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.POWDPG8060 EN Copyright © 2022 VARO P a g e | 6 www.varo.com

• Have your power tool serviced by a qualified person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6 ADDITIONAL SAFETY RULES FOR WEED SWEEPERS

• Weed sweepers must not be used by children or untrained persons.

• Wear stout shoes or boots to protect your feet.

• Wear long trousers to protect your legs.

• Check the appliance before use. If it is damaged, it must not be used.

• If the unit is damaged, have the damage repaired by an authorized repair agent.

• Do not use the appliance in the presence of children and/or animals.

• Only use the appliance in daylight or with good lighting.

• Never use the appliance without the guard in place.

• Before using the appliance, remove sticks, stones, wire and other obstacles from the surface on which you intend to work.

• Only use the appliance in an upright position, with the cutting line pointing to the ground. Never switch on the appliance in another position.

• Always keep your hands and feet away from the brush.

• Avoid touching the brush.

• Before putting the appliance down, switch it off and wait for the brush to come to a complete standstill. Never attempt to bring the brush to a standstill yourself. Beware. After switching off the appliance it continues to rotate for a short time.

• Only use the type of brush recommended by the manufacturer.

• Remove the battery when you have finished, before servicing, or when the appliance is not being used.

• After use, always store the appliance safely and out of the reach of children.

• Do not use against hard objects. This could cause injury or damage the weed sweeper.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND

CHARGERS Use only batteries and chargers applicable for this machine.

• Never attempt to open for any reason.

• Do not store in locations where the temperature may exceed 40 °C.

• Charge only at ambient temperatures between 4 °C and 40 °C.

• Store your batteries in a cool dry place (5 °C-20 °C). Never store batteries in discharged state.

• It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.

• Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.POWDPG8060 EN Copyright © 2022 VARO P a g e | 7 www.varo.com

• Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows: − Carefully wipe the liquid off using a cloth. Avoid skin contact. − In case of skin or eye contact, follow the instructions below: ✓ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. ✓ In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

• Never attempt to charge non-rechargeable batteries.

• Have defective cords replaced immediately.

• Do not expose to water.

• Do not open the charger.

• Do not probe the charger.

• The charger is intended for indoor use only. 8 CHARGING AND INSERTION OR REMOVAL OF BATTERY

8.1 Charger indications

Connect the charger to the power outlet socket:

• Solid green: ready to charge.

• Flickering red: charging.

• Solid green: charged.

• Solid green and red: battery or charger damaged. Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

1. Frequently monitor the charger and battery pack while connected.

2. Unplug the charger and disconnect it from the battery pack when finished.

3. Allow the battery pack to cool completely before using it.

4. Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.POWDPG8060 EN Copyright © 2022 VARO P a g e | 8 www.varo.com

8.2 Removal / insertion of battery

WARNING: Before making any adjustments ensure the tool is switched off or

remove the battery pack.

• Hold the tool with one hand and the battery pack (5) with the other.

• To install: push and slide battery pack into battery port, make sure the release latch on the rear side of the battery snaps into place and battery is secure before beginning operation.

• To remove: Press the battery release latch and pull the battery pack out at the same time.

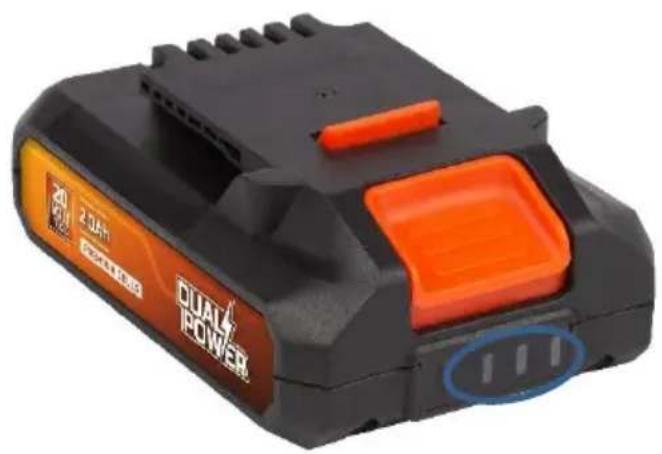

8.3 Battery capacity indicator (Fig. B)

There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button. Before using the machine, please press switch trigger (2) to check if the battery is full enough for properly working. Those 3 LED might show the status of the capacity level of the battery:

• 3 LED’s are lit: Battery fully charged.

• 2 LED’s are lit: Battery 60% charged.

• 1 LED is lit: Battery almost discharged. 9 ASSEMBLY The Weed sweeper is supplied with some components which need to be assembled. Please proceed as follows:

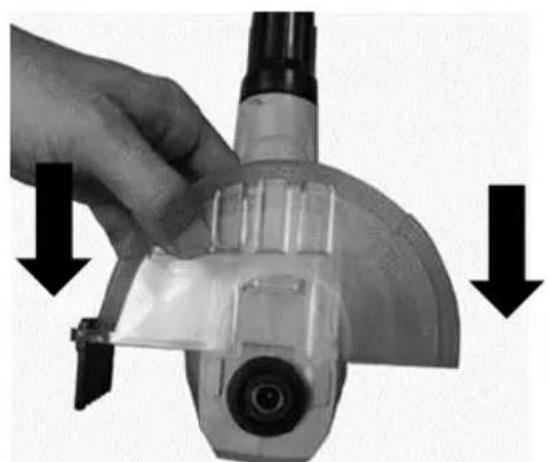

9.1 Mounting of the brush cover (Fig. 1-2)

Slide the brush cover (10) along the guide rails (19) on the motor head (13) until it clicks.

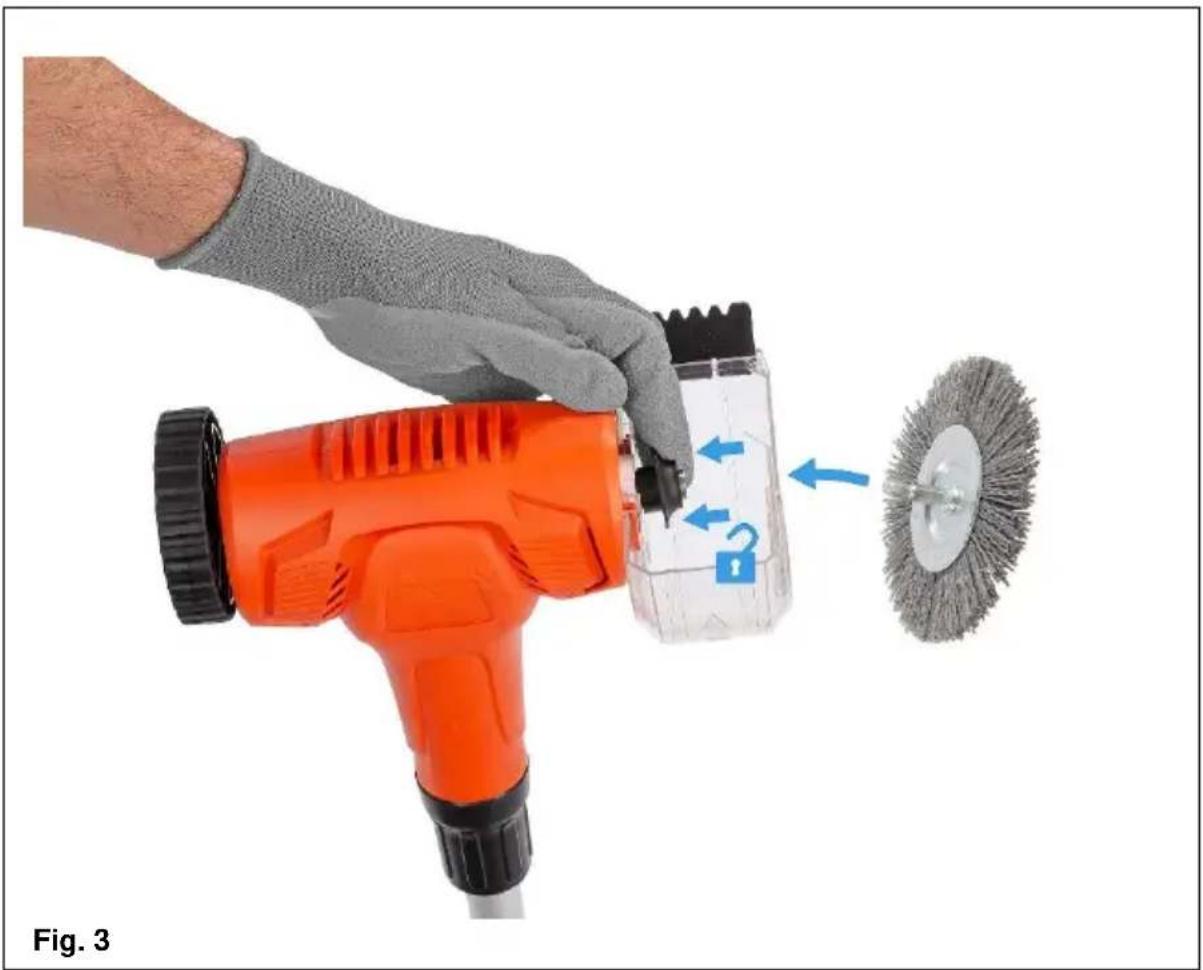

9.2 Inserting/replacing the brush (Fig. 3)

1 Push the brush support ring (18) towards the motor head (13) and insert the desired brush. 2 Release the brush support ring (18) to let it return to the initial position. 3 To remove the brush, push the brush support ring (18) and remove the brush. The spare brush is released from the spare brush holder (20) by pressing the release button (16) (Fig. 4). The spare brush is fixed into the holder by pressing the brush with the hexagon into the hexagon slot of the holder (16) until it clicks. (Fig. 4)

9.3 Mounting the additional handle (Fig. 5)

1 Unscrew the additional handle screw (6). 2 Insert the additional handle (17) into the holder underneath the handle (1). 3 The spare brush holder (20) must point towards the telescopic tube (8). 4 Screw the additional handle (17) tightly with the star-stud screw (6). 5 The additional handle is rotatable and can be adjusted in height.

9.4 Unit assembly (Fig. 6)

1 Unfasten the screw socket (7) and place the telescopic tube (8) into the screw socket (7). 2 Insert the telescopic tube (8) into the screw socket (9). 3 Turn the screw socket (9) until it is hand-tight. If the telescopic tube (8) is not tight totally, the appliance will not start!POWDPG8060 EN Copyright © 2022 VARO P a g e | 9 www.varo.com 10 OPERATION Caution: Risk of injury! Always check whether the device functions correctly before using it. When operating the joint brush, make sure to apply adequate pressure to ensure optimal cleaning results. Excessive pressure can cause damage to the device and in- creased bristle wear.

10.1 Switching on and off

1 To turn on, use your thumb to actuate the lock-off switch (3), then press the On/Off switch (2). Re- lease the lock-off switch. 2 To turn off, release the On/Off switch (2). The brush will keep rotating for a few seconds after the device has been switched off. Keep the brush away from hands and feet. Do not try to lock the on/off switch in place. Do not use the device if the switch is damaged. A damaged switch may cause an injury risk due to the motor not being switched off after releasing the on/off switch.

10.2 Length adjustment (Fig. 7)

The telescopic arm enables you to adjust the device to your individual height. Unfasten the screw socket (7), adjust the telescopic arm (8) to the desired length and re- fasten the screw socket.

10.3 Using the device

Never move the brush across tile, wood, plastic or other flooring material. The brushes could scratch or damage the surface. Operate the device at walking speed. The arrow on the brush box indicates the brush’s rotational direction.

10.4 Selecting the proper brush

For information on replacing the brush, please refer to the “assembly” instruction section. Steel Brush: select this brush for removing persistent lichenics and moss on robust grounds. Use the steel brush on robust surfaces only (road, pavement) as it may damage and/or scratch the ground. Nylon brush: select this brush for removing weed, lichenics and moss from non-robust surfaces.

• Always inspect the brush before starting the device. Never use damaged brushes. Replace any damaged or worn brush.

• Use original brushes only.POWDPG8060 EN Copyright © 2022 VARO P a g e | 10 www.varo.com

• Never operate the device in rain or on wet ground. Operating the device in rain or on wet ground can cause an electric shock.

• Always move across the slope when working on hills.

• Avoid any contact with fixed obstacles (rocks, walls, picket fences, etc.) in order to prevent damages to the device.

• Switch off the device during breaks or when transporting it and wait until the brush has completely stopped rotating.

11 CLEANING AND MAINTENANCE

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• Always keep the device clean. Do not use cleaning agents and solvents

• Clean the device, brush and splash guard with a soft brush or cloth after every use

• Keep the ventilation clean

• Only use spare parts and accessories that have been supplied or recommended by the manufacturer.

• Always inspect the equipment before it is to be used. Do not operate the equipment if safety devices, parts of the brush or bolts are missing, worn out or damaged.

• Always inspect the brush before starting the device. Never use damaged brushes. Replace any damaged or worn brush. 12 TECHNICAL DATA Type POWDPG8060 Voltage 20 V Brush size 110 mm No load speed 1400 min-1 13 NOISE Noise emission values measured according to relevant standard. (K=3) Acoustic pressure level LpA 69 dB(A) Acoustic power level LwA 86 dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A). aw (Vibration) 0,6 m/s² K = 1,5 m/s²POWDPG8060 EN Copyright © 2022 VARO P a g e | 11 www.varo.com 14 WARRANTY

• This product is warranted for a 36-month period effective from the date of purchase by the first user.

• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

• Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

• You can always obtain more information at the number 00 32 3 292 92 90.

• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

• Your purchase receipt must be kept as proof of date of purchase.

• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

• Your tool must be charged at least 1x per month to ensure optimal operation of this tool. 15 ENVIRONMENT Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.POWDPG8060 EN Copyright © 2022 VARO P a g e | 12 www.varo.com

16 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: Weed Sweeper – Battery operated Trade mark: PowerPlus Model: POWDPG8060 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature): 2011/65/EU 2006/42/EC 2014/30/EU 2000/14/EC Annex VI LwA Measured 84 dB(A) Guaranteed 86 dB(A) European harmonized standards (including, if applicable, their amendments up to the date of signature): EN62841-1 : 2015 EN55014-1 : 2017 EN55014-2 : 2015 Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO, Ludo Mertens Regulatory Affairs – Compliance Manager 15/03/2021, Lier - BelgiumPOWDPG8060 DE Copyright © 2022 VARO Seite | 1 www.varo.com

2. Interruptor On/off
