USER MANUAL RDWL917AX2000 HONEYWELL

Installation and Operation Guide

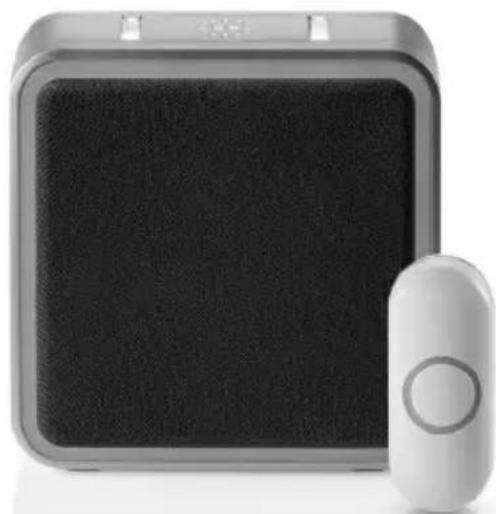

Portable Wireless Doorbell

Exterior view of a modern office building (no signage)

RDWL917AX2000

Read before installing

Preparation

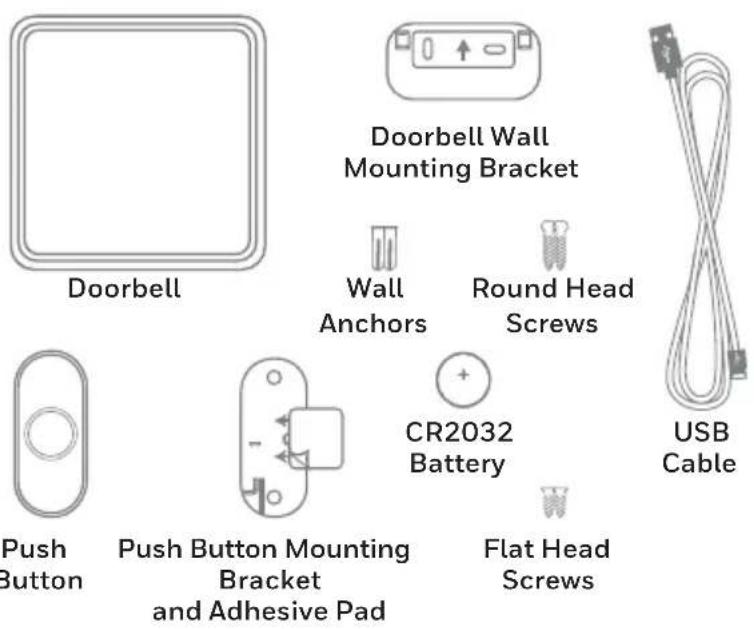

In the box you will find

Doorbell Wall Mounting Bracket Wall Anchors Round Head Screws USB Cable Push Button Push Button Mounting Bracket and Adhesive Pad CR2032 Battery Flat Head Screws

To install you will need

Phillips Screwdriver

Standard Screwdriver

Drill and 1/4 in. (6.3 mm) drill bit

4 C alkaline batteries

The push button supplied with this kit is pre-programmed to operate with the doorbell. If it is not, see "Connect a Push Button" on page 6.

Overview

Just follow these simple steps:

1. Install batteries.
2. Set up the doorbell and your preferences.
3. Install the doorbell and the push button.

Safety

Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.

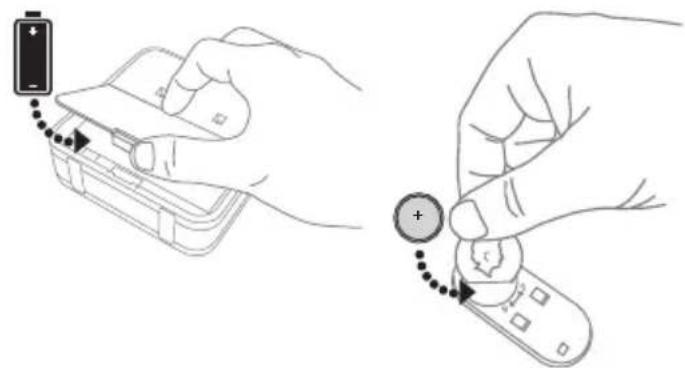

Install Batteries

1. Open the battery cover and install 4 C alkaline batteries.
2. Open the battery cover and install the CR2032 battery.

Illustration showing two hands operating a battery and a remote control device (no text or symbols present)

Setup and Operation

Press the push button to test whether it is paired with the doorbell. The doorbell will light up and ring. If it does not, see "Connect a Push Button" on page 6.

Change the Tune

Press the Music button to change the doorbell tune.

Every time you press the Music button, the tune will change.

Stop pressing the Music button when you hear the tune you want.

Illustration of a hand interacting with a smartphone screen displaying a musical note icon (no text or symbols on screen)

Ding Dong

Westminster

Piano

Fantasy

Marimba

Bell

Soft Alert

Smart Sax

Glocken

Clock-ding-dong

Contemporary

Your Tune (any MP3 file you copy to the doorbell)

Change the Light Pattern

Press the Sunlight button to change the lights that flash when the doorbell rings.

Illustration of a smartphone with a hand interacting with the screen (no text or symbols visible)

Press the Sunlight button

1 time 2 times 3 times 4 times

Diagram of a door handle with decorative elements and a close-up view of the handle (no text or symbols)

Halo light and top lights

Diagram of a door with decorative corner and side panel, no visible text or symbols

Halo light only

Diagram of a vehicle roof with a highlighted section showing a circular pattern and a magnified inset (no text or symbols)

Top lights only

Line drawing of a computer case with a close-up inset showing the internal components (no text or symbols)

No lights

Change the Halo Light Color

Press the push button.

Within 12 seconds, press the Sunlight button.

Line drawing of a hand holding a small object, no text or symbols present

Illustration of a hand holding a smartphone with a solar panel and musical note icons (no text or symbols)

Every time you press the Sunlight button, the halo light will change colors. Stop pressing the Sunlight button when you see the color you want:

Light Blue

Green

White

Purple

Red

Yellow

Dark Blue

Adjust the Volume

Press the Volume Up or Volume Down buttons to adjust the volume of the Doorbell.

Illustration of a hand interacting with a smartphone screen displaying audio and sound icons (no text or symbols)

Mute the Doorbell

Press the Mute button to silence the doorbell.

Illustration of a hand holding a device with a circular icon and directional arrows, no text or symbols present.

Set the Mute

You can also mute the doorbell for specific amounts of time. Press the Mute button...

Mute button shows Doorbell is mute
1 time		doorbell is mute
2 times		3 hours
3 times		6 hours

Mute button shows Doorbell is mute
4 times		9 hours
5 times		12 hours
6 times		no longer mute

Installation

Choose a location that is not near a heat source or on something that moves (like a door). For non-mounting locations, choose a place where the doorbell will be easy to see and hear.

Simple line drawing of a door corner with a small square object and a black checkmark on the top wall (no text or symbols)

Simple line drawing of a bookshelf with one highlighted (no text or symbols)

Simple line drawing of a door with a small square on top and an 'X' symbol above it (no text or labels)

Simple line drawing of a ladder with steam rising, a box on top, and a cross mark (no text or symbols)

Install Doorbell

If you are not mounting the doorbell to the wall, place it where you want it.

1. Screw the doorbell wall mounting bracket to the wall using the included screws and anchors (if necessary).

Drill 1/4 inch (6.3 mm) holes for the anchors.

Diagram of a mechanical assembly with screws and cylindrical components (no text or labels)

1. Hang the doorbell on the mounting bracket.

Hand holding a rectangular electronic device with a curved arrow pointing to it (no text or symbols visible)

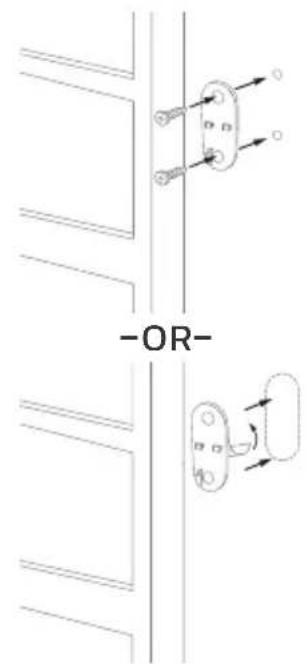

Install Push Button

1. Mount the push button bracket in the desired location. Use the screws -OR- Use the adhesive backing. If using the adhesive backing, clean the surface first.

2. Snap the push button onto the mounting bracket.

-OR-

Line drawing of a hand holding a switch with a lit fuse (no text or symbols)

Illustration of a hand holding a medical or surgical tool with an arrow indicating rotation (no text or symbols)

Note: If you need to remove the push button, use a small screwdriver to release the tab.

Accessories

You can connect up to 6 accessories to your doorbell, including other push buttons, window or door opening sensors, and motion sensors.

If you try to connect more accessories than the max number, the doorbell will sound two beeps.

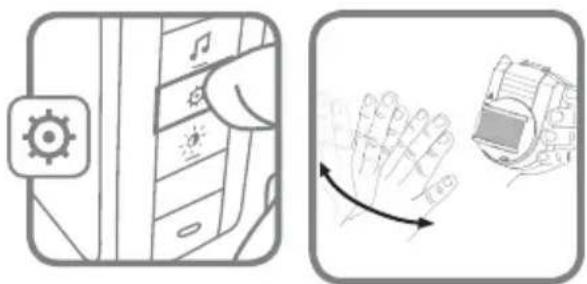

Connect a Motion Sensor

1. Press and hold the Setting button on the doorbell for three seconds.

The halo light will circle.

1. Within 20 seconds of pressing the Setting button, wave or make some other kind of motion in front of the motion sensor.

Illustration showing a phone interface with a gear icon and a hand gesture, alongside a smartwatch (no text or symbols)

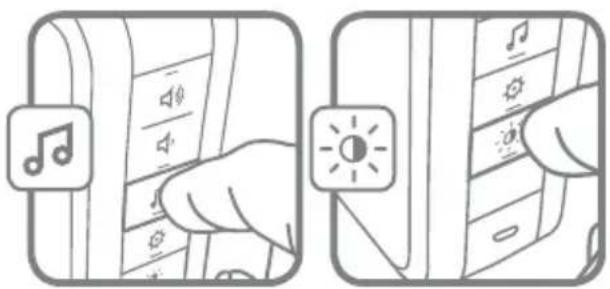

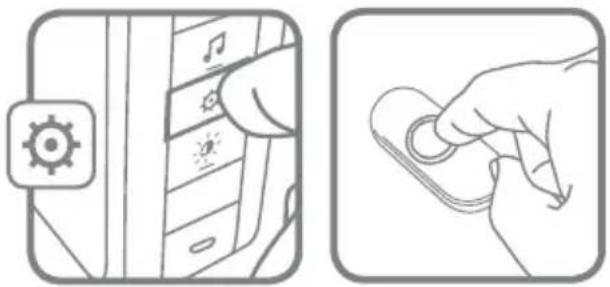

Connect a Push Button

Follow these steps to change the ring and halo light color for an existing doorbell, too.

1. Press and hold the Setting button on the doorbell for three seconds. The halo light will circle.

2. Press the push button.

3. Within 12 seconds of pressing the push button, press the Music button to select the ring for that push button.

4. Within 12 seconds of pressing the doorbell, press the Sunlight button to select a halo light color for that push button.

Illustration showing a hand holding a device with a gear icon and a close-up of its lock (no text or symbols present)

Illustration of a hand interacting with a smartphone screen displaying music keys and buttons (no text or symbols present)

Customize your Doorbell

You can customize your doorbell to play part of any song or sound you choose. You can also create a Secret Knock with a different ring.

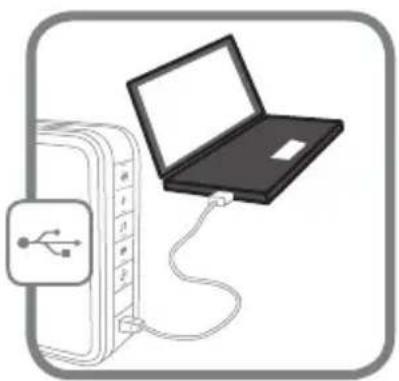

Your Tune

You can install any MP3 file as a custom tune.

1. Connect the USB cable to the doorbell, then plug it into a computer.

2. Using your computer, copy the tune you want (MP3 format only) onto the doorbell. The doorbell connects to your computer like a jump drive.

3. Follow the Change the Tune process on page 2 to select your tune.

4. Press the push button, and your tune will play for up to 15 seconds.

The USB cable can power the doorbell if it is plugged into a USB charging socket. This feature does not work when plugged into a computer.

Illustration of a laptop connected to a USB device (no text or symbols present)

Secret Knock

You can set up a Secret Knock that makes a different ring and halo light color for each push button. The Secret Knock is triggered by pressing the push button quickly 3 times.

1. Press the push button 3 times quickly.
2. Within 12 seconds of pressing the push button, press the Music button to select the ring for the Secret Knock.
3. Within 12 seconds of pressing the push button, press the Sunlight button to select a halo light color for the Secret Knock.

Maintenance

Your doorbell and push button require no maintenance except to periodically change the batteries.

If using the correct batteries, battery life should be approximately:

• Up to 5 years for the doorbell; replace with 4 C alkaline batteries
• Up to 2 years for the push button; replace with a CR2032 lithium battery

Low Battery Notification

When doorbell batteries are low the bottom edge of the halo light flashes yellow every 6 seconds until batteries are replaced.

When the push button batteries are low, two beep sounds are heard after the normal tune.

Reset

This process removes all pairings, including the push button that came with this doorbell:

1. Remove the doorbell battery.
2. Press and hold the Setting button, and replace the battery at the same time.
3. The halo light will circle, and the doorbell is returned to its factory default settings.

Specifications

Doorbell Push Button
Operating Temperature 23°F to 104°F (-5°C to 40°C) -4°F to 122°F (-20°C to 50°C)
Honeywell ActivLinkTM 916.8 MHz 916.8 MHz
Range (open field) 450 ft. (137 m) 450 ft. (137 m)
Sound Level (typical) 84dBA -
RF Power - <1.2W
Battery Type Battery 4 x LR14 (C) 1.5V each CR2032
Battery Life (5 activations/day) Up to 5 years	Up to 2 years
Rain proof	N/A	Pass UL1598 rain test.

Troubleshooting

If	Then
The doorbell does not work	1. Press the Mute button until all of the Mute lights are off.2. Make sure the correct batteries (4 C alkaline cells, 1 CR2032) are installed with the correct polarity.3. The doorbell might be out of range; try the doorbell in a different location.4. Reconnect the doorbell. See “Connect a Push Button”.
Two ‘beep’ sounds are heard after the normal tune	Replace doorbell push battery with a new CR2032.
The halo light flashes yellow at the bottom edge	Replace doorbell batteries with 4 new C alkaline batteries.
Range is reduced	1. Metal structures including uPVC door frames can reduce the range. Don’t mount the doorbell or doorbell push on or near metal structures.2. Move the doorbell closer to the doorbell push.3. Weak batteries will reduce range. In cold conditions (below 41°F [5°C]), batteries may need to be replaced more often.

For help please visit resideo.com or call 1-800-633-3991.

CAUTION: Before operating, make sure that the product components have not been damaged, have not been exposed to water or high temperatures.

FCC Regulations

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 millimeters between the radiator and your body.

IC Regulations

CAN ICES-3(B)/ NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 millimeters between the radiator and your body.

The operation of this equipment is subject to the following two conditions: (1) this equipment or device may not cause harmful interference, and (2) this equipment or device must accept any interference, including interference that may cause undesired operation.

The product should not be disposed of with other household waste. Check for the nearest authorized collection centers or authorized recyclers.

The correct disposal of end-of-life equipment will help prevent potential negative consequences for the environment and human health.

Warranty

1-year limited warranty

Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo's option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Resideo Customer Care at 1-800-633-3991. Customer Care will make the determination whether the product should be returned to the following address: Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage which occurred while the product was in the possession of a consumer. Resideo's sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-633-3991.

resideo

www.resideo.com

Resideo Technologies, Inc.

1985 Douglas Drive North, Golden Valley, MN 55422

1-800-468-1502

33-00184EFS-13 M.S. Rev. 09-20 | Printed in United States

©2020 Resideo Technologies, Inc. All rights reserved.

The Honeywell Home trademark is used under license from Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates.

Black and white barcode image with vertical lines and patterns

33-00184EFS-13

Exterior view of a modern office building (no signage)

RDWL917AX2000

Diagram showing three types of screwdriver tools with corresponding labels: plus, minus, and blank.

Tournevis cruciforme Tournevis normal Perceuse et foret de 6,3 mm (1/4 po)

4 piles alcalines C

Illustration of a hand holding a smartphone with musical notes and control buttons (no text or symbols)

Ding Dong

Westminster

Piano

Fantaisie

Marimba

Cloche

Alerte douce

Smart Sax

Glocken

Ding-dong d'horloge

Contemporain

Technical line drawing of a door or panel with decorative corner marks (no text or symbols)

Diagram of a door with decorative corner and close-up view of a knob (no text or symbols)

Halo uniquement

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a smartphone with a hand interacting with the screen (no text or symbols visible)

Line drawing of a computer case with a close-up inset showing the internal components (no text or symbols)

Aucune lumière

Line drawing of a hand holding a small object with circular elements (no text or symbols)

Illustration of a hand interacting with a smartphone screen displaying music keys (no text or symbols on screen)

Illustration of a hand interacting with a device panel, showing sound waves and musical notes (no text or symbols)

Illustration of a hand holding a device with a circular button and speaker icon (no text or symbols)

Simple line drawing of a door corner with a square object and a checkmark (no text or symbols)

Simple line drawing of a bookshelf with one highlighted (no text or symbols)

Simple line drawing of a door with a small square on the front and a cross symbol on the top right corner (no text or labels)

Simple line drawing of a roof with steam rising and a box on top, no text or symbols present

Diagram of a mechanical assembly with screws and cylindrical components (no text or labels)

Hand holding a rectangular electronic device with a curved arrow pointing to it (no text or symbols visible)

Two-step diagram showing hand positioning and tool application on a device (no text or symbols)

Accessoires

Illustration showing a mobile phone interface with app icons and a hand gesture, alongside a camera module (no text or symbols)

Illustration showing a hand holding a circular device with a gear icon, alongside a close-up of the device's screen (no text or symbols)

Illustration of a hand interacting with a smartphone screen, showing musical note icons and playback controls (no text or symbols)

Illustration of a laptop connected to a USB device (no text or symbols present)

Resideo Technologies, Inc.

1985 Douglas Drive North, Golden Valley, MN 55422

1-800-468-1502

©2020 Resideo Technologies, Inc. All rights reserved.

The Honeywell Home trademark is used under license from Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates.

Black and white barcode image with vertical lines and patterns

33-00184EFS-13

Exterior view of a modern office building (no signage)

RDWL917AX2000

Leer antes de instalar

Preparación

Empty rounded square frame with no text or symbols

Timbre

Coiled cable with two connectors at top (no text or symbols visible)

Cable USB

Pulsador

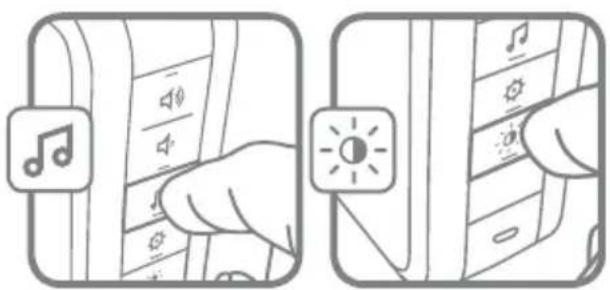

Illustration of a hand pressing down on a device panel with musical notes (no text or symbols visible)

Ding Dong

Westminster

Piano

Fantasía

Marimba

Timbre

Alerta suave

Saxofón inteligente

Campana

Reloj de pie

Contemporáneo

Illustration of a smartphone with a hand interacting with the screen (no text or symbols visible)

Technical line drawing of a door handle and adjacent door panel (no text or symbols)

Diagram of a door handle with decorative elements and a close-up inset showing a dial (no text or symbols)

Luz tipo aureola únicamente

Diagram of a vehicle roof with a highlighted section showing a circular pattern and a magnified inset (no text or symbols)

Line drawing of a computer case with a close-up inset showing a button labeled 'd1' (no text or symbols on the main diagram)

Sin iluminación

Line drawing of a hand holding a small object with a circular ring (no text or symbols)

Illustration of a hand interacting with a smartphone screen displaying music and icons (no text or symbols)

Illustration of a hand interacting with a device displaying audio and sound icons (no text or symbols)

Silencie el timbre

Illustration of a hand holding a device with a circular button, no text or symbols present

Simple line drawing of a door corner with a square object and a checkmark on top (no text or symbols)

Simple line drawing of a bookshelf with one highlighted (no text or symbols)

Simple line drawing of a door with a small square on the front and a cross symbol on the top wall (no text or labels)

Simple line drawing of a roof with steam rising and a black box above, no text or symbols present

Instale el timbre

Diagram of a mechanical assembly with screws and cylindrical components (no text or labels)

Hand holding a rectangular electronic device with a curved arrow pointing to it (no text or symbols visible)

Instale el pulsador

Two-step diagram showing hand positioning and tool application on a device (no text or symbols)

Illustration of a mobile phone interface with app icons and status bar (no text or symbols)

Illustration of a hand with an arrow indicating left motion and a close-up of the hand holding a device (no text or symbols)

Illustration of a laptop connected to a USB device (no text or symbols present)

Resideo Technologies, Inc.

1985 Douglas Drive North, Golden Valley, MN 55422

1-800-468-1502

©2020 Resideo Technologies, Inc. All rights reserved.

The Honeywell Home trademark is used under license from Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates.

Black and white barcode image with vertical lines and patterns

33-00184EFS-13
