USER MANUAL T 81 L Kärcher

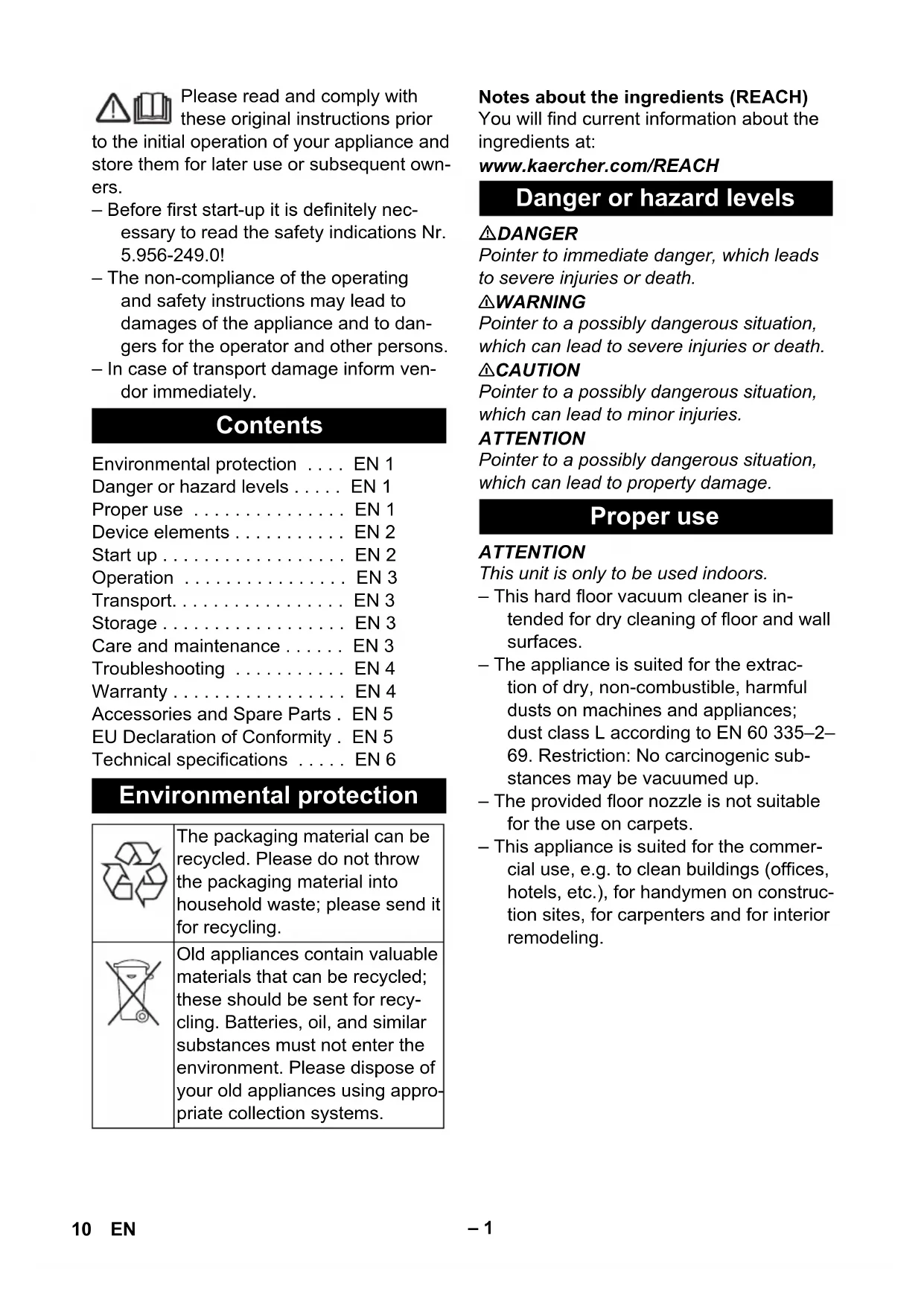

Teile-Nr. Kabellänge CH 6.650-837.0 7,5 m 9DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before first start-up it is definitely nec- essary to read the safety indications Nr. 5.956-249.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. ATTENTION This unit is only to be used indoors. – This hard floor vacuum cleaner is in- tended for dry cleaning of floor and wall surfaces. – The appliance is suited for the extrac- tion of dry, non-combustible, harmful dusts on machines and appliances; dust class L according to EN 60 335–2–

69. Restriction: No carcinogenic sub-

stances may be vacuumed up. – The provided floor nozzle is not suitable for the use on carpets. – This appliance is suited for the commer- cial use, e.g. to clean buildings (offices, hotels, etc.), for handymen on construc- tion sites, for carpenters and for interior remodeling. Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Device elements ... EN 2 Start up ... EN 2 Operation ... EN 3 Transport... EN 3 Storage ... EN 3 Care and maintenance ... EN 3 Troubleshooting ... EN 4 Warranty ... EN 4 Accessories and Spare Parts . EN 5 EU Declaration of Conformity . EN 5 Technical specifications ... EN 6 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 10 EN– 2 1 Fleece filter bag 2 Suction support 3 Suction hose 4 Carrying belt 5 Hose switch 6 Carrying handle 7 Fixing eyelets for carrying straps 8 Power cord 9 Suction head 10 Suction head lock 11 Dirt receptacle 12 Main switch 13 Floor nozzle 14 Suction tube 15 Holder for suction pipe 16 Cable clamp 17 Nameplate 18 Bender 19 Main filter basket 20 Motor protection filter DANGER – When the outgoing air is carried back into the room, a sufficient ventilation rate L in the room must be ensured. To comply with the required limit values the carried back volume flow must be 50% of the fresh air volume flow (room vol- ume V

) at maxi- mum. Without a specific ventilation sys- tem the following applies: L

– Only persons trained in the use of the machine and the handling of substanc- es for which the machine is to be used including training in the safe disposal of the sucked-in material may use the ma- chine. – This appliance contains harmful dust. Evacuation and maintenance work, in- cluding the disposal of the dust collec- tion containers, may only be performed by specialists who wear the appropriate protective equipment. – Do not use the appliance without the complete filtering system. – Please follow the safety regulations ap- plicable to the materials that are to be treated. 몇 WARNING Hazardous to health by increased release of fine dust particles! The appliance may not be operated without fleece filter bag and main filter basket. Check whether fleece filter bag and main filter basket have been inserted into the appliance. The appliance is fitted with a fleece filter bag, order no. 6.904-804.0 (10 ea.). Note: You can use this appliance to vacu- um all types of dust up to dust class L. The use of a dust collection bag is required by law. Note: The appliance is suited as industrial vacuum cleaner to take up dry, non-com- bustible dusts with AGW values greater than or equal to 1 mg/m

Device elements Symbols on the machine

WARNING: This appliance contains harm-

ful dust. The emptying and maintenance, including the removal of the dust bag, may only be executed by trained personnel wearing suitable protection equipment. Do not switch on until the complete filter sys- tem has been installed. Fleece filter bag Order No. 6.904-084.0 Main filter basket Order No. 2.889-099.0 Safety instructions Start up 11EN– 3 Release and remove the suction head. Remove the main filter basket. Insert the fleece filter bag. Insert main filter basket. Insert and lock the suction head. Plug in the mains plug. Switch on the appliance at the main switch. Perform the cleaning operation. Switch off the appliance at the main switch. Pull out the mains plug. Empty the container. Vacuum and wipe the appliance inside and outside with a damp cloth. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Dust extracting machines are safeguards for the prevention or elimination of hazards defined in the regulations of BGV A1. – In order to carry out maintenance work, the user must disassemble, clean and service the unit, in so far as this is pos- sible without endangering maintenance personnel and other persons. Suitable precautions include decontamination before the unit is disassembled. Pre- cautions must be taken for local filtered forced air ventilation at the place where the unit is disassembled, the cleaning of the maintenance surface and suitable protection of the personnel. – The outside of the unit should be cleaned thoroughly and any harmful substances removed. Alternatively, a sealed coating may be applied before the unit is removed from the danger ar- ea. All unit parts are to be considered contaminated when they are removed from the danger area. To avoid distribu- tion of the dust, you must take the ap- propriate measures. – In the framework of maintenance and repair work all contaminated objects that cannot be cleaned satisfactorily must be disposed of. Such objects must be disposed of in impermeable bags in accordance with the valid provisions for the disposal of such waste. 몇 WARNING Safety equipment for preventing hazards must be serviced and maintained regularly. This means that the manufacturer's staff or persons trained by the manufacturer must check the equipment for proper functioning at least once a year, i.e. check for leaks, fil- ter damage, etc. ATTENTION Risk of damage! Do not use detergents containing silicone to clean. Installation of the filter bag Operation Turning on the Appliance Cleaning operations Turn off the appliance After each operation Transport Storage Care and maintenance 12 EN– 4 – No outside help is required for carrying out basic maintenance and cleaning. – The appliance surface and the inside of the container should be cleaned regu- larly using a damp cloth. DANGER Risk due to dust hazardous to health. Al- ways use disposal clothing and P2 or higher breath-safe masks while carrying out main- tenance tasks (such as changing filters). Main filter basket (washable), clean it under running water if necessary. ATTENTION Risk of damage! Never insert the main filter basket while wet. Release and remove the suction head. Remove the motor protection filter. Insert new motor protection filter. Insert and lock the suction head. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Note: In case of a failure (e.g. filter break- age) the appliance must be turned off im- mediately. The failure must be remedied before the appliance is put into operation again. – Motor thermal protector has responded. Replace fleece filter bag. Replace motor protection filter. Check all parts for plugging. Switching back on after the motor turbine has cooled off, after approx. 30 to 40 min- utes. Check the receptacle and the fuse of the power supply. Check the power cable and the power plug of the device. Turn on the appliance. Remove choking of suction nozzle, suc- tion tube or suction hose. Replace fleece filter bag. Clean the main filter basket under run- ning water. Insert/lock the suction head correctly. Replace defective suction hose. Replace motor protection filter. Insert main filter basket to establish a sealing effect between dirt receptacle and the suction head. Replace fleece filter bag. Check the fleece filter bag. Insert/lock the suction head correctly. Insert undamaged main filter basket. Reinsert motor protection filter correctly. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Clean main filter basket Replace motor protection filter Troubleshooting The appliance shuts off during the operation Suction turbine does not run Suction capacity decreases Dust comes out while vacuuming Customer Service Warranty 13EN– 5 Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. Order no. 2.889-126.0 Illustration We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.966-384 The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: [phone] Fax: [phone] Winnenden, 2017/01/01 Accessories and Spare Parts Set of castors EU Declaration of Conformity Product: Dry vacuum cleaner Type: 1.527-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU 2009/125/EC Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 2015 EN 60335–1 EN 60335–2–69 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 EN 60312: 2013 Applied national standards

0,2 Eco design as per 666/2013 Energy efficiency category -- A Indicative annual energy consumption kWh/a 27,0 Hard floor cleaning class -- D Dust emission class -- D Sound power level L WA, dB(A) 76 Rated power input W 850 Power cord H05VV-F 2x1,0 mm
