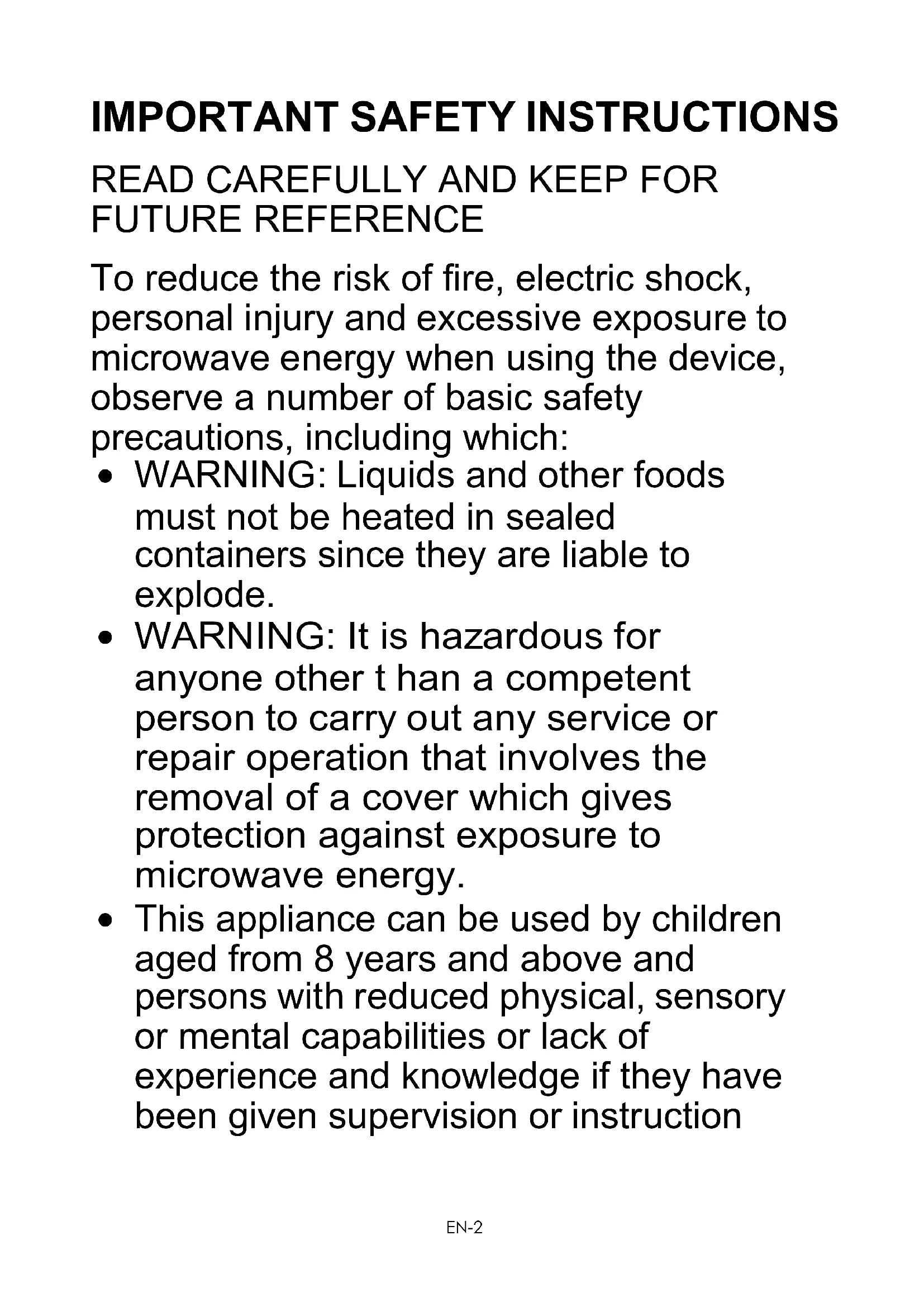

USER MANUAL SCMWN20SDW SCHNEIDER

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

WARNING: Liquids and other foods

must not be heated in sealed containers since they are liable to explode.

WARNING: It is hazardous for

anyone other t han a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructionEN-3 concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Refer to the section "Instruction for use" on page 14 and paragraph

"Cleaning and maintenance" on page 25.

Make sure the device and the power cable are out of reach of children under 8 years.

Only use utensils that are suitable for use in microwave ovens.

The microwave oven should be cleaned regularly and any food deposits removed.

Please read and follow these instructions: "PRECAUTIONS TO

When heating food in plastic or paper containers, keep an eye on the microwave oven due to the possibility of ignition.

If smoke is observed, switch off or unplug the appliance and keep the doorEN-4 closed in order to stifle any flames.

Do not use the microwave oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the microwave oven.

Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the microwave oven.

Install or position the microwave oven in accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave a minimum gap of 30 cm above the microwave oven and 20 cm between the microwave oven and each wall. Refer to the section "Installation" on page 10.

Eggs in their shell and whole hard- boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

This device is intended solely fordomestic use.

If the supply cord is damaged, it mustEN-5 be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not use and do not store the device outdoors.

Do not use this microwave oven near a place where there is water, in a wet basement or near a swimming pool.

Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the microwave oven vents.

Do not leave the cable hanging from a table edge or counter.

If the microwave oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave o ven, and the contents of the temperature should be checked before consumption.

Liquid heated microwave oven mayEN-6 boil suddenly after being baked. Handle containers with care.

Appliances are not intended to be operated by means of an external timer

separate remote-control system.

Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

The appliance shall not be cleaned with a steam cleaner.

The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the microwave oven.

Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a temperature sensing probe.)

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be left-out unless they are supervised at all times.

The back of the device must be placed against a wall.EN-7

The microwave oven should not be installed in a closet.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.

are damaged, the microwave oven must not be operated until it has been repaired by a competent person.

This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential environments;

bed and breakfast type environments.

Microwave heating of beverages canEN-8 result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragraph of the user manual.

Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance must not be placed in a cabinet.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.EN-9

WARNING: When the appliance is

operated in the combination mode, children should only use the microwave oven under adult supervision due to the temperatures generated.

The microwave oven is intended to be used freestanding. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.EN-10 Installation

Select a level surface with a sufficient open space for the inlet openings and / or air outlet. (1) The minimal mounting height is 85 cm. (2) The back of the device must be placed against a wall. Leave a minimum gap of 30 cm above the microwave oven and 20 cm between the microwave oven and each wall. (3) Do not remove the feet underneath the microwave oven. (4) Block the inlet and / or air outlet apertures may damage the microwave oven.EN-11 (5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

Plug your microwave oven into a wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit.

WARNING: Do not install microwave

oven over a cooktop or other device that produces heat. If the microwave oven is installed near or above a heat source, it may cause damage and void your warranty. Caution, hot surface. The surfaces are liable to get hot during use.EN-12 Disposal and environmental responsibility In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information. Read the instructions carefully before use. This product complies with the requirements of Directive 2014/35/ EU (repealing Directive 73/23/EEC as amended by Directive 93/68/ EEC) and 2014/30/EU (repealing Directive 89/336/EEC). IMPORTANT It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person. If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents. For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard.EN-13

Description of your product

Door lock system The microwave oven door must be properly closed for it to operate.

Viewing window Allows the user to see the cooking status

Rotation axis The glass turntable rests on the axis; the motor below drives the turntable to turn.

Rotating ring The glass turntable rests on its wheels; it supports the turntable and helps it to balance when rotating.

Turntable The food is placed on the turntable, its rotation during operation allows the food to cook evenly. WARNING

First place the rotating ring

Fit the turntable on the axis of rotation and make sure that it is correctly positioned.

Control Panel See below in detail (control panel is subject to change without notice)

Waveguide cover It is located inside the microwave oven, next to the control panel wall. WARNING Never remove the Waveguide mica plateEN-14 Instructions Control panel Microwave power Exp ress

to cooking Pause / Stop Sta

BEFORE COOKING The light blinks 3 times when plugged into the power supply. Then flashes ":", asking you to enter the menu and the cooking time.

You can increase or decrease the cooking time and weight during operation by turning the knob.EN-15

PAUSE / CANCEL At the initial or entry stage: press this button once to cancel the entry programs and resume the initial stage. During cooking: press once to interrupt microwave oven operation, press twice to cancel cooking programs.

AUTOMATIC RECALL When your preset cooking procedure is complete, the LED display will show End and three beeps will sound to ask you to remove the food. If you do not press the Pause / Cancel button once or if you do not open the door, the buzzer will sound at 3 minute intervals.

START In standby mode, press the start button, the microwave oven starts cooking at high power; the system default cooking time is 1 minute. You can increase or decrease the cooking time by turning the knob.

The Defrost / Time button allows you to enter the current time or the preset time when ":" flashes on the LED display after plugging in, or to try to ignore it to continue if necessary. Example: to set 12:30 Steps Display

After power on, the screen flashes. 1:00

Press and hold the Defrost / Clock button for 3 seconds. 1:00

Turn the Time / Weight knob to set the exact hours. 12:00

Press the Defrost / Clock button again. 12:00

Turn the Time / Weight knob to set the exact minutes. 12:30

Press the Defrost / Clock button again or wait 60 seconds and the digits will be displayed regularly.

MICROWAVE COOKING This function is intended for cooking and heating food. Press the Microwave Power button, the LED display will show 100P-80P-60P - 40P- 20P.EN-16 High power 100% microwave power. Applicable for quick and complete cooking High average power 80% microwave power. Applicable for medium express cooking Intermediate 60% microwave power. Applicable for steamed food Medium low power 40% microwave power. Applicable for defrosting food Low power 20% microwave power. Applicable to keep warm WARNING

The maximum adjustable time is 60 minutes.

Never run the microwave empty.

At maximum power the microwave automatically reduces the power after a certain cooking time to extend the life of the appliance.

If you turn the food during operation, press the Start button once and the preset cooking procedure continues.

If you intend to remove the food before the preset time, you must press the Pause / Cancel button once to clear the preset procedure to avoid unintentional use of the next one. Example: Bake at P80 for 10 minutes. Steps Display

After power on, the screen flashes. 1:00

Select the desired microwave power by successively pressing the Microwave power button. 80P

Adjust the cooking time by turning the Duration / Weight knob 10:00

Press the start button and the countdown LED to indicate the run time.EN-17

EXPRESS Press the Express key. The LED display will show 0:30, 1:00, 1:30. This function will allow you to heat a cup of water or other drink in a simple way, by skipping the time setting steps. Choose the right time depending on the amount of liquid. Example: Cook with Express mode for 1 minute Steps Display

After power on, the screen flashes. 1:00

Consecutively press the Express button to select the desired menu 1:00

Start cooking by pressing the Start button

DEFROST This function is used to defrost food. Press the Defrost / Clock button and the LED display will show d.1-d.2-d.3. d.1 For thawing meat, the weight varies from 0.1 to 2.0 kg. d.2 To thaw poultry, the weight varies from 0.2 to 3.0kg. d.3 To thaw seafood, the weight varies from 0.1 to 0.9kg. WARNING

It is necessary to turn the food during operation to achieve a uniform effect.

Usually, defrosting takes longer than cooking food.

If the food can be cut with a knife, the thawing process can be considered complete.

Microwaves penetrate about 4 cm into most foods.

Thawed foods should be eaten as soon as possible, it is not advisable to put them back in the refrigerator and freeze them again.EN-18 Example: To defrost 0.4 kg of poultry Steps Display

After power on, the screen flashes 1:00

Press the Defrost / Clock button once to set the food type. d.2

Turn the Duration / Weight knob to set the defrost weight.

Start cooking by pressing Start

During defrosting, a beep will sound twice to ask you to turn the food. Open the door and turn the food over. Close the door. Press again press the Start button to continue defrosting.

AUTOMATIC COOKING The microwave oven has a default cooking menu for ease of use. When the display flashes two dots, turn the automatic cooking knob and the display will show A.1,A.2A.8 ........................................... Choose the appropriate menu according to the type and weight of the food and strictly follow the indications in the table below, so that the desired cooking result is obtained.EN-19 Display Food type Method A.1 Pop corn Suitable for popping a sachet of popcorn, available on the market, with a weight of 0.1 kg. A.2 Warm up Reheat 0.2 to 1.0 kg food. A.3 Drink Heating 1 to 3 cups of liquid. The the liquid to be heated must be at room temperature. A.4 Pizza Heat 1 to 2 pieces of cold pizza. AT 5 Apple earthen Cooking potato, cut into 5mm. The total weight is about 0.45 or 0.65 kg. Place the sticks on a large plate and cover the plate with a thin film to prevent water loss. A.6 Vegetables In all, five choices are available to you (0.1kg, 0.2kg, 0.3kg, 0.4kg, 0.5kg) A.7 Meat In all, five choices are available to you (0.1kg, 0.2kg, 0.3kg, 0.4kg, 0.5kg) AT 8 Fish In all, five choices are available to you (0.1kg, 0.2kg, 0.3kg, 0.4kg, 0.5kg)EN-20 WARNING

The temperature of the food before cooking would be 20-25 ℃. A higher or lower temperature of the food before cooking would require an increase or decrease in the cooking time.

The temperature, weight and shape of the food will have a great influence on the cooking effect. If you notice a deviation from the factor given in the menu above, you can adjust the cooking time to get the best result. Example: Steam 0.5 kg of fish Steps Display

After power on, the screen flashes. 1:00

Turn the Duration / Weight knob to adjust the set weight

Start cooking by pressing the Start button, and the LED will count down to indicate the cooking time.

AUTOMATIC START (Delayed start) If you do not want the menu to be started immediately, you can preset the menu and cooking time and the preset menu will be automatically started at the set time. The adjustment consists of 2 steps:

Setting the current clock;

Setting the menu and cooking time.EN-21 Example: Now it is 12:30 p.m., if you want the microwave oven to automatically start cooking with 100P power for 9 minutes and 30 seconds at 2:20 p.m. Steps Display

After power on, the colon blink 1:00

Press and hold the Defrost / Clock button for 3 seconds. 1:00

Set the time by turning the knob Time / Weight 12:00

Press the Defrost / Clock button again to confirm the hours. 12:00

Set the minutes by turning the Duration / Weight knob 12:30

Press the Defrost/Clock key to start immediately or wait 10 seconds for it to start automatically. 12:30

Set menu and cooking time

Select the cooking power by pressing the Microwave power button 100P

Turn the Duration / Weight knob to set the cooking time 9:30

Press and hold the Defrost / Clock button for 3 seconds to return to the current clock.

Set the time you expect to start. Repeat steps 1.2, 1.3, 1.4

Press the Defrost / Clock button to confirm the delayed menu. The program is now activated. And the menu will start at 2:20 p.m.

MULTI-SEQUENCE COOKING For best cooking results, some recipes require different cooking modes and times. You can program your personalized menu as follows: Example: You want to cook the food in the microwave 100P for 3 minutes and then 20P for 9 minutes. These are 2 sequence settings. Steps Display

100P in the microwave for 3min

Press the Microwave Power button to select the power level. 100P

Turn the Duration / Weight knob to set the cooking time. 3:00

Press the Microwave Power button to select the desired menu 20P

Turn the Duration / Weight knob to set the cooking time. 9:00 am

Start cooking by pressing Start WARNING

When the microwave cooking at high power (100P) is finished, the microwave automatically goes through the second cooking sequence.

Max 4 sequences can be set per time, repeat the steps.

CHILD SAFETY Use this function to lock the control panel when cleaning or so that children cannot use the microwave oven without supervision. All buttons are rendered unusable in this mode.

Set the lock: Press and hold the Pause / Cancel button for about 3 seconds.

Cancel the lock: Press and hold the Pause / Cancel button for about 3 seconds.EN-23 UTENSILS DIRECTIVE It is strongly recommended to use suitable and safe containers for microwave cooking. As a general rule, containers made of ceramic, glass or heat-resistant plastic are suitable when cooking in the microwave. Never use metal containers for microwave cooking and combination cooking, as sparks are likely to occur. You can take the table reference below. Material of the container Microwave Notes Heat resistant ceramic Yes Never use ceramics decorated with a metallic edge or glazed. Heat resistant plastic Yes Cannot be used for long time microwave cooking Heat resistant glass Yes Plastic film Yes It should not be used when cooking meat or chops as overheating can damage the film. Grill rack

Container made of metal

It should not be used in a microwave oven. Microwaves cannot penetrate through the metal. Bamboo wood and paper

Low heat resistance. Cannot be used for high temperature cookingEN-24 COOKING TIPS The following factors can influence the cooking result: Food arrangement Place the thicker parts towards the outside of the dish, the thinnest part towards the center and spread it out evenly. Do not overlap if possible. Cooking time Start cooking with a short time setting, evaluate it after the allotted time and extend it according to actual needs. Overcooking can cause smoke and burns. Even cooking of food Foods like chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if necessary, stir from the outside towards the center of the dish once or twice during cooking. Plan a waiting time After the cooking is finished, leave the food in the microwave oven for a suitable length of time, which allows them to complete their cooking cycle and gradually cool them down. If the food is cooked The color and hardness of the food helps determine if it's done, including:

Steam escapes from all parts of the food, not just from the edge.

Poultry joints can be moved easily

Pork or poultry shows no signs of blood

The fish is opaque and can be easily sliced with a fork. Browning dish When using a browning pan or self-heating cookware, always place heat- resistant insulation, such as a porcelain plate, to prevent damage to the turntable and turntable. Microwave resistant plastic wrap When cooking foods with a high fat content, do not allow the plastic wrap to come in contact with the food as it may melt. Microwave-resistant plastic cookware Some plastic microwave-safe cookware may not be suitable for cooking foods high in fat and sugar. In addition, the preheating time specified in the manual of the dish must not be exceeded.EN-25 WARNING WARNING Maintenance and cleaning

MAINTENANCE OF THE MICROWAVE OVEN

The microwave oven should be cleaned regularly, and any food residue should be systematically removed.

Unplug the appliance before cleaning it. Do not immerse the appliance in water or in any other liquid to clean it.

If the microwave oven is not cleaned regularly, the walls may deteriorate; this is potentially dangerous and can shorten the life of the microwave oven.

No part of the microwave oven needs to be cleaned with strong detergents, gasoline, abrasive powder or with a wire brush.

The waveguide cover should not be removed.

When the microwave oven has been used for a long time, some odors may linger in the microwave oven; here are 3 methods to eliminate them:

Place several lemon slices in a cup, then turn on the microwave oven with high heat for 2-3 minutes.

Place a cup of red tea in the microwave oven, then turn the microwave oven

Put a little orange zest in the microwave oven, then turn on the microwave oven with high heat for 1 minute.

WARNING : Children should only be allowed to use the microwave oven unattended only if they have had a detailed explanation of how it works and are fully aware of the risks associated with improper use of the microwave oven. CLEANING TIPS It provides instructions for cleaning the door gaskets, interior cavity and adjacent parts. Exterior: Wipe the outside of the microwave oven with a slightly damp cloth.EN-26 Door : Clean the door and viewing window by wiping them with a soft, damp cloth. Scrub the door gaskets and adjacent parts to remove any spills or other dirt. Wipe the control panel with a slightly damp cloth. Internal walls: Wipe the interior walls with a slightly damp cloth. Wipe off the waveguide cover to remove any splatter marks. Turntable / rotary ring / axis of rotation: Wash off with water and mild soap. Rinse with clean water and dry completely. Repair Perform the following checks before contacting a repairer.

Place a cup of water (approximately 150 ml) in microwave oven and close the door completely. The microwave oven light goes out when the door is properly closed. Let the microwave oven run for 1 minute.

Does the microwave oven light come on?

Is the cooling fan running? (Place your hand on the rear ventilation openings.)

Does the turntable turn? (The turntable may turn clockwise or counterclockwise. This is normal.)

Is the water in the microwave oven hot? If the answer to any of these questions is no, check your wall outlet and electrical panel fuses. If the wall outlet and fuses are functioning normally, CONTACT THE NEAREST AUTHORIZED SERVICE CENTER. Safety instructions for repair

The high voltage capacitor remains charged after disconnection. Short the negative terminal of the high voltage capacitor with the microwave oven frame (using a screwdriver) to discharge the capacitor before touching the microwave oven.

During repairs where the parts listed below can be removed, this can give access to potentials greater than 250 V with respect to earth.

High voltage transformer

High voltage capacitor

The following situations can cause excessive microwave exposure during repair. Incorrect assembly of the magnetron. Incorrect assembly of door locks, door hinges or door. Incorrect assembly of switch brackets. The door, door seal, or housing has been damaged. Technical specifications Model SCMWN20SDG / SCMWN20SDW Supply voltage 230 V ~ 50 Hz Power absorbed 1150 W Power of exit 700 W Capacity 20 L Frequency 2450 MHz We disclaim all liability for defects due to improper use of the device and damage due to repair or maintenance by a third party or due to the installation of unauthorized parts.EN-28 This symbol on the product indicates that this device must be disposed of in accordance with Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE). Electrical and electronic equipment contains hazardous substances which may have consequences. on the environment and human health during the reprocessing cycle of the product. This is why when this device is at the end of its life, it should not be disposed of with unsorted municipal waste.As a consumer, you play a crucial role in the cycle of reuse, recycling and other forms of waste. recovery of electrical and electronic equipment. Waste reception centers and collection facilities are available to you by municipalities (recycling facilities) and distributors. It is your responsibility to use the selective waste collection systems at your disposal. The warranty does not cover wearing parts of the product, nor problems or damage resulting from: (1) Surface deterioration due to normal wear and tear of the product; (2) Defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects; (3) Any unauthorized incident, abuse, misuse, modification, disassembly or repair; (4) Any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage. (5) Any use of accessories not supplied or approved by the manufacturer. The warranty will be void if the nameplate and / or serial number of the product is removed.EN-29 TROUBLESHOOTING WARNING In order to prevent any danger, it is imperative, in the event of a problem, to contact the manufacturer's or dealer after-sales service, or a qualified electrician authorized for this type of repair. In all cases, the device must be returned to the electrician concerned. Normal Microwave oven interfering with the reception of your television Reception of televisions and radios may be interfered with when the microwave oven is in use. This interference is similar to that generated by small electrical devices such as blenders, vacuum cleaners, and electric fans. This is normal. Low microwave oven light

During low power microwave cooking, the microwave oven light may dim. This is normal. Steam build-up on the door, hot air escapes from the ventilation openings During cooking, steam is released from the food. This is mainly evacuated through the ventilation holes, but a small amount accumulates on cold surfaces such as the microwave oven door. This is normal. Microwave oven accidentally used without food inside. Using the microwave oven empty will not damage it if it is short-lived. But this is not recommended. Problem Possible cause Solution The microwave oven does not work (1) The power cord is not properly connected. Unplug the device, wait 10 seconds, then plug it back in. (3) Problem with the electrical outlet. Try the y socket plugging in other electrical devices.

The microwave oven does not heat up (4) The door is not closed properly. Close the door tightly. Glass turntable makes noise when microwave oven is on (5) The bearing surface of the pan ring casters and the microwave oven bottom are dirty. Refer to the section Cleaning your microwave oven to clean dirty surfaces. This device complies with EC directives for radio interference suppression and low voltage safety and meets current safety requirements. Subject to technical changes.Imported by: SCHNEIDER CONSUMER GROUP 12 rue Jules Ferry - 93110 Rosny-Sous-Bois, FRANCEDE-2 WICHTIGE SICHERHEITSHINWEISE

Press the Defrost / Clock button once to start immediately or wait 10 seconds for it to start automatically 12:30
