Product type	Car radio
Brand	JVC
Model	KW-R920BT
Dimensions (W × H × D)	182 mm × 112 mm × 158 mm
Weight	1.6 kg
Operating voltage	14.4 V DC (10.5 V – 16 V allowable)
Max current consumption	10 A
Max output power	50 W × 4
Speaker impedance	4 Ω – 8 Ω
FM frequency range	87.5 MHz – 108.0 MHz
MW frequency range	531 kHz – 1611 kHz
LW frequency range	153 kHz – 279 kHz
Bluetooth	Version 2.1+EDR, profiles HFP, A2DP, AVRCP, PBAP, SPP
USB	USB 1.1/2.0, compatible with mass storage (FAT12/16/32)
Supported audio formats	MP3, WMA, AAC, WAV, FLAC
CD player	CD, CD-R, CD-RW, CD-ROM
Equalizer	8 presets + 7-band customizable equalizer
Auxiliary input	3.5 mm stereo mini jack
Bluetooth functions	Hands-free, audio streaming, phonebook access
Compatibility	iPod, iPhone, Android (OS 4.1+)
Maintenance and cleaning	Clean with a dry silicone cloth or a soft cloth
Safety	Double-press reset, short-circuit protection
Spare parts and repairability	Microphone, extraction keys, wiring harness, screws included
Firmware update	Via USB port (JVC website)

Frequently Asked Questions - KW-R920BT JVC

How to reset the car radio?

Press the reset button (located on the front panel) twice within 5 seconds. This restores factory settings.

How to set the clock?

Press and hold the MENU button, turn the volume knob to select CLOCK, then CLOCK SET. Set the day, hour, and minute by turning and pressing the knob.

How to connect a phone via Bluetooth?

Enable Bluetooth on your phone, search for devices and select JVC UNIT. Confirm the PIN code (0000 by default) on both devices.

How to use the hands-free function?

When receiving a call, press the VOLUME button or the PICK UP button to answer. To end, press and hold the VOLUME button. You can adjust the phone volume during the call.

What to do if there is no sound?

Check the volume, speaker connections, and source settings. Make sure SRC SELECT activates the desired source (e.g., AUX, USB). Refer to the troubleshooting guide in the manual.

How to store a radio station?

Tune to the desired station, then press and hold a numerical button (1 to 6) until MEMORY appears. You can also use the PRESET MODE menu.

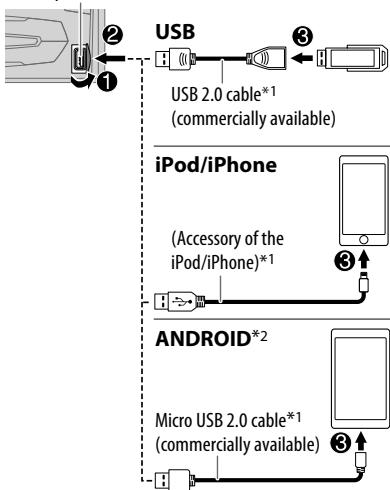

How to play music from a USB drive?

Connect the USB drive to the front port. Playback starts automatically. Use the ▼/▲ buttons for folders and ◀/▶ for tracks. Supported formats: MP3, WMA, AAC, WAV, FLAC.

How to adjust the equalizer?

Press EQ BASS to cycle through presets (Flat, Hard Rock, Pop, etc.). For custom adjustment, press and hold EQ BASS and adjust the bands in EASY EQ or PRO EQ.

How to clean the car radio?

Use a dry silicone cloth or a soft cloth to wipe the front panel. Do not use solvents. For discs, clean from the center outward with a soft cloth.

What are the supported audio formats?

The unit supports MP3, WMA, AAC, WAV, and FLAC files on CD or USB. CDs must be in CD-R/CD-RW/CD-ROM format. USB devices must be in FAT12/16/32 format.

USER MANUAL KW-R920BT JVC

MANUEL D'INSTRUCTIONS

CD-RECEIVER

Digital Audio Broadcasting

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Declaration of Conformity with regard to the EMC Directive

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVC Technical Services Europe GmbH

Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Hereby, JVC KENWOOD declares that this unit KW-R920BT/KW-DB92BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

1 Cancel the demonstration
2 Set the clock
3 Set the basic settings

DIGITAL RADIO (for KW-DB92BT) 5

ANALOG RADIO 8

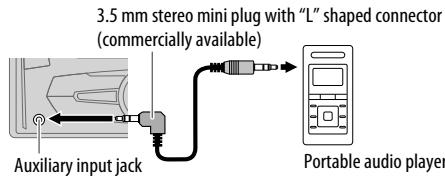

AUX 9

CD/USB/iPod/Android 10

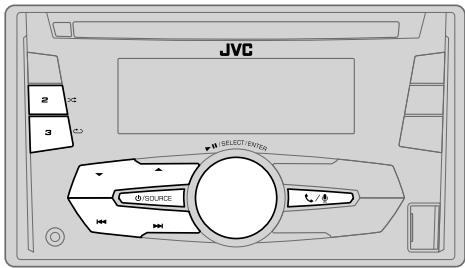

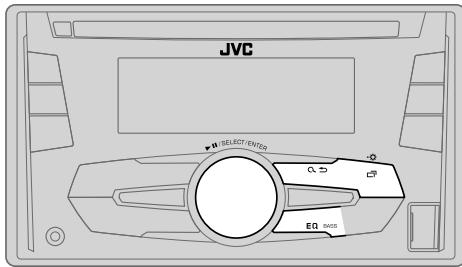

BLUETOOTH 12

AUDIO SETTINGS 17

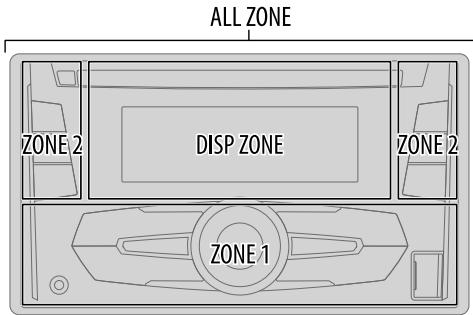

DISPLAY SETTINGS 21

REFERENCES 22

Maintenance

More information

TROUBLESHOOTING 24

SPECIFICATIONS 26

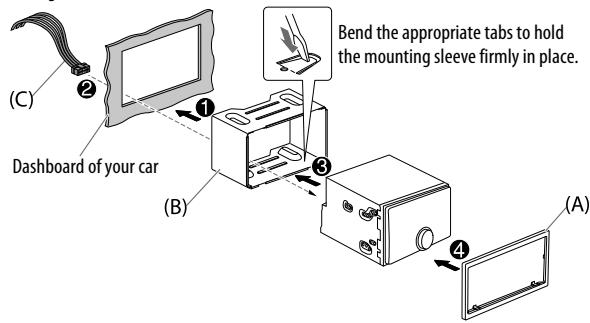

INSTALLATION /

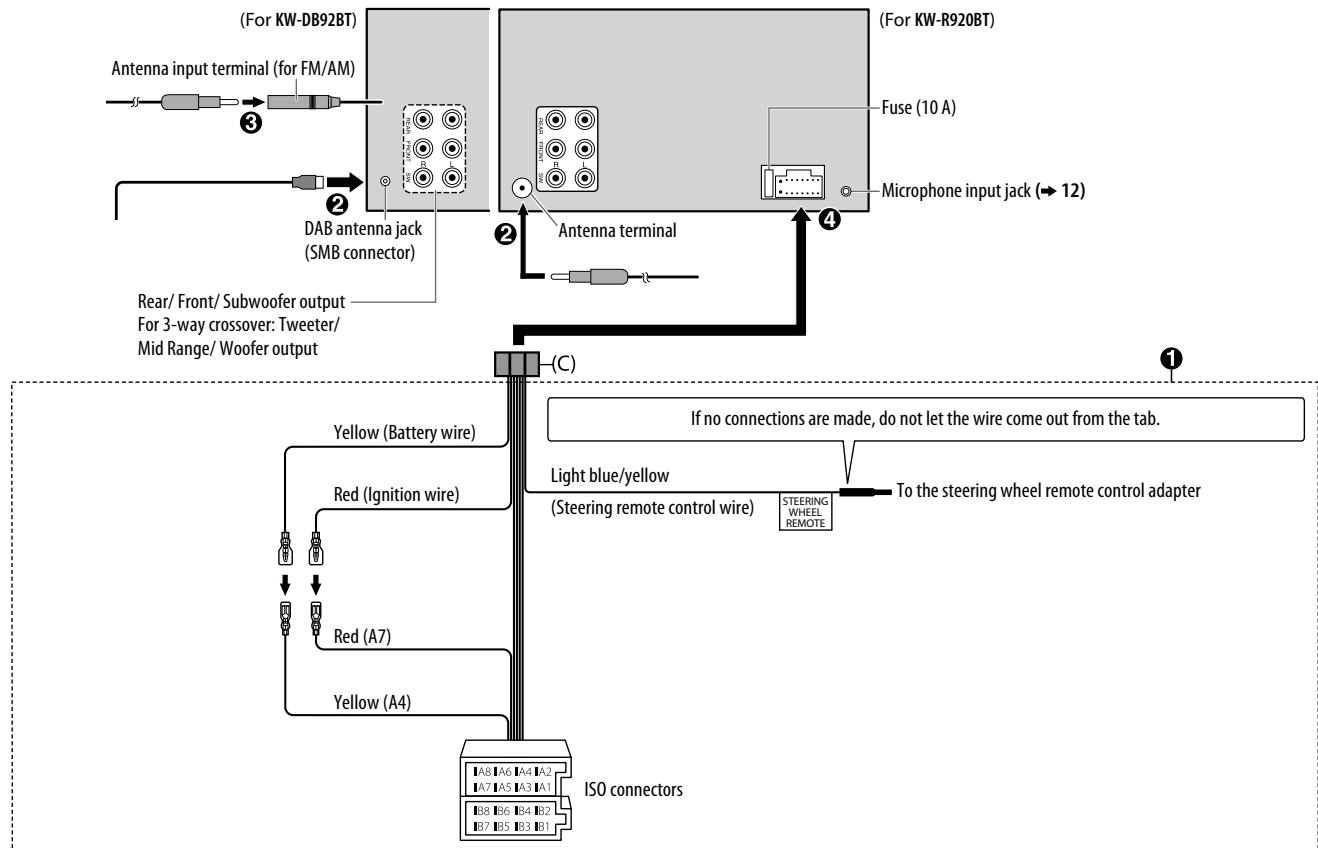

CONNECTION 28

BEFOREUSE

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KW-R920BT.
• English indications are used for the purpose of explanation. You can select the display language from the menu. ( 5)
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.

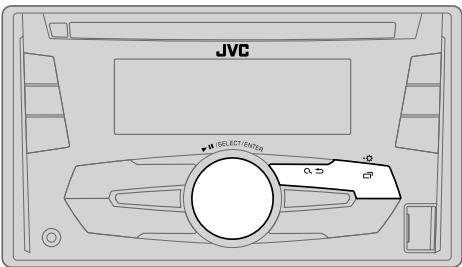

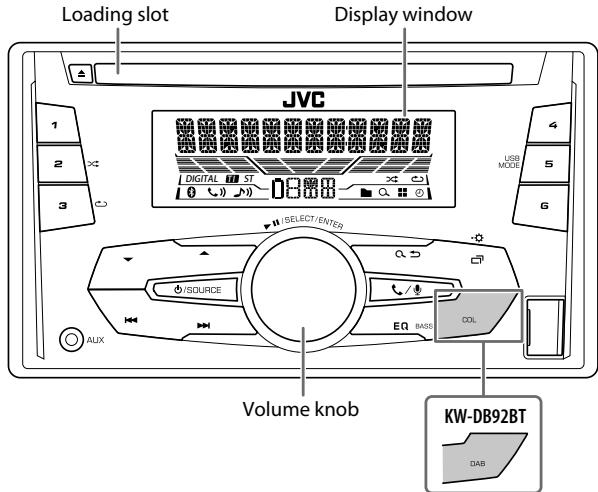

Faceplate

How to reset
Press twice within 5 seconds.

To	On the faceplate
Turn on the power	Press Ⓞ/SOURCE. • Press and hold to turn off the power.
Adjust the volume	Turn the volume knob.
	Press the volume knob to mute the sound or pause playback. • Press again to cancel.
Select a source	• Press Ⓞ/SOURCE repeatedly. • Press Ⓞ/SOURCE, then turn the volume knob within 2 seconds.
Change the display information	Press Ⓞ- repeatedly. (⇒ 24)

Cancel the demonstration

When you turn on the power for the first time (or [FACTORY RST] is set to [YES]), the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

Set the clock

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK SET], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.

Day Hour Minute

5 Turn the volume knob to select [24H/ 12H], then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the knob.
7 Press to exit.

To return to the previous setting item, press .

3

Set the basic settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

SETTINGS
BEEP	(Not applicable when 3-way crossover is selected.)ON: Activates the keypress tone. ; OFF: Deactivates.
SRC SELECT
AM*1	ON: Enables AM in source selection. ; OFF: Disables.
AUX*1	ON: Enables AUX in source selection. ; OFF: Disables.
F/W UPDATE
SYSTEM/ DAB 1*2/ DAB 2*2
F/W UP xxxx/ F/W UP xxxxxx/ F/W UP Vxxx	YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated).For details on how to update the firmware, see:<http://www.jvc.net/cs/car/>.
FACTORY RST	YES: Resets the settings to default (except the stored station). ; NO: Cancels.

1 Not displayed when the corresponding source is selected.
2 For KW-DB92BT.

CLOCK
CLOCK SYNC	AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal (for KW-R920BT) or DAB signal (for KW-DB92BT). ; OFF: Cancels.
CLOCK DISP	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
ENGLISH	Select the display language for menu and music information if applicable.
PUCCKM*	By default, ENGLISH is selected.
ESPANOL	* For KW-R920BT.

About DAB (Digital Audio Broadcasting)

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called "services") to form one "ensemble."

The "primary component" (main radio station) is sometimes accompanied by a "secondary component" which can contain extra programs or other information.

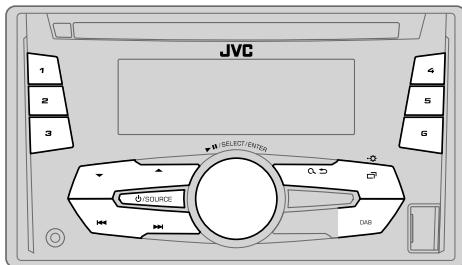

Preparation:

1 Connect a DAB antenna to the DAB antenna jack. ( 30)
2 Press DAB to select DAB directly.
3 Press and hold DAB to start the Service List update.

"DAB SORTING" appears and update starts.

Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

• To cancel the Service List update: Press and hold DAB again.

Search for an ensemble

1 Press DAB to select DAB directly.
2 Press / to search for an ensemble automatically. (or)

Press and hold / until "M" flashes, then press repeatedly to search for an ensemble manually.
3 Press / to select a service (either primary or secondary) to listen to.

Settings in memory

You can store up to 18 services.

Store a service

While listening to a service....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and "MEMORY" appears.

Select a stored service

Press / or one of the number buttons (1 to 6). (or)

1 Press
2 Turn the volume knob to select a preset number, then press the knob to confirm.

Select a service

1 Press DAB to enter Service Search mode.
2 Turn the volume knob to select a service, then press the knob.

To cancel the Service Search mode, press or DAB.

Select a service by name

1 Press DAB to enter Service Search mode.
2 Press / to select the character to be searched for.
3 Turn the volume knob to select a service, then press the knob.

Other settings

1 Press and hold
2 Turn the volume knob to select [TUNER], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press to exit.

To return to the previous setting item, press .

Default: XX

RADIO TIMER Turns on the radio at a specific time regardless of the current source

1 ONCE/DAILY/ WEEKLY/OFF: Select how often the timer will be turned on.
2 FM/AM/DAB: Select the source.
3 01 to 18 (for FM)/ 01 to 06 (for AM)/ 01 to 18 (for DAB): Select the preset station.
4 Set the activation day* and time.

" lights up when complete.

Radio Timer will not activate for the following cases.

The unit is turned off.
- [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. (→ 4)
* Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

AF SET	ON: While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available). ; OFF: Cancels.
TI SET	ON: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up). ; OFF: Cancels.
PTY SEARCH	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT
DAB ANNCMNT	TRAVEL, WARNINGS, NEWS, WEATHER, EVENT, SPECIAL, RAD INFO, SPORTS, FINANCE: Turn the volume knob to make a selection, then press the knob. "*" appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type. • Multiple announcement can be activated simultaneously. • To deactivate, press the volume knob again ("*") goes off.
DAB UPDATE	AUTO: Automatically update the DAB Service List when the power is turned on. ; OFF: Updates the DAB Service List by pressing and holding DAB.

PTY-STBY	The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIORED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT OFF: Cancels.
DAB L-BAND	ON: Receives L-BAND ensemble during digital audio reception.; OFF: Cancels
DAB ANT PWR	ON: Supplies power to the DAB antenna.; OFF: Does not supply power. Selects when using passive antenna without booster.
RELATED SRV	ON: Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program.; OFF: Disable.

"ST" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press /SOURCE repeatedly to select FM or AM.
2 Press / to search for a station automatically. (or)

Press and hold / until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and "MEMORY" appears.

Select a stored station

Press / or one of the number buttons (1 to 6). (or)

1 Press
2 Turn the volume knob to select a preset number, then press the knob to confirm.

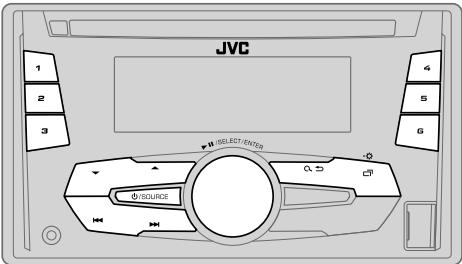

Other settings

1 Press and hold
2 Turn the volume knob to select [TUNER], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press to exit.

To return to the previous setting item, press .

Default: XX

RADIO TIMER	(⇒ 6)
SSM	SSM 01 - 06 / SSM 07 - 12 / SSM 13 - 18: Automatically preset up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select SSM 07 - 12 / SSM 13 - 18 to store the following 12 stations.
LOCAL SEEK	ON: Searches only FM stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
IF BAND	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

ANALOG RADIO

MONO	ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.
NEWS-STBY*	ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.
REGIONAL*	ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.
AF SET*	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.
TI SET*	ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels. For KW-DB92BT: [TI SET] in AM band is for enabling traffic interruption to DAB source only.
PTY SEARCH*	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIOUS, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

• Only for FM source.

AUX

Use a portable audio player

1 Connect a portable audio player (commercially available).

2 Select [ON] for [AUX] in [SRC SELECT]. ( 4)
3 Press /SOURCE repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

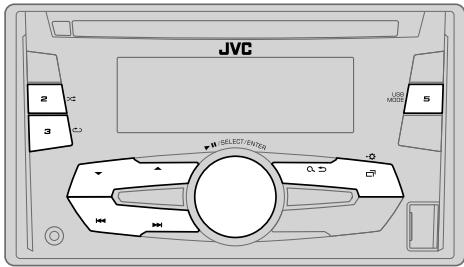

Start playback

The source changes automatically and playback starts.

CD

USB input terminal

To	On the faceplate
Reverse / Fast-forward*3	Press and hold |▶/▶.
Select a track/file	Press |▶/▶.
Select a folder*4	Press ▲/▼.
Repeat play*5	Press 3 ⊙ repeatedly.
	TRACK RPT/ ALL RPT	: Audio CD
	TRACK RPT/ FOLDER RPT/ ALL RPT	: MP3/WMA/AAC/WAV/FLAC file
	ONE RPT/ ALL RPT/ RPT OFF	: iPod or ANDROID
Random play*5	Press 2 > repeated.
	ALL RND/ RND OFF	: Audio CD
	FOLDER RND/ ALL RND/ RND OFF	: MP3/WMA/AAC/WAV/FLAC file
	SONG RND/ ALL RND/ RND OFF	: iPod or ANDROID

1 Do not leave the cable inside the car when not using.
2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. (→ 22)
3 ForAndroid:Applicableonlywhen[AUTO MODE]is selected. ( 11)
4 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/Android.
*5 For iPod/Android: Applicable only when [HEAD MODE]/[AUTO MODE] is selected. (→11)

Select control mode

While in USB-IPOD source, press 5 USB MODE repeatedly.

HEAD MODE: Control iPod from this unit.

IPHONE MODE: Control iPod using the iPod itself. However, you can still play/pause or file skip from this unit.

While inAndroid source,press 5 USB MODE repeatedly.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

Press 5 USB MODE repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device.

Select a file from a folder/list

1 Press
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Not applicable for iPod.

Alphabet search (applicable only for iPod):

You can search for a file according to the first character.

Press / or turn the volume knob quickly to select the desired character (A to Z/0 to 9/Others).

• Select "OTHERS" if the first character is other than A to Z, 0 to 9.

To return to the previous setting item, press
To cancel, press and hold
- For iPod, applicable only when [HEAD MODE] is selected.
- For ANDROID, applicable only when [AUTO MODE] is selected.

BLUETOOTH - Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)

Supported Bluetooth CODECS

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

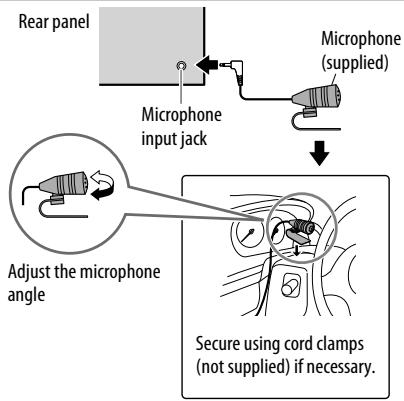

Connect the microphone

Pair and connect a Bluetooth device for the first time

1 Press /SOURCE to turn on the unit.
2 Search and select "JVC UNIT" on the Bluetooth device.

"BT PAIRING" flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what scrolls on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) "[Device Name]" "XXXXXX" "VOL - YES" "BACK - NO"

"XXXXXXXX" is a 6-digit passkey randomly generated during each pairing.

1 Ensure that the passkey which appears on the unit and Bluetooth device is the same.
2 Press the volume knob to confirm the passkey.
3 Operate the Bluetooth device to confirm the passkey.

(B) "[Device Name]" "VOL-YES" "BACK-NO"

Press the volume knob to start pairing.
[2] If "PAIRING" "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.

You can change to a desired PIN code before pairing. ( 16)

• If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed and "8" will light up when the Bluetooth connection is established.

• Functionality depends on the type of the phone used.

Lights up to show the battery strength and signal strength.*

• This unit supports Secure Simple Pairing (SSP).
• Up to 10 devices can be registered (paired) in total.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 16 , [DELETE PAIR].
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
  Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing

When you connect the iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected device is turned on.
• [AUTO CNNT] is set to [ON]. (→ 16)
  JVC MUSIC PLAY application is installed on the Android device ( 10) and [AUTO MODE] is selected ( 11) .

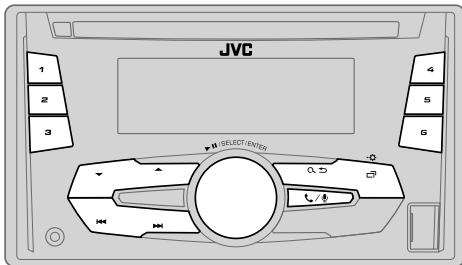

BLUETOOTH — Mobile phone

Receive a call

When there is an incoming call:

• The buttons will blink in the color you have selected in [RING COLOR]. (→ 14)
• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→ 14)

During a call:

• The buttons stop blinking and illuminate in the color you have selected in [RING COLOR]. (→ 14)
• If you turn off the unit, the Bluetooth connection is disconnected.

First incoming call...

To On the faceplate

Answer a call	Press / or the volume knob.
Reject a call	Press and hold / or the volume knob.
End a call	Press and hold / or the volume knob.

To	On the faceplate
While talking on the first incoming call...
Answer another incoming call and hold the current call	Press /or the volume knob.
Reject another incoming call	Press and hold /or the volume knob.

While having two active calls...

End current call and activate held call	Press and hold ⌒/ Ⓞ or the volume knob.
Swap between the current call and held call	Press ⌒/ Ⓞ.
Adjust the phone volume [00] to [35] (Default: [15])	Turn the volume knob during a call. ·This adjustment will not affect the volume of the other sources.
Switch between hands-free and private talk modes	Press ⌒ during a call. ·Operations may vary according to the connected Bluetooth device.

Improve the voice quality

While talking on the phone....

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q .

Default: XX

MIC LEVEL	-10 — +10 (-4): The sensitivity of the microphone increases as the number increased.
NOISE RDCT	-5 — +5 (0): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL	-5 — +5 (0): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press .

Default: XX

SETTINGS
AUTO ANSWER	01 SEC — 30 SEC: The unit answers incoming call automatically in the selected time (in seconds). ; OFF: Cancels.
RING COLOR	COLOR 01 — COLOR 49 (COLOR 08): Selects the notification light color for the buttons when there is an incoming call and during a call. ; OFF : Cancels.

Make a call

You can make a call from the call history, phonebook, or dialing the number.

Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

To return to the previous setting item, press .

RECENT CALL	(Applicable only if the phone supports PBAP) 1 Press the volume knob to select a name or a phone number. ·“<” indicates call received, “>” indicates call made, “M” indicates call missed. ·“NO HISTORY” appears if there is no recorded call history or call number. 2 Press the volume knob to call.
PHONEBOOK	(Applicable only if the phone supports PBAP) 1 Press▲/▼ to select the desired letter (A to Z, 0 to 9, and OTHERS). ·“OTHERS” appears if the first character is other than A to Z, 0 to 9. 2 Turn the volume knob to select a name, then press the knob. 3 Turn the volume knob to select a phone number, then press the knob to call. ·The phonebook of the connected phone is automatically transferred to the unit when pairing. ·This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U”).
DIAL NUMBER	1 Turn the volume knob to select a number (0 to 9) or character (*,#, +). 2 Press|←/▶→ to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number. 3 Press the volume knob to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions. (⇒ Make a call using voice recognition)

Make a call using voice recognition

1 Press and hold / to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK], or [DIAL NUMBER], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number.

If a contact is selected, press the volume knob to show the phone number.

4 Press and hold one of the number buttons (1 to 6).

"MEMORY P(selected preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call. "NO PRESET" appears if there is no contacts stored.

Bluetooth mode settings

1 Press and hold
2 Turn the volume knob to select [BLUET00TH], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press to exit.

To return to the previous setting item, press .

Default: XX

PHONE*1	Selects the phone or audio device to connect or disconnect.
AUDIO*1	"×" appears in front of the device name when connected.
APPLICATION*1	Shows the connected phone name using the JVC Smart Music Control*2 app. "×" appears in front of the device name when connected.
DELETE PAIR	1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob.
SET PINCODE (0000)	Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. 2 Press▶/▶to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code. 3 Press the volume knob to confirm.
AUTO CNNCT	ON: The unit automatically reconnect when the last connected Bluetooth device is within range. ; OFF: Cancels.
AUTO PAIR	ON: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; OFF: Cancels.
INITIALIZE	YES: Initialized all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; NO: Cancels.
INFORMATION	MY BT NAME: Displays the unit name (JVC UNIT). ; MY ADDRESS: Shows address of this unit.

1 You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.
2 JVC Smart Music Control is designed to view JVC car receiver status and perform simple control operations on Android smart phones.
For JVC Smart Music Control operations, visit JVC website: http://www.jvc.net/cs/car/.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold

"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING PHONE" "PIN IS 0000" scrolls on the display.

2 Search and select "JVC UNIT" on the Bluetooth device within 3 minutes.
3 Perform (A), (B) or (C) depending on what appears on the display.

(A) "PAIRING" "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.
(B) "PAIRING" "PIN IS 0000": Enter "0000" on the Bluetooth device.
(C) “PAIRING”: Operate the Bluetooth device to confirm pairing.

After pairing is successful, "PAIRING OK" "[Device Name]" appears and Bluetooth compatibility check starts.

If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue. "TESTING" flashes on the display.

The connectivity result flashes on the display.

"PAIRING OK" and/or "H.FREE OK"1 and/or "A.STREAM OK"2 and/or "PBAP OK"*3: Compatible

1 Compatible with Hands-Free Profile (HFP)
2 Compatible with Advanced Audio Distribution Profile (A2DP)
*3 Compatible with Phonebook Access profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.

• To cancel, press and hold /SOURCE to turn off the power, then turn on the power again.

BLUETOOTH—Audio

Audio player via Bluetooth

1 Press /SOURCE repeatedly to select BT AUDIO.
2 Operate the Bluetooth audio player to start playback.

To	On the faceplate
Playback / pause	Press the volume knob.
Select group or folder	Press▲/▼.
Reverse / Forward skip	Press↓/▶l.
Reverse / Fast-forward	Press and hold ↓/▶l.
Repeat play	Press 3 repeatedly. TRACK RPT, ALL RPT, RPT OFF
Random play	Press 2 ×× repeatedly. GROUP RND, ALL RND, RND OFF
Select a file from a folder/ list	Refer to “Select a file from a folder/list” on page 11.

Operations and display indications may differ according to their availability on the connected device.

Select a preset equalizer

Press EQ BASS repeatedly. (or)

Press EQ BASS, then turn the volume knob within 5 seconds.

Preset equalizer:

FLAT (default)/ HARD ROCK / POP / HIP HOP / R&B / JAZZ / CLASSICAL / USER

Store your own sound settings

1 Press and hold EQ BASS to enter EASY EQ setting.
2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting ( 18) and the result is stored to [USER].
To return to the previous setting item, press
- To exit, press EQ BASS.

Other settings

1 Press and hold
2 Turn the volume knob to select an item ( 18) , then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

EQ SETTING
EQ PRESET	Select a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].)FLAT / HARD ROCK / POP / HIP HOP / R&B / JAZZ / CLASSICAL / USER
EASY EQ	Adjust your own sound settings. The settings are stored to [USER].The settings made may affect the current settings of [PRO EQ].SUB.W SP*1*2: 00 to +06 (Default: 03SUB.W*1*3: -50 to +10 00BASS LVL: -09 to +09 00MID LVL: -09 to +09 00TRE LVL: -09 to +09 00)
PRO EQ	Adjust your own sound settings. The settings are stored to [USER].The settings made may affect the current settings of [EASY EQ].
62.5HZ
LVL -09 to +09 (00): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
BASS EXT ON: Turns on the extended bass.; BASS EXT OFF: Cancels.
100HZ / 160HZ / 250HZ / 400HZ / 630HZ / 1KHZ / 1.6KHZ / 2.5KHZ /4KHZ / 6.3KHZ / 10KHZ / 16KHZ
LVL -09 to +09 (00): (Refer above)
Q FACTOR
Q 1.35/ Q 1.50/ Q 2.00: Adjust the quality factor.
AUDIO
BASS BOOST	+01 — +05: Selects your preferred bass boost level.; OFF: Cancels.
LOUD	01 / 02: Boosts low or high frequencies to produce a well-balanced sound at low volume.; OFF: Cancels.

SUB.W LEVEL*1	SPK-OUT*2	(Not applicable when 3-way crossover is selected.) 00 to +06 (±03): Adjusts the output level of the subwoofer connected via speaker lead. (⇒ 29, 30)
	PRE-OUT	-50 to +10 (00): Adjusts the output level of the subwoofer connected to the lineout terminals (SW) through an external amplifier. (⇒ 29, 30)
SUB.W	ON / OFF: Turns on or off the subwoofer output.
FADER	(Not applicable when 3-way crossover is selected.) R15 — F15 (00): Adjusts the front and rear speaker output balance.
BALANCE*3	L15 — R15 (00): Adjusts the left and right speaker output balance.
VOL ADJUST	-15 — +06 (00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust.
AMP GAIN	LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.
SPK/PRE OUT	(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. (⇒ 19, Speaker output settings)
SPK SIZE	Depending on the crossover type you have selected (see [X' OVER TYPE] below), 2-way crossover or 3-way crossover setting items will be shown. (⇒ 20, Crossover settings) By default, 2-way crossover type is selected.
X' OVER
X' OVER TYPE	Caution: Adjust the volume before changing the X' OVER TYPE to avoid the sudden increase or decrease of the output level.
X' OVER 2-WAY	(Displayed only when [X' OVER 3-WAY] is selected) YES: Selects two way crossover type.; NO: Cancels.
X' OVER 3-WAY	(Displayed only when [X' OVER 2-WAY] is selected) YES: Selects three way crossover type.; NO: Cancels.

1 Displayed only when [SUB.W] is set to [ON].
2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (→19)
*3 This adjustment will not affect the subwoofer output.

SND EFFECT
ENHANCE	(Not applicable for FM/AM source and DAB source.) SML/ MED/ LRG: Virtually enhances the sound space. ; OFF: Cancels.
RESPONSE	LV1/ LV2/ LV3: Virtually makes the sound more realistic. ; OFF: Cancels.
SOUND LIFT	LV1/ LV2/ LV3: Virtually adjust the sound position heard from the speakers. ; OFF: Cancels.
VOL LINK EQ	ON: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; OFF: Cancels.
K2	(Not applicable for FM/AM source, DAB source and AUX source.) ON: Improve the sound quality of compressed music. ; OFF: Cancels.

Speaker output settings

(Only for X' OVER 2-WAY)

Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

Connection via lineup terminals

For connections through an external amplifier. ( 29,30)

Setting on [SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT	REAR	SW
REAR/REAR (default)	Front speakers output	Rear speakers output	Subwoofer output
SUB.W/SUB.W	Front speakers output	L (left): Subwoofer output R (right): (Mute)	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 29,30)

Setting on [SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left)	R (right)
REAR/REAR	Rear speakers output	Rear speakers output
SUB.W/SUB.W	Subwoofer output	(Mute)

If [SUB.W/SUB.W] is selected:

• [FRQ 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available.
  -R02] is selected in [FADER] and selectable range is [R15] to [00].

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

Caution

Select a crossover type according to how the speakers are connected. ( 29,30)

If you select a wrong type:

• The speakers may damage.
• The output sound level may be extremely high or low.

SPK SIZE (speaker size)

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.
• If [NONE] is selected for [TWEETER] of [FRONT], [REAR] and [SUBWOOFER] for [SPK SIZE], the [X'OVER] setting of the selected speaker is not available.

X'OVER (crossover)

[FRQ]/[HPF FRQ]/[LPF FRQ]:

Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

• If [THROUGH] is selected, all signals are sent to the selected speakers.

[SLOPE]/[HPF SLOPE]/[LPF SLOPE]:

Adjusts the crossover slope.
- Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE]:

Selects the phase of the speaker output to be in line with the other speaker output.

[GAIN LEFT]/[GAIN RIGHT]/[GAIN]:

Adjusts the output volume of the selected speaker.

2-way crossover setting items

SPK SIZE
FRONT	SIZE	8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6" / 5×7" / 6×8" / 6×9" / 7×10"
	TWEETER	SML/MID/LRG/NONE (not connected)
REAR*1	8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6" / 5×7" / 6×8" / 6×9" / 7×10" / NONE (not connected)
SUBWOOFER*2	16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE (not connected)
X'OVER
TWEETER	FRQ	1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ/ 10KHZ/12.5KHZ
	GAIN LEFT	-08DB to 00DB
	GAIN RIGHT	-08DB to 00DB
FRONT HPF	FRQ	30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH
	SLOPE	-06DB/ -12DB/ -18DB/ -24DB
	GAIN	-08DB to 00DB
REAR HPF*1	FRQ	30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH
	SLOPE	-06DB/ -12DB/ -18DB/ - 24DB
	GAIN	-08DB to 00DB
SUB.W LPF*2	FRQ	30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH
	SLOPE	-06DB/ -12DB/ -18DB/ -12DB
	PHASE	REVERSE (180°)/ NORMAL (0°)
	GAIN	-08DB to 00DB

1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR]. (⇒ 19)
2 Displayed only when [SUB.W] is set to [ON]. (→ 18)

3-way crossover setting items

SPK SIZE

TWEETER	SML/ MID/ LRG
MID RANGE	8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6" / 5×7" / 6×8" / 6×9"
WOOFER*	16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE (not connected)
X' OVER
TWEETER	HPF FRQ	1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ/ 10KHZ/ 12.5KHZ
	SLOPE	-06DB/ -12DB
	PHASE	REVERSE (180°)/ NORMAL (0°)
	GAIN	-08DB to 00DB
MID RANGE	HPF FRQ	30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH
	HPF SLOPE	-06DB/ -12DB
	LPF FRQ	1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ/ 10KHZ/ 12.5KHZ/ THROUGH
	LPF SLOPE	-06DB/ -12DB
	PHASE	REVERSE (180°)/ NORMAL (0°)
	GAIN	-08DB to 00DB
WOOFER*	LPF FRQ	30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH
	SLOPE	-06DB/ -12DB
	PHASE	REVERSE (180°)/ NORMAL (0°)
	GAIN	-08DB to 00DB

• Displayed only when [SUB.W] is set to [ON]. (⇒ 18)

DISPLAY SETTINGS

1 Press and hold
For KW-R920BT: Press COL to enter [COLOR] directly.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

DISPLAY

DIMMER

Dim the display and button illuminations.

OFF: Dimmer is turned off.

ON: Dimmer is turned on. Brightness changes to [NIGHT] setting.

( 22,[BRIGHTNESS])

DIMMER TIME: Set the dimmer on and off time.

1 Turn the volume knob to adjust the [ON] time, then press the knob.
2 Turn the volume knob to adjust the [OFF] time, then press the knob.

(Default: [ON]: 18:00 or 6:00 PM

[OFF]: 6:00 or 6:00 AM)

AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights. *1

DISPLAY SETTINGS

BRIGHTNESS	Set the brightness for button and display illuminations for day and night separately. 1 DAY / NIGHT: Select day or night. 2 Select a zone. (→21) 3 Set the brightness level (00 to 31). (Default: DAY: 31; NIGHT: 11)
SCROLL*2	ONCE: Scrolls the display information once. ; AUTO: Repeats scrolling at 5-second intervals. ; OFF: Cancels.
COLOR
PRESET	Select color for display and button illuminations separately. Default color: ALL ZONE: [COLOR 08], DISP ZONE: [COLOR 01], ZONE 1: [COLOR 08], ZONE 2: [COLOR 46] 1 Select a zone. (→21) 2 Select a color for the selected zone. • COLOR 01 to COLOR 49 • USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown. • COLOR FLOW01 to COLOR FLOW03: Color changes at different speeds. • GROOVE/ TECHNO/ EMOTION/ RELAX/ SPECTRUM/ SWEEP/ POP: The selected color pattern is shown.*3 (Selectable only when [ALL ZONE] is selected in step 1.)
DAY COLOR	Store your own day and night colors for different zone. 1 Select a zone. (→21) 2 RED / GREEN / BLUE: Select a primary color. 3 00 to 31: Select the level.
NIGHT COLOR	Repeat steps 2 and 3 for all the primary colors. • Your setting is stored to [USER] in [PRESENT]. • If [00] is selected for all primary colors for [DISP ZONE], nothing appears on the display.
COLOR GUIDE	ON: Changes the button and display illuminations when settings are performed on menu and list search. Display zone will automatically change depending on volume level. ; OFF: Cancels.

[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlight.

^1 The illumination control wire connection is required. ( 29,30)
2 Some characters or symbols will not be shown correctly (or will be blanked).
*3 If one of these color pattern is selected, the [ZONE 1], [DISP ZONE], [ZONE 2] illumination color will change to the default color.

REFERENCES

■ Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

■ More information

Visit also the following website http://www.jvc.net/cs/car/ for:

• Latest firmware updates and latest compatible item list
  AndroidTM application JVC MUSIC PLAY
• Any other latest information

General

• This unit can only play the following CDs:

DIGITAL AUDIO

DIGITAL AUDIO

DIGITAL AUDIO ReWritable

• DualDisc playback: The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.
• Detailed information and notes about the playable audio files are stated in an online manual on the following website http://www.jvc.net/cs/car/.

Playable files

• Playable audio file: MP3 (.mp3)/WMA (.wma)/ AAC (.aac)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name
• Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• Recordable/ReWritable discs that have not been finalized.
• 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/ WMA/ AAC/ WAV/ FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A .

About iPod/iPhone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
• iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and A0A 2.0, this unit always playback via A0A 2.0 as priority.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.

REFERENCES

Change the display information

Each time you press 1 the display information changes.

• If the information is unavailable or not recorded, "NO TEXT", "NO NAME", "NO SIGNAL", or other information (eg. station name) appears.

DAB	Service name ⇒ Title / Artist ⇒ Dynamic Label Segment (DLS) ⇒ Ensemble name ⇒ Day/Clock ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
FM or AM	Frequency ⇒ Day/Clock ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
	(For FM Radio Data System stations only) Station name (PS) ⇒ Frequency ⇒ Program type (PTY) ⇒ Radio text+ ⇒ Day/Clock ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
CD or USB	(For CD-DA) Playing time ⇒ Day/Clock ⇒ Disc name ⇒ Track title ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
	(For MP3/WMA/AAC/WAV/FLAC files) Playing time ⇒ Day/Clock ⇒ Album title / Artist ⇒ Track title ⇒ Folder/file name ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
USB-IPOD or ANDROID	Playing time ⇒ Day/Clock ⇒ Album title / Artist ⇒ Track title ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
AUX	AUX ⇒ Day/Clock ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)
BT AUDIO	Playing time ⇒ Day/Clock ⇒ Album title / Artist ⇒ Track title ⇒ Level meter ⇒ Level meter with color synchronisation* ⇒ (back to the beginning)

• The color of the button illumination and display illumination changes and synchronises with the sound level.

TROUBLESHOOTING

Symptom		Remedy
General	Sound cannot be heard.	·Adjust the volume to the optimum level. ·Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SRC SELECT] setting. (→4)
Digital Radio	DAB reception is poor.	Make sure [ON] is selected for [DAB ANT PWR]. (→7)
	"CHK ANTENNA"	Check the DAB antenna. If a passive antenna (without a booster) is used, set [DAB ANT PWR] to [OFF]. (→7)
	"RELATED SRV FOUND"	·Press the volume knob to activate Soft-Link. (→7) ·Press Q ➔ to cancel.
Analog Radio	·Radio reception is poor. ·Static noise while listening to the radio.	Connect the antenna firmly.
CD/USB/IPod	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected.
	"IN DISC" appears.	Make sure nothing is blocking the loading slot when you eject the disc.
	"PLEASE" and "EJECT" appear alternately.	Press ▲, then insert the disc correctly.
	Playback order is not as intended.	The playback order is determined by the file name (USB) or the order in which files were recorded (disc).
	Elapsed playing time is not correct.	This depends on the recording process earlier.
OD/USB/iPod	“NOT SUPPORT” appears and track skips.	Check whether the track is a playable format. (⇒ 23)
	“READING” keeps flashing.	· Do not use too many hierarchical levels and folders. · Reload the disc or reattach the USB device.
	“CANNOT PLAY” flashes and/or connected device cannot be detected.	· Check whether the connected device is compatible with this unit and ensure the files are in supported formats. (⇒ 23) · Reattach the device.
	The iPod/iPhone does not turn on or does not work.	· Check the connection between this unit and iPod/iPhone. · Detach and reset the iPod/iPhone using hard reset.
	“LOADING” appears when you enter search mode by pressing ⌒.	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	Correct characters are not displayed.	· This unit can only display uppercase letters, numbers, and a limited number of symbols. · Depending on the display language you have selected (⇒ 5), some characters may not be displayed correctly.
ANDROID	· Sound cannot be heard during playback. · Sound output only from the Android device.	· Reconnect the Android device. · If in [AUDIO MODE], launch any media player application on the Android device and start playback. · If in [AUDIO MODE], relaunch the current media player application or use another media player application. · Restart the Android device. · If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (⇒ 23)

Symptom		Remedy
ANDROID	Cannot playback at [AUTO MODE].	·Make sure JVC MUSIC PLAY APP is installed on the Android device. (⇒ 10) ·Reconnect the Android device and select the appropriate control mode. (⇒ 11) ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 23)
	“NO DEVICE” or “READING” keeps flashing.	·Switch off the developer options on the Android device. ·Reconnect the Android device. ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 23)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“CANNOT PLAY”	·Make sure Android device contains playable audio files. ·Reconnect the Android device. ·Restart the Android device.
Bluetooth®	No Bluetooth device is detected.	·Search from the Bluetooth device again. ·Reset the unit. (⇒ 3)
	Pairing cannot be made.	·Make sure you have entered the same PIN code to both the unit and Bluetooth device. ·Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (⇒ 12)
	Echo or noise occurs.	·Adjust the microphone unit's position. (⇒ 12) ·Check the [ECHO CANCEL] setting. (⇒ 14)
	Phone sound quality is poor.	·Reduce the distance between the unit and the Bluetooth device. ·Move the car to a place where you can get a better signal reception.

TROUBLESHOOTING

Symptom

Remedy

Bluetooth® Sound is being interrupted or skipped during playback of a Bluetooth audio player. The connected Bluetooth audio player cannot be controlled. “PAIRING FULL” “PLEASE WAIT” “NOT SUPPORT” “ERROR” “H/W ERROR”

·Reduce the distance between the unit and the Bluetooth audio player. ·Turn off, then turn on the unit and try to connect again. ·Other Bluetooth devices might be trying to connect to the unit. ·Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) ·Disconnect and connect the Bluetooth player again. The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (→16, DELETE PAIR) The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again. The connected phone does not support Voice Recognition feature. Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.

If you still have troubles, reset the unit. ( 3)

SPECIFICATIONS

Digital radio (for KW-D892BT)	DAB	Frequency Range	L Band 1452.960 MHz — 1490.624 MHz
			Band III 174.928 MHz — 239.200 MHz
		Sensitivity	-100 dBm
		Signal-to-Noise Ratio	80 dB
		Antenna Connector Type	SMB
		Antenna Output Voltage	14.4 V (11 V – 16 V)
		Antenna Maximum Current	< 100 mA
Analog radio	FM	Frequency Range	87.5 MHz — 108.0 MHz (50 kHz step)
		Usable Sensitivity (S/N = 26 dB)	0.71 μV/75 Ω
		Quieting Sensitivity (DIN S/N = 46 dB)	2.0 μV/75 Ω
		Frequency Response (±3 dB)	30 Hz — 15 kHz
		Signal-to-Noise Ratio (MONO)	64 dB
		Stereo Separation (1 kHz)	40 dB
	MW	Frequency Range	531 kHz — 1611 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	28.2 μV
	LW	Frequency Range	153 kHz — 279 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	50 μV
CD player	Laser Diode		GaAlAs
	Digital Filter (D/A)		8 times over sampling
	Spindle Speed		500 rpm — 200 rpm (CLV)
	Wow & Flutter		Below measurable limit
	Frequency Response (±1 dB)		20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz)		0.01 %

SPECIFICATIONS

CD player	Signal-to-Noise Ratio (1 kHz)	105 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC“.aac” files
USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	Compatible Devices	Mass storage class
	File System	FAT12/ 16/ 32
	Maximum Supply Current	DC 5 V----1.5 A
	Digital Filter (D/A) Converter	24 Bit
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC“.aac” files
	WAV Decode	Linear-PCM
	FLAC Decode	FLAC files
Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ

Bluetooth	Version	Bluetooth Ver.2.1+EDR/ Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Pairing	SSP (Secure Simple Pairing)
	Profile	HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)
Audio	Maximum Output Power	50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power (at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load (CD/USB)	4 000 mV/10 kΩ load
	Preout Impedance	≤ 600 Ω
General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption	10 A
	Operating Temperature Range	-10°C — +60°C
	Installation Size (W × H × D)	182 mm × 112 mm × 158 mm
	Weight	1.6 kg

Subject to change without notice.

Warning

• The unit can only be used with a 12VDC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W . If the maximum power of the speakers is lower than 50W , change the [AMP GAIN] setting to avoid damaging the speakers. ( 18)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Connect the wires properly.

See Wiring connection. ( 29,30)

3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Press /SOURCE to turn on the power.
6 Reset the unit within 5 seconds. ( 3)

Installing the unit (in-dash mounting)

Do the required wiring.

( 29,30)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied).

Use only the specified screws. Using wrong screws might damage the unit.

How to remove the unit

1 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
2 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown below.

Wiring connection

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

If your car does not have an ISO terminal :

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

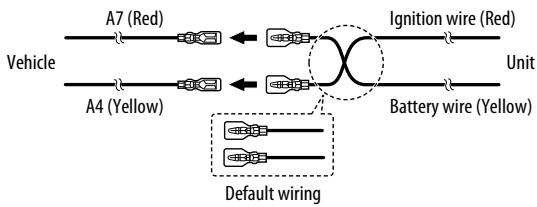

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied wiring harness as illustrated below.

ISO connectors

Pin	Color and function
A4	Yellow	: Battery
A5	Blue/White	: Power control
A6	Orange/white	: Car light control switch
A7	Red	: Ignition (ACC)
A8	Black	: Earth (ground) connection
B1	Purple ⊕	: Rear speaker (right)
B2	Purple/black ⊢	For 3-way crossover: Tweeter (right)
B3	Gray ⊕	: Front speaker (right)
B4	Gray/black ⊙	For 3-way crossover: Mid range speaker (right)
B5	White ⊕	: Front speaker (left)
B6	White/black ⊢	For 3-way crossover: Mid range speaker (left)
B7	Green ⊕	: Rear speaker (left)*
B8	Green/black ⊢	For 3-way crossover: Tweeter (left)

• You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting, 19 .

Part list for installation

(A) Trim plate

(B) Mounting sleeve

(C) Wiring harness

(D) Extraction key

（×2）

(E) Flat head screw (M5 × 8 mm)

(×8)

(F) Round head screw (M5× 8mm)

(×8)

Wiring connection

TABLE DES MATIERES

CD/USB/iPod/Android 10

BLUETOOTH 12

RéGLAGES AUDIO 17

RéGLAGES D'AFFICHAGE 21

RÉFERENCES 22

Entretien

Plus d'informations

GUIDE DE DÉPANNAGE 24

SPECIFICATIONS 26

INSTALLATION /

RACCORDEMENT 28

AVANT L'UTILISATION

IMPORTANT

[SLOPE]/[HPF SLOPE]/[LPF SLOPE]:

( 22, [BRIGHTNESS])

DIGITAL AUDIO (ReWritable)

CD/USB/iPod/Android 10

BLUETOOTH 12

Uber DAB (Digital Audio Broadcasting)

[SLOPE]/[HPF SLOPE]/[LPF SLOPE]:

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIButors "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CORRESPONENTS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
  Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
