Product type	Professional high-pressure cleaner
Brand	Kärcher
Model	HD 17154 S Classic
Service pressure (with standard nozzle)	15 MPa (150 bar)
Max. overpressure	21 MPa (210 bar)
Water flow rate	28,33 l/min
Max. feed temperature	60 °C
Electrical connection	400 V / 3 phases / 50 Hz / 9.0 kW
Protection	IPX5
Main fuse	16 A (time-delay, curve C)
Typical operating weight	73 kg
Dimensions (L × W × H)	720 × 637 × 1080 mm
Engine oil type	15W40 (quantity: 1.2 l)
Sound pressure level LpA	76 dB(A)
Sound power level LWA	93 dB(A)
Hand-arm vibration	3.0 m/s² (uncertainty K=0.8 m/s²)
Safety devices	Pressure switch, recycling valve, motor thermal protection, safety catch
Water supply connection	Max. pressure 1 MPa, max. temperature 60 °C, min. flow rate 31.6 l/min
Max. suction height	0.5 m
Supplied accessories	High-pressure nozzle, EASY!Lock lance, high-pressure gun, EASY!Lock high-pressure hose, lance holder, accessory compartment
Detergent compatibility	Bucket foam lance (optional) with dosage adjustment
Storage and transport	Handle for transport, supports for lance, hooks for cable and hose, frost protection recommended

Frequently Asked Questions - HD 17154 S Classic Kärcher

How to start the HD 17154 S Classic high-pressure cleaner?

Make sure the unit is properly connected to water and electricity. Open the water supply, then set the main switch to position '1'. Unlock the gun by pushing the safety catch backwards and pull the trigger. The motor starts automatically thanks to the pressure switch.

How to use detergent with this unit?

Use a bucket foam lance (optional accessory). Fill the detergent reservoir, insert the desired plug (1=low, 2=medium, 3=high) into the suction hose, then mount the lance on the gun. Spray detergent onto the dry surface, let it soak, then rinse with the high-pressure jet.

What types of water can I use?

Use clean or recycled water meeting limit values: pH 6.5–9.5, conductivity ≤ 2000 µS/cm, chlorides < 300 mg/l, total hardness < 28 °dH, iron < 0.5 mg/l, etc. Do not use dirty water to avoid damaging the pump.

How to bleed the unit before use?

Unscrew the high-pressure nozzle from the lance. Let the unit run until there are no more air bubbles in the water. If necessary, repeat the on/off cycle. Replace the nozzle after bleeding.

How to regularly maintain the cleaner?

Before each use, check the condition of the cable and high-pressure hose. Weekly, clean the fine filter and check the oil level (must be in the middle of the sight glass). Every 500 hours or at least once a year, have the oil changed and maintenance performed by customer service.

What to do if the unit does not start?

Check the power cable, voltage and fuse. If the unit has overheated, set the switch to 0, let it cool down for 15 minutes, then try again. If the problem persists, contact customer service.

How to store the unit after use?

Store it indoors, protected from frost. Empty the water from the unit and hoses. Coil the cable and hose onto their hooks. Place the lance and gun on the supports. For frost protection, pump a glycol-based antifreeze into the unit.

What are the important safety devices?

The pressure switch stops the pump when the trigger is released. The recycling valve protects the pump in case of reduced flow. The thermal protection shuts off the unit in case of overheating. The safety catch locks the gun to prevent accidental triggering.

How to troubleshoot a loss of pressure?

Check the nozzle size (must match specifications), clean or replace it. Bleed the unit. Clean the fine filter. Ensure the water supply flow is sufficient (min. 31.6 l/min). Consult customer service if necessary.

Can I use an extension cable?

Yes, but use a cable of sufficient cross-section: 2.5 mm² for a length of 10 m, 4 mm² for 30 m. Unroll the cable completely and comply with local regulations. The unit must be plugged into an earthed socket.

USER MANUAL HD 17154 S Classic Kärcher

3D rendering of a pressure pump with attached motor and hose (no visible text or symbols)

Deutsch 4

English 10

Français 16

Italiano 22

Nederlands 28

Español 34

Português 40

Dansk 47

Norsk 52

Svenska 58

Suomi 63

Ελληνικά 69

Türkçe 76

Русский 81

Magyar 88

Čeština 94

Slovenščina 100

Polski 106

Românește 112

Slovenčina 118

Hrvatski 124

Srpski 130

Български 136

Eesti 143

Latviešu 149

Lietuviškai 154

Українська 160

中文 167

العربيه 172

A

Labeled diagram of a water heater system with numbered components for identification

B ① ②

C ① ② ③ ② ④ ⑤

D ① ②

E ① ② ③ ④ ⑤

F ④ ③ ② ①

G ① ② ③

Inhalt

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

Contents

General notes.... 10

Intended use.... 10

Environmental protection.... 10

Accessories and spare parts 10

Scope of delivery.... 10

Safety instructions 10

Device description.... 11

Installation 11

Electrical connection 11

Water connection.... 11

Operation.... 12

Transport 13

Storage.... 13

Care and service 13

Troubleshooting guide.... 13

Warranty 14

Technical data 14

Declaration of Conformity.... 15

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Use this high-pressure cleaner only for the following types of work:

• Cleaning with the high-pressure jet without detergent (e.g. façades, terraces, garden machines)
• Cleaning with the low-pressure jet and detergent with the cup foam lance available as an accessory (e.g. for cleaning machines, vehicles, buildings, tools)

We recommend using a rotary nozzle as a special accessory for stubborn soiling.

The device may only be operated when it is standing on level ground. If the device stands at an angle, the high-pressure pump can be damaged by insufficient lubrication.

The device must not be operated with Servo Control accessories.

Water supply limit values

ATTENTION

Dirty water

Premature wear and tear or deposits in the device Supply the device using only clean water, or recycled water that does not exceed the specified limit values.

The following limit values apply to the water supply:

• pH value: 6.5-9.5
• Electrical conductivity: Conductivity of fresh water + 1200 μS/cm, maximum conductivity 2000 μS/cm
• Settleable particles (sample volume 1 l, settling time 30 minutes): < 0.5 mg/l

- Filterable particles: < 50 mg/l, no abrasive substances

• Hydrocarbons: < 20 mg/l

- Chloride: < 300 mg/l

• Sulphate: < 240 mg/l

• Calcium: < 200 mg/l

• Total hardness: < 28^, < 50^, < 500 ppm (mg CaCO_3/l )
• Iron: < 0.5 mg/l
  • Manganese: < 0.05 mg/l
  • Copper: < 2 mg/l
  • Active chloride: < 0.3 mg/l
  • Free of unpleasant odours

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Safety instructions

• It is essential that you read the safety instructions 5.951-949.0 before initial startup.
• Observe the national regulations for liquid jet cleaners.
• Observe the national accident prevention regulations. Liquid jet cleaners must be tested regularly. The test result must be recorded in writing.
• Do not modify the device or accessories.

Symbols on the device

The device may not be connected to the public drinking water network.

The high-pressure jet must not be directed at persons, animals, live electrical equipment or at the device itself. Protect the device from frost.

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection.

Never modify or bypass safety devices.

The safety devices are set and sealed by the manufacturer. Adjustments are performed only by customer service.

Pressure switch

When the trigger on the high-pressure gun is released, the pressure switch switches off the high-pressure pump and the high-pressure jet stops.

The pump switches on again when the trigger is pulled.

Pressure relief valve

When the water quantity is reduced via the pressure and quantity regulator on the trigger gun, the overflow valve opens and part of the water flows back to the suction side of the pump.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Device description

Device overview

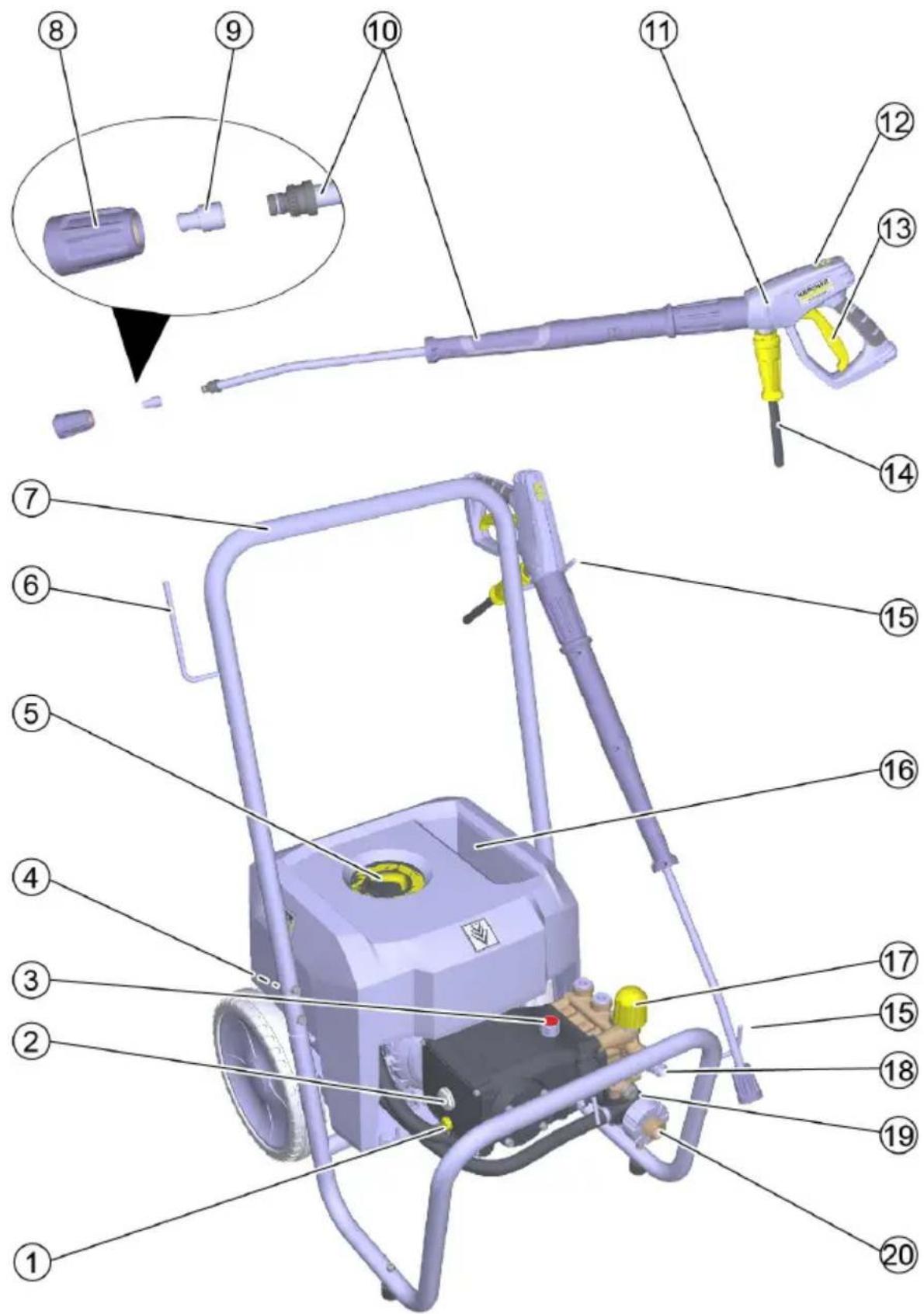

Illustration A

① Oil drain screw

② Oil level gauge

③ Bleed screw

④Type plate

⑤ Power switch

⑥ Hose hook, cable hook

⑦ Push handle

⑧ Union nut

⑨ High-pressure nozzle

⑩ Spray lance EASY!Lock Classic

⑪ High-pressure gun EASY!LOCK Classic

⑫ Safety latch

⑬ Trigger

⑭High-pressure hose EASY!LOCK Classic

⑮ Spray lance holder

⑯ Accessory compartment

⑰ Pressure and quantity regulation

⑱EASY!Lock high-pressure connection

⑲ Fine filter

20 Water connection

Colour coding

• Control elements for the cleaning process are yellow.
• Control elements for maintenance and servicing are light grey.

Installation

Fastening the push handle

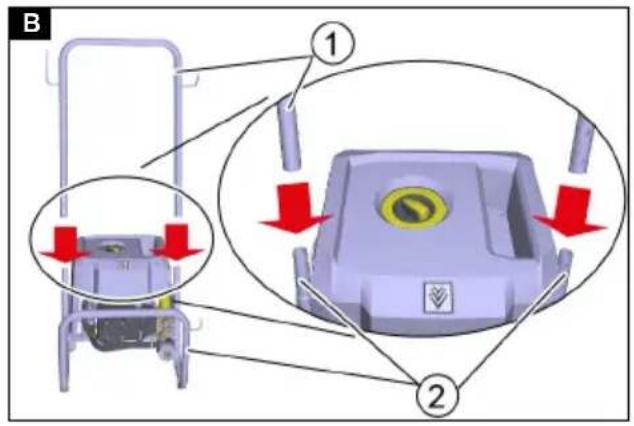

1. Plug the push handle connection onto the pipe frame. Illustration B

① Push handle

② Pipe frame

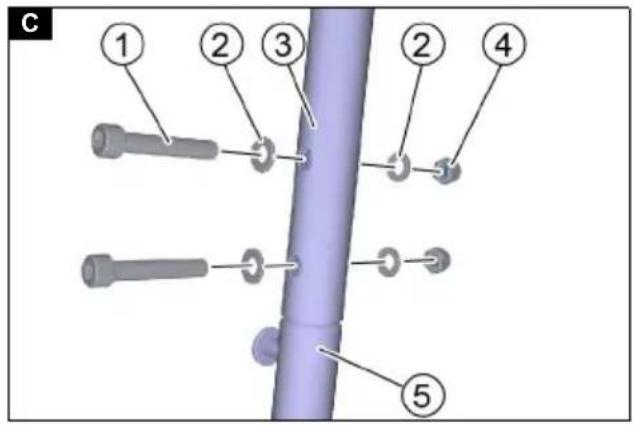

1. Secure both joints with screws, washers and nuts. Illustration C

① Screw M8x45
② Washer 8
③ Push handle
④ Nut M8, self-locking
⑤ Pipe frame

Installing the oil bleed screw

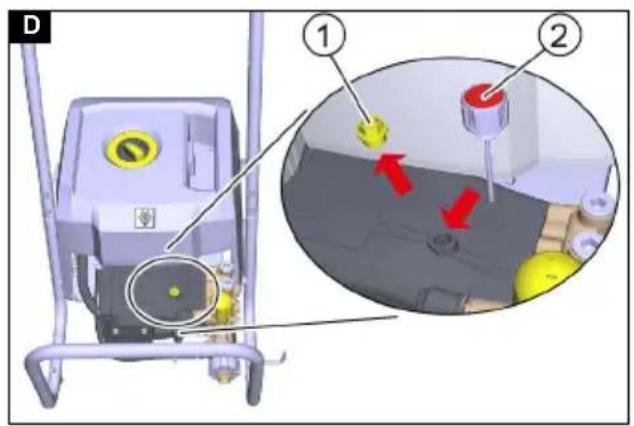

1. Unscrew the plug and dispose of it. Illustration D

① Plugs

② Bleed screw

1. Screw in and tighten the bleed screw.

ATTENTION

Risk of damage

If the plug is not replaced with the bleed screw before operation, the high-pressure pump may be damaged. Be sure to replace the plug with the bleed screw.

Check the oil level

1. Position the device on a level surface.
2. The oil level must be in the middle of the oil level display.
3. If necessary, unscrew the bleed screw and top up the oil (see "Technical data").

Installing accessories

Note

The EASY!Lock system connects components quickly and safely via a single turn of the quick-release thread.
1. Plug the high-pressure nozzle onto the spray lance.
2. Fit the union nut and hand-tighten (EASY!Lock).
3. Connect the spray lance to the high-pressure gun and hand-tighten (EASY!Lock).
4. Connect the high-pressure hose to the high-pressure gun and high-pressure connection of the device and tighten hand-tight (EASY!Lock).

Electrical connection

△DANGER

Risk of injury from electric shock

Use a plug to connect the device to the mains grid. Permanent connection to the mains grid is prohibited. The plug is used for mains isolation.

Only connect the device to an AC power source.

Use an extension cable with sufficient diameter (see "Technical data").

Unwind the extension cable completely from the cable drum.

1. Unwind the mains cable and place on the ground.

2. Plug the mains plug into the socket.

Water connection

Connection to a water line

⚠ WARNING

Return flow of dirty water into the drinking water network

Health risk

Observe the regulations of your water supply company. According to applicable regulations, the device must never be used with the drinking water network without a system separator. Use a system separator from KÄRCHER or a system separator as per EN 12729 Type BA. Water that has flowed through a system sep-

arator is classified as undrinkable. Always connect the system separator to the water supply and never directly to the water connection on the device.

1. Check the supply pressure, supply temperature and supply volume of the water supply (see chapter Technical data).
2. Connect the system separator to the water connection of the device using a water supply hose (for the requirements placed on the water supply hose see chapter Technical data).
3. Open the water inlet.

Sucking water from a container

1. Screw the suction hose with filter onto the water connection (for the order number see chapter Technical data).

2. Vent the device (see chapter Vent the device).

Vent the device

1. Unscrew the high-pressure nozzle from the spray lance.
2. Allow the device to run until the escaping water is free of air bubbles.
3. In the case of venting problems, allow the device to run for 10 seconds and then switch it off. Repeat the procedure several times.
4. Switch off the device.
5. Screw the high-pressure nozzle onto the spray lance.

Operation

△DANGER

High-pressure water jet

Risk of injury

Never fasten the trigger in the actuated position.

Push the safety latch of the high-pressure gun forwards every time before starting work with the device.

Hold the high-pressure gun and spray lance with both hands.

△WARNING

Defective device and accessories, defective supply lines and connections

Danger of injury

The device may only be operated when in a correct operating condition.

High-pressure operation

Note

The device is equipped with a pressure switch. The motor only starts up when the high-pressure gun is open.

1. Set the power switch to "1".
2. Unlock the trigger gun by pushing the safety latch to the rear.
3. Pull the trigger of the high-pressure gun.
4. Adjust the working pressure and water quantity by turning (infinitely adjustable) the pressure and quantity regulator (+/-)

Operation with detergent

⚠ WARNING

Incorrect handling of detergents

Health risk

Adhere to the safety instructions stated on the detergent packaging.

ATTENTION

Unsuitable detergents

Damage to the device and the objects to be cleaned Use only detergents approved by KÄRCHER.

Observe the dosing recommendations and notes provided with the detergent.

Use detergents sparingly to help conserve the environment.

Note

KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalogue or our detergent information sheets.

Note

A cup foam lance (optional) is needed for operating with detergent.

1. Unscrew the container.

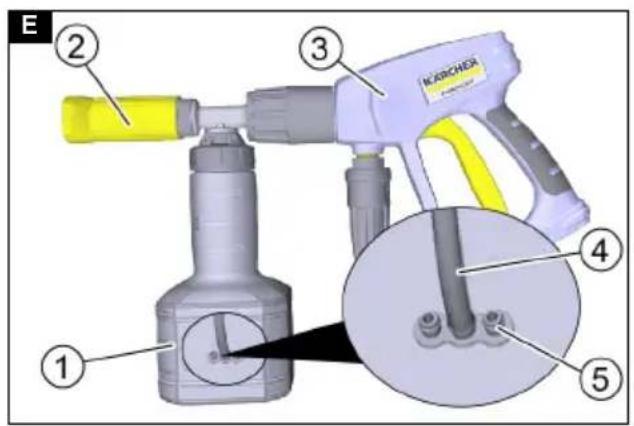

Illustration E

① Container

② Foam nozzle

③ High-pressure gun

④ Suction hose

⑤ Gate

Detergent mixing: 3=high, 2=medium, 1=low

1. Plug the desired gate into the suction hose.

2. Fill the detergent into the container.

3. Screw the container onto the foam nozzle.

4. Disconnect the spray lance from the high-pressure gun.

5. Connect the cup foam lance to the high-pressure gun and hand-tighten.

6. Start up the high-pressure cleaner.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operating with detergent

The cup foam lance must be flushed after use to prevent the formation of detergent deposits.

1. Unscrew the container.
2. Pour the remaining detergent back into the original packaging.
3. Fill the container with clear water.
4. Screw the container onto the cup foam lance nozzle.
5. Operate the cup foam lance for approx. 1 minute to flush the detergent residue.
6. Empty the container.

Interrupting operation

1. Close the high-pressure gun. The device switches off.

2. Push the safety latch forwards. The high-pressure gun is secured.

Continuing operation

1. Push the safety latch backwards.
   The high-pressure gun is unlocked.

2. Open the high-pressure gun. The device switches on.

Finishing operation

1. Close the water inlet.
2. Open the high-pressure gun.
3. Set the trigger to "I/ON" and allow the device to run for 5-10 seconds.
4. Close the high-pressure gun.

5. Set the power switch to "0/OFF".

6. Pull the mains plug out of the socket only when your hands are dry.

7. Remove the water inlet.
8. Open the high-pressure gun until the device is completely depressurised.
9. Push the safety latch forwards. The high-pressure gun is secured.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transport and storage.

• Transporting the device in vehicles: Secure the device in accordance with the respectively applicable guidelines to prevent it from slipping or overturning.
• Transporting the device over longer distances: Pull or push the device using the push handle.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transport and storage.

Store the device indoors only.

Storing the device

1. Place the spray lance with the high-pressure gun on the two spray lance supports.
2. Roll up the mains cable and hang it over the cable holders.
3. Wind up the high-pressure hose and hang it on the hose hook.

Frost protection

ATTENTION

Frost

Destruction of the device through freezing water

Drain all water from the device.

Store the device in a frost-free location.

If frost-free storage is not possible:

1. Drain the water.

2. Pump commonly available anti-freeze through the device.

Note

Use commonly available, Glycol-based vehicle anti-freeze. Observe the handling instructions of the anti-freeze manufacturer.

1. Allow the device for run for a maximum of 1 minute until the pump and lines are empty.

Care and service

△DANGER

Inadvertently starting up device

Risk of injury, electric shock

Switch off the device immediately and unplug the mains plug before performing work.

Note

Old oil may only be disposed of at designated collection points. Please dispose of any old oil at these locations. Polluting the environment with old oil is punishable by law.

Safety inspection/maintenance contract

You can agree on regular safety inspections or close a maintenance contract with your dealer. Please seek advice on this.

Maintenance intervals

Each time before use

• Check the mains cable for damage. Have a damaged cable replaced immediately by the authorised Customer Service or a qualified electrician.
• Check the high-pressure hose for damage. Immediately replace a damaged high-pressure hose.
• Check the device for leaks. 3 drops of water per minute are permissible. Contact Customer Service in the case of more serious leaks.

Weekly

- Check the oil level. Contact Customer Service immediately if the oil is milky (water in oil).

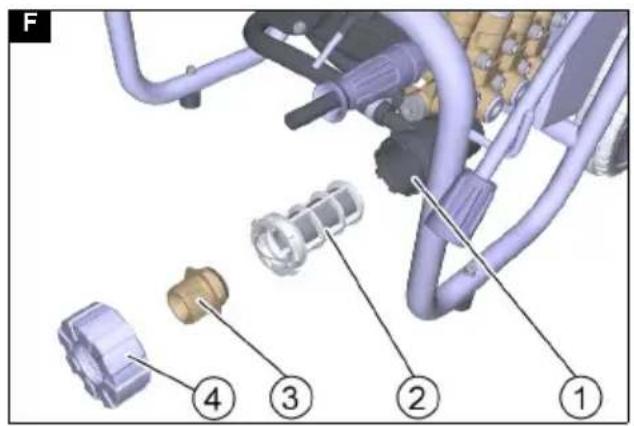

- Clean the fine filter. Illustration F

① Filter housing

② Fine filter

③ Connection nozzle

④ Union nut

a Unscrew the union nut.
b Pull out the connection nozzle.
c Pull the fine filter out of the filter housing.
d Rinse the fine filter with clear water or blow it out with compressed air.
e Insert the fine filter into the filter housing.
f Attach the connection nozzle.
g Screw on the union nut and hand-tighten.

Every 500 operating hours, at least annually

● Have the device serviced by Customer Service.

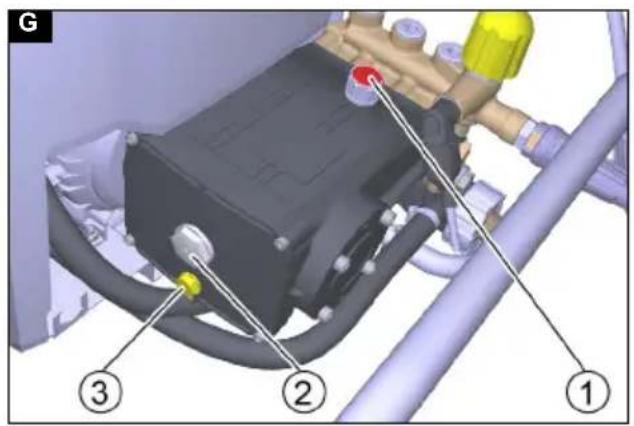

- Change the oil in the high-pressure pump. Illustration G

① Bleed screw

② Oil level gauge

③ Oil drain screw

a Unscrew the oil drain plug.

b Drain the oil into a suitable collection container.

c Screw in and tighten the oil drain screw.

d Unscrew the bleed screw.

e Fill in new oil slowly so that air bubbles can escape. See the "Technical data" section for the oil volume and type.

f Re-install the bleed screw.

Troubleshooting guide

△DANGER

Inadvertently starting up device, touching live components

Risk of injury, electric shock

Switch off the device before performing any work on the device.

Remove the mains plug.

Have all checks and work on electrical parts performed by a qualified electrician.

In case of any malfunctions not mentioned in this chapter, contact the authorised Customer Service.

The device cannot be started

1. Check the mains cable for damage.
2. Check the mains voltage.
3. If the device overheats:

a Set the power switch to "0/OFF".

b Allow the device to cool for at least 15 minutes.

c Set the trigger to the "I/ON" position.

1. Contact Customer Service in the case of electrical faults.

Device does not reach required pressure

1. Check that the high-pressure nozzle is the right size (see chapter "Technical data").
2. Clean or replace the nozzle.
3. Vent the device (see chapter "Venting the water connection/device.").
4. Clean the fine filter, replace if necessary (see chapter "Care and Maintenance/Weekly").
5. Check the water supply volume (compare with the required volume specified in the "Technical data" chapter).
6. Contact Customer Service if necessary.

The water quantity is too low

1. When using a long high-pressure hose or a high-pressure hose with a small diameter, fit a larger high-pressure nozzle to the spray lance.

The pump is leaking.

Up to 3 drops of water per minute are permissible.

- In case of more serious leaks, have the device checked by Customer Service.

The pump knocks

1. Check the water supply volume (compare with the required volume specified in the "Technical data" chapter).

2. Vent the device (see chapter "Venting the water connection/device.").

3. Clean the fine filter, replace if necessary (see chapter "Care and Maintenance/Weekly").

4. Contact Customer Service if necessary.

The detergent dosing volume is too low

1. Check that the cup foam lance used matches the flow rate of the device.
2. Refill the cup of the cup foam lance.
3. Plug a larger gate onto the suction hose.
4. Check the suction hose and cup foam nozzle for detergent deposits. Remove deposits using lukewarm water.
5. Contact Customer Service if necessary.

The foam formation is too low

1. Check that the cup foam lance used matches the flow rate of the device.
2. Check the suction hose and cup foam lance for detergent deposits. Remove deposits using lukewarm water.
3. Contact Customer Service if necessary.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

				HD 10/21-4 S HD 10/25-4 S HD 13/18-4 S HD 17/15-4 S
Country variant
Country EU EU EU EU
Electrical connection
Voltage		V		400
P	h	a	s	e	~	3	3
Frequency		Hz	50	50	50	50
Maximum permissible mains grid impedance Ω			-	0.0452+j0.0283	0.0452+j0.0283	0.0452+j0.0283
Power rating		kW	8,0 8,8 8,8 9,0
Degree of protection			IPX5	IPX5	IPX5	IPX5
Power protection (slow-blow, char. C)		A	16	16	16	16
Extension cable, 10 m		mm2	2,5 2,5 2,5 2,5
Extension cable, 30 m		mm2	4	4	4	4
Water connection
Feed pressure (max.)		MPa	1	1	1	1
Input temperature (max.)		°C	60	60	60	60
Input amount (min.)		l/min	20	20	25	31,6
Suction height (max.)		m	0,5	0,5	0,5	0,5
Minimum water supply hose length		m	7,5	7,5	7,5	7,5
Minimum water supply hose diameter		in	1	1	1	1
Suction filter order number			4.730-012.0	4.730-012.0	4.730-012.0	4.730-012.0
Device performance data
Nozzle size of standard nozzle			050 045 075 105
Water operating pressure with standard nozzle		MPa	21	25	18	15

HD 10/21-4 S HD 10/25-4 S HD 13/18-4 S HD 17/15-4 S

Operating pressure (max.) MPa 27 31 24	21
Water flow rate l/min 16,7 16,7 21,67 28,33
High-pressure gun recoil force N 57 63 69 85

Dimensions and weights

Typical operating weight kg 60 67 67 73
Length	mm	720	720	720	720
Width	mm	637	637	637	637
Height	mm	1080	1080	1080	1080
Oil volume	l	0,65 0,65 0,65 1,2
Oil type	Type	15W40	15W40	15W40	15W40

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	2,8	3,7	2,9	3,0
Uncertainty K	m/s2	0,8	0,9	0,8	0,8
Sound pressure level LpA	dB(A)	69	74	74	76
Uncertainty KpA	dB(A)	3	3	3	3
Sound power level LWA+ K uncertaintyWA	dB(A)	86	91	91	93

Exception according to Regulation (EU) 2019/1781 Annex I Section 2 (12): j)

Subject to technical changes without notice.

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.367-xxx

Currently applicable EU Directives

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

HD 10/21-4 S Classic

EN 61000-3-11: 2000

HD 13/18-4 S Classic

HD 10/25-4 S Classic

HD 17/15-4 S Classic

EN 62233: 2008

National standards used

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

HD 10/21-4 S Classic

Measured: 84

Guaranteed: 86

HD 13/18-4 S Classic

Measured: 89

Guaranteed: 91

HD 10/25-4 S Classic

Measured: 89

Guaranteed: 91

HD 17/15-4 S Classic

Measured: 91

Guaranteed: 93

The signatories act on behalf of and with the authority of the company management.

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us.

This declaration shall cease to be valid if the product is modified without our prior approval.

Product: High-pressure cleaner

Type: 1.367-xxx

Currently applicable UK Regulations

S.I. 2001/1701 (as amended)

S.I. 2008/1597 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2010/2617 (as amended)

Commission Regulation(s)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

HD 10/21-4 S Classic

EN 61000-3-11: 2000

HD 13/18-4 S Classic

HD 10/25-4 S Classic

HD 17/15-4 S Classic

EN 62233: 2008

National standards used

Applied conformity assessment procedure

S.I. 2001/1701 (as amended): Schedule 8

Sound power level dB(A)

HD 10/21-4 S Classic

Measured: 84

Guaranteed: 86

HD 13/18-4 S Classic

Measured: 89

Guaranteed: 91

HD 10/25-4 S Classic

Measured: 89

Guaranteed: 91

HD 17/15-4 S Classic

Measured: 91

Guaranteed: 93

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

Contenu

2006/42/CE (+2009/127/CE)

2011/65/EU

2014/30/UE

2009/125/CE

Ordonnance(s) appliquée(s)

(UE) 2019/1781

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2022

Inhoud

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2009/125/CE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2022

Índice

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2009/125/CE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 01/08/2022

Indhold

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2009/125/EF

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

Indhold

Generelle merknader 52

Forskriftsmessig bruk.... 52

Miljøvern.... 53

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2009/125/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

HD 10/21-4 S Classic

Målt: 84

Garantert: 86

HD 13/18-4 S Classic

Målt: 89

Garantert: 91

HD 10/25-4 S Classic

Mält: 89

Garantert: 91

HD 17/15-4 S Classic

Målt: 91

Garantert: 93

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2022/08/01

Innehåll

Allmän information....58

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 01.08.2022

Sisältö

Yleisiä ohjeita 63

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2022/08/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

2014/30/AB

2009/125/EG

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2022/08/01

Содержание

Общие указания 81

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/08/01

Obsah

Obecné pokyny 94

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2009/125/ES

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/08/01

Kazalo

Splošna navodila.... 100

Namenska uporaba.... 100

Varovanje okolja.... 101

Pribor in nadomestni deli.... 101

Obseg dobave.... 101

Varnostna navodila.... 101

Opis naprave.... 101

Montaža 101

Električni priključek.... 102

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2009/125/ES

Uporabljena(-e) uredba(-e)

(EU) 2019/1781

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 1. 8. 2022

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

2009/125/WE

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2000/14/UE

2006/42/UE (+2009/127/UE)

2011/65/UE

2014/30/UE

2009/125/UE

Regulament(e) utilizat(e)

(UE) 2019/1781

Norme armonizate aplicate

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

HD 10/21-4 S Classic

EN 61000-3-11: 2000

HD 13/18-4 S Classic

HD 10/25-4 S Classic

HD 17/15-4 S Classic

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/08/01

Obsah

Všeobecné upozornenia 118

2006/42/ES (+2009/127/ES)

2011/65/EÚ

2014/30/EÚ

2009/125/ES

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.08.2022

Sadržaj

Opće napomene.... 124

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2009/125/EZ

Primijenjene uredbe

(EU) 2019/1781

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 01.08.2022.

Sadržaj

Opšte napomene.... 130

Namenska upotreba.... 130

Zaštita životne sredine 131

Pribor i rezervni delovi.... 131

Obim isporuke 131

Sigurnosne napomene.... 131

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2009/125/EZ

Primenjena(e) odredba(e)

(EU) 2019/1781

Primenjene harmonizovane norme

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

HD 10/21-4 S Classic

EN 61000-3-11: 2000

HD 13/18-4 S Classic

HD 10/25-4 S Classic

HD 17/15-4 S Classic

EN 62233: 2008

Primenjene nacionalne norme

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/08/01

Съдържание

Общи указания 136

Употреба по предназначение 136

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2022/08/01

Sisukord

Üldised juhised 143

Tarvikute monteerimine

Märkus

Vee sisseimemine mahutist

Toode: Körgsurvepesur

Tüüp: 1.367-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

2014/30/EL

2009/125/EÜ

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2022/08/01

Saturs

Ellas veids Tips 15W40 15W40 15W40 15W40

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

www.kaercher.com/REACH

附件和备件

www.kaercher.com/REACH

Black and white icon of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

QR code image with a central logo, likely linking to a digital resource or website.
