Product type	Built-in electric oven
Brand	AEG
Model	BPS556060M
Volume	71 L
Dimensions (H x W x D)	594 x 595 x 567 mm (front)
Installation dimensions (H x W x D)	578 x 560 x 546 mm
Weight	35 kg (approx.)
Heat source	Electricity
Cooking modes	Fan-forced, Top/Bottom Heat, SteamBake, Pizza, Bottom Heat, Frozen Foods, Humid Air Circulation, Grill, Turbo Grill
Clock functions	Timer, Cooking time, Delayed start, Counter
Assisted cooking	Yes, with integrated recipes
Cooking probe	Yes, included
Cleaning	Pyrolysis (3 levels: C1 1h, C2 1h30, C3 3h)
Safety	Automatic shut-off, Key lock, Child safety
Connectivity	Wi-Fi 2.4/5 GHz, Bluetooth, My AEG Kitchen App
Included accessories	Metal grid, Roasting pan, Cooking probe
Lighting	LED bulb class G, replaceable (resists up to 300 °C)
Shelf levels	5

Frequently Asked Questions - BPS556060M AEG

How to use pyrolytic cleaning?

Before pyrolysis, remove all accessories and shelf supports. Clean the bottom and inner glass with a damp cloth. Select the Cleaning menu and choose a level (C1, C2 or C3). Confirm to start. The door locks automatically during the cycle. After cooling, wipe away residues.

How to connect the oven to Wi-Fi?

Download the My AEG Kitchen app on your mobile device. Turn the oven knob to select the Wi-Fi menu (). Follow the instructions in the app to pair the oven with your wireless network (2.4 GHz or 5 GHz).

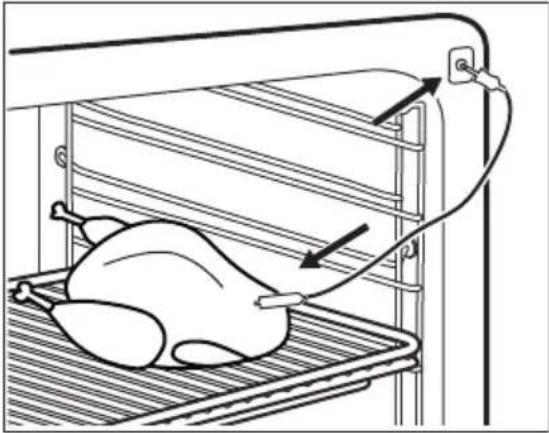

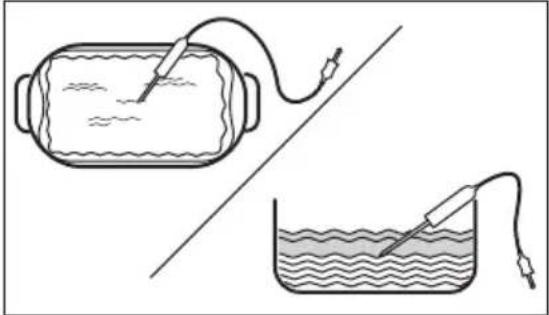

How to use the cooking probe?

Insert the probe into the thickest part of the food. Plug it into the socket at the front of the oven. Set the desired core temperature using the buttons. A beep sounds when the temperature is reached. Unplug the probe carefully (it becomes hot).

What cooking modes are available?

The modes include: Fan-forced, Top/Bottom Heat, SteamBake (humidity addition), Pizza, Bottom Heat, Frozen Foods, Humid Air Circulation (energy-saving), Grill and Turbo Grill.

How to clean the cavity after steam cooking?

Use the Cavity tray cleaning function: pour 250 ml of white vinegar (max 6%) into the tray, leave for 30 minutes at room temperature, then rinse with hot water and a soft cloth. Perform this cleaning every 5 to 10 steam cooking cycles.

How to replace the oven bulb?

Turn off the oven and unplug it. Place a cloth at the bottom of the cavity. Turn the glass diffuser to remove it. Replace the bulb with a suitable bulb that resists 300 °C. Put the diffuser back in place.

What to do if the oven displays an error code?

Common codes: Err C2 (probe incorrectly connected), Err C3 (door open), Err F102 (door open or defective lock). For other codes, turn off the main fuse and turn on again. If the problem persists, contact an authorized after-sales service.

How to set the timer or delayed start?

For the timer, press ⏻, set the duration and confirm. For a delayed start, select the function, set the start and end times after choosing the cooking mode. The clock automatically manages the cycles.

How to use the SteamBake function?

Make sure the oven is cold. Fill the cavity tray with 250 ml of tap water. Pre-heat empty for 10 minutes to create humidity, then place the food in the oven. Select the SteamBake mode and set the temperature. Do not refill the tray during cooking.

What are the safety instructions for children?

Activate child safety via the menu to lock the control panel. Supervise children during use; the appliance becomes very hot. Keep packaging out of their reach. The door can be locked in pyrolysis mode.

USER MANUAL BPS556060M AEG

Simple line drawing of a kitchen oven (no text or symbols)

TIL PERFEKTE RESULTATER

2.1 Installation......5

2.2 El-forbindelse....6

2.3 Brug....7

15. MILJ∅HENSYN....40

1. ⚠OM SIKKERHED

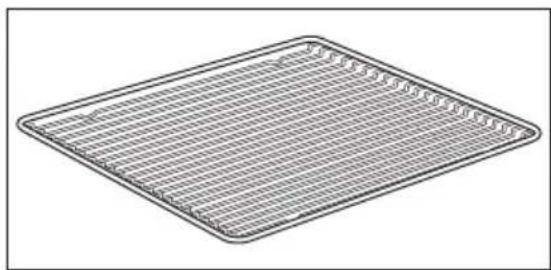

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Bageplade

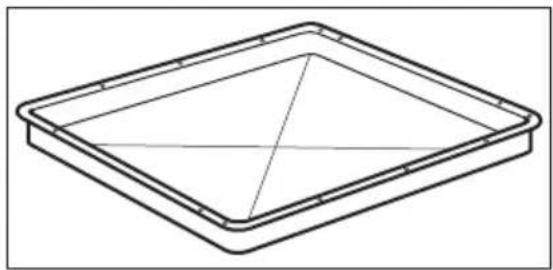

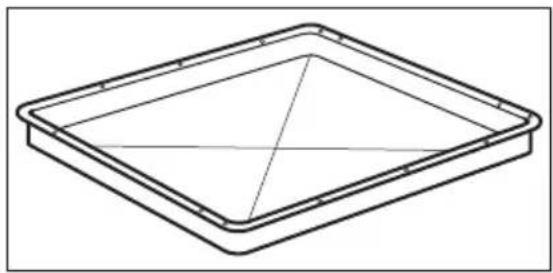

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

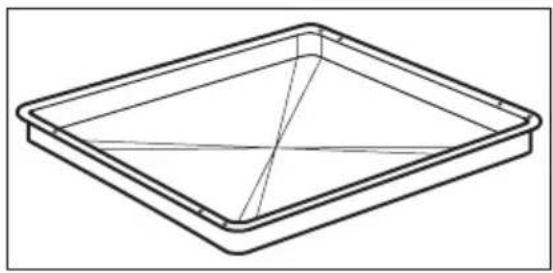

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. SÅDAN TÄENDES OG SLUKKES OVNEN

11.3 Fjernelse:: Ovnribber

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

For more recipes, hints, troubleshooting download My AEG Kitchen app.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......43

1.1 Children and vulnerable people safety.... 43
1.2 General Safety....43

2. SAFETY INSTRUCTIONS...... 44

2.1 Installation....44
2.2 Electrical connection....45
2.3 Use.... 46
2.4 Care and cleaning....47
2.5 Pyrolytic cleaning....47
2.6 Internal lighting.... 48
2.7 Service....48

2.8 Disposal......48

3. PRODUCT DESCRIPTION...... 49

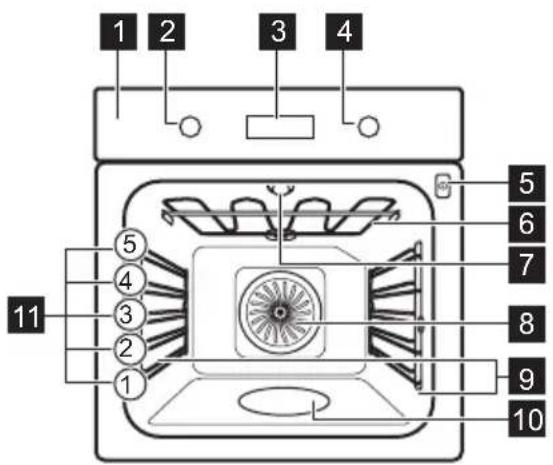

3.1 General overview....49
3.2 Accessories.... 49

4. HOW TO TURN OVEN ON AND OFF..... 50

4.1 Retractable knobs....50

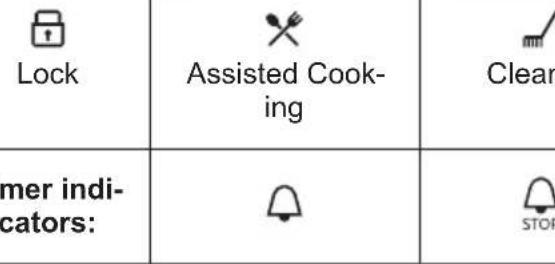

4.2 Control panel.... 50

5. BEFORE FIRST USE....52

5.1 Initial cleaning....52
5.2 Initial preheating.... 52

5.3 Wireless connection 52
5.4 Software licences....53

6. DAILY USE...... 53

6.1 How to set: Heating functions......53
6.2 Heating functions....54
6.3 Notes on: Moist Fan Baking......56
6.4 How to set: Assisted Cooking.....56
6.5 Assisted Cooking with recipes.....57

7. CLOCK FUNCTIONS....62

7.1 Clock functions.... 62
7.2 How to set: Clock functions...... 62

8. HOW TO USE: ACCESSORIES......64

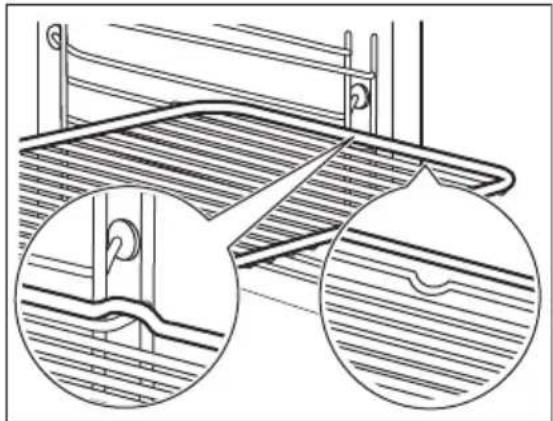

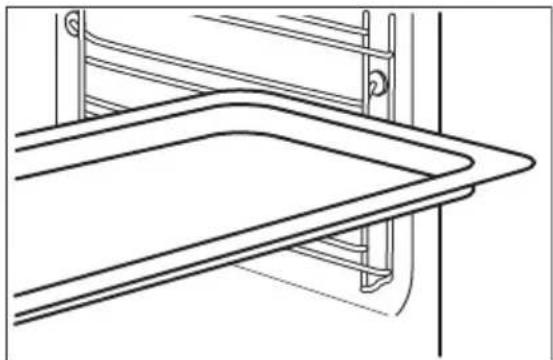

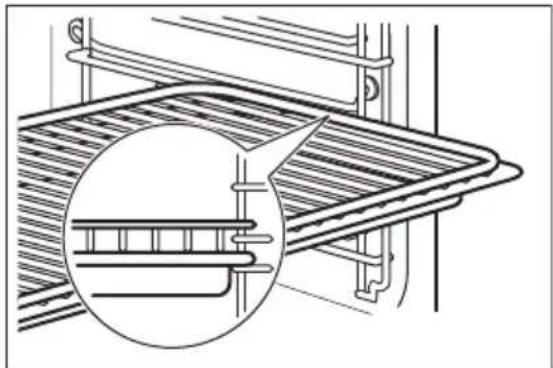

8.1 Inserting accessories....64
8.2 Food Sensor.... 64

9. ADDITIONAL FUNCTIONS...... 66

9.1 Lock.... 66
9.2 Automatic switch-off....66
9.3 Cooling fan....67

10. HINTS AND TIPS......67

10.1 Moist Fan Baking......67
10.2 Moist Fan Baking - recommended accessories....67

10.3 Cooking tables for test institutes..68

11. CARE AND CLEANING....70

11.1 Notes on cleaning....70
11.2 How to clean: Cavity embossment.... 71
11.3 How to remove: Shelf supports ...71
11.4 How to use: Pyrolytic Cleaning....71
11.5 Cleaning Reminder....73
11.6 How to remove and install: Door..73
11.7 How to replace: Lamp....74

12. TROUBLESHOOTING....74

12.1 What to do if....75
12.2 Service data....76

13. ENERGY EFFICIENCY....76

13.1 Product Information and Product Information Sheet*....76
13.2 Energy saving....77

14. MENU STRUCTURE....78

14.1 Menu....78

15. ENVIRONMENTAL CONCERNS......79

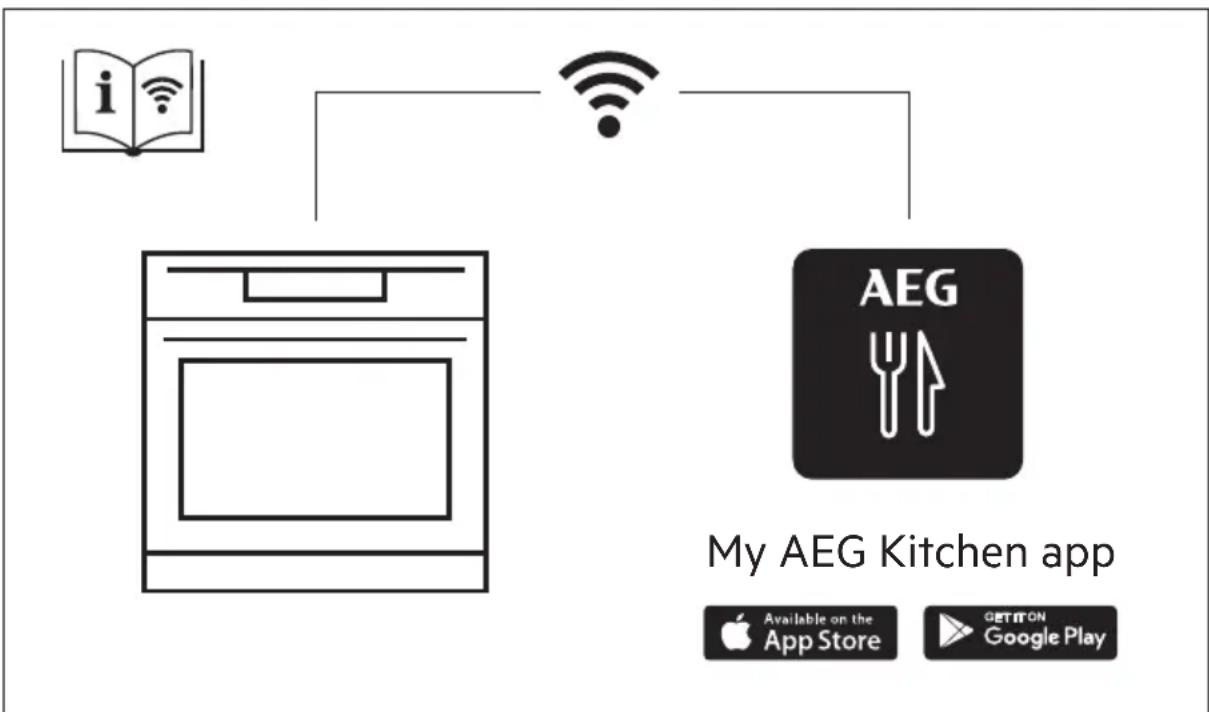

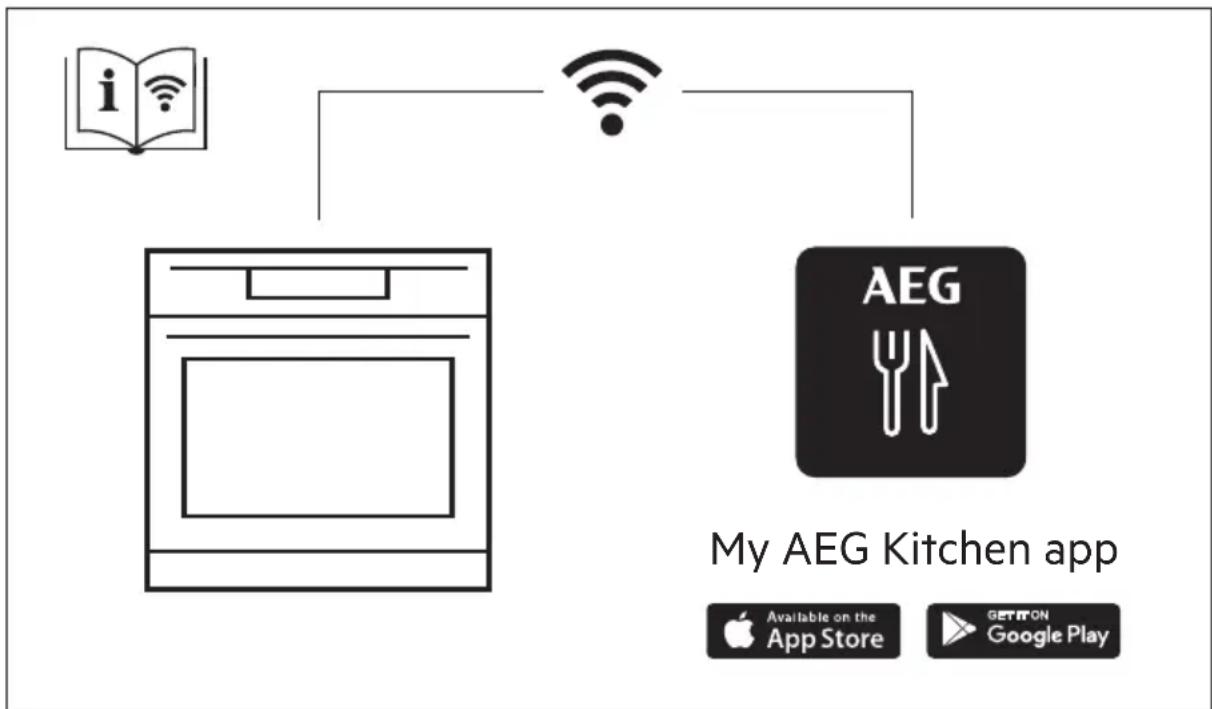

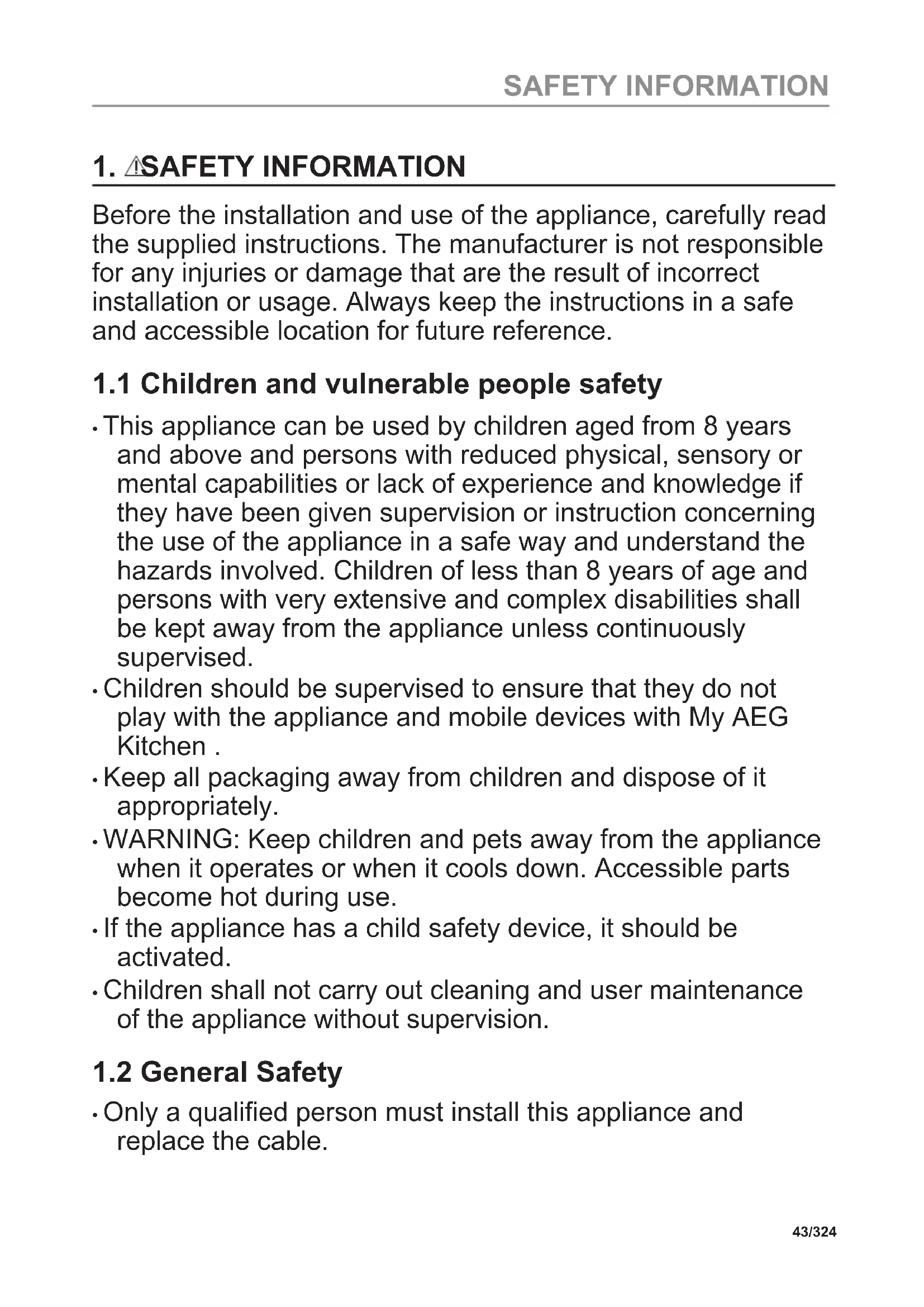

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance and mobile devices with My AEG Kitchen.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Only a qualified person must install this appliance and replace the cable.

• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Always use oven gloves to remove or put in accessories or ovenware.
• Use only the food sensor (core temperature sensor) recommended for this appliance.
• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Excessive spillage must be removed before the pyrolytic cleaning. Remove all parts from the oven.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.

• Install the appliance in a safe and suitable place that meets installation requirements.
- Keep the minimum distance from other appliances and units.
- Before mounting the appliance, check if the oven door opens without restraint.
- The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
- The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work-top minimum height)	578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 594 mm
Height of the back of the appliance 576 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 1027 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• This appliance is for household (indoors) use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not share your Wi-Fi password.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  – do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
  – be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
  • Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

- Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

– any excess food residues, oil or grease spills / deposits.
– any removable objects (including shelves, side rails etc., provided with the product) particularly any non-stick pots, pans, trays, utensils etc.

• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning operates. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

– provide good ventilation during and after each Pyrolytic cleaning.

– provide good ventilation during and after the first use at maximum temperature operation.

- Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.

- Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.

• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.
• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.
• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including children, or persons with medical conditions.

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

1 Control panel
2 Knob for the heating functions
3 Display
4 Control knob
5 Socket for the food sensor
6 Heating element
7 Lamp
8 Fan
9 Shelf support, removable
10 Cavity embossment
11 Shelf positions

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Baking tray

For cakes and biscuits.

Grill- / Roasting pan

To bake and roast or as a pan to collect fat.

Food sensor

To measure the temperature inside food.

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. HOW TO TURN OVEN ON AND OFF

4.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

4.2 Control panel

Control panel sensor fields Press Turn the					knob
Timer	Fast Heat Up	Light	[EZTW]Food Sensor	OK
Select a heating function to turn on the oven.
Turn the knob for the heating functions to the off position to turn the oven off.

	When the knob for the heating functions is in the off position, the display goes to standby.
	When you cook, the display shows the set temperature, time of day and other available options.
	The display with the maximum number of functions set.

Display indicators
		Setting	Fast Heat Up
Ti
Wi-Fi indicator - flashes when the oven can be connected to Wi-Fi.		Remote operation indicator - the oven can be controlled remotely.
		Remote operation is turned on.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial cleaning

Before the first use clean the empty oven and set the time:
			00:00Set the time. Press OK

5.2 Initial preheating

Preheat the empty oven before the first use.
Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function:☐Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function:☐Let the oven operate for 15 min.
i The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

5.3 Wireless connection

To connect the oven you need:

• Wireless network with the Internet connection.
• Mobile device connected to your wireless network.

Step 1 Download the mobile app My AEG Kitchen and follow the instructions for the next steps.
Step 2	Turn the knob to select: ≡

Frequency 2.4 GHz WLAN 5 GHz	Hz WLAN
	2400 - 2483.5 MHz 5150 - 5350 MHz5470 - 5725 MHz
Protocol IEEE 802.11b DSSS,	802.11g/n OFDM	IEEE 802.11 a/n OFDM
Max Power EIRP < 20 dBm (100 mW) EIRP < 23 dBm (200 mW)
Wi-Fi module NIU5-50

Frequency Bluetooth 2400 - 2483.5 MHz
Protocol LE: DSSS
Max Power EIRP < 4 dBm (2.5 mW)

Countries covered by the provision of Directive 2014/53/EU: Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary, Malta, Netherlands, Northern Ireland, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, Norway, Iceland, Liechtenstein, Switzerland, Turkey.

5.4 Software licences

The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIU5).

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Heating functions

Start cooking
Step 1 Step 2
	°C
Set a heating function. Set the temperature.

Steam cooking
Make sure that the oven is cold.
Step 1 Step 2 Step 3 Step 4
			Preheat the empty oven for 10 min to create humidity. Put food in the oven.
Fill the cavity embossment with tap water.	Set the steam heating function.	Set the temperature.
i The maximum capacity of the cavity embossment is 250 ml. Do not refill the cavity embossment during cooking or when the oven is hot.

When the steam cooking ends:
Step 1 Step 2 Step	3
Turn the knob for the heating functions to the off position to turn off the oven.	Carefully open the door. Re- leased humidity can cause burns.	Make sure that the oven is cold. Remove the remaining water from the cavity em- bossment.

6.2 Heating functions

Standard heating functions

Heating function Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking	To bake and roast food on one shelf position.
SteamBake	To add humidity during the cooking. To get the right colour and crispy crust during baking. To give more juiciness during reheating. To preserve fruit or vegetables.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.To enter the Menu: Assisted Cooking, Cleaning, Settings.

6.3 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

6.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature during cooking.

For some of the dishes you can also cook with:	The degree to which a dish is cooked:
• Food Sensor • Rare	• Medium• Well done

Assisted Cooking - use it to prepare a dish quickly with default settings:
Step 1 Step 2 Step 3 Step 4
Enter the menu. Select Assisted Cooking. Press OK		Select the dish. Press OK.	Insert the dish to the oven. Confirm setting.

6.5 Assisted Cooking with recipes

Legend
	Food sensor available. Place the Food sensor in the thickest part of the dish.The oven turns off when the set Food sensor temperature is reached.
	The amount of water for the steam function.
	Preheat the oven before you start cooking.
	Shelf level.

When the function ends check if the food is ready.

Dish	Weight Shelf level / Accessory Duration			time
Beef [SY6D]
P1 Roast Beef,rare		1 - 1,5 kg; 4- 5 cm thick pieces	[ASXE] baking trayFry t meat for a few minutes on a hot pan. insert to the oven.	~ 40 min
P2 Roast Beef,medium				~ 50 min
P3 Roast Beef,well done				~ 60 min
P4 Steak,medi-um		180 - 220 g per piece; 3cm thick sli-ces	roasting dish on wire shelfFry t meat for a few minutes on a hot pan. insert to the oven.	~ 15 min
P5 Beef roast /braised (prime rib, top round,thick flank)		1,5 - 2 kg	[W22D] roasting dish on wire shelfFry the meat for a few minutes on a hot pan. Add liquid. Insert to the oven.	~ 120 min
Dish	Weight Shelf level	/ Accessory	Duration	time
P6 Roast Beef,rare (slow cooking)		1 - 1,5 kg; 4- 5 cm thick pieces	baking trayUse your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	~ 75 min
P7 Roast Beef,medium (slow cooking)				~ 85 min
P8 Roast Beef,well done(slow cooking)				~ 130 min
P9 Fillet, rare(slow cooking)		0,5 - 1,5 kg;5 - 6 cm thick pieces	baking trayUse your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	~ 75 min
P10 Fillet, medium(slow cooking)				~ 90 min
P11 Fillet, done(slow cooking)				~ 120 min
Veal
P12 Veal roast(e.g. shoulder)		0,8 - 1,5 kg;4 cm thick pieces	roasting dish on wire shelfUse your favourite spices. Add liquid.Roast covered.	~ 80 min
Pork
P13 Pork roastneck orshoulder		1,5 - 2 kg	roasting dish on wire shelfTurn the meat after half of the cooking time.	~ 120 min
P14 Pulled porkLTC		1,5 - 2 kg	baking trayUse your favourite spices. Turn the meat after half of the cooking time to get an even browning.	~ 215 min
P15 Loin, fresh 1 - 1,5 kg; 5- 6 cm thick pieces			roasting dish on wire shelfUse your favourite spices.	~ 55 min
Dish	Weight Shelf level / Accessory Duration			time
P16 Spare Ribs 2 - 3 kg; use raw, 2 - 3 cm thin spare ribs			3; deep panAdd liquid to cover the bottom of a dish.Turn the meat after half of the cooking time.	90 min
Lamb
P17 Lamb leg with bones		1,5 - 2 kg; 7 - 9 cm thick pieces	2; roasting dish on baking trayAdd liquid. Turn the meat after half of the cooking time.	~ 130 min
Poultry
P18 Whole chick-en		1 - 1,5 kg; fresh	2; 200 ml; casserole dish on baking trayUse your favourite spices. Turn the chicken after half of the cooking time to get an even browning.	~ 60 min
P19 Half chicken 0,5 - 0,8 kg			3; baking trayUse your favourite spices.	~ 40 min
P20 Chicken breast		180 - 200 g per piece	2; casserole dish on wire shelfUse your favourite spices. Fry the meat for a few minutes on a hot pan.	~ 25 min
P21 Chicken legs, fresh		-	3; baking trayIf you marinated chicken legs first, set lower temperature and cook them longer.	~ 30 min
P22 Duck, whole 2 - 3 kg			2; roasting dish on wire shelfUse your favourite spices. Put the meat on roasting dish. Turn the duck after half of the cooking time.	~ 100 min
P23 Goose, whole 4 - 5 kg			2; deep panUse your favourite spices. Put the meat on deep baking tray. Turn the goose after half of the cooking time.	~ 110 min
Other
P24	Meat loaf 1 kg		wire shelfUse your favourite spices.	~60 min
Fish
P25	Whole fish, grilled	0,5 - 1 kg per fish	baking trayFill the fish with butter and use your favourite spices and herbs.	~30 min
P26	Fish fillet -		casserole dish on wire shelfUse your favourite spices.	20 min
Sweet baking / desserts
P27	Cheesecake -		28 cm springform tin on wire shelf	90 min
P28	Apple cake -		200 - 150 ml; baking tray	60 min
P29	Apple tart -		pie form on wire shelf	40 min
P30	Apple pie -		200 - 150 ml; 22 cm pie form on wire shelf	60 min
P31	Brownies 2 kg		deep pan	30 min
P32	Chocolate muffins	-	100 - 150 ml; muffin tray on wire shelf	30 min
P33	Loaf cake -		loaf pan on wire shelf	50 min
Vegetable / Side dishes
P34	Baked potatoes	1 kg	2; baking trayPut the whole potatoes with skin on baking tray.	50 min
P35	Wegdes 1 kg		3; baking tray lined with baking paperUse your favourite spices. Cut potatoes into pieces.	35 min
P36	Grilled mixed vegetables	1 - 1,5 kg	3; baking tray lined with baking paperUse your favourite spices. Cut the vegetables into pieces.	30 min
P37	Croquets, frozen	0,5 kg	3; baking tray	25 min
P38	Pommes, frozen	0,75 kg	3; baking tray	25 min
Gratins, bread and pizza
P39	Lasagna / Noodle cas-serole	1 - 1,5 kg	2; casserole dish on wire shelf	45 min
P40	Potato gratin 1 - 1,5 kg		1; casserole dish on wire shelf	50 min
P41	Pizza fresh, thin	-	2; 100 ml; baking tray lined with baking paper	15 min
P42	Pizza fresh, thick	-	2; 100 ml; baking tray lined with baking paper	25 min
P43	Quiche -		2; baking tin on wire shelf	45 min
P44	Baguette / Ciabatta / White bread	0,8 kg	3; 150 ml; baking tray lined with baking paperMore time needed for white bread.	30 min
P45 A	All grain / rye / dark bread all grain in loaf pan	1 kg	2; 150 ml; baking tray lined with baking paper / wire shelf	45 min

7. CLOCK FUNCTIONS

7.1 Clock functions

Clock Function Application
[ZXWC]	Minute minder. When the timer ends, the signal sounds.
	Cooking time. When the timer ends, the signal sounds and the heating function stops.
[388T]	Time Delay. To postpone the start and / or end of cooking.
	Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.To turn on and off the Uptimer select: Menu, Settings.

7.2 How to set: Clock functions

How to set: Time of day
Step 1 Step 2 Step 3
To change the time of day enter the menu and select Settings, Time of day.	Set the clock.	Press: OK

How to set: Minute minder
Step 1	The display shows:0:00	Step 2 Step 3
Press:		Set the Minute minder	Press: OK
i Timer starts counting down immediately.

How to set: Cooking time
Step 1 Step 2		The display shows:0:00STOP	Step 3 Step 4
Choose a heating function and set the temperature.	Press repeated-ly: 🌐		Set the cooking time.	Press: OK
i Timer starts counting down immediately.

How to set: Time Delay
Step 1 Step 2		The display shows: the time of day START	Step 3 Step 4		The display shows: --::-- STOP	Step 5 Step 6
Select the heating function.	Press repeatedly: ⏻.		Set the start time.	Press: OK.		Set the end time.	Press: OK.
i Timer starts counting down at a set start time.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf:Push the shelf between the guide bars of the shelf support.
Baking tray / Deep pan:Push the tray between the guide bars of the shelf support.
Wire shelf, Baking tray / Deep pan:Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

8.2 Food Sensor

Food Sensor- measures the temperature inside the food.

There are two temperatures to be set:
The oven temperature.	The core temperature.

For the best cooking results:
Ingredients should be at room temperature.	Do not use it for liquid dishes.	During cooking it must remain in the dish.

How to use: Food Sensor

Step 1 Turn on the oven.
Step 2 Set a heating function and, if necessary, the oven temperature.
Step 3 Insert: Food Sensor.
Meat, poultry and fish Casserole
Insert the tip of Food Sensor into the centre of meat, fish, in the thickest part if possible.Make sure that at least 3/4 of Food Sensor is inside of the dish.		Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during baking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.
Step 4 Plug Food Sensor into the socket at the front of the oven.The display shows the current temperature of: Food Sensor.

Step 5	- press to set the core temperature of the sensor.
Step 6	OK - press to confirm.When food reaches the set temperature, the signal sounds. You can choose to stop or to continue cooking to make sure the food is well done.
Step 7 Remove Food Sensor plug from the socket and remove the dish from the oven.	WARNING!There is a risk of burns as Food Sensor becomes hot. Be careful when you unplug it and remove it from the food.

9. ADDITIONAL FUNCTIONS

9.1 Lock

This function prevents an accidental change of the oven function.
Turn it on when the oven works - the set cooking continues, the control panel is locked.Turn it on when the oven is off - the oven cannot be turned on, the control panel is locked.
OK	OK- press and hold to turn on the function.A signal sounds.	OK- press and hold to turn it off.
3 x flashes when the lock is turned on.

9.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Food sensor, Time Delay.

9.3 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10. HINTS AND TIPS

10.1 Moist Fan Baking

For the best results follow suggestions listed in the table below.

Use the third shelf position.

	(°C) (min)
Pasta gratin 200 - 220 45 - 55
Potato gratin 180 - 200 70 - 85
Moussaka 170 - 190 70 - 95
Lasagne 180 - 200 75 - 90
Cannelloni 180 - 200 70 - 85
Bread pudding 190 - 200 55 - 70
Rice pudding 170 - 190 45 - 60
Apple cake, made of sponge cake mixture(round cake tin)	160 - 170 70 - 80
White bread 190 - 200 55 - 70

10.2 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective 28 cm diameter	Dark, non-reflective 26 cm diameter	Ceramic 8 cm diameter, 5 cm height	Dark, non-reflective 28 cm diameter

10.3 Cooking tables for test institutes

Information for test institutes

Tests according to: EN 60350, IEC 60350.

BAKING ON ONE LEVEL. Baking in tins
		(°C) (min)
Fatless sponge cake True	Fan Cooking 140 - 150	35 - 50 2
Fatless sponge cake Conventional Cooking	160 35 - 50 2
Apple pie, 2 tins ∅20 cm True Fan Cooking 160 60	- 90 2
Apple pie, 2 tins ∅20 cm Conventional Cooking	180 70 - 90 1

BAKING ON ONE LEVEL. Biscuits

Use the third shelf position.

(°C) (min)

MULTILEVEL BAKING. Biscuits

(°C) (min)

Short bread / Pastry strips

rue Fan Cooking 140 25 - 45 1 / 4

Small cakes, 20 per tray, preheat the empty oven

True Fan Cooking 150 23| - 40 1 / 4

Fatless sponge cake True

an Cooking 160 35 - 50 1 / 4

GRILL
Preheat the empty oven for 5 minutes.
Grill with the maximum temperature setting.
		(min)
Toast Grill 1 - 3 5
Beef steak, turn halfway through	Grill 24 - 30 4

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

CleaningAgents	Clean the front of the oven with a soft cloth with warm water and a mild detergent.
	Use a cleaning solution to clean metal surfaces.
	Clean stains with a mild detergent.

|	Clean the cavity after each use. Fat accumulation or other residue may cause fire.
	Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 How to clean: Cavity embossment

Clean the cavity embossment to remove limestone residue after cooking with steam.

Step 1 Step 2 Step 3
Pour: 250 ml of white vinegar into the cavity embossment. Use maximum 6% vinegar without any additives.	Let the vinegar dissolve the limestone residue at the ambient temperature for 30 minutes.	Clean the cavity with warm water and a soft cloth.
For the function: SteamBake clean the oven for every 5 - 10 cooking cycles.

11.3 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.
Step 2 Pull the front of the shelf support away from the side wall.
Step 3 Pull the rear end of the shelf support away from the side wall and remove it.
Step 4 Install the shelf supports in the opposite sequence.

11.4 How to use: Pyrolytic Cleaning

Clean the oven with Pyrolytic Cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Before the Pyrolytic Cleaning:
Turn off the oven and wait until it is cold.	Remove all accessories and removable shelf supports.	Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.

Pyrolytic Cleaning
Step 1	Enter menu: Cleaning √
Option Duration
C1 - Light cleaning 1 h
C2 - Normal cleaning 1 h 30 min
C3 - Thorough cleaning 3 h
Step 2	OK - press to select the cleaning programme.
Step 3	OK - press to start the cleaning.
Step 4 After cleaning, turn	the knob for the heating functions to the off position.
i During the cleaning the oven lamp is off.
When the oven is at the set temperature, the door locks. Until the door unlocks the display shows: ☐.

When the cleaning ends:
Turn off the oven and wait until it is cold.	Clean the cavity with a soft cloth.	Remove the residue from the bottom of the cavity.

11.5 Cleaning Reminder

The oven reminds you when to clean it with pyrolytic cleaning.
[BAHD] flashes in the display for 5 sec after each cooking session.	To turn off the reminder enter the Menu and select Settings, Cleaning Reminder.

11.6 How to remove and install: Door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

Step 1 Fully open the door.
Step 2 Lift and press the clamping levers (A) on the two door hinges.
Step 3 Close the oven door to the first opening position (approximately 70° angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.
Step 4 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.
Step 5 Pull the door trim to the front to remove it.
Step 6 Hold the door glass panels on their top edge one by one and pull them up out of the guide.
Step 7 Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dish-washer.
Step 8 After cleaning, do the above steps in the opposite sequence.
Step 9 Install the smaller panel first, then the larger and the door.Make sure that the glasses are inserted in the correct position otherwise the surface of the door may overheat.

11.7 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Before you replace the lamp:
Step 1 Step 2 Step	3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Top lamp

Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up
Problem Check if...
You cannot activate or operate the oven. The oven is correctly connected to an electrical supply.
The oven does not heat up. The automatic switch-off is deactivated.
The oven does not heat up. The oven door is closed.
The oven does not heat up. The fuse is not blown.
The oven does not heat up. The Child Lock is off.

Components

Problem Check if...
The lamp is turned off. Moist Fan Baking - is turned on.
The lamp does not work. The lamp is burnt out.
The Food sensor does not operate. The plug of the Food sensor is fully inserted into the socket.

Error codes

The display shows... Check if...
Err C2 You removed the Food sensor plug from the socket.
Err C3 The oven door is closed or the door lock is not broken.
Err F102 The oven door is closed.
Error codes
Err F102 The door lock is not broken.
00:00 There was a power cut. Set the time of day.
If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

Cleaning
Problem Check if...
The water leaks out of the cavity embossment. There is too much water in the cavity emboss-ment.

12.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet\*

Supplier's name AEG
Model identification	BPK558270M 944188577BPS558070M 944188595
Energy Efficiency Index 81.2
Energy efficiency class A+
Energy consumption with a standard load, conventional mode	1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.69 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass	BPK558270M 35.0	kg
	BPS558070M 35.0	kg

* For European Union according to EU Regulations 65/2014 and 66/2014.For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.For Ukraine according to 568/32020.

Energy efficiency class is not applicable for Russia.

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position. Use metal cookware to improve energy saving.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

The fan and lamp continue to operate. When you turn off the oven, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the oven temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. MENU STRUCTURE

14.1 Menu

三 - select to enter the Menu.

Menu structure
Assisted Cooking ✗	Cleaning √	Settings ⚙️

Step 1 Step 2	Step 3 Step 4 Step 5
Select the Menu, Settings.	Confirm setting.	Select the setting.	Confirm setting.

Settings
O1 Time of day Change O2 Display brightness 1 - 5
O3 Key tones 1 - Beep	2 - Click3 - Sound off	O4 Buzzer volume 1 - 4
O5 Food Sensor Action 1 - Alarm and stop 2 - Alarm		O6 Optimer On / Off
O7 Light On / Off O8 Fast Heat Up On / Off
O9 Cleaning Reminder On / Off O10 Wi-Fi On / Off
O11 Auto remote operation On / Off O12 Forget network Yes / No
O13 Demo mode Activation code: 2468		O14 Software version Check
O15 Reset all settings Yes / No

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol ⚙. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol ⚗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TÄYDELLISIÄ TULOKSIA

7. KELLOTOIMINNOT.... 101

9. LISÄTOIMINNOT.... 105

1. ⚠TURVALLISUUSTIEDOT

Line drawing of a rectangular plate with horizontal grooves and a grid pattern (no text or symbols)

Leivinpelti

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. UUNIN KYTKEMINEN PÄÄLLE JA POIS PÄÄLTÄ.

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

2.1 Installation....124

Line drawing of a rectangular grid-patterned tray or rack (no text or symbols)

Plateau de cuisson

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. COMMENT ALLUMER ET ÉTEINDRE LE FOUR

Technical line drawing of a wooden ladder support system with two circular inset views showing internal structure details (no text or symbols)

©

[EMPTY]
[EMPTY]
[EMPTY]
[EMPTY]
[EMPTY]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.

Line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Backblech

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a wooden bench with two circular insets showing internal details (no text or symbols)

3. BESCHRIJVING VAN HET PRODUCT...211

3.1 Algemeen overzicht.... 211
3.2 Accessoires.... 211

4. HET IN- EN UITSCHAKELEN VAN DE OVEN.... 212

4.1 Verzonken knoppen....212
4.2 Bedieningspaneel.... 212

5. VOORAFGAAND AAN HET EERSTE

GEBRUIK....214

5.1 Eerste reiniging......214
5.2 Eerste voorverwarming......214
5.3 Draadloze verbinding 214
5.4 Softwarelicenties....215

6. DAGELIJKS GEBRUIK...... 215

6.1 Instellen: Verwarmingsfuncties....215
6.2 Verwarmingsfuncties.... 216
6.3 Notities over: Warmelucht (vochtig)....218
6.4 Instellen: Kook- En Bakassistent. 218
6.5 Kook- En Bakassistent met recepten....219

7. KLOKFUNCTIES.... 224

12. PROBLEEMOPLOSSING.....237

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Bakplaat

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and diagonals (no text or symbols)

Pure electrical circuit lines without any symbols

4. HET IN- EN UITSCHAKELEN VAN DE OVEN

12. PROBLEEMOPLOSSING

WAARSCHUWING!

Line drawing of a rectangular grid-patterned tray or rack (no text or symbols)

Bandeja

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. CÓMO ENCENDER Y APAGAR EL HORNO

4.1 Mandos escamoteables

2.8 Avyttring....291

1. PRODUKTBESKRIVNING......291

Line drawing of a rectangular plate with radial grooves and a grid pattern (no text or symbols)

Pure geometric diagram of a square frame with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and a diagonal cross (no text or symbols)

Pure electrical circuit lines without any symbols

4. SÅ HÄR SLÅR DU PÅ OCH STÄNGER AV UGNEN

4.1 Infällbara vred
