USER MANUAL Mika Lionelo

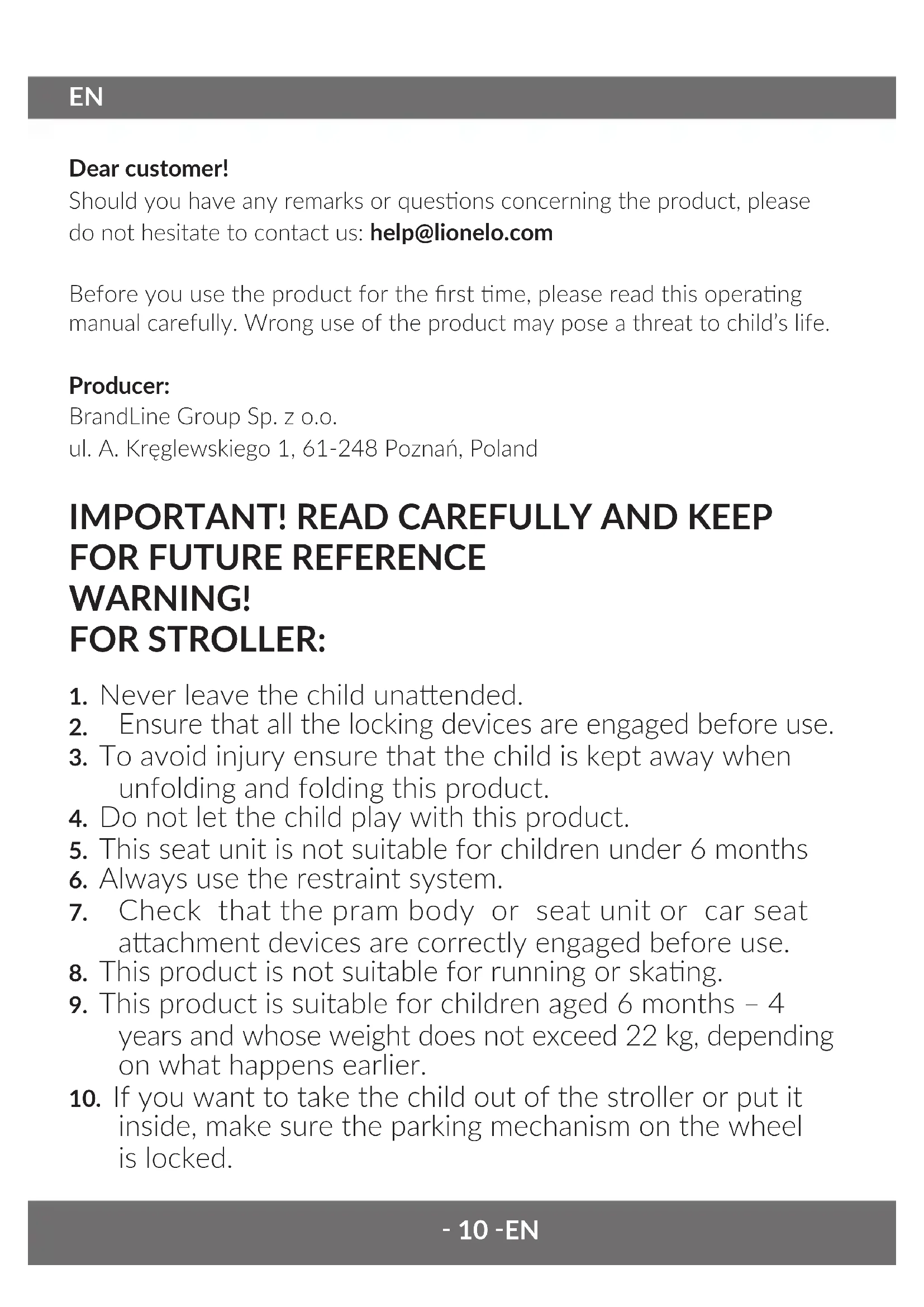

20‑ 10 ‑EN Dear customer! Should you have any remarks or quesons concerning the product, please do not hesitate to contact us: [e-mail] Before you use the product for the rst me, please read this operang manual carefully. Wrong use of the product may pose a threat to child’s life. Producer: BrandLine Group Sp. z o.o. ul. A. Kręglewskiego 1, 61-248 Poznań, Poland

IMPORTANT! READ CAREFULLY AND KEEP

1. Never leave the child unaended.

Ensure that all the locking devices are engaged before use.

3. To avoid injury ensure that the child is kept away when

unfolding and folding this product.

4. Do not let the child play with this product.

5. This seat unit is not suitable for children under 6 months

Check that the pram body or seat unit or car seat aachment devices are correctly engaged before use.

8. This product is not suitable for running or skang.

9. This product is suitable for children aged 6 months – 4

years and whose weight does not exceed 22 kg, depending on what happens earlier.

10. If you want to take the child out of the stroller or put it

inside, make sure the parking mechanism on the wheel is locked. EN‑ 11 ‑ EN

11. The maximum load capacity of the basket is 3 kg.

12. Any load on the handle, backrest or sides of the stroller

may aect its stability.

13. The product is intended for one child only.

Do not use accessories which have not been approved by the manufacturer.

15. If you use special adapters to aach a carrier which can

also be used as a child safety seat, remember that it does not replace a cot. If your child needs to sleep, put it in a suitable cot.

Use only spare parts supplied or recommended by the manufacturer.

17. Keep the product away from re and sources of heat.

18. Do not use the product on stairs.

IMPORTANT – Read the instrucons carefully before use and keep for future reference WARNING! FOR CARRYCOT:

1. This product is only suitable for a child who cannot sit up

This product is not suitable for children who can sit down or turn on to the other side or li on their own hands and knees. Child’s maximum weight: up to 9 kg.

3. Only use on a rm, horizontal level and dry surface.

4. Do not let other children play unaended near the carry

Do not use if any part of the carry cot is broken, torn or missing.

Use only spare parts supplied or recommended by the manufacturer.

7. Keep the product away from re and sources of heat.

8. The boom and grips of the carrycot must be regularly

checked for any signs of damage and wear.‑ 12 ‑EN

Make sure the handle is mounted and locked in a suitable posion before you li or move the carrycot.

10. The child can be transported in a carrycot.

Child’s head in the carrycot must not be lower than its body.

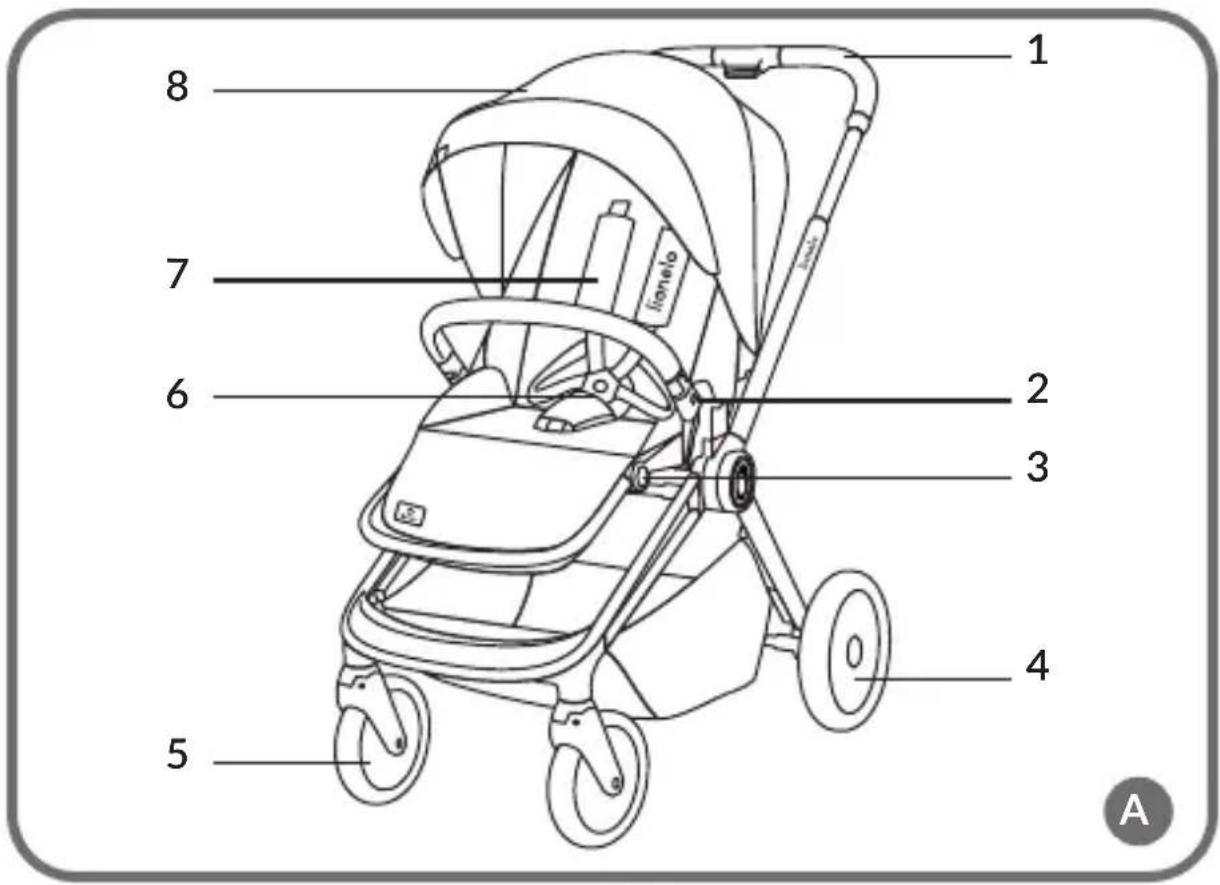

2. Bow releasing key

3. Footrest adjustment key

10. Parking mechanism

15. Child safety seat adapter

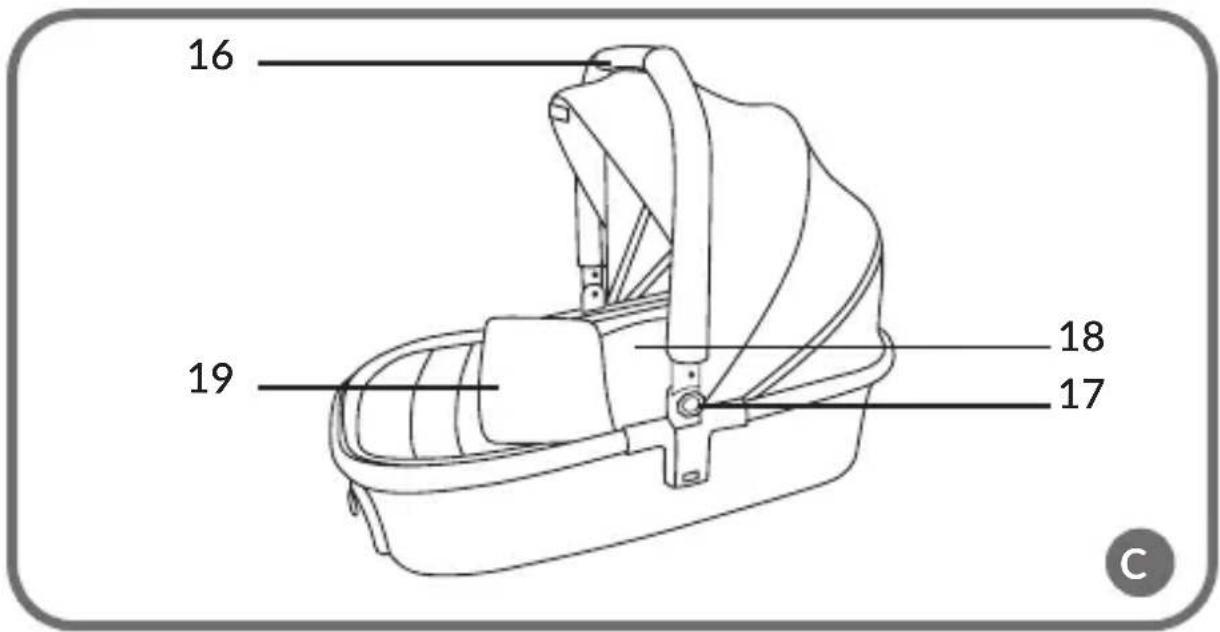

The set 2 in 1 is composed of a stroller frame with a seat and carrycot. List of carrycot parts (g. C)

How to unfold the stroller frame

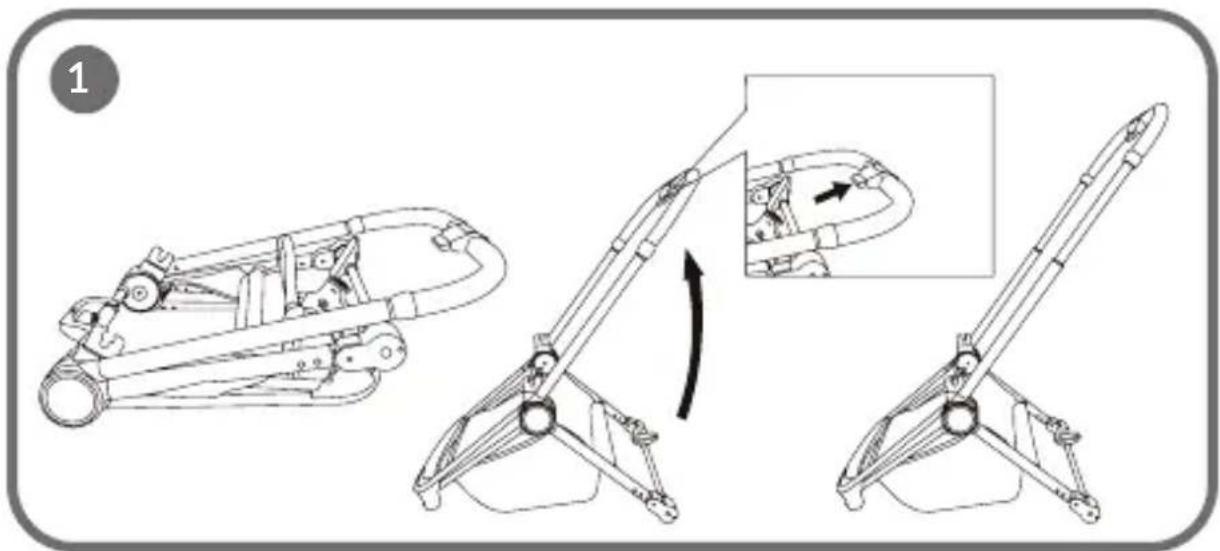

1. Unfold the stroller frame by pulling the handle up unl you can hear a

click which signals correct unfolding of the stroller frame (g. 1).

2. Press the handle height adjustment key to set a desired height. If you

can hear a click, it means the handle has been set at a desired height. How to install and detach front wheels

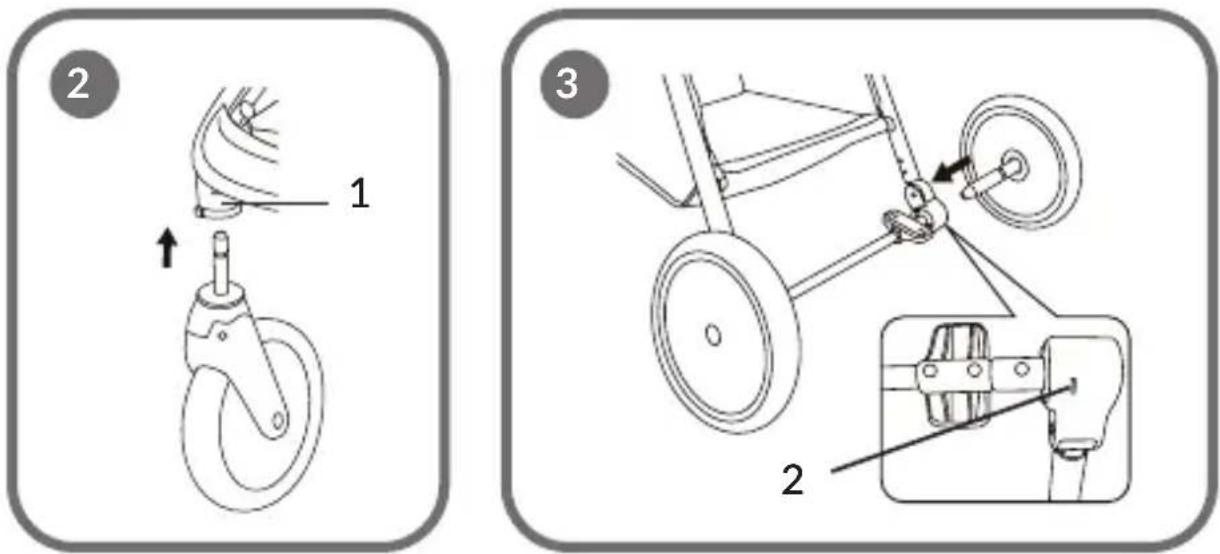

1. Insert the wheel shank into corresponding holes on the stroller frame

(g. 2). Correct installaon is signaled by a click.

To detach front wheels, press the releasing key (1, g. 2) and take wheels out.‑ 13 ‑ EN How to install and detach rear wheels

1. Insert the wheel shank into corresponding holes on the stroller frame

(g. 3). Correct installaon is signaled by a click.

To detach rear wheels, press the releasing key (2, g. 3) and take wheels out. How to install the bow

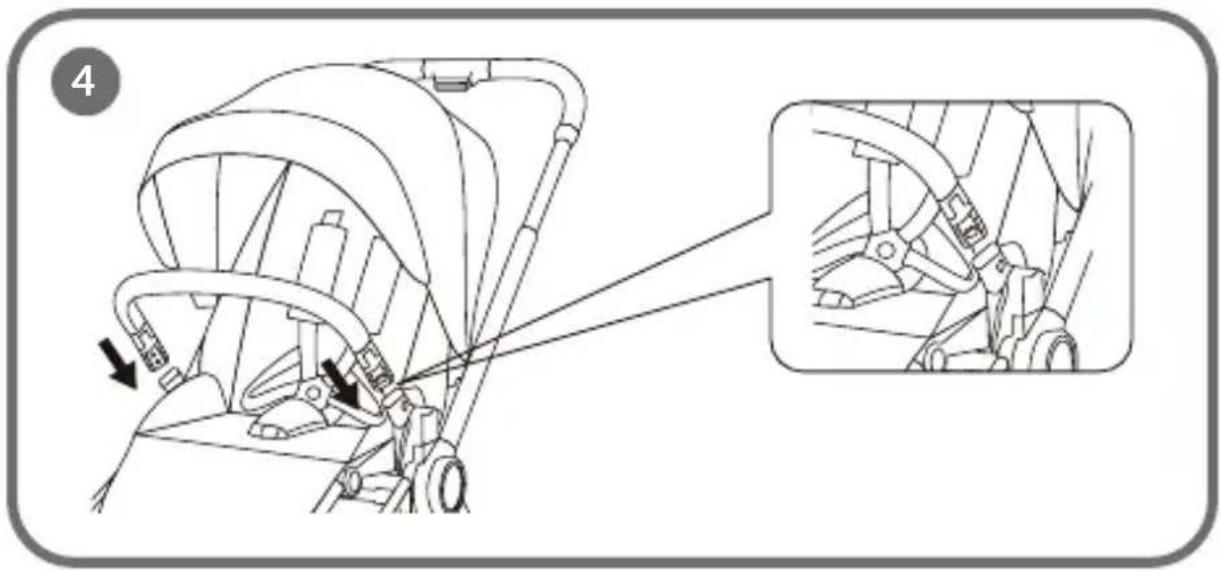

1. Insert the bow into corresponding holes on the stroller frame (g. 4).

Correct installaon is signaled by a click.

2. To detach the bow, press releasing keys and then take the bow out.

How to install and detach the seat

1. The seat can be installed in a forward- or rear-facing posion.

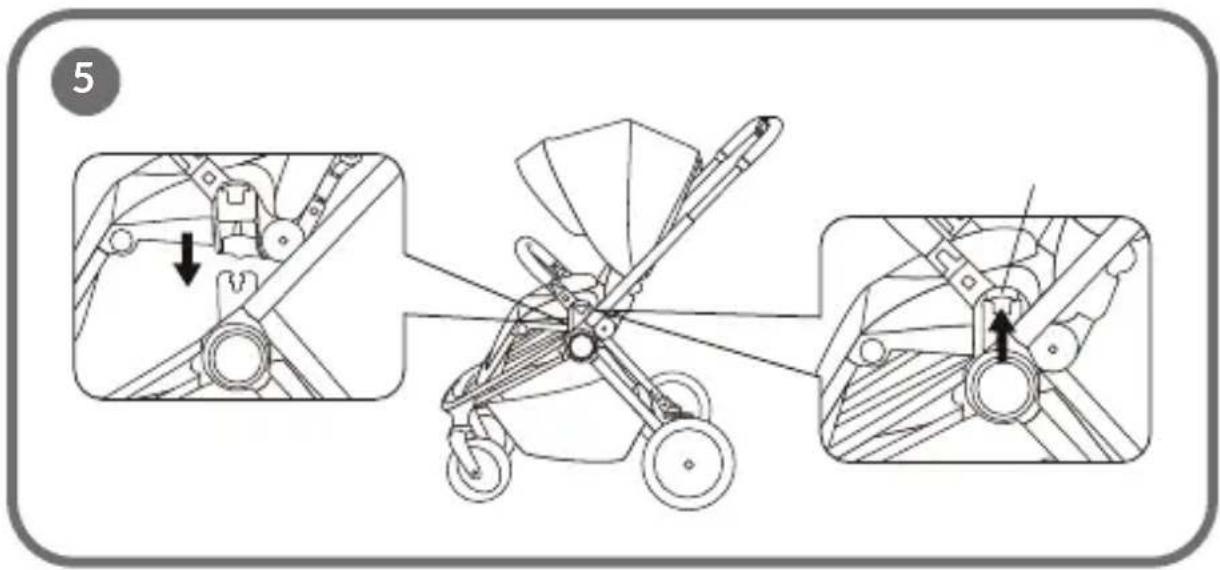

Place the seat on connectors on the stroller frame (g. 5). Correct installaon of the seat on the stroller frame is signaled by a click. Make sure the seat has been correctly installed in the stroller frame.

To detach the seat from the stroller frame, push releasing levers on both sides of the seat and then li it upwards (g. 5). How to install and detach the carrycot The child can be transported in the carrycot.

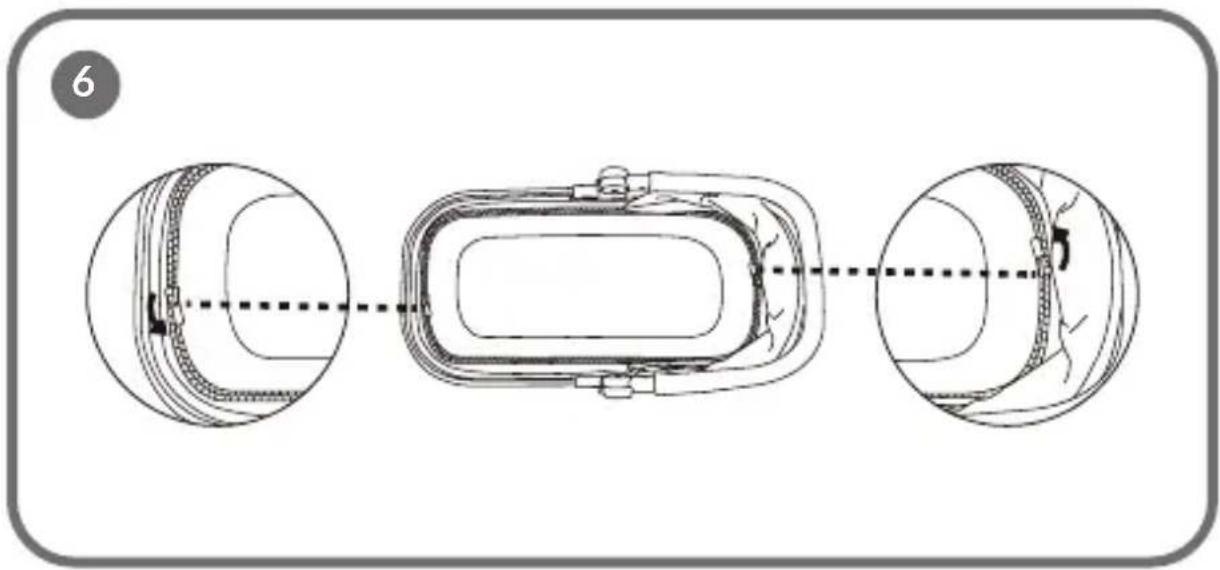

1. Undo the inner covering zip (g. 6) and insert metal bars into carrycot

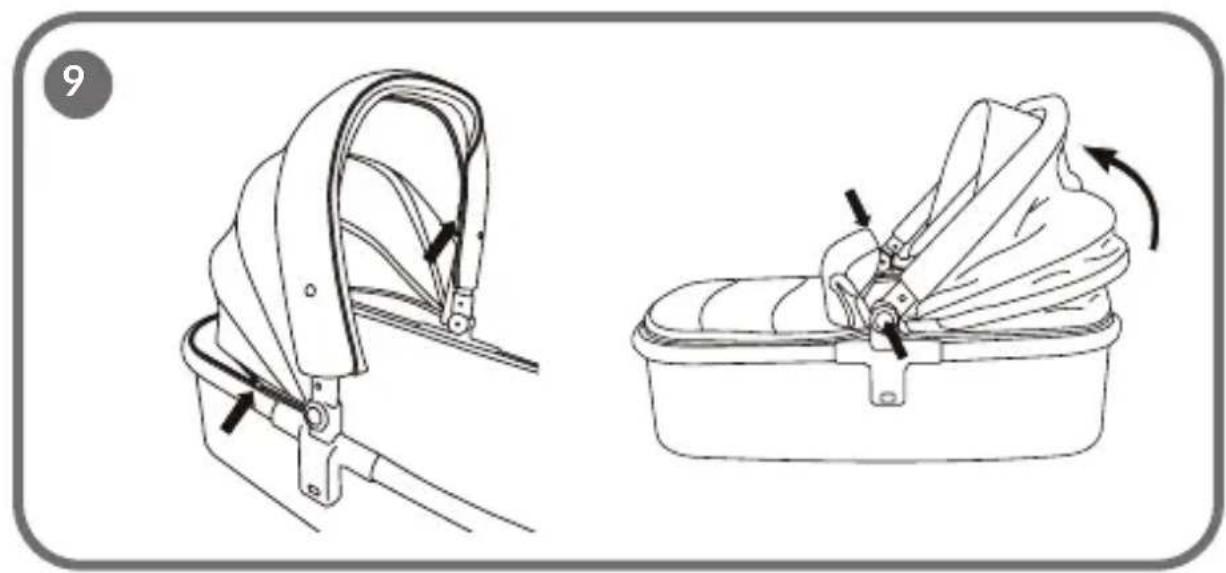

Put the fabric cover on the carrycot handle, and then pull up the zipper. To unfold the canopy, press the keys on both sides of the carrycot and set the canopy in a desired posion (g. 9).

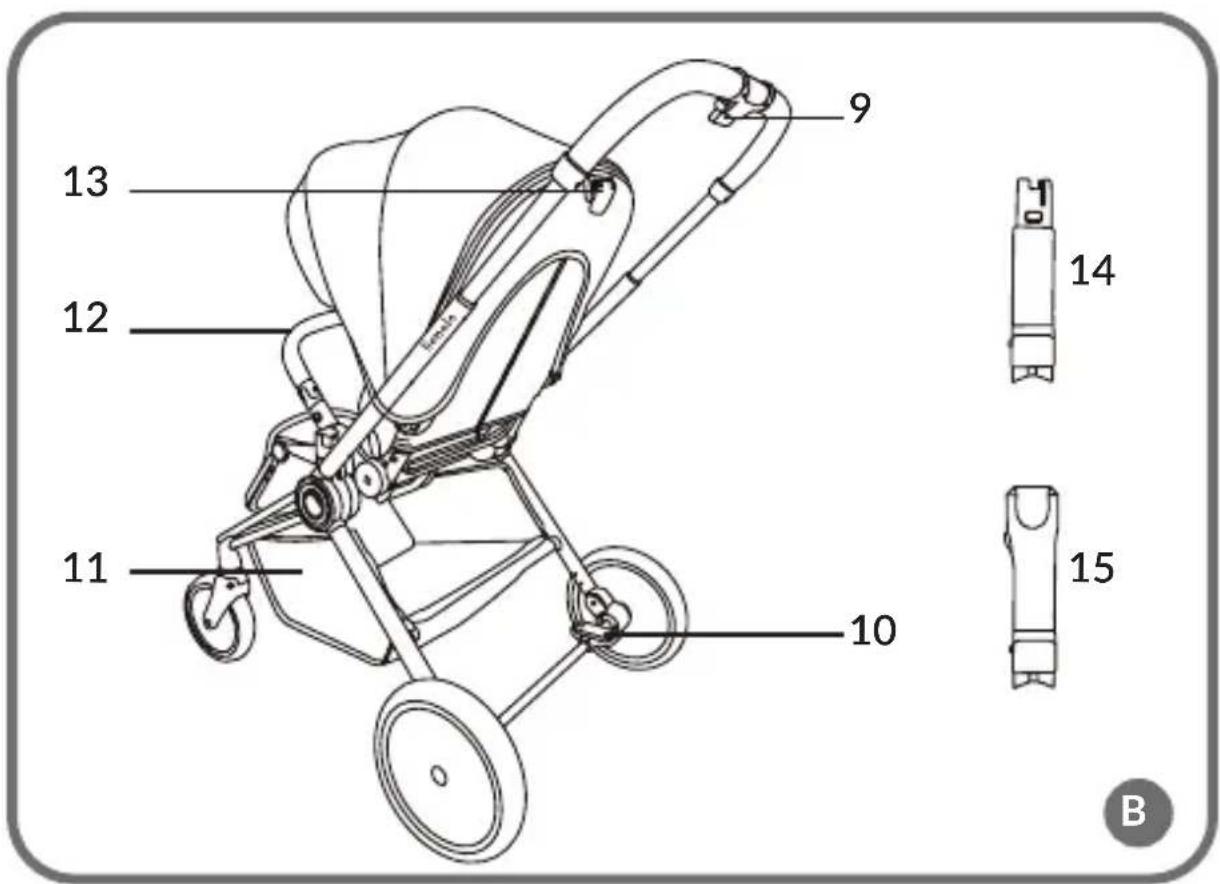

Insert adapters (14, g. B) into corresponding spots on the stroller frame unl you can hear a double click and adapters get blocked. Adapters must be placed with the detachment key into a stroller front direcon.

5. The carrycot in a stroller frame must be installed in a way that the child

is facing the parent who pushes the stroller.

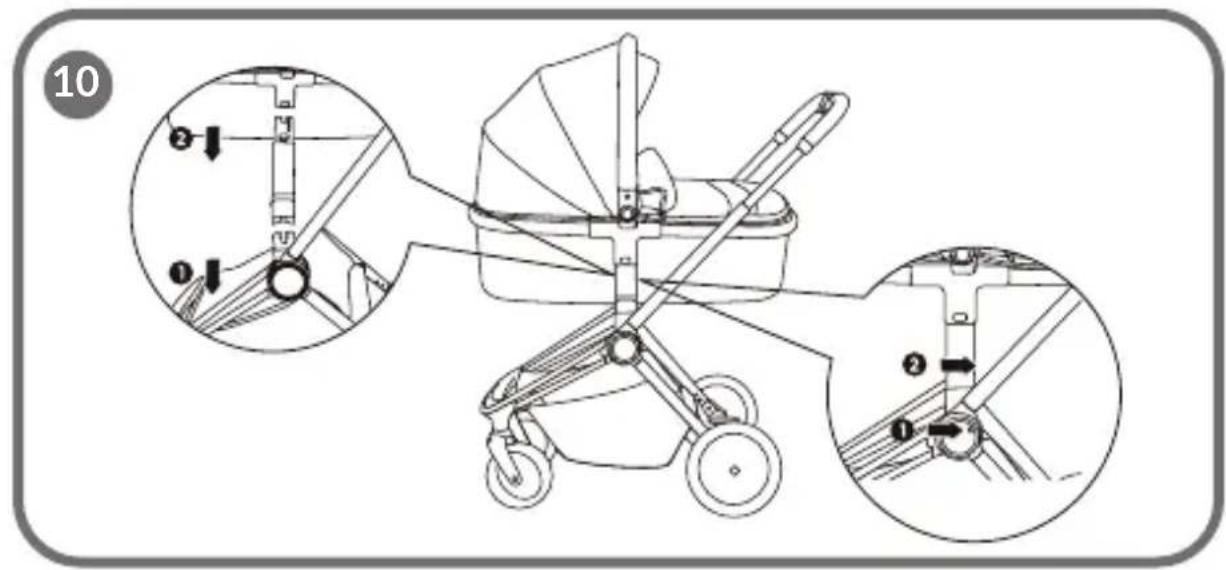

6. Place the carrycot on the stroller frame with the use of adapters (g.

10). You will hear a disncve click. Make sure the carrycot has been properly aached on the stroller frame.‑ 14 ‑EN

7. To detach the carrycot from the stroller frame, press releasing keys on

both sides of the carrycot and then li the carrycot.

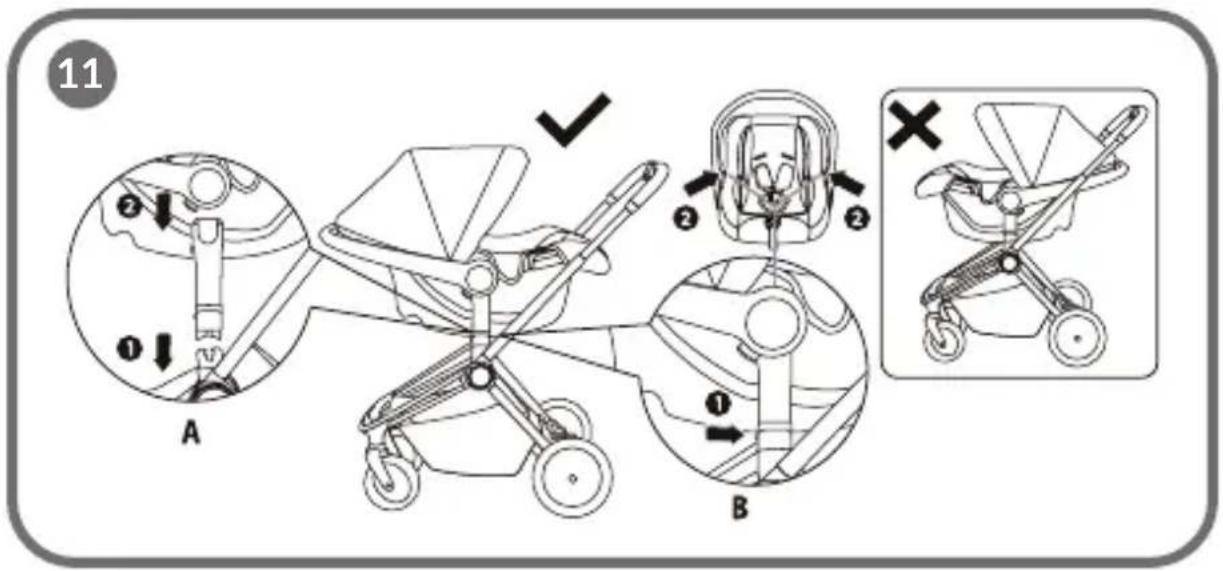

To remove the adapter, press the lower key on the adapter and pull upwards. How to install and detach the child safety seat (applies to the set with Astrid carseat) Insert adapters (15, g. b) into corresponding spots on the stroller frame unl you can hear a double click and adapters get blocked (A, g. 11). Adapters must be placed with a detachment key in a stroller front direcon.

The child safety seat in the stroller frame must be installed in a way that the child is facing the parent who pushes the stroller.

Place the child safety seat on the stroller frame with the use of adapters (g. 11). You will hear a disncve click. Make sure the child safety seat has been properly mounted on the stroller frame.

3. To detach the child safety seat in case it is necessary, remove it from

and pull upwards. How to adjust safety belts

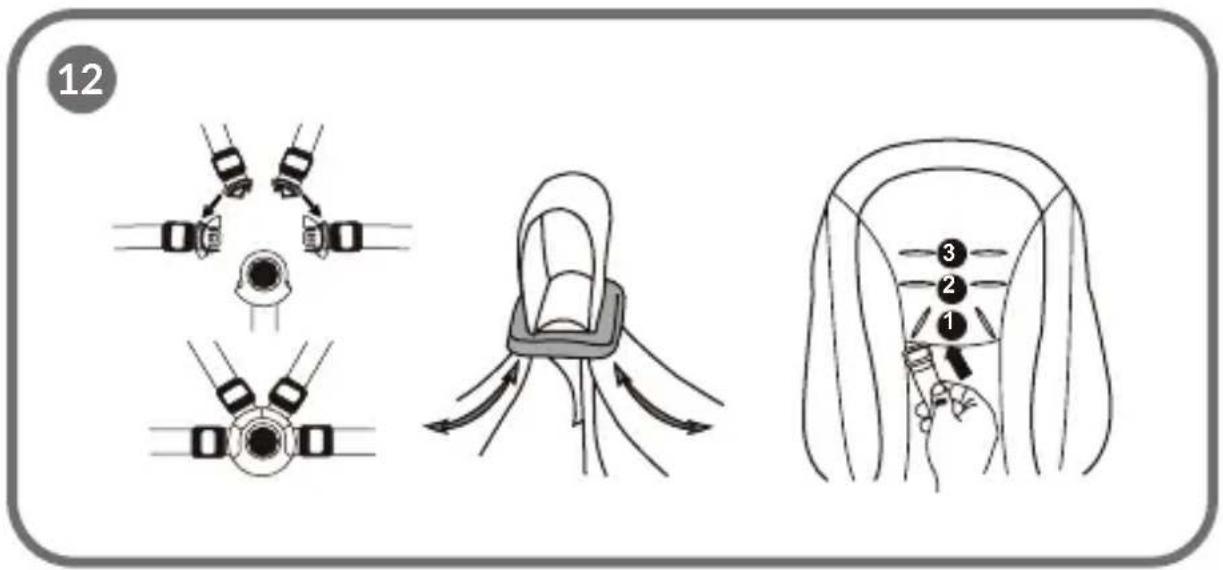

1. Insert belts in the central buckle unl you can hear a click (g. 12). To

To adjust height of the belts, pull them through relevant holes in the seat so that they correspond to the child’s height (g. 12). You can fasten belts at three height levels. How to install and detach safety belts To detach the belts, pull the buckle through the hole in the seat. To install them, insert belts again. Rotang wheel locking key To unlock rotaon of front wheels, slide the lock key to the le. To lock it, slide the lock key to the right (g. 13).‑ 15 ‑ EN Parking mechanism

To lock, press the pedal as showed by the arrow no. 1 (g. 14). To unlock, press the pedal as showed by the arrow no. 2 (g. 14).

2. Note: make sure the stroller is locked when parked.

How to adjust the backrest

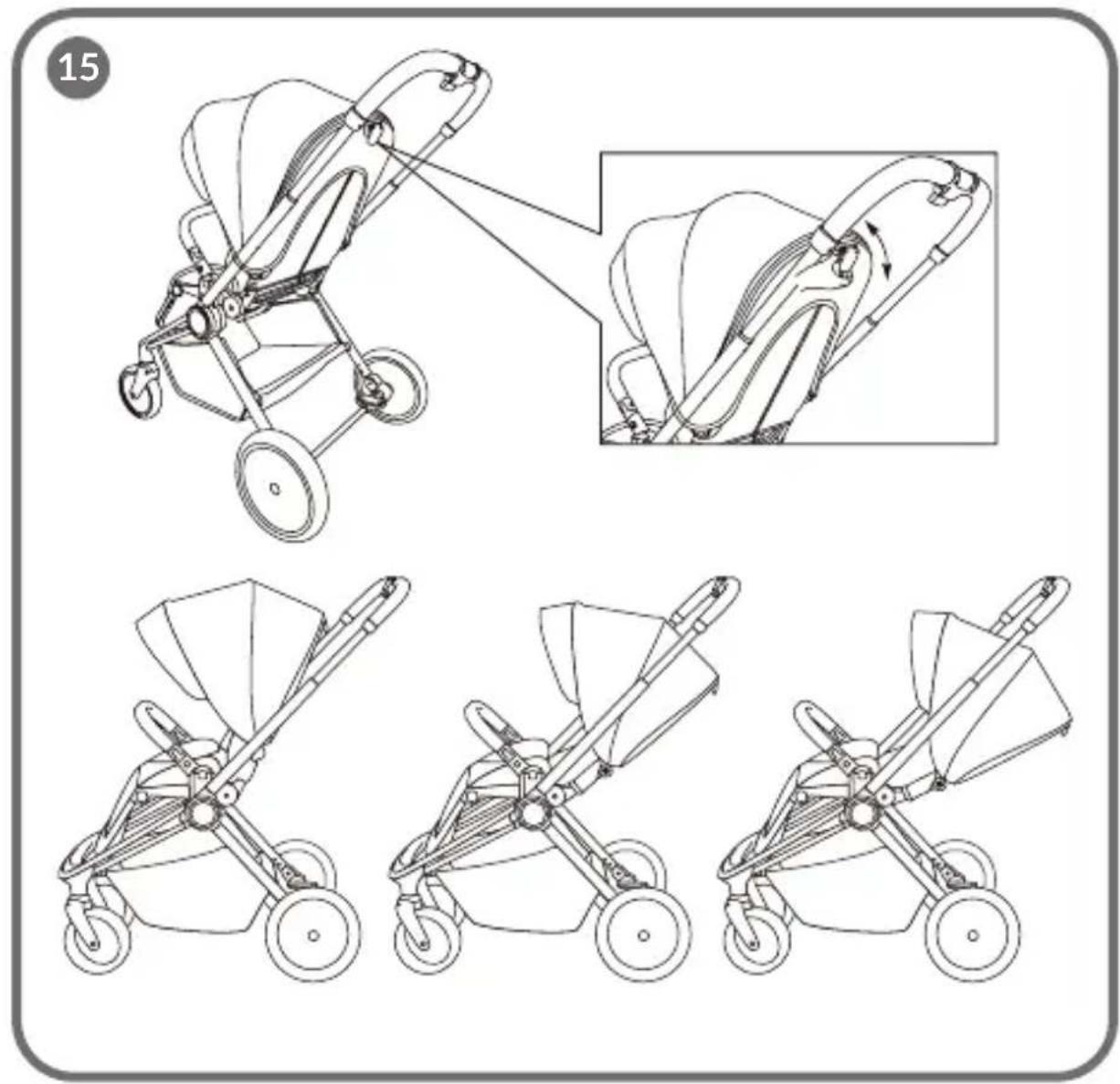

1. To set the seat in a desired posion, use the backrest angle adjustment

lever which you can nd at the back of the seat (g. 15).

2. There are three backrest inclinaon angles available.

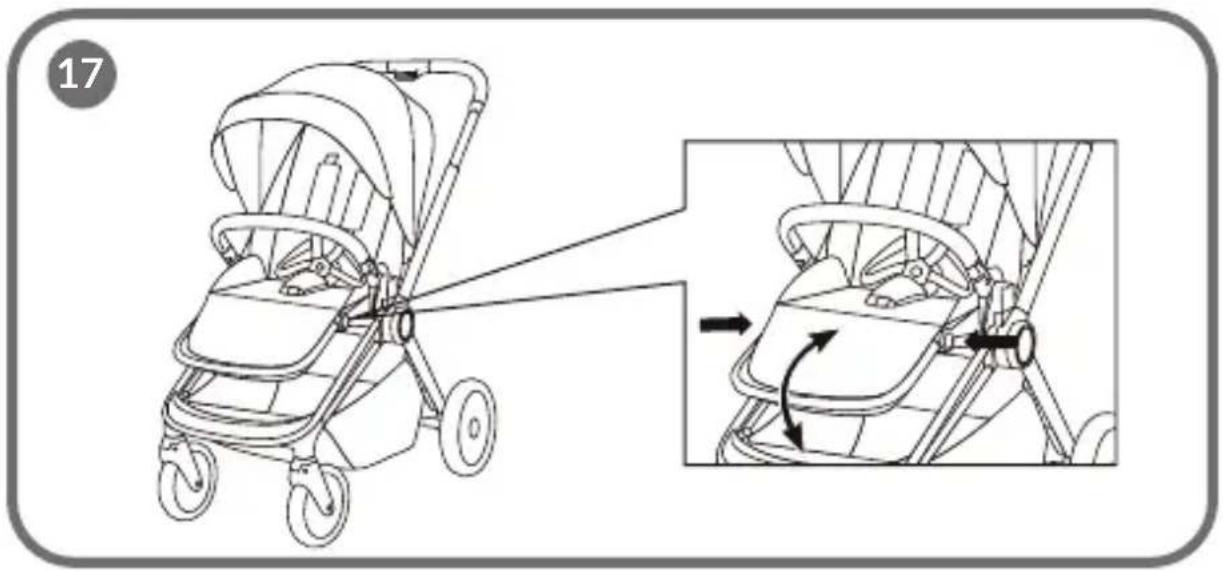

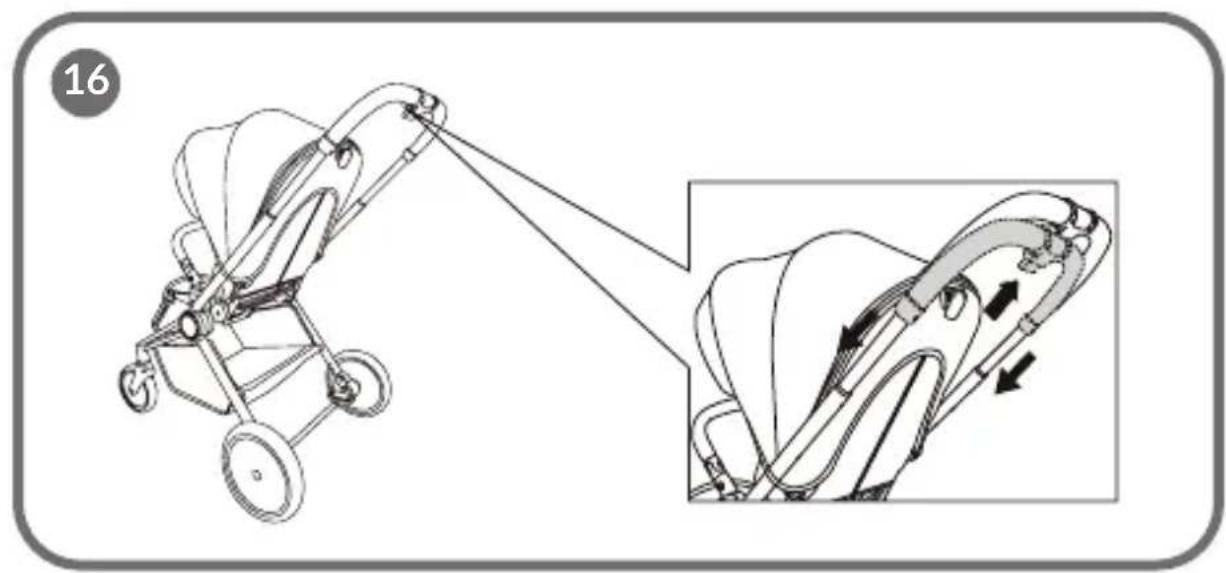

How to adjust the handle Press the handle adjustment key and then pull out or insert the handle, choose one of three available heights (g. 16). How to adjust the footrest To change posion of the footrest, press the footrest adjustment keys on both sides and then push upwards or downwards, depending on your preferences (g. 17). How to fold the stroller frame in a forward-facing posion

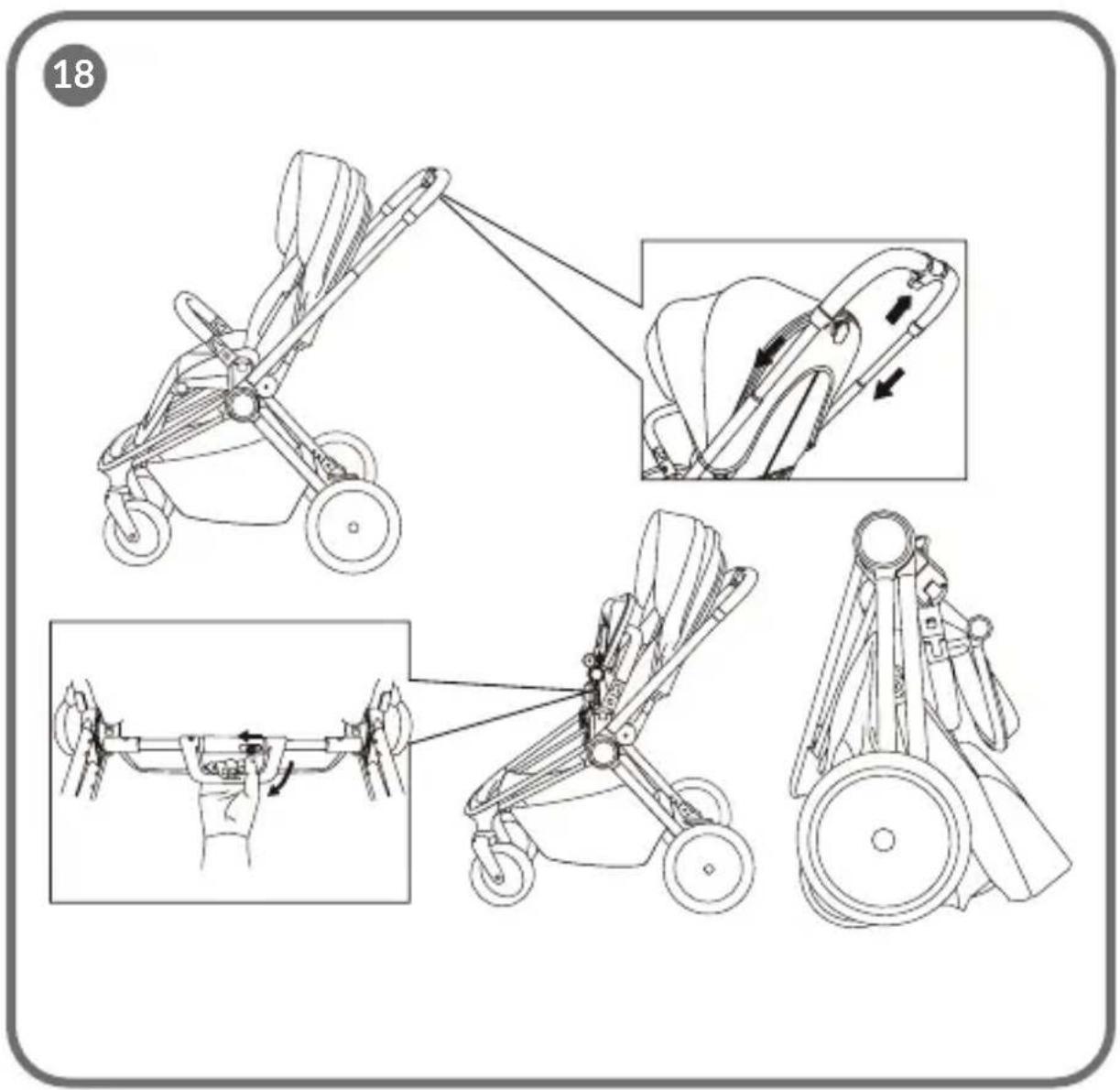

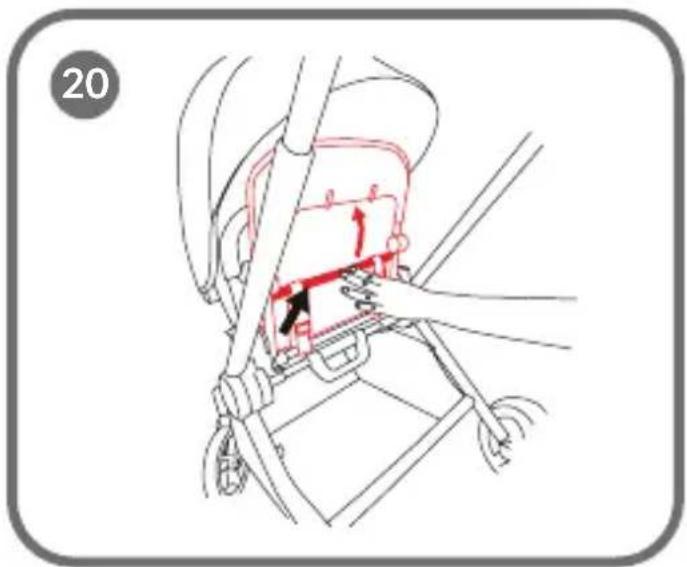

To fold the stroller frame with a seat in a forward-facing posion, lower the handle to the lowest posion and leave rotang front wheels unlocked. Li the footrest with the seat to the highest posion (g. 20) and fold towards the backrest (g. 18).

Slide the key on the handle under the seat to the le and then dynamically li the folded stroller (g. 18). How to fold the stroller frame in a rear-facing posion

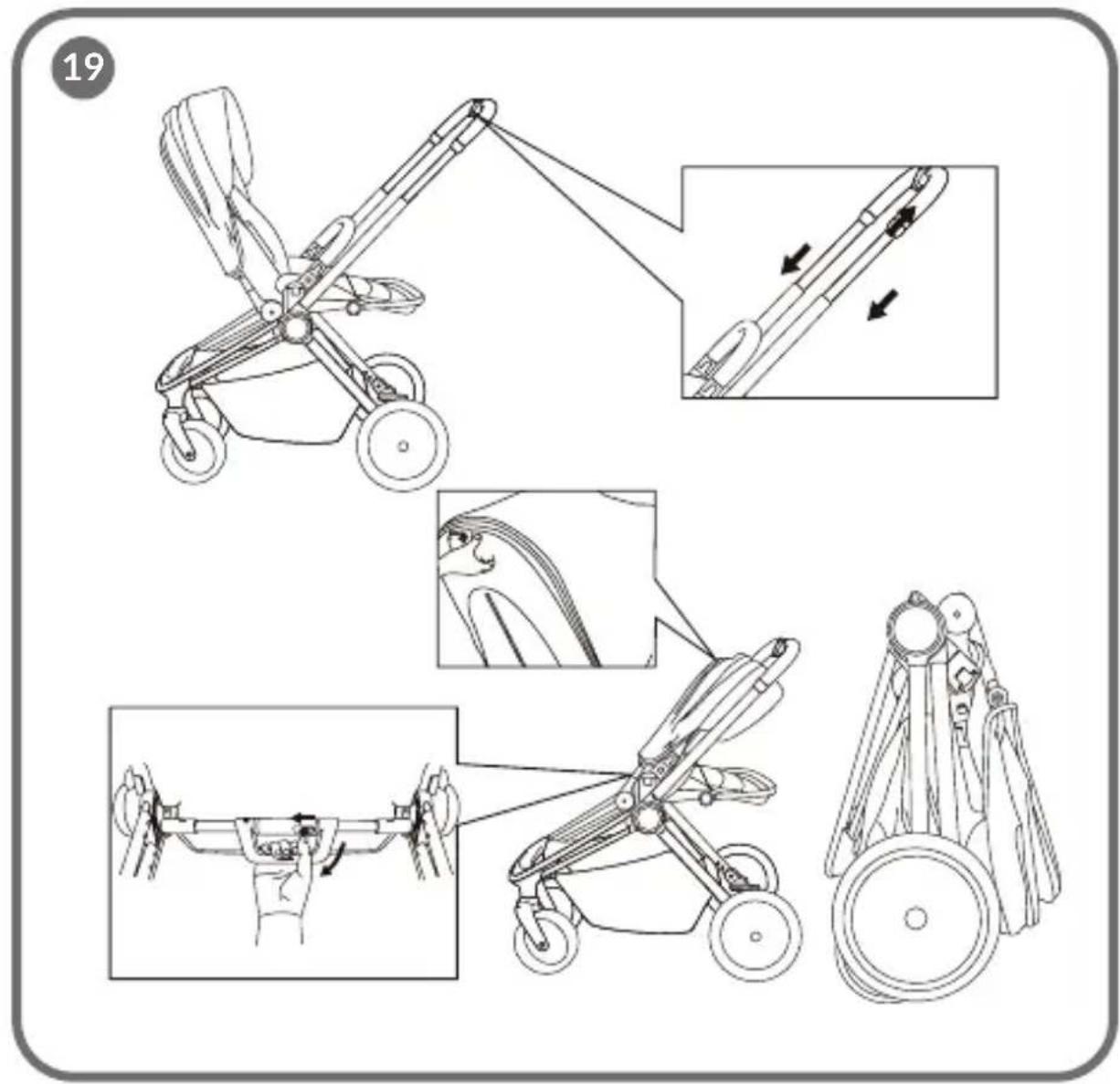

To fold the stroller frame with a seat in a rear-facing posion, lower the handle to the lowest posion and leave the rotang front wheels unlocked. Li the footrest and the seat to the highest posion (g. 20) and then slide the backrest towards the bow (g. 19).

Slide the key on the handle under the seat to the le and then dynamically li the folded stroller (g. 19).‑ 16 ‑ How to clean and maintain

1. Regularly remove dust and sand from the wheels and frame. You can

use a wet cloth to clean these parts.

2. Use a wet cloth to clean the stroller upholstery and basket.

3. You must wash the carrycot upholstery and maress cover by hand, at

the temperature of 30˚C. Do not dry mechanically.

Check parcular parts of the stroller on a regular basis for their funcons, durability and potenal damage. In case of any defects, please contact the authorized service center.

Avoid excessive direct exposure of the stroller to sunlight and long- me exposure to high temperatures. Sunlight may cause fabrics to fade.

6. Do not use strong chemicals to clean this product.

The pictures are for reference only. The real design of the products may dier from the pictures presented.
