USER MANUAL Cora Lionelo

CAREFULLY AND KEEP FOR

FUTURE REFERENCE WARNING

1. Never leave the child unaended.

2. Always use the restraint system.

3. Falling hazard: Prevent your child from climbing on the product.

4. Do not use the product unless all components are correctly ed and adjusted.

Be aware of the risk of open re and other sources of strong heat in the vicinity of the product.

6. Be aware of the risk of lng when your child can push its feet against a table or any

7. Do not use the product unl the child can sit up unaided.

8. Do not use the product if any part is broken, torn, or missing.

9. Keep children away when unfolding and folding the product to avoid injury.

The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.

11. Always apply the parking device when the product is not being moved.

12. Always use a safety crotch strap and regularly check the durability of its connecon

3. Main chair folding key

4. Seat height adjustment levers

5. Front wheel brakes

6. Footrest inclinaon adjustment key

7. Tray adjustment lever

8. Five-point safety belts

How to use How to assemble the high chair

1. Take the chair out of the box. Keep the wrapping out of reach of children (g. 2).

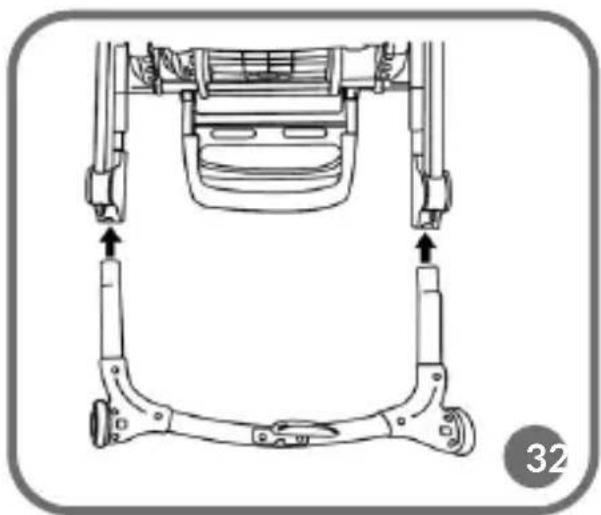

Insert legs in the corresponding spot on the chair frame. If you can hear a „click”, it means the assembly has been successful (g. 3).

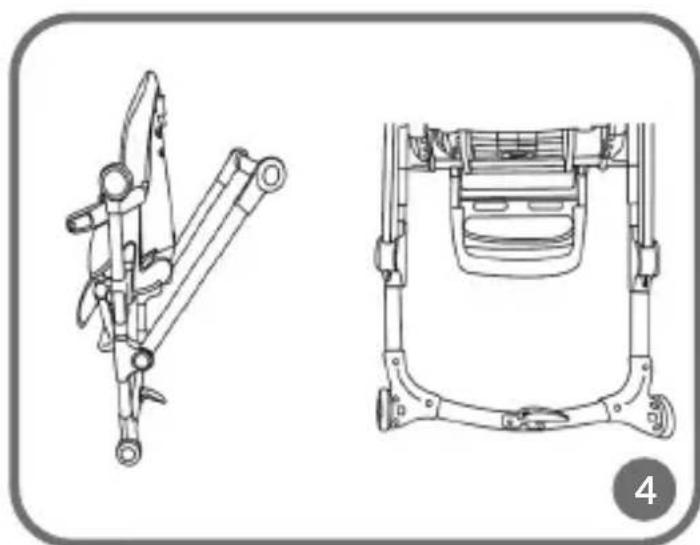

3. Keep the chair with one hand, and push the frame with rear wheels with the other hand. If

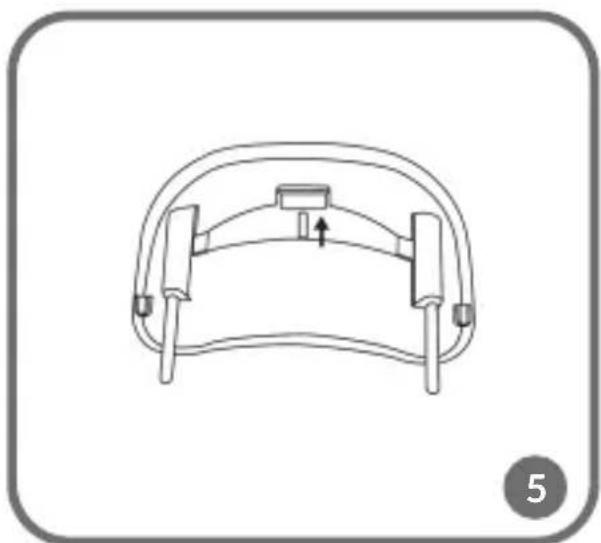

you can hear a „click”, it means the assembly has been successful (g. 4). How to assemble and disassemble the tray Assembly: Pull the adjustment lever (7) and then insert the tray into the chair frame holes (g. 5). Release the adjustment lever. Check if the tray has been xed securely and does not pull out. Connect the tray to the seat with an addional strap that acts as a safety crotch strap (g. 17). Disassembly: Pull the adjustment lever (7) and pull the tray out. Unfasten the safety crotch strap. How to adjust the product

Tray: Pull the adjustment lever (7) and set the tray in one of two posions. Make sure there are no red indicators on the frame (visible in g. 12) - this posion is for folding the tray only.

Footrest: To set the top posion, li the footrest only. If you can hear a „click”, it means the higher posion has been secured properly. To lower the footrest, slide both footrest adjustment keys (6) and set it in one of three available posions (g. 6).

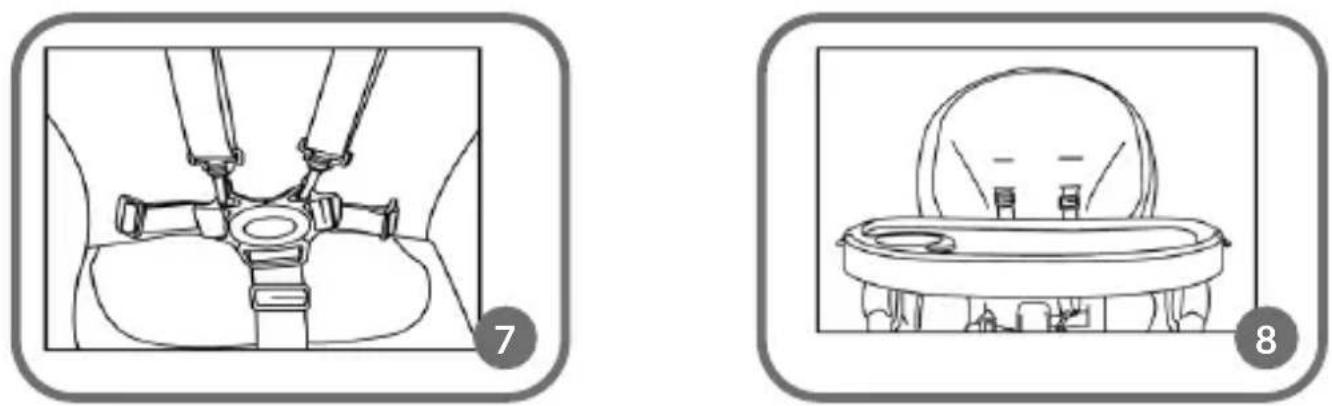

3. Five-point safety belts: connect shoulder belts to hip belts as showed in the g. 7. When

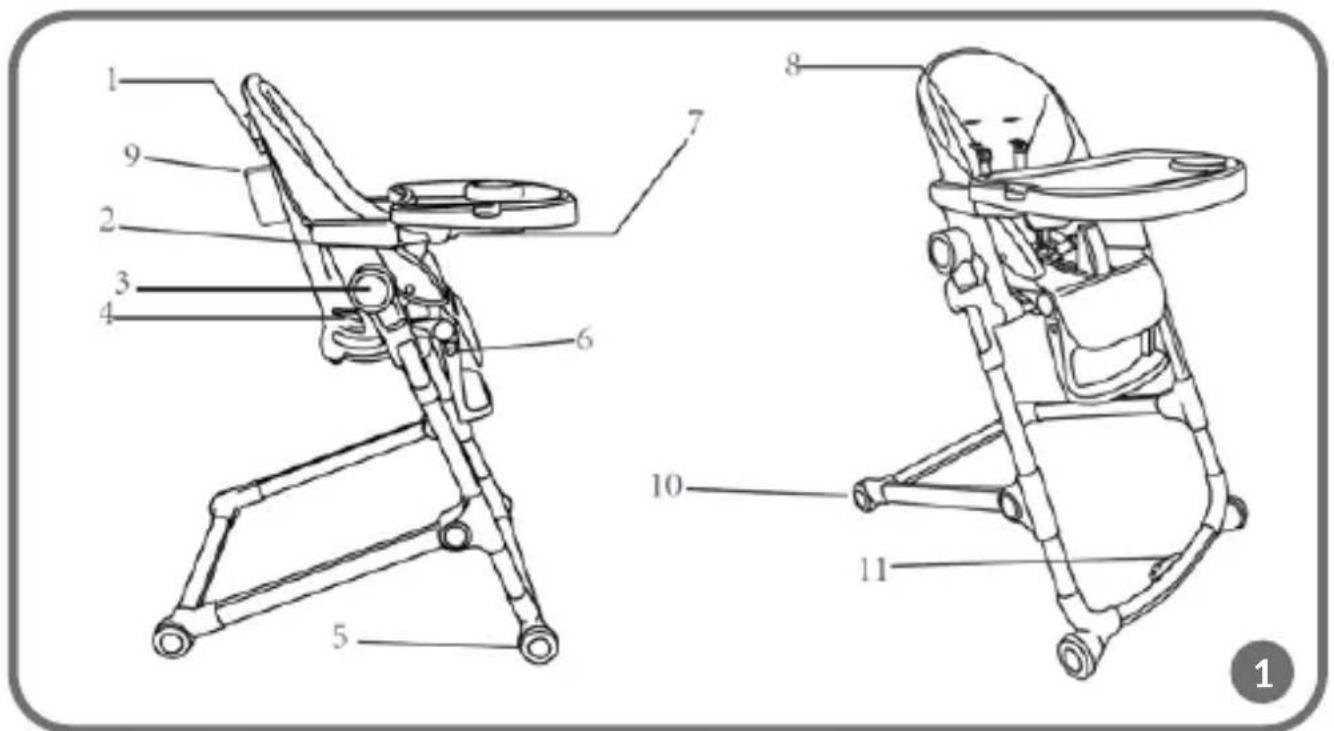

combined, insert the belts into the belt buckle. If you can hear a „click”, it means the belts have been fastened properly. To undo the belts, press the buon on the buckle. Shoulder belts must be adapted to child’s height. There are two height levels available (g. 8). To‑ 7 ‑ EN Product descripon (g. 1)

3. Main chair folding key

4. Seat height adjustment levers

5. Front wheel brakes

6. Footrest inclinaon adjustment key

7. Tray adjustment lever

8. Five-point safety belts

How to use How to assemble the high chair

1. Take the chair out of the box. Keep the wrapping out of reach of children (g. 2).

Insert legs in the corresponding spot on the chair frame. If you can hear a „click”, it means the assembly has been successful (g. 3).

3. Keep the chair with one hand, and push the frame with rear wheels with the other hand. If

you can hear a „click”, it means the assembly has been successful (g. 4). How to assemble and disassemble the tray Assembly: Pull the adjustment lever (7) and then insert the tray into the chair frame holes (g. 5). Release the adjustment lever. Check if the tray has been xed securely and does not pull out. Connect the tray to the seat with an addional strap that acts as a safety crotch strap (g. 17). Disassembly: Pull the adjustment lever (7) and pull the tray out. Unfasten the safety crotch strap. How to adjust the product

Tray: Pull the adjustment lever (7) and set the tray in one of two posions. Make sure there are no red indicators on the frame (visible in g. 12) - this posion is for folding the tray only.

Footrest: To set the top posion, li the footrest only. If you can hear a „click”, it means the higher posion has been secured properly. To lower the footrest, slide both footrest adjustment keys (6) and set it in one of three available posions (g. 6).

3. Five-point safety belts: connect shoulder belts to hip belts as showed in the g. 7. When

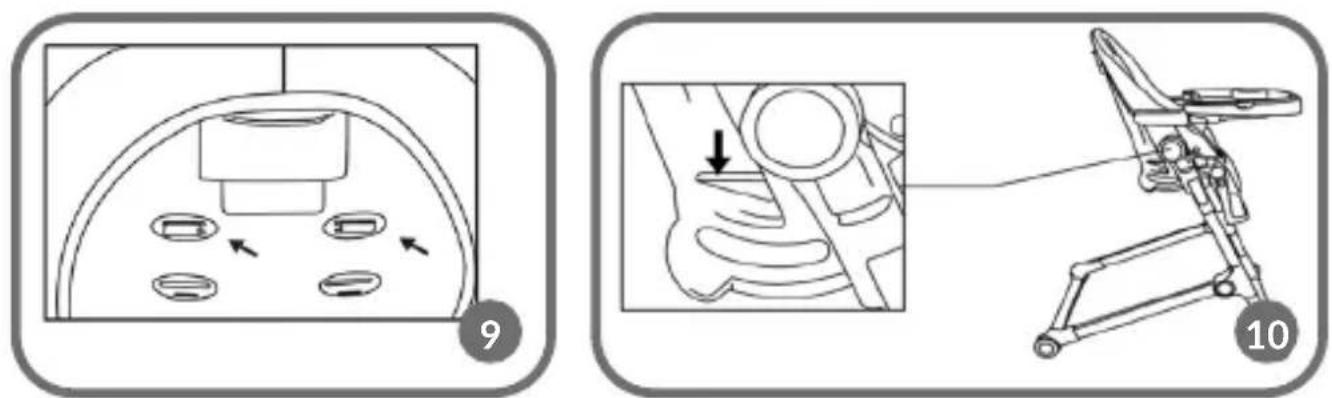

combined, insert the belts into the belt buckle. If you can hear a „click”, it means the belts have been fastened properly. To undo the belts, press the buon on the buckle. Shoulder belts must be adapted to child’s height. There are two height levels available (g. 8). To change it, pull the belts with a fastener out, they are located at the back of the backrest (see arrow in g. 9). Next pull them through holes in the chair and covering and insert in the corresponding place. Note! The child must always be secured with chair safety belts! Note! Aer you have fastened the chair safety belts, adjust them. The belts must t ght the child’s body but must not restrict its movements.

Seat height: there are four seat height levels available. To change it, press height adjustment keys on both sides of the chair (4) and set the desired height (g. 10). Aer you have released the height adjustment, make sure the seat is properly secured at the desired height. Note! Do not adjust the product if the child is inside.

5. Seat backrest: to change the backrest level, pull the lever at the back of the backrest

(1) and set as desired (g. 11). Note! The child should not sleep in the product, even if you set the lowest posion of the backrest. If your child needs to sleep, move it to a suitable place, e.g. crib. Easy stand feature - folding the chair Installaon of a toy headband (applies to Cora Plus set): Remove the tray (7) and insert the handles of the toy headband into the holes (g. 18). To dismantle, push in the handles and slide out the headband. To fold the product:

1. Apply interlocks on front wheels (5).

2. Change the seat height, set the lowest posion (see: How to adjust the product ->

Change the seat backrest inclinaon angle, set the vercal posion (see: How to adjust the product -> Seat backrest).

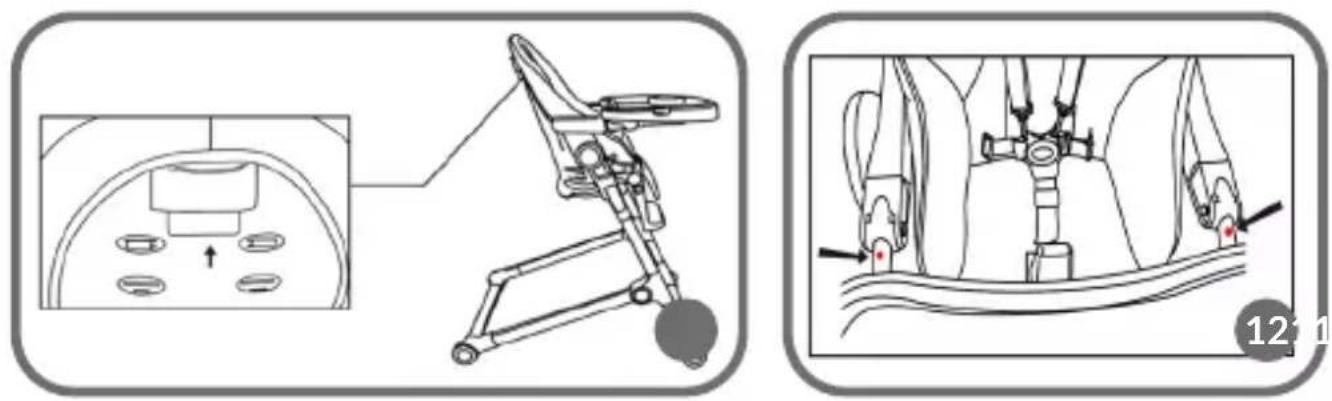

Grab the tray adjustment lever (7). Pull the tray out as far as possible - unl red marking is visible on the frame (g. 12).

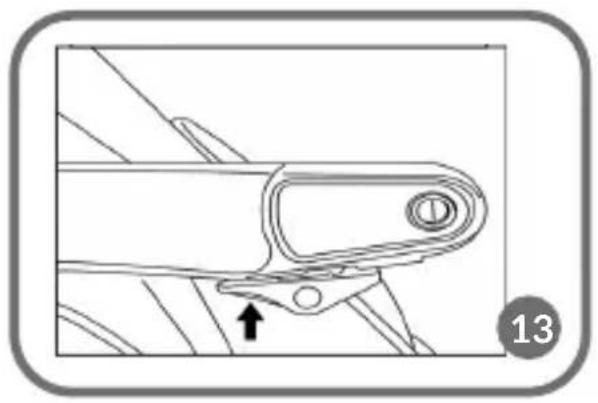

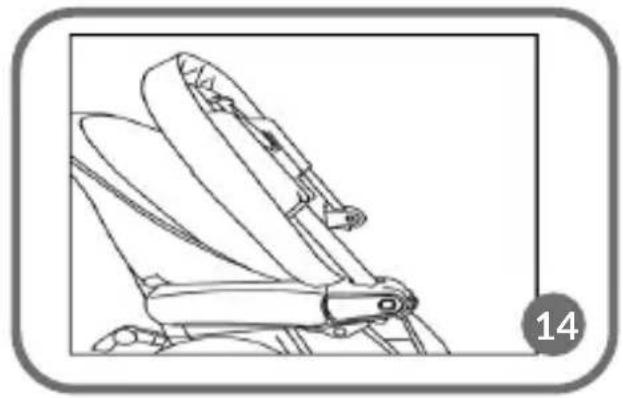

5. Press the tray folding key (2) (g. 13) and li it unl you can hear a „click” (g. 14).

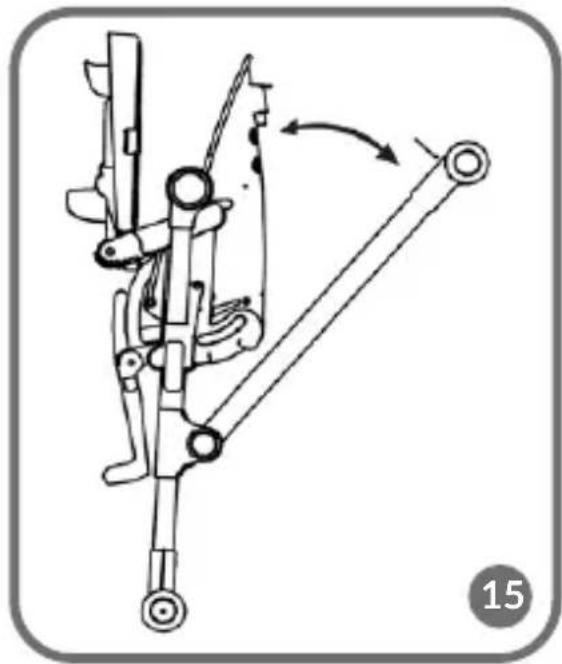

6. Press both folding keys (3) at a me and fold the chair (g. 15).

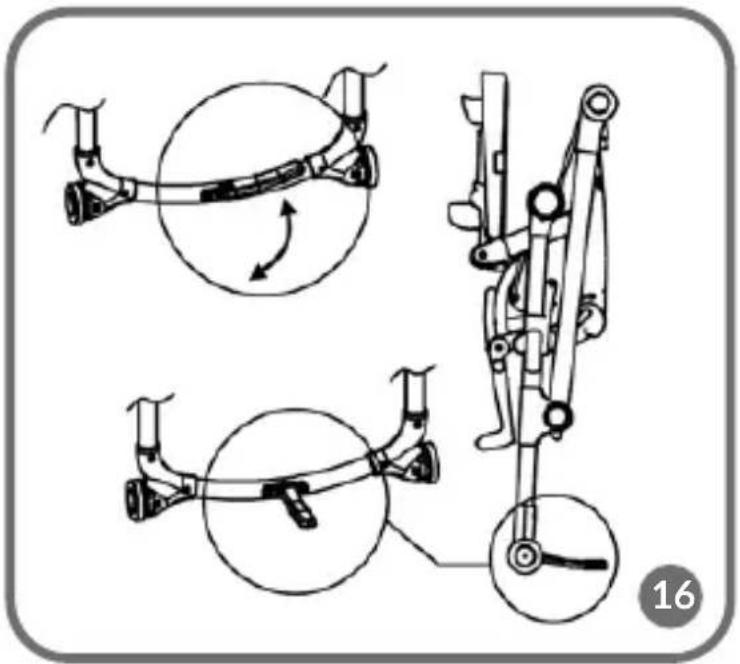

7. Pull the support (11) out (g. 16) so that the chair can remain vercal.

mechanically, ironed or washed in the washing machine. You must clean it with warm water and soap. CVC cover can be washed manually at the temperature of up to 30 degrees. A two-layer tray is detachable. Its top layer can be washed in the dish washer. Toys (applies to Cora Plus set): This product complies with the requirements of the Toy Safety Direcve (2009/48 / EC), therefore the CE mark has been axed and a declaraon of compliance with European standards has been issued. The pictures are for reference only. The real design of the products may dier from the pictures presented. EN | PL‑ 9 ‑
