DryFix 50 Select App - Dehumidifier SUNTEC - Free user manual and instructions

Brand	Suntec
Model	DryFix 50 Select App
Product type	Dehumidifier
Dehumidification capacity	50 L/day
Operating modes	Automatic, continuous, internal drying, standby
Target humidity setting	30% – 80% in 5% steps
Fan speed	High and low
Programmable timer	0 – 24 h (on/off)
Child lock	Yes (long press on Mode)
Night mode (standby)	Yes (display off, low speed, target 50% RH)
Remote control	Wi-Fi, SUNTEC Wellness app, Amazon Alexa and Google Assistant voice assistants
Filter	Dust filter and activated carbon
Filter maintenance	Clean every 2 weeks (vacuum or wash with water)
Water drainage	Removable tank or continuous drainage with hose
Refrigerant	R290, 130 g, GWP 3
Operating temperature range	5 °C – 32 °C
Display	LED screen
Control panel	8 buttons (On/Off, Mode, Speed, Internal drying, Timer, Humidity level, Wi-Fi)
Safety	Auto shut-off when tank full, automatic defrost, anti-icing protection
Storage	Vertical position, use internal drying before storage, clean filter and tank
Weight	Approximately 15 kg
Dimensions (W x D x H)	380 x 280 x 600 mm (estimate)

Frequently Asked Questions - DryFix 50 Select App SUNTEC

How do I connect my dehumidifier to the SUNTEC Wellness app?

Download the SUNTEC Wellness app from the App Store or Google Play. Make sure the device is in standby mode and the Wi-Fi indicator is flashing. Follow the step-by-step instructions in the app. If connection fails, press and hold the humidity level button for 3 seconds to restore Wi-Fi.

What does the error message FL on the screen mean?

FL indicates that the water tank is full or incorrectly placed. Empty the tank and reinsert it correctly into the device.

How do I activate night mode (standby)?

Press and hold the Internal drying button for 3 seconds. In night mode, the lights turn off, the air speed is low, and the target humidity is 50%. To deactivate, press the Mode, Internal drying, or On/Off buttons.

How often should I clean the filter?

Clean the filter every 2 weeks. Remove it gently, vacuum the dust or wash it with water and mild detergent. Allow it to dry before reinstalling.

How do I drain water continuously using a hose?

Remove the water tank, then unscrew the cap of the drainage opening at the back. Insert the supplied drainage hose and place the other end in a container. Make sure the hose is securely attached.

Why does hot air come out of the device?

This is normal: the air warms up slightly as it passes through the compressor motor. If the air is too hot, stop the device and let it cool down.

How do I activate child lock?

Press and hold the Mode button for 3 seconds. The LC icon appears. To deactivate, repeat the same action.

What should I do if the dehumidifier does not start?

Check that the device is plugged in and the water tank is empty and properly inserted. The ambient temperature must be between 5°C and 32°C.

How do I set the target humidity in automatic mode?

In automatic mode, press the Humidity level button to adjust from 30% to 80% in 5% steps. The device maintains humidity within ±5% of the set value.

What should I do if frost forms on the device?

The device has an automatic defrost function. Wait for defrosting to finish (message P1 disappears). If frost persists, the ambient temperature is too low.

USER MANUAL DryFix 50 Select App SUNTEC

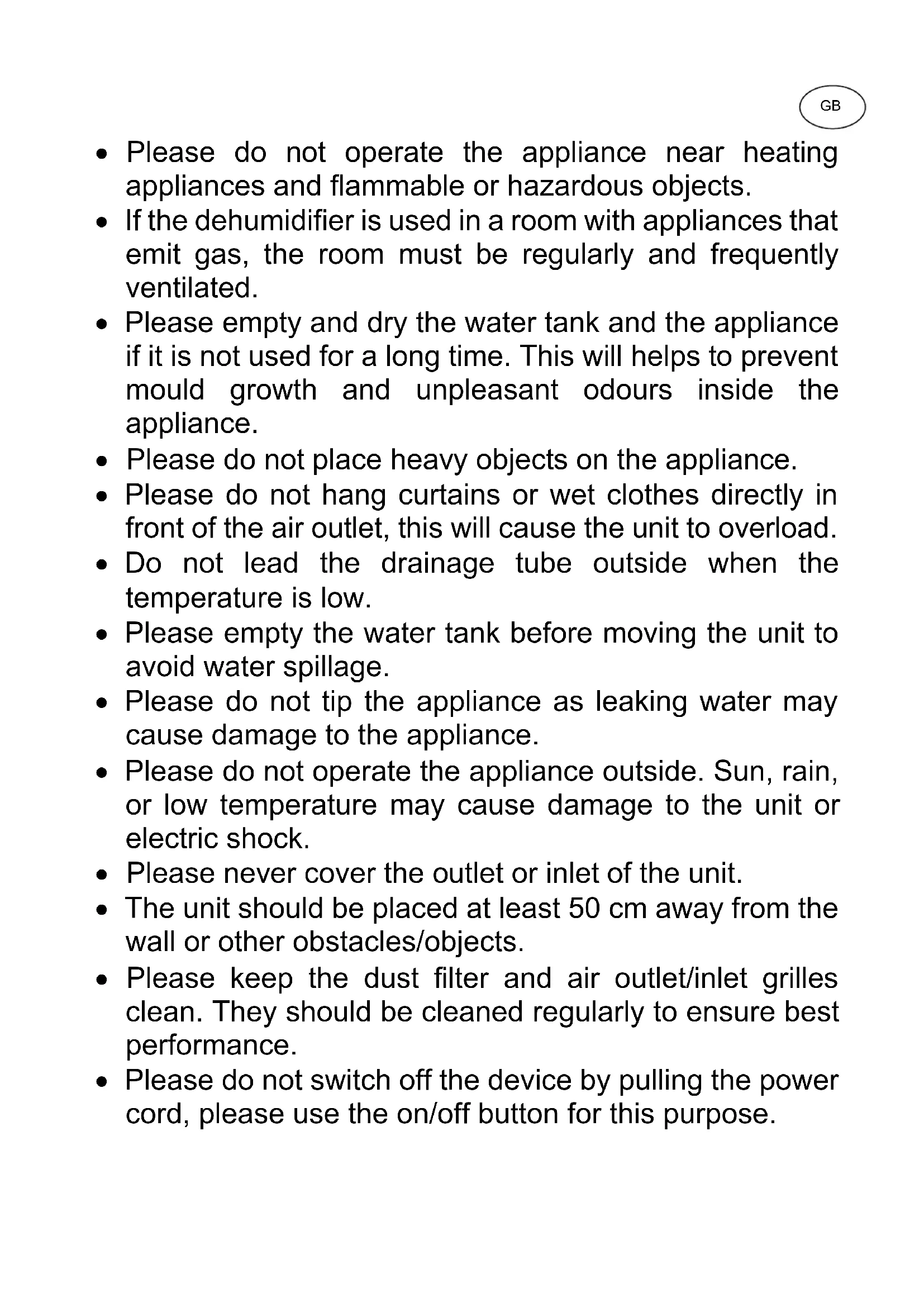

• Please do not operate the appliance near heating appliances and flammable or hazardous objects.
• If the dehumidifier is used in a room with appliances that emit gas, the room must be regularly and frequently ventilated.
• Please empty and dry the water tank and the appliance if it is not used for a long time. This will helps to prevent mould growth and unpleasant odours inside the appliance.
• Please do not place heavy objects on the appliance.
• Please do not hang curtains or wet clothes directly in front of the air outlet, this will cause the unit to overload.
• Do not lead the drainage tube outside when the temperature is low.
• Please empty the water tank before moving the unit to avoid water spillage.
• Please do not tip the appliance as leaking water may cause damage to the appliance.
• Please do not operate the appliance outside. Sun, rain, or low temperature may cause damage to the unit or electric shock.
• Please never cover the outlet or inlet of the unit.
• The unit should be placed at least 50~cm away from the wall or other obstacles/objects.
• Please keep the dust filter and air outlet/inlet grilles clean. They should be cleaned regularly to ensure best performance.
• Please do not switch off the device by pulling the power cord, please use the on/off button for this purpose.

Important:

The appliance must always be stored and transported in an upright position.

If in doubt, we recommend that you wait at least 24 hours before switching the hours before switching the unit on again.

Control via smartphone / SUNTEC Wellness -App

• Please download the "SUNTEC Wellness" app from the App Store or Google Play and install it.
• Please follow the step-by-step instructions in the app to connect your device to the WLAN and set up the control.
• Works with the most popular voice assistants from Amazon and Google.
• In order to use the voice function of Amazon or Google, it is necessary to couple the device with the "SUNTEC Wellness" once. All further steps are displayed in the app.
  If you have any further questions about the app, please visit our web page at:

www.suntec-wellness.de/suntec-app/

Installation

To save energy and ensure optimal performance of the appliance, please close all doors and windows in the room.
- Please place the appliance on a flat level surface.
- To avoid loud noises and vibrations, you can place a small carpet or rubber mat under the unit.

Parts (1)

1 Water Tank

7 Handle

2 Water tank handle

8 Dust and activated carbon filter

3 Water tank cover

9 Drainage hole with lid and

4 Control panel

10 Power cord mount

5 Front

11 Wheels

6 Back Cover

Control Panel (2)

1 Timer button

5 LED display

2 Inner drying button

6 Humidity level button

3 Fan speed button

7 Mode button

4 Tank full indicator

8 On/Off button

9 Wi-Fi

Functions

On/off:

• Please plug in the unit.
• Please make sure that the water tank is empty before switching on.
• Please press the On/Off button (8) to switch the unit on or off.
• The device automatically starts with the previous setting when it is started from standby mode. If you have disconnected the power plug or the unit has performed internal drying, please press the mode key (7) to select the mode.

Mode:

After switching on the unit, please press the mode button (7) to select between automatic and continuous dehumidification. The corresponding indication light lights up.

Automatic dehumidification:

• Please press the mode button (7) to switch on the automatic dehumidification function; the corresponding indicator lights up.
• The desired humidity level can be set between 30% and 80% in 5% steps by pressing the humidity level button (6).
• Press the fan speed button (3) to select between high and low wind speed.
• If the ambient humidity is 5% lower than the set humidity level, only the fan function will be activated. As soon as the room humidity gets 5% higher than the set value, the compressor will start automatically.

Continuous dehumidification:

• Please press the mode button (7) to switch on the continuous dehumidification function. This mode can be used without regard to the ambient humidity level. To select between high and low fan speed, please press the fan speed button (3). The humidity level cannot be set in this mode.

Internal drying:

• Please press the internal drying button (2) to activate this function. The drying process takes about one hour and prevents the growth of mold.
• During internal drying, the message "CL" is continuously shown on the display and all other modes are turned off.
• To stop the drying process, please press the button (2) again. The unit will automatically get back to the operation with previous settings.
  To stop the internal drying and switch the unit into stand-by mode, please press the On/Off button (8).

Timer:

• Please press the timer button (1) to set the timer from 0 to 24 hours. It takes about 5 seconds until the mode is set, during this time the timer key will not be available. Please set the desired mode before.
• When the unit is switched on, press the timer button to set the shut-off time as described above. The timer indicator will light up.
• When the unit is switched off, press the timer key to set the switch-on time as described before. The timer indicator will light up and the selected time will be shown on the display.

Child Lock

• Please press and hold the mode button (7) for 3 seconds to switch the child lock on or off.

Sleep Mode:

• Please press and hold the "Internal Drying" button (2) for 3 seconds to disable/enable sleep mode.
• In sleep mode, all indication lights are turned off, the device works automatically at low wind speed and target humidity 50% . The settings cannot be changed manually in sleep mode. Please switch on the timer as described above, the sleep mode will be deactivated.
• If the ambient humidity is high, the unit will dehumidify with the low wind speed; if the ambient humidity is low, the compressor will stop working, only the ventilation function will be activated.
  To deactivate the sleep mode, please press the mode key (7), internal drying key (2) or the on/off key (8). Wi-Fi: (3)
• When connecting the device, the WLAN indicator (9) will start blinking.
• The WIFI function can only be activated in standby mode. Please press and hold the humidity level button (6) for 3 seconds to start WIFI mode. The display will start blinking rapidly to search for devices to pair.
• Please follow the step-by-step instructions in the app to connect your device to the WIFI and set up the control.

Resetting the WIFI in case of connection errors and for new connections

If you want to connect the device to a new WLAN or if there are problems when trying to connect the device to the app, it is necessary to reset the WLAN.
- Please hold the humidity level button (6) in standby- mode for 3 seconds. The device must be switched on. A signal sounds 3 times and the device is ready to be connected to the app again.
- Please follow the step-by-step instructions in the app to connect your device to the Wi-Fi and set up the control.

Drainage

Water tank:

• As soon as the water tank is full, the unit stops working, a warning signal sounds, the 'water tank full' indicator (4) lights up on the control panel and error message "FL" will be shown on the display.
• Please switch off and unplug the unit.
• Please pull out the water tank carefully, open the lid of the water tank by using the lever and empty the water.
• Please clean the empty tank, close the lid and then carefully push it back into the device.

Continuous drainage:

• Please pull the plug out of the outlet.
• Please remove the water tank from the appliance as described above and remove the drainage hose.
• Carefully push the water tank back into the appliance without the drainage hose.

• You will find the drainage opening on the back of the machine. Please unscrew the cover of the drainage opening and remove the stopper.
• Please insert the drainage hose into the opening and place the other end of the hose into a container so that the water can drain off continuously.
• Please make sure that the hose is connected tightly to prevent the water from leaking.
• Please press and hold the humidity level button (6) for 3 seconds to start continuous dehumidification.

Cleaning and maintenance

To avoid injuries, please switch off and unplug the appliance before starting service or cleaning.

Cleaning:

• Please unplug the unit.
  Please clean the unit with a dry and soft cloth. For heavy dirt, please use a slightly damp cloth.
• Please do not use any chemical products (such as petrol, alcohol, etc.). The unit's housing and the unit's surface may be damaged.

Cleaning the dust filter:

• Please carefully remove the filter from the device.
  To remove dust from this filter, please use a vacuum cleaner or to tap it out carefully.
  If the filter is very dirty, wash it in water with neutral detergent, rinse wellwith water and let it dry.
• Carefully put the filter back into the unit.
• Do this process about every 2 weeks to ensure optimal performance of the device.

Storage

• Please use internal drying before storage to avoid moisture formation in the device.
• Please disconnect the power plug of the device and bundle the power cable at the cable storage (10).
• Please empty the water tank, wipe out the tank with a cloth and reinstall it.
• Please clean the air filter as described above and then reinstall it in the unit.
• For storage, place the unit in an upright position and avoid direct sunlight.

Troubleshooting

Problem	Cause	Solution
The unit is not working.	Is the unit connected to the power source?	Plug in the unit.
	Is the 'water tank full' indicator lighting up (water tank is full or incorrectly placed)?	Empty the water tank and install it correctly.
	The ambient temperature is below 5° or above 32°.	The device should be operated at an ambient temperature of 5°C - 32°C. As soon as the ambient temperature rises/falls, the device can be operated again.
The dehumidification performance is insufficient.	Is the air inlet or outlet blocked?	Check the air inlet and outlet and remove any obstructing objects.
	Is the air filter dirty?	Clean the air filter as described in the operating instructions.
	Is the room temperature/humidity too low high?	As soon as the ambient temperature and/or the humidity rises/falls, the device can be put back into operation.
Air will not be exhausted.	Is the filter blocked?	Please clean the filter as described above.
Loud noises during start-up.	Does the unit stand upright on the stable surface?	Place check the position of the unit.
	Is the filter blocked?	Please clean the filter as described above.
	The circulation of the refrigerant inside may cause noise.	The noise will disappear as soon as the refrigerant circuit has been stabilised.
Unpleasant smells during start-up.	This is not a defect.	Unpleasant smells during start up are normal and will disappear after a short time. If the surrounding objects are heavily soiled, e.g. by cigarette smoke, this can also lead to unpleasant smells from the air outlet.
The water is dripping from the drainage hole.	The drainage hose is not firmly attached.	Please install the drainage hose correctly.
	Water outlet is blocked.	If necessary, remove the foreign objects and place the drainage hose in the correct position.
Frost formation occurs.	The ambient temperature is too low.	The unit has an automatic defrost function and can be operated again after defrosting.
Heated air will be exhausted.	This is normal, the air will heat up slightly inside the unit due to the motor.	Please switch off the unit after continuous operation and let the motor cool down. Then the unit can be operated again.
Error message FL.	Water tank is full or incorrectly placed	Please empty the water tank.
Error message E1.	The humidity sensor detects deviations.	Please contact your vendor.
Error message E2.	The room temperature sensor detects deviations.	Please contact your vendor.
Error message P1.	The unit is in defrost mode.	Please wait until the defrost mode deactivates automatically. The device can be operated again after defrosting.
Error message CL.	Internal drying is in progress.	The mode is automatically deactivated as soon as internal drying has been completed. The unit can then be operated again.
Error message LC.	The child lock is activated.	Please deactivate the child lock as described above.

Refrigerant

(CE) N 842/2006: This dehumidifier contains the refrigerant R290. The amount of refrigerant is less than 1kg and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore, only trained technicians with refrigerant certificate make a filling or emptying. Suntec your dehumidifier does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

R290, GWP: 3, 130g = 0,00039t CO2e
