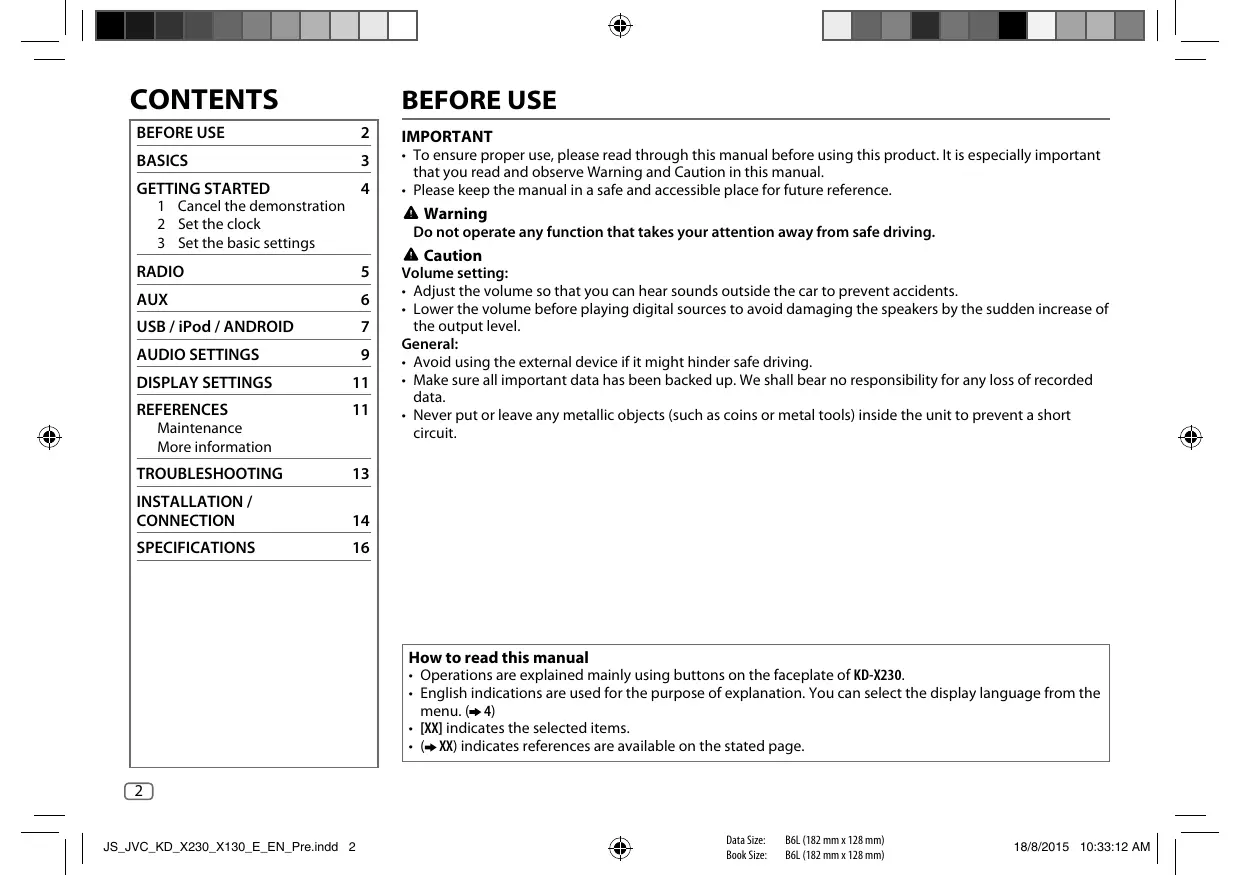

USER MANUAL KD-X230 JVC

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference. 1 Cancel the demonstration 2 Set the clock 3 Set the basic settings Warning Do not operate any function that takes your attention away from safe driving. Caution RADIO

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:
• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit. How to read this manual
• Operations are explained mainly using buttons on the faceplate of KD-X230.
• English indications are used for the purpose of explanation. You can select the display language from the menu. ( 4)
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.

How to reset Detach button Your preset adjustments will be erased except stored radio stations.

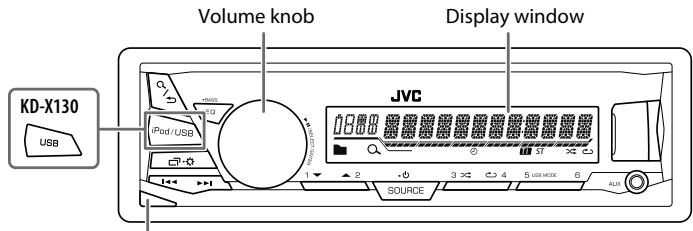

On the faceplate Turn on the power Press

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Press the volume knob to mute the sound or pause playback.
• Press again to cancel. Select a source

• Press Change the display information Press repeatedly. , then turn the volume knob within 2 seconds. repeatedly. ( 12) ENGLISH JS_JVC_KD_X230_X130_E_EN_1a.indd 3 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

Set the basic settings 1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

Cancel the demonstration When you turn on the power (or after you reset the unit), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears.

Default: XX SETTINGS BEEP ON: Activates the keypress tone. ; OFF: Deactivates. SRC SELECT AM * ON: Enables AM in source selection. ; OFF: Disables. AUX * BT ADAPTER: Selects when the KS-BTA100 Bluetooth adapter is connected to the AUX jack. ( 6) ; ON: Enables AUX in source selection. ; OFF: Disables.

SYSTEM F/W xxxx YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>. CLOCK CLOCK SYNC AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels. CLOCK DISP ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels. ENGLISH

Select the display language for menu and music information if applicable. By default, ENGLISH is selected. ESPANOL

• Not displayed when the corresponding source is selected.

JS_JVC_KD_X230_X130_E_EN_Pre.indd 4 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 18/8/2015 10:33:13 AM RADIO Other settings 1 Press and hold 2 Turn the volume knob to select [TUNER], then press the knob. 3 Turn the volume knob to select an item (see the following table), then press the knob. “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. Search for a station repeatedly to select FM or AM. 1 Press 2 Press to search for a station automatically. (or) Press and hold station manually. until “M” flashes, then press repeatedly to search for a 4 Repeat step 3 until the desired item is selected/ activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press Default: XX RADIO TIMER Turns on the radio at a specific time regardless of the current source. 1 ONCE/ DAILY/ WEEKLY/ OFF: Select how often the timer will be turned on. 2 FM/ AM: Select the band. 3 01 to 18 (for FM)/ 01 to 06 (for AM): Select the preset station. 4 Set the activation day *1 and time. “M” lights up when complete. Radio Timer will not activate for the following cases.

• The unit is turned off.
• [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. ( 4) SSM SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18: Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations. Settings in memory You can store up to 18 stations for FM and 6 stations for AM. Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESET MODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored station Press one of the number buttons (1 to 6). (or) 1 Press 2 Turn the volume knob to select a preset number, then press the knob to confirm. *1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1. ENGLISH JS_JVC_KD_X230_X130_E_EN_Pre.indd 5 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

18/8/2015 10:33:14 AM AUX RADIO Default: XX LOCAL SEEK ON: Searches only FM stations with good reception. ; OFF: Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. IF BAND AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain. MONO ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels. NEWS-STBY*2 ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels. REGIONAL*2 ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels. AF SET*2 ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels. TI SET*2 ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels. PTY SEARCH*2 Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT *2 Only for FM source. Use a portable audio player 1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with “L” shaped connector

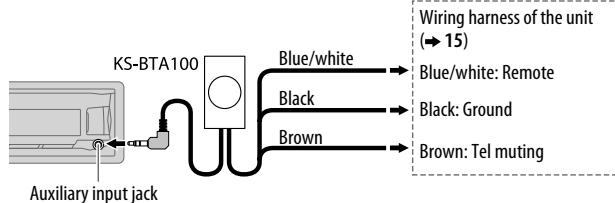

(commercially available) Auxiliary input jack Portable audio player 2 Select [ON] for [AUX] in [SRC SELECT]. ( 4) 3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output. Use a Bluetooth® device 1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased). Blue/white Black Brown Wiring harness of the unit ( 15) Blue/white: Remote Black: Ground Brown: Tel muting Auxiliary input jack Register (pair) the Bluetooth device with KS-BTA100. Select [BT ADAPTER] for [AUX] in [SRC SELECT]. ( 4) Press repeatedly to select BT AUDIO. Start using the Bluetooth device. For details, refer to the instruction manual of KS-BTA100.

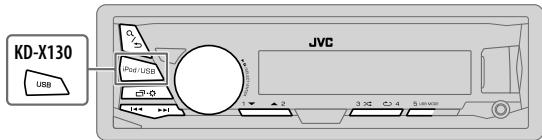

On the faceplate Reverse / Fast-forward*3 Press and hold Select a file Press

Select a folder*4 Press

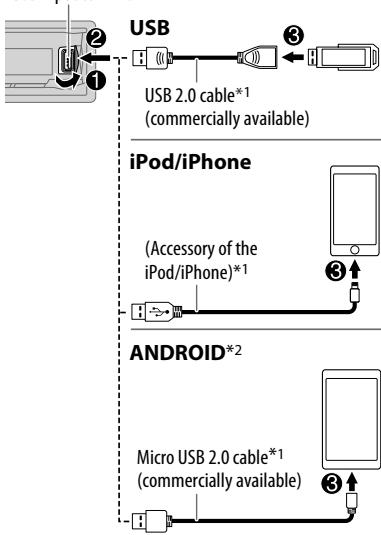

*1 Do not leave the cable inside the car when not using. *2 When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. ( 11) *3 For ANDROID: Applicable only when [AUTO MODE] is selected. ( 8) *4 Only for MP3/WMA/WAV/FLAC files. This does not work for iPod/ ANDROID. *5 For iPod/ ANDROID: Applicable only when [HEAD MODE]/ [AUTO MODE] is selected. ( 8) ENGLISH JS_JVC_KD_X230_X130_E_EN_Pre.indd 7 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

18/8/2015 10:33:14 AM USB / iPod / ANDROID Select control mode While in USB-IPOD source, press repeatedly. HEAD MODE: Control iPod from this unit. IPHONE MODE: Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit. Select a file from a folder/list 1 Press 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. While in ANDROID source, press repeatedly. AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit. Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. – Not applicable for iPod. Alphabet search (applicable only for iPod): You can search for a file according to the first character. Press or turn the volume knob quickly to select the desired character (A to Z/ 0 to 9/ OTHERS). – Select “OTHERS” if the first character is other than A to Z, 0 to 9. Select music drive Press repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device. Change the playback speed of the Audiobook

To return to the previous setting item, press To cancel, press and hold For iPod, applicable only when [HEAD MODE] is selected. For ANDROID, applicable only when [AUTO MODE] is selected. While listening to the iPod and [HEAD MODE] is selected.... 1 Press and hold 2 Turn the volume knob to select [IPOD], then press the knob. 3 Press the volume knob to select [AUDIOBOOKS]. 4 Turn the volume knob to select an item, then press the knob. 0.5× SPEED / 1× SPEED / 2× SPEED: Select the desired playback speed of the Audiobooks sound file in your iPod/iPhone. (Default: Depends on your iPod/iPhone setting.) 5 Press to exit. To return to the previous setting item, press

EASY EQ Adjust your own sound settings. The settings are stored to [USER]. SUB.W SP *1*2: 00 to +06 (Default: 03 SUB.W *1*3: –08 to +08 BASS LVL: –06 to +06 MID LVL: –06 to +06 TRE LVL: –06 to +06 00) PRO EQ 1 BASS / MIDDLE / TREBLE: Select a sound tone. 2 Adjust the sound elements of the selected sound tone. (Default: 80 HZ BASS Frequency: 60/ 80/ 100/ 200 HZ Level: –06 to +06

Q FIX Q FIX) Store your own sound settings to enter EASY EQ setting. 1 Press and hold 2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting and the result is stored to [USER].

Other settings 1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

AUDIO BASS BOOST +01 — +05 (+01): Selects your preferred bass boost level. ; OFF: Cancels. LOUD 01 / 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels. *1 Displayed only when [SUB.W] is set to [ON]. ( 10) *2 Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. ( 10) *3 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. ( 10) ENGLISH JS_JVC_KD_X230_X130_E_EN_Pre.indd 9 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

PRE-OUT *6 00 to +06 (+03): Adjusts the output level of the subwoofer connected via speaker lead. ( 15) –08 to +08 (00): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. ( 15) SUB.W *6 ON / OFF: Turns on or off the subwoofer output.

THROUGH: All signals are sent to the subwoofer. ; LOW 55HZ / MID 85HZ / HIGH 120HZ: Audio signals with frequencies lower than 55 Hz/ 85 Hz/ 120 Hz are sent to the subwoofer. SUB.W PHASE *4 REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [SUB.W LPF].) FADER R06 — F06 (00): Adjusts the front and rear speaker output balance.

Displayed only when [SUB.W] is set to [ON]. Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. This adjustment will not affect the subwoofer output. Does not work if [BT ADAPTER] is selected for [AUX] in [SRC SELECT]. ( 4) Speaker output settings Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method. Connection via lineout terminals For connections through an external amplifier. ( 15) Audio signal through lineout terminal Setting on

REAR/SW BALANCE *7 L06 — R06 (00): Adjusts the left and right speaker output balance. REAR/REAR VOL ADJUST –15 — +06 (00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. (“VOL ADJ FIX” appears if FM is selected.)

(Digital Track Expander) LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35. Rear speakers output Connection via speaker leads For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 15) ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels. Setting on

Audio signal through rear speaker lead L (left) R (right) ON: Mutes the sounds while using the cellular phone (not connected through KS-BTA100). ; OFF: Cancels. REAR/REAR Rear speakers output Rear speakers output

Rear speakers output Rear speakers output Depending on the speaker connection method, select the appropriate setting to get the desired output. ( Speaker output settings)

Subwoofer output (Mute) If [SUB.W/SUB.W] is selected: – [HIGH 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available. – [R01] is selected in [FADER] and selectable range is [R06] to [00].

JS_JVC_KD_X230_X130_E_EN_Pre.indd 10 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 18/8/2015 10:33:15 AM DISPLAY SETTINGS REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. 1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. to exit. To return to the previous setting item, press

4 Press Default: XX DISPLAY DIMMER Dim the display and buttons illumination. OFF: Dimmer is turned off. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. ( [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 18:00 or 6:00 PM [OFF]:6:00 or 6:00 AM) AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights. * BRIGHTNESS Set the button, display and USB input terminal brightness for day and night separately. 1 DAY / NIGHT: Select day or night. 2 Select a zone. 3 Set the brightness level (00 to 31). (Default: DAY: 31 ; NIGHT: 15) SCROLL *2 ONCE: Scrolls the display information once. ; AUTO: Repeats scrolling at 5-second intervals. ; OFF: Cancels. *1 The illumination control wire connection is required. ( 15) *2 Some characters or symbols will not be shown correctly (or will be blanked). Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. More information Connector (on the reverse side of the faceplate) Visit also the following website <http://www.jvc.net/cs/car/> for: – Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information Playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. About USB devices
• This unit can play MP3/WMA/WAV/FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• The maximum number of characters for: - Folder names: 64 characters - File names: 64 characters - MP3 Tag: 64 characters - WMA Tag: 64 characters - WAV Tag: 64 characters - FLAC Tag: 64 characters
• This unit can recognize a total of 15 000 files, 500 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. ENGLISH JS_JVC_KD_X230_X130_E_EN_Pre.indd 11 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

18/8/2015 10:33:16 AM REFERENCES About iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

• It is not possible to browse video files on the “Videos” menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Android device
• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. Change the display information Each time you press , the display information changes.
• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information (eg. station name) appears. FM or AM Frequency Day/Clock (For FM Radio Data System stations only) Station name (PS) Frequency Program type (PTY) Day/Clock (back to the beginning) USB (For MP3/WMA/WAV/FLAC files) Playing time Day/Clock Album title/Artist Folder/file name (back to the beginning) USB-IPOD or ANDROID Playing time Day/Clock (back to the beginning) AUX AUX BT AUDIO BT AUDIO Album title/Artist Radio text+ Track title Track title Day/Clock Day/Clock Available Cyrillic letters Available characters Display indications

• Adjust the volume to the optimum level.
• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again. “PROTECTING SEND SERVICE” appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SRC SELECT] setting. ( 4)

• Radio reception is poor.
• Static noise while listening to the radio. Connect the antenna firmly. Playback order is not as intended. The playback order is determined by the file name. Elapsed playing time is not correct. This depends on the recording process earlier. “NOT SUPPORT” appears and file skips. Check whether the file is a playable format. ( 11) “READING” keeps flashing.

• Do not use too many hierarchical levels and folders.
• Reattach the USB device. “CANNOT PLAY” flashes and/ or connected device cannot be detected.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats. ( 11)
• Reattach the device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.
• Detach and reset the iPod/iPhone using hard reset. Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.
• Depending on the display language you have selected ( 4), some characters may not be displayed correctly. Remedy

• Sound cannot be heard during playback.
• Sound output only from the Android device.

• Reconnect the Android device.
• If in [AUDIO MODE], launch any media player application on the Android device and start playback.
• If in [AUDIO MODE], relaunch the current media player application or use another media player application.
• Restart the Android device.
• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 12) Cannot playback at [AUTO MODE].

• Make sure JVC MUSIC PLAY APP is installed on the Android device. ( 7)
• Reconnect the Android device and select the appropriate control mode. ( 8)
• If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 12) “NO DEVICE” or “READING” keeps flashing.

• Switch off the developer options on the Android device.
• Reconnect the Android device.
• If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 12) ANDROID Symptom Playback is intermittent or sound skips. “CANNOT PLAY” Turn off the power saving mode on the Android device.
• Make sure Android device contains playable audio files.
• Reconnect the Android device.
• Restart the Android device. If you still have troubles, reset the unit. ( 3) ENGLISH JS_JVC_KD_X230_X130_E_EN_1a.indd 13 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/9/2015 9:42:54 AM INSTALLATION / CONNECTION Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation. Installing the unit (in-dash mounting) Do the required wiring. ( 15) Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. ( 10)
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure 1 Remove the key from the ignition switch, then

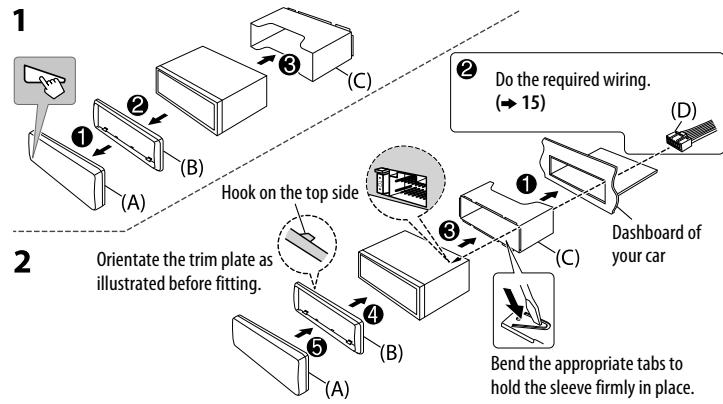

Hook on the top side Dashboard of your car Orientate the trim plate as illustrated before fitting. Bend the appropriate tabs to hold the sleeve firmly in place. When installing without the mounting sleeve 1 Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. How to remove the unit disconnect the terminal of the car battery. Connect the wires properly. See Wiring connection. ( 15) Install the unit to your car. See Installing the unit (in-dash mounting). Connect the terminal of the car battery. Reset the unit. ( 3)

JS_JVC_KD_X230_X130_E_EN_Pre.indd 14 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 18/8/2015 10:33:17 AM Wiring connection When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Rear/subwoofer output Antenna terminal Fuse (10 A) Part list for installation (A) Faceplate Connecting the ISO connectors on some VW/ Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. Light blue/yellow Red (Ignition wire) Ignition wire (Red) A7 (Red) Vehicle If no connections are made, do not let the wire come out from the tab. Yellow (Battery wire) (Steering remote control wire) Unit A4 (Yellow) Battery wire (Yellow) Default wiring Red (A7) Yellow (A4)

• You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting, 10. If your car does not have an ISO terminal We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. ISO connectors Pin

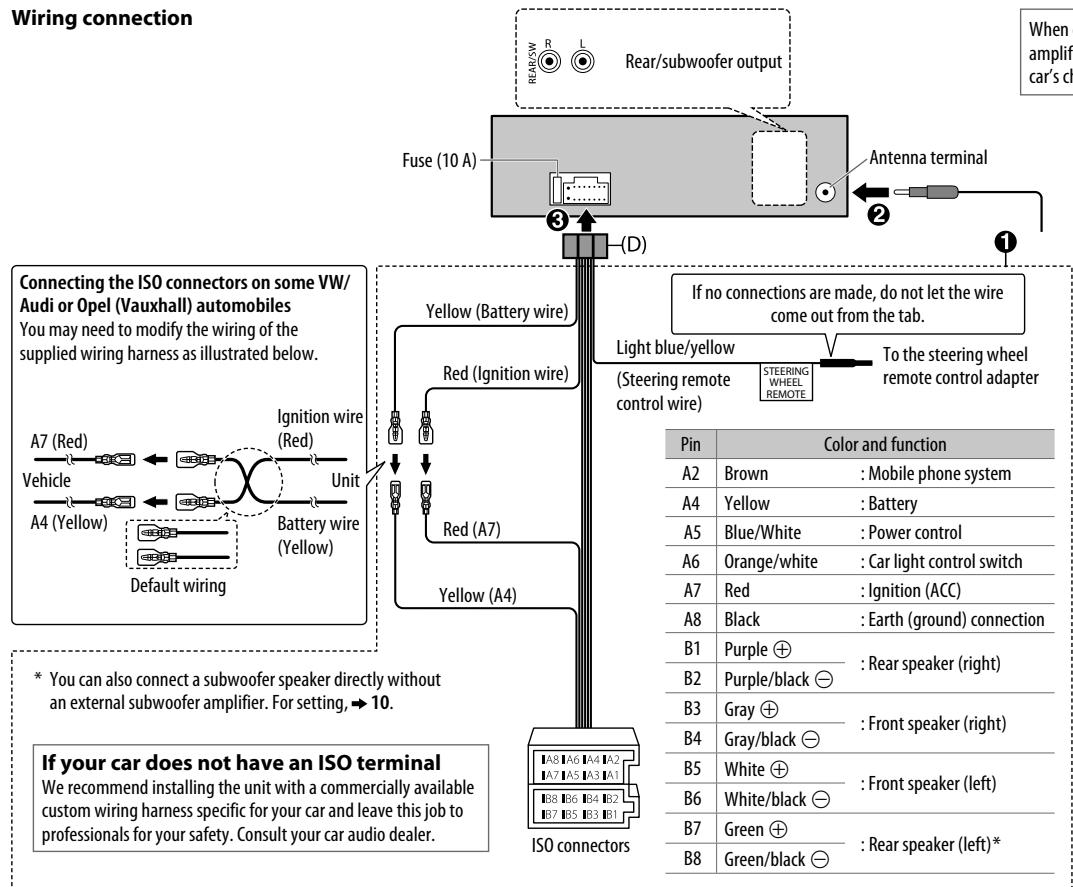

(B) Trim plate To the steering wheel remote control adapter STEERING WHEEL REMOTE Color and function Brown : Mobile phone system Yellow : Battery Blue/White : Power control Orange/white : Car light control switch Red : Ignition (ACC) Black : Earth (ground) connection Purple ] : Rear speaker (right) Purple/black [ Gray ] : Front speaker (right) Gray/black [ White ] : Front speaker (left) White/black [ Green ] : Rear speaker (left) * Green/black [ (C) Mounting sleeve (D) Wiring harness (E) Extraction key ENGLISH JS_JVC_KD_X230_X130_E_EN_1a.indd 15 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

Quieting Sensitivity (DIN S/N = 46 dB)

Maximum Current Consumption 10 A Operating Temperature Range –10°C — +60°C Installation Size (W × H × D) 182 mm × 53 mm × 107 mm Weight

87.5 MHz — 108.0 MHz (50 kHz step)

D/A Converter 24 Bit Frequency Response (±1 dB) 20 Hz — 20 kHz Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 88 dB Channel Separation 90 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio WAV Decode RIFF waveform Audio Format (Linear PCM only) FLAC Decode FLAC files General FM Frequency Range Auxiliary SPECIFICATIONS Subject to change without notice.

“MISWIRING CHECK WIRING THEN

“MISWIRING CHECK WIRING THEN
