USER MANUAL PCEWF 3105 ProfiCare

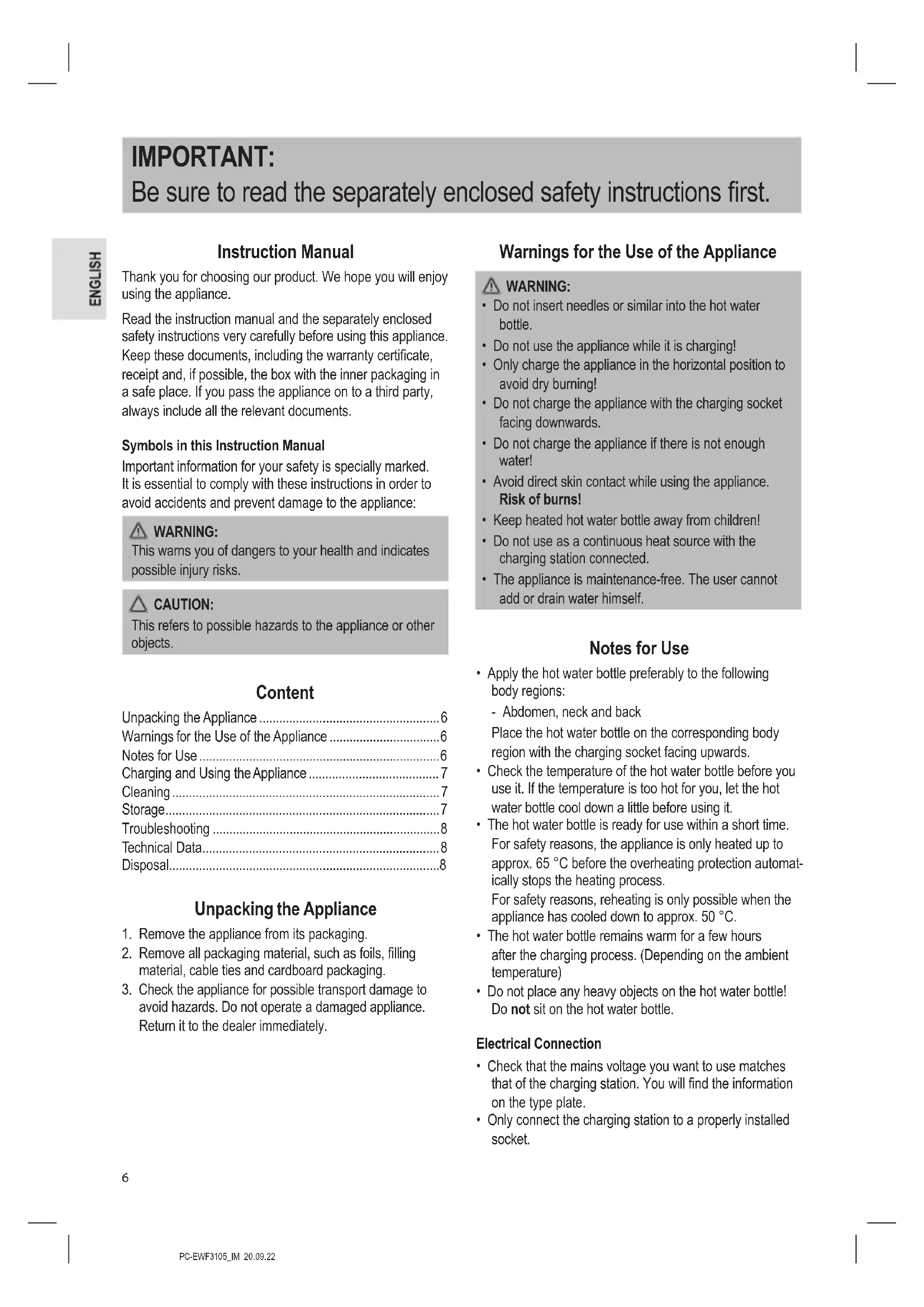

IMPORTANT: Be sure to read the separately enclosed safety instructions rst. Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certicate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, lling

material, cable ties and cardboard packaging.

3. Check the appliance for possible transport damage to

avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately. Warnings for the Use of the Appliance

• Do not insert needles or similar into the hot water bottle.

• Do not use the appliance while it is charging!

• Only charge the appliance in the horizontal position to avoid dry burning!

• Do not charge the appliance with the charging socket facing downwards.

• Do not charge the appliance if there is not enough water!

• Avoid direct skin contact while using the appliance. Risk of burns!

• Keep heated hot water bottle away from children!

• Do not use as a continuous heat source with the charging station connected.

• The appliance is maintenance-free. The user cannot add or drain water himself. Notes for Use

• Apply the hot water bottle preferably to the following body regions: - Abdomen, neck and back Place the hot water bottle on the corresponding body region with the charging socket facing upwards.

• Check the temperature of the hot water bottle before you use it. If the temperature is too hot for you, let the hot water bottle cool down a little before using it.

• The hot water bottle is ready for use within a short time. For safety reasons, the appliance is only heated up to approx. 65 °C before the overheating protection automat- ically stops the heating process. For safety reasons, reheating is only possible when the appliance has cooled down to approx. 50 °C.

• The hot water bottle remains warm for a few hours after the charging process. (Depending on the ambient temperature)

• Do not place any heavy objects on the hot water bottle! Do not sit on the hot water bottle. Electrical Connection

• Check that the mains voltage you want to use matches that of the charging station. You will nd the information on the type plate.

• Only connect the charging station to a properly installed socket.PC-EWF3105_IM 20.09.22

Charging and Using the Appliance Before you can use the appliance, you must charge it as follows:

1. Place the hot water bottle at on a stable and horizontal

surface. The charging socket must be facing upwards.

2. Fold open the cover of the charging socket.

3. First insert the plug connector of the charging station into

the charging socket on the hot water bottle.

4. Now plug the mains plug of the charging station into the

socket. The control lamp on the charging socket lights up.

5. When the hot water bottle has nished heating up, the

control lamp goes out. First disconnect the mains plug from the socket.

6. Hold the charging socket of the hot water bottle with one

hand and then carefully pull out the plug connection of the charging station with the other hand.

7. Close the cover of the charging socket. The cover must

audibly click into place.

8. The hot water bottle can now be used.

• The mains plug of the charging station must be disconnected from the socket before you clean the appliance. Wait until the hot water bottle has cooled down.

• Do not immerse the hot water bottle or the charging station in water or other liquids. It could cause an electric shock or re. CAUTION:

• Do not use a wire brush or other abrasive objects.

• Do not use harsh or abrasive cleaners.

• Important! Make sure that no water runs into the plug connection of the hot water bottle or the charging station.

• Clean the surface of the hot water bottle and the charg- ing station with a slightly damp cloth. If necessary, use some common hand dishwashing detergent.

• Wipe with a clean, dry, soft cloth.

• Allow the appliance to dry completely before storing it or using it again. Storage

• If the appliance is being stored, allow it to cool down before stowing it away.

• Avoid bending the appliance sharply by placing objects on it during storage.

• We recommend that you store the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place.PC-EWF3105_IM 20.09.22

Troubleshooting Problem Possible Cause Remedy The control lamp is not lit. The charging station has no power supply. Insert the mains plug correctly. Check the power socket with another appliance. Check the house fuse. The charging station is not properly con- nected to the hot-water bottle. Insert the plug connector of the charging station correctly into the charging socket on the hot water bottle. The temperature of the hot water bottle is too high. Wait until the hot water bottle has cooled down. The hot water bottle expands and the over- heating protection cuts off the power supply. Contact our service department. The control lamp lights up but the hot water bottle does not heat up. The heating element is defective. Contact our service department. The hot water bottle is losing liquid. The cover of the hot water bottle is defective. The hot water bottle is losing volume. The cover of the hot water bottle is defective. The useful life is more than two years. Technical Data Model:.............................................................. PC-EWF 3105 Power supply:.....................................220 – 240 V~, 50 / 60 Hz Power consumption: .....................................................380 W Protection class: ................................................................... Net weight: ....................................................... approx. 1.3 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.PC-EWF3105_IM 20.09.22
