USER MANUAL Athens TCS12264R Turbosound

TCS Passive R series Quick Start Guide

Terminals marked with this symbol carry electrical current of suffi cient magnitude to constitute risk of electric shock. Use only high-quality commercially-available speaker cables with plugs pre-installed. All other installation or modifi cation should be performed only by qualifi ed personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be suffi cient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualifi ed personnel. Caution To reduce the risk of fi re or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualifi ed service personnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories

specifi ed by the manufacturer.

the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of time.

14. Refer all servicing to qualifi ed service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The apparatus shall be connected to

a MAINS socket outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

17. Correct disposal of

BESCHRÄNKTE GARANTIE

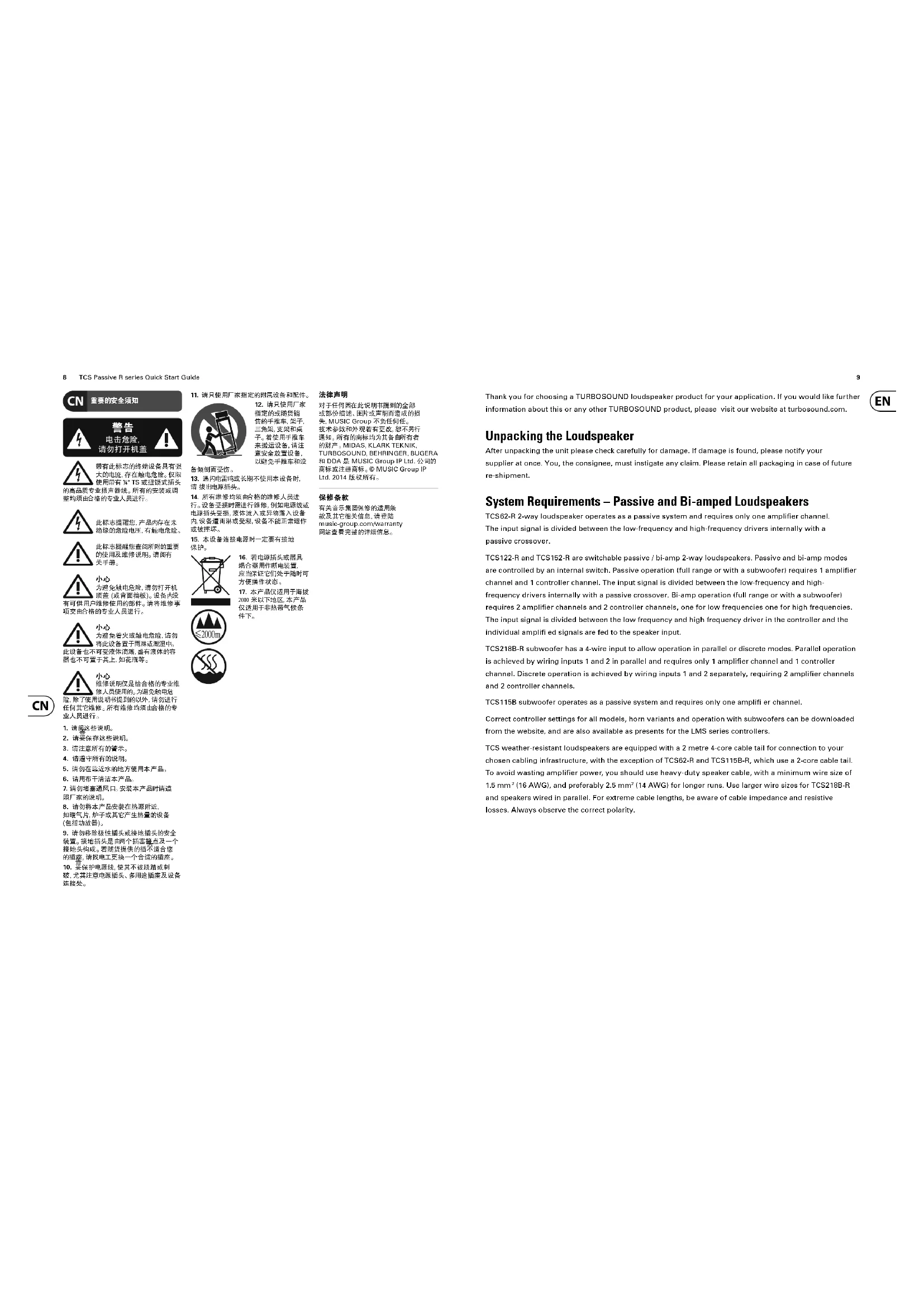

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other TURBOSOUND product, please visit our website at turbosound.com. Unpacking the Loudspeaker After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment. System Requirements – Passive and Bi-amped Loudspeakers TCS62-R 2-way loudspeaker operates as a passive system and requires only one amplifi er channel. The input signal is divided between the low-frequency and high-frequency drivers internally with a passive crossover. TCS122-R and TCS152-R are switchable passive / bi-amp 2-way loudspeakers. Passive and bi-amp modes are controlled by an internal switch. Passive operation (full range or with a subwoofer) requires 1 amplifi er channel and 1 controller channel. The input signal is divided between the low-frequency and high- frequency drivers internally with a passive crossover. Bi-amp operation (full range or with a subwoofer) requires 2 amplifi er channels and 2 controller channels, one for low frequencies one for high frequencies. The input signal is divided between the low frequency and high frequency driver in the controller and the individual amplifi ed signals are fed to the speaker input. TCS218B-R subwoofer has a 4-wire input to allow operation in parallel or discrete modes. Parallel operation is achieved by wiring inputs 1 and 2 in parallel and requires only 1 amplifi er channel and 1 controller channel. Discrete operation is achieved by wiring inputs 1 and 2 separately, requiring 2 amplifi er channels and 2 controller channels. TCS115B subwoofer operates as a passive system and requires only one amplifi er channel. Correct controller settings for all models, horn variants and operation with subwoofers can be downloaded from the website, and are also available as presents for the LMS series controllers. TCS weather-resistant loudspeakers are equipped with a 2 metre 4-core cable tail for connection to your chosen cabling infrastructure, with the exception of TCS62-R and TCS115B-R, which use a 2-core cable tail. To avoid wasting amplifi er power, you should use heavy-duty speaker cable, with a minimum wire size of

(16 AWG), and preferably 2.5 mm

(14 AWG) for longer runs. Use larger wire sizes for TCS218B-R and speakers wired in parallel. For extreme cable lengths, be aware of cable impedance and resistive losses. Always observe the correct polarity.

Connections TCS62-R Amplifi er Considerations The TCS series loudspeakers are optimised for use with the TURBOSOUND T series amplifi ers with the LMS series controllers. A full range of DSP settings to suit any confi guration are provided for download on the TURBOSOUND website. The use of third party amplifi cation and processing is only advised using the matrix of manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TCS series loudspeaker enclosures should be driven by high quality power amplifi ers designed for true professional use. Power amplifi ers should be capable of delivering long term broadband power equal to half the loudspeaker’s peak power rating at its stated nominal impedance. The use of underpowered amplifi ers must be avoided as heavily clipped signals can cause permanent loudspeaker damage. Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound quality and long-term reliability as well as protection from damage. 2 meter 4-core cable tails are provided, allowing options for passive, bi-amp, parallel and discrete operation, with the exception of TCS62-R and TCS115B-R, which use a 2-core cable tail. Recommended Minimum Amplifi er Power Outdoor Applications TCS weather-resistant products are designed to provide robust protection against the elements when used outdoors in harsh environments. The cabinet is fully sealed inside and out, protected with a weather- resistant paint fi nish, and the plated and outdoor powder-coated perforated steel grille backed with reticulated foam resists the impact of showers. Hard wired speaker connection is made via a 4 or 2-core cable tail fi tted through a weather-sealed cable gland mounted on an aluminium connector plate. Stainless steel external fi xings are used throughout. Internally, the drivers are treated to resist moisture absorption while the internal corner brackets are zinc plated and outdoor powder-coated. While TCS series loudspeakers with the “R” suffi x are constructed for outdoor use, care should be taken when installing these loudspeakers outdoors in coastal areas where high salinity and extreme temperature variations are present in addition to high humidity and UV light exposure. Loudspeakers must always be mounted with a downward angle. Do not allow loudspeakers to become fully immersed in water at any time. Routine inspection and maintenance programs must be carried out on a regular basis and parts replaced as necessary to provide continued satisfactory performance. Model TCS62-R TCS122-R TCS152-R TCS115B-R TCS218B-R Mode Passive Passive Bi-amp LF Bi-amp LF Passive Bi-amp LF Bi-amp HF Passive Passive Impedance 8 Ohms 8 Ohms 8 Ohms 6 Ohms 8 Ohms 8 Ohms 6 Ohms 8 Ohms 4 Ohms Minimum Amplifi er PowerContinuous RMS 175 W 600 W 600 W 75 W 600 W 600 W 75 W 500 W 1600 W Peak 700 W 2400 W 2400 W 750 W 2400 W 2400 W 750 W 2000 W 6400 W Passive Only HPF

Mode Back Panel Internal Schematic Passive (Internal Switch) Bi-Amp (Internal Switch)

TCS Passive R series Quick Start Guide

Mounting and Fixing The table below summarises the rigging parts or kits required for various applications, and some examples of the possible rigging options are illustrated. TCS series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations. All cabinets can be simply suspended using optional M8 or M10 shoulder eyebolts coupled to the internal rigging points provided. Remove the appropriate countersunk screws and replace them with eyebolts, which must have a thread length of at least 18mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required. Turbosound WB-20, WB-55 and CB-55 wall and ceiling brackets are optionally available for TCS series cabinets, and these are also compatible with OmniMount* wall and ceiling brackets which use 60 mm x 60 mm hole spacing. Some typical examples of the possible rigging options are shown here: Model Wall Ceiling Downfi ll Array Kit EyeboltsTCS62-RWB-20TCS62-SBCB-55TCS62-SBTCS62-SB M8 ThreadTCS122-R WB-55 CB-55TCS122-FPTCS-FK1TCS-FK2EB-10-40TCS152-R WB-55 CB-55TCS152-FPTCS-FK1TCS-FK2EB-10-40TCS115B-RTCS115-FPTCS-FK3EB-10-40TCS-R Subwoofers EB-10-40 Passive

RED + BLUE - 2-core cable tail Mode Back Panel Internal Schematic Parallel or Discrete are configured with external connection LF 1

TCS Series Flying Components Wall and Ceiling Brackets To install a loudspeaker using Turbosound wall and ceiling brackets, fi rst separate the brackets into their wall/ceiling plate and speaker plate component parts. Remove the countersunk bolts on the rear panel of the cabinet. Attach the speaker plate to the cabinet with the bolts supplied. Fix the wall/ceiling plate in the venue using appropriate fi xings (not supplied). Lift the loudspeaker on to the wall plate and re-assemble the bracket parts, adjust the vertical angle and tighten all bolts. Downfi ll Applications The TCS62-R can be mounted underneath a TCS122-R or TCS152-R cabinet to provide downfi ll coverage using the TCS62-SB swivel bracket. First disassemble the swivel bracket into its component parts. Remove the countersunk bolts from the bottom panel of the TCS152-R cabinet and fi t the section with the elongated holes using the fi xings supplied. Remove the countersunk bolts on the top panel and fi t the swivel bracket using the supplied fi xings. Re-assemble the swivel bracket, angle as appropriate and tighten all fi xings. To install the TCS62-R in a ceiling-mount application, separate the component parts as above, and fi x the top section to the ceiling with appropriate fi xings (not supplied). Fit the other half to the TCS62-R cabinet, re-assemble the bracket, angle as appropriate and tighten all fi xings. Loudspeaker Arrays and Clusters An array of two or more cabinets requires the use of kits of fl yplates and inter-cabinet couplers, which are fi xed to the cabinet sides through the M10 rigging points and assembled together in a ‘daisy chain’ fashion to build up the required array. For all loudspeaker arrays consisting of two or more cabinets: The number of inter cabinet coupler kits required = the number of boxes – 1, The number of fl yplate kits required = the number of boxes. TCS62-SB SWIVEL BRACKET Illustrated here are the components parts available for TCS cabinets: TCS122-FP (WH) Fly Plate Kit for TCS122-R TCS115-FP (WH) Fly Plate Kit for TCS115B-R TCS62-SB (WH) Swivel bracket for TCS62-R TCS152-FP (WH) Fly Plate Kit for TCS152-R 2 x M8 Bolts 2 x M8 Spring Washers 2 x M8 Flat Washers 2 x M10 Bolts 2 x M10 Spring Washers 2 x M10 Flat Washers 4 x M10 Bolts 4 x M10 Spring Washers 4 x M10 Flat Washers 4 x M10 Bolts 4 x M10 Spring Washers 4 x M10 Flat Washers 4 x M10 Bolts 4 x M10 Spring Washers 4 x M10 Flat Washers Contents: 1 x Bracket Contents: Contents: 2 x Fly Plates Contents: 2 x Fly Plates 2 x Fly Plates TCS-FK3 (WH) Inter-Cabinet Coupler Kit for TCS115B-R TCS-FK2 (WH) Inter-Cabinet Coupler Kit for TCS122-R or TCS152-R TCS-FK1 (WH) Inter-Cabinet Coupler Kit for TCS122-R or TCS152-R 2 x ICC EB-10-40 Eyebolt M10 x 40mm Contents: 2 x ICC Contents: Contents: 2 x ICC Contents: 1 x Eyebolt16 TCS Passive R series Quick Start Guide

Suspending with Eyebolts TCS cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel. Remove the appropriate countersunk screws and replace them withshoulder eyebolts, which must have a thread length of at least 18 mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required. IMPORTANT NOTE FOR ALL INSTALLATION METHODS: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualifi ed personnel with the required experience and certifi cation to perform the necessary tasks. Walls, fl oors or ceilings must be capable of safely and securely supporting the actual load. The mounting accessory used must be safely and securely fi xed both to the loudspeaker and to the wall, fl oor or ceiling. When mounting rigging components on walls, fl oors or ceilings, ensure that all fi xings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fi xing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fi xings, if required, must be of an appropriate type, and must be fi tted and used in accordance with the maker’s instructions. The operation of your speaker cabinet as part of a fl own system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualifi ed and certifi ed (by local state or national authorities) personnel prior to any installation or fl ying. Make sure that speaker cabinets are set up and fl own by qualifi ed and certifi ed personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your Dealer before attempting to set up the system. Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed “Service Information Sheet”, assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualifi ed personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is fl own, the area underneath the speaker is free of human traffi c. Do not fl y the speaker in areas that can be entered or used by members of the public. Speakers create a magnetic fi eld, even if not in operation. Therefore, please keep all materials that can be affected by such fi elds (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres. Rotating the HF horn pattern The high frequency horn in all TCS122-R and TCS152-R models can be rotated through 90° in order to swap the horizontal and vertical dispersion patterns, particularly useful when assembling clusters or for example to retain the original dispersion when the cabinet is installed in a horizontal orientation.

1. Place the cabinet on its back on a suitable work surface. Take care of the protruding cable gland.

2. Remove the 10 posi-drive screws that hold the grille in place and set the grille aside (fi g 1).

3. Remove and disconnect the bass driver (fi g 2) to access the compression driver retaining brace, making a

note of the bass driver polarity for later reconnection.

4. Reach in through the bass driver cavity and loosen the two wing nuts securing the compression driver

retaining brace (fi g 3).

5. Remove the horn fi xing screws that secure the horn to the enclosure and lift out the horn and

compression driver assembly (fi g 4). (If required for servicing or replacement, disconnect the cables from the compression driver, making a note of the polarity for later reconnection.)

6. Rotate the horn to achieve the desired coverage pattern (fi g 5).

7. Re-assemble the cabinet and drivers by reversing steps 1-5.

8. If the compression driver cables have been disconnected, reconnect the cables while observing the

correct polarity (white cable to the +ve terminal, black cable to the –ve terminal).

9. Place the horn and compression driver back into the cabinet, making sure that the driver cables pass

underneath the compression driver retainer and that the compression driver fi ts squarely back into the retaining brace.

10. Tighten the wing nuts back onto the compression driver retaining brace (fi g 3).

11. Replace the horn fi xing screws and tighten to secure the horn back into the enclosure (fi g 4).

12. Reconnect the bass driver cables, observing the correct polarity (red cable to the +ve terminal, blue cable

to the –ve terminal).

13. Check all components and confi rm the horn orientation is correct (fi g 6).

Directivity index (DI)

Power handling (IEC) Passive 175 W continuous, 700 W peak 600 W continuous, 2400 W peak 600 W continuous, 2400 W peak 600 W continuous, 2400 W peak 600 W continuous, 2400 W peak 600 W continuous, 2400 W peak 600 W continuous, 2400 W peak Bi-amp – LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak LF:600 W continuous, 2400 W peak HF:75 W continuous, 300 W peak Sensitivity 90 dB (1 W @ 1 m) 96 dB (1 W @ 1 m) 96 dB (1 W @ 1 m) 96 dB (1 W @ 1 m) 97 dB (1 W @ 1 m) 97 dB (1 W @ 1 m) 97 dB (1 W @ 1 m) Maximum SPL Passive 112.5 dB continuous, 118.5 dB peak 124 dB continuous, 130 dB peak 124 dB continuous, 130 dB peak 124 dB continuous, 130 dB peak 125 dB continuous, 131 dB peak 125 dB continuous, 131 dB peak 125 dB continuous, 131 dB peak Bi-amp – LF: 124 dB continuous, 130 dB peak HF: 128 dB continuous, 134 dB peak LF: 124 dB continuous, 130 dB peak HF: 128 dB continuous, 134 dB peak LF: 124 dB continuous, 130 dB peak HF: 128 dB continuous, 134 dB peak LF: 125 dB continuous, 131 dB peak HF: 128 dB continuous, 134 dB peak LF: 125 dB continuous, 131 dB peak HF: 128 dB continuous, 134 dB peak LF: 125 dB continuous, 131 dB peak HF: 128 dB continuous, 134 dB peak Impedance Passive 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω Bi-amp – LF: 8 Ω HF: 6 Ω LF: 8 Ω HF: 6 Ω LF: 8 Ω HF: 6 Ω LF: 8 Ω HF: 6 Ω LF: 8

HF: 6 Ω LF: 8 Ω HF: 6 Ω Crossover type Passive Passive / Bi-amp, internally switchable Passive / Bi-amp, internally switchable Passive / Bi-amp, internally switchable Passive / Bi-amp, internally switchable Passive / Bi-amp, internally switchable Passive / Bi-amp, internally switchable Components 1 x 6" (162 mm) LF driver 1 x 1" (25 mm) HF compression driver 1 x 12" (312 mm) LF driver 1 x 1.4" (36 mm) HF compression driver 1 x 12" (312 mm) LF driver 1 x 1.4" (36 mm) HF compression driver 1 x 12" (312 mm) LF driver 1 x 1.4" (36 mm) HF compression driver 1 x 15" (394 mm) LF driver 1 x 1.4" (36 mm) HF compression driver 1 x 15" (394 mm) LF driver 1 x 1.4" (36 mm) HF compression driver 1 x 15" (394 mm) LF driver 1 x 1.4" (36 mm) HF compression driver Enclosure Connectors 2-core captive cable tail 4-core captive cable tail 4-core captive cable tail 4-core captive cable tail 4-core captive cable tail 4-core captive cable tail 4-core captive cable tail Wiring Passive Red/Blue input + / - Red/Blue input + / - , Yellow/Green NC Red/Blue input + / - , Yellow/Green NC Red/Blue input + / - , Yellow/Green NC Red/Blue input + / - , Yellow/Green NC Red/Blue input + / - , Yellow/Green NC Red/Blue input + / - , Yellow/Green NC Bi-amp – Red/Blue LF + / -, Yellow/Green HF + / - Red/Blue LF + / -, Yellow/Green HF + / - Red/Blue LF + / -, Yellow/Green HF + / - Red/Blue LF + / -, Yellow/Green HF + / - Red/Blue LF + / -, Yellow/Green HF + / - Red/Blue LF + / -, Yellow/Green HF + / - Dimensions (HWD) 224 x 402 x 198 mm (18.8 x 15.8 x 7.8") 834 x 399 x 425 mm (32.8 x 15.7 x 16.7") 834 x 399 x 425 mm (32.8 x 15.7 x 16.7") 834 x 399 x 425 mm (32.8 x 15.7 x 16.7") 834 x 473 x 451 mm (32.8 x 18.6 x 17.8") 834 x 473 x 451 mm (32.8 x 18.6 x 17.8") 834 x 473 x 451 mm (32.8 x 18.6 x 17.8") Net weight 7.3 kg (16.1 lbs) 26.9 kg (59.3 lbs) 26.9 kg (59.3 lbs) 26.9 kg (59.3 lbs) 28.6 kg (63.1 lbs) 28.6 kg (63.1 lbs) 28.6 kg (63.1 lbs) Construction 12 mm (½") birch plywood 15 mm (

Other important information

1. Register online. Please register your

new MUSIC Group equipment right after you purchase it by visiting turbosound. com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and effi ciently. Also, read the terms and conditions of our warranty, if applicable.

2. Malfunction. Should your MUSIC Group

Authorized Reseller not be located in your vicinity, you may contact the MUSIC Group Authorized Fulfi ller for your country listed under “Support” at turbosound. com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at turbosound. com. Alternatively, please submit an online warranty claim at turbosound. com BEFORE returning the product.

3. Power Connections. Before plugging

the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception. Important information Technical Specifi cations TCS115B-R (-WH) TCS218B-R (-WH) System Frequency response 45 Hz - 150 Hz ± 3 dB 40 Hz - 200 Hz - 10 dB 33 Hz - 200 Hz ± 3 dB 27 Hz - 200 Hz - 10 dB Nominal dispersion Half space Half space Power handling (IEC) 500 W continuous, 2000 W peak 1600 W continuous, 6400 W peak Sensitivity 97 dB (1 W @ 1 m) 99 dB (1 W @ 1 m) Maximum SPL 124 dB continuous, 130 dB peak 131 dB continuous, 137 dB peak Impedance 8 Ω Parallel: 4 Ω Discrete: 8 Ω x 2 Components 1 x 15" (387 mm) LF driver 2 x 18" (460 mm) LF driver Enclosure Connectors 2-core captive cable tail 4-core captive cable tail Wiring Parallel / No switch Red/Blue input + / - Red/Blue input + / -, Yellow/Green link + / - Discrete – Red/Blue input 1 + / -, Yellow/Green input 2 + / - Dimensions (HWD) 834 x 469 x 452 mm (32.9 x 18.5 x17.8") 1130 x 710 x 730 mm (44.5 x 28.0 x 28.8") Net weight

33.9 kg (74.7 lbs) 94 kg (207.2 lbs)

Construction 15 mm (

") birch plywood Finish Semi matt black paint (white optional) Semi matt black paint (white optional) Grille Powder-coated perforated steel Powder-coated perforated steel Flying hardware M10 x 8 M10 x 8 Accessories TCS115-FP (WH) fl y plate kit for TCS115B TCS-FK2 (WH) inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 TCS-FK3 (WH) inter-cabinet coupler kit for TCS115B
