KD-X130 - Car stereo JVC - Free user manual and instructions

Product type	Car radio
Brand	JVC
Model	KD-X130
Dimensions (W × H × D)	182 mm × 53 mm × 107 mm
Weight	0.6 kg
Power supply	14.4 V DC (10.5 – 16 V allowable), max current 10 A
Maximum output power	50 W × 4 (or 50 W × 2 + 50 W × 1 subwoofer 4 Ω)
Compatible speaker impedance	4 Ω – 8 Ω
Supported audio formats	MP3, WMA, WAV, FLAC
USB connectivity	USB 1.1/2.0, FAT12/16/32, 5 V / 1 A max
FM tuner	87.5 – 108.0 MHz (50 kHz step)
AM tuner (MW / LW)	MW: 531 – 1611 kHz, LW: 153 – 279 kHz (9 kHz step)
Radio Data System (RDS) functions	AF, TI, PTY, News, Regional
Bluetooth	Via KS-BTA100 adapter (sold separately)
Auxiliary input (AUX)	3.5 mm stereo mini jack
Equalizer	12 preset modes + customizable (EASY EQ, PRO EQ)
Advanced audio settings	Fader, Balance, Subwoofer (phase, LPF, level), Dynamic Transient Expander
Display and lighting	Day/night brightness settings, auto dimmer
Cleaning	Faceplate with dry silicone cloth; connector with cotton swab
Safety	Battery disconnection before installation; volume warning
Supplied parts	Faceplate, assembly plate, mounting sleeve, wiring harness, extraction key

Frequently Asked Questions - KD-X130 JVC

How to reset the device?

Press the SOURCE-⓪ button while holding down the volume button until the display flashes. Preset settings will be cleared except for memorized radio stations.

How to memorize a radio station?

While listening to a station, press and hold one of the number buttons (1 to 6) until MEMORY appears. You can also use PRESET MODE by holding down the volume button.

How to set the clock?

Press and hold CLOCK then press it. Turn the volume button to select CLOCK SET, press, then set the day, hour, and minutes. Then choose 12H/24H format.

How to connect a Bluetooth device?

Connect the Bluetooth adapter KS-BTA100 (sold separately) to the AUX jack. Pair with your device, then set SRC SELECT to BT ADAPTER. Then select BT AUDIO as the source.

How to use an iPod/iPhone?

Connect your iPod/iPhone via the USB cable. The device automatically plays tracks. You can choose the control mode: HEAD MODE (control from the car radio) or IPHONE MODE (control from the iPod). Press USB MODE to switch.

What to do if the screen displays 'PROTECTING SEND SERVICE'?

This message indicates an internal problem. Turn off the device and check the wiring. If the message persists, send the device to the nearest service center.

How to adjust the equalizer?

Press EQ-BASS repeatedly to cycle through preset modes (FLAT, HARD ROCK, JAZZ, etc.). For custom adjustment, press and hold EQ-BASS to access EASY EQ or use PRO EQ in the settings menu.

How to clean the device?

Wipe the faceplate with a dry silicone cloth or soft cloth. For the faceplate connector, use a cotton swab without damaging the pins.

How to update the firmware?

Download the latest version from http://www.jvc.net/cs/car/. Copy the file to a USB flash drive, connect it, and in the settings, select F/W UPDATE then YES.

How to select the control mode for Android?

Connect your Android device via USB and press USB MODE to switch between AUTO MODE (control via JVC MUSIC PLAY app) and AUDIO MODE (control from Android).

USER MANUAL KD-X130 JVC

MANUEL D'INSTRUCTIONS

DIGITAL-MEDIA-RECEIVER

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

Declaration of Conformity with regard to the EMC Directive

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVC Technical Services Europe GmbH

Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

1 Cancel the demonstration
2 Set the clock
3 Set the basic settings

RADIO 5

AUX 6

USB/iPod/Android 7

AUDIO SETTINGS 9

DISPLAY SETTINGS 11

REFERENCES 11

Maintenance

More information

TROUBLESHOOTING 13

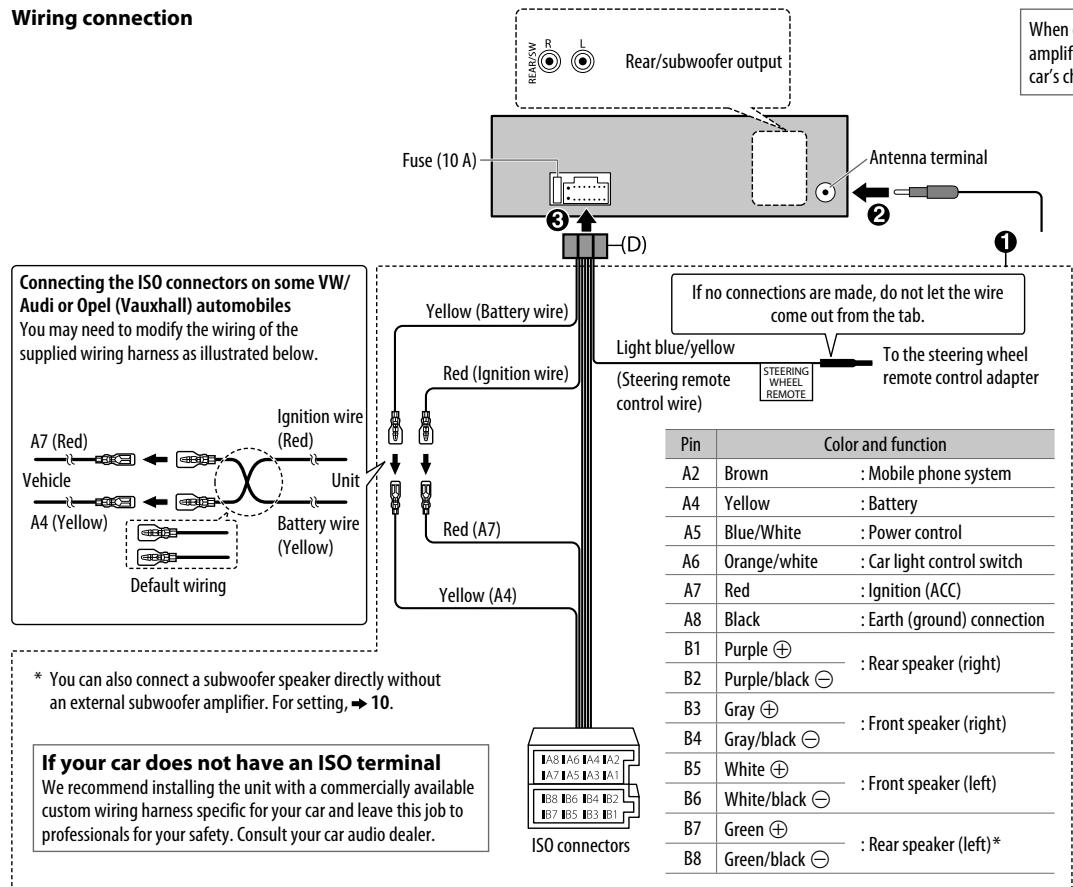

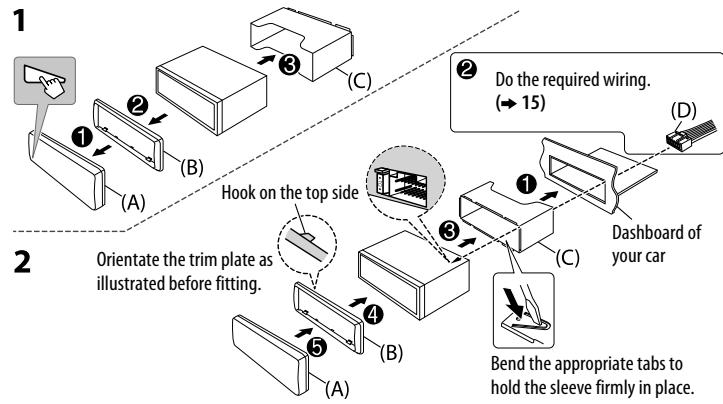

INSTALLATION /

CONNECTION 14

SPECIFICATIONS 16

BEFORE USE

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KD-X230.
• English indications are used for the purpose of explanation. You can select the display language from the menu. ( 4)
• [XX] indicates the selected items.
• ( X) indicates references are available on the stated page.

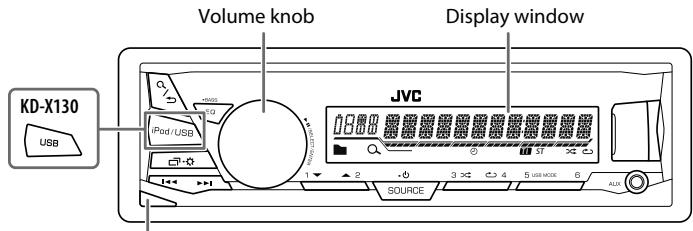

Faceplate

Detach button

Attach

Detach

How to reset
Your preset adjustments will be erased except stored radio stations.

To	On the faceplate
Turn on the power	Press SOURCE-⊙. • Press and hold to turn off the power.
Adjust the volume	Turn the volume knob.
	Press the volume knob to mute the sound or pause playback. • Press again to cancel.
Select a source	• Press SOURCE-⊙ repeatedly. • Press SOURCE-⊙, then turn the volume knob within 2 seconds.
Change the display information	Press ⊙ repeatedly. (► 12)

Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

Set the clock

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK SET], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Day Hour Minute
5 Turn the volume knob to select [24H/ 12H], then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the knob.
7 Press to exit.

To return to the previous setting item, press Q / .

Set the basic settings

1 Press and hold .
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press / .

Default: XX

SETTINGS
BEEP	ON: Activates the keypress tone. ; OFF: Deactivates.
SRC SELECT
AM*	ON: Enables AM in source selection. ; OFF: disables.
AUX*	BT ADAPTER: Selects when the KS-BTA100 Bluetooth adapter is connected to the AUX jack. (⇒ 6) ; ON: Enables AUX in source selection. ; OFF: Disables.
F/W UPDATE
SYSTEM
F/W xxxx	YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.
CLOCK
CLOCK SYNC	AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.
CLOCK DISP	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
ENGLISH
PYCBCKII	Select the display language for menu and music information if applicable. By default, ENGLISH is selected.
ESPANOL

• Not displayed when the corresponding source is selected.

"ST" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press SOURCE- repeatedly to select FM or AM.
2 Press / to search for a station automatically. (or)

Press and hold / until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press /
2 Turn the volume knob to select a preset number, then press the knob to confirm.

Other settings

1 Press and hold
2 Turn the volume knob to select [TUNER], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/ activated or follow the instructions stated on the selected item.
5 Press to exit.

To return to the previous setting item, press / .

Default: XX

RADIO TIMER

Turns on the radio at a specific time regardless of the current source. 1 ONCE/DAILY/ WEEKLY/OFF: Select how often the timer will be turned on. 2 FM/ AM: Select the band. 3 01 to 18 (for FM)/ 01 to 06 (for AM): Select the preset station. 4 Set the activation day*1 and time. “◎” lights up when complete. Radio Timer will not activate for the following cases. • The unit is turned off. • [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. (⇒ 4)

SSM

SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18: Automatically resets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

Default: XX

LOCAL SEEK	ON: Searches only FM stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
IF BAND	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
MONO	ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.
NEWS-STBY*2	ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.
REGIONAL*2	ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.
AF SET*2	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.
TI SET*2	ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.
PTY SEARCH*2	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIOUS, POP M (music), ROCKM (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

*2 Only for FM source.

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with "L" shaped connector (commercially available)

2 Select [ON] for [AUX] in [SRC SELECT]. ( 4)
3 Press SOURCE- repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

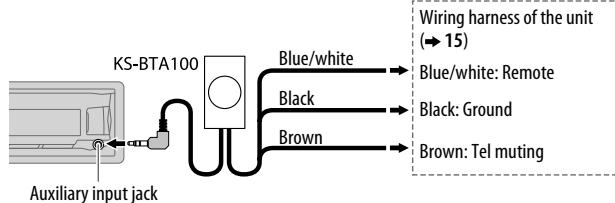

Use a Bluetooth device

1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased).

2 Register (pair) the Bluetooth device with KS-BTA100.
3 Select [BT ADAPTER] for [AUX] in [SRC SELECT]. ( 4)
4 Press SOURCE- repeatedly to select BT AUDIO.
5 Start using the Bluetooth device.

For details, refer to the instruction manual of KS-BTA100.

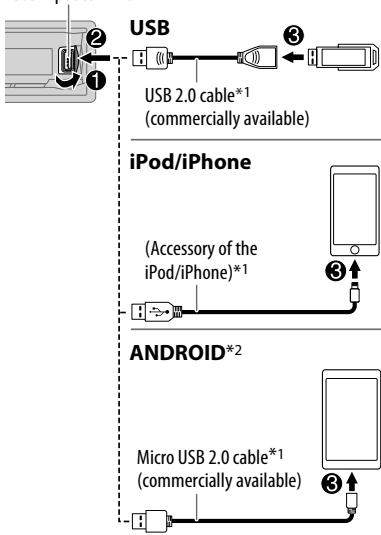

Start playback

The source changes automatically and playback starts.

USB input terminal

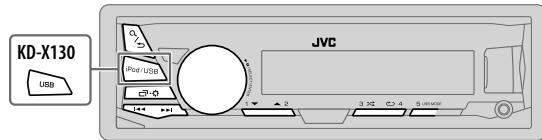

Selectable source:

KD-X230:

USB/USB-IPOD/Android

KD-X130:

USB/Android

KD-X230: To directly select USB/ USB-IPOD/Android source, press iPod/USB.

To	On the faceplate
Reverse / Fast-forward*3	Press and hold ↓/▶↓.
Select a file	Press ↓/▶↓.
Select a folder*4	Press 2▲/1▼.
Repeat play*5	Press 4 ⊙ repeatedly.
	TRACK RPT/ FOLDER RPT/ ALL RPT : MP3/WMA/WAV/FLAC file
	ONE RPT/ ALL RPT/ RPT OFF : iPod or ANDROID
Random play*5	Press 3 > repeatedly.
	FOLDER RND/ ALL RND/ RND OFF : MP3/WMA/WAV/FLAC file
	SONG RND/ ALL RND/ RND OFF : iPod or ANDROID

1 Do not leave the cable inside the car when not using.
2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. (→ 11)
3 For ANDROID: Applicable only when [AUTO MODE] is selected. (→ 8)
4 Only for MP3/WMA/WAV/FLAC files. This does not work for iPod/Android.
*5 For iPod/Android: Applicable only when [HEAD MODE]/[AUTO MODE] is selected. (→ 8)

Select control mode

While in USB-IPOD source, press 5 USB MODE repeatedly.

HEAD MODE: Control iPod from this unit.

IPHONE MODE: Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit.

While inAndroid source,press 5 USB MODE repeatedly.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

Press 5 USB MODE repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device.

Change the playback speed of the Audiobook

While listening to the iPod and [HEAD MODE] is selected....

1 Press and hold
2 Turn the volume knob to select [IPOD], then press the knob.
3 Press the volume knob to select [AUDIOBOOKS].
4 Turn the volume knob to select an item, then press the knob. 0.5 × SPEED / 1 × SPEED / 2 × SPEED: Select the desired playback speed of the Audiobooks sound file in your iPod/iPhone. (Default: Depends on your iPod/iPhone setting.)
5 Press to exit.

To return to the previous setting item, press / .

Select a file from a folder/list

1 Press /
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

• Not applicable for iPod.

Alphabet search (applicable only for iPod):

You can search for a file according to the first character.

Press 2 ▲/1▼ or turn the volume knob quickly to select the desired character (A to Z/0 to 9/Others).

• Select "OTHERS" if the first character is other than A to Z, 0 to 9.

To return to the previous setting item, press Q /
To cancel, press and hold Q /
- For iPod, applicable only when [HEAD MODE] is selected.
- ForAndroid,applicable only when [AUTO MODE] is selected.

Select a preset equalizer

Press EQ-BASS repeatedly. (or)

Press EQ-BASS, then turn the volume knob within 5 seconds.

Preset equalizer: FLAT (default), HARD ROCK, HIP HOP, JAZZ, POP, R&B, TALK, USER, VOCAL BOOST, BASS BOOST, CLASSICAL, DANCE

Store your own sound settings

1 Press and hold EQ-BASS to enter EASY EQ setting.
2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting and the result is stored to [USER].

• To return to the previous setting item, press .
  To exit, press EQ-BASS.

Other settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press / .

Default: XX

EQ SETTING
EQ PRESET	Select a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EASY EQ].)FLAT (Default) / HARD ROCK / HIP HOP / JAZZ / POP / R&B / TALK / USER / VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE
EASY EQ	Adjust your own sound settings. The settings are stored to [USER].SUB.W SP*1*2: 00 to +06 (Default: 03SUB.W*1*3: -08 to +08 00BASS LVL: -06 to +06 00MID LVL: -06 to +06 00TRE LVL: -06 to +06 00
PRO EQ	1 BASS / MIDDLE / TREBLE: Select a sound tone.2 Adjust the sound elements of the selected sound tone.BASS Frequency: 60/80/100/200 HZ (Default: 80 HZLevel: -06 to +06 00Q: Q1.0/Q1.25/Q1.5/Q2.0MIDDLE Frequency: 0.5/1.0/1.5/2.5 KHZ (Default: 1.0 KHZLevel: -06 to +06 00Q: Q0.75/Q1.0/Q1.25Q1.25TREBLE Frequency: 10.0/12.5/15.0/17.5 KHZ (Default: 10.0 KHZLevel: -06 to +06 00Q: Q FIX
AUDIO
BASS BOOST	+01 — +05 (+01): Selects your preferred bass boost level.; OFF: Cancels.
LOUD	01 / 02: Boosts low or high frequencies to produce a well-balanced sound at low volume.; OFF: Cancels.

1 Displayed only when [SUB.W] is set to [ON]. (→ 10)
2 Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (→ 10)
*3 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (→ 10)

AUDIO SETTINGS

SUB.W LEVEL*4	SPK-OUT*5	00 to +06 (±03): Adjusts the output level of the subwoofer connected via speaker lead. (⇒ 15)
	PRE-OUT*6	-08 to +08 (00): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. (⇒ 15)
SUB.W*6	ON / OFF: Turns on or off the subwoofer output.
SUB.W LPF*4	THROUGH: All signals are sent to the subwoofer.; LOW 55HZ/MID 85HZ / HIGH 120HZ: Audio signals with frequencies lower than 55 Hz/ 85 Hz/ 120 Hz are sent to the subwoofer.
SUB.W PHASE*4	REVERSE (180°)/NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [SUB.W LPF].)
FADER	R06 — F06 (00): Adjusts the front and rear speaker output balance.
BALANCE*7	L06 — R06 (00): Adjusts the left and right speaker output balance.
VOL ADJUST	-15 — +06 (00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. ("VOL ADJ FIX" appears if FM is selected.)
AMP GAIN	LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.
D.T.exp(Digital Track Expander)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.
TEL MUTING*8	ON: Mutes the sounds while using the cellular phone (not connected through KS-BTA100). ; OFF: Cancels.
SPK/PRE OUT	Depending on the speaker connection method, select the appropriate setting to get the desired output. (⇒ Speaker output settings)

4 Displayed only when [SUB.W] is set to [ON].
5 Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W].
6 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W].
7 This adjustment will not affect the subwoofer output.
*8 Does not work if [BT ADAPTER] is selected for [AUX] in [SRC SELECT]. (→4)

Speaker output settings

Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

Connection via lineage terminals

For connections through an external amplifier. ( 15)

Setting on [SPK/PRE OUT]	Audio signal through lineout terminal
	REAR/SW
REAR/REAR	Rear speakers output
REAR/SUB.W	Subwoofer output
SUB.W/SUB.W	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. (→ 15)

Setting on [SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left)	R (right)
REAR/REAR	Rear speakers output	Rear speakers output
REAR/SUB.W	Rear speakers output	Rear speakers output
SUB.W/SUB.W	Subwoofer output	(Mute)

If [SUB.W/SUB.W] is selected:

-HIGH 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available.
- [R01] is selected in [FADER] and selectable range is [R06] to [00].

DISPLAY SETTINGS

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press / .

Default: XX

DISPLAY
DIMMER	Dim the display and buttons illumination. OFF: Dimmer is turned off. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. (↔ [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 18:00 or 6:00 PM [OFF]:6:00 or 6:00 AM) AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights.*1
BRIGHTNESS	Set the button, display and USB input terminal brightness for day and night separately. 1 DAY / NIGHT: Select day or night. 2 Select a zone. 3 Set the brightness level (00 to 31). (Default: DAY: 31; NIGHT: 15)
SCROLL*2	ONCE: Scrolls the display information once.; AUTO: Repeats scrolling at 5-second intervals. ; OFF: Cancels.

1 The illumination control wire connection is required. (→ 15)
2 Some characters or symbols will not be shown correctly (or will be blanked).

REFERENCES

■ Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

More information

Visit also the following website http://www.jvc.net/cs/car/ for:

• Latest firmware updates and latest compatible item list
  AndroidTM application JVC MUSIC PLAY
• Any other latest information

Playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

About USB devices

• This unit can play MP3/WMA/WAV/FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• The maximum number of characters for:

• Folder names: 64 characters

• File names: 64 characters
• MP3 Tag: 64 characters
  WMA Tag: 64 characters
  WAV Tag: 64 characters

• FLAC Tag: 64 characters

• This unit can recognize a total of 15 000 files, 500 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1 A.

About iPod/Phone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
• iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
• If the Android device supports both mass storage class device and A0A 2.0, this unit always playback via A0A 2.0 as priority.

Available Cyrillic letters

Available characters

Display indications

• If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears.

FM or AM	Frequency ↔ Day/Clock
	(For FM Radio Data System stations only)Station name (PS) ↔ Frequency ↔ Program type (PTY) ↔ Radio text+→Day/Clock ↔ (back to the beginning)
USB	(For MP3/WMA/WAV/FLAC files)Playing time → Day/Clock → Album title/Artist → Track title →Folder/file name → (back to the beginning)
USB-IPODor ANDROID	Playing time → Day/Clock → Album title/Artist → Track title → (back to the beginning)
AUX	AUX ↔ Day/Clock
BT AUDIO	BT AUDIO ↔ Day/Clock

TROUBLESHOOTING

Symptom		Remedy
General	Sound cannot be heard.	·Adjust the volume to the optimum level. ·Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SRC SELECT] setting. (⇒ 4)
Radio	·Radio reception is poor. ·Static noise while listening to the radio.	Connect the antenna firmly.
USB / iPod	Playback order is not as intended.	The playback order is determined by the file name.
	Elapsed playing time is not correct.	This depends on the recording process earlier.
	"Not SUPPORT" appears and file skips.	Check whether the file is a playable format. (⇒ 11)
	"READING" keeps flashing.	·Do not use too many hierarchical levels and folders. ·Reattach the USB device.
	"CANNOT PLAY" flashes and/ or connected device cannot be detected.	·Check whether the connected device is compatible with this unit and ensure the files are in supported formats. (⇒ 11) ·Reattach the device.
	The iPod/iPhone does not turn on or does not work.	·Check the connection between this unit and iPod/iPhone. ·Detach and reset the iPod/iPhone using hard reset.
	Correct characters are not displayed.	·This unit can only display uppercase letters, numbers, and a limited number of symbols. ·Depending on the display language you have selected (⇒ 4), some characters may not be displayed correctly.

Symptom		Remedy
ANDROID	·Sound cannot be heard during playback. ·Sound output only from the Android device.	·Reconnect the Android device. ·If in [AUDIO MODE], launch any media player application on the Android device and start playback. ·If in [AUDIO MODE], relaunch the current media player application or use another media player application. ·Restart the Android device. ·If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (⇒ 12)
	Cannot playback at [AUTO MODE].	·Make sure JVC MUSIC PLAY APP is installed on the Android device. (⇒ 7) ·Reconnect the Android device and select the appropriate control mode. (⇒ 8) ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 12)
	“NO DEVICE” or “READING” keeps flashing.	·Switch off the developer options on the Android device. ·Reconnect the Android device. ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 12)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“CANNOT PLAY”	·Make sure Android device contains playable audio files. ·Reconnect the Android device. ·Restart the Android device.

If you still have troubles, reset the unit. (⇒ 3)

Warning

• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W . If the maximum power of the speakers is lower than 50W , change the [AMP GAIN] setting to avoid damaging the speakers. ( 10)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Connect the wires properly. See Wiring connection. (→ 15)
3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. ( 3)

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

Use only the specified screws. Using wrong screws might damage the unit.

How to remove the unit

Wiring connection

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

Part list for installation

(A) Faceplate

(B) Trim plate

(C) Mounting sleeve

(D) Wiring harness

(E) Extraction key

SPECIFICATIONS

Tuner	FM	Frequency Range	87.5 MHz — 108.0 MHz (50 kHz step)
		Usable Sensitivity (S/N = 26 dB)	0.71 μV/75 Ω
		Quieting Sensitivity (DIN S/N = 46 dB)	2.0 μV/75 Ω
		Frequency Response (±3 dB)	30 Hz — 15 kHz
		Signal-to-Noise Ratio (MONO)	64 dB
		Stereo Separation (1 kHz)	40 dB
	MW	Frequency Range	531 kHz — 1611 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	28.2 μV
	LW	Frequency Range	153 kHz — 279 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	50 μV
USB	USB Standard		USB 1.1, USB 2.0 (Full speed)
	Compatible Devices		Mass storage class
	File System		FAT12/ 16/ 32
	Maximum Supply Current		DC 5 V --- 1 A
	D/A Converter		24 Bit
	Frequency Response (±1 dB)		20 Hz — 20 kHz
	Signal-to-Noise Ratio (1 kHz)		105 dB
	Dynamic Range		88 dB
	Channel Separation		90 dB
	MP3 Decode		Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode		Compliant with Windows Media Audio
	WAV Decode		RIFF waveform Audio Format (Linear PCM only)
	FLAC Decode		FLAC files

Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1000 mV
	Input Impedance	30 kΩ
Audio	Maximum Output Power	50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power (at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load (USB)	2500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption	10 A
	Operating Temperature Range	-10°C — +60°C
	Installation Size (W × H × D)	182 mm × 53 mm × 107 mm
	Weight	0.6 kg

Subject to change without notice.

TABLE DES MATIERES

AVANT L'UTILISATION	2
FONCTIONNEMENT DE BASE	3
PRISE EN MAIN	4
1 Annulez la démonstration
2 Réglez l'horloge
3 Faites les régles de base
RADIO	5
AUX	6
USB / iPod / ANDROID	7
RéGLAGES AUDIO	9
RéGLAGES D'AFFICHAGE	11
RÉFERENCES	11
Entretien
Plus d'informations
GUIDE DE DÉPANNAGE	13
INSTALLATION / RACCORDEMENT	14
SPÉCIFICATIONS	16

AVANT L'UTILISATION

IMPORTANT

Source selectiontable:

KD-X230:

USB/USB-IPOD/Android

KD-X130:

USB/Android

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
  Android is trademark of Google Inc.

libFLAC

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIButors "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CORNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
