ELITE 14 PRF0098874A - Basket ELICA - Free user manual and instructions

Brand	Elica
Model	ELITE 14 PRF0098874A
Product type	Cooker hood
Use	Indoor, domestic
Power supply	230 V ~ 50 Hz
Lighting power	3 W (E14 socket)
Number of speeds	3 suction speeds
Dimensions (approx.)	Width 35.6 cm (14"), depth 30 cm, height under cabinet 15 cm
Net weight (approx.)	5.5 kg
Diameter of discharge collar	120 mm (not supplied)
Minimum safety distance (electric)	50 cm
Minimum safety distance (gas/mixed)	65 cm
Use version	External discharge or recirculation (optional carbon filter)
Control type	3-speed switches + lighting
Grease filter	Washable metal (at least once a month)
Carbon filter	Replace every 4 months (only in recirculation mode)
Electrical connection	Plug socket (or circuit breaker if socket inaccessible)
Compliance standards	EN/IEC 60335, EN/IEC 61591, EN 55014
Repairability	Spare parts available through authorized after-sales service
Warranty	See provided warranty document

Frequently Asked Questions - ELITE 14 PRF0098874A ELICA

How to install the Elica ELITE 14 hood?

Respect the minimum distances: 50 cm above an electric hob, 65 cm for a gas hob. Use the provided screws. For extraction, a pipe with a diameter of 120 mm is not supplied. If you choose recirculation, install the carbon filter (not supplied with this model).

What is the required power supply voltage?

The hood operates at 230 V ~ 50 Hz. Plug it into a compliant wall socket or, if the socket is inaccessible, install a standardized circuit breaker to disconnect it completely.

How to clean the hood?

First unplug the appliance. Use a damp cloth with a neutral liquid detergent. Avoid abrasive products and alcohol. The metal grease filters can be cleaned by hand or in a dishwasher at low temperature once a month.

When to replace the carbon filter?

The carbon filter (for recirculation version) must be replaced every 4 months at most. It cannot be cleaned or regenerated. Replace it more often if use is intensive.

How to replace the hood lamp?

Unplug the appliance and ensure the lamp is cool. Remove the suction grille. Replace the defective bulb with a new one of type E14, 3 W, 230 V. Reinstall the grille.

Can I use my hood without the grease filter?

No, the hood should never be used without the grille (grease filter) properly installed. This poses a fire risk and damages the appliance.

How to switch from extraction mode to recirculation mode?

In extraction version, remove the carbon filter if present. In recirculation version, install an active carbon filter (not supplied with this model) and plug the external exhaust. Follow the instructions in the installation guide.

What types of screws to use for installation?

Use only the mounting screws provided with the product. If missing, purchase screws of the same type and length specified in the installation guide. An incorrect choice may lead to electrical hazards.

The hood is noisy: is it normal?

Some ventilation noise is normal. To reduce it, use the lowest speed during normal cooking. Ensure the filters are clean and the exhaust duct is not obstructed.

What if the hood does not turn on?

First check the power socket and circuit breaker. If the light does not work, check that the lamp is properly inserted in its housing. If the problem persists, contact authorized after-sales service.

USER MANUAL ELITE 14 PRF0098874A ELICA

EN Instruction on mounting and use

Isometric line drawing of a mechanical device with a central circular component and cable, labeled '1' (no text or symbols on the diagram itself)

Simple line drawing of an open book with grid pages (no text or symbols)

* 1-6/7-9-10-11- 12-13-14-15-16- 17-18-19-20-21

Simple line drawing of an open book with blank pages (no text or symbols)

* 1-3-4-5-6/7-8- 10-16-17-18-19- 20-21

2

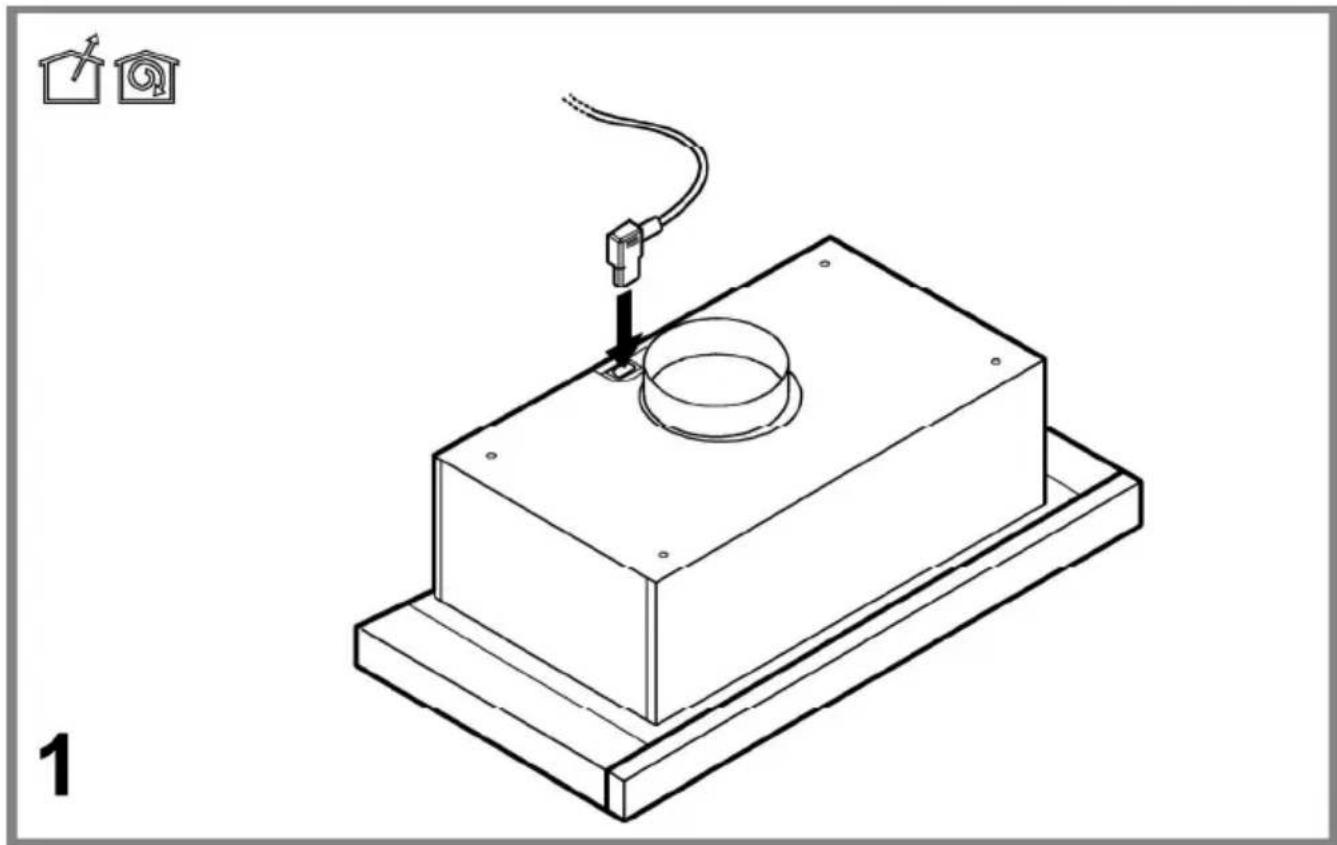

Technical line drawing of a mechanical assembly with no visible text or symbols

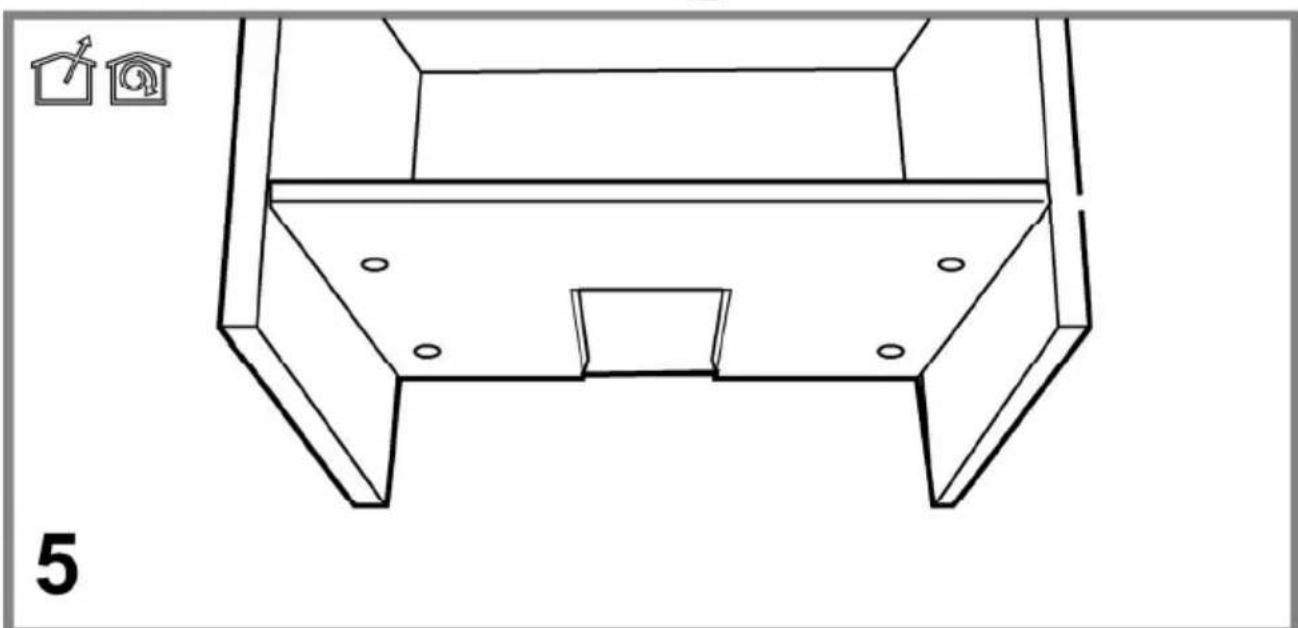

Line drawing of a 3D mechanical component with mounting holes and a base plate (no text or symbols)

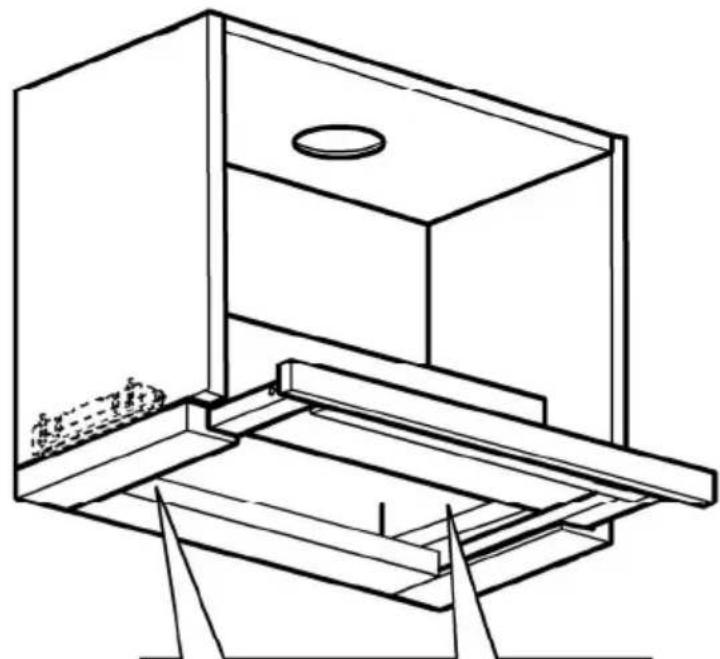

Technical line drawing of a mechanical assembly with mounting brackets and a central hub (no text or symbols)

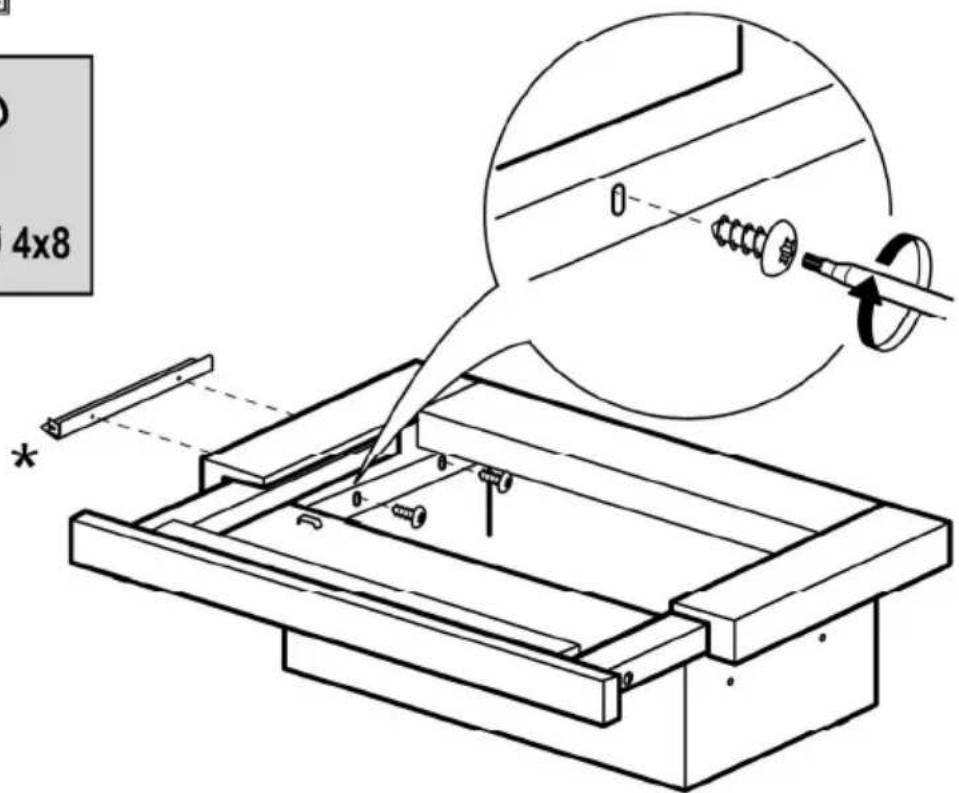

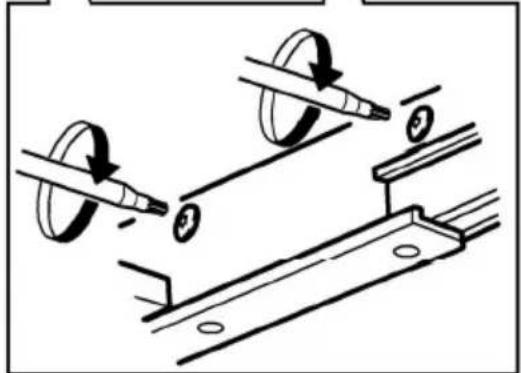

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

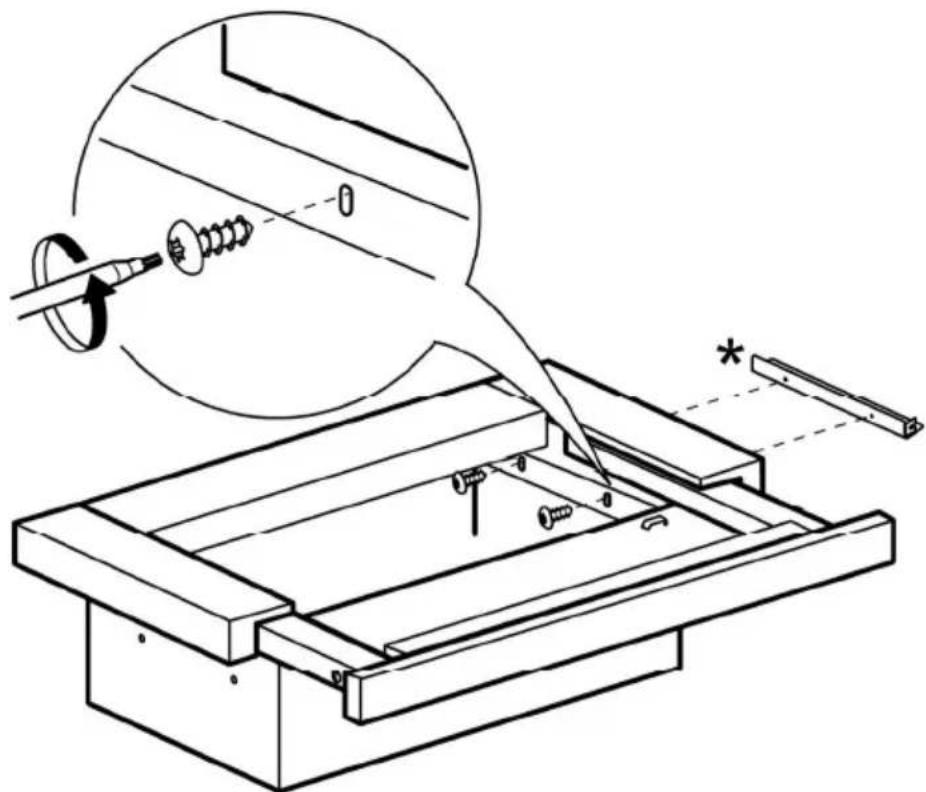

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

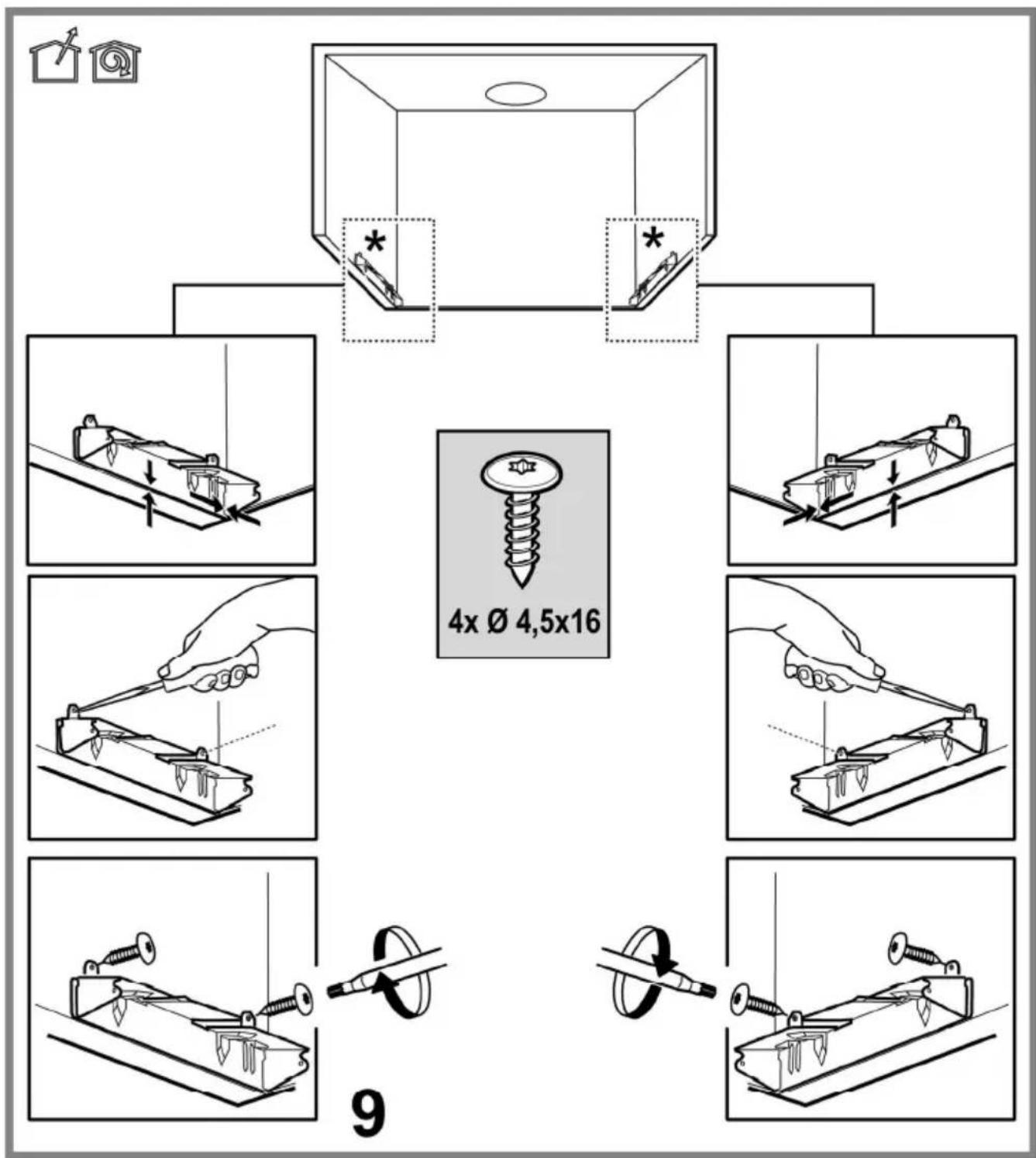

Three technical diagrams showing mechanical assembly or mounting process with arrows indicating direction (no text or symbols)

12

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

13

Technical line drawing of a mechanical device with internal components and motion indicators (no text or symbols)

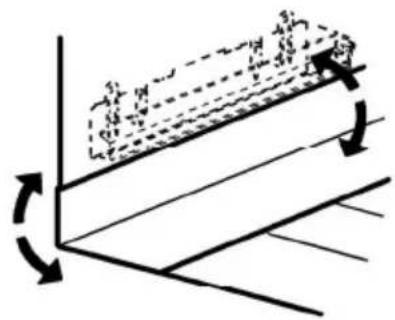

Diagram showing a tilted rectangular structure with arrows indicating rotational motion (no text or symbols)

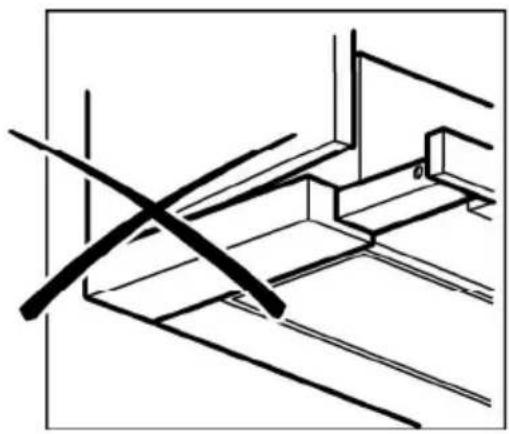

Line drawing of a simple indoor space setup with a cabinet, platform, and window (no text or symbols)

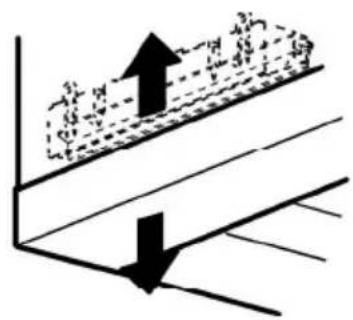

Diagram showing two opposing arrows pointing upward and downward on a stepped surface (no text or symbols)

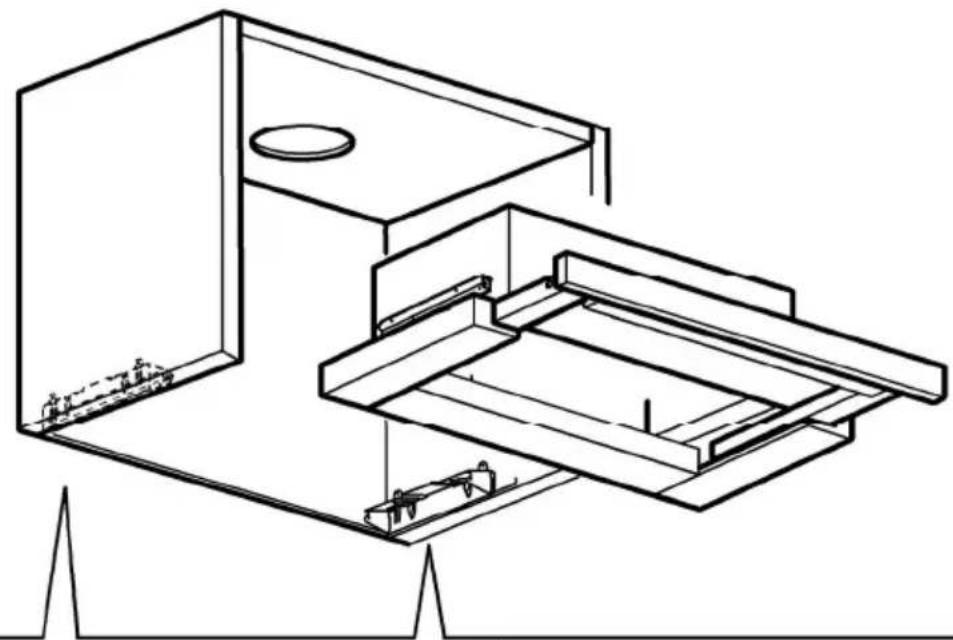

Line drawing of a mechanical setup with a cabinet, frame, and support structure (no text or symbols)

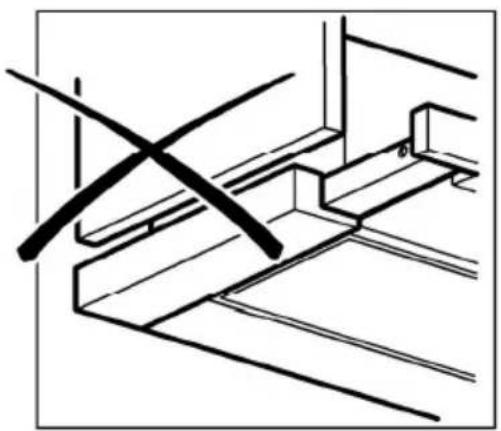

Technical illustration of mechanical assembly with rotating components and mounting brackets (no text or symbols)

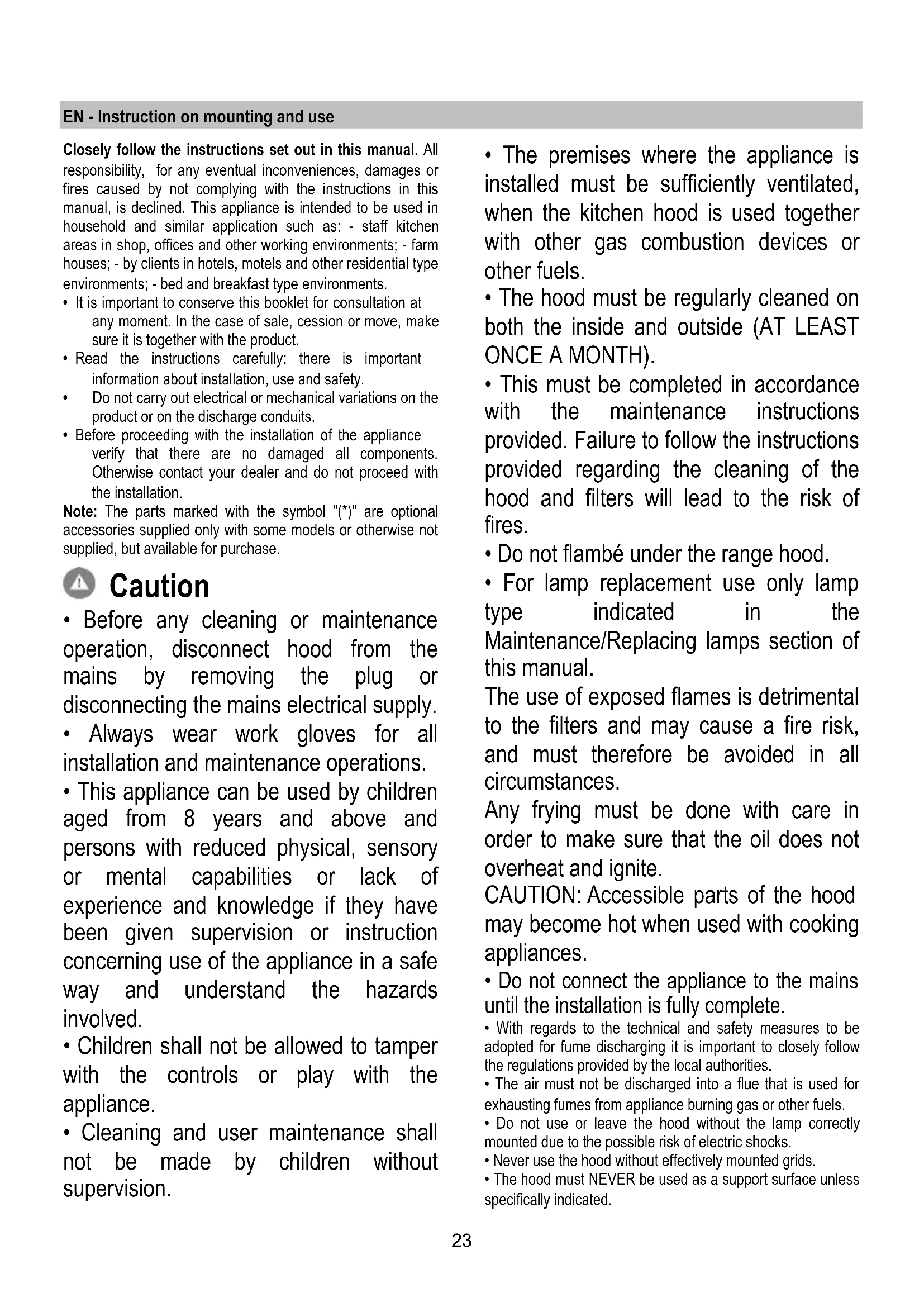

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

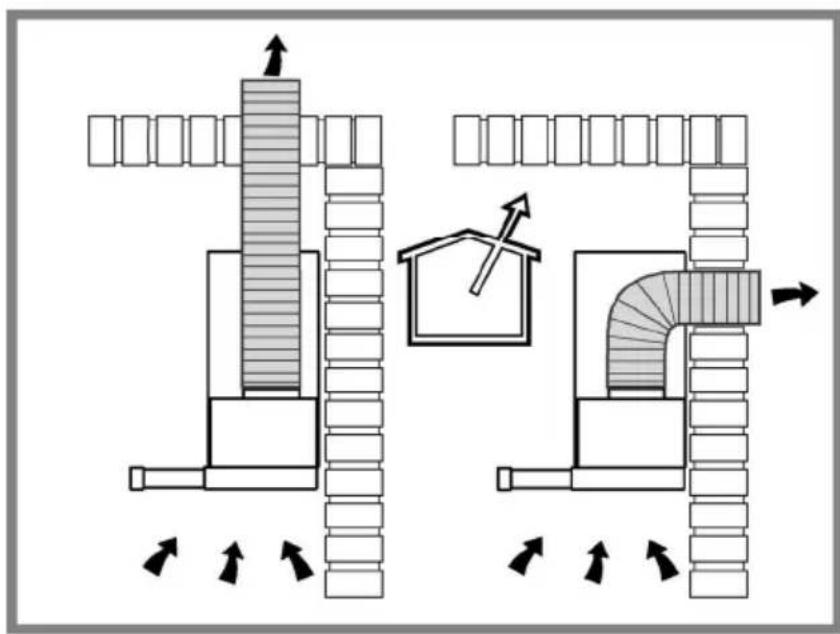

The hood is designed to be used either for exhausting or filter version.

Extraction version

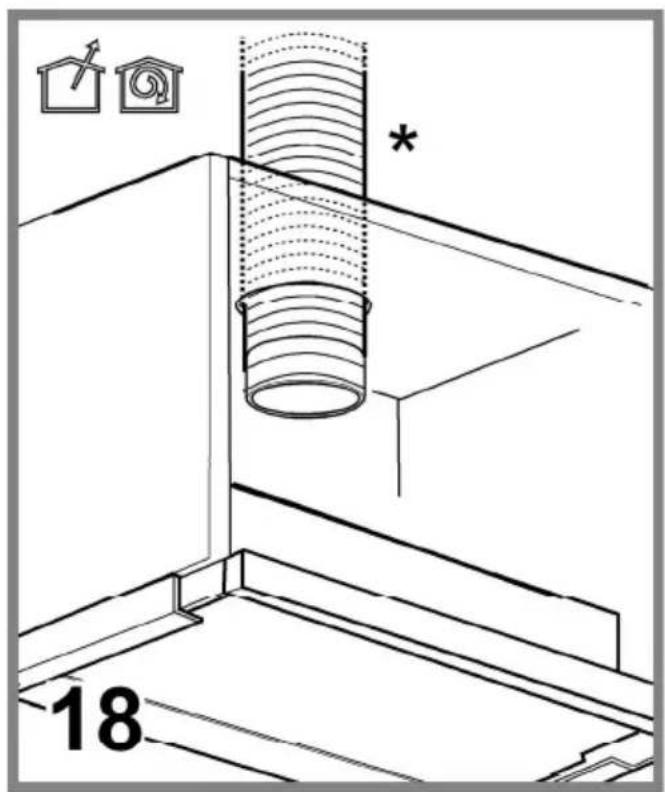

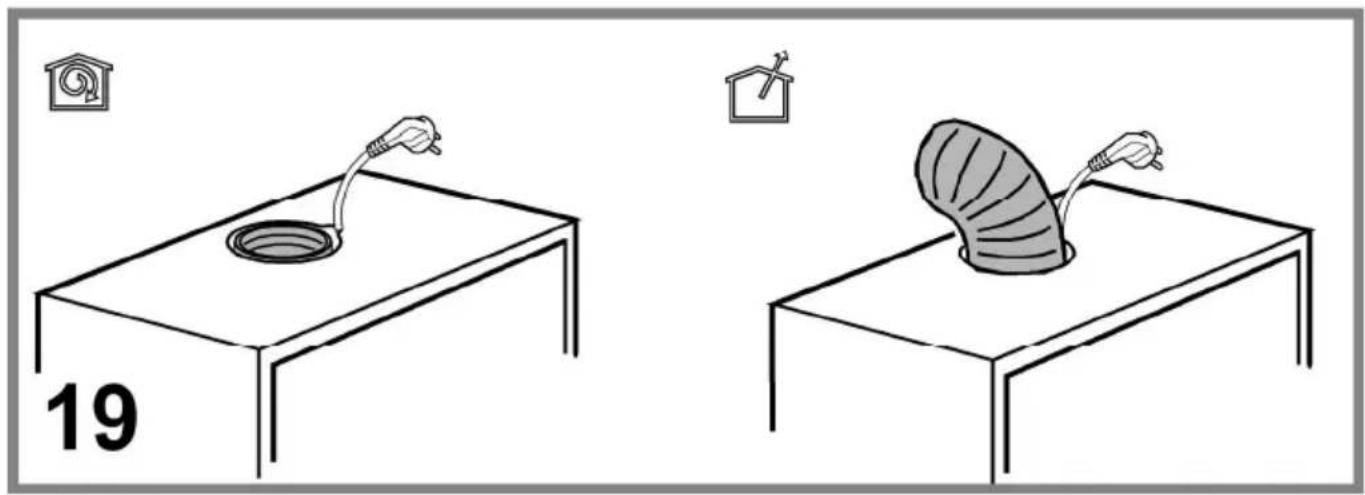

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

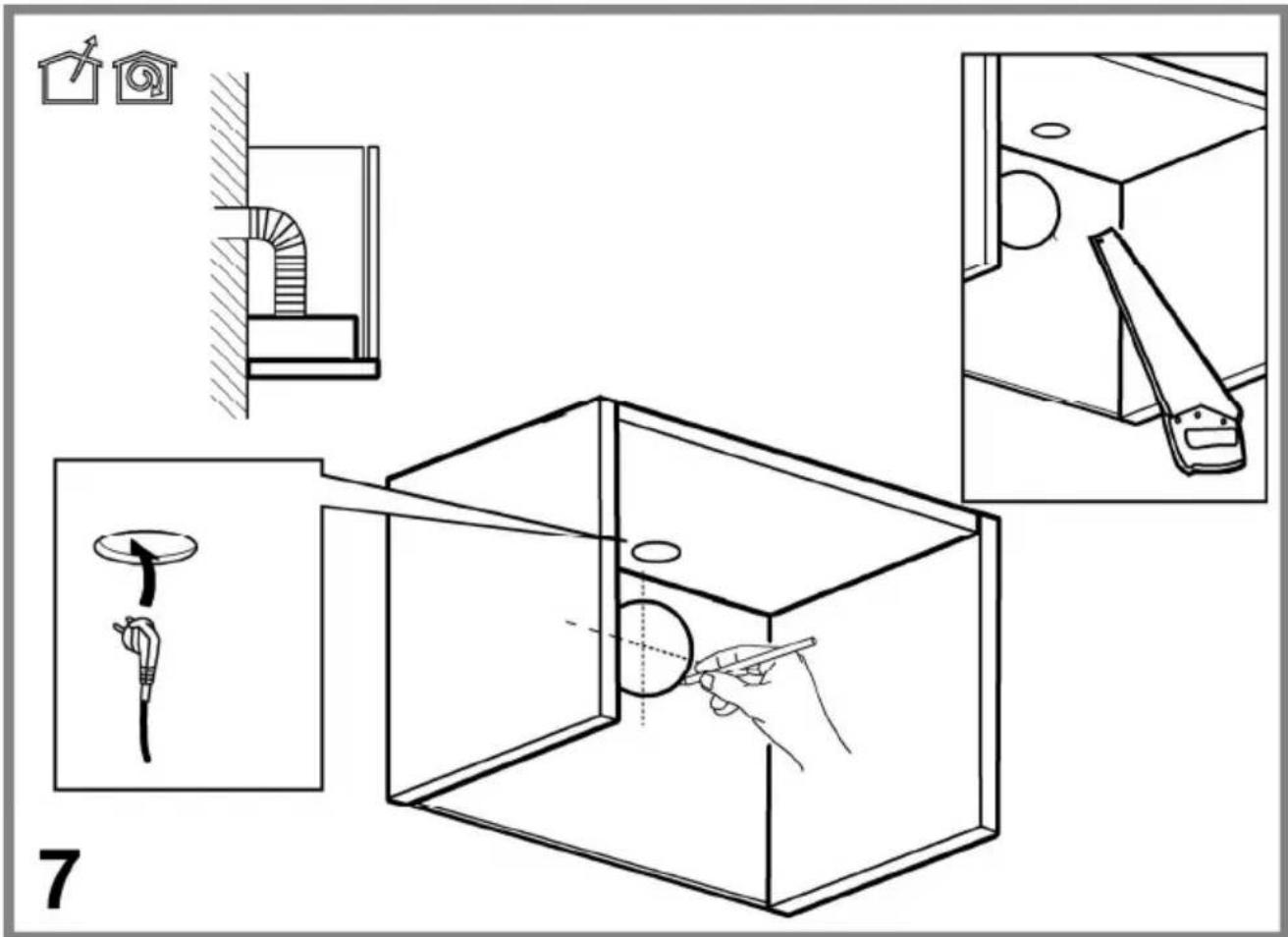

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

Attention! If the hood is supplied with carbon filter, then it must be removed.

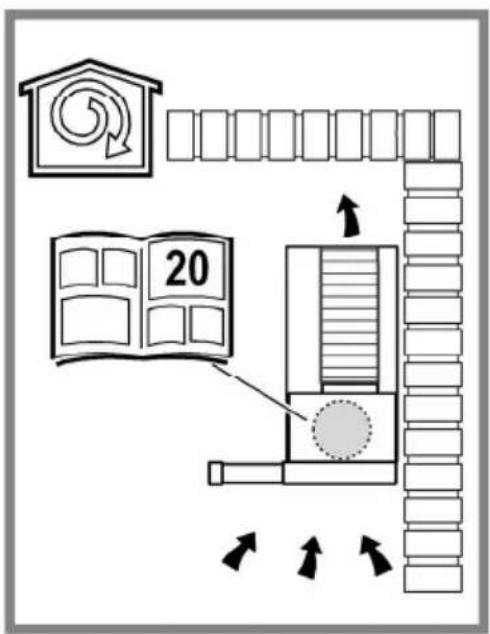

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Attention! If the hood is not supplied with carbon filter, then it must be ordered and mounted.

Installation

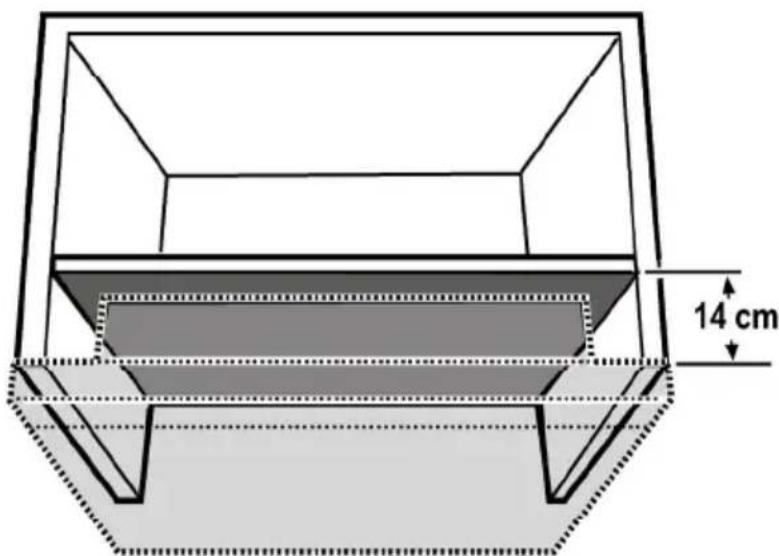

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

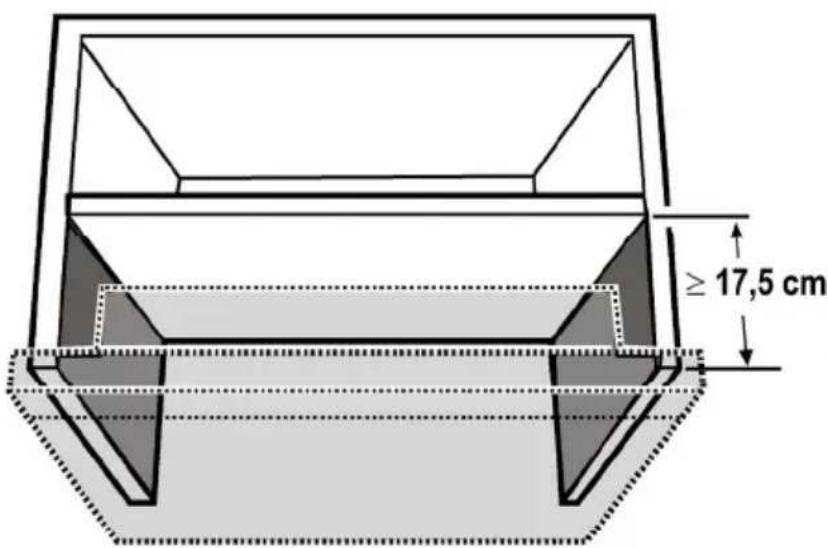

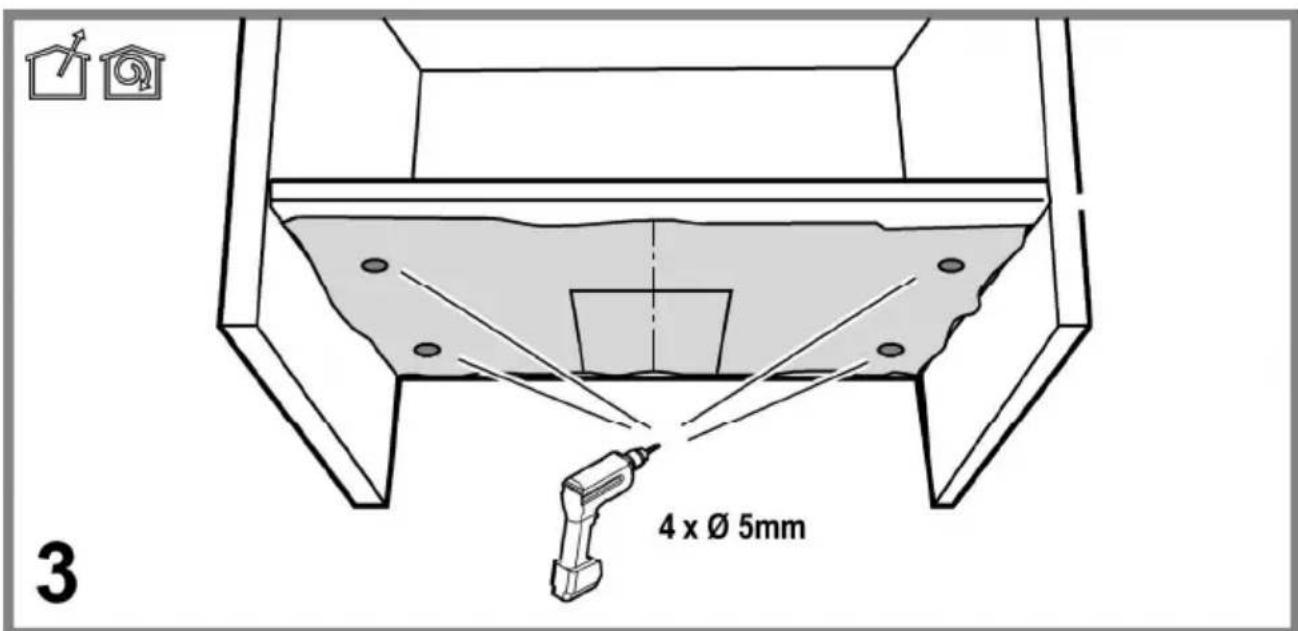

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

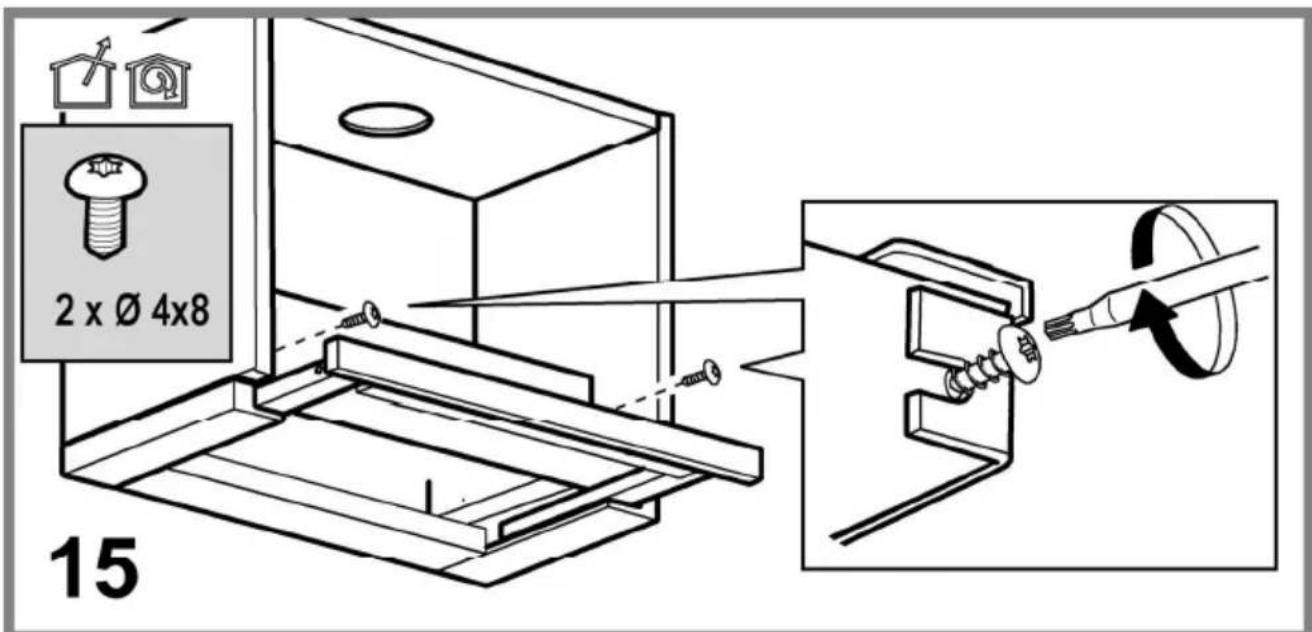

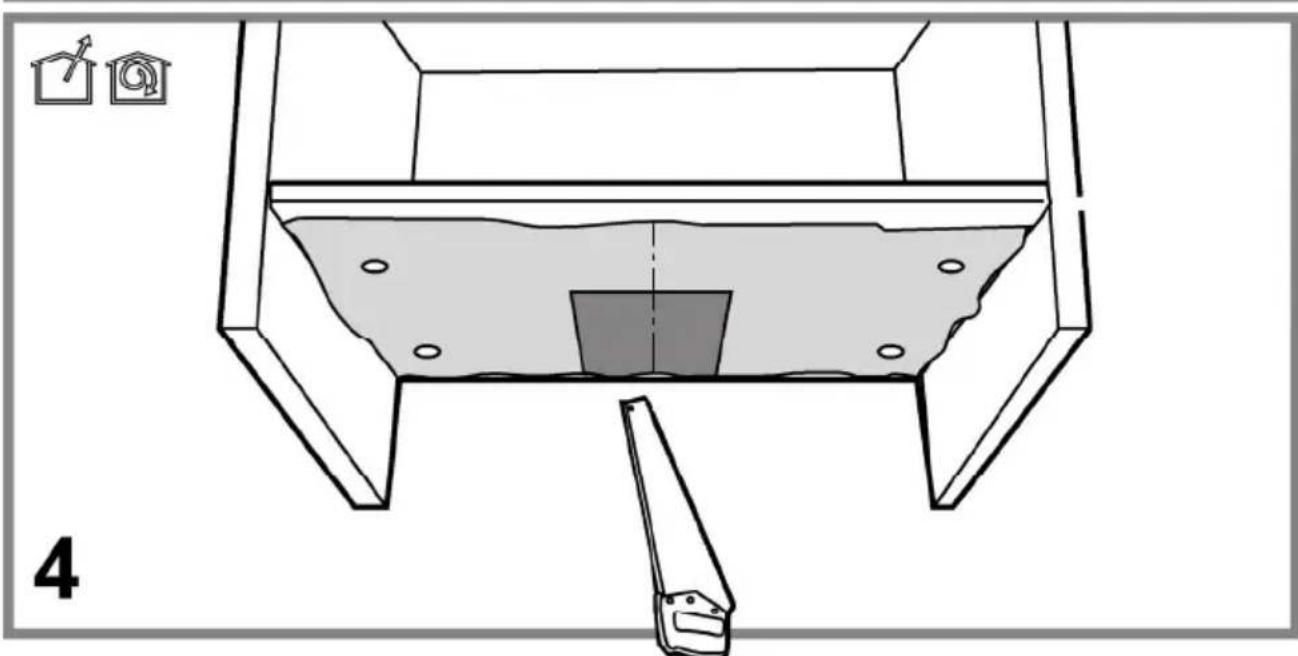

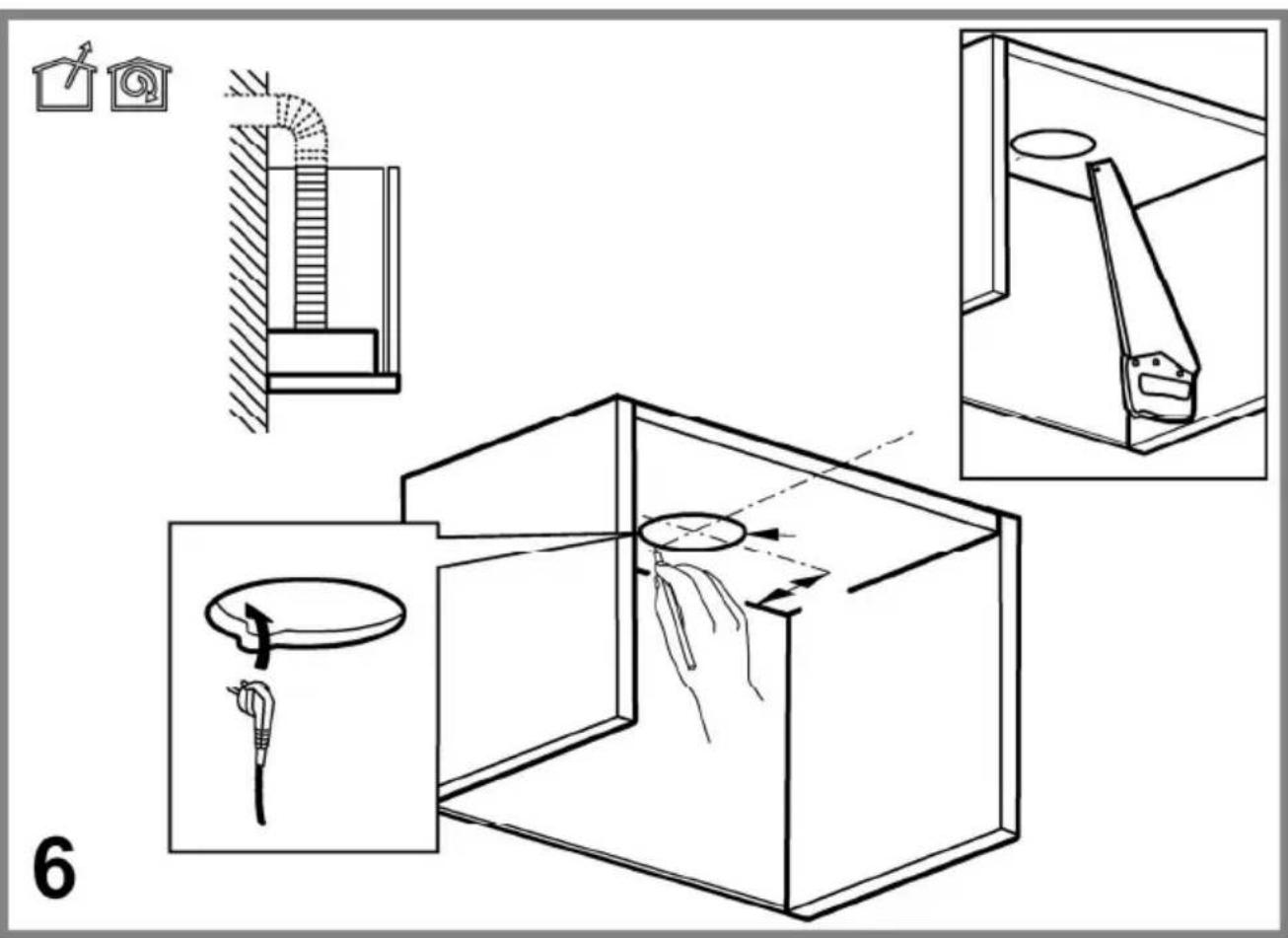

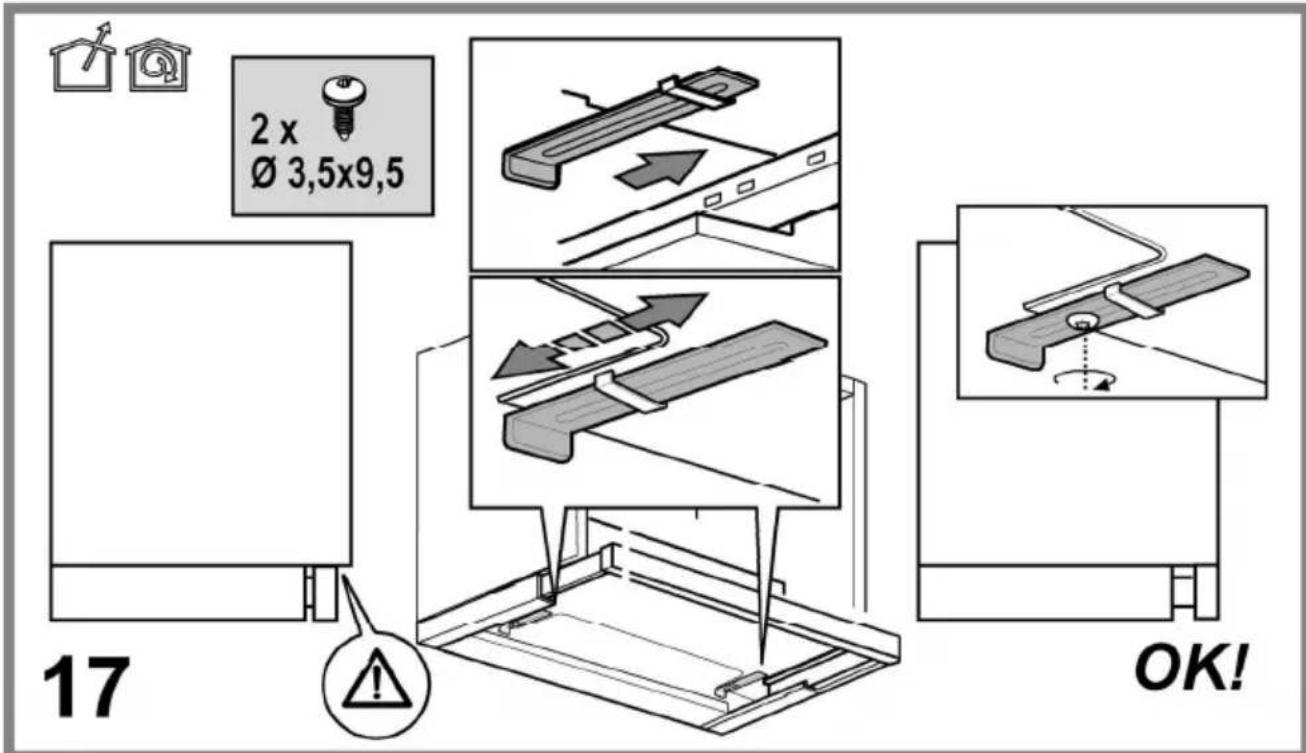

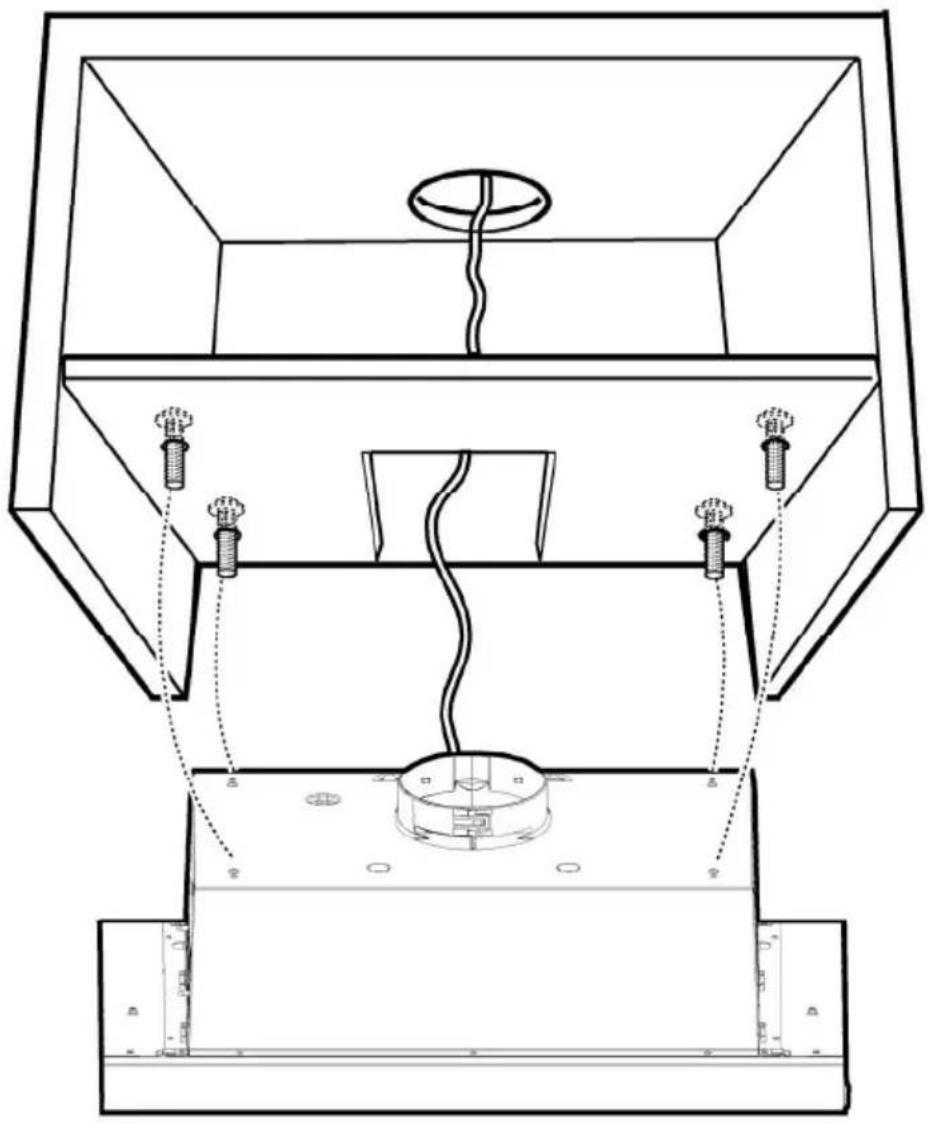

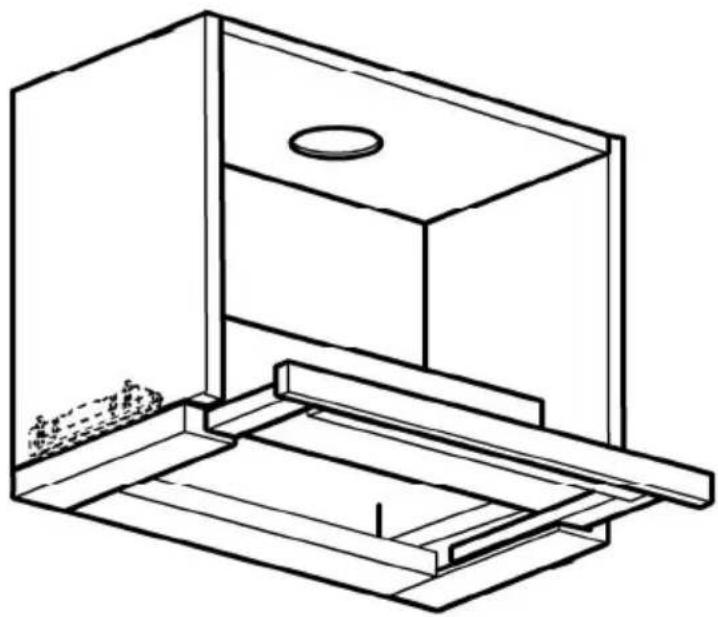

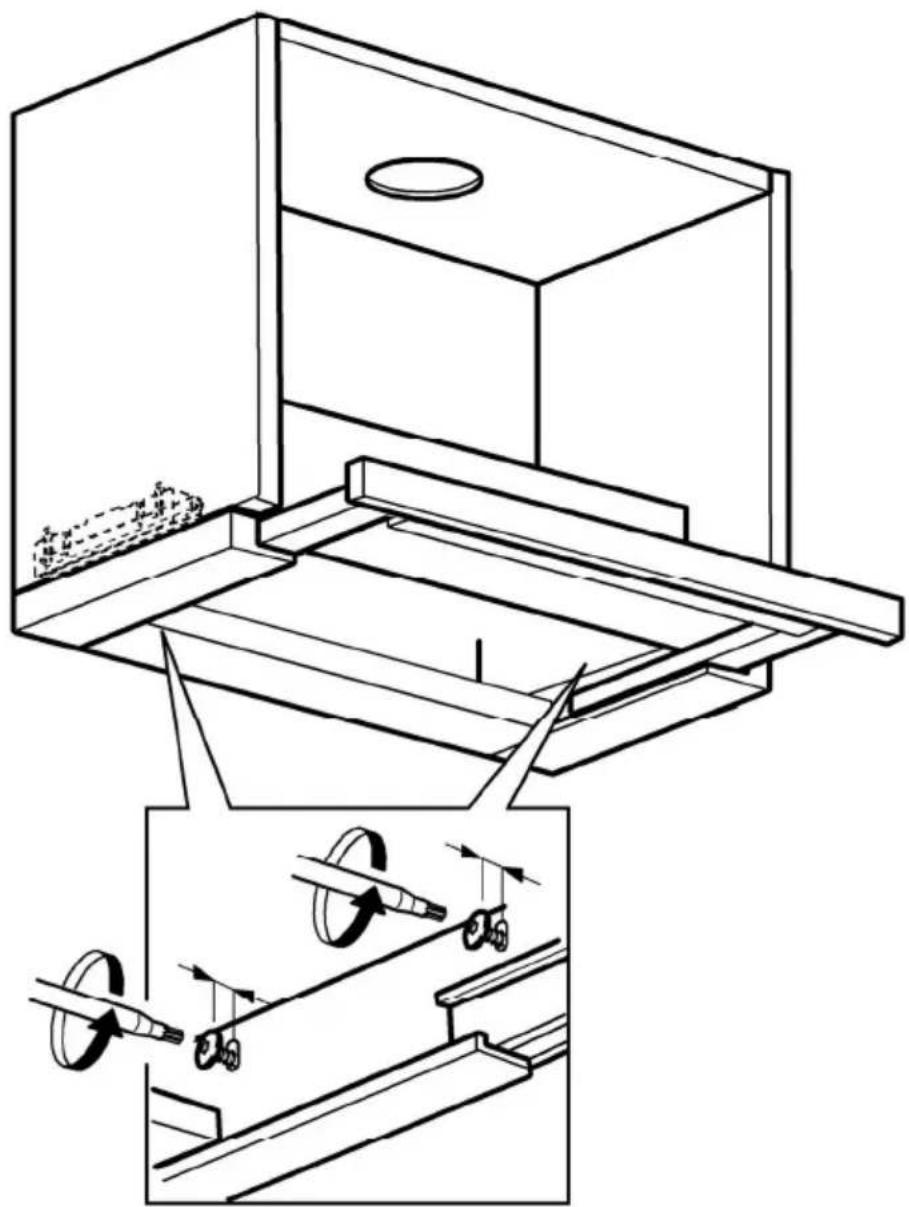

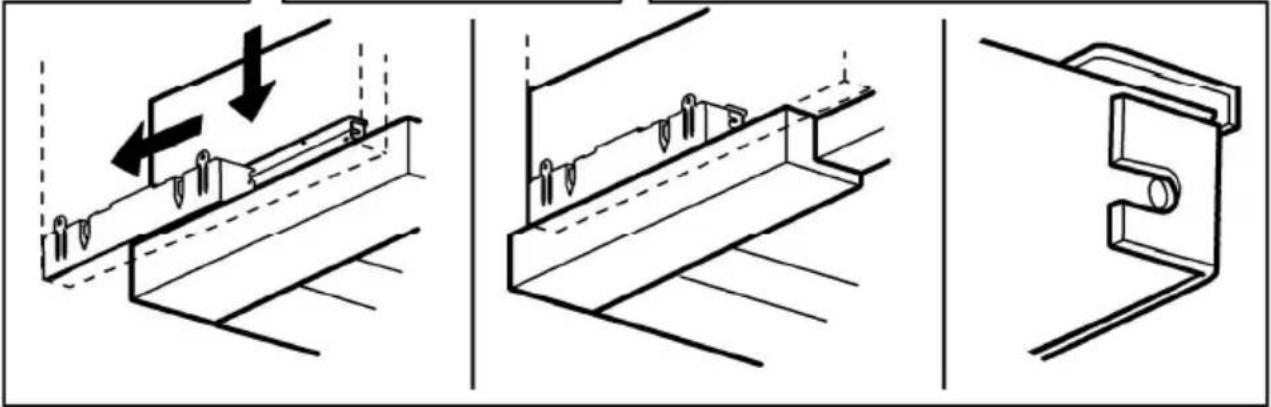

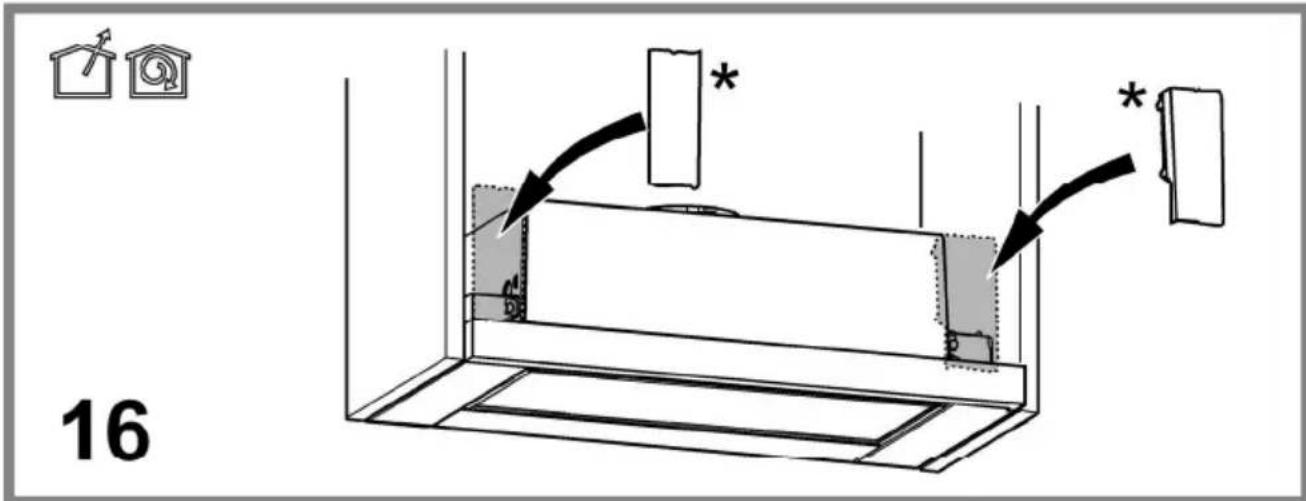

This hood is designed for fitting in a cabinet or on some other support.

Operation

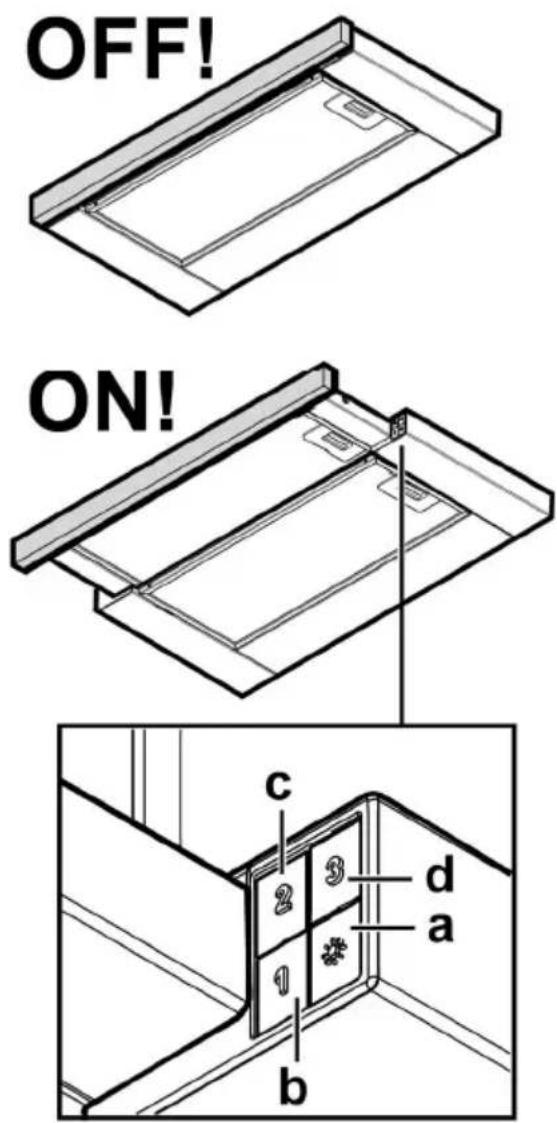

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

a. ON/OFF light switch
b. Speed 1/OFF switch
c. 2-speed selection
d. 3-speed selection

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Fig. 10-21

Traps cooking grease particles.

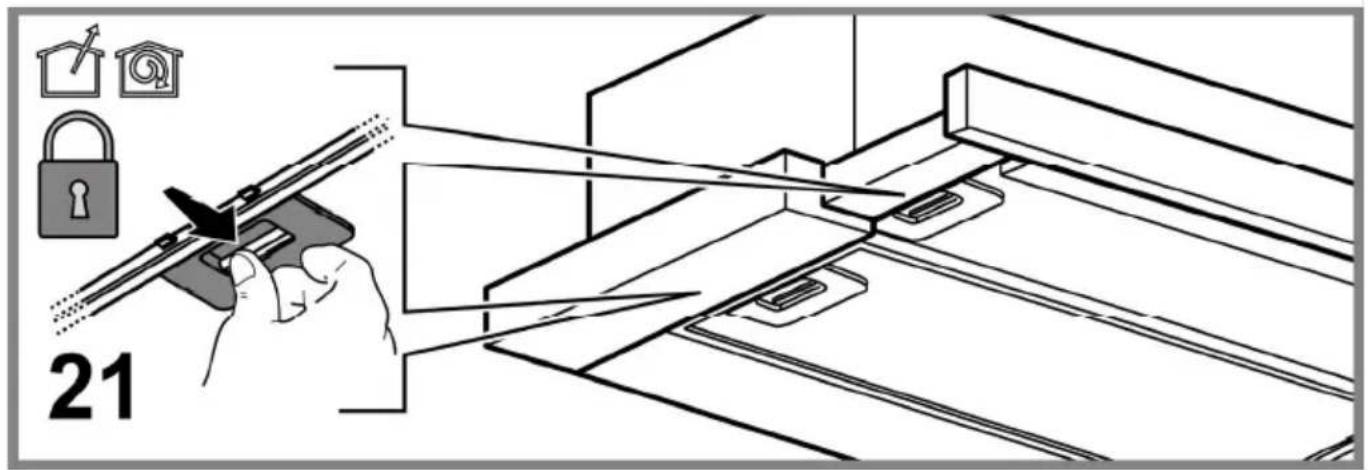

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

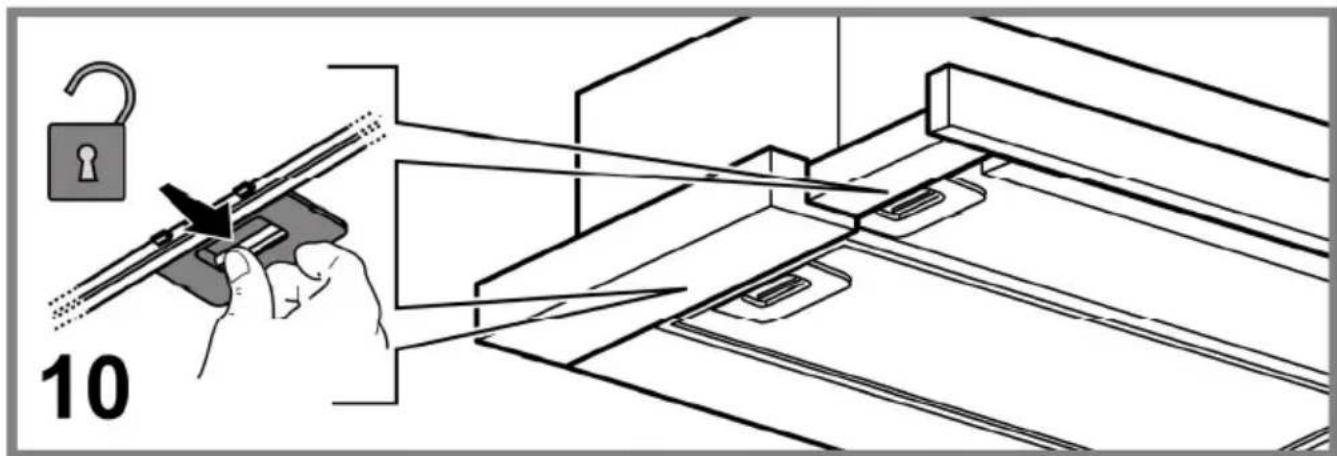

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

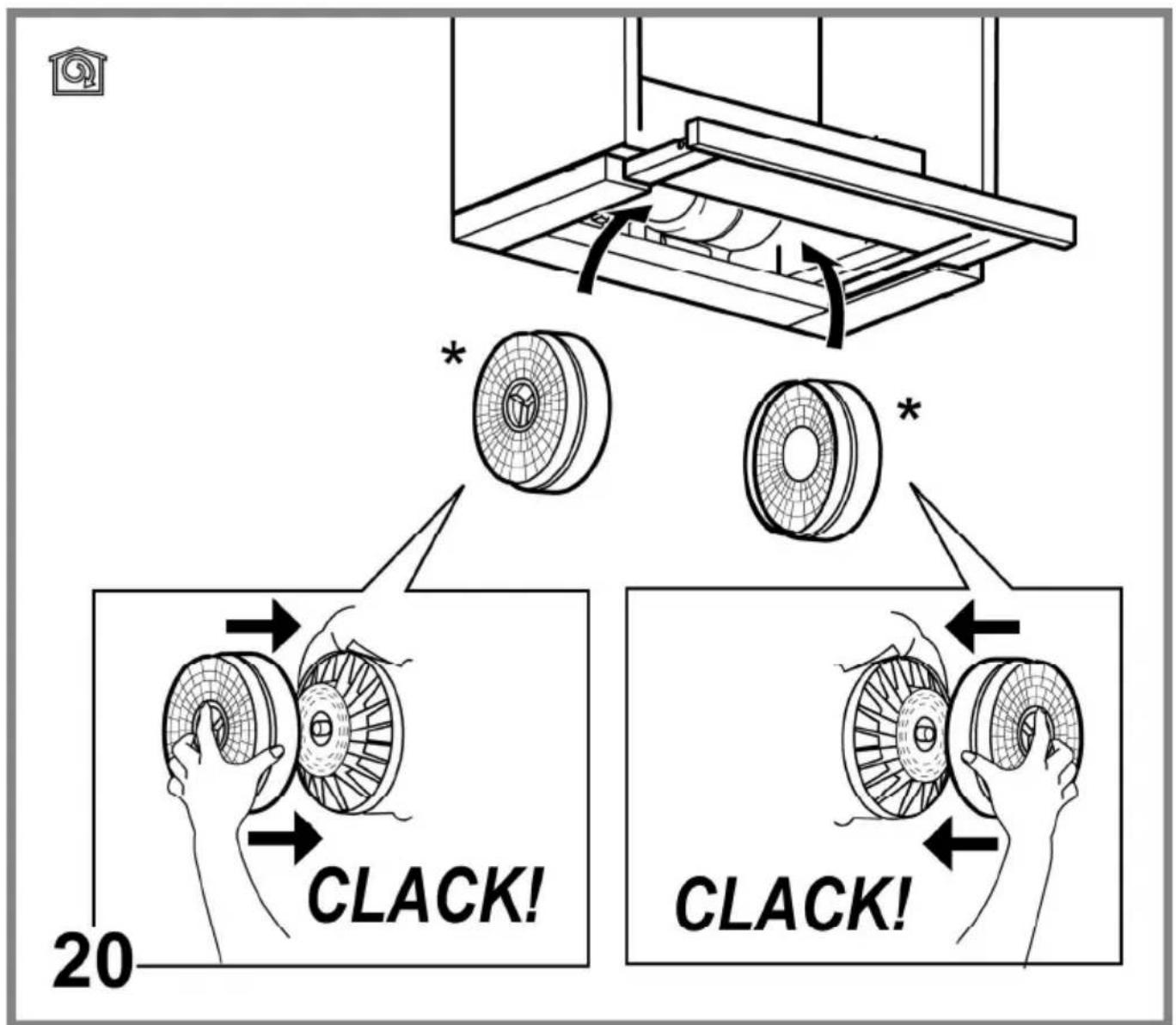

Fig. 20

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Remove the grease filters.

Apply one charcoal filter each side and hook in onto the hood. Refit the grease filter.

Replacing lamps

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Extract the drawer completely.

Remove the suction gril to access the lamp area.

Remove the damaged light and replace it with a new one (see the table below):

Lamp	Power (W)		Socket
	3		E14
Voltage (V)		Dimension (mm)
230		55 (Light Center Length)
ILCOS D Code(according IEC 61231)
DRGSB/C/UB-3/27/1B-230-E14-55

Put the grill back.

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
