CG217 - Coffee machine Saivod - Free user manual and instructions

Product type	Drip coffee maker
Brand	Saivod
Model	CG217
Water tank capacity	1.2 L (about 10 cups)
Filter type	Removable permanent filter
Main functions	Automatic shut-off after 40 min, anti-drip system, warming plate
Power supply	220-240 V, 10 A (grounded plug)
Weight (approx.)	1.5 kg
Dimensions (approx.)	25 x 20 x 30 cm
Materials	Plastic, glass (carafe)
Care and cleaning	Clean with a damp cloth; carafe and permanent filter are dishwasher safe (gentle cycle)
Descaling	Use a suitable descaling product
Safety	Automatic shut-off, insulation of hot surfaces, do not immerse
Included accessories	Measuring spoon, permanent filter
Warranty	2 years (in accordance with law 1/2007)
Country of manufacture	China
Importer / After-sales service	El Corte Inglés, S.A., Madrid, Spain (Tel. [phone])

Frequently Asked Questions - CG217 Saivod

What to do before first use?

Rinse the machine by running a cycle with water only, without coffee. Pour 1.2 L of water, place the empty filter, and start. Discard the resulting water.

Can I use the appliance without water?

No, never operate the appliance without water, as this could damage it.

How to clean the permanent filter?

Empty the filter and rinse under running water. It can also be placed in the dishwasher on a gentle cycle.

What if the coffee overflows?

Check that the water level does not exceed the MAX mark. Do not remove the carafe from the plate for more than 30 seconds during brewing.

Does the appliance turn off automatically?

Yes, the coffee maker automatically shuts off after 40 minutes of inactivity.

Can I use milk or other liquids?

No, use only water in the reservoir. Milk can be heated separately.

How to descale the appliance?

Use a descaling product suitable for coffee machines, following the product instructions.

Can children use the appliance?

Yes, from age 8 under adult supervision, after receiving safety instructions.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified technician.

Where to find spare parts (carafe, filter, etc.)?

Contact Saivod after-sales service or the retailer (El Corte Inglés) to order original parts.

USER MANUAL CG217 Saivod

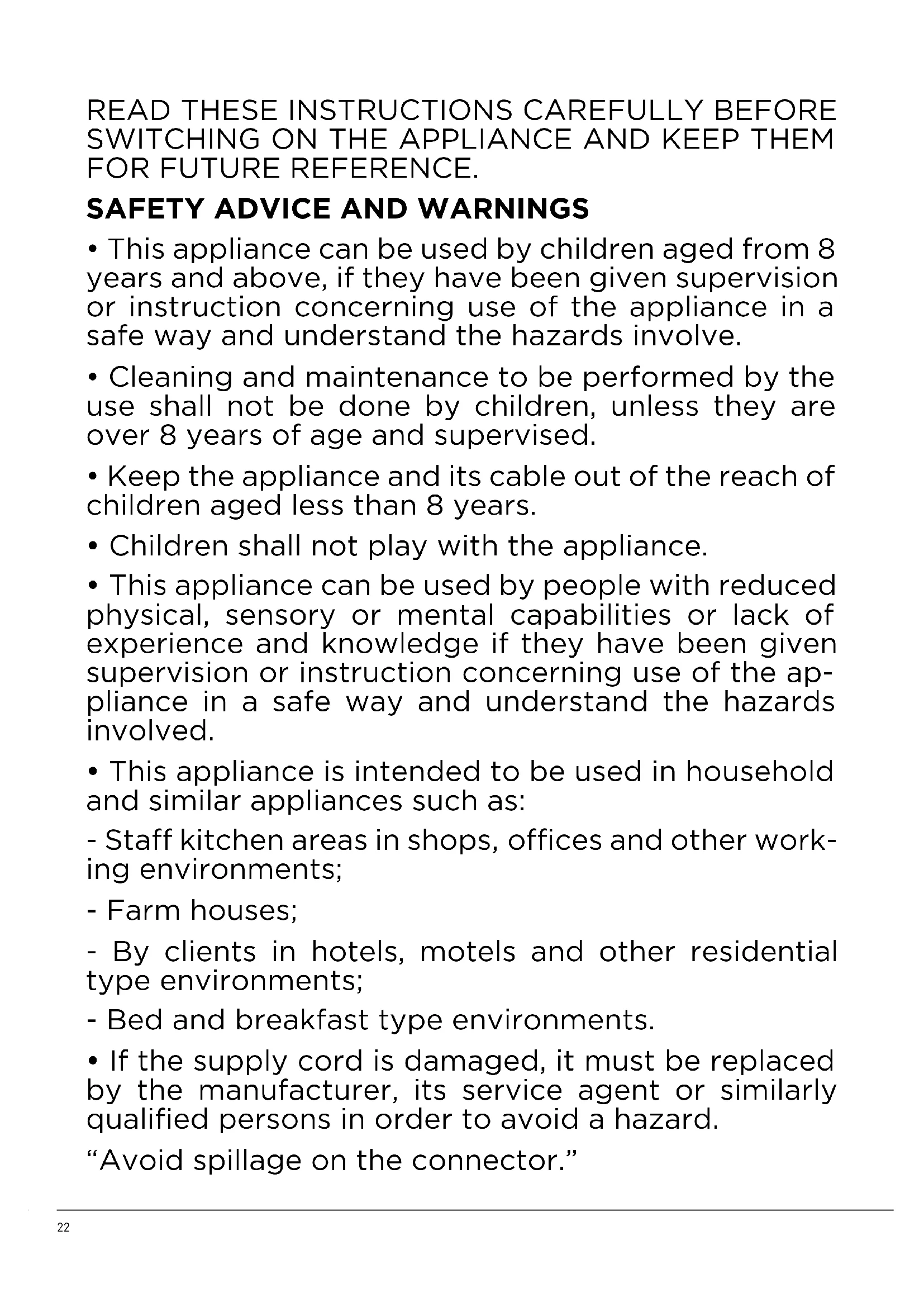

READ THESE INSTRUCTIONS CAREFULLY BEFORE SWITCHING ON THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.

SAFETY ADVICE AND WARNINGS

• This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involve.

• Cleaning and maintenance to be performed by the use shall not be done by children, unless they are over 8 years of age and supervised.

• Keep the appliance and its cable out of the reach of children aged less than 8 years.

• Children shall not play with the appliance.

• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is intended to be used in household and similar appliances such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses;

• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

"Avoid spillage on the connector."

"How to clean the surface in contact with food:

• Ensure that the appliance is unplugged before cleaning.
• Let the unit completely cool down.
• Do not use abrasive detergents, any organic solvents or aggressive chemicals."

"Potential injury from misuse."

"The heating element surface is subject to residual heat after use."

"The appliance must not be immersed for cleaning."

"CAUTION: Never fill the pot coffee-maker above the maximum level since hot foaming coffee or other liquids (e.g. milk) might overflow during heating."

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Choose the adequate sentence depending on appliance
• Connect the appliance to a base with an earth socket, withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.

• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

• Do not touch the plug with wet hands.

• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• The appliance must be used and placed on a flat, stable surface.
• The appliance is not suitable for outdoor use.
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance without its filter(s) correctly in place.
• Do not switch the appliance on without water.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Respect the MAX and MIN levels. (E).
• Disconnect the appliance from the mains when not

in use and before undertaking any cleaning task.

• Unplug the appliance from the mains before refilling the water tank.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store the appliance if it is still hot.
• Only use water with the appliance.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• CAUTION: Do not use the appliance if the glass is cracked or broken.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• To clean the permanent filter, empty it and rinse it with running water
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Jug.
• Then dry all parts before its assembly and storage.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:

• For the appliance to work correctly it should be kept free of limescale or magnesium incrustations

caused by the use of hard water.

• A specific anti-lime scale product should be used on this kind of product.

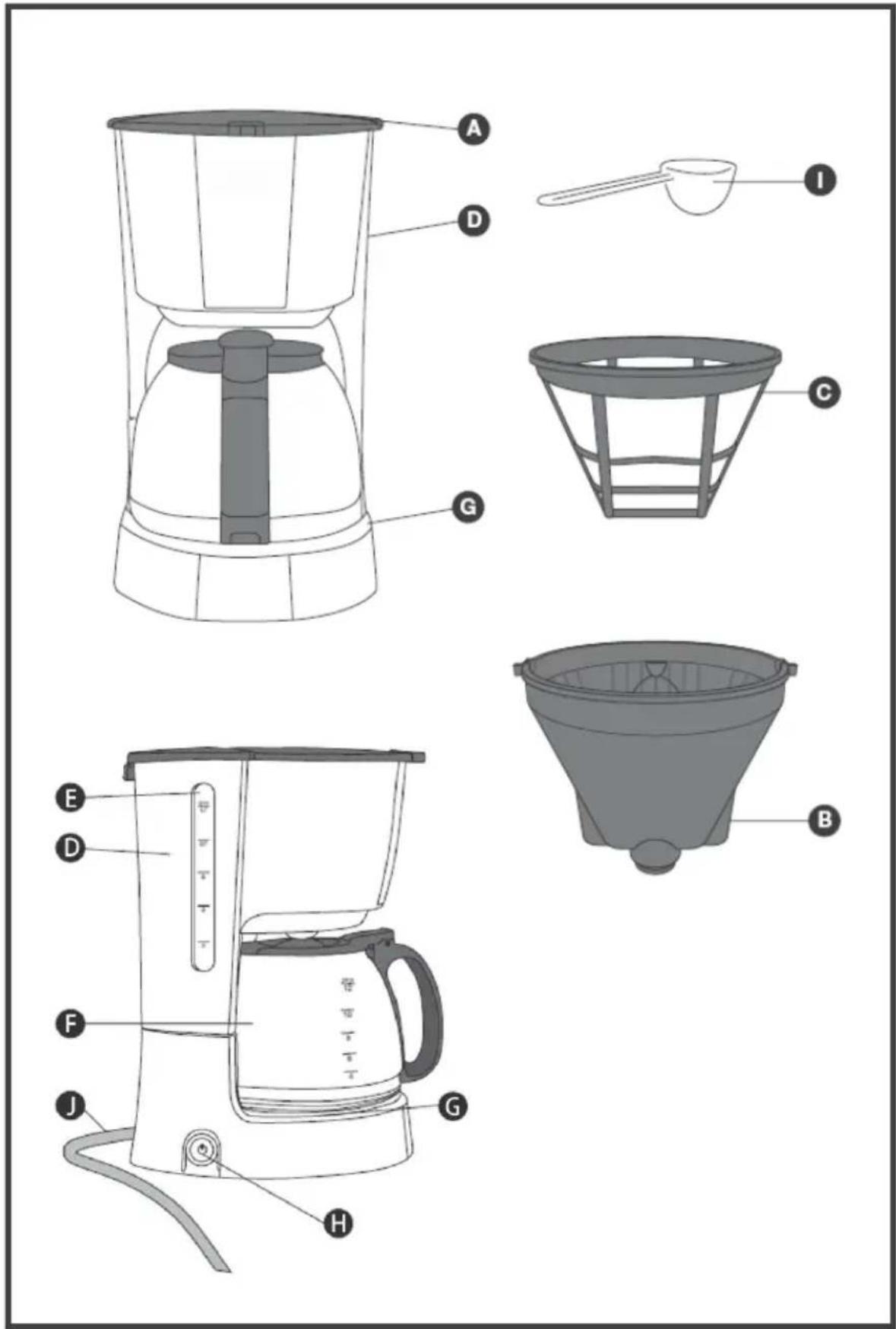

DESCRIPTION

A Lid

B Filterholder Funnel

C Permanent Filter

D Water Tank

E Water Level

F Glass Jug

G Keep Warm Plate

H Button “(ON/OFF)

I Spoon

J Power Cord

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using the product for the first time, we recommend running it just with water.

FILLING WITH WATER:

• You must fill the water compartment before turning on the appliance.
• Open the cover. (A)
• Fill the deposit (D) taking care to observe the MAX and MIN level. (E) with as many cups of water as cups of coffee you would like to make
• Close the lid (A)

FILLING WITH COFFEE:

• Open the lid (A)
• Remove the permanent filter (C) from the Filterholder (B)
• Fill the removable filter (C) with ground coffee (use 6-7 grams of ground coffee for each cup to be made).
• Check that the removable filter is correctly placed in the filter holder.
• You can use the measuring spoon (I) to add coffee.

USE:

BEFORE THE FIRST USE

• To ensure excellent coffee from the first cup, we recommend rinsing with warm water as follows:
• Pour 1,2L of water into the tank (D).
• Place the Permanent Filter (C) in the funnel (B), empty, without coffee and close the lid (A) of the coffee machine.
• Place the jug (F) on the hotplate (G).
• Connect to the mains.
• Press Button “ ”. The red indicator is illuminated.
• The water will start to come out in a few seconds.

• When the water stops flowing, empty the jug, clean the permanent filter (C) and the funnel (B).

• The machine is ready to make coffee.

• If you would like to stop the machine, press Button “ ” and the machine will stop.

TO MAKE COFFEE

• Fill the tank (D) with cold water according to the Water Filling Section.
• Add ground coffee according to the Coffee Filling section.
• Place the jar on the hotplate.
• Connect to the mains.
• Press Button “ ”, the red indicator is illuminated.
• The coffee will start to come out in a few seconds.
• The jug (F) can be removed while the coffee is being made. The anti-drip system prevents the coffee from dripping when the jug is not in position. However, time can not exceed 30 seconds, otherwise the filter may overflow from the edge of funnel.
• When you finish making coffee, you can stop the machine.
• If you would like to stop the machine, press Button “ ” and the machine will stop.
• If not, the coffeemaker will turn off automatically after 40 minutes.
• WARNING: Do not leave the coffee machine unattended while making coffee.

ONCE THE APPLIANCE IS FINISHED

• Stop the appliance.
• You can press Button " " to stop, or you can just leave it and it will turn off automatically after 40 minutes.
• Unplug the appliance from the main.
• Clean the device.

When the time comes to eliminate this product, please consider the environmental impact and take it to recognised recycling facility instead of disposing it with general household waste. Take the equipment to a waste disposal site. Plastic and metal parts that are used in the construction of this appliance can be separated into pure grade

which allow recycling. Ask to your service centre for details. Everyone of us can participate on the environmental protection. Royal Decree-Law 1/2007, of 16 November, grants goods of a durable nature a legal guarantee of 2 years.

Damage or faults caused by the following are excluded from the guarantee:

• Incorrect installation (voltage, gas or water pressure, electrical or water connections), reinstallations or housings made by the consumer without applying the correct instructions.
• Accidental causes such as falls, knocks, contact with liquids, insertion of foreign bodies, or any other cause of force majeure.
• Negligent, inadequate or non-domestic use, such as appliances installed in hairdressers, bars, restaurants, hotels, etc.
• Manipulation by technical services other than the official ones of the brand.
• Corrosion and/or rust caused by the normal wear and tear of the appliance or accelerated by adverse environmental conditions.
• Use of accessories or consumables which are not the original ones of the brand.

The following are also excluded from the guarantee:

• Components exposed to wear and tear due to normal use (light bulbs, seals, insulators, tubes, drains, etc.), from the sixth month, save manufacturing defects.
• Non-electromechanical components, aesthetic, plastic, glass or folding components, soap dishes, shelves, grilles, etc.
• Conservation services, cleaning, unblocking, change of direction of door, removal of foreign bodies, obstructions, recalibration or fine-tuning, etc

EN This article is guaranteed for 2 years, in the terms and conditions set out in Act 1/2007 (Spanish legislation). For any queries related to the device purchased, consult El Corte Inglés or HIPERCOR. Tel. Assistance: [+34] 901 122 122.
