VE109959.25 - Vacuum Cleaner Emerio - Free user manual and instructions

Product type	Bagged vacuum cleaner
Brand	Emerio
Model	VE109959.25
Power supply	220-240 V ~ 50/60 Hz
Power	800 W
Dust bag capacity	4 L
Compatible bag type	Swirl Y50
Motor filter	Washable, clean twice a year
Power cord length	6 m
Cord rewinder	Yes, with pedal
Full bag indicator	Yes, red
Included accessories	Combined nozzle, floor brush, turbo brush
Weight	5 kg
Dimensions (L x D x H)	40 x 30 x 25 cm
Warranty	2 years
Usage	Indoor, hard floors and carpets
Maintenance	Motor filter cleaning, bag replacement
Repairability	Repair by authorized center only
Standards	Compliant with EU 666/2013

Frequently Asked Questions - VE109959.25 Emerio

How to turn the vacuum cleaner on and off?

Press the on/off switch pedal to turn on. To turn off, press again. Unplug the power cord after use.

When should I change the dust bag?

Change the bag when the full dust receptacle indicator turns red. Open the front cover by pressing the clip, remove the old bag and insert a new compatible Swirl Y50 bag.

How to clean the motor filter?

Remove the motor protection filter (A) and rinse it under clean water twice a year or if clogged. Let it dry completely before reinserting.

What to do if suction power decreases?

First check that the bag is not full, then clean the filters. If the problem persists, inspect the hose for any blockages. You can open the hose by pressing the square part of the handle.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed only for dry cleaning. Never vacuum liquids, hot ashes, or flammable materials.

How to rewind the power cord?

Hold the plug of the cord and press the cord rewind pedal. Do not let the cord snap during rewinding.

What accessories are included?

The vacuum comes with a combined nozzle, a floor brush (with two positions: hard floors and carpets) and a turbo brush for pet hair and fabrics.

Is it safe to let a child use the vacuum?

The appliance can be used by children aged 8 years and above under supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

What to do if the vacuum breaks down?

Contact an authorized repair center. Do not attempt to repair the appliance yourself. The 2-year warranty covers manufacturing defects, but not damage due to improper use.

How to recycle the vacuum at end of life?

Do not dispose of the appliance with household waste. Use collection points in your area or contact your retailer for recycling in compliance with European directive 2012/19/EU.

USER MANUAL VE109959.25 Emerio

Black and silver photo of a vacuum cleaner with attached pipe, next to a black base (no visible text or symbols)

Vacuum Cleaner (EN)

Staubsauger (DE)

Aspirateur (FR)

Dammsugare (SE)

Stofzuiger (NL)

Odkurzacz (PL)

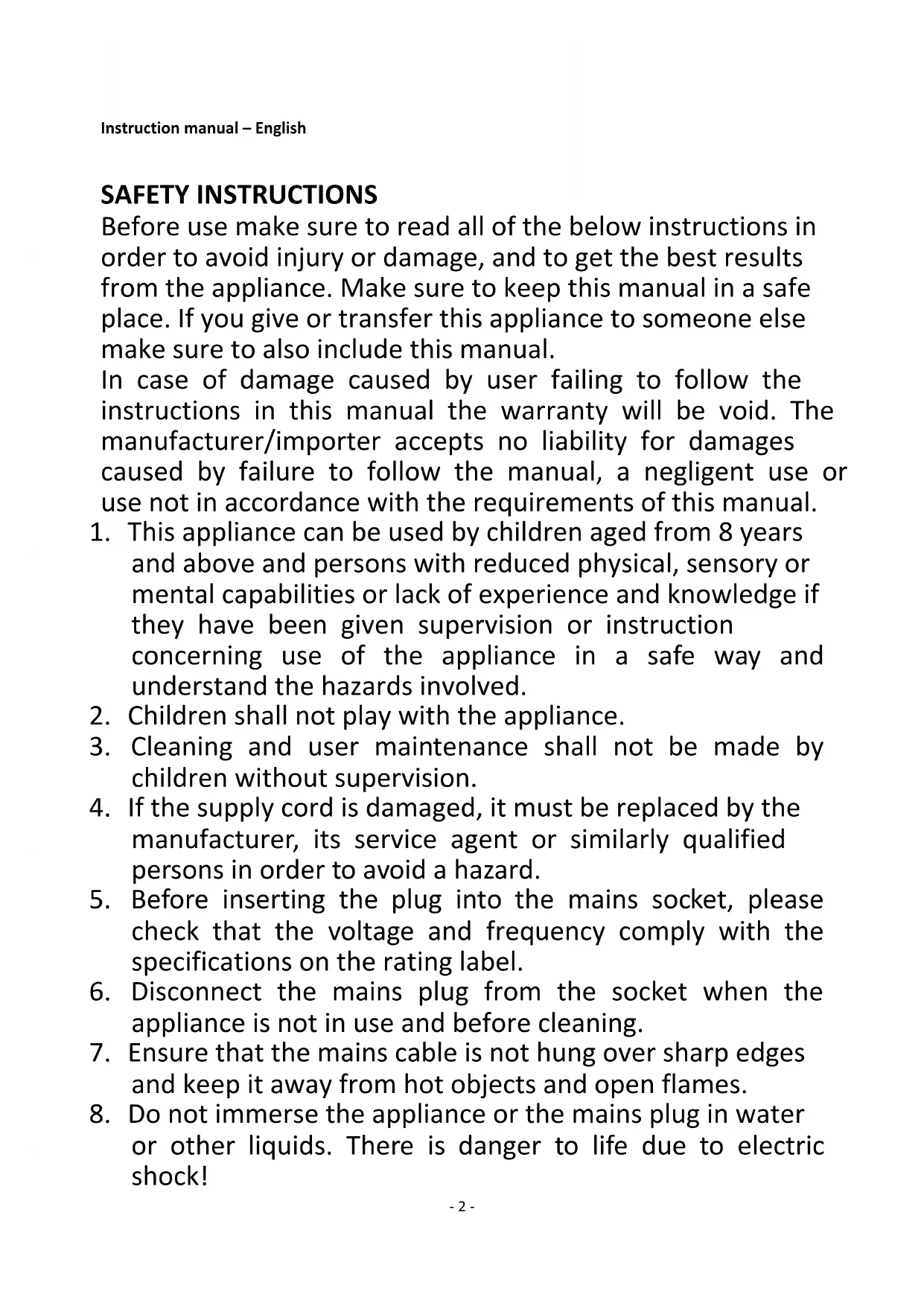

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without dust bag or filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.

26. Keep your work area well dry.

27. Do not use the cleaner to clean your pets or any animal.
28. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters and change the dust bag.
29. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

The general purpose vacuum cleaner (model VE-109959.25), has been tested according to EN 60312-1 and complies with the essential requirements of regulation (EU) 666/2013 for vacuum cleaners.

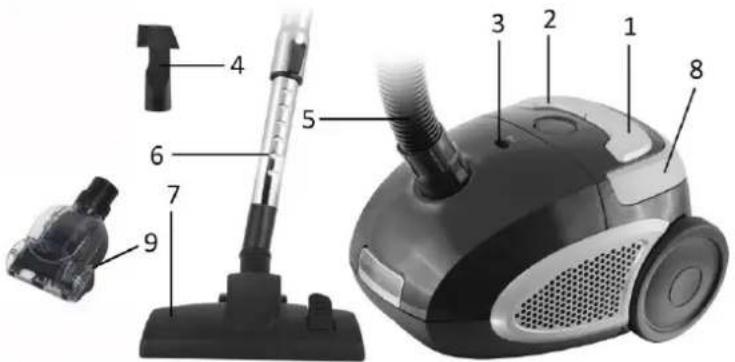

PARTS AND ACCESSORIES

1. On/off switch pedal
2. Cord rewinder pedal
3. Dust full indicator
4. Combi nozzle
5. Hose
6. Tube
7. Floor brush
8. Handle
9. Turbo nozzle

OPERATING MODE

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, and insert the hose into the hose socket.

1. Connect the tube to the curved hose end.

Connect the different nozzle tools/floor brush to the tube for different cleaning purposes.

The floor brush has two positions, one for hard and one for soft/textile surfaces – Choose the right one.

The turbo nozzle allows you to easily remove animal hairs and similar soiling as well as to clean mattresses, beds, blankets and carpets.

1. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket; press the cord pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

MAINTENANCE

When the dust full indicator turns to red, it is time to clean the dust bag or replace with a new bag. To do that, please follow the instructions:

a) Open the front cover by pressing the lock clip.
b) Remove the dust bag.
c) Then take a new one, insert it into the bag holder.
d) Close the front cover.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right position.
2. The motor protection filter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced.

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

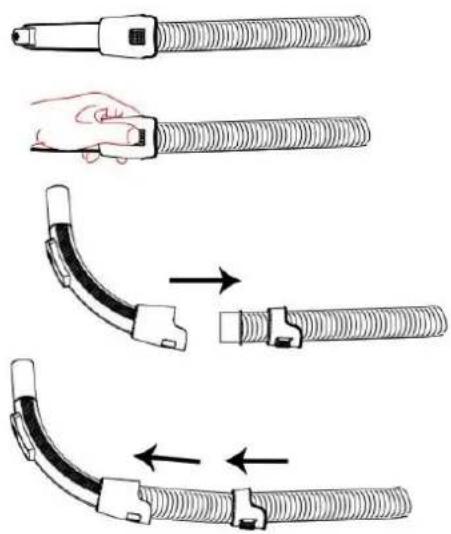

1. If the suction power of the vacuum cleaner gets low please check the hose for obstacles.

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length. WARNING: the plug must be removed from the power socket before any maintenance or replacement.

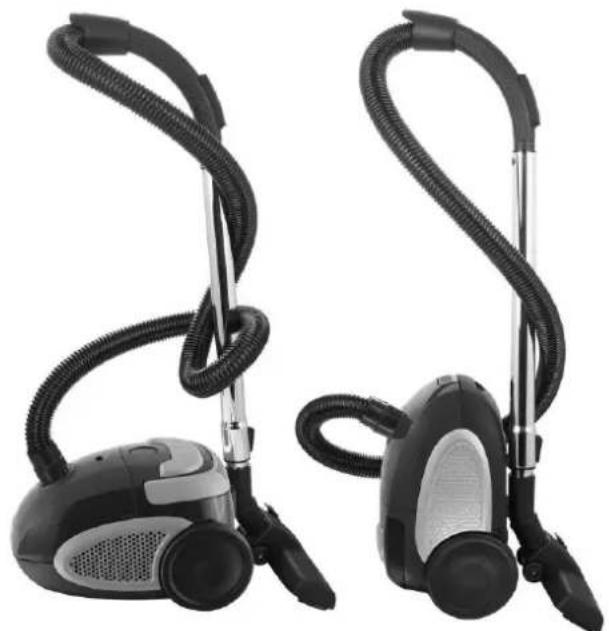

Parking:

This vacuum cleaner can be parked as below style to save you room space.

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50-60Hz

Power: 800W

Suitable dust bag: Swirl ^® dust bag Y50 ^® or visit www.buyspareparts.eu

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

FUNKTIONSWEISE

Close-up of a mechanical component with labeled section A (no readable text or symbols)

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNISCHE DATEN

MODE DE FONCTIONNEMENT

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

MARQUE DU CORDON ÉLECTRIQUE

Two black and silver vacuum cleaner units with coiled tubing, displayed against a white background (no text or symbols visible)

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50-60Hz

Puissance: 800W

ANVÄNDNING AV DAMMSUGAREN:

Close-up of a mechanical component with labeled section A (no visible text or symbols)

Two black vacuum cleaner units with coiled tubing, displayed against a white background (no text or symbols visible)

TEKNISKA DATA

Driftspänning: 220-240V \~ 50-60Hz

Effekt: 800W

BEDIENINGSWIJZE

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols visible)

Markering Op De Voedingskabel

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNISCHE GEGEVENS

INSTRUKCJA OBSŁUGI

1. Podłączanie węża:

Close-up of a vacuum cleaner's internal compartment, labeled with component A (no text or symbols on the device itself)

Two black vacuum cleaner units with coiled tubing, displayed against a white background (no text or symbols visible)

DANE TECHNICZNE
