VE112682.8 - Vacuum Cleaner Emerio - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Emerio
Model	VE112682.8
Power supply	220-240 V ~ 50 Hz
Power	600 W (estimated)
Power cord	With automatic rewind
Dust container capacity	Dust bag (standard size)
Bag full indicator	Yes, red LED
Filtration system	HEPA filter + motor protection filter
Power adjustment	Speed control
Included accessories	Flexible hose, telescopic tube, floor brush (2 positions), combo brush
Use	Hard floors, carpets, rugs, furniture
Maintenance	Regular cleaning of HEPA filter and motor filter
Warranty	2 years
Safety	Unplug before maintenance, do not vacuum liquids or hot objects
Country of origin	Germany (brand)

Frequently Asked Questions - VE112682.8 Emerio

How to turn on the Emerio VE112682.8 vacuum cleaner?

Plug in the appliance, then press the on/off foot pedal. Use the speed control button to adjust the power.

How to rewind the power cord?

Press the cord rewind pedal after unplugging the cord. Hold the plug during rewinding to prevent it from snapping.

When should the dust bag be changed?

When the bag full indicator turns red. Open the front cover, remove the used bag, insert a new one, and close.

How to clean the HEPA filter?

Detach the grill, shake the filter to remove dust, then replace it. If damaged, replace it. Regular cleaning maintains performance.

What to do if suction power decreases?

Check that the dust bag is not full, clean the filters, and inspect the hose for blockages. Open the handle to clear any clog.

Can I vacuum liquids with this vacuum cleaner?

No, never vacuum liquids, hot ashes, sharp objects, or flammable materials. This could damage the appliance.

How to adjust the floor brush?

The floor brush has two positions: one for hard surfaces and one for carpets. Switch the position according to the floor type.

Can the vacuum cleaner be used by children?

Yes, from 8 years old under supervision. Children should not play with the appliance or perform cleaning without supervision.

How to store the vacuum cleaner to save space?

The vacuum can be placed in an upright position to save space. Make sure it is unplugged and stored in a dry place.

What to do if the power cord is damaged?

Do not use it. Have the cord replaced by the manufacturer, its service center, or a qualified person to avoid any danger.

USER MANUAL VE112682.8 Emerio

Black and blue vacuum cleaner with a black body and blue handle, displayed against a white background (no text or symbols visible)

Vacuum Cleaner (EN)

Staubsauger (DE)

Aspirateur (FR)

Dammsugare (SE)

Stofzuiger (NL)

Odkurzacz (PL)

Пылесос (RU)

Content – Inhalt – Teneur - Innehåll – Inhoud- Treść – Содержание

Instruction manual – English ...... - 2 -

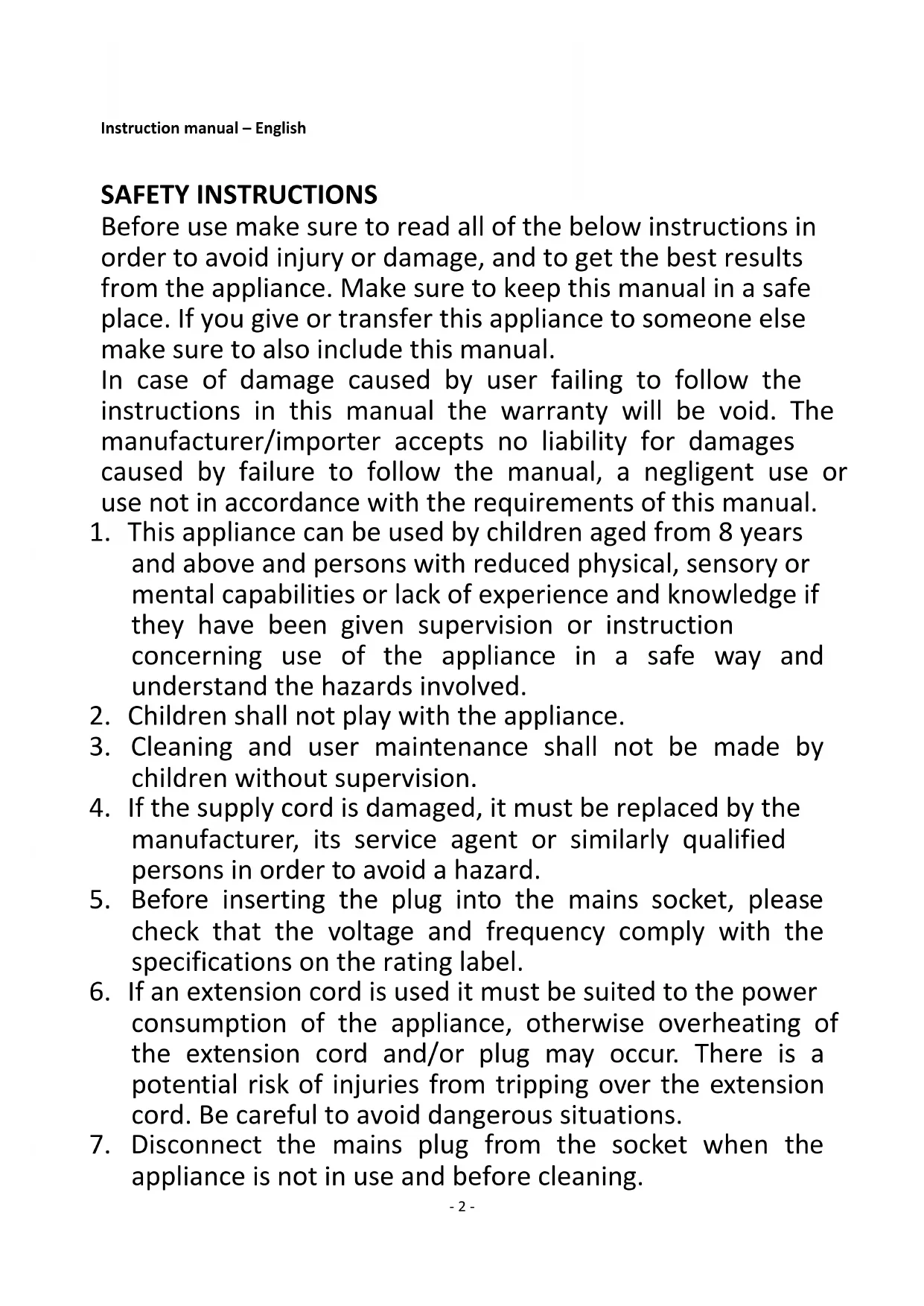

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

7. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

8. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
13. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
14. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
15. Never leave the appliance unattended during use.
16. This appliance is not designed for commercial use.
17. Do not use the appliance for other than intended use.
18. Do not wind the cord around the appliance and do not bend it.
19. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
20. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
21. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
22. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.

23. Do not use this appliance without dust bag or filters in place.

24. Use extra care when vacuuming on stairs.

25. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
26. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
27. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
28. Keep your work area well dry.
29. Do not use the cleaner to clean your pets or any animal.
30. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters and change the dust bag.
31. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
32. Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

The general purpose vacuum cleaner (model VE-112682.8), has been tested according to EN 60312-1 and complies with the essential requirements of regulation (EU) 666/2013 for vacuum cleaners.

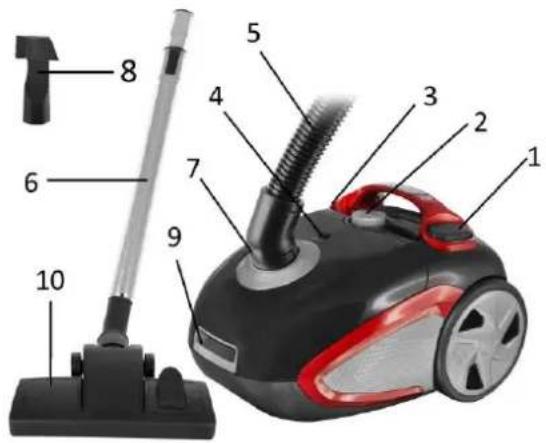

PARTS AND ACCESSORIES

1. On/off switch pedal
2. Speed control button
3. Cord rewinder pedal
4. Dust full indicator
5. Hose
6. Metal telescopic tube
7. Hose connector
8. Combi nozzle
9. Locking clip of front cover
10. Floor brush

OPERATING MODE

1. Connect the hose accessories: Press the adaptors at both side of the hose end, and then insert the hose into the hose socket.
2. Connect the extension tube to the curved hose end. Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floorbrush has two positions, one for hard/even and one for soft/textile surfaces – Choose the right one.
3. Turn on the appliance: Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power. Adjust the power to the required level depending on the cleaning function.
4. Turn off the appliance: After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket; press the cord rewind pedal, the power cord will be drawn in.
5. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.
6. Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

MAINTENANCE

When the dust full indicator turns to red, it is time to clean the dust bag or replace with a new bag. To do that, please follow the instructions:

a) Open the front cover by pressing the lock clip.
b) Remove the dust bag.
d) Close the front cover.

c) Throw the full bag away. Then take a new one, insert it into the bag holder and put it in the slot of the cabinet.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right position.

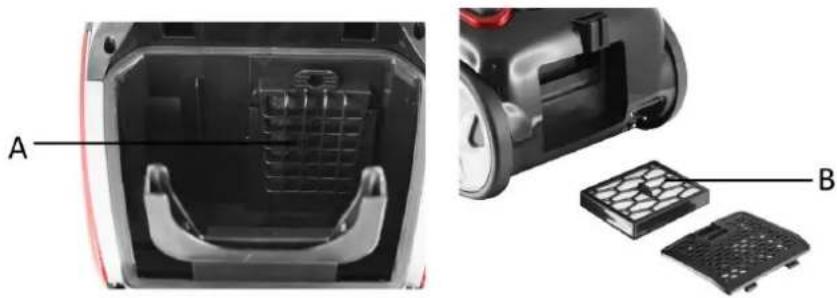

2. The motor protection filter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced.

3. The outlet filter (Hepa filter) (B) should be cleaned in time. To do that, unclip the outlet grille, shake the filter to clean any dust accumulated. Then relocate the filter and clip the grille.

Interior and exterior views of a compact car showing internal compartments and labeled parts (A and B), no text or symbols present.

1. If the suction power of the vacuum cleaner gets low please check the hose for obstacles.

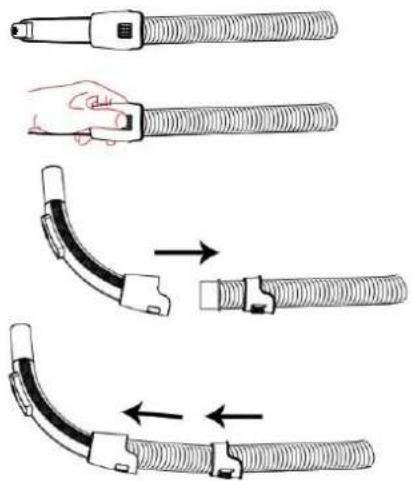

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

POWER CORD MARKING

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length. WARNING: the plug must be removed from the power socket before any maintenance or replacement.

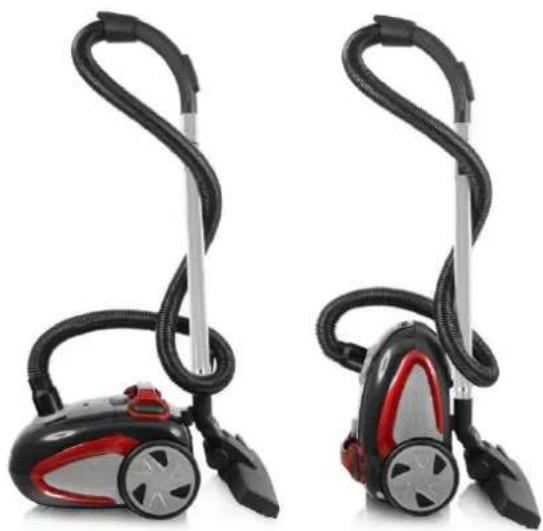

Parking:

This vacuum cleaner can be parked as below styles to save you room space.

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

FUNKTIONSWEISE

Interior view of a compact car with labeled parts A and B, showing internal components (no text or symbols beyond labels)

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNISCHE DATEN

MODE DE FONCTIONNEMENT

Interior view of a vacuum cleaner with labeled parts A and B, showing internal structure and component details (no text or symbols beyond labels)

MARQUE DU CORDON ÉLECTRIQUE

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50/60Hz

Puissance: 800W

GARANTIE ET SERVICE APRÈS-VENTE

ANVÄNDNINGSLÄGE

Interior view of a robotic vacuum cleaner showing internal components and labeled parts (A and B), no text or symbols present.

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TEKNISKA DATA

Driftsspänning: 220-240V \~ 50/60Hz

Effekt: 800W

GARANTI OCH KUNDTJÄNST

BEDIENINGSWIJZE

Interior and exterior views of a vacuum cleaner showing internal components (no text or symbols)

MARKERING OP DE VOEDINGSKABEL

Two identical black and red vacuum cleaner units with coiled tubing, shown against a white background (no text or symbols visible)

TECHNISCHE GEGEVENS

Power consumption: 800W

GARANTIE EN KLANTENSERVICE

SPOSÓB DZIAŁANIA

Interior and exterior views of a compact electric vacuum cleaner (no text or symbols visible)

Two identical black and red vacuum cleaner units with coiled tubing, shown against a white background (no text or symbols visible)

DANE TECHNICZNE

УПРАВЛЕНИЕ ПРИБОРОМ

Interior and exterior views of a compact electric vehicle showing internal components (no text or symbols)

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)
