WM110984.4 - Waffle Maker Emerio - Free user manual and instructions

USER MANUAL WM110984.4 Emerio

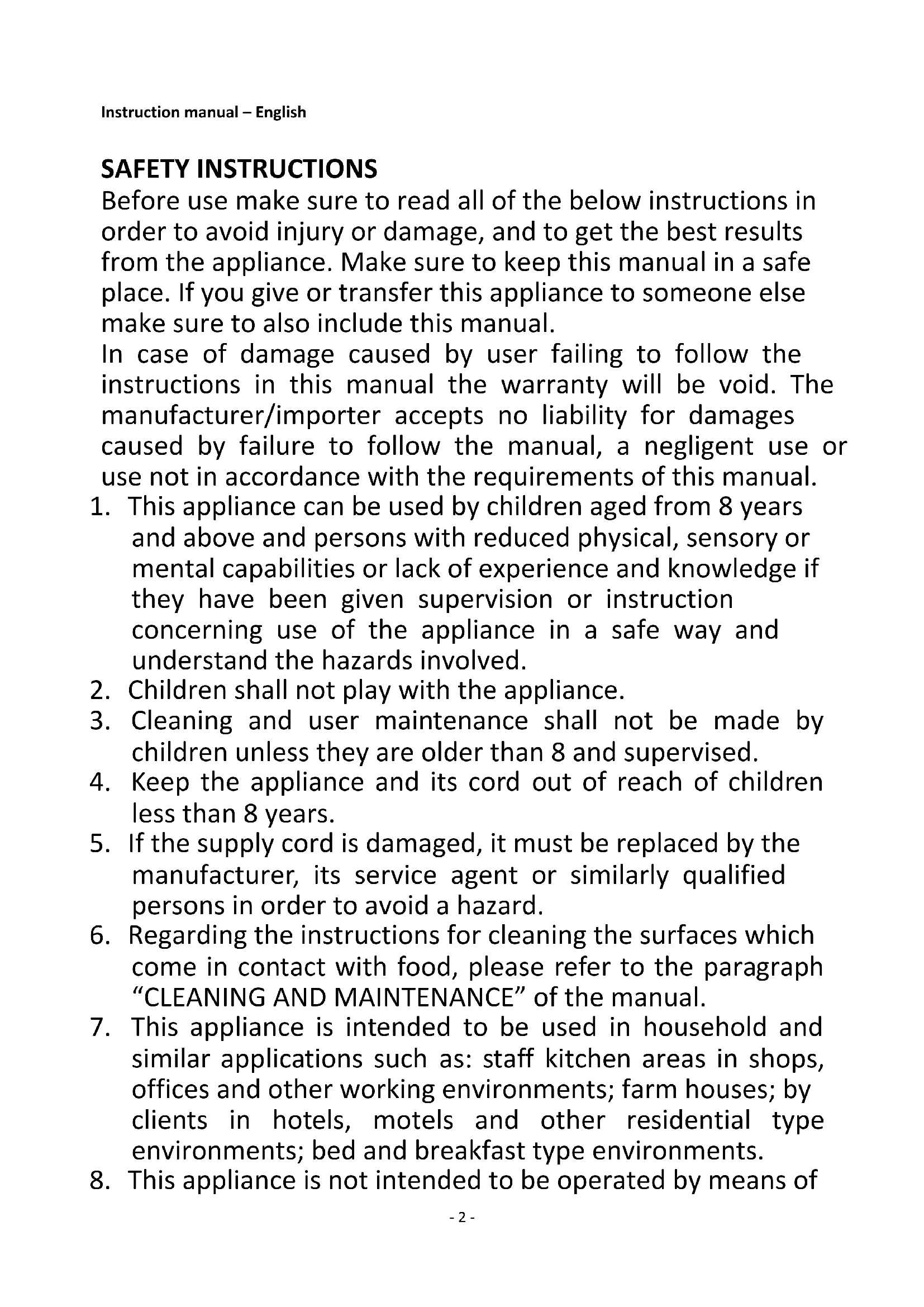

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which

come in contact with food, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

7. This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

8. This appliance is not intended to be operated by means of- 3 -

an external timer or separate remote-control system.

9. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not

22. Place the appliance on a stable, level surface from which it

23. If you use products with non-stick surfaces, please make

sure no birds are in the same room and that the room can be completely closed off and well-ventilated.- 4 -

24. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 5 - WM-110984.4 EN

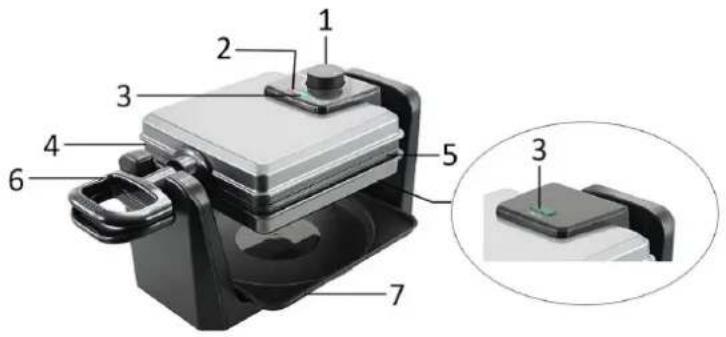

3. Heat lights (at both sides)

4. Upper heating surface

5. Lower heating surface

2. Clean the heating surfaces with a soft damp cloth then dry them.

3. Uncoil the mains cable completely.

4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Put the appliance on a level and heat-resistant surface. Place the drip tray into its place under the plates.

2. Plug the device to an appropriate socket. The red light illuminates to indicate power is connected.

3. Switch the thermostat control knob to “Max” for preheating, and the green lights turn on. After about 3-5

minutes, the appliance has heated up and the green lights will turn off. Now you can begin waffle making.

4. Open the appliance by the handle. Note that the appliance can only be opened when the thermostat

control knob faces upwards.

5. Add some butter onto the grill plates if you like.

6. Pour the prepared batter onto the lower heating surface and distribute it evenly.

7. Hold the upper heating surface at the handle and fully close the waffle machine.

8. Hold both handles and rotate in the direction as indicated by the arrow on the handle. Don’t use force

when rotating as this can damage the handle.

9. You can switch the thermostat control knob to select a desired heating level. The green lights turn on

when the appliance is heating and turn off when the selected heating level is reached.

10. Bake the waffle for approximate 4-6 minutes depending upon the heating level you chose and the degree

of browning required.

11. Rotate the plates back to the position with the thermostat control knob facing upwards, and check the

status of the waffle. If darker waffle required, close up the plates and continue baking until the desired color is achieved.

12. Remove the waffle with a plastic spatula when the waffle is ready. Do not use any metal objects (e.g. knife,

fork etc.) as they will scratch the coating of the heating surface.

13. If you wish to bake more waffles, pour in more batter immediately.

14. When you have finished baking, remove the mains plug from the outlet.

Note! The appliance can only be opened by handle when the thermostat control knob faces upwards. The two green lights turn on and off synchronously when indicating the status. You can put the cooled waffle back into the appliance and select the “KEEP WARM” setting to warm the waffle for eating. Do not open the appliance less than one and a half minutes after you put into the batter. Opening the lid too soon will cause the under-baked waffle to split.- 6 - Ingredients The waffle batter: (minimum 12 waffles)

• 450g self-raising flour

• a pinch of salt Preparation

• Weigh all the ingredients carefully.

• Take two large mixing bowls and separate the eggs, the egg yolks go into the bowl for the batter, the egg whites we stiffen later. (Note: You can also use a food processor with whisk for preparing the batter.)

• Whisk the egg yolks here with a whisk.

• Then add the right amount of milk and fresh yeast to it. Beat with the whisk until the yeast has dissolved.

• Pour the lukewarm water into the batter.

• Sift the flour, then into the mixing bowl, and stir with the whisk until the batter is free of lumps.

• Put the measured quantity of butter in a saucepan. Let it melt on low heat.

• Pour the melted butter to the batter and stir in the meantime with the whisk.

• Beat the egg whites to a stiff foam. Use a clean whisk and make sure that the bowl is degreased with a few drops of lemon juice and a pinch of salt. (Again, you can use a food processor with whisk.)

• Fold in the whipped egg whites into the batter. Do it gently to keep as much air as possible in the batter.

• Finally, sprinkle a pinch of salt in the batter and fold gently one last time.

• Set aside the waffle batter in a warm draft-free spot and leave it for 20 minutes.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!

2. Do not commence cleaning until the device has cooled down completely.

3. Remove and clear up the drip tray. The drip tray can be washed in warm soapy water or by a dish-washer.

4. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the

water directly onto the baking surfaces.

5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.

6. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the- 7 - instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
