Product Type	Waffle Maker
Brand	Emerio
Model	WM-122535
Color	Black/Silver
Housing Material	Plastic with stainless steel accents
Plate Material	Non-stick coated aluminum
Power Consumption	800 W
Voltage	220-240 V
Frequency	50-60 Hz
Dimensions (L x W x H)	25 x 20 x 10 cm
Net Weight	1.5 kg
Cord Length	0.8 m
Number of Waffles per Batch	1 round waffle
Plate Shape	Round, classic grid pattern
Temperature Control	Adjustable thermostat (5 settings)
Indicator Lights	Power and ready lights
Auto Shut-off	No
Non-slip Feet	Yes
Cool-touch Handle	Yes
Cleaning Method	Wipe with damp cloth; do not immerse
Dishwasher Safe Plates	No
Warranty	1 year
Certifications	CE, RoHS

Frequently Asked Questions - WM-122535 Emerio

How do I use the Emerio WM-122535 waffle maker for the first time?

Before first use, wipe the plates with a damp cloth. Heat the waffle maker empty for about 10 minutes to remove any manufacturing residues, then let it cool and wipe again.

What batter consistency should I use?

Use a medium-thick batter similar to pancake batter. Overly thin batter may leak out, while thick batter may not cook evenly.

How do I adjust the temperature?

Turn the temperature dial to your desired setting. Lower settings for lighter waffles, higher for darker and crispier. The ready light will indicate when the set temperature is reached.

What does the indicator light mean?

The power light stays on when the appliance is plugged in. The ready light turns on when the plates reach the set temperature and turns off during cooking.

Can I use cooking spray on the plates?

Yes, but sparingly. The non-stick coating usually requires little to no oil. Excess spray can build up and affect performance.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth or sponge. Do not use abrasive cleaners or immerse in water. For stuck residue, use a wooden or silicone spatula.

Why are my waffles sticking?

Ensure the plates are preheated and lightly greased. If sticking persists, the non-stick coating may be damaged. Avoid metal utensils.

Can I cook other foods in the waffle maker?

Yes, you can make chaffles (cheese waffles), hash browns, or even grilled sandwiches. Use appropriate batters and monitor cooking time.

What is the warranty period?

The Emerio WM-122535 comes with a 1-year limited warranty against manufacturing defects. Keep your purchase receipt.

How do I store the waffle maker?

Allow it to cool completely, wrap the cord around the base, and store in a dry place. Avoid placing heavy objects on top.

USER MANUAL WM-122535 Emerio

Pink electric grill with red strap, no visible text or symbols on body

Waffle maker (EN)

Waffeleisen (DE)

Våffeljärn (SE)

Wafelijzer (NL)

Vohvelirauta (FI)

Vaffeljern (NOR)

Vaffeljern (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type

environments; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
2. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
7. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
10. Never leave the appliance unattended during use.
11. This appliance is not designed for commercial use.
12. Do not use the appliance for other than intended use.
13. Do not wind the cord around the appliance and do not bend it.

14. Place the appliance on a stable, level surface from which it cannot fall off.

15. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

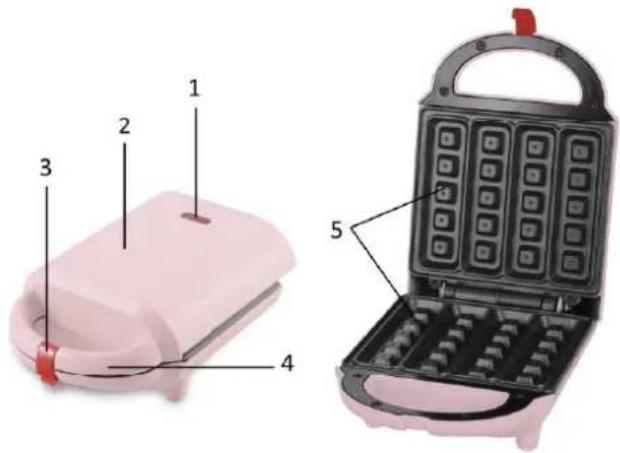

PARTS DESCRIPTION

1. Indicator light
2. Housing
3. Handle lock
4. Handle
5. Non-stick cooking plate

BEFORE FIRST USE

1. Remove all packaging material.
2. Clean the heating surfaces with a soft damp cloth then dry them.
3. Uncoil the mains cable completely.
4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Connect the device to an appropriate socket. The indicator light illuminates.
2. As soon as the required temperature is reached, the indicator light will be off and then you can begin waffle making.
3. Open the appliance at the handle by unlocking the handle lock.
4. Add some butter onto the grill plates before each use.
5. Pour the prepared dough onto the lower heating surface and distribute it evenly. Please ensure that the dough does not flow over the edge of the heating surface.
6. Hold the upper heating surface at the handle and close the waffle machine. Make sure that the handle lock is engaged.
7. Bake the waffle for approx 3-5 minutes depending upon the degree of browning required.
8. Open the waffle machine as described above and remove the waffle with a plastic spatula. Do not use any metal objects (e.g. knife, fork etc.) as they will scratch the coating of the heating surface.
9. If you wish to bake more waffles, pour in more dough immediately.
10. When you have finished baking, remove the mains plug.

Recipe

Ingredients

The waffle batter: (minimum 12 waffles)

• 450g self-raising flour
- 3 eggs
- 150 g melted butter
- 375 g of milk
• 375 g lukewarm water
- 20 g of fresh yeast
- a pinch of salt

Preparation

• Weigh all the ingredients carefully.
• Take two large mixing bowls and separate the eggs, the egg yolks go into the bowl for the batter, the egg whites we stiffen later. (Note: You can also use a food processor with whisk for preparing the batter.)

• Whisk the egg yolks here with a whisk.
• Then add the right amount of milk and fresh yeast to it. Beat with the whisk until the yeast has dissolved.
• Pour the lukewarm water into the batter.
• Sift the flour, then into the mixing bowl, and stir with the whisk until the batter is free of lumps.
• Put the measured quantity of butter in a saucepan. Let it melt on low heat.
• Pour the melted butter to the batter and stir in the meantime with the whisk.
• Beat the egg whites to a stiff foam. Use a clean whisk and make sure that the bowl is degreased with a few drops of lemon juice and a pinch of salt. (Again, you can use a food processor with whisk.)
• Fold in the whipped egg whites into the batter. Do it gently to keep as much air as possible in the batter.
  • Finally, sprinkle a pinch of salt in the batter and fold gently one last time.
• Set aside the waffle batter in a warm draft-free spot and leave it for 20 minutes.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the water directly onto the baking surfaces.
4. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.
5. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 460W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

ANVÄNDARINSTRUKTIONER

GEBRUIKSINSTRUCTIES

KÄYTTÖ OHJEET

BRUKSANVISNING

1. Koble enheten til en passende stikkontakt. indikatoren lyser.
2. Så snart ønsket temperatur er nådd, vil indikatorlampen væ re av, og deretter kan du begynne å lage vaffel.
3. Åpne apparatet ved håndtaket ved å läse opp håndtakslåsen.
4. Tilsett litt smør på grillplatene før hver bruk.
5. Hell den tilberedte deigen på den nedre varmeflaten og fordel den jevnt. Vennligst sørg for at deigen ikke renner over kanten av varmeflaten.
6. Hold den øvre varmeflaten ved håndtaket og lukk vaffelmaskinen. Pass på at håndtakslåsen er i inngrep.
7. Stek vaffelen i ca 3-5 minutter avhengig av graden av bruning som er nødvendig.
8. Åpne vaffelmaskinen som beskrevet ovenfor og fjern vaffelen med en plastspatel. Ikke bruk metallgjenstander (f.eks. kniv, gaffel osv.), da de vil ripe opp belegget på varmeoverflaten.
9. Hvis du ønsker å bake flere vafler, hell i mer deig umiddelbart.
10. Når du er ferdig med å bake, ta ut støpselet.

Oppskrift

ingredienser

Vaffelrøren: (minimum 12 vafler)

• 450g selvhevende mel
• 3 egg
• 150 g smeltet smør
- 375 g melk
• 375 g lunkent vann
• 20 g fersk gjær
- en klype salt

Forberedelse

BRUGSVEJLEDNING
