WM-123634.1 - Waffle Maker Emerio - Free user manual and instructions

Product Type	Waffle Maker
Brand	Emerio
Model	WM-123634.1
Dimensions (Approx.)	25 x 20 x 10 cm
Weight (Approx.)	1.2 kg
Power	900 W
Voltage / Frequency	220-240 V / 50-60 Hz
Cooking Surface	Non-stick coated
Waffle Shape	Round, classic pattern
Indicator Lights	Power on and ready lights
Temperature Control	Adjustable thermostat
Storage	Cord wrap underneath
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Cool-touch handle, auto shut-off
Warranty	2 years limited
Accessories Included	Instruction manual

Frequently Asked Questions - WM-123634.1 Emerio

How do I use the waffle maker for the first time?

Before first use, wipe the plates with a damp cloth to remove any dust. Preheat the waffle maker with the lid closed for about 5 minutes, then discard the first batch of waffles.

Can I use metal utensils on the non-stick surface?

No, do not use metal utensils as they can damage the non-stick coating. Use silicone, wood, or plastic utensils instead.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a soft, damp cloth. Do not immerse in water or use abrasive cleaners.

Why is my waffle batter sticking?

Ensure the plates are properly preheated and lightly greased with a little oil or butter. Also, check that the temperature setting is appropriate for your batter.

How long does it take to cook a waffle?

Typically 3-5 minutes, depending on the temperature setting and batter thickness. The indicator light will signal when ready.

What should I do if the waffle maker smokes?

First use may cause slight smoke from manufacturing residues; this is normal. If persistent, reduce the temperature and ensure the plates are clean.

Can I store the waffle maker upright?

It is recommended to store it flat or with the lid locked closed. Use the cord wrap to keep the cord tidy.

Is the waffle maker suitable for gluten-free batter?

Yes, it works with most batters, but gluten-free batter may be more delicate. Adjust cooking time as needed and ensure the surface is well-greased.

What is the warranty period?

The Emerio waffle maker comes with a 2-year limited warranty against manufacturing defects. Keep your proof of purchase.

Where can I find spare parts?

Contact Emerio customer service or check the official website for spare parts availability. The model number is WM-123634.1.

USER MANUAL WM-123634.1 Emerio

Black frying pan with a red and green button (no visible text or symbols)

Bubble waffle maker (EN)

Bubble-Waffeleisen (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
9. Always plug the appliance into an earthed plug socket.
10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

1. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

5. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.

6. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

7. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

8. Never leave the appliance unattended during use.

9. This appliance is not designed for commercial use.

10. Do not use the appliance for other than intended use.

11. Do not wind the cord around the appliance and do not bend it.

12. Place the appliance on a stable, level surface from which it cannot fall off.

13. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

14. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

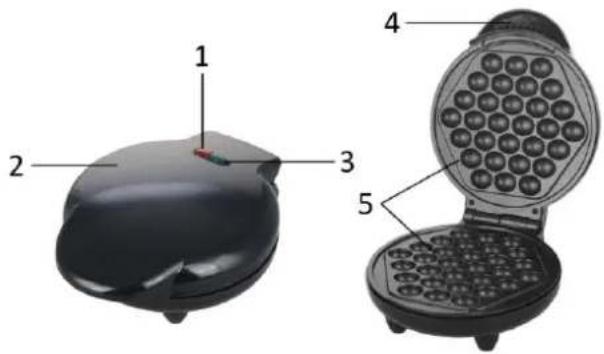

PARTS DESCRIPTION

1. Power light (red)
2. Housing
3. Heating light (green)
4. Handle
5. Non-stick cooking plate

BEFORE FIRST USE

1. Remove all packaging material.
2. Clean the heating surfaces with a soft damp cloth then dry them.
3. Uncoil the mains cable completely.
4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Connect the device to an appropriate socket. Both power light and heating light illuminate.
2. As soon as the required temperature is reached, the heating light will be off and then you can begin waffle making.
3. Open the appliance at the handle.
4. Add some butter onto the grill plates before each use.
5. Pour the prepared dough onto the lower heating surface and distribute it evenly. Please ensure that the dough does not flow over the edge of the heating surface.
6. Hold the upper heating surface at the handle and close the waffle machine.
7. Bake the waffle for approx 3-5 minutes depending upon the degree of browning required. During this period, the heating light will illuminate from time to time.
8. Open the waffle machine as described above and remove the waffle with a plastic spatula. Do not use any metal objects (e.g. knife, fork etc.) as they will scratch the coating of the heating surface.
9. If you wish to bake more waffles, pour in more dough immediately.
10. When you have finished baking, remove the mains plug.

Recipe

Ingredients

The waffle batter: (minimum 12 waffles)

• 450g self-raising flour
• 3 eggs
- 150 g melted butter
- 375 g of milk
• 375 g lukewarm water
- 20 g of fresh yeast
- a pinch of salt

Note: You can also use normal ready waffle mix or any other kind of recipes you find of waffles in this waffle maker.

Preparation

• Weigh all the ingredients carefully.

• Take two large mixing bowls and separate the eggs, the egg yolks go into the bowl for the batter, the egg whites we stiffen later. (Note: You can also use a food processor with whisk for preparing the batter.)

• Whisk the egg yolks here with a whisk.

• Then add the right amount of milk and fresh yeast to it. Beat with the whisk until the yeast has dissolved.
• Pour the lukewarm water into the batter.
• Sift the flour, then into the mixing bowl, and stir with the whisk until the batter is free of lumps.
• Put the measured quantity of butter in a saucepan. Let it melt on low heat.
• Pour the melted butter to the batter and stir in the meantime with the whisk.
• Beat the egg whites to a stiff foam. Use a clean whisk and make sure that the bowl is degreased with a few drops of lemon juice and a pinch of salt. (Again, you can use a food processor with whisk.)
• Fold in the whipped egg whites into the batter. Do it gently to keep as much air as possible in the batter.
• Finally, sprinkle a pinch of salt in the batter and fold gently one last time.
• Set aside the waffle batter in a warm draft-free spot and leave it for 20 minutes.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the water directly onto the baking surfaces.
4. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.
5. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
