Product type	12 V DC voltage converter (transformer)
Reference	10698 (KA 6)
Input power supply	100-240 V AC, 50/60 Hz, max. 1.8 A
Output power supply	12 V DC, 6.0 A
Protection class	II (double insulation)
Protection rating	IP20 (protected against solid objects >12.5 mm)
Output connector	12 V cigarette lighter socket
Main functions	Conversion of mains power to DC power for 12 V devices (e.g., portable refrigerator, cooler)
Usage	Plug in the mains plug, then connect the 12 V device to the cigarette lighter socket
Safety	Do not cover, avoid moisture, do not use if damaged, unplug after use
Maintenance and cleaning	Clean with a soft dry cloth, store in a clean dry place
Duration of use	Not designed for prolonged use (risk of overheating)
Compatibility	12 V devices up to 6 A (72 W)
Spare parts and repairability	Do not disassemble or repair yourself; contact a specialized workshop
General information	Brand AEG, model 10698. User manual included.

Frequently Asked Questions - 10698 AEG

What type of device can I plug into this converter?

You can plug any device that operates on 12 V DC and does not exceed 6 A (72 W), such as a cooler, battery charger, or small portable refrigerator.

Can this converter be used outdoors?

No, it is rated IP20, so protected against solid objects but not against water. Use it only in a dry place sheltered from the elements.

Can I leave the converter plugged in all the time?

No, it is not designed for prolonged use. Unplug it after use to avoid overheating and damage.

What should I do if I smell burning or see smoke?

Stop using it immediately, unplug the device and have it checked by a specialized electrician. Do not reuse without inspection.

Is this converter compatible with a car battery?

No, it converts mains power (100-240 V AC) to 12 V DC. To use a 12 V battery, you need a different type of device (charger or inverter).

Can I open the case to repair it?

No, do not open it: it contains live parts and any opening voids the warranty. Entrust any repairs to an authorized workshop.

What does protection class II mean?

This means the device has double insulation and does not require grounding. It offers enhanced protection against electric shock.

How do I clean the converter?

Use a soft dry cloth. Never use water or any liquid product, as it could seep in and cause a short circuit.

Can I use an adapter for the cigarette lighter socket?

Yes, you can use an adapter or extension cord for the cigarette lighter socket, provided it supports 6 A and the cable is not damaged.

How do I dispose of this device at end of life?

Do not throw it in household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with Directive 2012/19/EU.

USER MANUAL 10698 AEG

Simple line drawing of an electrical component with a bulb, plug, and terminal outlet (no text or symbols)

AEG

DE - Seite 3

Read these instructions before using the charger. Follow all instructions and recommendations.

FR - Page 19

Diagram of a medical or electrical device with labeled components: battery, plug, and connector parts.

Technical specifications ....13

Safety....14

Jumpstarting 16

Connecting....16

Starting 16

Disconnecting 17

Cleaning, care and maintenance....17

Service....17

Disposal....18

INTRODUCTION

Explanation of symbols and signal words used in these operating instructions and/or the device:

Follow instructions when using the device.

Risk of injury or death for children!

Attention - Danger! Follow safety instructions and warnings!

Only use this device at weatherproof locations!

Double-insulated housing (protection class II)

Short-circuit-proof safety isolating transformer

Switched-mode power supply

IP20

Protected against solid objects, e.g. finger

Polarity of the direct current connection

Dispose of equipment and packaging in an environmentally friendly manner!

CE

This equipment complies with EU directives

Note:

This operating manual also refers to the voltage converter as device.

Normal use

The voltage converter is intended to convert 100-240 V alternating current to 12 V direct current. External devices can be connected via car plug (12 V).

This device is not intended for use by children or persons with limited mental capacity or lacking experience and/or lacking expertise. Children should be supervised to ensure they do not play with the device.

This device is not intended for commercial use.

Any other use or modification of the device is considered improper and involves significant risks. The manufacturer assumes no liability for damages due to improper use.

Contents

Be sure to verify contents immediately upon opening the product. Check the product and all parts for damage. Do not use a defective product or parts.

Voltage converter KA 6

Bedienungsanleitung

Please include all relevant documentation to other users!

Technical specifications

Type KA 6
Item No. 10698
Input voltage 10	0-240 V AC;50/60 Hz
Input current max. 1.8 A
Output voltage	12 V DC
Output current	6.0 A
Protection class	II
Housing protection	IP20

SAFETY

General Safety Guidelines

Read all safety guidelines and instructions. Non-compliance with safety guidelines and instructions can cause electric shock, fire and / or serious injury. Keep all safety guidelines and instructions for future reference.

Warning!

Risk of bodily or fatal injury to children! Risk of suffocation or strangulation! Keep the machine out of the reach of children. Children are unable to assess the risks associated with use of this product!

Danger!

Damaged leads may cause fatal electric shock. Dis-continue use if leads are damaged.

The manufacture is not responsible for damages caused by:

Improper connection and/or operation.

External forces, damage to the device and/or damage to parts of the device due to mechanical impacts or overload.

Any type of modifications to the device.

Using the device for purposes not described in this operating manual.

Subsequent damages from improper and/or incorrect use and/or defective batteries.

Moisture and/or inadequate ventilation.

Unauthorised opening of the device.

Fire hazard!

Be sure the supply voltage matches the input voltage specified on the device (100-240 VAC) to prevent damage to the device.

The device is not suitable for continuous use. Otherwise overheating and permanent damage may result.

Do not cover the device during use, as it may be damaged from extreme heating.

Immediately stop using the device if you notice smoke or an unusual odour.

Risk of electrical shock!

Do not expose the product to rain or moist conditions. Avoid spilling or dripping water or other liquids on it. Water entering electrical

devices will increase the risk of electric shock.

Ensure that all plugs and cables are free of moisture. Never connect the device to the mains with wet or moist hands.

Do not use device if damaged. Damage to the device or the charging cable increases the risk of electrical shock.

Do not attempt to dis- assemble or repair the device. Immediately have the device repaired or re- placed by a speciality shop if defective.

Always unplug device by the plug. The cable may be damaged.

Never use the cable to carry or pull the device.

Route the power cable so it does not pose a tripping hazard and to prevent cable damage.

Avoid short-circuits and bridging with foreign objects between the inputs and outputs of the voltage converter.

Never operate the device if it has been dropped or damaged in any other way. For inspection and repair, take it to a qualified electrician.

Risk of injury!

When transporting the device in a vehicle, keep it secured in the boot or a suitable storage area to prevent it from moving in the event of sudden vehicle movement.

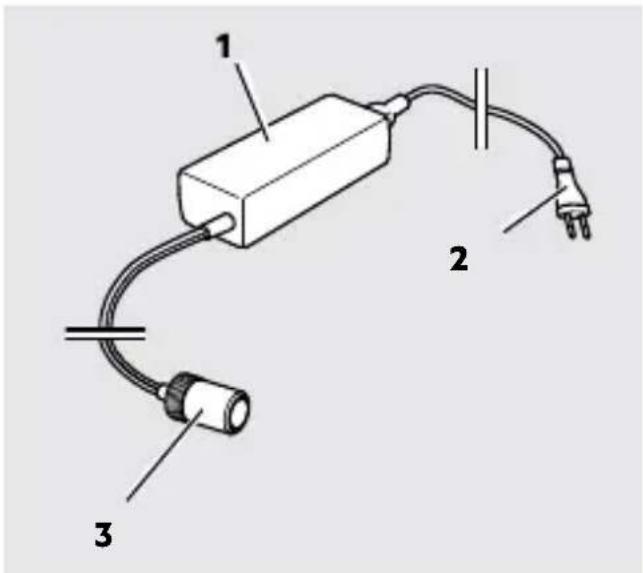

PRODUCT OVER- VIEW

Diagram of a medical or electrical device with labeled components: bulb, plug, and connector

1. 12 V DC power supply
2. 230 V power plug
3. 12 V car socket

USE

Information about use

Do not cover the device during use and ensure proper ventilation.

Connecting the device

Plug the 230 V mains plug (2) into a mains socket. Always disconnect the 230 V mains plug (2) from the power source when the voltage converter is not in use.

Connecting external devices

1. Insert the plug of the external device into the 12 V socket (3) on the voltage converter.
2. Now switch on the (external) devices connected to the voltage converter.

CLEANING,

CARE AND

MAINTENANCE

Minimal care will ensure your device remains functional for years.

●Carefully wind the cable when storing the device. This will help prevent accidental damage to the cable and the device.
●clean the product with a soft, dry cloth.
Store the machine in a clean, dry place.

Service

Should you have any questions regarding commissioning or operating in spite of studying these operating instructions, or if a problem should occur against all expectations, please get in contact with your specialist supplier.

Disposal

The packaging consists of non-contaminating materials that you can dispose of at your local recycling point.

Do not throw electrical appliances in with domestic waste!

In accordance with European Directive 2012/19/EC for waste electrical and electronic equipment (WEEE) and conversion to national law, used electrical appliances must be collected separately and taken to a recycling point. For ways to dispose of old electrical appliances please contact your community or city administration.

Illustrations may vary slightly from the product itself. We reserve the right to modify the product in accordance with technical advances. Decoration not included.

TABLE DES MATIÈRES

Introduction 20

Diagram of a medical or electrical device with labeled components: bulb, plug, and connector

Diagram of a medical or electrical device with labeled components: battery, plug, and bulb.

1. Alimentatore 12 V CC
2. Spina 230 V
3. Presa auto 12 V

USO

Note per l'uso

34 www.aeg-automotive.com

Smaltimento

Diagram of a medical or electrical device with labeled components: two connected devices and a terminal plug.

Diagram of a medical or electrical device with labeled components: plug, bulb, and terminal connections.

Diagram of a medical or electrical device with labeled components: plug, bulb, and terminal connections.

www.aeg-automotive.com
